Page 8 of 482
For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
ix
Page
1Door lock switch and power window
switches 28, 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Driving position memory switches 178. . . . . . . . . . .
3Power rear view mirror control switches 183. . . . . .
4Side vents 205. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5Instrument panel light control dial 68. . . . . . . . . . . . . .
6Headlight, turn signal and
fog light switches 34, 37, 40, 41. . . . . . . . . . . . . . . . . . .
7Multi-information display control switches 66. . . . .
8Ignition switch 268. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9Wiper and washer switches 41. . . . . . . . . . . . . . . . . . . .
10Seat heater switches 56. . . . . . . . . . . . . . . . . . . . . . . . . .
11Emergency flasher switch 54. . . . . . . . . . . . . . . . . . . . .
12Clock 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13Car audio 211, 235. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14Front passenger's seat belt reminder light 57. . . . . .
15AIRBAG OFFº indicator light 152. . . . . . . . . . . . . . . .
16AIRBAG ONº indicator light 152. . . . . . . . . . . . . . . . . Page
17Security indicator light 16, 30. . . . . . . . . . . . . . . . . . . .
18Glove box 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Automatic air conditioning controls 192. . . . . . . . . .
20Rear window and outside rear view mirror
defogger switch 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21Ashtray 75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22Automatic transmission selector lever 272. . . . . . . .
23Rear electric sunshade switch 88. . . . . . . . . . . . . . . . .
24Electronic modulated suspension
control switch 282. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25Traction control system off switch 284. . . . . . . . . . .
26Cruise control switch 279. . . . . . . . . . . . . . . . . . . . . . .
27Power adjustable pedals switch 181. . . . . . . . . . . . . .
28Parking brake pedal 269. . . . . . . . . . . . . . . . . . . . . . . . .
29Auxiliary box 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Hood lock release lever 92. . . . . . . . . . . . . . . . . . . . . . .
31Trunk lid opener 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32Fuel filler door opener 96. . . . . . . . . . . . . . . . . . . . . . . . .
Page 14 of 482
PICTORIAL INDEX
xv
EXTERIOR VIEW
Page
1Rear window defogger 49. . . . . . . . . . .
2Trunk lid 93. . . . . . . . . . . . . . . . . . . . . . . .
3Tire and wheel 389. . . . . . . . . . . . . . . . .
4Moon roof 99. . . . . . . . . . . . . . . . . . . . . .
5Outside rear view mirror 182. . . . . . . .
6Fuel filler door 96. . . . . . . . . . . . . . . . . .
7Door 26. . . . . . . . . . . . . . . . . . . . . . . . . . .
8Headlights 34, 37, 434. . . . . . . . . . . . . .
9Hood 92. . . . . . . . . . . . . . . . . . . . . . . . . . .
10Wiper and washer 41, 432. . . . . . . . . .
For detailed information, refer to the
description given in each Section.
Page 48 of 482
SECTION 1 ± 2
33
INSTRUMENTS AND CONTROLS
Switches
Headlight switch (U.S.A.)34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight switch (Canada)37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fog light switch41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defogger switch49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power window switches51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 64 of 482
SWITCHES
49

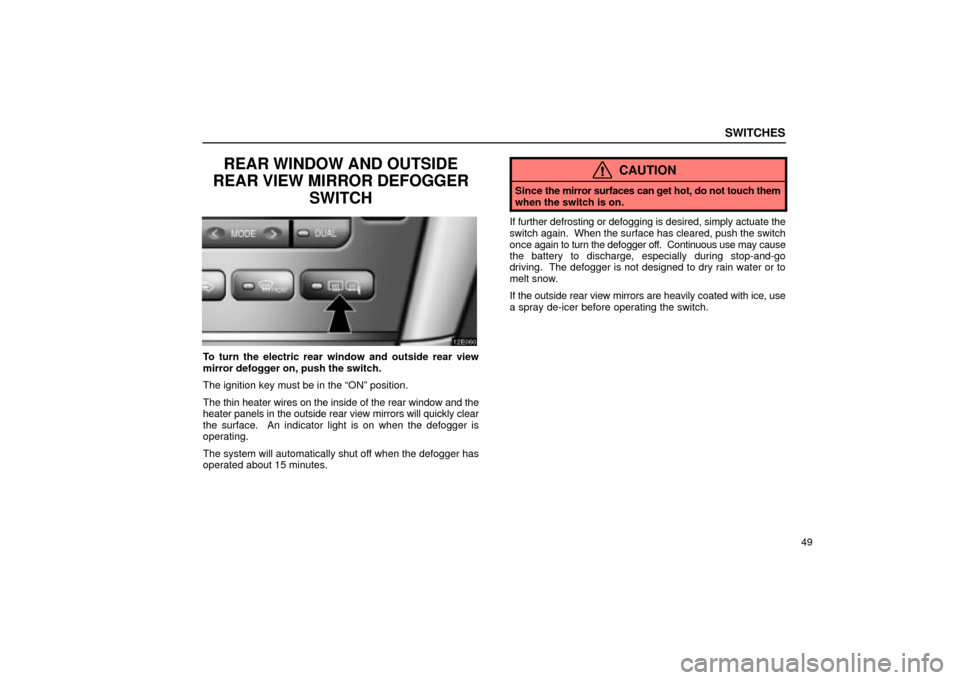

REAR WINDOW AND OUTSIDE
REAR VIEW MIRROR DEFOGGER
SWITCH
To turn the electric rear window and outside rear view
mirror defogger on, push the switch.
The ignition key must be in the ONº position.
The thin heater wires on the inside of the rear window and the
heater panels in the outside rear view mirrors will quickly clear
the surface. An indicator light is on when the defogger is
operating.
The system will automatically shut off when the defogger has
operated about 15 minutes.
CAUTION
Since the mirror surfaces can get hot, do not touch them
when the switch is on.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop-and-go
driving. The defogger is not designed to dry rain water or to
melt snow.
If the outside rear view mirrors are heavily coated with ice, use
a spray de-icer before operating the switch.
Page 203 of 482
OCCUPANT RESTRAINT SYSTEM
178
DRIVING POSITION MEMORY
SYSTEM
The microcomputer can memorize the positions of the driver's
seat, accelerator and brake pedals, and outside rear view
mirrors. Two different driving position profiles can be entered
into the computer's memory.
Recording a driving position in the computer's memory can
only be done when the ignition key is in the ONº position and
the selector lever is in the Pº position.

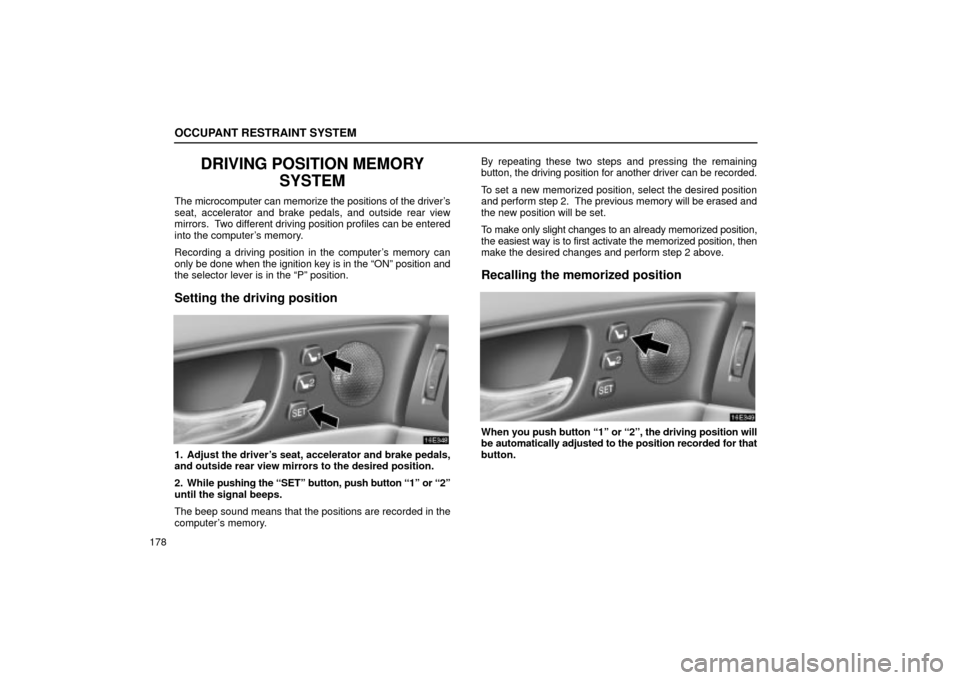

Setting the driving position
1. Adjust the driver's seat, accelerator and brake pedals,
and outside rear view mirrors to the desired position.
2. While pushing the SETº button, push button 1º or 2º
until the signal beeps.
The beep sound means that the positions are recorded in the
computer's memory.By repeating these two steps and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
When you push button 1º or 2º, the driving position will
be automatically adjusted to the position recorded for that
button.
Page 205 of 482
SECTION 1 ± 7
180
INSTRUMENTS AND CONTROLS
Steering wheel and mirrors
Tilt steering wheell181 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power adjustable pedals181 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors182 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror184 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 207 of 482
STEERING WHEEL AND MIRRORS
182When you set your driving position:
1. Set the parking brake firmly.
2. Move the accelerator and brake pedals to the front most
position.
3. Adjust the seat position and steering wheel angle properly.
(See pages 108 and 181.)
4. Move the pedals toward you until you can fully depress the
brake pedal.
5. After adjusting, depress the pedals a few times to get used
to the feel.
CAUTION
Never put your foot on the accelerator pedal while the
pedals are moving. It may cause racing of the engine
or sudden acceleration.
Make sure that you can fully depress the brake pedal
before driving. Otherwise, you may not be able to
hold down the brake pedal firmly in an emergency
stop.

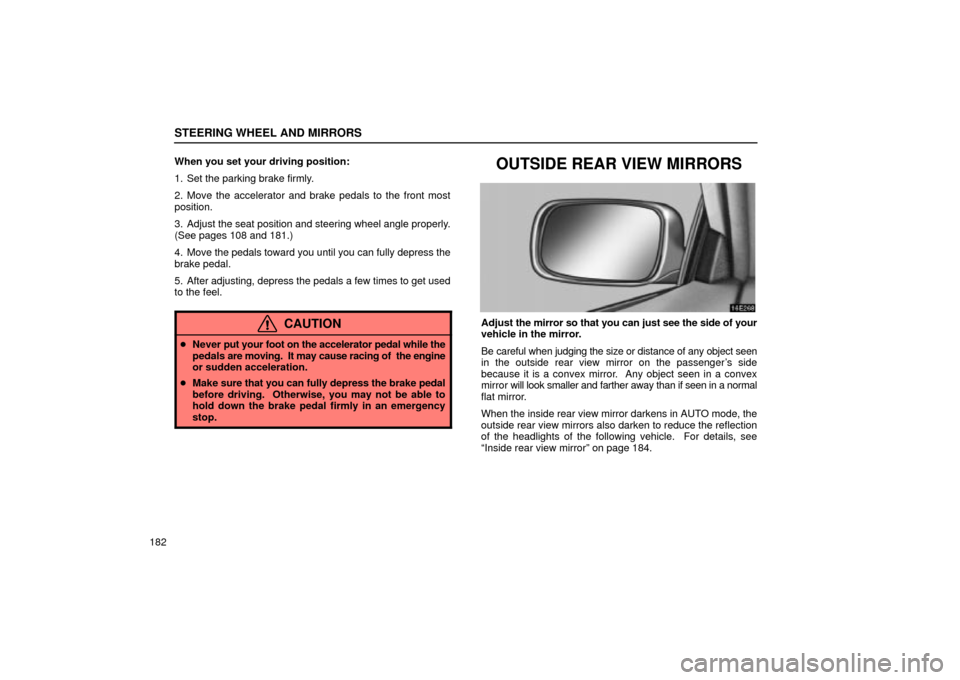

OUTSIDE REAR VIEW MIRRORS
Adjust the mirror so that you can just see the side of your
vehicle in the mirror.
Be careful when judging the size or distance of any object seen
in the outside rear view mirror on the passenger's side
because it is a convex mirror. Any object seen in a convex
mirror will look smaller and farther away than if seen in a normal
flat mirror.
When the inside rear view mirror darkens in AUTO mode, the
outside rear view mirrors also darken to reduce the reflection
of the headlights of the following vehicle. For details, see
Inside rear view mirrorº on page 184.
Page 208 of 482
STEERING WHEEL AND MIRRORS
183 When you push the rear window and outside rear view mirror
defogger switch, the heater panels in the outside rear view
mirrors will quickly clear the mirror surface. (See Rear window
and outside rear view mirror defogger switchº on page 49.)
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the
vehicle and an accident may occur resulting in death
or serious injuries.
Since the mirror surfaces can get hot, do not touch
them when the rear window and outside rear view
mirror defogger switch is on.

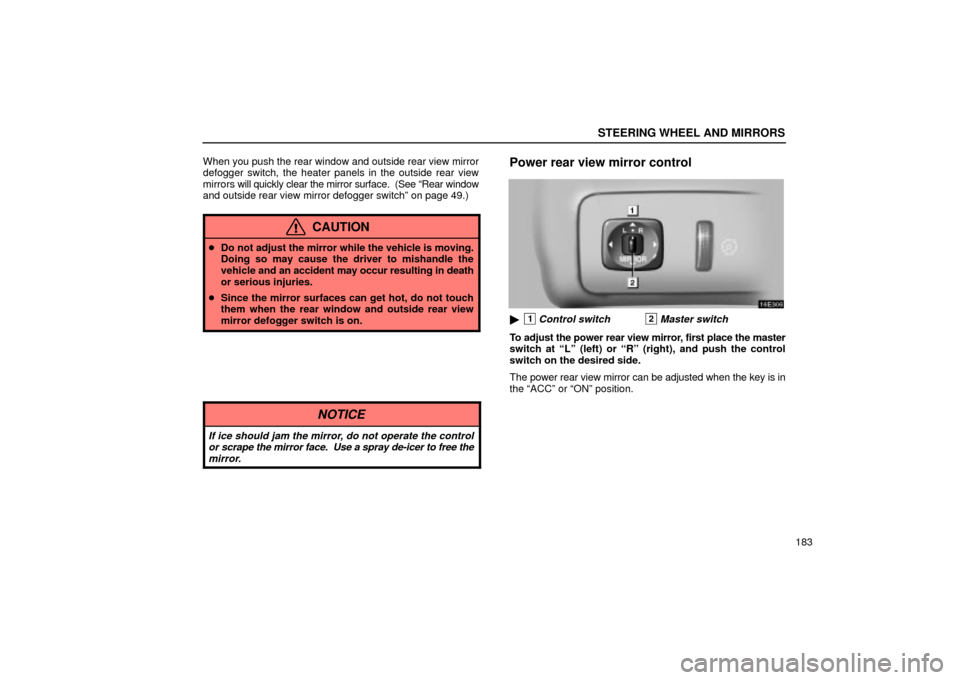

Power rear view mirror control
1Control switch2Master switch
To adjust the power rear view mirror, first place the master
switch at Lº (left) or Rº (right), and push the control
switch on the desired side.
The power rear view mirror can be adjusted when the key is in
the ACCº or ONº position.
NOTICE
If ice should jam the mirror, do not operate the control
or scrape the mirror face. Use a spray de-icer to free the
mirror.
Page 209 of 482
STEERING WHEEL AND MIRRORS
184
Folding rear view mirrors
To fold the rear view mirror, push backward.
The rear view mirrors can be folded backward for parking in
compact areas.
CAUTION
Do not drive with the mirrors folded backward. Both the
driver and passenger side rear view mirrors must be
extended and properly adjusted before driving.
INSIDE REAR VIEW MIRROR
Adjust the mirror so that you can just see the rear of your
vehicle in the mirror.
Pushing the MIRRORº switch changes the mode
between AUTO and DAY.
The indicator comes on when the AUTO mode is selected.
DAY mode: The mirror surface is normal.
AUTO mode: If the mirror detects light from the headlights
of the vehicle behind you, the mirror surface darkens
slightly to reduce the reflected light.
When the inside rear view mirror surface changes, the outside
rear view mirror surfaces will also become darker.
When the ignition key is inserted and turned on, the inside rear
view mirror always turns on in the AUTO mode.
Page 211 of 482
STEERING WHEEL AND MIRRORS
186Displays
Directions
N
NE
E
SE
S
SW
W
NWNorth
Northeast
East
Southeast
South
Southwest
West
Northwest
The compass may not show the correct direction in the
following conditions:
The vehicle is stopped immediately after turning.
The compass does not adjust while the vehicle is stopped.
The ignition switch is turned off immediately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the earth's magnetic field is
subject to interference by artificial magnetic fields
(underground parking, under a steel tower, between
buildings, roof parking, near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a magnet or a metal
object on or near the inside rear view mirror.)
The battery has been disconnected.Your vehicle is out of the set zone. Refer to the Calibrating the
compassº in this Section to set the zone number.
The compass works to calibrate the direction automatically
while the vehicle is in motion, if deviation is small.
For additional precision or for complete calibrating, see

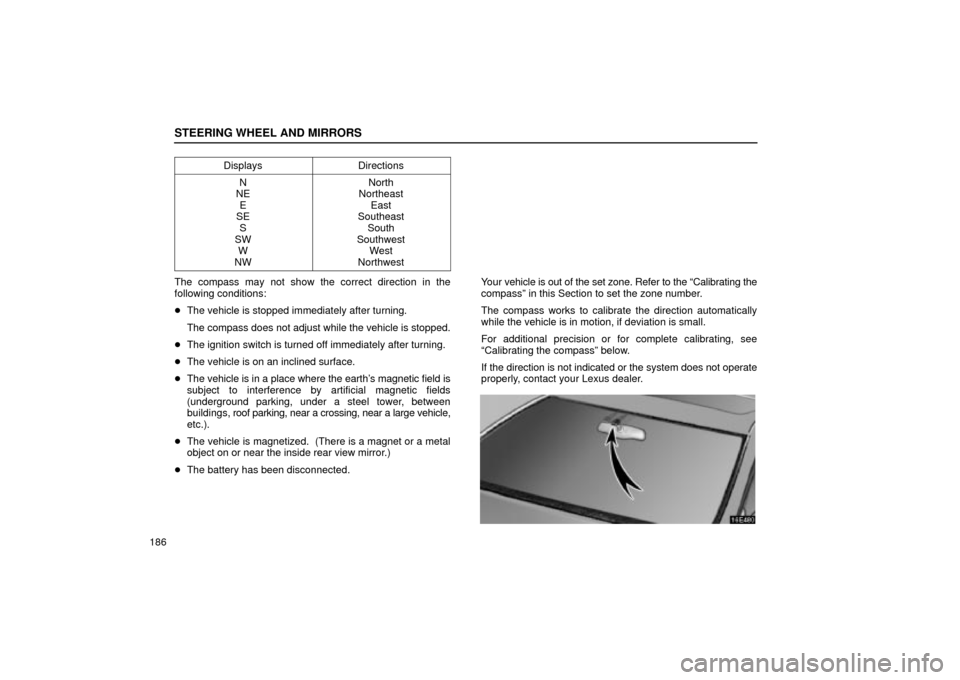

Calibrating the compassº below.
If the direction is not indicated or the system does not operate
properly, contact your Lexus dealer.
