GAUGES, METERS AND SERVICE REMINDER INDICATORS
56IF THIS INDICATOR OR
BUZZER COMES ON...
DO THIS.
(l)Replace bulb.
(m)Take vehicle to Lexus
dealer.
(n)Add washer fluid.
(o)Take vehicle to Lexus
dealer.
(p)Low fuel level
warning lightFill up tank.
(q)Key reminder buzzerRemove key.
(a) Brake System Warning Light
This light comes on in the following cases when the ignition key
is in the ONº position.
When the parking brake is applied...
This light comes on for a few seconds when the ignition key is
turned to the ONº position even after the parking brake is
released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving normally when the
brake fluid level is low.
Have your vehicle checked at your Lexus dealer in the
following cases.
The light does not come on even if the parking brake is
applied when the ignition key is in the ONº position.
The light does not come on even if the ignition key is turned
on with the parking brake released.
A warning light turning on briefly during operation does not
indicate a problem.

Finish
GAUGES, METERS AND SERVICE REMINDER INDICATORS
57
CAUTION
If either of the following conditions occurs, immediately
stop your vehicle at a safe place and contact your Lexus
dealer.
The light does not turn off even after the parking
brake is released while the engine is running.
In this case, the brakes may not work properly and
your stopping distance will become longer. Depress
the brake pedal firmly and bring the vehicle to an
immediate stop.
The brake system warning light remains on together
with the ABSº warning light.
In this case, not only the anti-lock brake system will
fail but also the vehicle will become extremely
unstable during braking.
(b) Driver's Seat Belt Reminder Light and Buzzer
This light and buzzer remind you to buckle up the driver's seat
belt.
Once the ignition key is turned to ONº or STARTº, the
reminder light and buzzer come on if the driver's seat belt is not
fastened. Unless the driver fastens the belt, the light stays on
and the buzzer stops after about 4 to 8 seconds.
(c) Front Passenger's Seat Belt Reminder Light
This light reminds you to buckle up the front passenger's seat
belt.
Once the ignition key is turned to the ONº position, the
reminder light flashes if a front passenger sits in the front
passenger seat and does not fasten the seat belt.
If luggage or other load is placed on the front passenger seat,
depending on its weight, the reminder light may come on.
(d) SRS Warning Light
This light comes on when the ignition key is turned to the
ONº position. It goes off after about 6 seconds. This
means the SRS airbags and front seat belt pretensioners
are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front passenger occupant classification system, AIRBAG
OFFº indicator light, AIRBAG ONº indicator light, front
passenger's seat belt buckle switch, front seat belt
pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources.

Finish
GAUGES, METERS AND SERVICE REMINDER INDICATORS
58If any of the following conditions occurs, this indicates a
malfunction somewhere in the parts monitored by the warning
light system. Contact your Lexus dealer as soon as possible
to service the vehicle.
When the ignition switch is turned to the ONº position, the
light does not come on or remains on.
The light comes on while driving.
(e) Discharge Warning Light
This light warns that the battery is being discharged.If it comes on while you are driving, stop the vehicle, turn off the
engine, and check for the cause. Look first at the engine drive
belt.
If it is loose or broken, the generator will not charge the
battery properly.
If the belt is O.K., there is a problem somewhere in the
charging system.
The engine ignition will continue to operate, however, until the
battery is discharged. Turn off the air conditioning, blower,
radio, etc., and drive directly to the nearest Lexus dealer or
repair shop.
NOTICE
Do not continue driving if the engine drive belt is broken
or loose.

Finish
GAUGES, METERS AND SERVICE REMINDER INDICATORS
59
(f) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pressure is too low.
If it flickers or stays on while you are driving, pull off the road
to a safe place and stop the engine immediately. Call a Lexus
dealer or qualified repair shop for assistance.The light may occasionally flicker when the engine is idling or
it may come on briefly after a hard stop. There is no cause for
concern if it then goes out when the engine is accelerated
slightly.
The light may come on when the oil level is extremely low. It
is not designed to indicate low oil level, and the oil level must
be checked using the oil level dipstick.
NOTICE
Do not drive the vehicle with the warning light on Ð
even for one block. It may ruin the engine.

Finish
GAUGES, METERS AND SERVICE REMINDER INDICATORS
60
(g) Low Engine Oil Level Warning Light
This light warns that the engine oil level is too low. Add oil as
soon as possible. (For instructions, see Checking the engine
oil levelº on page 329.)
While driving on steep inclines or rough roads which causes
the vehicle to substantially sway or on curves, this light may
come on due to the movement of engine oil in the engine.In normal conditions, due to engine oil consumption, this light
may come on earlier than the specified service interval of the
scheduled maintenance. This is because the engine oil is
consumed to the low level within the scheduled maintenance
interval and does not indicate a problem. (For detailed
information, see Facts about engine oil consumptionº on page
327.)
NOTICE
Continued engine operation with low engine oil will
damage the engine.

Finish
GAUGES, METERS AND SERVICE REMINDER INDICATORS
61
(h) Engine Oil Replacement Reminder Light (for
vehicles sold in U.S.A.)
This light reminds you when to replace the engine oil.
This light will come on when the ignition key is turned to the
ONº position and will go off after about a few seconds.
When you drive for about 7200 km (4500 miles) after the
engine oil replacement, this light illuminates for about 3
seconds and then flashes for about 12 seconds with the
ignition key turned to the ONº position. If you continue driving
without replacing the engine oil, and if the distance driven
exceeds 8000 km (5000 miles), the light will come on after the
ignition key is turned to the ONº position. The light will remain
on thereafter.
If the light is flashing, we recommend that you replace the
engine oil at an early opportunity depending on the driving and
road conditions. If the light comes on, replace it as soon as
possible.
The system must be reset after the engine oil replacement.
Reset the system by the following procedure:
1. Turn the ignition key to the OFFº position with the odometer
reading shown. (For details, see Odometer and trip meterº on
page 52.)
2. Turn the ignition key to the ONº position while holding down
the trip meter reset knob.
Hold down the knob for at least 5 seconds. The odometer
indicates 000000º and the light goes off.
If the system fails to reset, the light will continue flashing.
(i) Malfunction Indicator Lamp
This lamp comes on when the ignition key is turned to the
ONº position and goes off after the engine starts. This
means that the warning light system is operating properly.
If the lamp remains on, or the lamp comes on while driving,
first check the followings.
Empty fuel tank
If the fuel tank is empty, refuel immediately.
Loose fuel tank cap
If the fuel tank cap is loose, securely tighten it.
These cases are temporary malfunctions. The malfunction
indicator lamp will go off after taking several driving trips.
If the lamp does not go off even after several trips, contact your
Lexus dealer as soon as possible.
If the fuel tank is not empty or the fuel tank cap is not
loose...
There is a problem somewhere in the engine, emission
control system, electronic throttle control system, automatic
transmission electrical system or warning light system itself.
Contact your Lexus dealer as soon as possible to service the
vehicle.
If engine speed does not increase when the accelerator pedal
is depressed, there may be a problem somewhere in your
electronic throttle control system.

Finish
GAUGES, METERS AND SERVICE REMINDER INDICATORS
62At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle checked by your
Lexus dealer as soon as possible.
Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition key is
turned to the ACCº or LOCKº position.
CAUTION
Be especially careful to prevent erroneous pedal
operation.
Emissions Inspection and Maintenance (I/M) programs
Your vehicle may not pass a state emission inspection if the
malfunction indicator lamp remains on. Contact your Lexus
dealer to check your vehicle's emission control system and
OBD (On-Board Diagnostics) system before taking your
vehicle for the inspection.
For details, see Emissions Inspection and Maintenance (I/M)
programsº on page 311.
(j) ABSº Warning Light
Vehicles without vehicle stability control system Ð
The light comes on with the ignition key turned to the ONº
position. If the anti-lock brake system works properly, the light
turns off after a few seconds. Thereafter, if the system
malfunctions, the light comes on again.
When the ABSº warning light is on (and the brake system
warning light is off), the anti-lock brake system does not
operate, but the brake system still operates conventionally.
When the ABSº warning light is on (and the brake system
warning light is off), the anti-lock brake system does not
operate so that the wheels could lock up during a sudden
braking or braking on slippery road surfaces.
If either of the following conditions occurs, this indicates
a malfunction somewhere in the components monitored
by the warning light. Contact your Lexus dealer as soon
as possible to service the vehicle.
The light does not come on when the ignition key is turned
to the ONº position, or remains on.
The light comes on while you are driving.
A warning light turning on briefly during operation does not
indicate a problem.

Finish
GAUGES, METERS AND SERVICE REMINDER INDICATORS
63
CAUTION
If the ABSº warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.
In this case, not only the anti-lock brake system will fail
but also the vehicle will become extremely unstable
during braking.
Vehicles with vehicle stability control system Ð
The light comes on with the ignition key turned to the ONº
position. If the anti-lock brake system and the brake assist
system work properly, the light turns off after a few seconds.
Thereafter, if the system malfunctions, the light comes on
again.
When the ABSº warning light is on (and the brake system
warning light is off), the anti-lock brake system, the brake
assist system, the traction control system and the vehicle
stability control system do not operate, but the brake system
still operates conventionally.
When the ABSº warning light is on (and the brake system
warning light is off), the anti-lock brake system does not
operate so that the wheels could lock up during a sudden
braking or braking on slippery road surfaces.If either of the following conditions occurs, this indicates
a malfunction somewhere in the components monitored
by the warning light. Contact your Lexus dealer as soon
as possible to service the vehicle.
The light does not come on when the ignition key is turned
to the ONº position, or remains on.
The light comes on while you are driving.
A warning light turning on briefly during operation does not
indicate a problem.
CAUTION
If the ABSº warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.
In this case, not only the anti-lock brake system will fail
but also the vehicle will become extremely unstable
during braking.
(k) Open Door Warning Light
This light remains on until all the doors are completely closed.

Finish
GAUGES, METERS AND SERVICE REMINDER INDICATORS
64
(l) Rear Light Failure Warning Light
If this light comes on when the headlight switch is turned on (at
the first or second clickstop), it indicates that one or more of the
tail lights are burned out.
If it comes on when the brake pedal is depressed, one or more
stop lights are burned out.
Have defective bulbs replaced as soon as possible.
(m) Vehicle Stability Control System/Traction
Control System Warning Light
This light warns that there is a problem somewhere in the
vehicle stability control system or traction control system.
The light will come on when the ignition key is turned to ONº
and will go off after a few seconds.
If the light comes on while driving, the system does not work.
However, as conventional braking operates when applied,
there is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
The warning light does not come on after the ignition key is
turned to ONº.
The warning light remains on after the ignition key is turned
to ONº.
The warning light comes on while driving.
The TRAC OFFº indicator light will come on when the VSCº
warning light comes on even if the TRAC OFFº switch is not
pushed.
(n) Low Washer Fluid Warning Light
This light comes on when the fluid level in the tank becomes
nearly empty. Fill the tank as soon as possible.
(o) Automatic Headlight Leveling System Warning
Light (vehicles with discharge headlight only)
This light warns that when there is a problem somewhere
in the automatic headlight leveling system.
If it comes on, have your vehicle checked by your Lexus dealer.
(p) Low Fuel Level Warning Light
This light comes on when the fuel level in the tank becomes
nearly empty. Fill the tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the low fuel level warning light may come on earlier than usual.
(q) Key Reminder Buzzer
This buzzer reminds you to remove the key when you open the
driver's door with the ignition key in the ACCº or LOCKº
position.

Finish
GAUGES, METERS AND SERVICE REMINDER INDICATORS
65

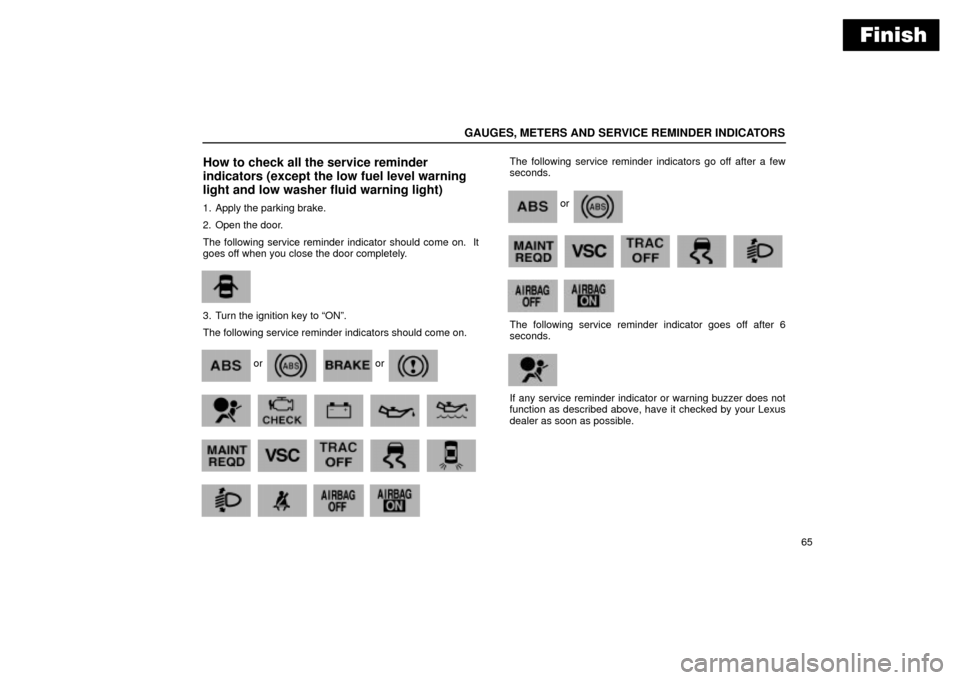

How to check all the service reminder
indicators (except the low fuel level warning
light and low washer fluid warning light)
1. Apply the parking brake.
2. Open the door.
The following service reminder indicator should come on. It
goes off when you close the door completely.
3. Turn the ignition key to ONº.
The following service reminder indicators should come on.
or or



The following service reminder indicators go off after a few
seconds.
or


The following service reminder indicator goes off after 6
seconds.
If any service reminder indicator or warning buzzer does not
function as described above, have it checked by your Lexus
dealer as soon as possible.
