IN CASE OF AN EMERGENCY
322
IF YOU HAVE A FLAT TIRE
1. Reduce your speed gradually, keeping a straight
line. Move cautiously off the road to a safe place
Ð well away from the traffic. Avoid stopping on the
center divider of a highway. Park on a level spot with
firm ground.
2. Stop the engine and turn on your emergency
flashers.
3. F i r m l y s e t t h e p a r k i n g b r a k e a n d p u t t h e
transmission in Pº.
4. Have everyone get out of the vehicle on the side
away from traffic.
5. Read the following instructions thoroughly.
CAUTION
When jacking, be sure to observe the following
to reduce the possibility of personal injury:
Follow jacking instructions.
Do not put any part of your body under a
vehicle supported by a jack. Otherwise,
personal injury may occur.
Do not start or run the engine while your
vehicle is supported by the jack.
Stop the vehicle on a level firm ground, firmly
set the parking brake and put the
transmission in Pº. Block the wheel
diagonally opposite to the one being changed
if necessary.
Make sure to set the jack properly in the jack
point. Raising the vehicle with jack
improperly positioned will damage the vehicle
or may allow the vehicle to fall off the jack
and cause personal injury.
Never get under the vehicle when the vehicle
is supported by the jack alone.
Use the jack only for lifting your vehicle
during wheel changing.
Do not raise the vehicle with someone in the
vehicle.
When raising the vehicle, do not place any
objects on top of or underneath the jack.
Raise the vehicle only high enough to remove
and change the tire.

INTRODUCTION
359
Checking the cartridge type fuses
Parts (if replacement is necessary):
Genuine Lexus fuse or equivalent with same amperage
rating as original
Adding washer fluid
Parts:
Water
Washer fluid containing antifreeze (for winter use)
Tools:
Funnel

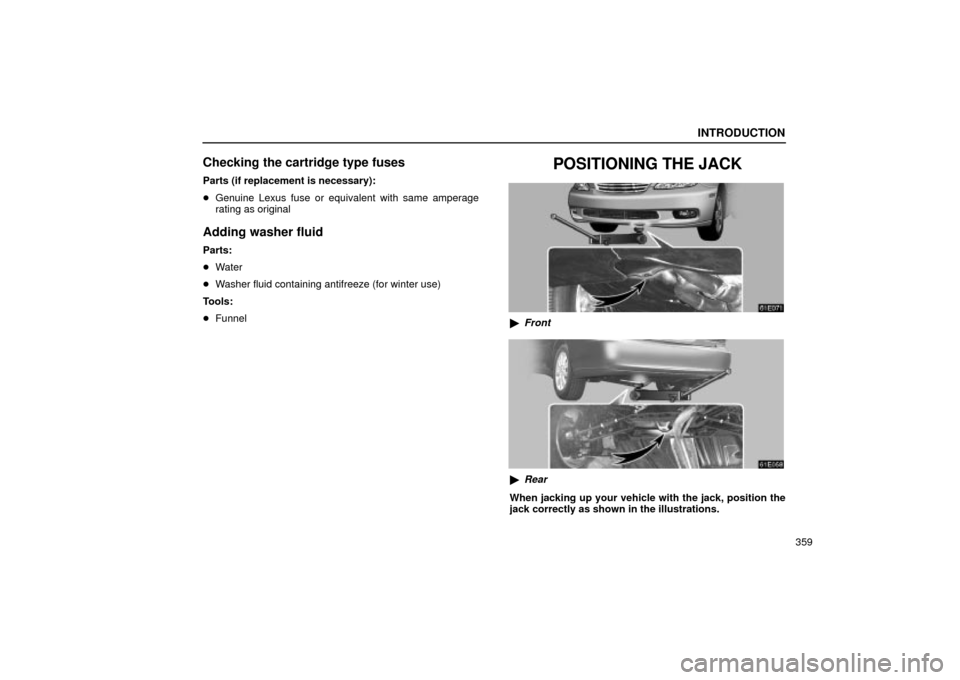

POSITIONING THE JACK

Front

Rear
When jacking up your vehicle with the jack, position the
jack correctly as shown in the illustrations.

INTRODUCTION
360
CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:
Follow jacking instructions.
Do not put any part of your body under the vehicle
supported by the jack. Personal injury may occur.
Do not start or run the engine while your vehicle is
supported by the jack.
Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in Pº. Block
the wheels on the opposite side of the jack up point
if necessary.
Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.
Never get under the vehicle when the vehicle is
supported by the jack alone; use vehicle support
stands.
Do not raise the vehicle with someone in the vehicle.
When raising the vehicle, do not place any objects on
top of or underneath the jack.
NOTICE
Make sure to place the jack correctly, or your vehicle
may be damaged.
