INTERIOR EQUIPMENT
74All of the lights will come on when any of the doors are
opened.*
After all the doors are closed, the lights remain
on for about 15 seconds before fading out.**
NOTE:
* The operating condition can be changed.
** The duration of lighting can be changed and only the foot
lights can be set not to come on.
Ask your Lexus dealer for details.
However, in the following cases, the lights go out immediately:
 All the doors are closed and the ignition key is in the “ACC”
or “ON” position. (The foot lights come on when the ignition
switch is in the “ON” position. See the following “Foot
lights”.)
 All the doors are locked.
When all the doors are unlocked simultaneously using either
the key or the wireless remote control, all of the lights will come
on and remain on for about 15 seconds before fading out.
Foot lights
The foot lights also come on when the ignition switch is in the
“ON” position with the selector lever in the “P” position. When
the selector lever is moved out of the “P” position, the foot lights
will be dimmed.*
NOTE:
* The foot lights can be set to turn off when the selector lever
is moved out of the “P” position. Ask your Lexus dealer for
details.
When the instrument panel light control dial is turned fully
down, the foot lights will turn off.
CLOCK

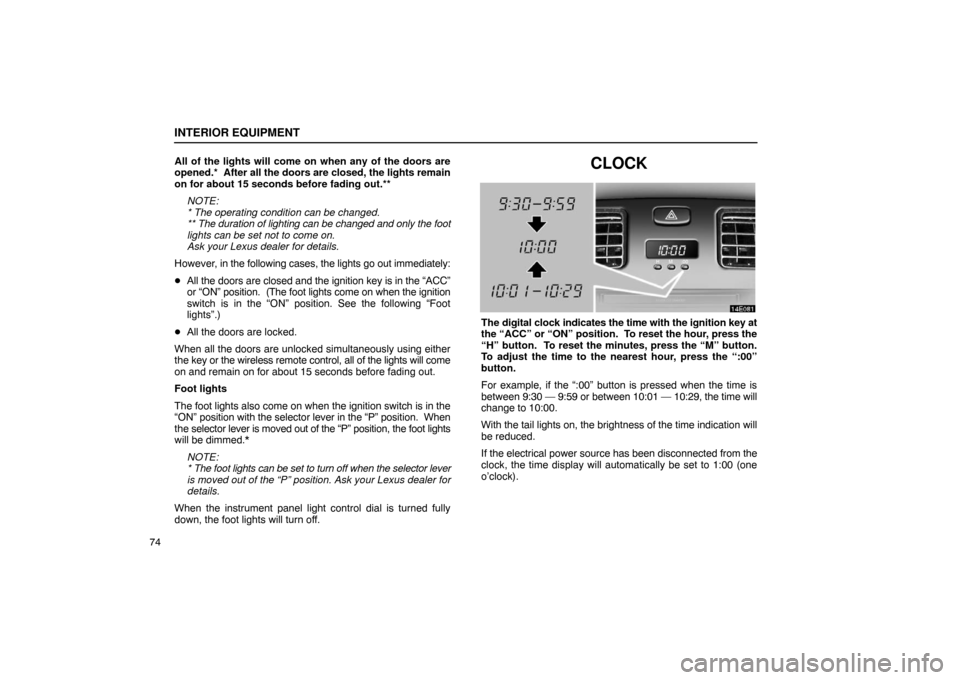

The digital clock indicates the time with the ignition key at
the “ACC” or “ON” position. To reset the hour, press the
“H” button. To reset the minutes, press the “M” button.
To adjust the time to the nearest hour, press the “:00”
button.
For example, if the “:00” button is pressed when the time is
between 9:30 — 9:59 or between 10:01 — 10:29, the time will
change to 10:00.
With the tail lights on, the brightness of the time indication will
be reduced.
If the electrical power source has been disconnected from the
clock, the time display will automatically be set to 1:00 (one
o’clock).

STEERING WHEEL AND MIRRORS
175
Compass
The compass indicates the direction in which the vehicle
is heading. The illustration shown above indicates the
vehicle is heading north.

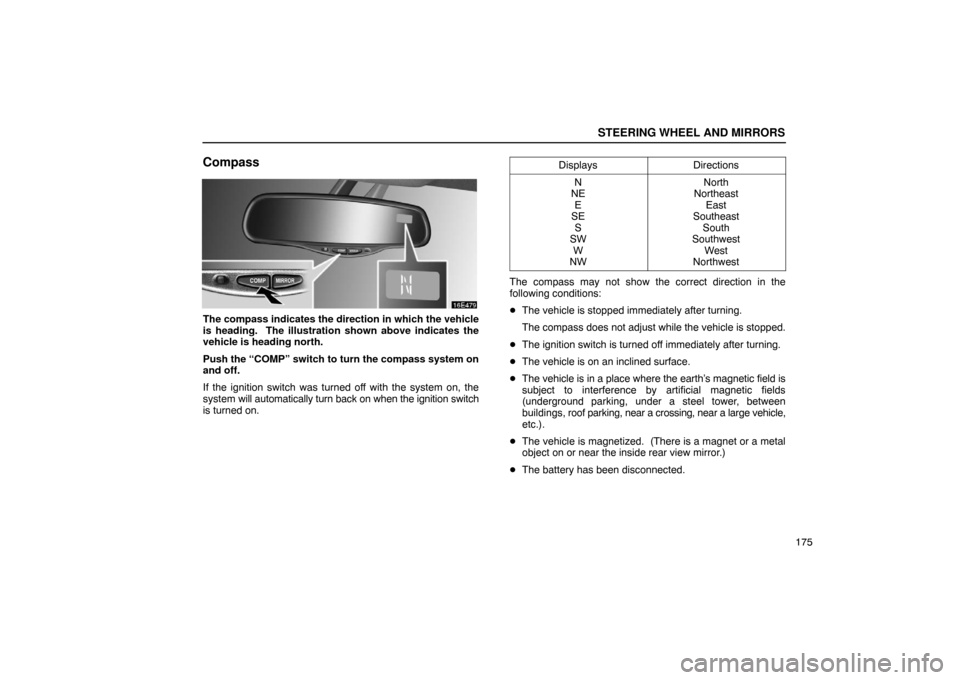

Push the “COMP” switch to turn the compass system on
and off.
If the ignition switch was turned off with the system on, the
system will automatically turn back on when the ignition switch
is turned on. Displays
Directions
N
NE E
SE S
SW W
NWNorth
Northeast East
Southeast South
Southwest West
Northwest
The compass may not show the correct direction in the
following conditions:
 The vehicle is stopped immediately after turning.
The compass does not adjust while the vehicle is stopped.
 The ignition switch is turned off immediately after turning.
 The vehicle is on an inclined surface.
 The vehicle is in a place where the earth’s magnetic field is
subject to interference by artificial magnetic fields
(underground parking, under a steel tower, between
buildings, roof parking, near a crossing, near a large vehicle,
etc.).
 The vehicle is magnetized. (There is a magnet or a metal
object on or near the inside rear view mirror.)
 The battery has been disconnected.

STEERING WHEEL AND MIRRORS
176If your vehicle is out of the set zone, refer to “Calibrating the
compass” in this Section to set the zone number.
If the deviation is small, the compass works to calibrate the
direction automatically while the vehicle is in motion.
For additional precision or for complete calibrating, see
“Calibrating the compass” below.
If the direction is not indicated or the system does not operate
properly, contact your Lexus dealer.

Compass sensor
NOTICE
Do not put magnets or a metal object on or near the
inside rear view mirror of the vehicle. Doing so may
cause malfunction of the compass sensor in the mirror.
Calibrating the compass (deviation calibration)
The direction display on the compass deviates from the true
direction determined by the earth’s magnetic field. The angle
of deviation varies according to the geographic position of the
vehicle.

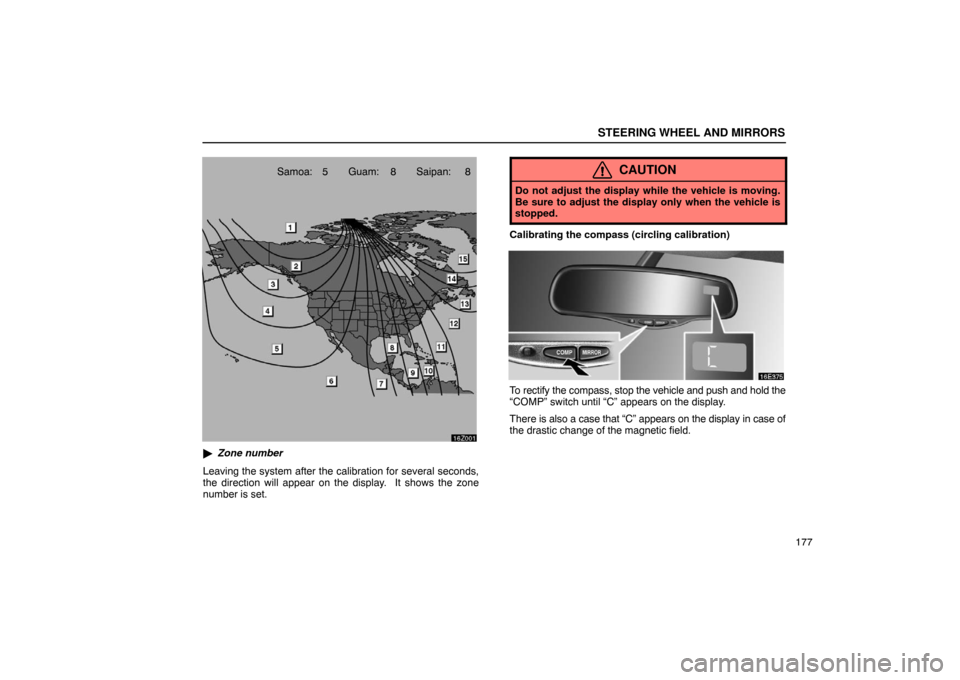

To adjust this deviation, stop the vehicle, then push and hold
the “COMP” switch until the zone number appears on the
display. Then push the “COMP” switch, referring to the
following map to select the number of the zone where the
vehicle is.

STEERING WHEEL AND MIRRORS
177
16Z001
Samoa: 5 Guam: 8 Saipan: 8
 Zone number
Leaving the system after the calibration for several seconds,
the direction will appear on the display. It shows the zone
number is set.CAUTION
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
Calibrating the compass (circling calibration)
To rectify the compass, stop the vehicle and push and hold the
“COMP” switch until “C” appears on the display.
There is also a case that “C” appears on the display in case of
the drastic change of the magnetic field.

STEERING WHEEL AND MIRRORS
178

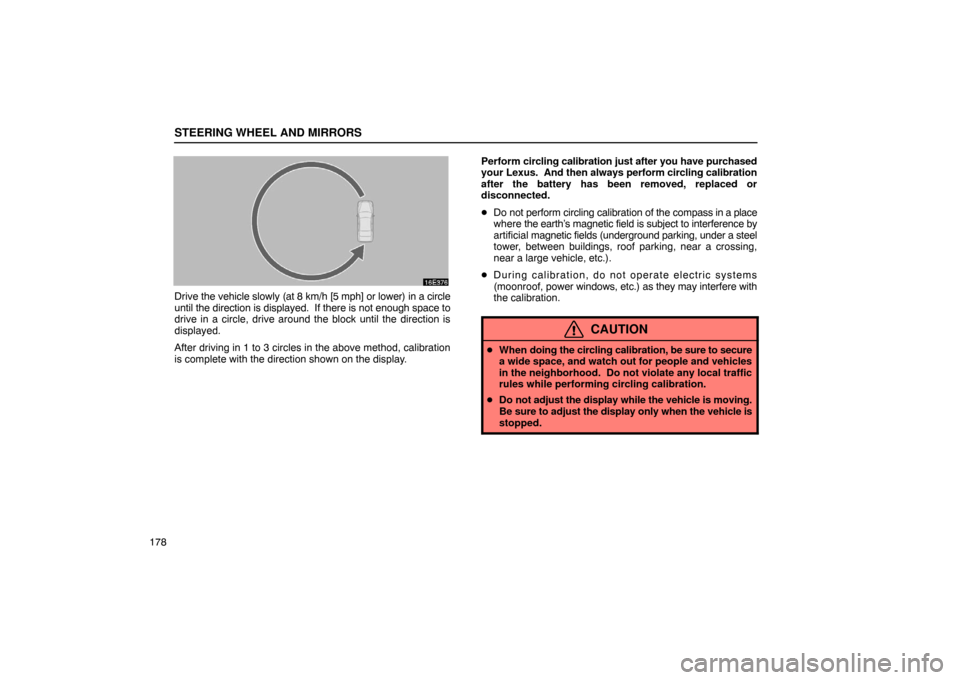

Drive the vehicle slowly (at 8 km/h [5 mph] or lower) in a circle
until the direction is displayed. If there is not enough space to
drive in a circle, drive around the block until the direction is
displayed.
After driving in 1 to 3 circles in the above method, calibration
is complete with the direction shown on the display. Perform
circling calibration just after you have purchased
your Lexus. And then always perform circling calibration
after the battery has been removed, replaced or
disconnected.
 Do not perform circling calibration of the compass in a place
where the earth’s magnetic field is subject to interference by
artificial magnetic fields (underground parking, under a steel
tower, between buildings, roof parking, near a crossing,
near a large vehicle, etc.).
 During calibration, do not operate electric systems
(moonroof, power windows, etc.) as they may interfere with
the calibration.
CAUTION
When doing the circling calibration, be sure to secure
a wide space, and watch out for people and vehicles
in the neighborhood. Do not violate any local traffic
rules while performing circling calibration.
 Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.

AIR CONDITIONING
183
The automatic air conditioning automatically maintains
the set temperature.
In the automatic operation mode, the air conditioning selects
the most suitable fan speed, air flow, air intake and on−
off the
air conditioning according to the temperature.
The ignition key must be in the “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the air conditioning on longer than necessary
when the engine is not running.
1“TEMP” (driver side temperature control) button
2Driver side temperature display (in degrees
Fahrenheit or Centigrade)
3Fan speed display
4Outside temperature display
5Air flow display
6Passenger side temperature display (in degrees
Fahrenheit or Centigrade)
7“PASSENGER TEMP” (passenger side temperature
control) button
8“DUAL” (temperature setting mode change) button
9Windshield air flow button
10“MODE”(air flow control) button
11Air intake control button
12Fan speed control button
13“OFF” button
14“AUTO” button
15“A/C” button

AIR CONDITIONING
187
This position allows the air intake to select OUTSIDE AIR
mode automatically. This is to clean up the front view more
quickly.
If you want to return the setting to RECIRCULATED AIR mode,
push the air intake control button once again.
Push
the “A/C” button for dehumidified heating or cooling. This
setting clears the front view more quickly.
If quick heating or cooling is desired —
Push the “TEMP” or “PASSENGER TEMP” button on either
side and hold it until “MAX. HOT” or “MAX. COLD” appears on
the display.
If manual fan speed control is desired —

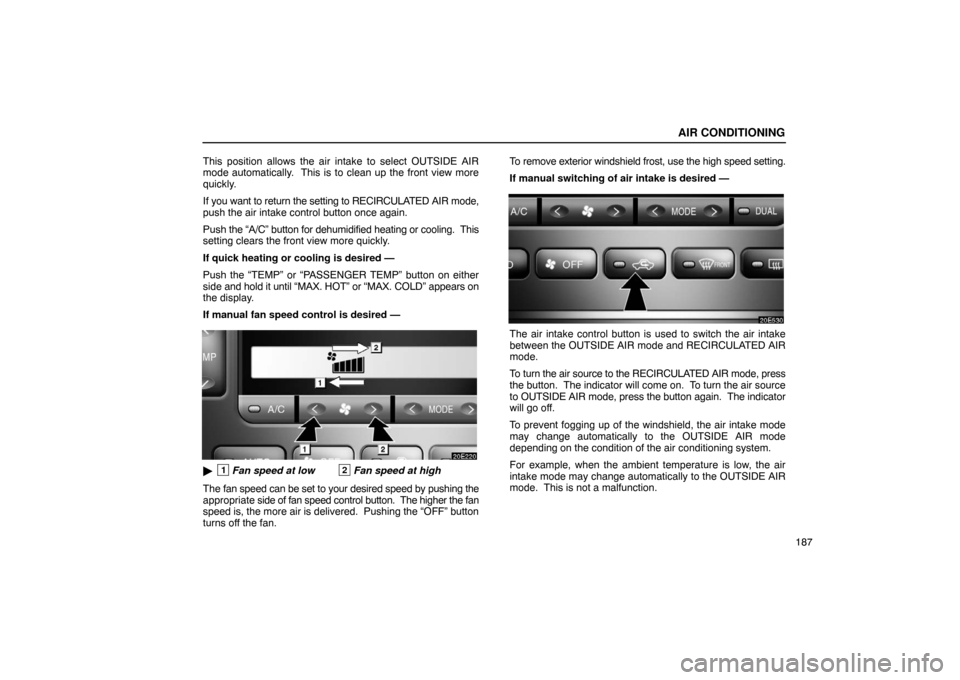

1Fan speed at low2Fan speed at high
The fan speed can be set to your desired speed by pushing the
appropriate side of fan speed control button. The higher the fan
speed is, the more air is delivered. Pushing the “OFF” button
turns off the fan. To remove exterior windshield frost, use the high speed setting.
If manual switching of air intake is desired —
The air intake control button is used to switch the air intake
between the OUTSIDE AIR mode and RECIRCULATED AIR
mode.
To turn the air source to the RECIRCULATED AIR mode, press
the button. The indicator will come on. To turn the air source
to OUTSIDE AIR mode, press the button again. The indicator
will go off.
To prevent fogging up of the windshield, the air intake mode
may change automatically to the OUTSIDE AIR mode
depending on the condition of the air conditioning system.
For example, when the ambient temperature is low, the air
intake mode may change automatically to the OUTSIDE AIR
mode. This is not a malfunction.

AIR CONDITIONING
188If quick circulation of cooled air is desired, push the air intake
control
button for RECIRCULATED AIR. The indicator light will
come on.
For normal use, it is best to keep the air intake control button
set to OUTSIDE AIR mode. If recirculated air is used during
heating, the windows will fog up more easily.
If manual onoff of the air conditioning is desired —
Push the “A/C” button to turn the air conditioning on and push
it again to turn the air conditioning off.
The air conditioning does not work if the outside temperature
is lowered down to around 0 C (32F).
If the system is used for ventilation, heating in dry weather or
removing frost or exterior fog on the windshield, turn the air
conditioning off once it is no longer required. This will improve
fuel economy. The air conditioning can be used for year −round
automatic temperature control including cooling and
dehumidifying operation.
If the air conditioning compressor does not operate, the
indicator of the “A/C” button will blink. If the indicator of the
“A/C” button blinks even when the “A/C” button is pushed
again, have the compressor checked by your nearest Lexus
dealer.
Displaying the outside temperature —
The temperature display ranges from −30C (−22F) up to
50 C (122 F).

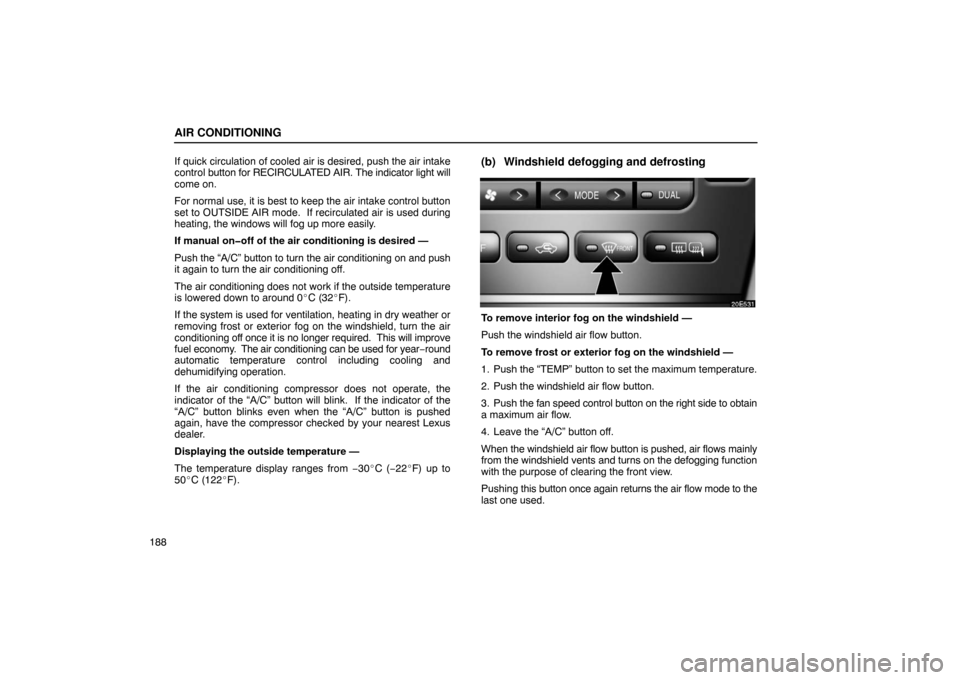

(b) Windshield defogging and defrosting
To remove interior fog on the windshield —
Push the windshield air flow button.
To remove frost or exterior fog on the windshield —
1. Push the “TEMP” button to set the maximum temperature.
2. Push the windshield air flow button.
3. Push the fan speed control button on the right side to obtain
a maximum air flow.
4. Leave the “A/C” button off.
When the windshield air flow button is pushed, air flows mainly
from the windshield vents and turns on the defogging function
with the purpose of clearing the front view.
Pushing this button once again returns the air flow mode to the
last one used.

AUDIO
198
AUDIO SYSTEM (with singleCD player)
Quick reference for your audio system
You can adjust the brightness of the display. See “Instrument panel light control” on page 70 for details.

AUDIO
199

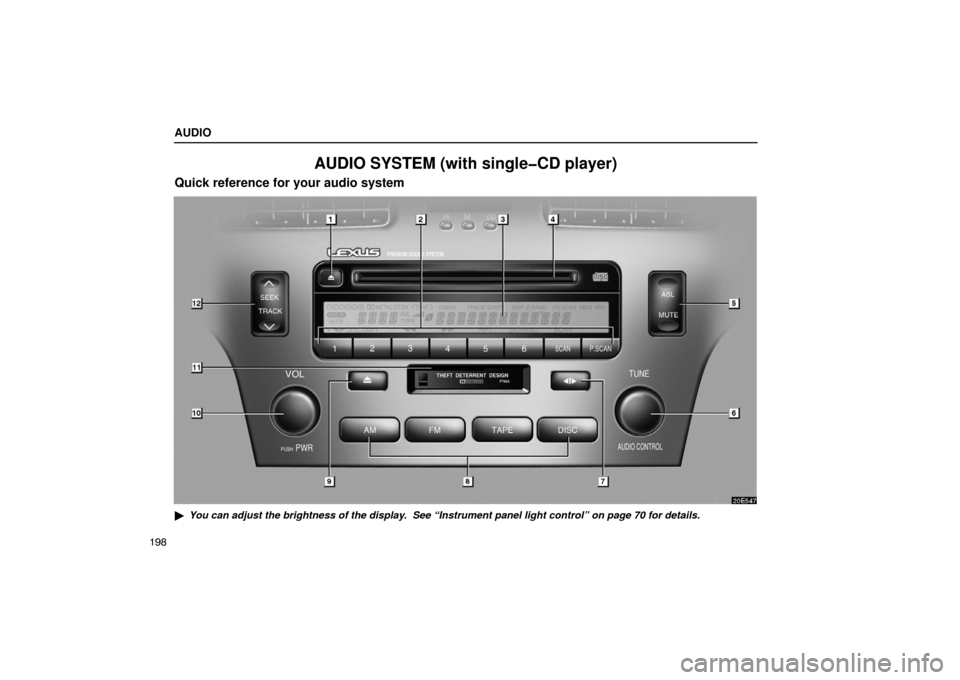

1Ejecting a CD
(See page 209 for details.)
2Function buttons
1 — 6: Station selector buttons
(See page 205 for details.)
SCAN: Scan tuning
(See page 206 for details.)
P.SCAN: Preset scan tuning
(See page 206 for details.)
3Display of functions in TAPE or CD mode
:DOLBY NR
(See page 207 for details.)
 : Rewinding or reversing
(See page 207 or 213 for details.)
 : Fast forwarding
(See page 207 or 213 for details.)
RPT: Automatic repeat
(See page 208 or 213 for details.)
:CD selection
(See page 211 for details.)
RAND: Random access
(See page 214 for details.)
SCAN: Scan selection
(See page 212 for details.)
4CD slot
(See page 209 for details.)
5Automatic Sound Levelizer (ASL)/Mute
(See page 201 or 203 for details.)
6TUNE/AUDIO CONTROL knob
(See page 202 for details.)
7 :Side change
(See page 207 for details.)
8Mode selectors
(See page 201 for details.)
9Stopping and ejecting a cassette tape
(See page 206 for details.)
10Turning the system on and adjusting the volume
(See page 200 for details.)
11Cassette tape slot
(See page 206 for details.)
12Radio mode: Seek tuning
(See page 205 for details.)
TAPE mode: Direct access to a desired program
(See page 208 for details.)
CD mode: Direct access to a desired program
(See page 213 for details.)
