STARTING AND DRIVING
254
THREEWAY CATALYTICCONVERTER
The threeway catalytic converters are emission control
devices installed in the exhaust system.
It looks somewhat like a muffler, but its purpose is to reduce
pollutants in the exhaust gas.
CAUTION
Keep people and combustible materials away from
the exhaust pipe while the engine is running. The
exhaust gas is very hot.
 Do not drive, idle or park your vehicle over anything
that might burn easily such as grass, leaves, paper or
rags.
NOTICE
A large amount of unburned gases flowing into the
threeway catalytic converter may cause it to overheat
and create a fire hazard. To prevent this and other
damage, observe the following precautions:
 Use only unleaded gasoline.
 Do not drive with an extremely low fuel level; running
out of fuel could cause the engine to misfire, creating
an excessive load on the threeway catalytic
converter.
 Do not allow the engine to run at idle speed for more
than 20 minutes.
 Avoid racing the engine.
 Do not pushstart or pullstart your vehicle.
 Do not turn off the ignition while the vehicle is
moving.
 Keep your engine in good running order.
Malfunctions in the engine electrical system,
electronic ignition system/distributor ignition
system or fuel system could cause an extremely high
threeway catalytic converter temperature.
 If the engine becomes difficult to start or stalls
frequently, take your vehicle in for a checkup as
soon as possible. Remember, your Lexus dealer
knows your vehicle and its threeway catalytic
converter system best.

STARTING AND DRIVING
255

To ensure that the threeway catalytic converter and
the entire emission control system operate properly,
your vehicle must receive the periodic inspections
required by the Lexus Maintenance Schedule. For
scheduled maintenance information, refer to the
“Owner’s Manual Supplement/Scheduled
Maintenance”.

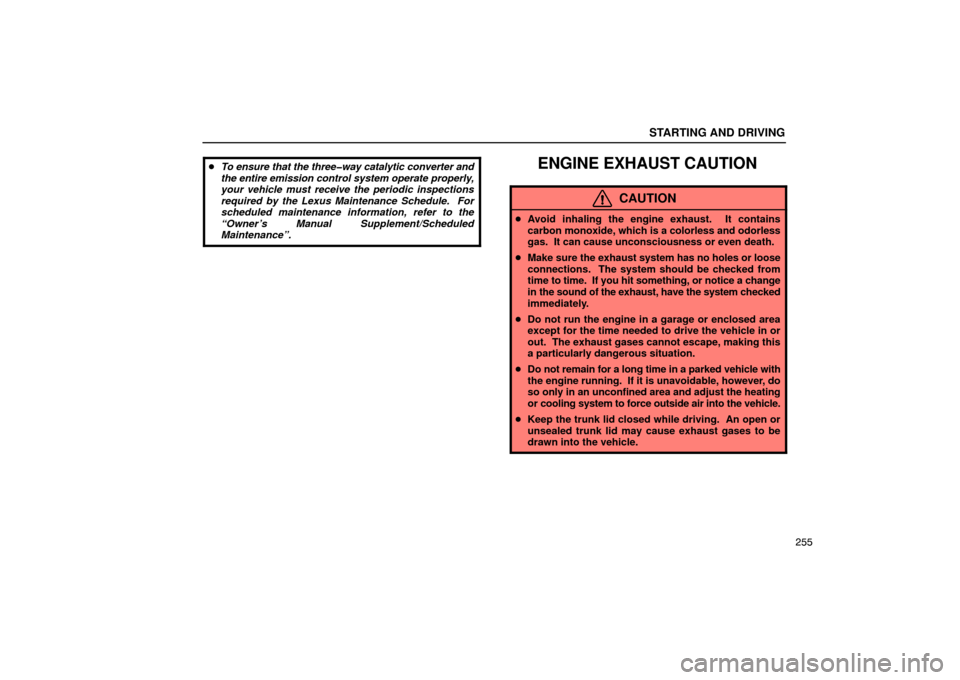

ENGINE EXHAUST CAUTION
CAUTION
Avoid inhaling the engine exhaust. It contains
carbon monoxide, which is a colorless and odorless
gas. It can cause unconsciousness or even death.
 Make sure the exhaust system has no holes or loose
connections. The system should be checked from
time to time. If you hit something, or notice a change
in the sound of the exhaust, have the system checked
immediately.
 Do not run the engine in a garage or enclosed area
except for the time needed to drive the vehicle in or
out. The exhaust gases cannot escape, making this
a particularly dangerous situation.
 Do not remain for a long time in a parked vehicle with
the engine running. If it is unavoidable, however, do
so only in an unconfined area and adjust the heating
or cooling system to force outside air into the vehicle.
 Keep the trunk lid closed while driving. An open or
unsealed trunk lid may cause exhaust gases to be
drawn into the vehicle.

STARTING AND DRIVING
256
To allow proper operation of your vehicle’s
ventilation system, keep the inlet grilles in front of the
windshield clear of snow, leaves, or other
obstructions.
 If you smell exhaust fumes in the vehicle, drive with
the windows open and the trunk lid closed. Have the
cause immediately located and corrected.BEFORE STARTING THE ENGINE
1. Check the area around the vehicle before entering it.
2. Adjust seat position, seatback angle, seat cushion angle,
seat cushion height, head restraint height and steering wheel
angle.
3. Vehicles with power adjustable pedals — Adjust the position
of the accelerator and brake pedals.
4. Adjust the inside and outside rear view mirrors.
5. Lock all doors.
6. Fasten seat belts.
Remember to check that the service reminder indicators
function when turning the key to “ON”, and check the fuel
gauge to see that you have sufficient fuel.

STARTING AND DRIVING
257
IGNITION SWITCH WITH STEERINGLOCK
“START” — Starter motor on. The key will return to the
“ON” position when released.
For starting tips, see page 259.
“ON” — Engine on and all accessories on.
This is the normal driving position.
NOTICE
Do not leave the key in the “ON” position if the engine
is not running. The battery will discharge and the
electronic ignition system could be damaged.
“ACC” — Accessories such as the radio operate, but the
engine is off. If you leave the key in the “ACC” or “LOCK” position and open
the driver’s door, a buzzer will remind you to remove the key.
“LOCK” —
Engine is off and the steering wheel is locked.
The ignition key can be removed only at this position.
To turn the ignition switch from “ACC” to the “LOCK” position,\
you must put the transmission selector lever in the “P” position.
Once you remove the key, the engine immobilizer system is
automatically set. See “Engine immobilizer system” on page
14.
When starting the engine, the key may seem stuck at the
“LOCK” position. To free it, first be sure the key is pushed all
the way in, and then rock the steering wheel slightly while
turning the key gently.
If, in an emergency, you must turn the engine off while the
vehicle is moving, turn the key only to “ACC”.

STARTING AND DRIVING
258

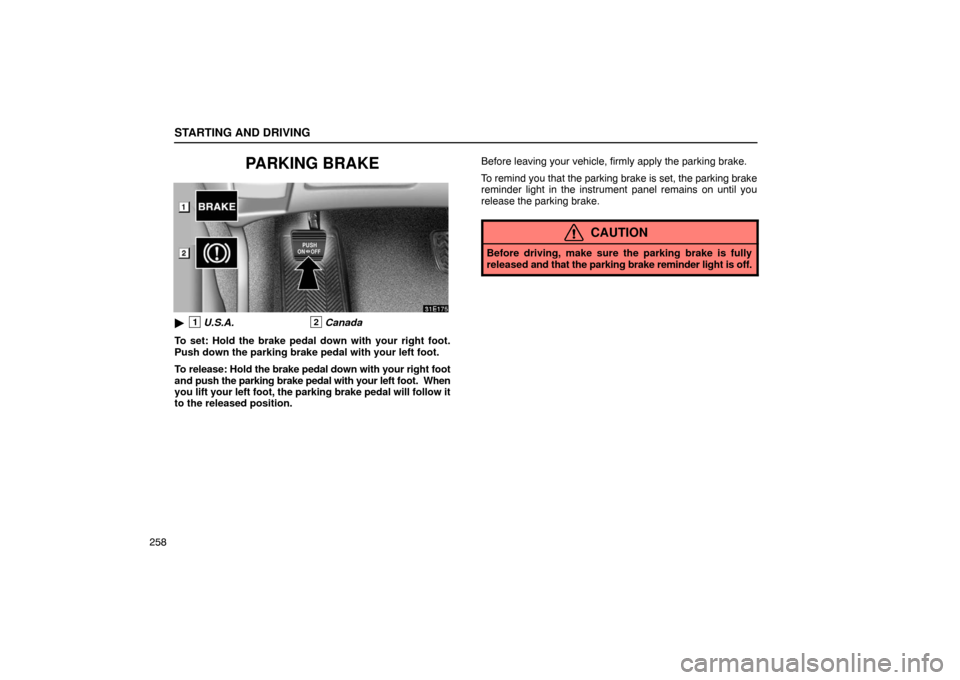

PARKING BRAKE
1U.S.A.2Canada
To set: Hold the brake pedal down with your right foot.
Push down the parking brake pedal with your left foot.
To release: Hold the brake pedal down with your right foot
and push the parking brake pedal with your left foot. When
you lift your left foot, the parking brake pedal will follow it
to the released position. Before leaving your vehicle, firmly apply the parking brake.
To remind you that the parking brake is set, the parking brake
reminder light in the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, make sure the parking brake is fully
released
and that the parking brake reminder light is off.

STARTING AND DRIVING
259
HOW TO START THE ENGINE
Before cranking
1. Apply the parking brake firmly.
2. Turn off unnecessary lights and accessories.
3. Put the selector lever in “P”. If you need to restart the engine
while the vehicle is moving, put the selector lever in “N”. A
starter safety device will prevent the starter from operating if
the selector lever is in any drive position.
4. Depress the brake pedal and hold it to the floor until driving
off.
Starting the engine
Before starting the engine, be sure to follow the instructions in
“Before cranking”.
Normal starting procedure
The multiport fuel injection system/sequential multiport fuel
injection system in your engine automatically controls the
proper air −fuel mixture for starting. You can start a cold or hot
engine as follows:
With your foot off the accelerator pedal, crank the engine by
turning the key to “START”. Release it when the engine starts.
Engine should be warmed up by driving, not in idle. For
warming up, drive with smoothly turning engine until engine
coolant temperature is within normal range. If the engine stalls...
Simply restart it, using the correct procedure given in normal
starting.
If the engine will not start...
See “If your vehicle will not start” on page 298.
NOTICE

Do not crank for more than 30 seconds at a time. This
may overheat the starter and wiring systems.
 Do not race a cold engine.
 If the engine becomes difficult to start or stalls
frequently, have the engine checked immediately.

STARTING AND DRIVING
260
AUTOMATIC TRANSMISSION

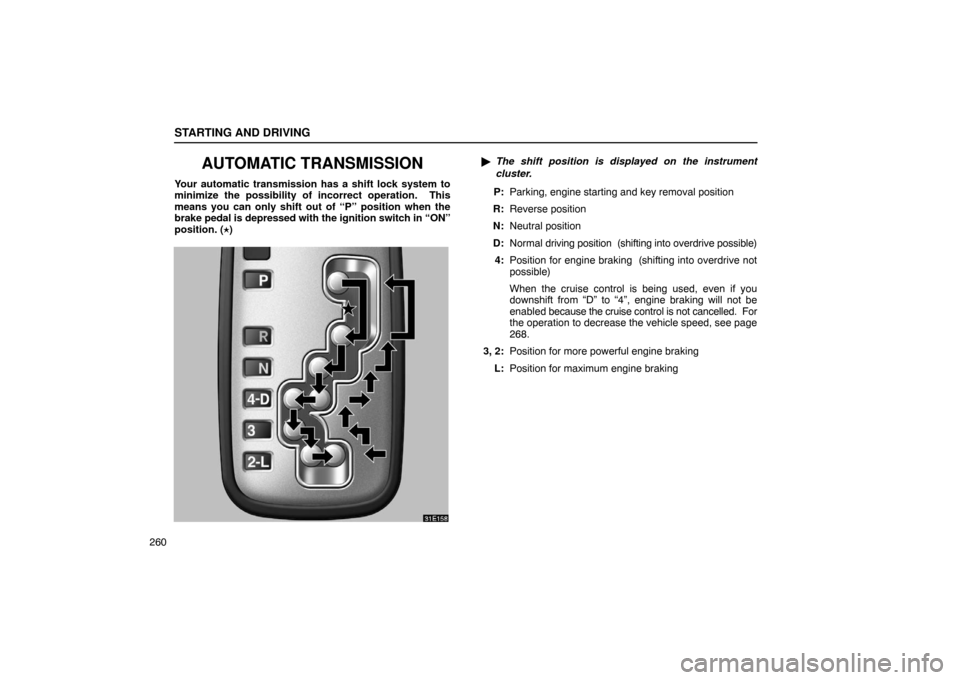

Your automatic transmission has a shift lock system to
minimize the possibility of incorrect operation. This
means you can only shift out of “P” position when the
brake pedal is depressed with the ignition switch in “ON”
position. ()
31E158
31E158
The shift position is displayed on the instrument
cluster.
P: Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position (shifting into overdrive possible)
4: Position for engine braking (shifting into overdrive not
possible)
When the cruise control is being used, even if you
downshift from “D” to “4”, engine braking will not be
enabled because the cruise control is not cancelled. For
the operation to decrease the vehicle speed, see page
268.
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking

STARTING AND DRIVING
261
Correct
use of the automatic transmission is explained in
the following parts.
(a) Normal driving
(b) Using engine braking
(c) Using the “3”, “2” and “L” positions
(d) Backing up
(e) Parking
(f) Good driving practice
(g) If you cannot shift the selector lever
(a) Normal driving

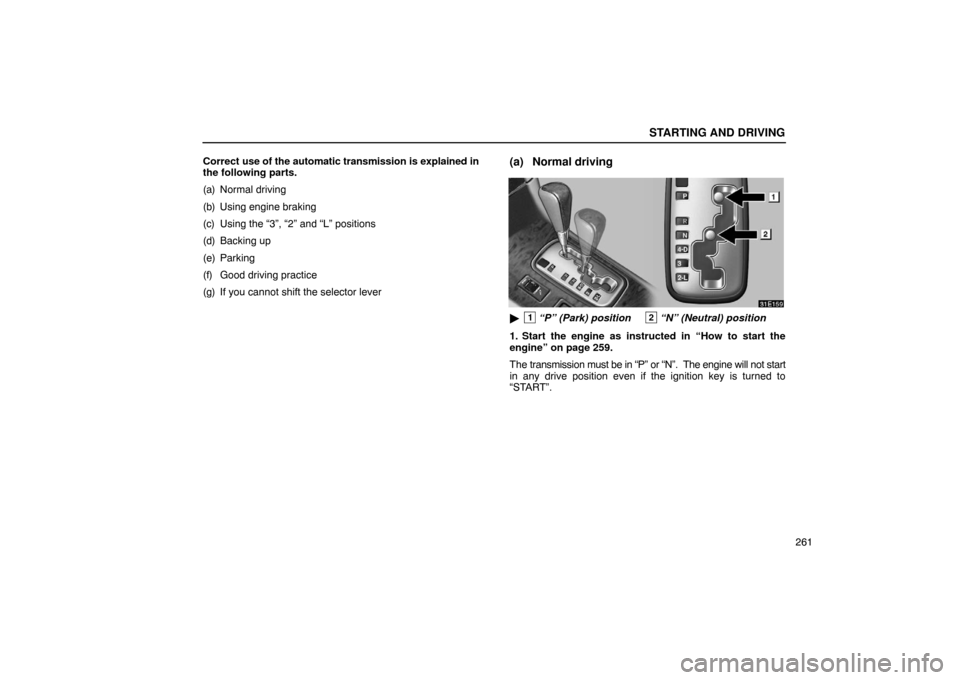

1“P” (Park) position2“N” (Neutral) position
1. Start the engine as instructed in “How to start the
engine” on page 259.
The transmission must be in “P” or “N”. The engine will not st\
art
in any drive position even if the ignition key is turned to
“START”.

STARTING AND DRIVING
262

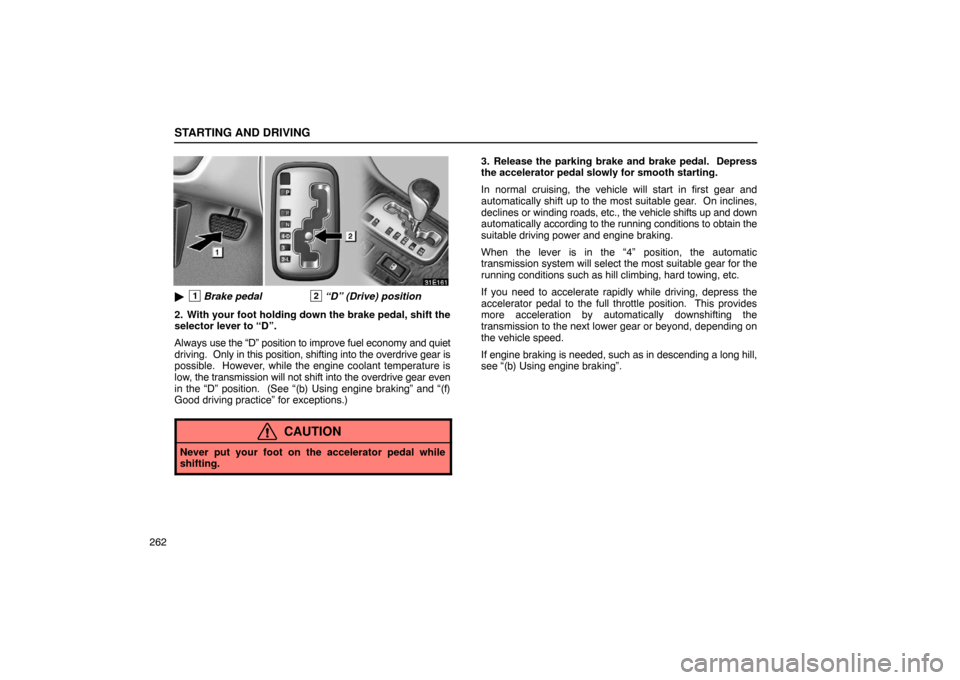

1Brake pedal 2“D” (Drive) position
2. With your foot holding down the brake pedal, shift the
selector lever to “D”.
Always use the “D” position to improve fuel economy and quiet
driving. Only in this position, shifting into the overdrive gear is
possible. However, while the engine coolant temperature is
low, the transmission will not shift into the overdrive gear even
in the “D” position. (See “(b) Using engine braking” and\
“(f)
Good driving practice” for exceptions.)
CAUTION
Never put your foot on the accelerator pedal while
shifting.
3. Release the parking brake and brake pedal. Depress
the accelerator pedal slowly for smooth starting.
In normal cruising, the vehicle will start in first gear and
automatically shift up to the most suitable gear. On inclines,
declines or winding roads, etc., the vehicle shifts up and down
automatically according to the running conditions to obtain the
suitable driving power and engine braking.
When the lever is in the “4” position, the automatic
transmission system will select the most suitable gear for the
running conditions such as hill climbing, hard towing, etc.
If you need to accelerate rapidly while driving, depress the
accelerator pedal to the full throttle position. This provides
more acceleration by automatically downshifting the
transmission to the next lower gear or beyond, depending on
the vehicle speed.
If engine braking is needed, such as in descending a long hill,
see “(b) Using engine braking”.

STARTING AND DRIVING
263

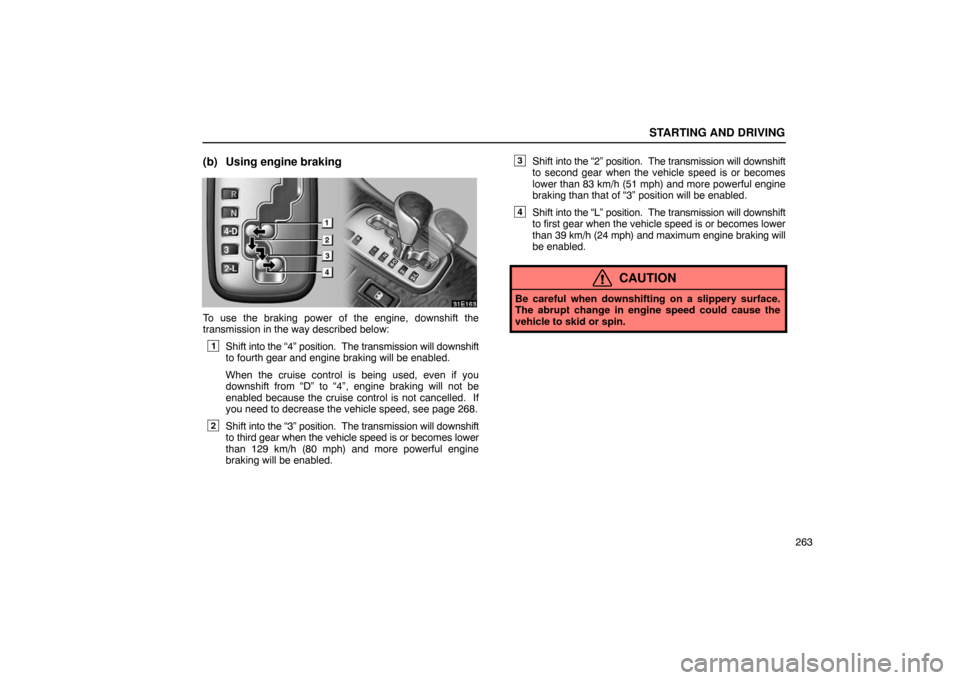

(b) Using engine braking
To use the braking power of the engine, downshift the
transmission in the way described below:
1Shift into the “4” position. The transmission will downshift
to fourth gear and engine braking will be enabled.
When the cruise control is being used, even if you
downshift from “D” to “4”, engine braking will not be
enabled because the cruise control is not cancelled. If
you need to decrease the vehicle speed, see page 268.
2Shift into the “3” position. The transmission will downshift
to third gear when the vehicle speed is or becomes lower
than 129 km/h (80 mph) and more powerful engine
braking will be enabled.
3Shift into the “2” position. The transmission will downshift
to second gear when the vehicle speed is or becomes
lower than 83 km/h (51 mph) and more powerful engine
braking than that of “3” position will be enabled.
4Shift into the “L” position. The transmission will downshift
to first gear when the vehicle speed is or becomes lower
than 39 km/h (24 mph) and maximum engine braking will
be enabled.
CAUTION
Be careful when downshifting on a slippery surface.
The abrupt change in engine speed could cause the
vehicle to skid or spin.
