MAINTENANCE
328Battery
Check the battery condition by the indicator color. See page
396 for additional information.
Brake fluid level
Make sure the brake fluid level is correct. See page 364 for
additional information.
Engine oil level
Check the level on the dipstick with the engine turned off and
the vehicle parked on a level spot. See page 351 for
additional
information.
Power steering fluid level
Check the level through the reservoir. The level should be in
the “HOT” or “COLD” range depending on the fluid
temperature. See page 365 for additional information.
Exhaust system
If you notice any change in the sound of the exhaust or smell
exhaust fumes, have the cause located and corrected
immediately. (See “Engine exhaust caution” on page 255.)
Vehicle interior
Items listed below should be checked regularly, e.g. while
performing periodic services, cleaning the vehicle, etc.
Lights
Make sure the headlight, stop lights, tail lights, turn signal
lights, and other lights are working. Check headlight aim.
Service reminder indicators and warning buzzers
Check that all service reminder indicators and warning buzzers
function properly.
Steering wheel
Check that it has the specified freeplay. Be alert for changes
in steering condition, such as hard steering, excessive freeplay
or strange noise.
Seats
Check that all front seat controls such as seat adjusters,
seatback recliner, etc. operate smoothly. Check that the head
restraints move up and down smoothly and that the locks hold
securely in any latched position.
Seat belts
Check that the seat belt system such as buckles, retractors
and anchors operate properly and smoothly. Make sure the
belt webbing is not cut, frayed, worn or damaged.

ENGINE
346— COOLING SYSTEM
Capacity
9.2 L (9.7 qt., 8.2 Imp. qt.)
Coolant type“Toyota Super Long Life Coolant” or similar high quality ethylene glyco\
l
based non −silicate, non −amine, non −nitrite, and non −borate coolant
with long −life hybrid organic acid technology (Coolant with long −life
hybrid organic acid technology is a combination of low phosphates and
organic acids.)
Do not use plain water alone.
NOTE:
“Toyota Super Long Life Coolant” is used in your Lexus vehicle at factory fil\
l. In order to avoid technical problems, only use “Toyota
Super Long Life Coolant” or similar high quality ethylene glycol based non −silicate, non −amine, non −nitrite, and non −borate coolant
with long−life hybrid organic acid technology. (Coolant with long −life hybrid organic acid technology is a combination of low
phosphates and organic acids.) Please contact your Lexus dealer for further deta\
ils.
— IGNITION SYSTEM
Spark plug — Make DENSO NGK
— Gap
SK20R11
IFR6A11
1.1 mm (0.043 in.)
— ELECTRICAL SYSTEM
Battery Open voltage at 20C (68F):
Charging rates
12.6 — 12.8 V Fully charged
12.2 — 12.4 V Half charged
11.8 — 12.0 V Discharged
[Voltage that is checked 20 minutes after the key is removed with all the
lights turned off]
5 A max.

ENGINE
347
FUEL
Fuel type
Your vehicle must use only unleaded gasoline.
To help prevent gas station mixups, your Lexus has a smaller
fuel tank opening. The special nozzle on pumps with unleaded
fuel will fit it, but the larger standard nozzle on pumps with
leaded gas will not.
At a minimum, the gasoline you use should meet the
specifications of ASTM D4814 in the U.S.A. and CGSB
3.5−M93 in Canada.
NOTICE
Do not use leaded gasoline. Use of leaded gasoline will
cause the threeway catalytic converter to lose its
effectiveness and the emission control system to
function improperly. Also, this can increase
maintenance costs.
Octane rating
Select Octane Rating 87 (Research Octane Number 91) or
higher. For improved vehicle performance, the use of
premium unleaded gasoline with an Octane Rating of 91
(Research Octane Number 96) or higher is recommended. Use of unleaded fuel with an Octane Rating or Research
Octane Number lower than stated above will cause persistent
heavy
knocking. If it is severe, this will lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when using the
recommended fuel, or if you hear steady knocking while
holding a steady speed on level roads, consult your Lexus
dealer.
However, occasionally, you may notice light knocking for a
short time while accelerating or driving up hills. This is normal
and there is no need for concern.
Gasolines containing detergent additives
Lexus recommends the use of gasoline that contain
detergent additives to avoid buildup of engine deposits.
For further details, ask your Lexus dealer or a local gasoline
retailer.
Quality gasoline
Automotive manufacturers in the U.S., Europe and Japan
have developed a specification for quality fuel named
WorldWide Fuel Charter (WWFC) that is expected to be
applied world wide. The WWFC consists of four
categories that depend on required emission levels. In the
U.S., category 4 has been adopted. The WWFC improves
air quality by providing for better emissions in vehicle
fleets, and customer satisfaction through better vehicle
performance.

ENGINE
352

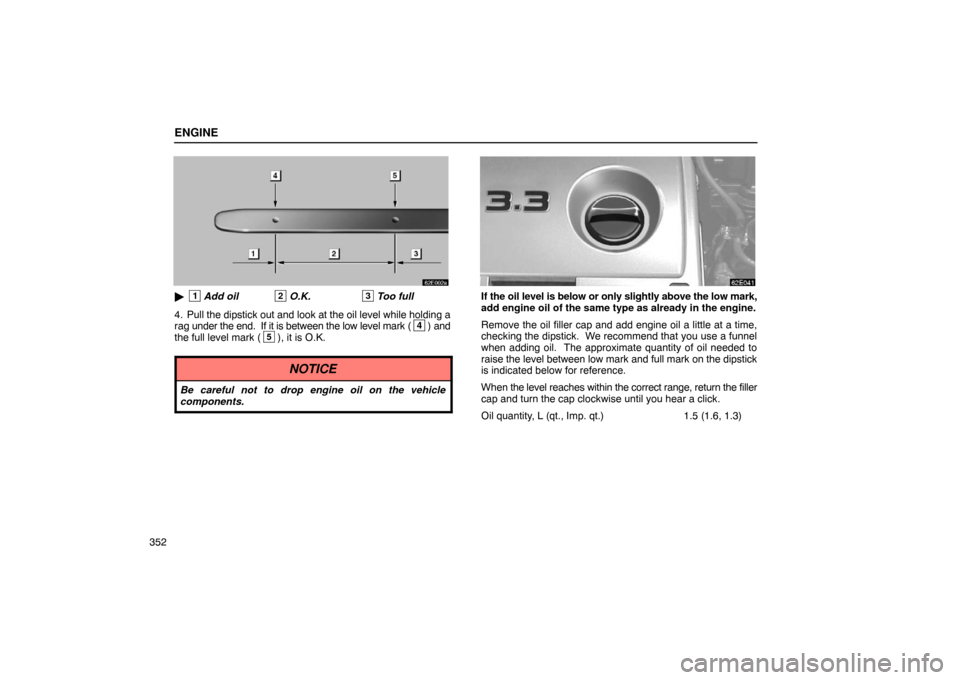

1Add oil2O.K.3Too full
4. Pull the dipstick out and look at the oil level while holding a
rag under the end. If it is between the low level mark (
4) and
the full level mark (5), it is O.K.
NOTICE
Be careful not to drop engine oil on the vehicle
components.
If the oil level is below or only slightly above the low mark,
add engine oil of the same type as already in the engine.
Remove the oil filler cap and add engine oil a little at a time,
checking the dipstick. We recommend that you use a funnel
when adding oil. The approximate quantity of oil needed to
raise the level between low mark and full mark on the dipstick
is indicated below for reference.
When the level reaches within the correct range, return the filler
cap and turn the cap clockwise until you hear a click.
Oil quantity, L (qt., Imp. qt.) 1.5 (1.6, 1.3)

CHASSIS
364

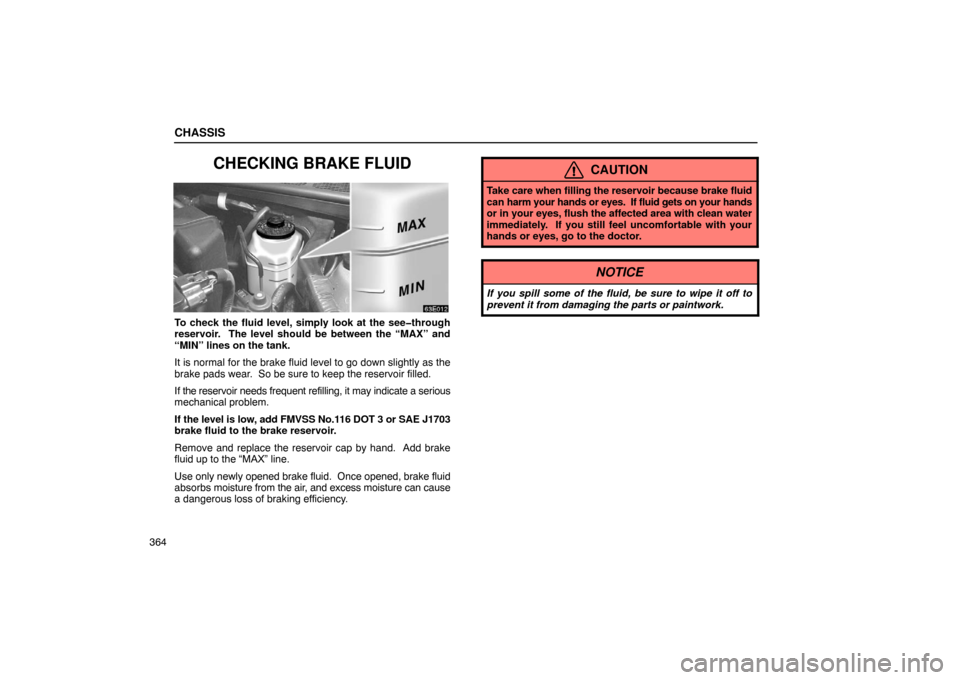

CHECKING BRAKE FLUID
To check the fluid level, simply look at the seethrough
reservoir. The level should be between the “MAX” and
“MIN” lines on the tank.
It is normal for the brake fluid level to go down slightly as the
brake pads wear. So be sure to keep the reservoir filled.
If the reservoir needs frequent refilling, it may indicate a serious
mechanical problem.
If the level is low, add FMVSS No.116 DOT 3 or SAE J1703
brake fluid to the brake reservoir.
Remove and replace the reservoir cap by hand. Add brake
fluid up to the “MAX” line.
Use only newly opened brake fluid. Once opened, brake fluid
absorbs moisture from the air, and excess moisture can cause
a dangerous loss of braking efficiency.
CAUTION
Take care when filling the reservoir because brake fluid
can harm your hands or eyes. If fluid gets on your hands
or in your eyes, flush the affected area with clean water
immediately. If you still feel uncomfortable with your
hands or eyes, go to the doctor.
NOTICE
If you spill some of the fluid, be sure to wipe it off to
prevent it from damaging the parts or paintwork.

CHASSIS
386
Wheel selection
When replacing wheels, care should be taken to ensure
that they are equivalent to those removed in load capacity,
diameter, rim width, and offset.
Correct replacement wheels are available at your Lexus
dealer.
A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer/odometer calibration, stopping ability, headlight
aim, bumper height, vehicle ground clearance, and tire or snow
chain clearance to the body and chassis.
CAUTION
Do not use wheels other than the manufacturer’s
recommended size, as this may cause dangerous
handling characteristics resulting in loss of control.
Otherwise, an accident may occur resulting in death or
serious injuries.
ALUMINUM WHEEL PRECAUTIONS
 When installing aluminum wheels, check that the wheel nuts
are tight after driving your vehicle the first 1600 km (1000
miles).
 If you have rotated, repaired, or changed your tires, check
that the wheel nuts are still tight after driving 1600 km (1000
miles).
 When using tire chains, be careful not to damage the
aluminum wheels.
 Use only Lexus wheel nuts and wrench designed for your
aluminum wheels.
 When balancing your wheels, use only Lexus balance
weights or equivalent and a plastic or rubber hammer.
 As with any wheel, periodically check your aluminum
wheels for damage. If damaged, replace immediately.

SECTION 6 – 4
389
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications390
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking battery condition 396
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 399
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 399
. . . . . . . . . . . . . . . .
Checking the cartridge type fuses 402
. . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 403
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Checking the headlight aim 404
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 405
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

ELECTRICAL COMPONENTS
392
No.FUSEAMPERECIRCUIT
1A/F25Multiport fuel injection
system/sequential multiport
fuel injection system
2DOOR125
Multiplex communication
system (power door lock
system, auto−door locking
system, wireless remote
control system)
3TEL5No circuit
4AM230All components in “IGN” and
“IG2” fuses and starting system
5EFI20Multiport fuel injection
system/sequential multiport
fuel injection system
6ALTS5Charging system
7HEAD LH
UPR10Left −hand headlight (high
beam)
No.FUSEAMPERECIRCUIT
8ETCS10Multiport fuel injection
system/sequential multiport
fuel injection system
9HORN10Horns
10IGN15Starting system
11HEAD RH
UPR10Right −hand headlight (high
beam)
12HAZ15Emergency flashers
13D.C.C30All components in “ECU− B”,
“RAD NO.1” and “DOME” fuses
14IG210
Multiport fuel injection
system/sequential multiport
fuel injection system, SRS
airbag system, seat belt
pretensioners, cruise control
system
15ST5Starting system
16ADJ PDL30Power adjustable pedals
17CDS30Electric cooling fan

ELECTRICAL COMPONENTS
393
No.FUSEAMPERECIRCUIT
18ABS No.240
Anti−lock brake system,
vehicle stability control system,
traction control system, brake
assist system
19MAIN40
All components in “HEAD LH
LWR”, “HEAD RH LWR”, “HEAD
LH UPR”, “HEAD RH UPR” and
“DRL” fuses
20ABS No.330
Anti −lock brake system,
vehicle stability control system,
traction control system, brake
assist system
21HTR50Air conditioning system
22RDI30Electric cooling fan
23SPARE5Spare fuse
24SPARE10Spare fuse
No.FUSEAMPERECIRCUIT
25ABS NO.150
All components in “RDI FAN”,
“ABS No.2”, “ABS No.3”, “CDS”,
“HTR (50 A)” and “ADJ PDL”
fuses and anti −lock brake
system, vehicle stability control
system, traction control
system, brake assist system
26ALT120
All components in “DEF”, “PWR
NO.1”, “PWR NO.2”, “PWR
NO.3”, “PWR NO.4”, “STOP”,
“DOOR NO.2”, “OBD”, “PWR
SEAT”, “FUEL OPEN”, “FOG”,
“AMP”, “PANEL”, “TAIL”,
“AM1”, “CIG”, “POWER
POINT”, “RAD NO.2”,
“ECU− ACC”, “GAUGE1”,
“GAUGE2”, “ECU− IG”,
“WIPER”, “WASHER”, “HTR
(10 A)”, “SEAT HTR” and
“SUN− SHADE” fuses
27SPARE15Spare fuse
28A/C10No circuit
29DRL5Daytime running light system
30HEAD RH
LW R15Right −hand headlight (low
beam)
31HEAD LH
LW R15Left −hand headlight (low
beam) and front fog lights

ELECTRICAL COMPONENTS
394
No.FUSEAMPERECIRCUIT
32ECUB10
Multiplex communication
system (power door lock
system, security system,
auto−door locking system,
automatic light control system,
headlight delay off system, tail
light auto cut system,
illuminated entry system,
daytime running light system,
wireless remote control
system) air conditioning
system, electronic modulated
suspension, driving position
memory system, front
passenger seat position
memory system
33DOME7.5
Ignition switch light, interior
light, personal lights, foot
lights, door courtesy lights,
trunk light, vanity lights, garage
door opener, clock, outside
temperature gauge,
multi− information display
No.FUSEAMPERECIRCUIT
34CIG15Cigarette lighter
35ECU
ACC5
Power rear view mirrors, clock,
multi −information display,
driving position memory
system, front passenger seat
position memory system
36RAD NO.210Audio system, navigation
system
37POWER
POINT15Power outlet
38RAD NO.120Audio system, navigation
system
39GAUGE110
Gauges and meters, clock,
outside temperature gauge,
multi −information display, shift
lock system
40ECUIG10
SRS airbag system, power
windows, anti− lock brake
system, electronic modulated
suspension, driving position
memory system, front
passenger seat position
memory system
41WIPER25Windshield wipers
42HTR10Air conditioning system
