HOW TO USE THIS MANUAL
vi
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner’s Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION — QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 — INSTRUMENTS AND CONTROLS
The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Occupant restraint system
7. Steering wheel and mirrors
SECTION 2 — AIR CONDITIONING AND AUDIO
The features of the vehicle’s air conditioning and audio are
explained in detail. Be sure to read this Section so that you can
make full use of them.
SECTION 3 — STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this Section, and remember — drive safely!
SECTION 4 — IN CASE OF AN EMERGENCY
This Section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occu rs, check the contents of this
Owner’s Manual and follow the instructions given.
SECTION 5 — MAINTENANCE
This Section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 — SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xPage
1Door lock switch and power window
switches 25, 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Driving position memory switches 165
. . . . . . . . . . .
3Power rear view mirror control switches 172 . . . . . .
4Side vents 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5Instrument panel light control dial 70
. . . . . . . . . . . . . .
6Headlight, turn signal and
fog light switches 32, 34, 37, 38 . . . . . . . . . . . . . . . . . . .
7Audio remote control switches 215, 246
. . . . . . . . . . .
8Ignition switch 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9Speech command switch See the separate . . . . . . . .
“Navigation System Owner’s Manual”.
10Multiinformation display control button 67 . . . . . . . .
11Windshield wiper and washer switches 38
. . . . . . . . .
12Seat ventilator/heater switches 48
. . . . . . . . . . . . . . . . .
13Emergency flasher switch 47
. . . . . . . . . . . . . . . . . . . . .
14Clock 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
15Audio system or navigation system
including audio system
(For the navigation system, see the separate
“Navigation System Owner’s Manual”.) 198, 222 . . .
16Front passenger’s seat belt reminder light 60 . . . . . .
17“AIRBAG OFF” indicator light 140
. . . . . . . . . . . . . . . . Page
18“AIRBAG ON” indicator light
140
. . . . . . . . . . . . . . . . .
19Security indicator light 14, 27
. . . . . . . . . . . . . . . . . . . .
20Glove box 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21Front passenger seat position
memory switches 167 . . . . . . . . . . . . . . . . . . . . . . . . . . .
22Automatic air conditioning controls 182
. . . . . . . . . .
23Rear window and outside rear view mirror
defogger switch 43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24Grocery bag hook 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25Automatic transmission selector lever 260 . . . . . . . .
26Rear electric sunshade switch 87
. . . . . . . . . . . . . . . . .
27Electronic modulated suspension
control switch 269 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Cigarette lighter and ashtray 75
. . . . . . . . . . . . . . . . . . .
29Traction control system off switch 270
. . . . . . . . . . .
30Cruise control switch 266
. . . . . . . . . . . . . . . . . . . . . . .
31Power adjustable pedals switch 170
. . . . . . . . . . . . . .
32Parking brake pedal 258
. . . . . . . . . . . . . . . . . . . . . . . . .
33Auxiliary box 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34Hood lock release lever 90
. . . . . . . . . . . . . . . . . . . . . . .
35Trunk lid opener 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36Fuel filler door opener 94
. . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2 – 1
181
AIR CONDITIONING AND AUDIO
Air conditioning
Automatic air conditioning controls182
. . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2 – 2
197
AIR CONDITIONING AND AUDIO
Audio
Audio system (with single−CD player) 198
. . . . . . . . . . . . . . . . . . . . . .
Audio system (with six −CD changer) 222
. . . . . . . . . . . . . . . . . . . . . . .
For vehicles equipped with Navigation System,
please refer to the separate “Navigation System
Owner’s Manual”.

AUDIO
198
AUDIO SYSTEM (with singleCD player)
Quick reference for your audio system
You can adjust the brightness of the display. See “Instrument panel light control” on page 70 for details.

AUDIO
199
1Ejecting a CD
(See page 209 for details.)
2Function buttons
1 — 6: Station selector buttons
(See page 205 for details.)
SCAN: Scan tuning
(See page 206 for details.)
P.SCAN: Preset scan tuning
(See page 206 for details.)
3Display of functions in TAPE or CD mode
:DOLBY NR
(See page 207 for details.)
 : Rewinding or reversing
(See page 207 or 213 for details.)
 : Fast forwarding
(See page 207 or 213 for details.)
RPT: Automatic repeat
(See page 208 or 213 for details.)
:CD selection
(See page 211 for details.)
RAND: Random access
(See page 214 for details.)
SCAN: Scan selection
(See page 212 for details.)
4CD slot
(See page 209 for details.)
5Automatic Sound Levelizer (ASL)/Mute
(See page 201 or 203 for details.)
6TUNE/AUDIO CONTROL knob
(See page 202 for details.)
7 :Side change
(See page 207 for details.)
8Mode selectors
(See page 201 for details.)
9Stopping and ejecting a cassette tape
(See page 206 for details.)
10Turning the system on and adjusting the volume
(See page 200 for details.)
11Cassette tape slot
(See page 206 for details.)
12Radio mode: Seek tuning
(See page 205 for details.)
TAPE mode: Direct access to a desired program
(See page 208 for details.)
CD mode: Direct access to a desired program
(See page 213 for details.)

AUDIO
200
Using your audio system: some basics
This section describes some of the basic features of the Lexus
audio system. Some information may not pertain to your
system.
Your audio system works when the ignition switch is in the
“ACC” or “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the audio system on longer than necessary when
the engine is not running.
(a) Turning the system on and off
Push this knob to turn the audio system on and off. Turn
this knob to adjust the volume.
The system turns on in the last mode used.

AUDIO
201
Push the “MUTE” button to decrease the volume
momentarily.
To return to its original volume, push the same button again.
When the audio system is turned on, the mute is always off
regardless of the previous mode.Push the “AM”, “FM”, “TAPE” or “DISC” button to turn on
that mode. The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or CD is not set, the cassette player or CD player
does not turn on.
You can turn off each player by ejecting the cassette tape or
CD. If the audio system was previously off, then the entire
audio system will be turned off when you eject the cassette
tape or CD. If the another function was previously playing, it
will come on again.

AUDIO
202

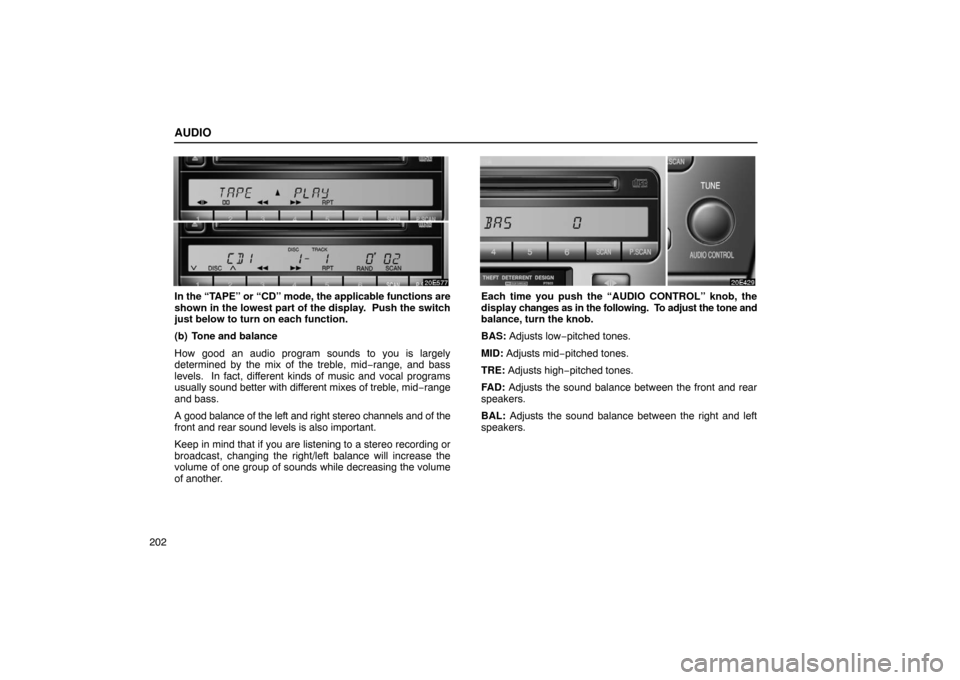

In the “TAPE” or “CD” mode, the applicable functions are
shown in the lowest part of the display. Push the switch
just below to turn on each function.
(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid −range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid −range
and bass.
A good balance of the left and right stereo channels and of the
front and rear sound levels is also important.
Keep in mind that if you are listening to a stereo recording or
broadcast, changing the right/left balance will increase the
volume of one group of sounds while decreasing the volume
of another.Each time you push the “AUDIO CONTROL” knob, the
display changes as in the following. To adjust the tone and
balance, turn the knob.
BAS: Adjusts low −pitched tones.
MID: Adjusts mid− pitched tones.
TRE: Adjusts high− pitched tones.
FAD: Adjusts the sound balance between the front and rear
speakers.
BAL: Adjusts the sound balance between the right and left
speakers.

AUDIO
203
(c) Automatic Sound Levelizer (ASL)
When the audio sound becomes difficult to be heard due to
road noise,
wind noise, etc. during driving, the system adjusts
to the optimum volume and tone quality according to the noise
level. While the Automatic Sound Levelizer is on, “ASL”
appears on the display.
(d) Your radio antennas
The wire antenna is mounted inside the rear window.
NOTICE
 When cleaning the inside of the rear window, be
careful not to scratch or damage the wire antenna.
 Putting a window tint (especially, conductive or
metallic type) on the rear window may affect the
reception of radio or mobile telephone. For the
installation of the window tint, consult with your
Lexus dealer.
(e) Your cassette player
When you insert a cassette, the exposed tape should face to
the right.
NOTICE
Do not oil any part of the cassette player, and do not
insert anything except a cassette tape into the slot.
(f) Your CD player
When you insert a CD, gently push it in with the label face up.
(The player will automatically eject a CD if the label face is
down.) The CD player will play from track 1 through the end
of the CD. Then it will play from track 1 again. On models with
the CD changer, next CD will be played from track 1.
NOTICE
 Never try to disassemble or oil any part of the CD
player. Do not insert anything other than CD’s into
the slot.
 Do not insert a CD upon another one.
The player is intended for use with 12 cm (4.7 in.) CD’s only.
