PICTORIAL INDEX
xPage
1Door lock switch and power window
switches 25, 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Driving position memory switches 165
. . . . . . . . . . .
3Power rear view mirror control switches 172 . . . . . .
4Side vents 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5Instrument panel light control dial 70
. . . . . . . . . . . . . .
6Headlight, turn signal and
fog light switches 32, 34, 37, 38 . . . . . . . . . . . . . . . . . . .
7Audio remote control switches 215, 246
. . . . . . . . . . .
8Ignition switch 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9Speech command switch See the separate . . . . . . . .
“Navigation System Owner’s Manual”.
10Multiinformation display control button 67 . . . . . . . .
11Windshield wiper and washer switches 38
. . . . . . . . .
12Seat ventilator/heater switches 48
. . . . . . . . . . . . . . . . .
13Emergency flasher switch 47
. . . . . . . . . . . . . . . . . . . . .
14Clock 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
15Audio system or navigation system
including audio system
(For the navigation system, see the separate
“Navigation System Owner’s Manual”.) 198, 222 . . .
16Front passenger’s seat belt reminder light 60 . . . . . .
17“AIRBAG OFF” indicator light 140
. . . . . . . . . . . . . . . . Page
18“AIRBAG ON” indicator light
140
. . . . . . . . . . . . . . . . .
19Security indicator light 14, 27
. . . . . . . . . . . . . . . . . . . .
20Glove box 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21Front passenger seat position
memory switches 167 . . . . . . . . . . . . . . . . . . . . . . . . . . .
22Automatic air conditioning controls 182
. . . . . . . . . .
23Rear window and outside rear view mirror
defogger switch 43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24Grocery bag hook 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25Automatic transmission selector lever 260 . . . . . . . .
26Rear electric sunshade switch 87
. . . . . . . . . . . . . . . . .
27Electronic modulated suspension
control switch 269 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Cigarette lighter and ashtray 75
. . . . . . . . . . . . . . . . . . .
29Traction control system off switch 270
. . . . . . . . . . .
30Cruise control switch 266
. . . . . . . . . . . . . . . . . . . . . . .
31Power adjustable pedals switch 170
. . . . . . . . . . . . . .
32Parking brake pedal 258
. . . . . . . . . . . . . . . . . . . . . . . . .
33Auxiliary box 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34Hood lock release lever 90
. . . . . . . . . . . . . . . . . . . . . . .
35Trunk lid opener 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36Fuel filler door opener 94
. . . . . . . . . . . . . . . . . . . . . . . . .

KEYS AND DOORS
10
KEYS
1Master keys (black) — These keys work in every lock.
For your Lexus dealer to make a new key with a
builtin transponder chip, your dealer will need one
of them.
2Valet key (gray) — This key will not open the glove
box and rear armrest door in the rear seat.
3Key number plate — Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for engine immobilizer system has been
placed in the head of the master and valet keys. These chips
are needed to enable the system to function correctly, so be
careful not to lose these keys. If you make your own duplicate
key, you will not be able to cancel the system or start the
engine. To protect items locked in the trunk or glove box when using
valet parking, leave the valet key with the attendant.
The trunk lid can be opened using a loop of wire in the trunk
even with the trunk lid opener main switch in the glove box
turned off.
When keeping items in the trunk, be sure to turn off
the trunk lid opener main switch and lock the glove box and rear
armrest door. To turn off the main switch in the glove box, see
page 92. For locking the glove box, see page 77. For locking
the rear armrest door, see page 85.
Since the doors can be locked without a key, you should always
carry the flat key or spare master key in case you accidentally
lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.

SECTION 1 – 4
71
INSTRUMENTS AND CONTROLS
Interior equipment
Sun visors72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Interior light 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Personal lights 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Illuminated entry system 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Cigarette lighter and ashtray 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Glove box 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Rear console box 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Garage door opener 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Cupholders 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Overhead console box 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Auxiliary boxes 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Trunk storage extension 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Grocery bag hook 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Coat hooks 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Rear electric sunshade 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie −down hooks 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .

INTERIOR EQUIPMENT
77
GLOVE BOX
1Unlock2Open3Lock
To open the glove box door, pull the lever. To lock the
glove box door, insert the master key and turn it
clockwise.
With the tail lights on, the glove box light will come on when the
glove box door is open.
The trunk lid opener main switch is installed inside the glove
box. See page 92 for further information.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box door closed
while driving.
REAR CONSOLE BOX
 Upper tray
Console box

EXTERIOR EQUIPMENT
92
Trunk lid opener main switch
1Main switch2Operative3Inoperative
If you do not want to activate the trunk lid opener system,
turn off the main switch in the glove box. To turn it on,
push in the main switch.
The trunk lid can be opened using a loop of wire in the trunk
even with the main switch in the glove box turned off. When
keeping items in the trunk, be sure to turn off the main switch
and lock the glove box and rear armrest door. For locking the
glove box, see page 77. For locking the rear armrest door, see
page 85.
In case the opener is not actuated
1. Pull down the rear armrest and open the rear armrest
door.
2. Pull the loop of wire to unlock the trunk lid.
This is used in case the trunk lid cannot be unlocked due to a
discharged battery or other trouble.

AIR CONDITIONING
193
(e) Checking and replacing the air conditioningfilter
The air conditioning filter information label is placed in the
glove box as shown and indicates that a filter has been
installed.
The air conditioning filter prevents dust from entering the
vehicle through the air conditioning vent.
The air conditioning filter is behind the glove box.
The air conditioning filter may clog after long use. The filter
may need to be replaced if the air flow of the air conditioner and
heater experiences extreme reductions in operating ef ficiency,
or if the windows begin to fog up easily.
To maintain the air conditioning efficiency, inspect and replace
the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, such
as inner city or desert areas, early replacement may be
required. (For scheduled maintenance information, please
refer to the “Owner’s Manual Supplement/Scheduled
Maintenance”.)

AIR CONDITIONING
194

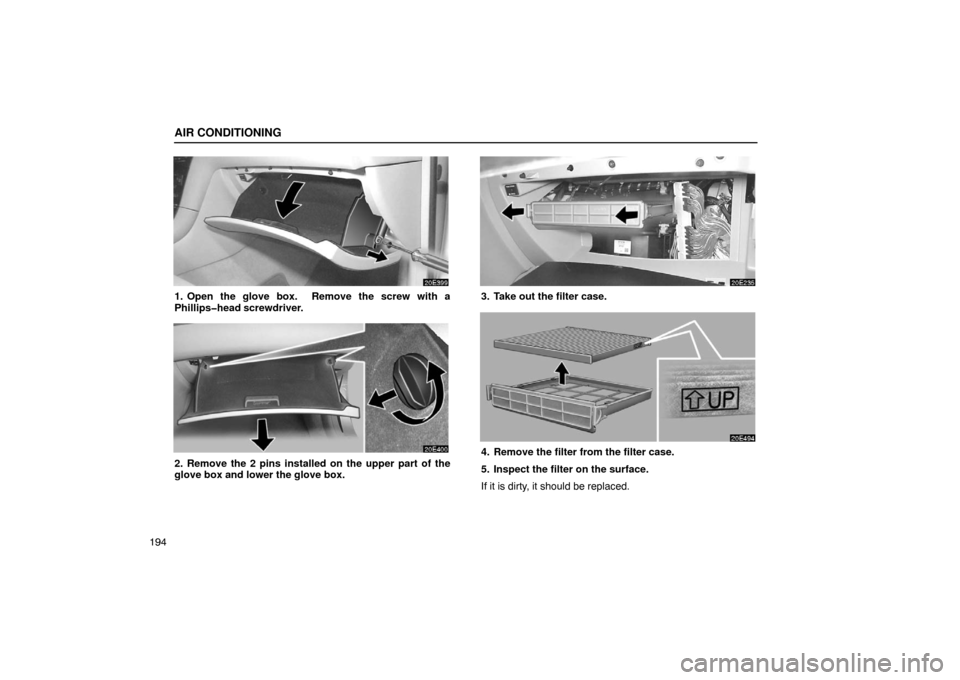

1. Open the glove box. Remove the screw with a
Phillipshead screwdriver.
2. Remove the 2 pins installed on the upper part of the
glove box and lower the glove box.
3. Take out the filter case.
4. Remove the filter from the filter case.
5. Inspect the filter on the surface.
If it is dirty, it should be replaced.

ELECTRICAL COMPONENTS
395
No.FUSEAMPERECIRCUIT
43MIR
HTR10Outside rear view mirror
defogger
44AM15Starting system
45FOG15Front fog lights
46SUN
SHADE15Rear sunshade
47GAUGE210
Auto anti −glare inside rear
view mirror, compass, back −up
lights, automatic light control
system, automatic headlight
leveling system, cruise control
system, seat belt reminder
lights
48PANEL10
Glove box light, console box
light, clock, outside
temperature gauge,
multi− information display,
instrument cluster lights,
instrument panel lights
49TAIL10Tail lights, parking lights,
license plate lights
50PWR NO.420Rear passenger’s power
window (left side)
No.FUSEAMPERECIRCUIT
51PWR NO.220Front passenger’s door lock
system, front passenger’s
power window
52OBD7.5On −board diagnosis system
53SEAT
HTR20Seat ventilators/heaters
54WASHER15Windshield washer
55FA NRLY10Electric cooling fans
56STOP15Stop lights, high mounted
stoplight
57FUEL
OPEN5Fuel filler door opener
58DOOR NO.225
Multiplex communication
system (power door lock
system, auto −door locking
system, wireless remote
control system)
59AMP25Audio system
60PWR NO.320Rear passenger’s power
window (right side)

ELECTRICAL COMPONENTS
407
Light Bulbs Bulb No. W Type
7High mounted stoplight 7440 21 E
8Stop/tail lights−−−21/5 E
9Rear side marker lights −−−5E
10Rear turn signal lights −−−21 E
11Back−up lights 921 16 E
12License plate lights −−−5E
13Tail lights 168 5 E
Light Bulbs Bulb No. W Type
14Vanity lights−−−5G
15Interior light −−−8G
16Door courtesy lights 168 5 E
17Glove box light −−−1.2 E
18Personal lights −−−8F
