OCCUPANT RESTRAINT SYSTEM
134
1Front passenger occupant classification system
(ECU and sensors)
2Side and curtain shield airbag sensor assemblies
3Side airbag modules (airbag and inflator)
4Curtain shield airbag modules (airbag and inflater)
5Curtain shield airbag sensor assemblies
6SRS warning light
7Front passenger’s seat belt buckle switch
8“AIRBAG OFF” and “AIRBAG ON” indicator lights
9Airbag sensor assembly
The SRS side airbag and curtain shield airbag system consists
mainly of the above components, and their locations are shown
in the illustration.
The SRS side airbag and curtain shield airbag system is
controlled by the airbag sensor assembly. The airbag sensor
assembly consists of a safing sensor and airbag sensor.
In a severe side impact, the side and curtain shield airbag
sensor and/or the curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain shield airbag inflators.
At this time a chemical reaction in the inflators quickly fills the
airbags with non −toxic gas to help restrain the lateral motion
of the occupants. When the airbags inflate, they produce a fairly loud noise and
release some smoke and residue along with non
−toxic gas.
This does not indicate a fire. This smoke may remain inside the
vehicle for some time, and may cause some minor irritation to
the eyes, skin or breathing. Be sure to wash off any residue as
soon as possible to prevent any potential skin irritation with
soap and water. If you can safely exit from the vehicle, you
should do so immediately.
Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce se rious injuries, it may also
cause minor burns or abrasions and swelling.
Front seats as well as parts of the front and rear pillars, and roof
side rail may be hot for several minutes, but the airbags
themselves will not be hot. The airbags are designed to inflate
only once.
CAUTION
SRS side airbags and curtain shield airbags inflate with
considerable force. To reduce the possibility of death
or serious injury when they inflate, the driver, front
passenger and rear outboard passengers must:
 Wear their seat belts properly.
 Remain properly seated with their backs upright and
against the seats at all times.

OCCUPANT RESTRAINT SYSTEM
135

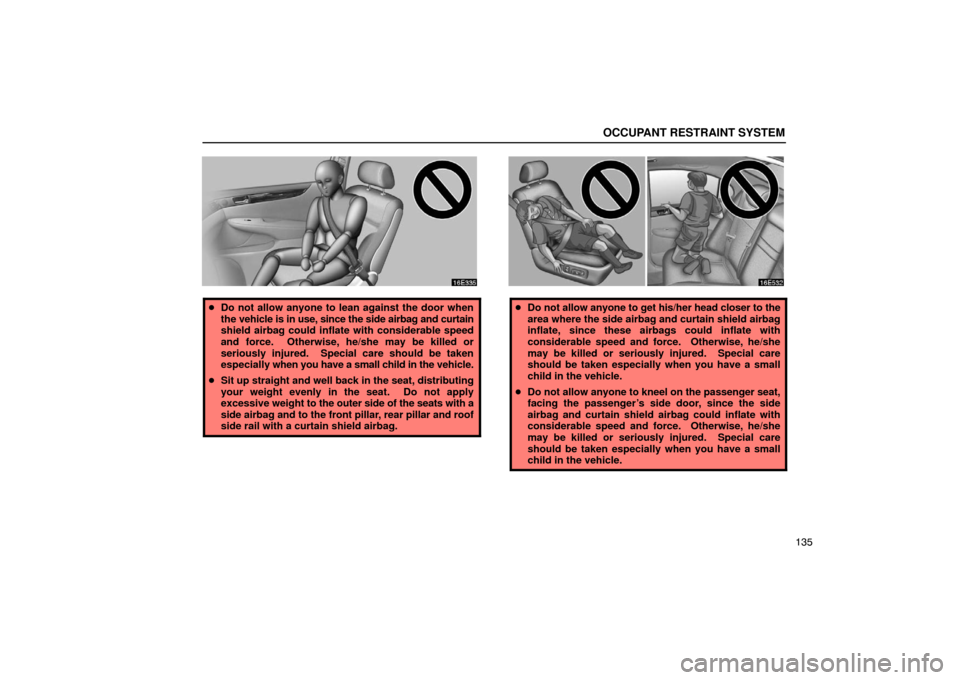

Do not allow anyone to lean against the door when
the vehicle is in use, since the side airbag and curtain
shield airbag could inflate with considerable speed
and force. Otherwise, he/she may be killed or
seriously injured. Special care should be taken
especially when you have a small child in the vehicle.
 Sit up straight and well back in the seat, distributing
your weight evenly in the seat. Do not apply
excessive weight to the outer side of the seats with a
side airbag and to the front pillar, rear pillar and roof
side rail with a curtain shield airbag. Do not allow anyone to get his/her head closer to the
area where the side airbag and curtain shield airbag
inflate, since these airbags could inflate with
considerable speed and force. Otherwise, he/she
may be killed or seriously injured. Special care
should be taken especially when you have a small
child in the vehicle.
 Do not allow anyone to kneel on the passenger seat,
facing the passenger’s side door, since the side
airbag and curtain shield airbag could inflate with
considerable speed and force. Otherwise, he/she
may be killed or seriously injured. Special care
should be taken especially when you have a small
child in the vehicle.

OCCUPANT RESTRAINT SYSTEM
136
Do not allow anyone to get his/her head or hands out
of windows, since the curtain shield airbags could
inflate with considerable speed and force.
Otherwise, he/she may be killed or seriously injured.
Special care should be taken especially when you
have a small child in the vehicle. Do not attach a cupholder or any other device or
object on or around the door. When the side airbag
inflates, the cupholder or any other device or object
will be thrown with great force, or the side airbag may
not activate correctly, resulting in death or serious
injury. Likewise, the driver and front passenger
should not hold objects in their arms or on their
knees.

OCCUPANT RESTRAINT SYSTEM
137
Do not attach a microphone or any other device or
object around the area where the curtain shield
airbag activates such as on the windshield glass,
side door glass, front and rear pillars, roof side rail
and assist grips. When the curtain shield airbag
inflates, the microphone or other device or object will
be thrown away with great force or the curtain shield
airbag may not activate correctly, resulting in death
or serious injury.
 Do not hook a hanger , heavy or sharp pointed objects
on the coat hook. If the curtain shield airbag inflates,
those items will be thrown away with great force or
the curtain shield airbag may not activate correctly,
resulting in death or serious injury. When you hang
clothes, hang them on the coat hook directly.
 Do not use seat accessories which cover the parts
where the side airbags inflate. Such accessories may
prevent the side airbags from activating correctly,
causing death or serious injury.
 Do not modify or replace the seats or upholstery of
the seats with side airbags. Such changes may
prevent the side airbag system form activating
correctly, disable the system or cause the side
airbags to inflate accidentally, resulting in death or
serious injury.
 Do not disassemble or repair the front and rear pillars
and roof side rails containing the curtain shield
airbags. Such changes may disable the system or
cause the curtain shield airbags to inflate
accidentally, resulting in death or serious injury.
Failure to follow these instructions can result in death
or serious injury. Consult your Lexus dealer about any
repair and modification.
If you wish to modify your vehicle for a person with a
physical disability, consult your Lexus dealer. It may
dangerously interfere with the SRS side airbags and
curtain shield airbags operation.

OCCUPANT RESTRAINT SYSTEM
138
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the SRS side airbag
and curtain shield airbag system in some cases.
Installation of electronic devices such as a mobile
twoway radio, cassette tape player or CD player
 Modification of the suspension system
 Modification of the structure of the passenger
compartment
 Repairs made on or near the console or front seat
The indicator comes on when the ignition key is turned to
the “ON” position. It goes off after about 6 seconds. This
means the SRS side airbags and curtain shield airbags are
operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
front passenger occupant classification system, “AIRBAG
OFF” indicator light, “AIRBAG ON” indicator light, front
passenger’s seat belt buckle switch, seat belt pretensioner
assemblies, inflators, warning light, interconnecting wiring and
power sources. (For details, see “Service reminder indicators
and warning buzzers” on page 57 for instructions.)

OCCUPANT RESTRAINT SYSTEM
139
If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.

The light does not come on when the ignition key is turned
to the “ON” position or remains on for more than 6 seconds.
 The light comes on while driving.
The SRS warning light and “AIRBAG OFF” indicator light will
be illuminated if there is a malfunction in the front passenger
occupant classification system.
In the following cases, contact your Lexus dealer as soon as
possible:
 Any of the SRS side airbags and curtain shield airbags have
been inflated.
 The portion of the doors (shaded in the illustration) was
involved in an accident that was not severe enough to cause
the SRS side airbags and curtain shield airbags to inflate.

OCCUPANT RESTRAINT SYSTEM
140
The surface of the seats with the side airbag (shaded in the
illustration) is scratched, cracked, or otherwise damaged.
 The portion of the front pillars, rear pillars or roof side rail
garnishes (padding) containing the curtain shield airbags
inside (shaded in the illustration) is scratched, cracked, or
otherwise damaged.
NOTICE
Do not disconnect the battery cables before contacting
your Lexus dealer.
FRONT PASSENGER OCCUPANT
CLASSIFICATION SYSTEM
Your vehicle is equipped with a front passenger occupant
classification system. This system detects the conditions
1 — 4 in the table shown below, and based on these
conditions activates or deactivates the airbags. The
system monitors the weight and load on the front
passenger seat, and the seat belt buckle switch in
determining conditions correctly, do not do any of the
following.
 Put a heavy load in the seatback pocket.
 Attach a seatback table to the front passenger seat
seatback of the front passenger seat.
 Put weight on the front passenger by putting your hands or
feet on the front passenger seat seatback from the rear
passenger seat.

OCCUPANT RESTRAINT SYSTEM
141
The “AIRBAG OFF” indicator light will be illuminated
when the ignition switch is in the “ON” position and a child
restraint system is in the front passenger seat (see
tablecondition 2). This indicates that in the event of a
severe frontal or passenger’s side impact, the front
passenger airbag and side airbag on the front passenger
seat are deactivated and will not deploy.
If the front passenger occupant classification system
determines that a person of adult size sits in the front
passenger seat but the “AIRBAG OFF” indicator light is
illuminated, one of the following is likely to have occurred:
 A rear passenger lifts the front passenger seat cushion with
their legs.
 Objects are placed under the front passenger seat.
 The front passenger seat seatback is in contact with the rear
seat. To ensure the system correctly detects an adult sitting in the
front passenger seat, make sure the above do not occur.
Make
sure the “AIRBAG ON” indicator light is illuminated when
an adult is seated in the front passenger seat. If the “AIRBAG
OFF” indicator light is illuminated, ask the passenger to sit up
straight, well back in the seat, and with the seat belt worn
correctly. If the “AIRBAG OFF” indicator light still remains
illuminated, either ask the passenger to move to the rear seat,
or if that is not possible, move the front passenger seat fully
rearward.
The “AIRBAG OFF” and “AIRBAG ON” indicator lights will
be initially illuminated when the ignition switch is turned
to the “ON” position. It will remain for about four seconds
and then go off. After the two seconds, the front
passenger occupant classification system operates and
judges which indicator light to turn on.

OCCUPANT RESTRAINT SYSTEM
142
The SRS warning light and “AIRBAG OFF” indicator light
will be illuminated if there is a malfunction in the front
passenger occupant classification system.

OCCUPANT RESTRAINT SYSTEM
143
Condition and operation in the front passenger occupant classification s\
ystem
Condition detected by the front
passenger occupant
classification system
Indicator/warning lightDevices
“AIRBAG
OFF” and “AIRBAG ON”
indicator lights
SRS
warning light
Front
passenger’s seat belt
reminder light
Front
passenger airbagSide airbag
on the frontpassenger seatCurtain
shield airbag in the frontpassenger sideFront
passenger’s seat belt
pretensioner
1Adult*1“AIRBAG ON”OFFFlashing*4Activated
2Child *2 or child
restraint system*3“AIRBAG OFF”OFFFlashing*4Deactivated
Activated
Activated
3UnoccupiedNot
illuminatedOFFOFFDeactivatedDeactivated
4There is a
malfunction in the
system“AIRBAG OFF”ONOFFDeactivatedActivated
*1: The system judges a person of adult size as an adult. When a smaller ad\
ult sits in the front passenger seat, the system may recognize him/her as a child depending on his/her physique and posture.
*
2: When a larger child who has outgrown a child restraint system sits in the front\
passenger seat, the system may recognize him/her as an adult depending on his/her physique or posture.
*
3: Never install a rear −facing child restraint system on the front passenger seat. A forward −facing child restraint system should
only be installed on the front passenger seat when it is unavoidable. (See “Child restraint system” on page 147 as for installing
the child restraint system.)
*
4: In the event the front passenger does not wear a seat belt.
