SWITCHES
44
CAUTION
Since the mirror surfaces can get hot, do not touch them
when the switch is on.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger of f. Continuous use may cause
the battery to discharge, especially during stop −and−go
driving. The defogger is not designed to dry rain water or to
melt snow.
If the outside rear view mirrors are heavily coated with ice, use
a spray de −icer before operating the switch.
NOTICE
 When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires or
connectors.
 To prevent the battery from being discharged, turn
the switch off when the engine is not running.
POWER WINDOW SWITCHES
1For driver’s window
2For front passenger’s window
3For left rear window
4For right rear window
To raise or lower the windows, use the switch on each
door. The passengers’ windows can also be controlled by
the switches on the driver’s door.
The power windows work when the ignition key is in the “ON”
position.
Retained accessory power operation: Even if the ignition
key is turned to the “ACC” or “LOCK” position with all the door\
s
closed, the window can be operated until a front door is opened
(or for 43 seconds).

SWITCHES
45

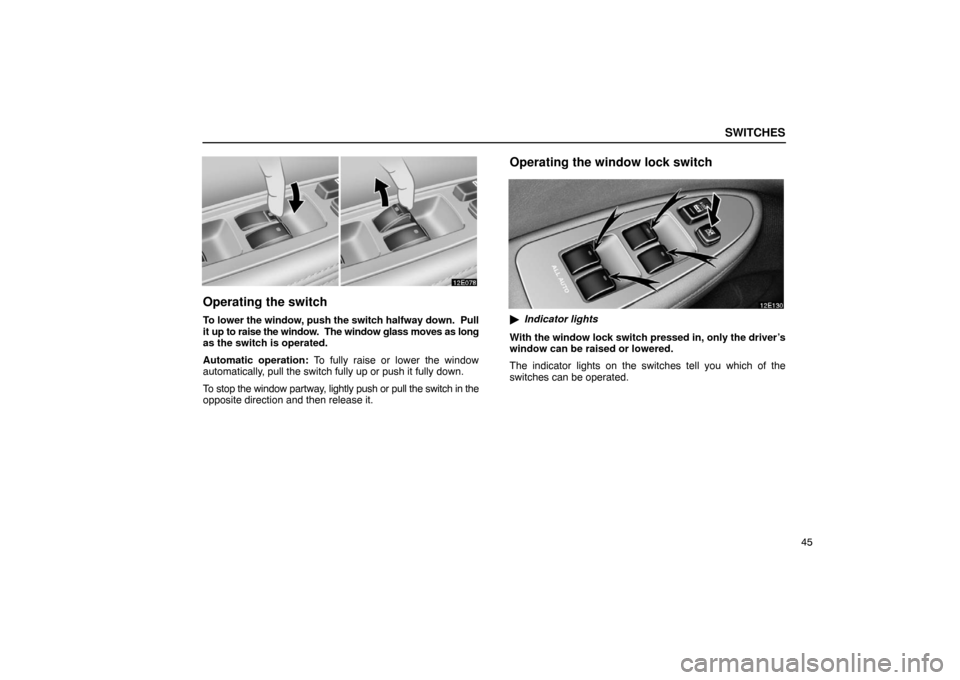

Operating the switch
To lower the window, push the switch halfway down. Pull
it up to raise the window. The window glass moves as long
as the switch is operated.
Automatic operation: To fully raise or lower the window
automatically, pull the switch fully up or push it fully down.
To stop the window partway, lightly push or pull the switch in the
opposite direction and then release it.
Operating the window lock switch
 Indicator lights
With the window lock switch pressed in, only the driver’s
window can be raised or lowered.
The indicator lights on the switches tell you which of the
switches can be operated.

SWITCHES
46
Operating the windows from outside the
vehicle
The windows can be opened using an ignition key.*NOTE:
* This feature can be deactivated.
Ask your Lexus dealer for details.
Insert the ignition key into the key hole on the driver’s
door.
Turn the key in the unlocking direction and hold it.
After the doors are unlocked, the windows begin to open. To
stop in the middle, return the key.
The windows also can be opened using the wireless remote
control. For details, see page 19.
Jam protection function
During automatic raising operation or retained accessory
power raising operation, the window stops and is lowered if
something gets caught between the window and window
frame.
If the window receives a strong impact, this function may work
even if nothing is caught.
CAUTION
To avoid serious personal injury, you must do the
following.
Before you close the power windows, always make
sure there is nobody around the power windows. You
must also make sure the heads, hands and other
parts of the bodies of all occupants are kept
completely inside the vehicle. If someone’s neck,
head or hands get caught in a closing window, it
could result in a serious injury. When anyone closes
the power windows, make sure he or she operates the
windows safely.
 When small children are in the vehicle, never let them
use the power window switches without supervision.
Use the window lock switch to prevent them from
making unexpected use of the switches.

SWITCHES
47
Be sure to remove the ignition key when you leave
your vehicle.
 Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the power
window switches and get trapped in a window.
Unattended person (particularly a small child) can be
involved in a serious accident.
 Never try jamming any part of your body to activate
the jam protection function intentionally.
 The jam protection function may not work if
something gets caught just before the window fully
closed.EMERGENCY FLASHER SWITCH
To turn on the emergency flashers, push the switch.
All the turn signal lights will flash. The emergency flashers will
work with the engine running or off and with or without the
ignition key.
Turn on the emergency flashers to warn other drivers if you
must stop your vehicle where it might be a traffic hazard.
Always pull your vehicle as far off the road as possible.
The turn signal light switch will not work when the emergency
flashers are in operation.

SWITCHES
48
NOTICE
To prevent the battery from being discharged, do not
leave the switch on longer than necessary when the
engine is not running.
SEAT VENTILATOR/HEATERSWITCHES
1For driver’s seat
2For front passenger’s seat
Operating t his switch warms the seats or provides airflow
from inside the seats.

SWITCHES
49
Seat heater
To turn on the seat heater, push the knob to pop it out and
then turn the knob clockwise. The indicator light (yellow)
comes on.
The ignition switch must be in the “ON” position to activate seat
heaters.
Three setting levels are available.
To disable this function, turn the knob to the center position.
The indicator light goes off.
Push the knob into the recessed position when not in use.
CAUTION
Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperatures. Use extra caution for;
 Babies, small children, elderly persons, sick persons
or persons with physical disabilities
 Persons who have delicate skin
 Persons who are exhausted
 Persons who have taken alcohol or drugs which
induce sleep (sleeping drug, cold remedy, etc.).
To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.

SWITCHES
50
NOTICE
Do not put unevenly weighted objects on the seat and
do not stick sharp objects (needles, nails, etc.) into
the seat.
 When cleaning the seats, do not use organic
substances (paint thinner, benzine, alcohol,
gasoline, etc.). They may damage the seat
ventilation/heating system or seat surface.
 Before cleaning the seats, fully wring out the towel
that will be used. W ater entering the seats may cause
the seat ventilation/heating system to malfunction.
 To prevent the battery from being discharged, turn
the switches off when the engine is not running.
Seat ventilator
To turn on the seat ventilator, push the knob to pop it out
and then turn the knob counterclockwise. The indicator
light (green) comes on.
The ignition switch must be in the “ON” position to activate seat
ventilators.
Three setting levels are available.
To disable this function, turn the knob to the center position.
The indicator light goes off.
Push the knob into the recessed position when not in use.

SWITCHES
51
NOTICE
Do not put unevenly weighted objects on the seat and
do not stick sharp objects (needles, nails, etc.) into
the seat.
 When cleaning the seats, do not use organic
substances (paint thinner, benzine, alcohol,
gasoline, etc.). They may damage the seat
ventilation/heating system or seat surface.
 Before cleaning the seats, fully wring out the towel
that will be used. W ater entering the seats may cause
the seat ventilation/heating system to malfunction.
 To prevent the battery from being discharged, turn
the switches off when the engine is not running.

SWITCHES
52

SECTION 1 – 3
53
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder
indicators
Fuel gauge54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Engine coolant temperature gauge 55
. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Odometer and trip meter 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 57
. . . . . . . . . . . . . .
Multi−information display 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
