CHASSIS
364
CHECKING BRAKE FLUID
To check the fluid level, simply look at the seethrough
reservoir. The level should be between the “MAX” and
“MIN” lines on the tank.
It is normal for the brake fluid level to go down slightly as the
brake pads wear. So be sure to keep the reservoir filled.
If the reservoir needs frequent refilling, it may indicate a serious
mechanical problem.
If the level is low, add FMVSS No.116 DOT 3 or SAE J1703
brake fluid to the brake reservoir.
Remove and replace the reservoir cap by hand. Add brake
fluid up to the “MAX” line.
Use only newly opened brake fluid. Once opened, brake fluid
absorbs moisture from the air, and excess moisture can cause
a dangerous loss of braking efficiency.
CAUTION
Take care when filling the reservoir because brake fluid
can harm your hands or eyes. If fluid gets on your hands
or in your eyes, flush the affected area with clean water
immediately. If you still feel uncomfortable with your
hands or eyes, go to the doctor.
NOTICE
If you spill some of the fluid, be sure to wipe it off to
prevent it from damaging the parts or paintwork.

CHASSIS
365
CHECKING POWER STEERINGFLUID
Check the fluid level through the reservoir. If necessary,
add automatic transmission fluid DEXRONII or III.
If the vehicle has been driven around 80 km/h (50 mph) for 20
minutes (a little more in frigid temperatures), the fluid is hot
(60 C — 80 C or 140F — 175F). You may also check the
level when the fluid is cold (about room temperature, 10 C —
30 C or 50F — 85F) if the engine has not been run for about
five hours.
1If cold O.K.2If cold add3If hot O.K.
4If hot add
Clean all dirt off the reservoir and look at the fluid level. If the
fluid is cold, the level should be in the “COLD” range. Similarly,
if it is hot, the fluid level should be in the “HOT” range. If th\
e
level is at the low side of the appropriate range, add automatic
transmission fluid DEXRON
II or III to bring the level within
the range.
To remove the reservoir cap, turn it counterclockwise and lift
up. To reinstall it, turn it clockwise. After replacing the reservoir
cap, visually check the steering box case, vane pump and hose
connections for leaks or damage.
CAUTION
The reservoir may be hot so be careful not to burn
yourself.

CHASSIS
366
NOTICE
Avoid overfilling, or the power steering could be
damaged.
CHECKING TIRE INFLATIONPRESSURE
63E035

CHASSIS
367
The recommended cold tire inflation pressures,
tire sizes and the combined weight of occupants
and cargo (vehicle capacity weight) are described
on page 362, 363 and 410. They are also
described on the tire and loading information label
as shown.
You should check the tire inflation pressure every two
weeks, or at least once a month. And do not forget
the spare!
The following instructions for checking tire
inflation pressure should be observed:
The pressure should be checked only when the
tires are cold. If your vehicle has been parked
for at least 3 hours and has not been driven for
more than 1.5 km or 1 mile since, you will get an
accurate cold tire inflation pressure reading.
Always use a tire pressure gauge. The
appearance of a tire can be misleading. Besides,
tire inflation pressures that are even just a few
pounds off can degrade handling and ride.
 Do not bleed or reduce tire inflation pressure
after driving. It is normal for the tire inflation
pressure to be higher after driving.
 Never exceed the vehicle capacity weight.
Passengers and luggage weight should be located
so that the vehicle is balanced.

CHASSIS
368

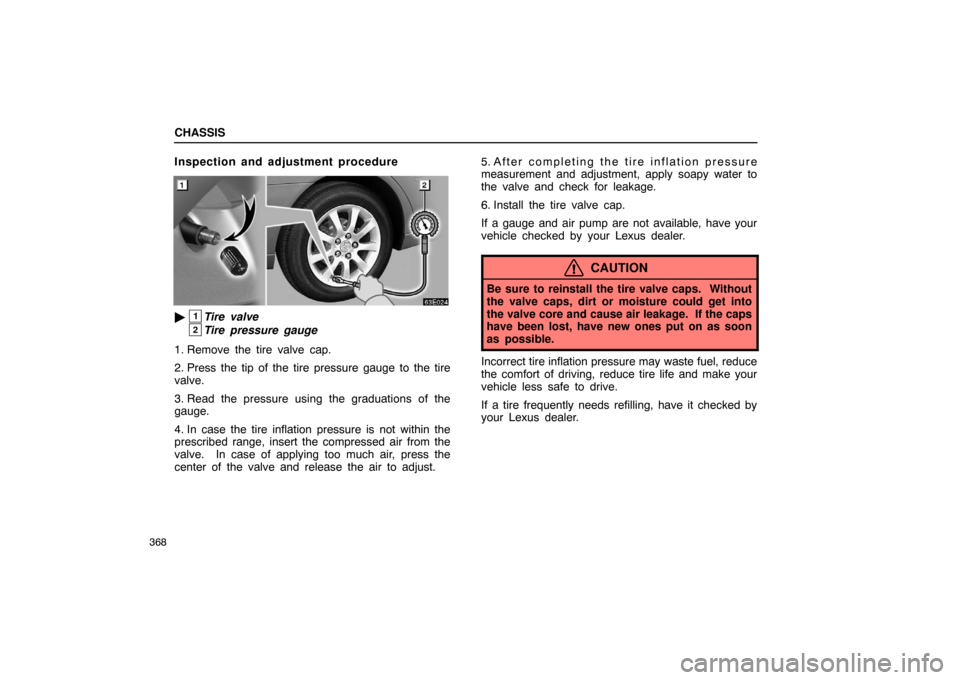

Inspection and adjustment procedure
1Tire valve
2Tire pressure gauge
1. Remove the tire valve cap.
2. Press the tip of the tire pressure gauge to the tire
valve.
3. Read the pressure using the graduations of the
gauge.
4. In case the tire inflation pressure is not within the
prescribed range, insert the compressed air from the
valve. In case of applying too much air, press the
center of the valve and release the air to adjust. 5. After completing the tire inflation pressure
measurement and adjustment, apply soapy water to
the valve and check for leakage.
6. Install the tire valve cap.
If a gauge and air pump are not available, have your
vehicle checked by your Lexus dealer.
CAUTION
Be sure to reinstall the tire valve caps. Without
the valve caps, dirt or moisture could get into
the valve core and cause air leakage. If the caps
have been lost, have new ones put on as soon
as possible.
Incorrect tire inflation pressure may waste fuel, reduce
the comfort of driving, reduce tire life and make your
vehicle less safe to drive.
If a tire frequently needs refilling, have it checked by
your Lexus dealer.

CHASSIS
369

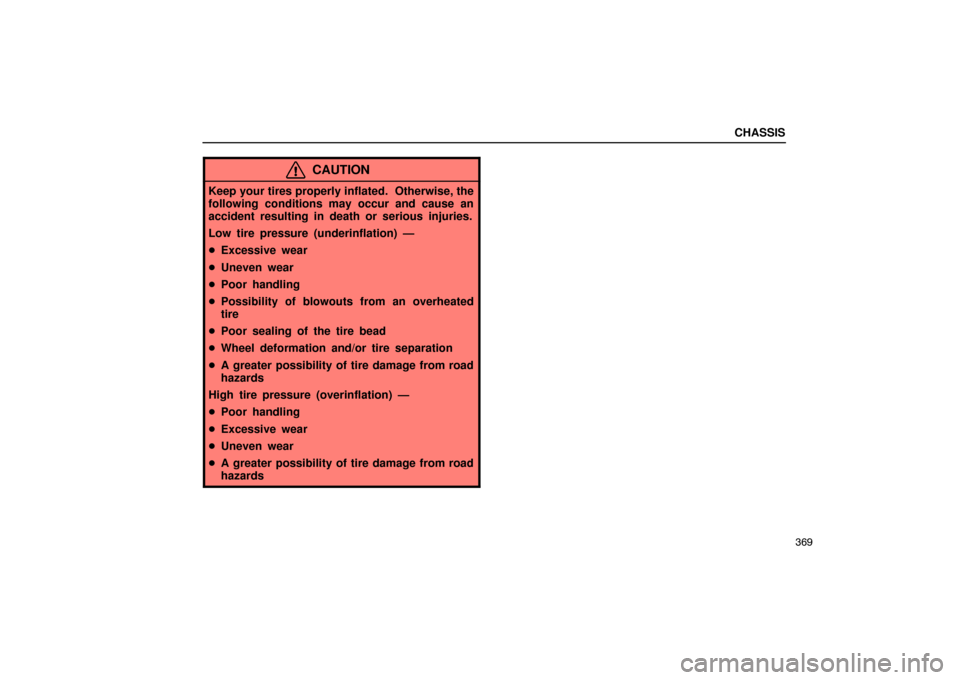

CAUTION
Keep your tires properly inflated. Otherwise, the
following conditions may occur and cause an
accident resulting in death or serious injuries.
Low tire pressure (underinflation) —
Excessive wear
 Uneven wear
 Poor handling
 Possibility of blowouts from an overheated
tire
 Poor sealing of the tire bead
 Wheel deformation and/or tire separation
 A greater possibility of tire damage from road
hazards
High tire pressure (overinflation) —
 Poor handling
 Excessive wear
 Uneven wear
 A greater possibility of tire damage from road
hazards

CHASSIS
370
TIRE INFORMATION

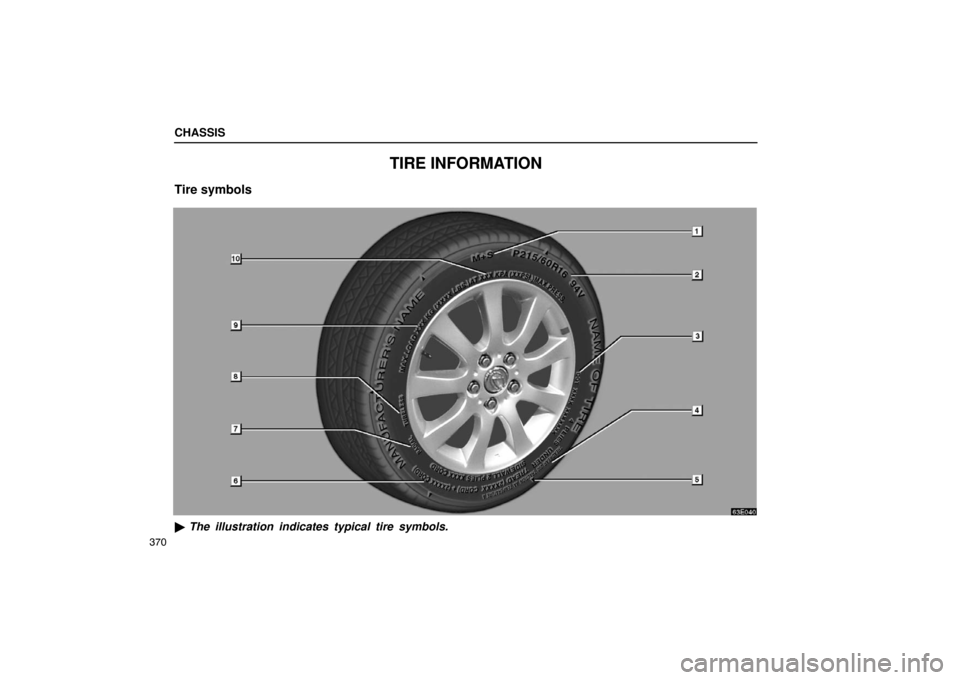

Tire symbols
63E040
The illustration indicates typical tire symbols.

CHASSIS
371
1Summer tire or all season tire: An all season
tire has “M+S” on the sidewall. The tire not
marked with “M+S” is a summer tire. For details,
see “Types of tires” on page 379.
2Tire size: For details, see “Tire size” on page
372.
3DOT and Tire Identification Number (TIN): For
details, see “DOT and Tire Identification Number
(TIN)” on page 372.
4Uniform tire quality grading: For details, see
“Uniform tire quality grading” that follows.
5Location of the tread wear indicators: For
details, see “Checking and replacing tires” on
page 381.
6Tire ply composition and materials: Plies mean
a layer of rubber −coated parallel cords. Cords
mean the strands forming the plies in the tire.
7Radial tires or biasply tires: A radial tire has
“RADIAL” on the sidewall. A tire not marked with
“RADIAL” is a bias −ply tire.
8“TUBELESS” or “TUBE TYPE”: A tubeless tire
does not have a tube inside the tire. A tube type
tire has a tube inside the tire and the tube
maintains the air pressure.
9Load limit at maximum cold tire inflation
pressure: For details, see “Checking and
replacing tires” on page 381.
10Maximum cold tire inflation pressure: This
means the pressure to which a tire may be
inflated. For details about recommended cold tire
inflation pressure, see “Specifications” on page
360.

CHASSIS
372

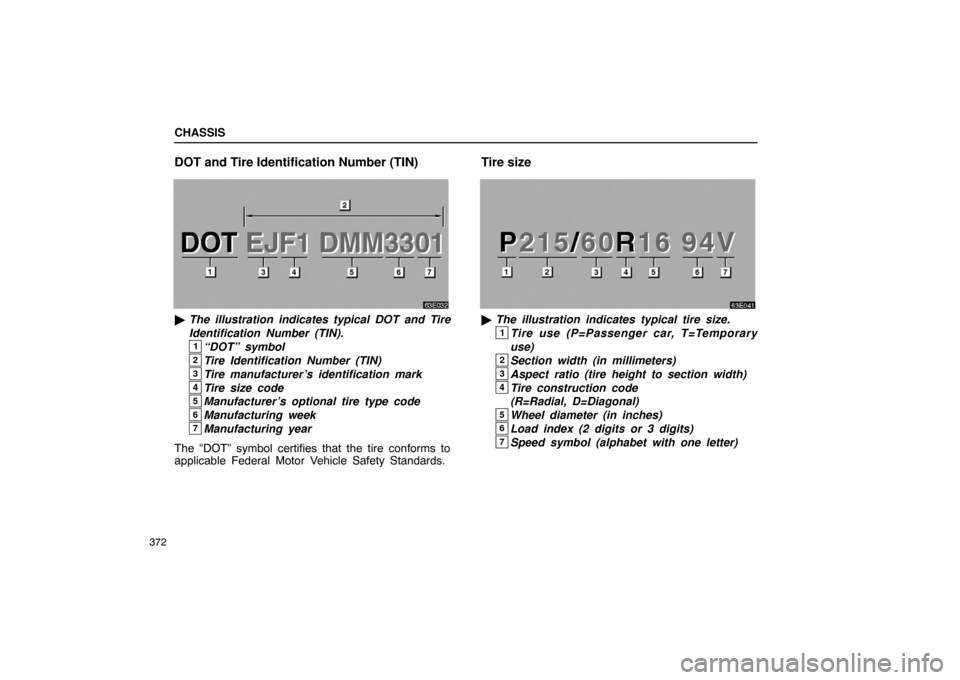

DOT and Tire Identification Number (TIN)
The illustration indicates typical DOT and Tire
Identification Number (TIN).
1“DOT” symbol
2Tire Identification Number (TIN)
3Tire manufacturer’s identification mark
4Tire size code
5Manufacturer’s optional tire type code
6Manufacturing week
7Manufacturing year
The “DOT” symbol certifies that the tire conforms to
applicable Federal Motor Vehicle Safety Standards.
Tire size
 The illustration indicates typical tire size.
1Tire use (P=Passenger car, T=Temporary
use)
2Section width (in millimeters)
3Aspect ratio (tire height to section width)
4Tire construction code
(R=Radial, D=Diagonal)
5Wheel diameter (in inches)
6Load index (2 digits or 3 digits)
7Speed symbol (alphabet with one letter)

CHASSIS
373

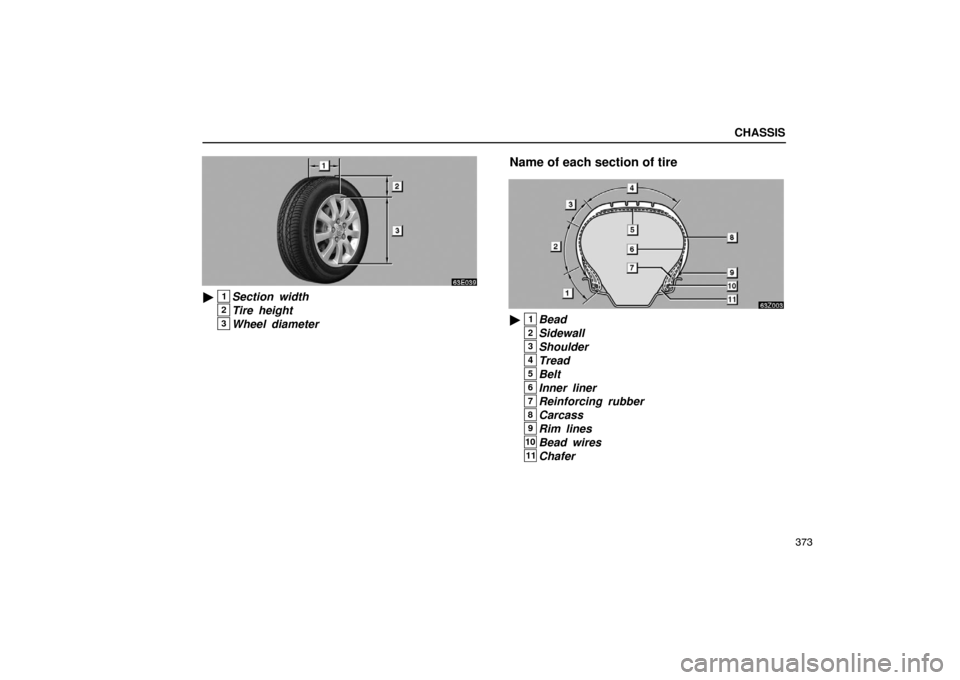

1Section width
2Tire height
3Wheel diameter
Name of each section of tire
1Bead
2Sidewall
3Shoulder
4Tread
5Belt
6Inner liner
7Reinforcing rubber
8Carcass
9Rim lines
10Bead wires
11Chafer
