GAUGES, METERS AND SERVICE REMINDER INDICATORS
54
FUEL GAUGE
Low fuel level warning light
The gauge is displayed when the ignition switch is on and
indicates the approximate quantity of fuel remaining in the
tank.
It is a good idea to keep the tank over 1/4 full.
If the fuel level approaches “E” or the low fuel level warning light\
comes on, fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the fuel gauge needle may fluctuate or the low fuel level
warning light may come on earlier than usual.
If the fuel tank is completely empty, the malfunction indicator
lamp comes on. Fill the fuel tank immediately. The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible.
See the inner back cover for fuel capacity and recommended
fuel selection.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
55

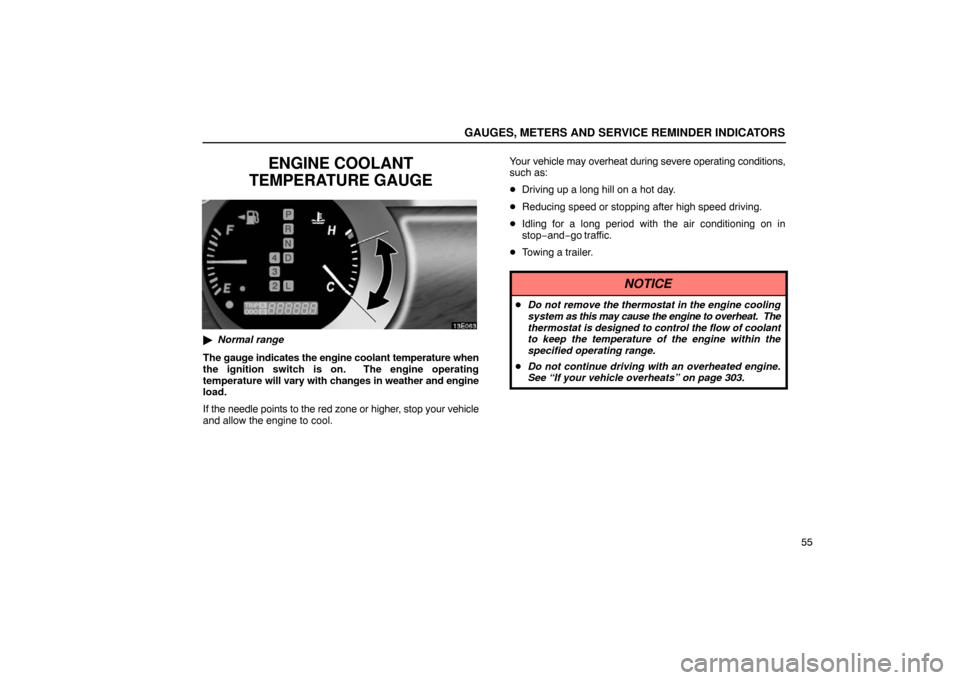

ENGINE COOLANT
TEMPERATURE GAUGE
 Normal range
The gauge indicates the engine coolant temperature when
the ignition switch is on. The engine operating
temperature will vary with changes in weather and engine
load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool. Your vehicle may overheat during severe operating conditions,
such as:

Driving up a long hill on a hot day.
 Reducing speed or stopping after high speed driving.
 Idling for a long period with the air conditioning on in
stop−and−go traffic.
 Towing a trailer.
NOTICE
Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.
 Do not continue driving with an overheated engine.
See “If your vehicle overheats” on page 303.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
56
TACHOMETER
The tachometer indicates engine speed in thousands of
rpm (revolutions per minute). Use it while driving to
prevent engine overrevving.
Driving with the engine running too fast causes excessive
engine wear and poor fuel economy. Remember, in most
cases the slower the engine speed, the greater the fuel
economy.
NOTICE
Do not let the indicator needle get into the red zone. This
may cause severe engine damage.
ODOMETER AND TRIP METER
Trip meter reset knob
This meter displays the odometer and two trip meters. To
change the mode indication, push the trip meter reset
knob briefly. Each time you push the knob, the mode
changes in order from the odometer to trip meter A to trip
meter B, then back to the odometer.
The odometer records the total distance the vehicle has
been driven. The twin trip meter records two different
distances independently.
For example, you can use one meter to calculate the fuel
economy and the other to measure the distance on each trip.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
57
To set the A
trip meter to zero, display the A meter reading,
push the knob and hold it. The same applies for the B trip
meter.
The data of trip meters will be cancelled if the electrical power
source is disconnected.
SERVICE REMINDER INDICATORS AND WARNING BUZZERS
IF THIS INDICATOR OR
BUZZER COMES ON...DO THIS.
(a)or
If parking brake is off,
stop immediately and
contact Lexus dealer.
(b)
(indicator and buzzer)
Fasten driver’s seat
belt.
(c)
(on the center console)
Fasten front
passenger’s seat belt.
(d)Take vehicle to Lexus
dealer immediately.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
58IF THIS INDICATOR OR
BUZZER COMES ON...
DO THIS.
(e)Stop and check.
(f)Stop and check.
(g)Add engine oil.
(h)Replace engine oil.
(i)Take vehicle to Lexus
dealer.
IF THIS INDICATOR ORBUZZER COMES ON...DO THIS.
(j)orTake vehicle to Lexus
dealer.
(k)Close all doors.
(l)Replace bulb.
(m)Take vehicle to Lexus
dealer.
(n)Add washer fluid.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
59
IF THIS INDICATOR OR
BUZZER COMES ON...
DO THIS.
(o)Take vehicle to Lexus
dealer.
(p)Low fuel level
warning lightFill up tank.
(q)Key reminder buzzerRemove key.
(a) Brake System Warning Light
This light comes on in the following cases when the ignition key
is in the “ON” position.
 When the parking brake is applied...
This light comes on for a few seconds when the ignition key is
turned to the “ON” position even after the parking brake is
released.
 When the brake fluid level is low...
CAUTION
It is dangerous to continue driving normally when the
brake fluid level is low.
Have your vehicle checked at your Lexus dealer in the
following cases.
The light does not come on even if the parking brake is
applied when the ignition key is in the “ON” position.
 The light does not come on even if the ignition key is turned
on with the parking brake released.
A warning light turning on briefly during operation does not
indicate a problem.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
60
CAUTION
If either of the following conditions occurs, immediately
stop your vehicle at a safe place and contact your Lexus
dealer.
 The light does not turn off even after the parking
brake is released while the engine is running.
In this case, the brakes may not work properly and
your stopping distance will become longer. Depress
the brake pedal firmly and bring the vehicle to an
immediate stop.
 The brake system warning light remains on together
with the “ABS” warning light.
In this case, not only the antilock brake system will
fail but also the vehicle will become extremely
unstable during braking.
(b) Driver’s Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to buckle up the driver’s
seat belt.
Once the ignition key is turned to “ON” or “START”, the
reminder light and buzzer come on if the driver’s seat belt is not
fastened. Unless the driver fastens the belt, the light remains
on and the buzzer stops after about 4 to 8 seconds.
(c) Front Passenger’s Seat Belt Reminder Light
The light acts as a reminder to have the front passenger buckle
up the seat belt.
Once the ignition key is turned to the “ON” position, the
reminder light flashes if a front passenger sits in the front
passenger seat and does not fasten the seat belt.
If luggage or other load is placed on the front passenger seat,
depending on its weight, the reminder light may come on.
(d) SRS Warning Light
This light comes on when the ignition key is turned to the
“ON” position. It goes off after about 6 seconds. This
means the SRS airbags and seat belt pretensioners are
operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
front passenger occupant classification system, “AIRBAG
OFF” indicator light, “AIRBAG ON” indicator light, front
passenger’s seat belt buckle switch, seat belt pretensioner
assemblies, inflators, warning light, interconnecting wiring and
power sources.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
61
If any of the following conditions occurs, this indicates a
malfunction
somewhere in the parts monitored by the warning
light system. Contact your Lexus dealer as soon as possible
to service the vehicle.
 The light does not come on when the ignition key is turned
to the “ON” position or remains on for more than 6 seconds.
 The light comes on while driving.
(e) Discharge Warning Light
This light warns that the battery is being discharged.
If it comes on while you are driving, stop the vehicle, turn off the
engine, and check for the cause. Look first at the engine drive
belt.
 If it is loose or broken, the generator will not charge the
battery properly.
 If the belt is O.K., there is a problem somewhere in the
charging system.
The engine ignition will continue to operate, however, until the
battery is discharged. Turn off the air conditioning, blower,
radio, etc., and drive directly to the nearest Lexus dealer or
repair shop.
NOTICE
Do not continue driving if the engine drive belt is broken
or loose.
(f) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pressure is too low.
If it flickers or stays on while you are driving, pull off the road
to a safe place and stop the engine immediately. Call a Lexus
dealer or qualified repair shop for assistance.
The light may occasionally flicker when the engine is idling or
it may come on briefly after a hard stop. There is no cause for
concern if it then goes out when the engine is accelerated
slightly.
The light may come on when the oil level is extremely low. It
is not designed to indicate low oil level, and the oil level must
be checked using the oil level dipstick.
NOTICE
Do not drive the vehicle with the warning light on —
even for one block. It may ruin the engine.
