KEYS AND DOORS
24

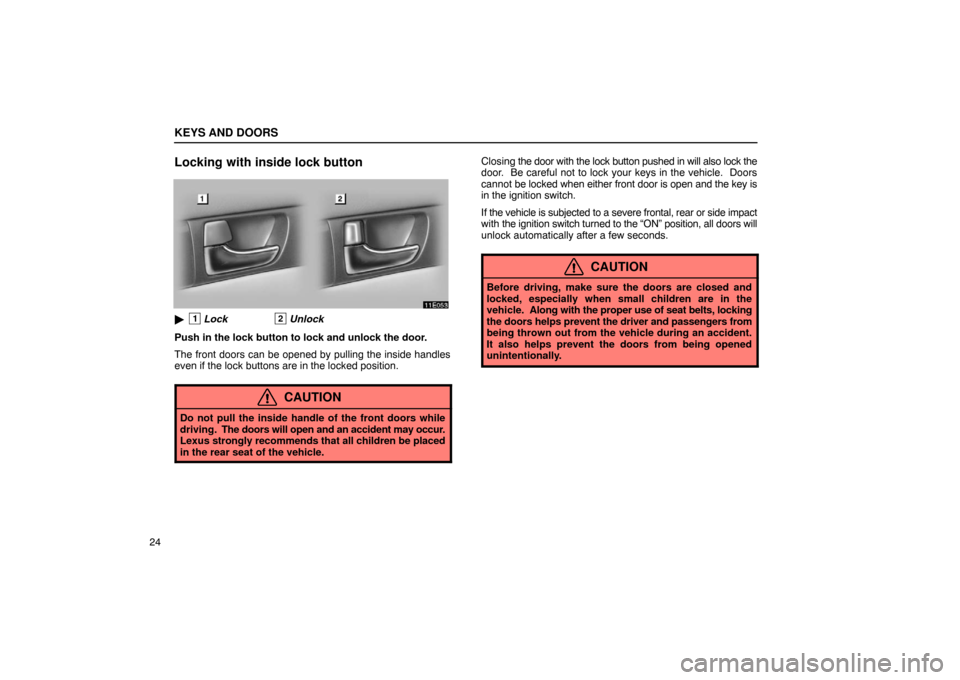

Locking with inside lock button
1Lock2Unlock
Push in the lock button to lock and unlock the door.
The front doors can be opened by pulling the inside handles
even if the lock buttons are in the locked position.
CAUTION
Do not pull the inside handle of the front doors while
driving. The doors will open and an accident may occur.
Lexus strongly recommends that all children be placed
in the rear seat of the vehicle.
Closing the door with the lock button pushed in will also lock the
door. Be careful not to lock your keys in the vehicle. Doors
cannot be locked when either front door is open and the key is
in the ignition switch.
If the vehicle is subjected to a severe frontal, rear or side impact
with the ignition switch turned to the “ON” position, all doors will
unlock automatically after a few seconds.
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.

KEYS AND DOORS
25
Locking with power door lock switch
1Lock2Unlock
To lock all the doors simultaneously, push the power door
lock switch down on the front side. Pushing down on the
rear side will unlock them.
The same switch is also located on the front passenger’s side. If you do any of the following,
no door can be unlocked with the
power door lock switch.
 Lock all the doors with the key or wireless remote control
when all the doors are closed.
 Open the driver’s door or front passenger’s door and move
the inside lock buttons of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset in the following ways.
 Turn the ignition key to the “ON” position.
 Unlock all the doors with the key or wireless remote control.
 Unlock the driver’s door or front passenger’s door with the
inside lock button, and then unlock all the doors with the
power door lock switch.

KEYS AND DOORS
26
Setting the auto door locking and unlocking
functions
You can set the following auto door locking and unlocking
functions.
(a) Locking linked with the shift position
All the doors are locked automatically when the selector lever
is moved out of the “P” position with the ignition switch in the
“ON” position.*NOTE:
* This function is the default setting for new vehicles.
(b) Unlocking linked with the shift position
All the doors are unlocked automatically when the selector
lever is moved to the “P” position with the ignition switch in the
“ON” position.
(c) Locking linked with the vehicle speed
All the doors are locked automatically when the vehicle speed
reaches 20 km/h (12 mph) or higher. However, if any door is
unlocked during driving, this auto locking function will not
operate until the unlocked door is opened once.
(d) Unlocking linked with opening the driver’s door
All the doors are unlocked automatically when the driver’s door
is opened within 10 seconds after the ignition switch is turned
from “ON” to the “ACC” or “LOCK” position. Setting the functions
1. Close all the doors.
2. Turn the ignition switch to the “ON” position.
3. Within 10 seconds after the ignition switch is turned to the
“ON” position;

To set function (a)
Push and hold the front of the power door lock switch for 5
seconds with the selector lever in the “P” position.
 To set function (b)
Push and hold the rear of the power door lock switch for 5
seconds with the selector lever in the “P” position.
 To set function (c)
Push and hold the front of the power door lock switch for 5
seconds with the selector lever in any position except “P”.
 To set function (d)
Push and hold the rear of the power door lock switch for 5
seconds with the selector lever in any position except “P”.
All the doors automatically lock and unlock when you release
the power door lock switch. This indicates that the function is
set. If all the doors do not lock and unlock, the time the switch
was held may have been too short or too long. Perform the
procedure over again starting from step 1.
If you want to cancel a function, repeat the procedure. Each
time you perform the procedure, the function is set or
cancelled.

KEYS AND DOORS
27
Locking with rear door childprotector
1Unlock2Lock
Whenever small children are in the vehicle, lock the rear
door so that it does not open by the inside door handle.
To do this, move the lever to the lock position as shown on
the label next to the lever.
THEFT DETERRENT SYSTEM
To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors, trunk or hood is
forcibly unlocked or the battery terminal is disconnected
and then reconnected while the vehicle is locked.
The alarm blows the horn intermittently and flashes the
headlights, tail lights and turn signal lights.
Further more when the interior light switch is in the “DOOR”
position, the interior light turns on.
After the alarm is activated, when you unlock any door using
an ignition key or wireless remote control, the tail lights turn on
for about 2 seconds to inform you that the system was
activated.

KEYS AND DOORS
28

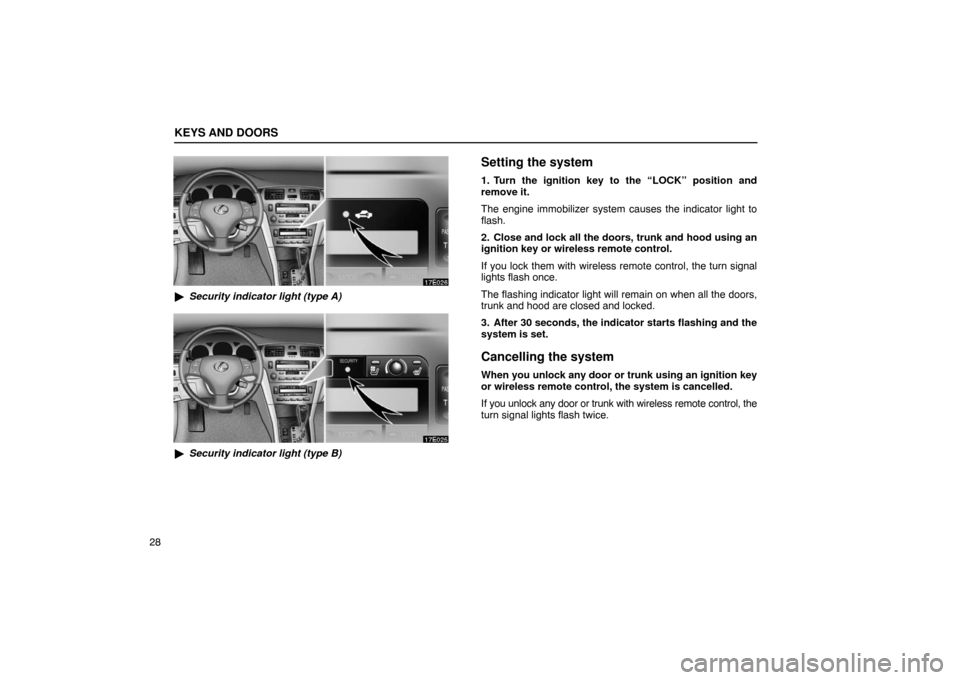

Security indicator light (type A)
Security indicator light (type B)
Setting the system
1. Turn the ignition key to the “LOCK” position and
remove it.
The engine immobilizer system causes the indicator light to
flash.
2. Close and lock all the doors, trunk and hood using an
ignition key or wireless remote control.
If you lock them with wireless remote control, the turn signal
lights flash once.
The flashing indicator light will remain on when all the doors,
trunk and hood are closed and locked.
3. After 30 seconds, the indicator starts flashing and the
system is set.
Cancelling the system
When you unlock any door or trunk using an ignition key
or wireless remote control, the system is cancelled.
If you unlock any door or trunk with wireless remote control, the
turn signal lights flash twice.

KEYS AND DOORS
29
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:
Unlocking any door or trunk without using an ignition key or
wireless remote control
 Opening the hood forcibly
 Reconnecting the battery
If any door is unlocked and the ignition key is not in the ignition
switch during the alarm sounding, the door is automatically
locked.
To stop the alarm: Use either of the following methods.
 Unlock the door using an ignition key or wireless remote
control.
 Turn the ignition switch on.
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the indicator light
starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of
information you have set in the computer memory. After
reconnecting the battery, check that the memorized
data has been retained. If it has been erased, input it into
the computer once more.

KEYS AND DOORS
30

SECTION 1 – 2
31
INSTRUMENTS AND CONTROLS
Switches
Headlight switch (U.S.A.)32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight switch (Canada) 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 37
. . . . . . . . . . . . . . . . . . . . .
Fog light switch 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Windshield wiper and washer switch 38
. . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror
defogger switch 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Power window switches 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat ventilator/heater switches 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SWITCHES
32
HEADLIGHT SWITCH(U.S.A.)
“AUTO” position
The headlights and all other lights automatically turn on
depending on the darkness of the surroundings when the
ignition key is in the “ON” position.*
NOTE:
* The sensitivity of the automatic light control sensor can be
changed.
Ask your Lexus dealer for details.
To turn on the lights manually, twist the knob on the end
of the lever.
First clickstop: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
Second clickstop: Headlights also turn on. When
the headlights are on, the headlight indicator lights up in
the instrument cluster.
With the knob in the “AUTO” position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control dial
is turned fully up.
“DRL OFF” position
The daytime running light (DRL) system does not work
when the knob is set in this position.
For details, see the following “Daytime Running Light (DRL)
System”.

SWITCHES
33

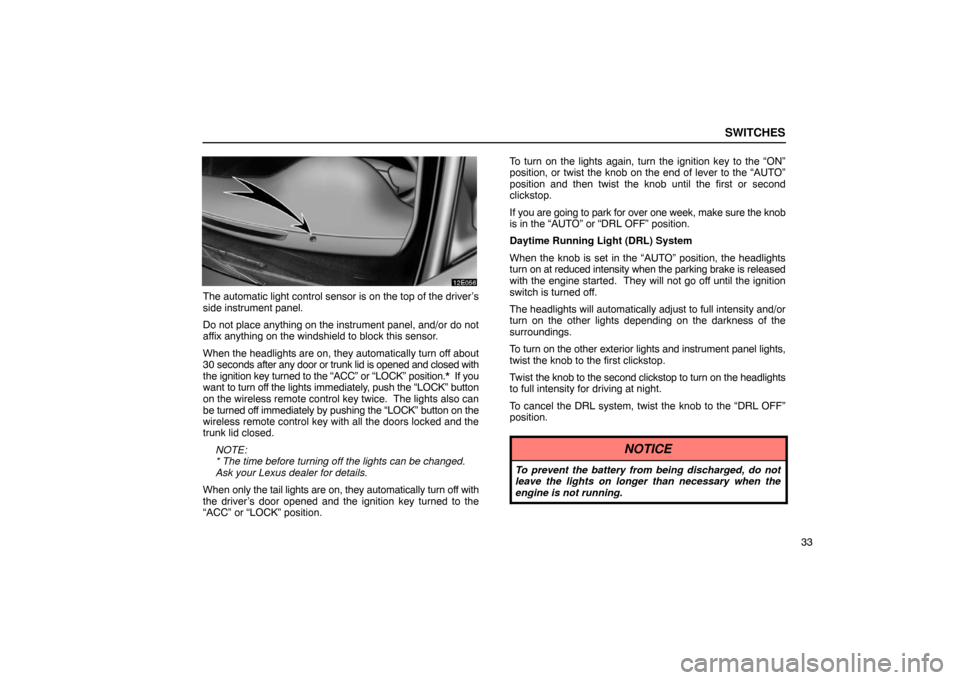

The automatic light control sensor is on the top of the driver’s
side instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights are on, they automatically turn off about
30 seconds after any door or trunk lid is opened and closed with
the ignition key turned to the “ACC” or “LOCK” position.* If y\
ou
want to turn off the lights immediately, push the “LOCK” button
on the wireless remote control key twice. The lights also can
be turned off immediately by pushing the “LOCK” button on the
wireless remote control key with all the doors locked and the
trunk lid closed.
NOTE:
* The time before turning off the lights can be changed.
Ask your Lexus dealer for details.
When only the tail lights are on, they automatically turn off with
the driver’s door opened and the ignition key turned to the
“ACC” or “LOCK” position. To turn on the lights again, turn the ignition key to the “ON”
position, or twist the knob on the end of lever to the “AUTO”
position and then twist the knob until the first or second
clickstop.
If you are going to park for over one week, make sure the knob
is in the “AUTO” or “DRL OFF” position.
Daytime Running Light (DRL) System
When the knob is set in the “AUTO” position, the headlights
turn on at reduced intensity when the parking brake
is released
with the engine started. They will not go off until the ignition
switch is turned off.
The headlights will automatically adjust to full intensity and/or
turn on the other lights depending on the darkness of the
surroundings.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
To cancel the DRL system, twist the knob to the “DRL OFF”
position.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.
