IMPORTANT INFORMATION ABOUT YOUR LEXUS
iv
New vehicle warranty
Your new vehicle is covered by the following Lexus limited
warranties:
New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the “Owner’s Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.
Your responsibility for maintenance
It is the owner’s responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner’s Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance information, please refer to the “Owner’s Manual
Supplement/Scheduled Maintenance”.
Important health and safety information about
your Lexus
CAUTION
WARNING: Engine exhaust, some of its constituents,
and a wide variety of automobile components
contain or emit chemicals known to the State of
California to cause cancer and birth defects and
other reproductive harm. In addition, oils, fuels and
fluids contained in vehicles as well as waste
produced by component wear contain or emit
chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your hands
after handling. Used engine oil contains chemicals
that have caused cancer in laboratory animals.
Always protect your skin by washing thoroughly with
soap and water.
Page 5 of 438
IMPORTANT INFORMATION ABOUT YOUR LEXUS
v
Accessories, spare parts and modification of
your Lexus
A wide variety of non−genuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus vehicle.
This vehicle should not be modified with non −genuine Lexus
products. Modification with non −genuine Lexus products
could af fect its performance, safety or durability, and may even
violate governmental regulations. In addition, damage or
performance problems resulting from the modification may not
be covered under warranty.
Spark ignition system of your Lexus
The spark ignition system in your Lexus meets all
requirements of the Canadian Interference− Causing
Equipment Standard.
Installation of a mobile two way radio system
As the installation of a mobile two −way radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection system,
cruise control system, anti −lock brake system, SRS airbag
system and seat belt pretensioner system, be sure to check
with your Lexus dealer for precautionary measures or special
instructions regarding installation.
Tires and loading on your Lexus
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of steering
ability and braking ability, leading to an accident.
Check the tire inflation pressure periodically and be
sure to keep the load limits given in this Owner’s
Manual. For details about tire inflation pressure and
load limits, see pages 366 and 292.
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your
Lexus contain explosive c hemicals. If the vehicle is scrapped
with the airbags and seat belt pretensioners left as they are,
this may cause an accident such as fire. Be sure to have the
systems of the SRS airbag and seat belt pretensioner removed
and disposed of by a qualified service shop or by your Lexus
dealer before you scrap your vehicle.
Page 10 of 438
For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xPage
1Door lock switch and power window
switches 25, 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Driving position memory switches 165
. . . . . . . . . . .
3Power rear view mirror control switches 172 . . . . . .
4Side vents 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5Instrument panel light control dial 70
. . . . . . . . . . . . . .
6Headlight, turn signal and
fog light switches 32, 34, 37, 38 . . . . . . . . . . . . . . . . . . .
7Audio remote control switches 215, 246
. . . . . . . . . . .
8Ignition switch 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9Speech command switch See the separate . . . . . . . .
“Navigation System Owner’s Manual”.
10Multi information display control button 67 . . . . . . . .
11Windshield wiper and washer switches 38
. . . . . . . . .
12Seat ventilator/heater switches 48
. . . . . . . . . . . . . . . . .
13Emergency flasher switch 47
. . . . . . . . . . . . . . . . . . . . .
14Clock 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
15Audio system or navigation system
including audio system
(For the navigation system, see the separate
“Navigation System Owner’s Manual”.) 198, 222 . . .
16Front passenger’s seat belt reminder light 60 . . . . . .
17“AIRBAG OFF” indicator light 140
. . . . . . . . . . . . . . . . Page
18“AIRBAG ON” indicator light
140
. . . . . . . . . . . . . . . . .
19Security indicator light 14, 27
. . . . . . . . . . . . . . . . . . . .
20Glove box 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21Front passenger seat position
memory switches 167 . . . . . . . . . . . . . . . . . . . . . . . . . . .
22Automatic air conditioning controls 182
. . . . . . . . . .
23Rear window and outside rear view mirror
defogger switch 43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24Grocery bag hook 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25Automatic transmission selector lever 260 . . . . . . . .
26Rear electric sunshade switch 87
. . . . . . . . . . . . . . . . .
27Electronic modulated suspension
control switch 269 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Cigarette lighter and ashtray 75
. . . . . . . . . . . . . . . . . . .
29Traction control system off switch 270
. . . . . . . . . . .
30Cruise control switch 266
. . . . . . . . . . . . . . . . . . . . . . .
31Power adjustable pedals switch 170
. . . . . . . . . . . . . .
32Parking brake pedal 258
. . . . . . . . . . . . . . . . . . . . . . . . .
33Auxiliary box 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34Hood lock release lever 90
. . . . . . . . . . . . . . . . . . . . . . .
35Trunk lid opener 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36Fuel filler door opener 94
. . . . . . . . . . . . . . . . . . . . . . . . .
Page 12 of 438
For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xiiPage
1Tachometer
56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Traction control system off indicator light 270 . . . .
3Vehicle stability control system/traction control
system warning light 65. . . . . . . . . . . . . . . . . . . . . . . . . .
4Engine oil replacement reminder light 62
. . . . . . . . . .
5Headlight indicator light 32
. . . . . . . . . . . . . . . . . . . . . . .
6Headlight high beam indicator light 37
. . . . . . . . . . . .
7Turn signal indicator light 37
. . . . . . . . . . . . . . . . . . . . .
8Fog light indicator light 38
. . . . . . . . . . . . . . . . . . . . . . . .
9Cruise control indicator light 266
. . . . . . . . . . . . . . . .
10Slip indicator light 270, 273
. . . . . . . . . . . . . . . . . . . . . .
11Automatic headlight leveling system
warning light 66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Low fuel level warning light 66
. . . . . . . . . . . . . . . . . . . .
13Automatic transmission indicator lights 260 . . . . . .
14Engine coolant temperature gauge 55
. . . . . . . . . . . . . Page
15Odometer and trip meter
56
. . . . . . . . . . . . . . . . . . . . . .
16Trip meter reset knob 56
. . . . . . . . . . . . . . . . . . . . . . . . .
17Fuel gauge 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Low washer fluid warning light 66
. . . . . . . . . . . . . . . . .
19Low engine oil level warning light 62
. . . . . . . . . . . . . .
20Multi information display 67
. . . . . . . . . . . . . . . . . . . . . .
21Rear light failure warning light 65
. . . . . . . . . . . . . . . . .
22Low engine oil pressure warning light 61
. . . . . . . . . .
23Brake system warning light 59
. . . . . . . . . . . . . . . . . . . .
24Anti lock brake system warning light 64
. . . . . . . . . . .
25Driver’s seat belt reminder light 60
. . . . . . . . . . . . . . . .
26Discharge warning light 61
. . . . . . . . . . . . . . . . . . . . . . .
27SRS warning light 60
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Open door warning light 65
. . . . . . . . . . . . . . . . . . . . . . .
29Malfunction indicator lamp 63
. . . . . . . . . . . . . . . . . . . .
Page 14 of 438
For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xivPage
1Tachometer
56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Traction control system off indicator light 270 . . . .
3Vehicle stability control system/traction control
system warning light 65. . . . . . . . . . . . . . . . . . . . . . . . . .
4Tail light indicator light 34
. . . . . . . . . . . . . . . . . . . . . . . .
5Headlight high beam indicator light 37
. . . . . . . . . . . .
6Turn signal indicator light 37
. . . . . . . . . . . . . . . . . . . . .
7Fog light indicator light 38
. . . . . . . . . . . . . . . . . . . . . . . .
8Cruise control indicator light 266
. . . . . . . . . . . . . . . .
9Slip indicator light 270, 273
. . . . . . . . . . . . . . . . . . . . . .
10Automatic headlight leveling system
warning light 66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11Low fuel level warning light 66
. . . . . . . . . . . . . . . . . . . .
12Automatic transmission indicator lights 260 . . . . . .
13Engine coolant temperature gauge 55
. . . . . . . . . . . . . Page
14Odometer and trip meter
56
. . . . . . . . . . . . . . . . . . . . . .
15Trip meter reset knob 56
. . . . . . . . . . . . . . . . . . . . . . . . .
16Fuel gauge 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Low washer fluid warning light 66
. . . . . . . . . . . . . . . . .
18Low engine oil level warning light 62
. . . . . . . . . . . . . .
19Multi information display 67
. . . . . . . . . . . . . . . . . . . . . .
20Rear light failure warning light 65
. . . . . . . . . . . . . . . . .
21Low engine oil pressure warning light 61
. . . . . . . . . .
22Brake system warning light 59
. . . . . . . . . . . . . . . . . . . .
23Anti lock brake system warning light 64
. . . . . . . . . . .
24Driver’s seat belt reminder light 60
. . . . . . . . . . . . . . . .
25Discharge warning light 61
. . . . . . . . . . . . . . . . . . . . . . .
26SRS warning light 60
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Open door warning light 65
. . . . . . . . . . . . . . . . . . . . . . .
28Malfunction indicator lamp 63
. . . . . . . . . . . . . . . . . . . .
Page 16 of 438
PICTORIAL INDEX
xvi

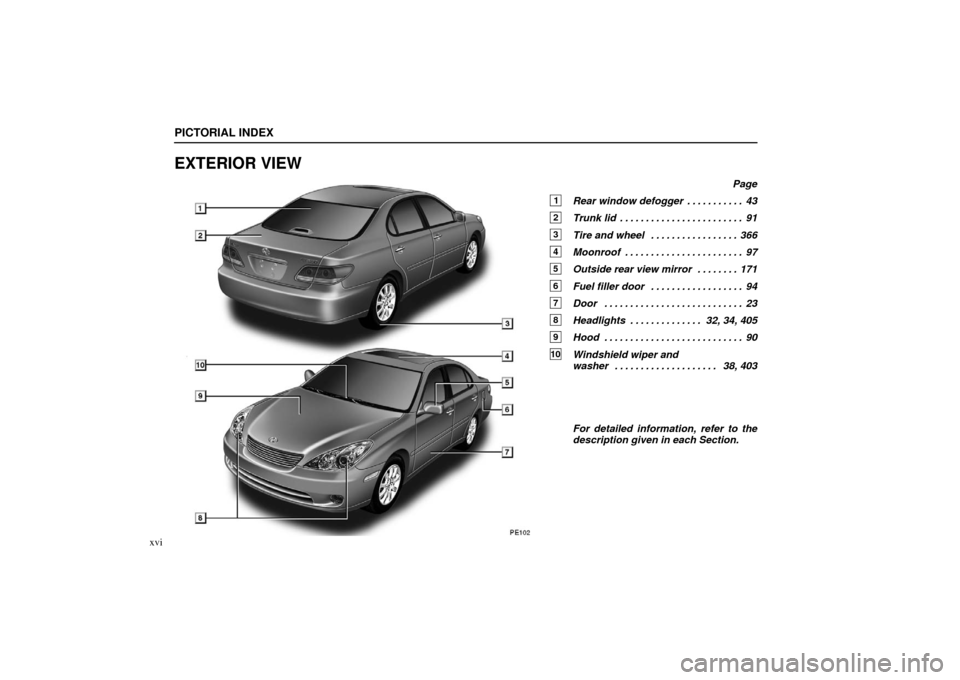

EXTERIOR VIEW
Page
1Rear window defogger43
. . . . . . . . . . .
2Trunk lid 91
. . . . . . . . . . . . . . . . . . . . . . . .
3Tire and wheel 366
. . . . . . . . . . . . . . . . .
4Moonroof 97
. . . . . . . . . . . . . . . . . . . . . . .
5Outside rear view mirror 171 . . . . . . . .
6Fuel filler door 94
. . . . . . . . . . . . . . . . . .
7Door 23
. . . . . . . . . . . . . . . . . . . . . . . . . . .
8Headlights 32, 34, 405
. . . . . . . . . . . . . .
9Hood 90
. . . . . . . . . . . . . . . . . . . . . . . . . . .
10Windshield wiper and
washer 38, 403 . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.
Page 70 of 438
SECTION 1 – 3
53
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder
indicators
Fuel gauge54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Engine coolant temperature gauge 55
. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Odometer and trip meter 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 57
. . . . . . . . . . . . . .
Multi−information display 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 71 of 438
GAUGES, METERS AND SERVICE REMINDER INDICATORS
54

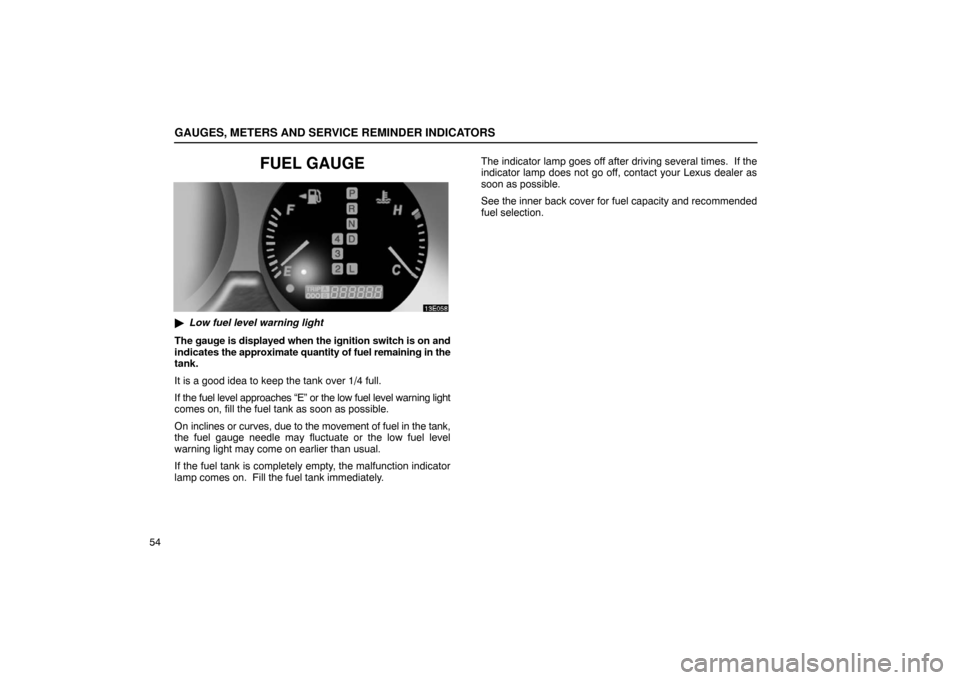

FUEL GAUGE
Low fuel level warning light
The gauge is displayed when the ignition switch is on and
indicates the approximate quantity of fuel remaining in the
tank.
It is a good idea to keep the tank over 1/4 full.
If the fuel level approaches “E” or the low fuel level warning light\
comes on, fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the fuel gauge needle may fluctuate or the low fuel level
warning light may come on earlier than usual.
If the fuel tank is completely empty, the malfunction indicator
lamp comes on. Fill the fuel tank immediately. The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible.
See the inner back cover for fuel capacity and recommended
fuel selection.
