OCCUPANT RESTRAINT SYSTEM
cxxvii

1Front passenger occupant classification system
(ECU and sensors)
2Airbag module for front passenger
(airbag and inflator)
3SRS warning light
4Airbag module for driver (airbag and inflator)
5Driver’s seat position sensor
6Driver’s seat belt buckle switch
7Front passenger’s seat belt buckle switch
8“AIRBAG OFF” and “AIRBAG ON” indicator lights
9Front airbag sensors
10Airbag sensor assembly
The SRS front airbag system consists mainly of the above
components, and their locations are shown in the illustration.
The airbag sensor assembly consists of a safing sensor and
airbag sensor. The front airbag sensors constantly monitor the forward
deceleration of the vehicle. If an impact results in a forward
deceleration beyond the designed threshold level, the system
triggers
the airbag inflators. At this time a chemical reaction in
the inflators very quickly fills the airbags with non− toxic gas to
help restrain the forward motion of the occupants. The front
airbags then quickly deflate, so that there is no obstruction of
the driver’s vision should it be necessary to continue driving.
When the airbags inflate, they produce a loud noise and
release some smoke and residue along with non −toxic gas.
This does not indicate a fire. This smoke may remain inside the
vehicle for some time, and may cause some minor irritation to
the eyes, skin or breathing. Be sure to wash off any residue as
soon as possible to prevent any potential skin irritation with
soap and water. If you safely exit from the vehicle, you should
do so immediately.
Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, primarily to the
head and chest, it may also cause other, less severe injuries
to the face, chest, arms and hands. These are usually in the
nature of minor burns or abrasions and swelling, but the force
of a deploying airbag can cause more serious injuries,
especially if an occupant’s hands, arms, chest or head are in
close proximity to the airbag module at the time of deployment.
This is why it is important for the occupant to: avoid placing any
object or part of the body between the occupant and the airbag
module; sit straight and well back into the seat; wear the
available seat belt properly; and sit as far as possible from the
airbag module, while still maintaining control of the vehicle.

OCCUPANT RESTRAINT SYSTEM
cxxxvi

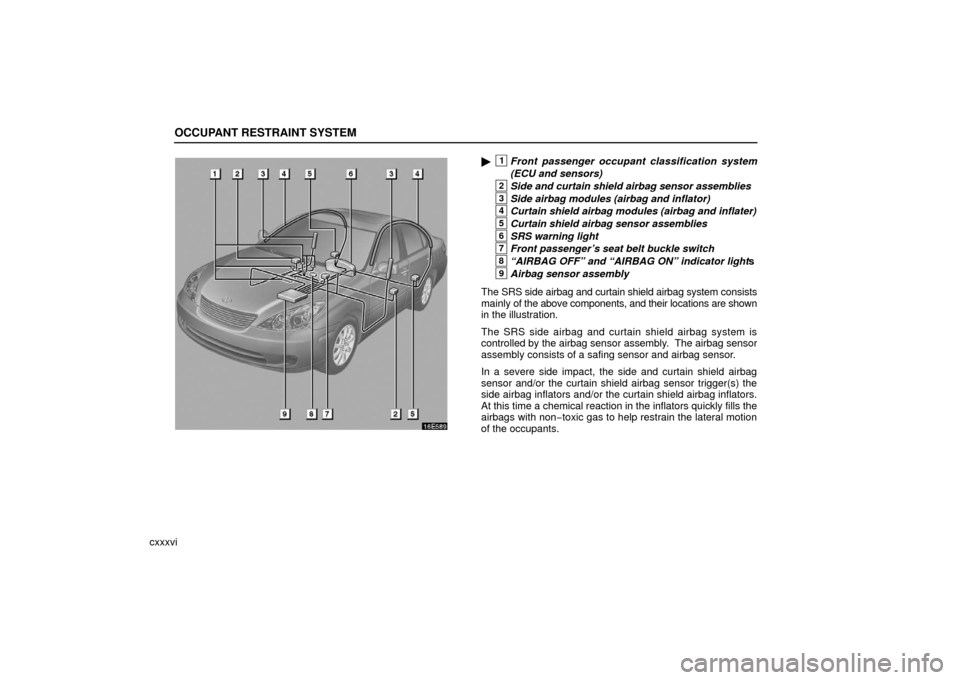

1Front passenger occupant classification system
(ECU and sensors)
2Side and curtain shield airbag sensor assemblies
3Side airbag modules (airbag and inflator)
4Curtain shield airbag modules (airbag and inflater)
5Curtain shield airbag sensor assemblies
6SRS warning light
7Front passenger’s seat belt buckle switch
8“AIRBAG OFF” and “AIRBAG ON” indicator lights
9Airbag sensor assembly
The SRS side airbag and curtain shield airbag system consists
mainly of the above components, and their locations are shown
in the illustration.
The SRS side airbag and curtain shield airbag system is
controlled by the airbag sensor assembly. The airbag sensor
assembly consists of a safing sensor and airbag sensor.
In a severe side impact, the side and curtain shield airbag
sensor and/or the curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain shield airbag inflators.
At this time a chemical reaction in the inflators quickly fills the
airbags with non −toxic gas to help restrain the lateral motion
of the occupants.

OCCUPANT RESTRAINT SYSTEM
cxlivTo ensure the system correctly detects an adult sitting in the
front passenger seat, make sure the above do not occur.
Make
sure the “AIRBAG ON” indicator light is illuminated when
an adult is seated in the front passenger seat. If the “AIRBAG
OFF” indicator light is illuminated, ask the passenger to sit up
straight, well back in the seat, and with the seat belt worn
correctly. If the “AIRBAG OFF” indicator light still remains
illuminated, either ask the passenger to move to the rear seat,
or if that is not possible, move the front passenger seat fully
rearward.
The “AIRBAG OFF” and “AIRBAG ON” indicator lights will
be initially illuminated when the ignition switch is turned
to the “ON” position. It will remain for about four seconds
and then go off. After the two seconds, the front
passenger occupant classification system operates and
judges which indicator light to turn on.
The SRS warning light and “AIRBAG OFF” indicator light
will be illuminated if there is a malfunction in the front
passenger occupant classification system.

OCCUPANT RESTRAINT SYSTEM
cxlv
Condition and operation in the front passenger occupant classification s\
ystem
Condition detected by the front
passenger occupant
classification system
Indicator/warning lightDevices
“AIRBAG
OFF” and “AIRBAG ON”
indicator lights
SRS
warning light
Front
passenger’s seat belt
reminder light
Front
passenger airbagSide airbag
on the frontpassenger seatCurtain
shield airbag in the frontpassenger sideFront
passenger’s seat belt
pretensioner
1Adult*1“AIRBAG ON”OFFFlashing*4Activated
2Child *2 or child
restraint system*3“AIRBAG OFF”OFFFlashing*4Deactivated
Activated
Activated
3UnoccupiedNot
illuminatedOFFOFFDeactivatedDeactivated
4There is a
malfunction in the
system“AIRBAG OFF”ONOFFDeactivatedActivated
*1: The system judges a person of adult size as an adult. When a smaller ad\
ult sits in the front passenger seat, the system may recognize him/her as a child depending on his/her physique and posture.
*
2: When a larger child who has outgrown a child restraint system sits in the front\
passenger seat, the system may recognize him/her as an adult depending on his/her physique or posture.
*
3: Never install a rear −facing child restraint system on the front passenger seat. A forward −facing child restraint system should
only be installed on the front passenger seat when it is unavoidable. (See “\
Child restraint system” on page cxlix as for installing
the child restraint system.)
*
4: In the event the front passenger does not wear a seat belt.

STEERING WHEEL AND MIRRORS
clxxvii
INSIDE REAR VIEW MIRROR
Adjust the mirror so that you can just see the rear of your
vehicle in the mirror.
Pushing the “MIRROR” switch changes the mode
between AUTO and DAY.
The indicator comes on when the AUTO mode is selected.
DAY mode: The mirror surface is normal.
AUTO mode: If the mirror detects light from the headlights
of the vehicle behind you, the mirror surface darkens
slightly to reduce the reflected light.
When the inside rear view mirror surface changes, the outside
rear view mirror surfaces will also become darker.
When the ignition key is inserted and turned on, the inside rear
view mirror always turns on in the AUTO mode. When the outside air temperature is low, it may take a little
longer for the mirror to darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the
driver to mishandle the vehicle
and an accident may occur resulting in death or serious
injuries.
To ensure correct functioning of antiglare mirror sensors
located on both sides of the mirror, do not touch or cover
the sensors with your finger or a piece of cloth, etc.

MAINTENANCE
cccxxxiii
Battery
Check the battery condition by the indicator color. See page
cccxcix for additional information.
Brake fluid level
Make
sure the brake fluid level is correct. See page ccclxvii for
additional information.
Engine oil level
Check the level on the dipstick with the engine turned off and
the vehicle parked on a level spot. See page ccclvi for
additional information.
Power steering fluid level
Check the level through the reservoir. The level should be in
the “HOT” or “COLD” range depending on the fluid
temperature. See page ccclxviii for additional information.
Exhaust system
If you notice any change in the sound of the exhaust or smell
exhaust fumes, have the cause located and corrected
immediately. (See “Engine exhaust caution” on page cclviii.)
Vehicle interior
Items listed below should be checked regularly, e.g. while
performing periodic services, cleaning the vehicle, etc.
Lights
Make sure the headlight, stop lights, tail lights, turn signal
lights, and other lights are working. Check headlight aim.
Service reminder indicators and warning buzzers
Check that all service reminder indicators and warning buzzers
function properly.
Steering wheel
Check that it has the specified freeplay. Be alert for changes
in steering condition, such as hard steering, excessive freeplay
or strange noise.
Seats
Check that all front seat controls such as seat adjusters,
seatback recliner, etc. operate smoothly. Check that the head
restraints move up and down smoothly and that the locks hold
securely in any latched position.
Seat belts
Check that the seat belt system such as buckles, retractors
and anchors operate properly and smoothly. Make sure the
belt webbing is not cut, frayed, worn or damaged.
