CD player Lexus ES330 2006 Descriptions of Functions For More Effective Use / (OM33703U) User Guide

AUDIO
ccxiii
Ejecting a CD:
Push the “EJECT” button for the CD. (b) Playing a CD
Push the “DISC” button if the CD is already loaded in the
player.
“CD” appears on the display.
The CDs set in the player are played continuously. The track
number and the time
from the beginning of the program appear
on the display.
When play of CD ends, the first track starts.
WIth a CD changer only —
Push the “DISC” button twice if the magazine is already
loaded in the player.
“CD1” appears on the display.
The CDs set in the magazine are played continuously. The CD
number of the CD currently being pl ayed, the track number and
the time from the beginning of the program appear on the
display.

AUDIO
ccxivWhen play of one CD ends, the first track of the following CD
starts. When play of the final CD ends, play of the first CD
starts again.
The player will skip any empty CD trays.
Pushing the “DISC” button while playing a CD in the changer
will switch from the CD in the changer to the CD in the CD
player.
If you push the “DISC” button when the source is other than the
CD, a CD in the CD player or changer, whichever was
previously used, will play.
(c) Selecting a desired CD (with a CD changer only)
Push the “” or “” button to select the CD number.
Push the button several times until the desired CD number
appears on the display. When you release the button, the
player will start playing the selected CD from the first track.

AUDIO
ccxv
(d) Searching for a desired track or CD
Searching for a desired track:
Push the “SCAN” button briefly. “SCAN” will appear on the
display.
The CD player will play the next track for 10 seconds,
then scan again. To select a track, push the “SCAN” button a
second time. If the player reaches the end of the CD, it will
continue scanning at track 1.
After all the tracks are scanned in one pass, normal play
resumes. Searching for a desired CD (with a CD changer only):
Push
the “SCAN” button until you hear a beep. With “D.SCAN”
on the display, the program at the beginning of each CD will be
played for 10 seconds. To continue listening to the program of
your choice, push the button a second time.
After all the CDs in the changer are scanned in one pass, the
scan function is cancelled.

AUDIO
ccxvi(e) Selecting a desired track
“TRACK” button: Use for direct access to a desired track.
Push either
side of the “TRACK” button several times until the
desired track number appears on the display. As you release
the button, the player will start playing the selected track from
the beginning.
“Fast forward” button: Push the “ ” button and hold it to
fast forward the CD. When you release the button, the CD
player will resume playing from that position.
“Reverse” button: Push the “ ” button and hold it to
reverse the CD. When you release the button, the CD player
will resume playing. (f) Repeating a track or a CD“RPT” button: There are 2 repeat features — you can either
replay a CD track or a whole CD.
Repeating a track:
Push the “RPT” button briefly while the
track is playing. “RPT” will appear on the display. When the
track ends, it will automatically be replayed. This process will
be continued until you push the button again to turn off the
repeat feature.
Repeating a CD (with a CD changer only): Push the “RPT”
button and hold it until you hear a beep. “D.RPT” will appear
on the display. The player will repeat all the tracks on the CD
you are listening to. When the CD ends, the player will
automatically go back to the first track on the CD and replay.
This process will be continued until you push the button again
to turn off the repeat feature.

AUDIO
ccxvii
(g) Random playing
“RAND” button: There are 2 random features — you can
either
listen to the tracks on all the CDs in the player in random
order, or only listen to the tracks on a specific CD in random
order.
Random playing for the tracks on a CD: Push the “RAND”
button briefly. “RAND” will appear on the display and play the
CD you are listening to in random order.
Random playing for all the tracks in the CD changer (with
a CD changer only): Push the “RAND” button and hold it until
you hear a beep. “D.RAND” will appear on the display and the
player will perform all the tracks on all the CDs in the changer
in random order. To turn off the random feature, push “RAND”
a second time.
When a track is skipped or the system is inoperative, push the
button to reset. (h) If the player malfunctions
If the player or another unit equipped with the player
malfunctions, your audio system will display following error
messages.
If “WAIT” appears on the display:
It indicates that the inside
of the player unit may be too hot due to the very high ambient
temperature. Remove the CD from the player and allow the
player to cool down.
If “ERROR 1” appears on the display: It indicates that the CD
is dirty, damaged, or it was inserted up− side down. Clean the
CD or insert it correctly.
If “ERROR 3” or “ERROR 4” appears on the display: It
indicates there is a trouble inside the system. Eject the CD.
If the malfunction is not rectified: Take your vehicle to your
Lexus dealer.

AUDIO
ccxxFM
Fading
and drifting stations — Generally, the effective range
of FM is about 40 km (25 miles). Once outside this range, you
may notice fading and drifting, which increase with the distance
from the radio transmitter. They are often accompanied by
distortion.
Multipath — FM signals are reflective, making it possible for
two signals to reach your antenna at the same time. If this
happens, the signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering — These occur when signals are
blocked by buildings, trees, or other large objects. Increasing
the bass level may reduce static and fluttering.
Station swapping — If the FM signal you are listening to is
interrupted or weakened, and there is another strong station
nearby on the FM band, your radio may tune in the second
station until the original signal can be picked up again. AM
Fading — AM broadcasts are reflected by the upper
atmosphere — especially at night. These reflected signals can
interfere with those received directly from the radio station,
causing
the radio station to sound alternately strong and weak.
Station interference — When a reflected signal and a signal
received directly from a radio station are very nearly the same
frequency, they can interfere with each other, making it dif ficult
to hear the broadcast.
Static — AM is easily affected by external sources of electrical
noise, such as high tension power lines, l ightening, or electrical
motors. This results in static.
Caring for your cassette player and tapes
For the best performance for your cassette player and tapes:
Clean the tape head and other parts regularly.
 A dirty tape head or tape path can decrease sound quality
and tangle your cassette tapes. The easiest way to clean
them is by using a cleaning tape. (A wet type is
recommended.)

AUDIO
ccxxi
Use high−
quality cassettes:
 Low−quality cassette tapes can cause many problems,
including poor sound, inconsistent playing speed, and
constant auto−reversing. They can also get stuck or tangled
in the cassette player.
 Do not use a cassette if it has been damaged or tangled or
if its label is peeling off.
 Do not leave a cassette in the player if you are not listening
to it, especially if it is hot outside.
 Store cassettes in their cases and out of direct sunlight.
 Avoid using cassettes with a total playing time longer than
100 minutes (50 minutes per side). The tape used in these
cassettes is thin and could get stuck or tangled in the
cassette player. Caring for your CD player and CDs

Your CD player is intended for use with 12 cm (4.7 in.) CDs
only.
 Extremely high temperature can keep your CD player from
working. On hot days, use air conditioning to cool the
vehicle interior before you listen to a CD.
 Bumpy roads or other vibrations may make your CD player
skip.
 If moisture gets into your CD player, you may not hear any
sound even though your CD player appears to be working.
Eject all CDs from the player and wait until the player dries.
CAUTION
CD players use an invisible laser beam which could
cause hazardous radiation exposure if directed outside
the unit. Be sure to operate the player correctly.

AUDIO
ccxxii

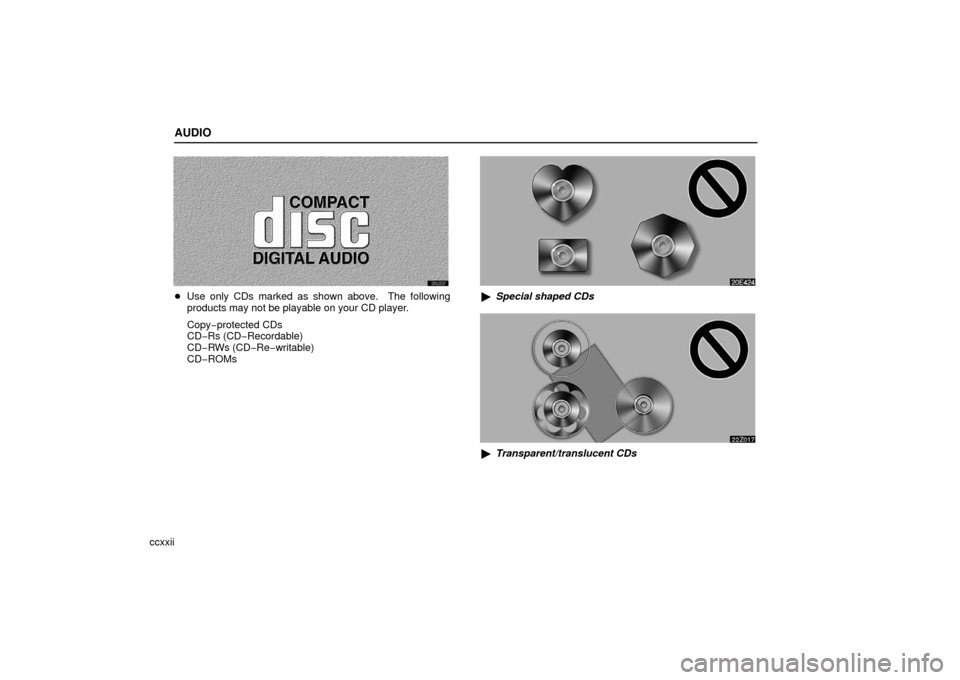

Use only CDs marked as shown above. The following
products may not be playable on your CD player.
Copy−protected CDs
CD− Rs (CD− Recordable)
CD−RWs (CD− Re−writable)
CD−ROMs Special shaped CDs
Transparent/translucent CDs

AUDIO
ccxxiii
Low quality CDs
Labeled CDs
NOTICE
Do not use special shaped, transparent/translucent, low
quality or labeled CDs such as those shown in the
illustrations. The use of such CDs may damage the
player or changer, or it may be impossible to eject the
CD.

AUDIO
ccxxiv
Correct Wrong
 Handle CDs carefully, especially when you set them into the
player. Hold them on the edge and do not bend them. A void
getting fingerprints on them, particularly on the shiny side.
 Dirt, scratches, warping, pin holes, or other CD damage
could cause the player to skip or to repeat a section of a
track. (To see a pin hole, hold the CD up to the light.)To clean a CD: Wipe it with a soft, lint −free cloth that has been
dampened with water. Wipe in a straight line from the center
to the edge of the CD (not in a circle). Do not use a
conventional record cleaner or anti −static device.
