automatic transmission Lexus ES330 2006 Descriptions of Functions For More Effective Use / (OM33703U) User Guide

STARTING AND DRIVING
cclx
IGNITION SWITCH
“START” — Starter motor on. The key will return to the
“ON” position when released.
For starting tips, see page cclxii.
“ON” — Engine on and all accessories on.
This is the normal driving position.
NOTICE
Do not leave the key in the “ON” position if the engine
is not running. The battery will discharge and the
electronic ignition system could be damaged.
“ACC” — Accessories such as the radio operate, but the
engine is off.If you leave the key in the “ACC” or “LOCK” position and open
the driver’s door, a buzzer will remind you to remove the key.
“LOCK” —
Engine is off and the steering wheel is locked.
The ignition key can be removed only at this position.
To turn the ignition switch from “ACC” to the “LOCK” position,\
you must put the transmission selector lever in the “P” position.
Once you remove the key, the engine immobilizer system is
automatically set. See “Engine immobilizer system” on page
xv.
When starting the engine, the key may seem stuck at the
“LOCK” position. To free it, first be sure the key is pushed all
the way in, and then rock the steering wheel slightly while
turning the key gently.
If, in an emergency, you must turn the engine off while the
vehicle is moving, turn the key only to “ACC”.

STARTING AND DRIVING
cclxiii
AUTOMATIC TRANSMISSION
Your automatic transmission has a shift lock system to
minimize the possibility of incorrect operation. This
means you can only shift out of “P” position when the
brake pedal is depressed with the ignition switch in “ON”
position. (
)
31E158
31E158
The shift position is displayed on the instrument
cluster.
P: Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position (shifting into overdrive possible)
4: Position for engine braking (shifting into overdrive not
possible)
When the cruise control is being used, even if you
downshift from “D” to “4”, engine braking will not be
enabled because the cruise control is not cancelled. For
the operation to decrease the vehicle speed, see page
cclxxi.
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking

STARTING AND DRIVING
cclxivCorrect
use of the automatic transmission is explained in
the following parts.
(a) Normal driving
(b) Using engine braking
(c) Using the “3”, “2” and “L” positions
(d) Backing up
(e) Parking
(f) Good driving practice
(g) If you cannot shift the selector lever
(a) Normal driving
1“P” (Park) position2“N” (Neutral) position
1. Start the engine as instructed in “How to start the
engine” on page cclxii.
The transmission must be in “P” or “N”. The engine will not st\
art
in any drive position even if the ignition key is turned to
“START”.

STARTING AND DRIVING
cclxv
1Brake pedal 2“D” (Drive) position
2. With your foot holding down the brake pedal, shift the
selector lever to “D”.
Always use the “D” position to improve fuel economy and quiet
driving. Only in this position, shifting into the overdrive gear is
possible. However, while the engine coolant temperature is
low, the transmission will not shift into the overdrive gear even
in the “D” position. (See “(b) Using engine braking” and\
“(f)
Good driving practice” for exceptions.)
CAUTION
Never put your foot on the accelerator pedal while
shifting.
3. Release the parking brake and brake pedal. Depress
the accelerator pedal slowly for smooth starting.
In normal cruising, the vehicle will start in first gear and
automatically shift up to the most suitable gear. On inclines,
declines or winding roads, etc., the vehicle shifts up and down
automatically according to the running conditions to obtain the
suitable driving power and engine braking.
When the lever is in the “4” position, the automatic
transmission system will select the most suitable gear for the
running conditions such as hill climbing, hard towing, etc.
If you need to accelerate rapidly while driving, depress the
accelerator pedal to the full throttle position. This provides
more acceleration by automatically downshifting the
transmission to the next lower gear or beyond, depending on
the vehicle speed.
If engine braking is needed, such as in descending a long hill,
see “(b) Using engine braking”.

STARTING AND DRIVING
cclxvii
(c) Using the “3”, “2” and “L” positions
The “3”, “2” and “L” positions are used for strong engine\
braking
as described previously.
With the selector lever in “3”, “2” or “L”, you can start the vehicle
in motion as with the lever in “D”.
With the selector lever in “3” or “2”, the vehicle will start in firs\
t
gear and automatically shift to second gear or third gear.
With the selector lever in “L”, the transmission is engaged in
first gear.
NOTICE
 Be careful not to overrev the engine. Watch the
tachometer to keep engine rpm from going into the
red zone. The approximate maximum allowable
speed for each position is given above for your
reference.
“3” 133 km/h (82 mph). . . . . . . .
“2” 85 km/h (53 mph)
. . . . . . . . .
“L” 47 km/h (29 mph)
. . . . . . . . .
 Do not continue hill climbing or hard towing for a long
time in the “3”, “2” or “L” position. This may cause
severe automatic transmission damage from
overheating. To prevent such damage, “4” position
should be used in hill climbing or hard towing.
(d) Backing up
1Brake pedal2“R” (Reverse) position
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the
selector lever to the “R” position.
NOTICE
Never shift into reverse while the vehicle is moving.
Vehicles with driving position memory system —
When the selector lever is shifted into the “R” position, the
outside rear view mirrors automatically down to help backing
up. For details, see page clxxv.

STARTING AND DRIVING
cclxviii
(e) Parking
1Brake pedal2Parking brake pedal
3“P” (Park) position
1. Bring the vehicle to a complete stop.
2. Depress the parking brake fully to securely apply the
parking brake.
3. With the brake pedal held down with your foot, shift the
selector lever to the “P” position.
CAUTION
Never attempt to move the selector lever into “P” under
any circumstances while the vehicle is moving. Serious
mechanical damage and loss of vehicle control may
result.
(f) Good driving practice
 If the transmission repeatedly shifts up and down between
fourth and overdrive gears when climbing a gentle slope,
shift the selector lever to the “4” position. Be sure to shift the
selector lever to the “D” position after climbing the slope.
 When towing a trailer, in order to maintain efficient engine
braking and electrical charging performance, do not use
overdrive.
CAUTION
Always keep your foot on the brake pedal while stopped
with the engine running. This prevents the vehicle from
creeping.
NOTICE
Always use the brake pedal or the parking brake to hold
the vehicle on an upgrade. Do not attempt to hold the
vehicle using the accelerator pedal, as this can cause
the transmission to overheat.
(g) If you cannot shift the selector lever
If you cannot shift the selector lever even though the brake
pedal is depressed, use the shift lock override button. For
instructions, see “If you cannot shift automatic transmission
selector lever” on page cccxxvii.

STARTING AND DRIVING
cclxix
CRUISE CONTROL
The cruise control is designed to maintain a set cruising
speed without requiring the driver to operate the
accelerator. Cruising speed can be set to any speed above
40 km/h (25 mph).
Within the limits of the engine’s capabilities, cruising speed can
be maintained up or down grades. However, changes in
vehicle speed may occur on steeper grades.
CAUTION
 To help maintain maximum control of your vehicle,
do not use the cruise control when driving in heavy
or varying traffic, or on slippery (rainy, icy or
snowcovered) or winding roads.
 Avoid vehicle speed increases when driving
downhill. If the vehicle speed is too fast in relation to
the cruise control set speed, cancel the cruise
control then downshift the transmission to use
engine braking to slow down.
Turning the system on and off
To turn the cruise control on, press the “ON− OFF” button. The
“CRUISE” indicator light in the instrument cluster will come on
to indicate that the cruise control is operational. Pressing the
“ON−OFF” button again turns the system off.
When the system is turned off, cruising speed must be reset
when the cruise control is turned on again.
When the ignition key is turned off, the main switch is also
automatically turned off. To use the cruise control again, press
the “ON− OFF” button again to turn it on.
CAUTION
To avoid accidentally engaging the cruise control, turn
the system off when it is not in use. Make sure the
“CRUISE” indicator light is off.

STARTING AND DRIVING
cclxx

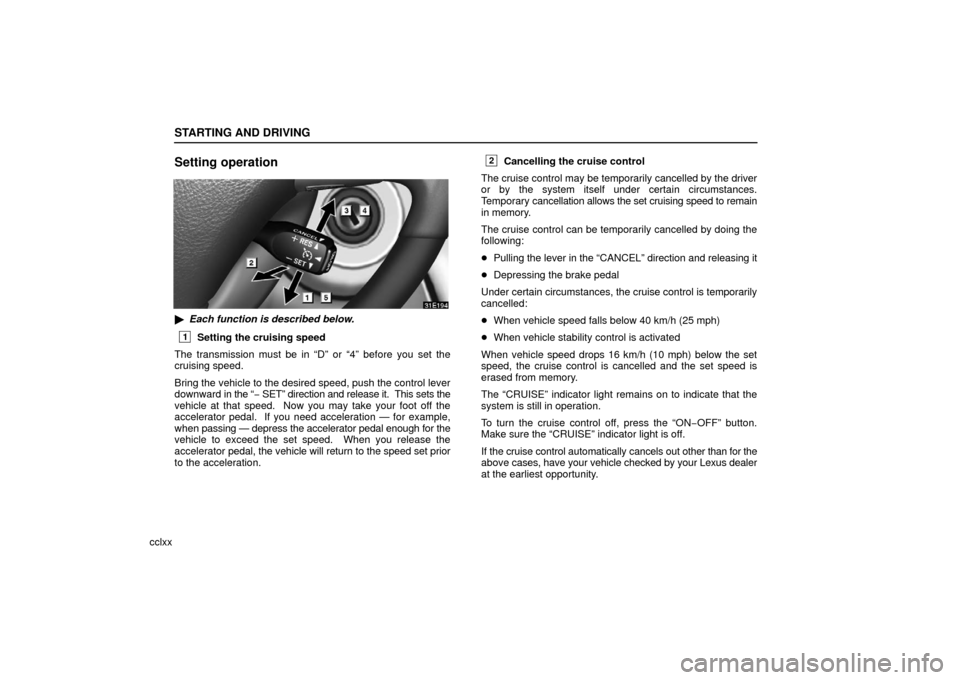

Setting operation
Each function is described below.
1Setting the cruising speed
The transmission must be in “D” or “4” before you set the
cruising speed.
Bring the vehicle to the desired speed, push the control lever
downward in the “− SET” direction and release it. This sets the
vehicle at that speed. Now you may take your foot off the
accelerator pedal. If you need acceleration — for example,
when passing — depress the accelerator pedal enough for the
vehicle to exceed the set speed. When you release the
accelerator pedal, the vehicle will return to the speed set prior
to the acceleration.
2Cancelling the cruise control
The cruise control may be temporarily cancelled by the driver
or by the system itself under certain circumstances.
Temporary cancellation allows the set cruising speed to remain
in memory.
The cruise control can be temporarily cancelled by doing the
following:
 Pulling the lever in the “CANCEL” direction and releasing it
 Depressing the brake pedal
Under certain circumstances, the cruise control is temporarily
cancelled:
 When vehicle speed falls below 40 km/h (25 mph)
 When vehicle stability control is activated
When vehicle speed drops 16 km/h (10 mph) below the set
speed, the cruise control is cancelled and the set speed is
erased from memory.
The “CRUISE” indicator light remains on to indicate that the
system is still in operation.
To turn the cruise control off, press the “ON−OFF” button.
Make sure the “CRUISE” indicator light is off.
If the cruise control automatically cancels out o ther than for the
above cases, have your vehicle checked by your Lexus dealer
at the earliest opportunity.

DRIVING TIPS
ccxcv
3. Release the
parking brake and brake pedal and slowly pull
or back away from the wheel blocks. Stop and apply your
brakes.
4. Have someone retrieve the blocks.
CAUTION
 Do not exceed 72 km/h (45 mph) or the posted towing
speed limit, whichever is lower. Because instability
(swaying) of a towing vehicletrailer combination
usually increases as the speed increases, exceeding
72 km/h (45 mph) may cause loss of control.
 Slow down and downshift before descending steep
or long downhill grades. Do not make sudden
downshifts.
 Avoid holding the brake pedal down too long or too
frequently. This could cause the brakes to overheat
and result in reduced braking efficiency.
HOW TO SAVE FUEL AND MAKE
YOUR VEHICLE LAST LONGER
Improving fuel economy is easy — just take it easy. It will help
make your vehicle last longer, too. Here are some specific tips
on how to save money on both fuel and repairs:
 Keep your tires inflated at the correct pressure. Check
the pressure every two weeks, or at least once a month.
Underinflation causes tire wear and wastes fuel.
 Do not carry unneeded weight in your vehicle. Excess
weight puts a heavier load on the engine, causing greater
fuel consumption.
 Avoid lengthy warmup idling. Once the engine is
running smoothly, begin driving — but gently. Remember,
however, that on cold winter days this may take a little
longer.
 Always drive with the automatic transmission selector
lever in the “D” position when engine braking is not
required. Driving with the overdrive off will reduce the fuel
economy. (For details, see “Automatic transmission” on
page cclxiii.)
 Accelerate slowly and smoothly. Avoid jackrabbit starts.
 Avoid long engine idling. If you have a long wait and you
are not in traffic, it is better to turn off the engine and start
again later.

SECTION 4
cccii
IN CASE OF AN EMERGENCY
In case of an emergency
If your engine stalls while drivingccciii
. . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle will not start ccciii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot increase engine speed cccviii
. . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats cccviii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire cccix
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

If your vehicle becomes stuck cccxix
. . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed cccxx
. . . . . . . . . . . . . . . . . . . . . . . .
If you cannot shift automatic transmission
selector lever cccxxvii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
If you lose your keys or lock yourself out cccxxviii
. . . . . . . . . . . . . . . .
