MAINTENANCE
cccxxxii
Where to go for service?
Lexus technicians are well −trained specialists and are kept up
to date with the latest service information through technical
bulletins, service tips, and in −dealership training programs.
They are well informed about the operation of all the systems
on your vehicle.
You can be confident that your Lexus dealer’s service
department performs the best job to meet the maintenance
requirements of your vehicle.
Your copy of the repair order is proof that all required
maintenance has been performed for warranty coverage. If
any problems should arise with your vehicle while under
warranty, your Lexus dealer will promptly take care of it. Again,
be sure to keep a copy of the repair order for any service
performed on your Lexus.
What about doityourself maintenance?
Many of the maintenance items are easy to do yourself, if you
have a little mechanical ability and a few basic automotive
tools. Simple instructions for how to perform them are
presented in Section 6.
If you are a skilled do −it− yourself mechanic, the Lexus service
manuals are recommended. Please be aware that
do−it−yourself maintenance can affect your warranty
coverage. See your “Owner’s Guide”, “Owner’s Manual
Supplement” or “Warranty Booklet” for the details.
GENERAL MAINTENANCE
Listed below are the general maintenance items that should be
performed at the intervals specified. It is recommended that
any problem you notice be brought to the attention of your
Lexus dealer or qualified service shop for their advice.
CAUTION
Make these checks only with adequate ventilation if you
run the engine.
Engine compartment
Items listed below should be checked from time to time,
e.g. each time when refueling.
Washer fluid
Make sure there is sufficient fluid in the tank. See page cdvi
for additional information.
Engine coolant level
Make sure the coolant level is between the “F” and “L” lines on
the see− through reservoir when the engine is cold. See page
ccclix for additional information.
Radiator, condenser and hoses
Check that the front of the radiator and condenser are clean
and not blocked with leaves, dirt, or insects. See page ccclxi
for additional information.

INTRODUCTION
cccxli
ENGINE COMPARTMENT OVERVIEW
1Power steering fluid
reservoir
2Engine oil filler cap
3Brake fluid reservoir
4Fuse box
5Battery
6Radiator
7Condenser
8Electric cooling fans
9Engine oil level
dipstick
10Washer fluid tank
11Engine coolant
reservoir

INTRODUCTION
cccxlii
DOITYOURSELF SERVICEPRECAUTIONS
If you perform maintenance yourself, be sure to follow the
correct procedure given in this Section.
You should be aware that improper or incomplete servicing
may result in operating problems.
Performing do −it−yourself maintenance during the warranty
period may affect your warranty coverage. Read the separate
Lexus Warranty statement for details and suggestions.
This Section gives instructions only for those items that are
relatively easy for an owner to perform. As explained in
Section 5, there are still a number of items that must be
performed by a qualified technician with special tools.
For information on tools and parts for do−it−yourself
maintenance, see “Parts and tools” on page cccxliii.
Utmost care should be taken when working on your vehicle to
prevent accidental injury. Here are a few precautions that you
should be especially careful to observe:

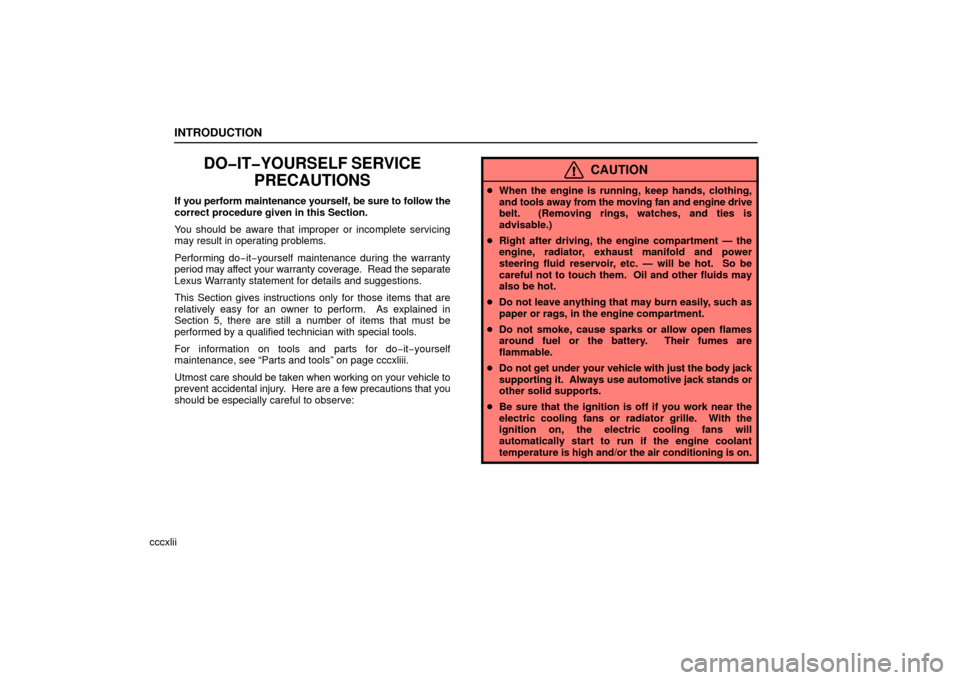

CAUTION
 When the engine is running, keep hands, clothing,
and tools away from the moving fan and engine drive
belt. (Removing rings, watches, and ties is
advisable.)
 Right after driving, the engine compartment — the
engine, radiator, exhaust manifold and power
steering fluid reservoir, etc. — will be hot. So be
careful not to touch them. Oil and other fluids may
also be hot.
 Do not leave anything that may burn easily, such as
paper or rags, in the engine compartment.
 Do not smoke, cause sparks or allow open flames
around fuel or the battery. Their fumes are
flammable.
 Do not get under your vehicle with just the body jack
supporting it. Always use automotive jack stands or
other solid supports.
 Be sure that the ignition is off if you work near the
electric cooling fans or radiator grille. With the
ignition on, the electric cooling fans will
automatically start to run if the engine coolant
temperature is high and/or the air conditioning is on.

ENGINE
ccclix
Oil identification mark
The ILSAC (International Lubricant Standardization and
Approval Committee) Certification Mark is added to some oil
containers to help you select the oil you should use.
To ensure excellent lubrication performance for your engine,
“Toyota Genuine Motor Oil” is available, which has been
specifically tested and approved for all Lexus engines.
Please contact your Lexus dealer for further details about
“Toyota Genuine Motor Oil”.
CHECKING THE ENGINE COOLANTLEVEL
1Reservoir cap2Upper line3Lower line
Look at the seethrough coolant reservoir when the
engine is cold. The coolant level is satisfactory if it is
between the “F” and “L” lines on the reservoir. If the level
is low, add the coolant. (For the coolant type, see “Coolant
type selection” described below.)
The coolant level in the reservoir will vary with engine
temperature. However, if the level is on or below the “L” line,
add coolant. Bring the level up to the “F” line.
