INTUITIVE PARKING ASSIST
291
As the Intuitive parking assist might be
malfunctioning in the following cases,
have it checked by your Lexus dealer.
The indicator in the instrument cluster
does not come on and a beep does not
sound even when the Intuitive parking
assist main switch is turned on.
The warning comes on despite no ob-
stacle around the vehicle.
On vehicles equipped with rear view
monitor system, a warning appears on
the right top of the parking assist moni-
tor in the following conditions.
When the selector lever is put in “R”
and the rear view monitor is turned on.
When the Intuitive parking assist main
switch is turned on and any sensor de-
tects an obstacle.
Although “Display OFF” is selected in the
Intuitive parking assist setting screen, the
warning appears on the right top of the rear
view monitor display.

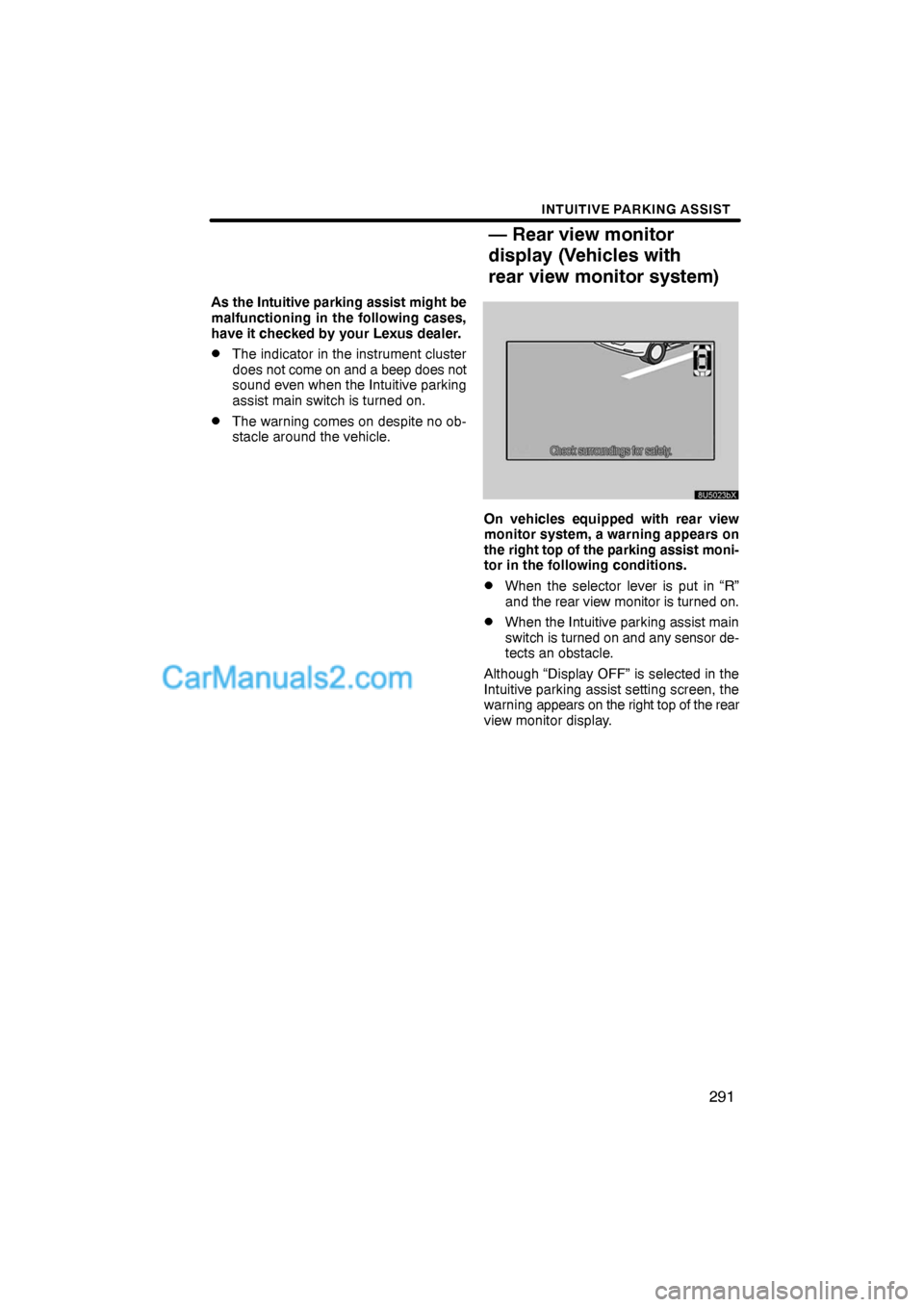

— Rear view monitor
display (Vehicles with
rear view monitor system)
Page 12 of 16
INTUITIVE PARKING ASSIST
292
1About 1.1 ft. (37.5 cm) to about
1.5 ft. (50 cm)
2About 0.8 ft. (25 cm) to about
1.1 ft. (37.5 cm)
3Less than about 0.8 ft. (25 cm)
Display:
When an obstacle is detected, the indica-
tor will flash yellow. The flashing speed be-
comes faster as the vehicle gets closer to
the obstacle. When the distance between
the vehicle and the obstacle is less than
about 0.8 ft. (25 cm), the indicator will illu-
minate in red.
Beeps:
As distance to the obstacle gets closer, the
interval of the intermittent sound gets
shorter, and then finally changes to a con-
tinuous sound when the distance between
the vehicle and the obstacle is less than
about 0.8 ft. (25 cm).
1About 1.1 ft. (37.5 cm) to about 1.5
ft. (50 cm)
2About 0.8 ft. (25 cm) to about 1.1
ft. (37.5 cm)
3Less than about 0.8 ft. (25 cm)
Display:
When an obstacle is detected, the indica-
tor will flash yellow. The flashing speed be-
comes faster as the vehicle gets closer to
the obstacle. When the distance between
the vehicle and the obstacle is less than
about 0.8 ft. (25 cm), the indicator will illu-
minate in red.
Beeps:
As distance to the obstacle gets closer, the
interval of the intermittent sound gets
shorter, and then finally changes to a con-
tinuous sound when the distance between
the vehicle and the obstacle is less than
about 0.8 ft. (25 cm).

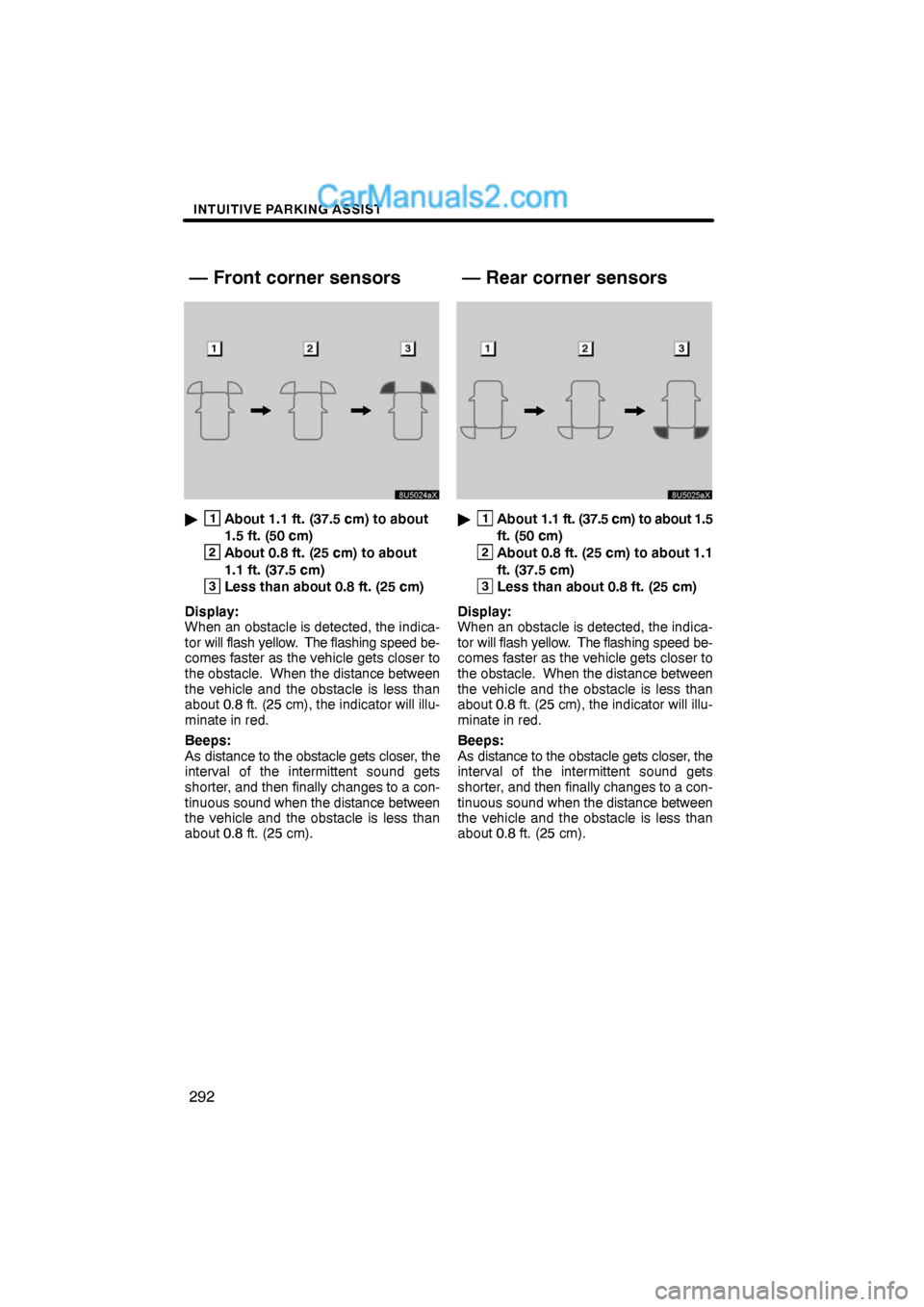

— Front corner sensors — Rear corner sensors
Page 13 of 16
INTUITIVE PARKING ASSIST
293
1About 1.8 ft. (60 cm) to about 4.5
ft. (150 cm)
2About 1.4 ft. (45 cm) to about 1.8
ft. (60 cm)
3About 1.1 ft. (35 cm) to about 1.4
ft. (45 cm)
4Less than about 1.1 ft. (35 cm)
Display:
When an obstacle is detected, the indica-
tor will flash yellow. The flashing speed be-
comes faster as the vehicle gets closer to
the obstacle. When the distance between
the vehicle and the obstacle is less than
about 1.1 ft. (35 cm), the indicator will illu-
minate in red.
Beeps:
As distance to the obstacle gets closer, the
interval of the intermittent sound gets
shorter, and then finally changes to a con-
tinuous sound when the distance between
the vehicle and the obstacle is less than
about 1.1 ft. (35 cm).
CAUTION
When reversing, be sure to visually
confirm a safe distance around your
vehicle to avoid an accident.
The volume of the beeps and turning on
or off of the display can be set.
1. Push the “INFO” button to display
the “Information” screen.

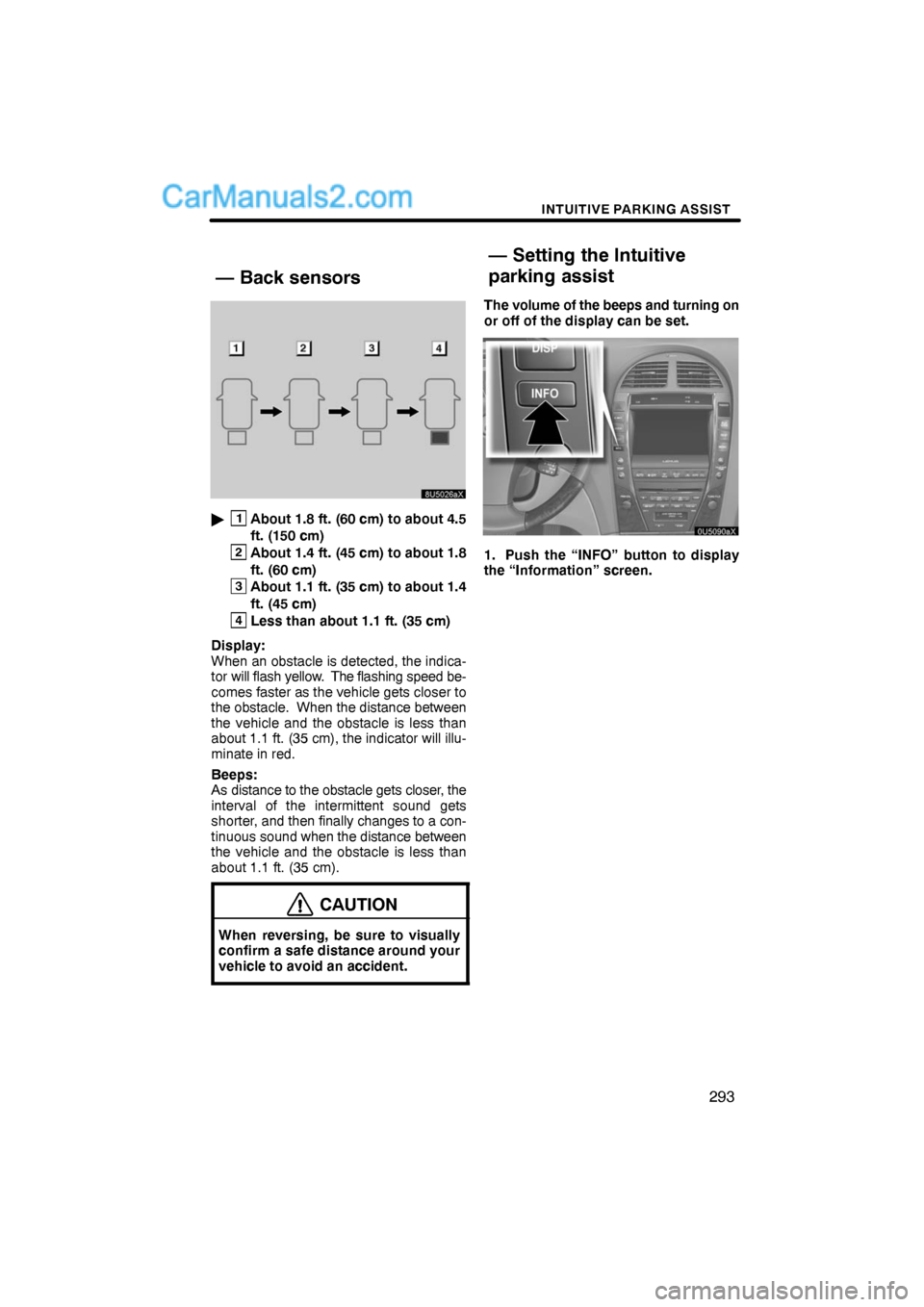

— Back sensors— Setting the Intuitive
parking assist
Page 14 of 16
INTUITIVE PARKING ASSIST
294

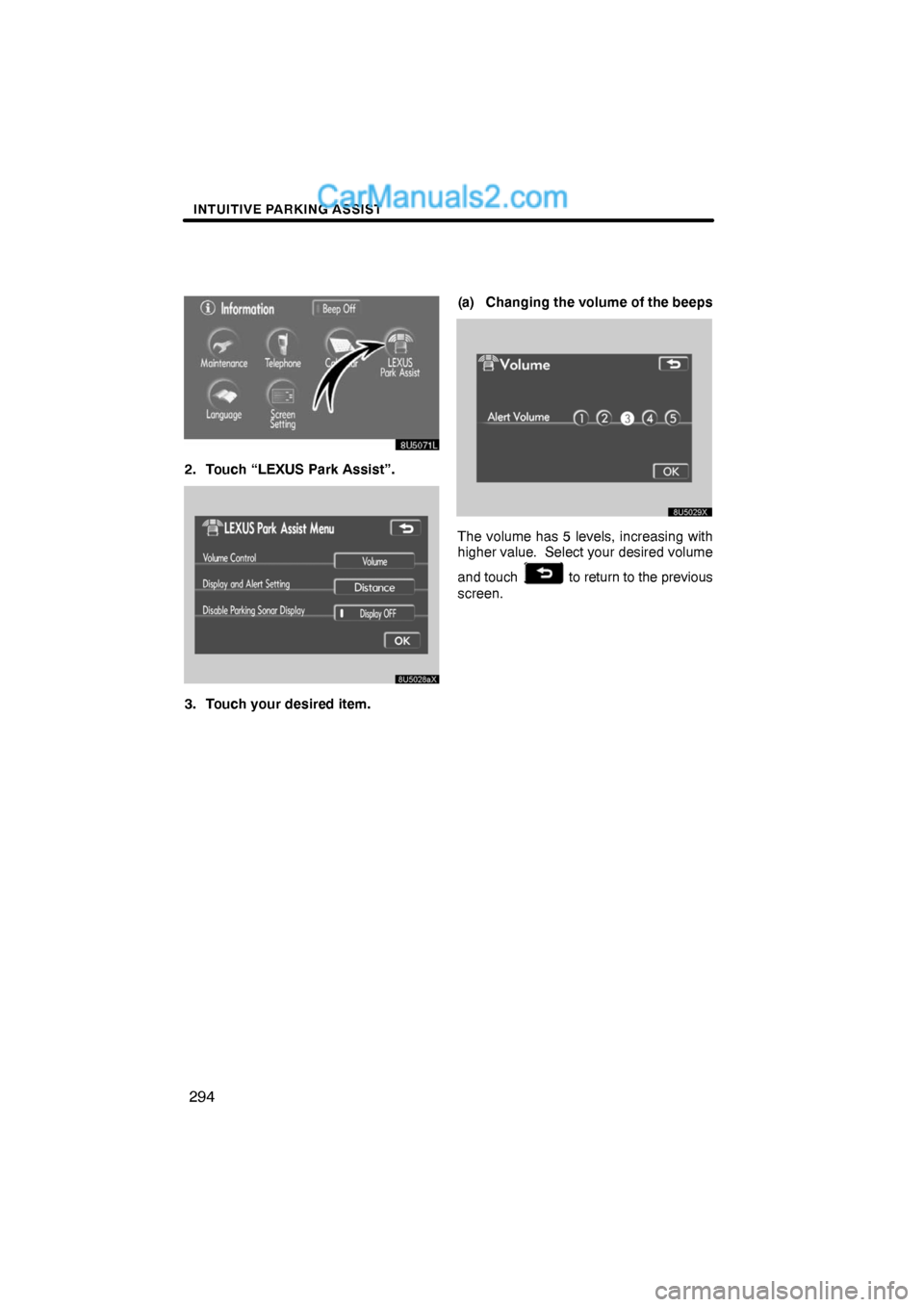

2. Touch “LEXUS Park Assist”.
3. Touch your desired item.(a) Changing the volume of the beeps
The volume has 5 levels, increasing with
higher value. Select your desired volume
and touch
to return to the previous
screen.
Page 15 of 16
INTUITIVE PARKING ASSIST
295
(b) Changing display and alert set-
tings
Touch “Rear” to switch the distance for the
back sensors display and tone indication,
from long distance to short distance, or
from short distance to long distance.
To return to the previous screen, touch
.(c) Display off setting
Vehicles with rear view monitor system —
Although “Display OFF” is turned on, if the
obstacle is detected during the rear view
monitoring, the warning appears on the
right top of the screen.
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules.
Operation is subject to the following two
conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
For vehicles sold in Canada.
This ISM device complies with Cana-
dian ICES−001.
Cet appareil ISM est conforme a la
norme NMB−001 du Canada.
