305
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0808)

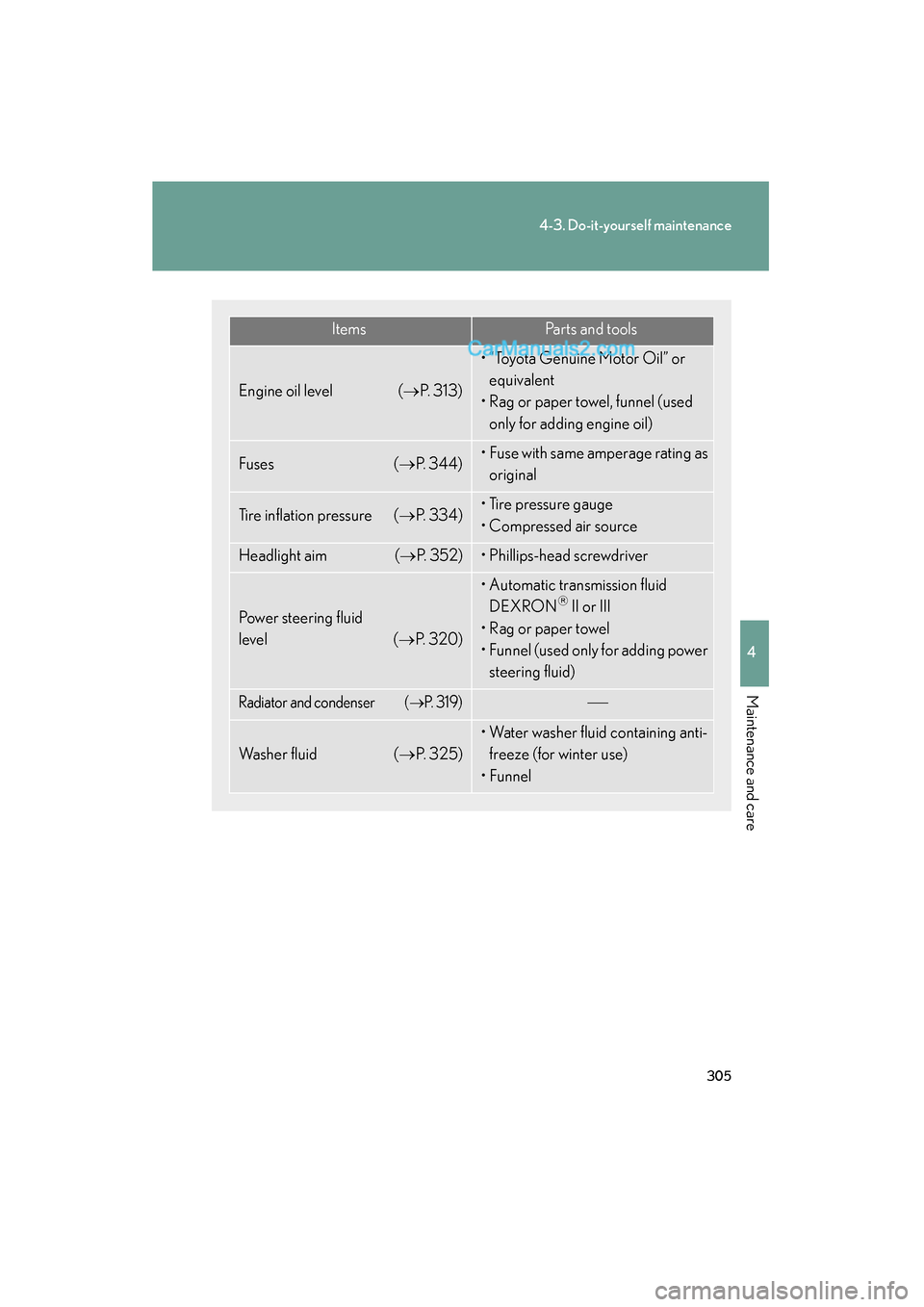

ItemsParts and tools
Engine oil level (→P. 313)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses (→ P. 344)• Fuse with same amperage rating as
original
Tire inflation pressure ( →P. 3 3 4 )• Tire pressure gauge
• Compressed air source
Headlight aim ( →P. 3 5 2 )• Phillips-head screwdriver
Power steering fluid
level (→ P. 3 2 0 )
• Automatic transmission fluid
DEXRON II or III
• Rag or paper towel
• Funnel (used only for adding power steering fluid)
Radiator and condenser (→P. 3 1 9 )
Washer fluid ( →P. 3 2 5 )
• Water washer fluid containing anti-
freeze (for winter use)
• Funnel

321
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0808)■

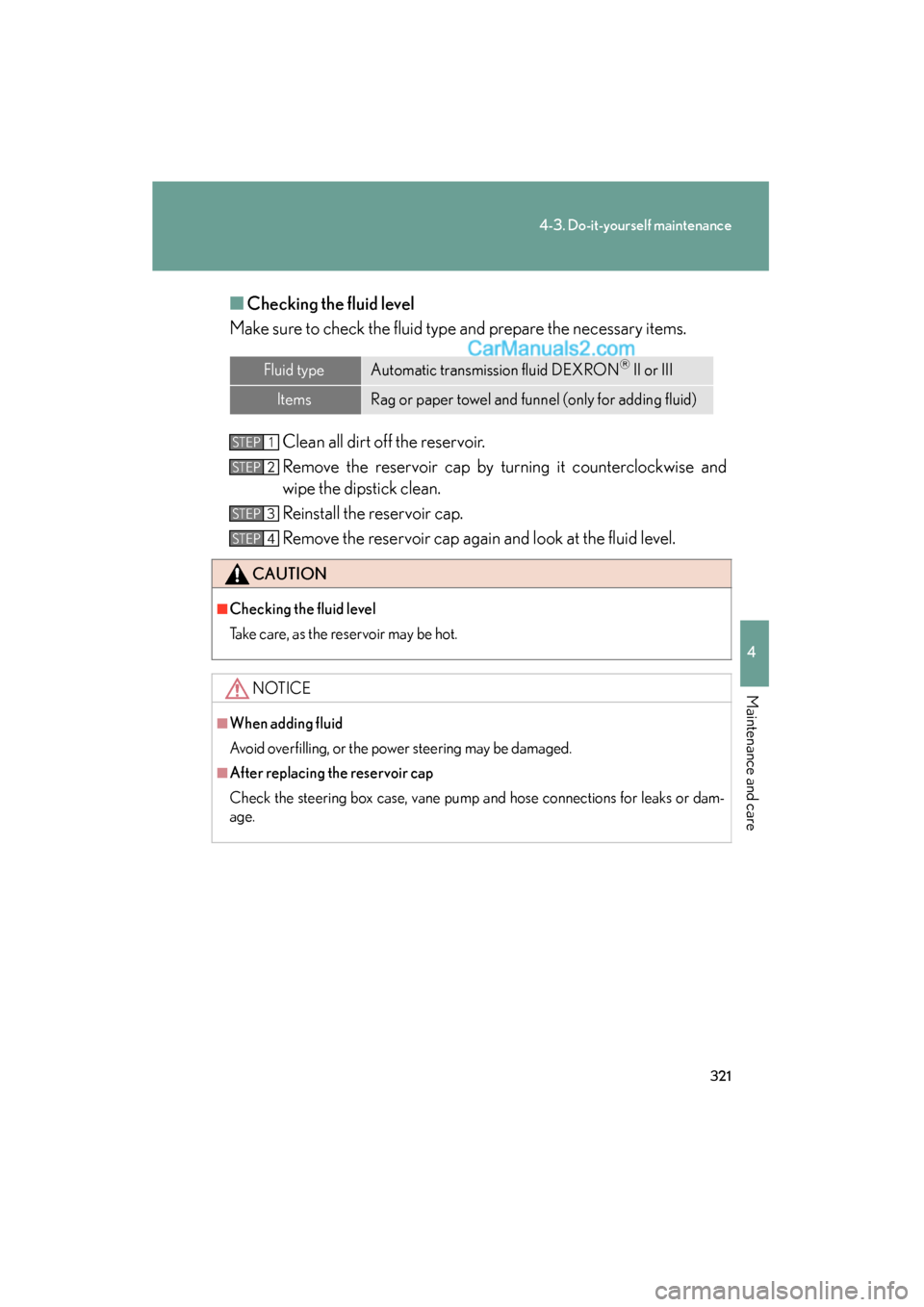

Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the reservoir cap by turning it counterclockwise and
wipe the dipstick clean.
Reinstall the reservoir cap.
Remove the reservoir cap again and look at the fluid level.
Fluid typeAutomatic transmission fluid DEXRON II or III
ItemsRag or paper towel and funnel (only for adding fluid)
CAUTION
■Checking the fluid level
Take care, as the reservoir may be hot.
NOTICE
■When adding fluid
Avoid overfilling, or the power steering may be damaged.
■After replacing the reservoir cap
Check the steering box case, vane pump and hose connections for leaks or dam-
age.
STEP1
STEP2
STEP3
STEP4

427
6-1. Specifications
6
Vehicle specifications
ES350_U_(L/O_0808)

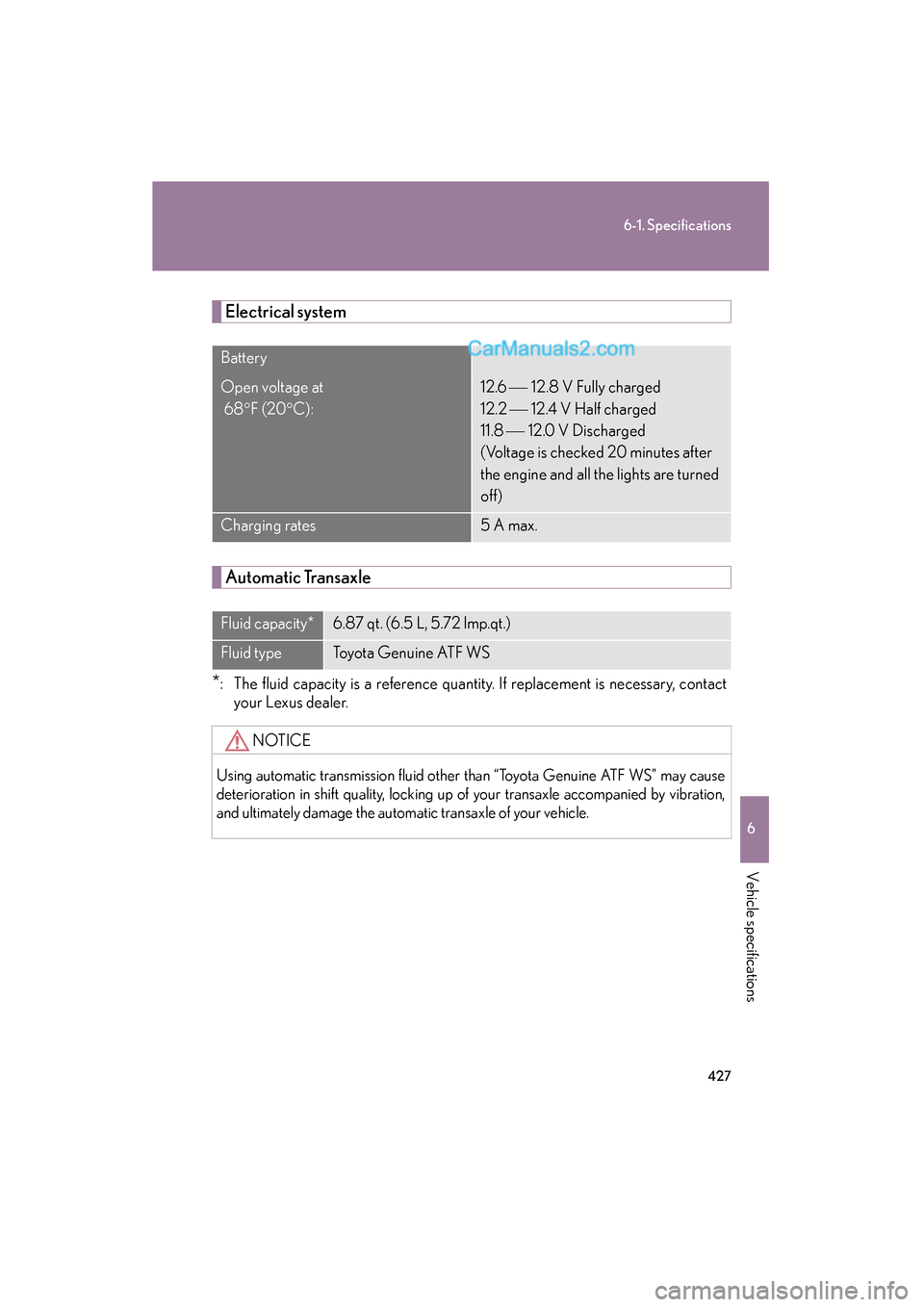

Electrical system
Automatic Transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, contactyour Lexus dealer.
Battery
Open voltage at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are turned
off)
Charging rates5 A max.
Fluid capacity*6.87 qt. (6.5 L, 5.72 lmp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transaxle accompanied by vibration,
and ultimately damage the automatic transaxle of your vehicle.

428
6-1. Specifications
ES350_U_(L/O_0808)

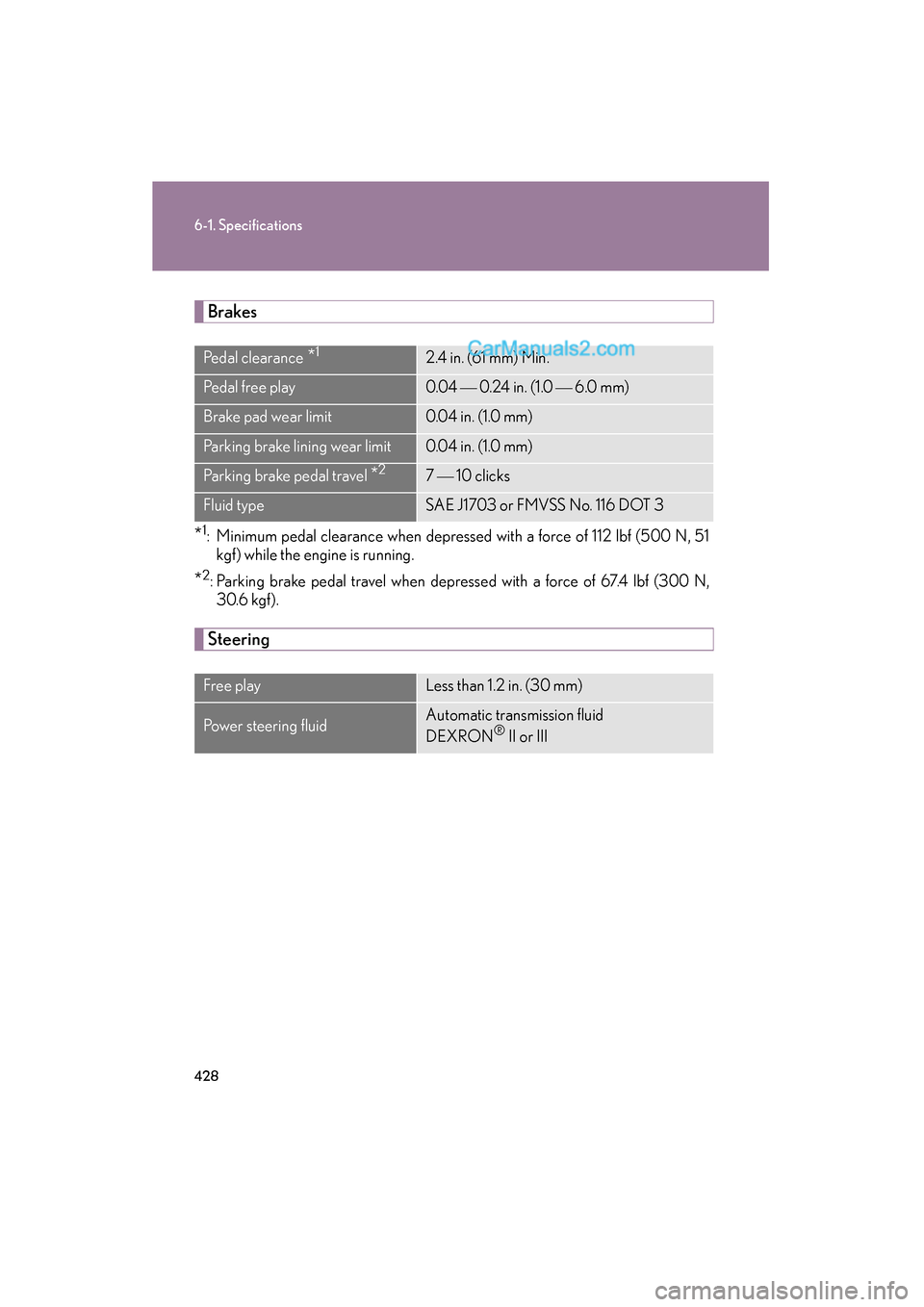

Brakes
*1: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51
kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,3 0.6 kg f ) .
Steering
Pedal clearance *12.4 in. (61 mm) Min.
Pedal free play0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *27  10 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)
Power steering fluidAutomatic transmission fluid
DEXRON® II or III
