199
3-2. Using the audio system
3
Interior features
ES350_U_(L/O_0808)■
Scanning all radio stations within range
Press .
All stations with reception will be played for 5 seconds each.
When the desired station is reached, press the switch once again.
RDS (Radio Data System)
This feature allows your radio to receive station identification information
and program information (classical, jazz, etc.) from radio stations which
broadcast this information.
■ Receiving RDS broadcasts
Press ∧ or ∨ on during FM reception.
The type of program changes each time the button is pressed.
●ROCK
● EASY LIS (Easy listening)
● CLS/JAZZ (Classical music and Jazz)
● R & B (Rhythm and Blues)
● INFORM (Information)
● RELIGION
● MISC (Miscellaneous)
● ALERT (Emergency messages)
If the system receives no RDS stations, NO PTY appears on the display.
Press , or ∧ or ∨ on .
The radio seeks or scans the station by the relevant program type.
■Displaying radio station names
Press .
STEP1
STEP2
STEP1
STEP2

225
3
Interior features
ES350_U_(L/O_0808)
3-3. Using the hands-free phone system (for cellular phone)
Hands-free phone system features (for cellular phone)∗
■Conditions affecting operation
The hands-free phone system may not operate normally in the following situations:
●The cellular phone is turned off, or located outside the service area.
●The cellular phone has a low battery.
●The cellular phone is not connected to the system.
●The cellular phone is behind the seat or in the glove box, or metal material cov-
ers or touches the phone.
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being improperly
accessed.
■Required profiles for the cellular phone
●HFP (Hands Free Profile) Ver. 1.0
●OPP (Object Push Profile) Ver. 1.1
This system supports Bluetooth®, which allows you to make or receive calls
without using cables to connect a cellular phone and the system, and with-
out operating the cellular phone.
TitlePa g e
Using the hands-free phone system (for cellular
phone)P. 2 2 8
Making a phone callP. 2 3 6
Setting a cellular phoneP. 2 4 0
Security and system setupP. 2 4 4
Using the phone bookP. 2 4 7
∗: If equipped

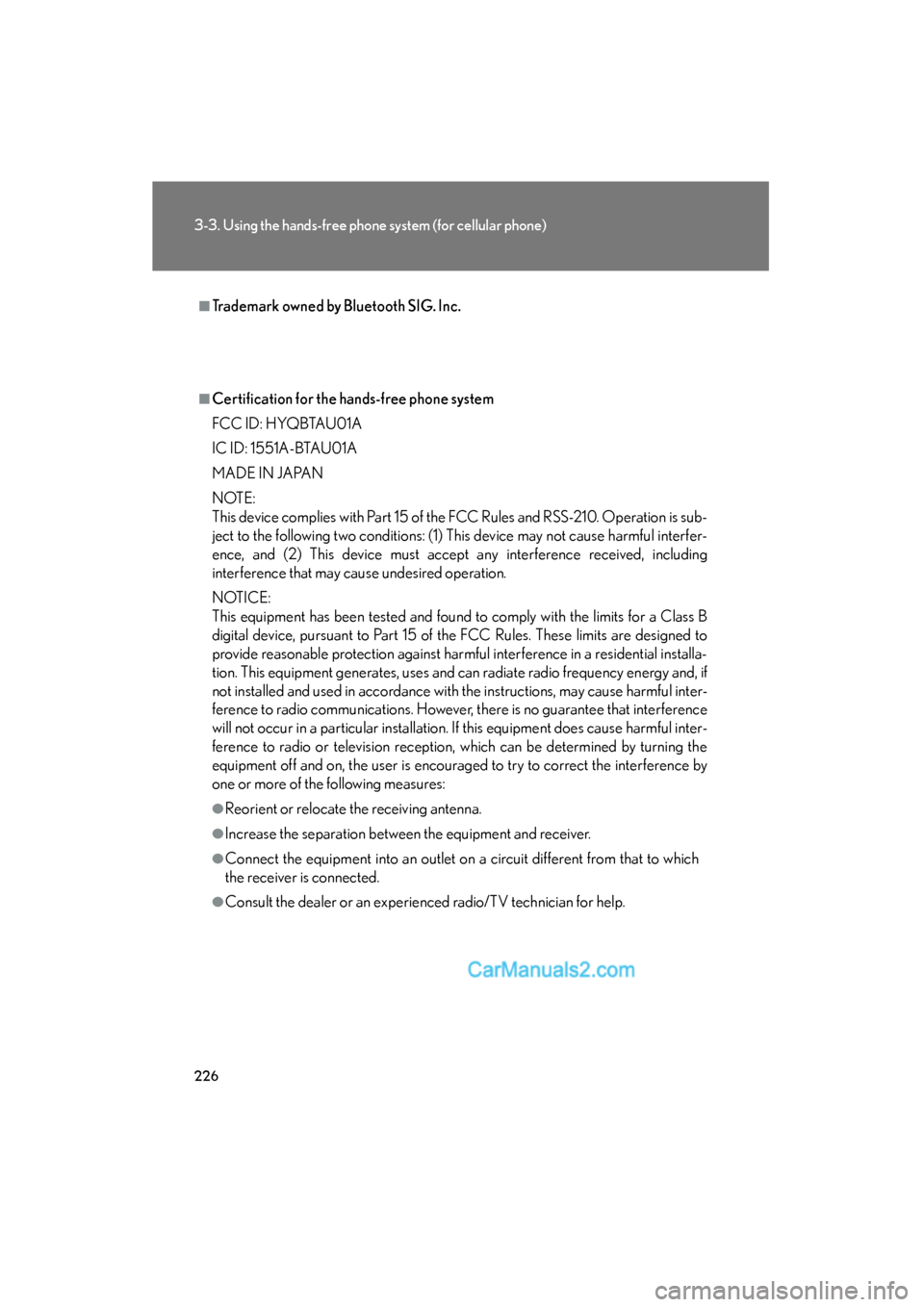

226
3-3. Using the hands-free phone system (for cellular phone)
ES350_U_(L/O_0808)
■Trademark owned by Bluetooth SIG. Inc.
■Certification for the hands-free phone system
FCC ID: HYQBTAU01A
IC ID: 1551A-BTAU01A
MADE IN JAPAN
N OT E :
This device complies with Part 15 of the FCC Rules and RSS-210. Operation is sub-
ject to the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) This device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.

227
3-3. Using the hands-free phone system (for cellular phone)
3
Interior features
ES350_U_(L/O_0808)
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
CAUTION:
Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth, for uncon-
trolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65. This equipment has very low levels of RF energy that it
deemed to comply without maximum permissive exposure evaluation (MPE). But it
is desirable that it should be installed and operated with at least 20 cm and more
between the radiator and person’s body (excluding extremities: hands, wrists, feet
and legs).
Co-location:
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
CAUTION
■Caution while driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
NOTICE
■To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may become
high resulting in damage to the phone.

228
3-3. Using the hands-free phone system (for cellular phone)
ES350_U_(L/O_0808)
Using the hands-free phone system (for cellular phone)
■Audio unit
Displays such items as mes-
sage, name, and phone num-
ber
Lower-case characters and
special characters, such as an
umlaut, cannot be displayed.
Push and hold: Displays infor-
mation that is too long to be
displayed at one time on the
screen
Selects speed dials
Selects items such as menu
or number
Turn: Selects an item
Press: Inputs the selected
item
Displays the reception level
Displays Bluetooth
® connec-
tion condition
If BT is not displayed, the
hands-free phone system
cannot be used.

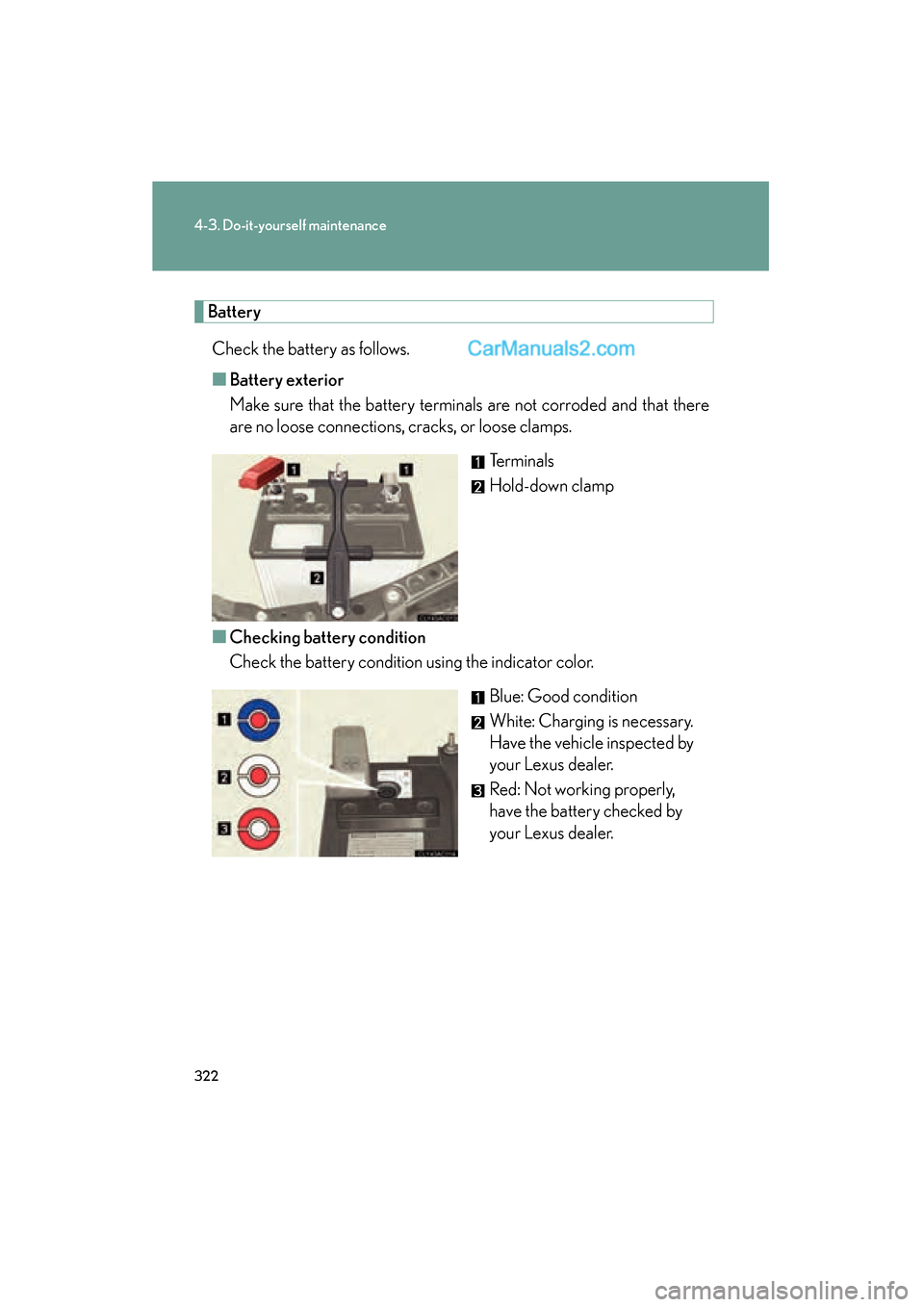

322
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0808)
BatteryCheck the battery as follows.
■ Battery exterior
Make sure that the battery terminals are not corroded and that there
are no loose connections, cracks, or loose clamps.
Terminals
Hold-down clamp
■ Checking battery condition
Check the battery condition using the indicator color.
Blue: Good condition
White: Charging is necessary.
Have the vehicle inspected by
your Lexus dealer.
Red: Not working properly,
have the battery checked by
your Lexus dealer.

461
Alphabetical index
ES350_U_(L/O_0808)
Back-up lightsWattage ................................................... 431
Battery Checking ................................................322
If the vehicle has discharged battery.................................................... 413
Preparing and checking before winter ...................................... 172
Bluetooth
®..............................................225
Brake
Fluid ............................................................ 319
Parking brake ........................................ 123
Brake assist ............................................... 161
Break-in tips .............................................109
Care Exterior ....................................................292
Interior..................................................... 295
Seat belts ............................................... 296
Cargo capacity .......................................168
Cargo hooks ...........................................278
CD changer ........................................... 205
CD player................................................ 205
Chains......................................................... 174
Child restraint system Booster seats, definition.................... 93
Booster seats, installation ............... 100
Convertible seats, definition ........... 93
Convertible seats, installation ...... 100
Front passenger occupant
classification system ........................ 88
Infant seats, definition ......................... 93
Infant seats, installation..................... 100 Installing CRS with lower
anchorages...........................................98
Installing CRS with seat belts ........ 100
Installing CRS with top straps....... 103
Child safety Airbag precautions ..............................83
Battery precautions ............... 324, 415
Child restraint system ......................... 93
Child-protectors ...................................38
How your child should wear
the seat belt .......................................... 53
Installing child restraints..................... 97
Moon roof precautions......................66
Power window lock switch ..............60
Power window precautions ............ 62
Removed electronic key battery
precautions........................................343
Seat belt comfort guide .......................51
Seat belt extender precautions......55
Seat belt precautions .......................... 53
Seat heater precautions.................... 271
Trunk precautions................................. 42
Child-protectors ......................................38
Cigarette lighter.................................... 267
Cleaning Exterior.................................................... 292
Interior .....................................................295
Seat belts ................................................296
Clock ......................................................... 265
Compass ..................................................286
Condenser ............................................... 319
Console box ........................................... 257
B
C

464
Alphabetical index
ES350_U_(L/O_0808)
Hands-free phone system (for cellular phone)
Bluetooth
®........................................... 225
Hands-free phone system
(for cellular phone)........................ 225
Hazard lights
Switch ...................................................... 364
Head restraints
Adjusting .................................................. 49
Headlight aim .........................................352
Headlights Discharge headlights
precautions .........................................361
Replacing light bulbs........................ 354
Switch ........................................................135
Wattage.................................................... 431
Heaters Seat heaters................................ 269, 271
Side mirror ............................................. 195
Hood ......................................................... 308
Hooks Cargo hooks ....................................... 278
Grocery bag hooks ......................... 278
Horn ............................................................ 124 I/M test ..................................................... 303
Identification number
Engine ......................................................423
Vehicle.....................................................423
Ignition switch ........................................... 116
Illuminated entry system .................... 253
Indicator lights ......................................... 127
Initialization Items to initialize................................. 452
Inside rear view mirror .......................... 57
Interior lights Interior lights ........................................ 255
Switch...................................................... 255
Intuitive parking assist.......................... 155
Jack
Positioning a floor jack ................... 309
Vehicle-equipped jack....................397
Jack handle ............................................. 397
Keyless entry ............................................. 34
Keys Electronic key .........................................20
Engine switch .......................................... 116
If the electronic key does not operate properly................................ 411
If you lose your keys .......................... 410
Key number..............................................20
Keyless entry............................................ 34
Keys..............................................................20
Mechanical key ......................................20
Wireless remote control key...........34
HI
J
K
