fog light bulb Lexus ES350 2009 Owner's Manual

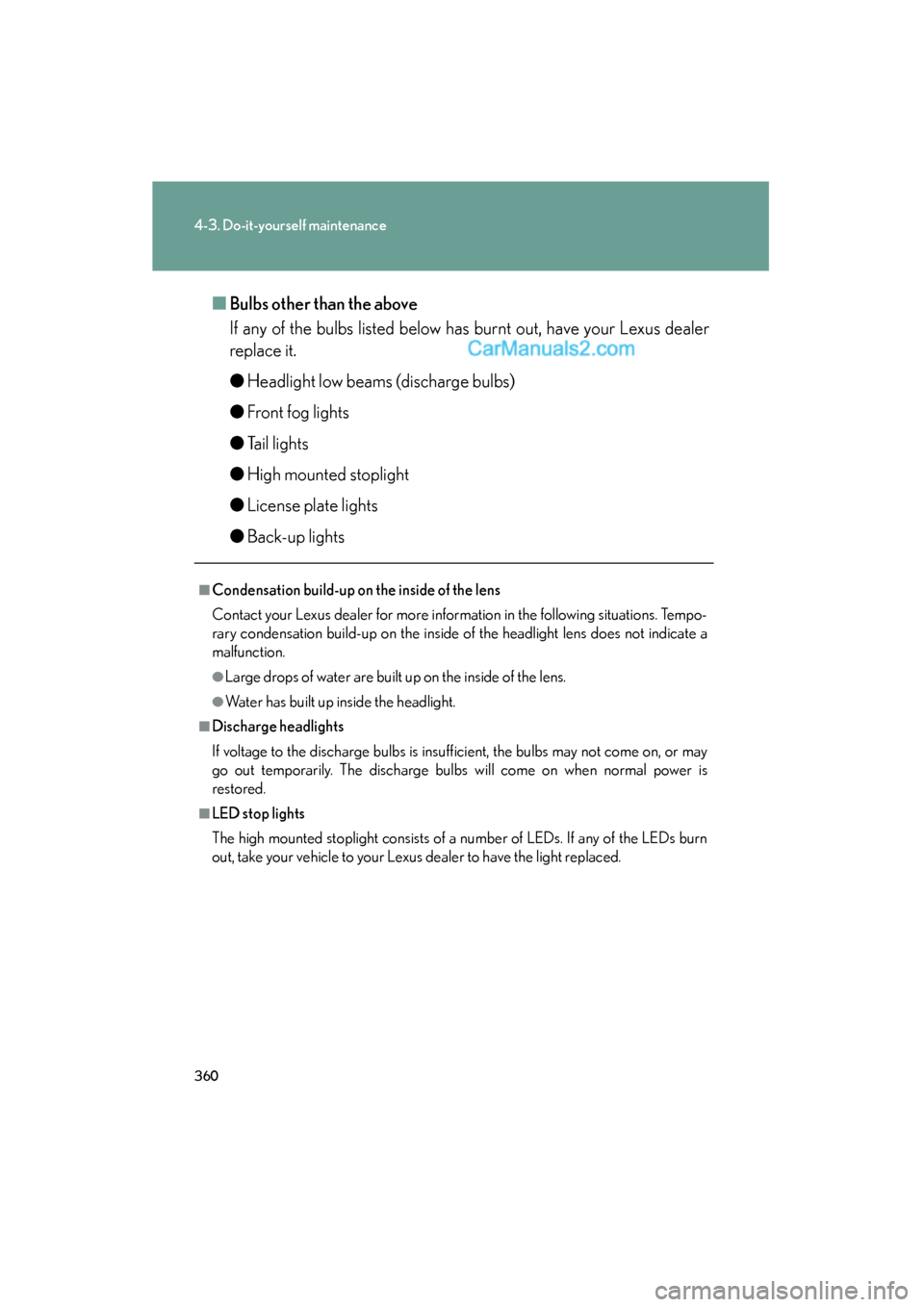

360
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0808)■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
● Headlight low beams (discharge bulbs)
● Front fog lights
● Tail lights
● High mounted stoplight
● License plate lights
● Back-up lights
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED stop lights
The high mounted stoplight consists of a number of LEDs. If any of the LEDs burn
out, take your vehicle to your Lexus dealer to have the light replaced.

431
6-1. Specifications
6
Vehicle specifications
ES350_U_(L/O_0808)
Light bulbs
*: If equipped
A: D4S discharge bulbs
B: H7 halogen bulbs
C: HB3 halogen bulbs
D: HB4 halogen bulbs
E: Wedge base bulbs (amber)
F: Wedge base bulbs (clear)
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights (low beam) Discharge bulbs
*
Halogen bulbs*
D4SH735
55AB
Headlights (high beam)900560C
Front fog lights900651D
Front turn signal lights21E
Parking lights and front side
marker lights5F
Tr u n k l i g h t5G
Rear side marker lights1943.8F
Stop/tail lights744321 /5F
Tail lights74435F
Rear turn signal lights21E
Back-up lights92116F
Outer foot lights5F
InteriorVanity lights8F
Door courtesy lights5F

463
Alphabetical index
ES350_U_(L/O_0808)
Engine coolantCapacity................................................. 426
Checking ................................................. 317
Preparing and checking
before winter ...................................... 172
Engine coolant temperature
gauge ....................................................... 125
Engine immobilizer system ..................70
Engine oil Capacity................................................. 425
Checking ................................................. 313
Preparing and checking
before winter ...................................... 172
Engine oil maintenance data ............. 316
Event data recorder.............................373
Floor mat................................................... 277
Fluid
Brake ......................................................... 319
Power steering fluid ......................... 320
Washer ................................................... 325
Fog lights
Switch ........................................................138
Wattage ................................................... 431
Foot well lighting .................................. 253
Front fog lights Switch ........................................................138
Wattage ................................................... 431
Front passenger occupant classification system ........................... 88
Front passenger's seat belt reminder light ...................................... 377 Front seats
Adjustment ............................................... 43
Driving position memory .................. 44
Seat position memory ........................ 47
Front side marker lights Replacing light bulbs ........................ 357
Wattage ................................................... 431
Front turn signal lights
Replacing light bulbs ........................ 357
Wattage ................................................... 431
Fuel Capacity ................................................. 424
Fuel gauge.............................................. 125
Fuel pump shut off system ............. 372
Gas station information .................. 472
Information ............................................ 432
Refueling.................................................... 67
Fuel door ..................................................... 67
Fuel filler door ........................................... 67
Fuel pump shut off system................. 372
Fuses .......................................................... 344
Garage door opener ......................... 280
Gas station information...................... 472
Gauges ...................................................... 125
Glove box ................................................ 256
Glove box light ...................................... 257
Grocery bag hooks ............................. 278
F
G

465
Alphabetical index
ES350_U_(L/O_0808)
Light bulbsReplacing............................................... 354
Wattage ................................................... 431
Lights
Door courtesy lights ........................ 253
Emergency flasher switch ............. 364
Fog light switch.....................................138
Hazard light switch........................... 364
Headlights switch ................................ 135
Interior light switch............................ 253
Outer foot lights................................. 253
Personal light switch ........................ 255
Replacing light bulbs ....................... 354
Shift lever lighting .............................. 253
Turn signal lever................................... 122
Vanity lights .......................................... 264
Wattage ................................................... 431
Load capacity ............................................ 171 Maintenance
Do-it-yourself maintenance......... 304
General maintenance .................... 300
Maintenance data .............................. 422
Maintenance requirements ......... 298
Meter
Instrument panel light control........126
Meters....................................................... 125
Mirrors Inside rear view mirror ....................... 57
Side mirror heater .............................. 195
Side mirrors ............................................ 58
Vanity mirrors ......................................264
Moon roof................................................... 63
MP3 disc ..................................................... 211
Multi-information display ..................... 131
Odometer................................................. 125
Oil Engine oil................................................. 313
Opener Fuel filler door ......................................... 67
Hood ....................................................... 308
Trunk .............................................................41
Outer foot lights Outer foot lights .................................253
Wattage ................................................... 431
Outside rear view mirrors
Adjusting and folding......................... 58
Mirror position memory .................... 44
Outside temperature display ........... 132
Overhead console ...............................259
Overheating, Engine............................ 416LM
O

466
Alphabetical index
ES350_U_(L/O_0808)
Parking assist sensors .......................... 155
Parking brake .......................................... 123
Parking lightsReplacing light bulbs........................ 357
Switch ........................................................135
Wattage.................................................... 431
PCS ............................................................. 164
Personal lights Switch ...................................................... 255
Power outlet............................................268
Power steering fluid .............................320
Power windows ........................................60
Pre-collision system.............................. 164
Radar cruise control ............................. 146
Radiator ..................................................... 319
Radio ................................................................ 198
Radio data system ................................. 199
RDS ............................................................. 199
Rear side marker lights
Replacing light bulbs........................ 354
Wattage.................................................... 431
Rear sunshade ....................................... 274
Rear turn signal lights Replacing light bulbs........................ 354
Wattage.................................................... 431
Rear window defogger........................ 195
Replacing Electronic key battery...................... 342
Fuses ........................................................ 344
Light bulbs............................................. 354
Reporting safety defects for
U.S. owners ..........................................454 Seat belts
Adjusting the seat belt ......................... 51
Automatic Locking Retractor .........52
Child restraint system
installation .............................................. 97
Cleaning and maintaining
the seat belts .................................... 296
Emergency Locking Retractor ......52
How to wear your seat belt ............ 50
How your child should wear
the seat belt...........................................53
Pregnant women,
proper seat belt use .........................52
Reminder light...................................... 377
Seat belt extenders...............................53
Seat belt pretensioners ....................... 51
Seat heaters ...................................269, 271
Seat position memory.............................47
Seat ventilators ........................................ 271
Seating capacity....................................... 171
Seats Adjustment ............................................... 43
Adjustment precautions ....................43
Child seats/child restraint
system installation .............................. 97
Cleaning ................................................ 295
Driver’s seat position memory ....... 44
Front passenger seat position
memory .................................................. 47
Head restraint .........................................49
Properly sitting in the seat................. 75
Seat heaters ............................................271
Ventilated seats.....................................271
Service reminder indicators ............. 127P
R
S

467
Alphabetical index
ES350_U_(L/O_0808)
Shift leverAutomatic transmission......................119
If the shift lever cannot be shifted from P ................................... 409
Shift lever lighting................................. 253
Shift lock system ................................... 409
Side airbags ................................................ 77
Side marker lights Replacing light bulbs ....................... 357
Switch ........................................................ 135
Wattage ................................................... 431
Side mirror
Adjusting and folding ......................... 58
Mirror position memory ....................44
Smart access system with push-button start
Entry function .......................................... 22
Starting the engine................................116
Spare tire Inflation pressure ............................... 334
Storage location................................. 397
Spark plug ................................................426
Specifications..........................................422
Speech command switch*
Speedometer........................................... 125
Steering wheel
Audio switches ....................................223
Power adjustment ................................ 56
Steering wheel position memory ..................................................44
Stop lights Replacing light bulbs ....................... 354
Wattage ................................................... 431
Storage feature ..................................... 256 Stuck
If your vehicle becomes stuck ...... 419
Sun visors ................................................. 263
Sunshade Rear........................................................... 274
Roof..............................................................65
Switch Emergency flasher switch .............364
Engine switch .......................................... 116
Fog light switch .................................... 138
Hazard light switch ...........................364
Ignition switch ......................................... 116
Light switches ....................................... 135
Power door lock switch .................... 37
Power window switch ........................60
Window lock switch............................60
Wipers and washer switch ............ 139
Tachometer.............................................. 125
Tail lights Replacing light bulbs ........................354
Switch........................................................ 135
Wattage ................................................... 431
Talk switch*
Telephone switch*
Theft deterrent system
Alarm........................................................... 72
Engine immobilizer system.............. 70
Theft prevention labels .......................... 74
Tire inflation pressure ......................... 334
Tire information Glossary ................................................ 440
Size............................................................ 437
Tire identification number.............. 437
Uniform tire quality grading ........ 438
T
*: Refer to the “Navigation System Owner’s Manual”.
