Page 305 of 475
303
4-2. Maintenance
4
Maintenance and care
ES350_U_(L/O_0808)

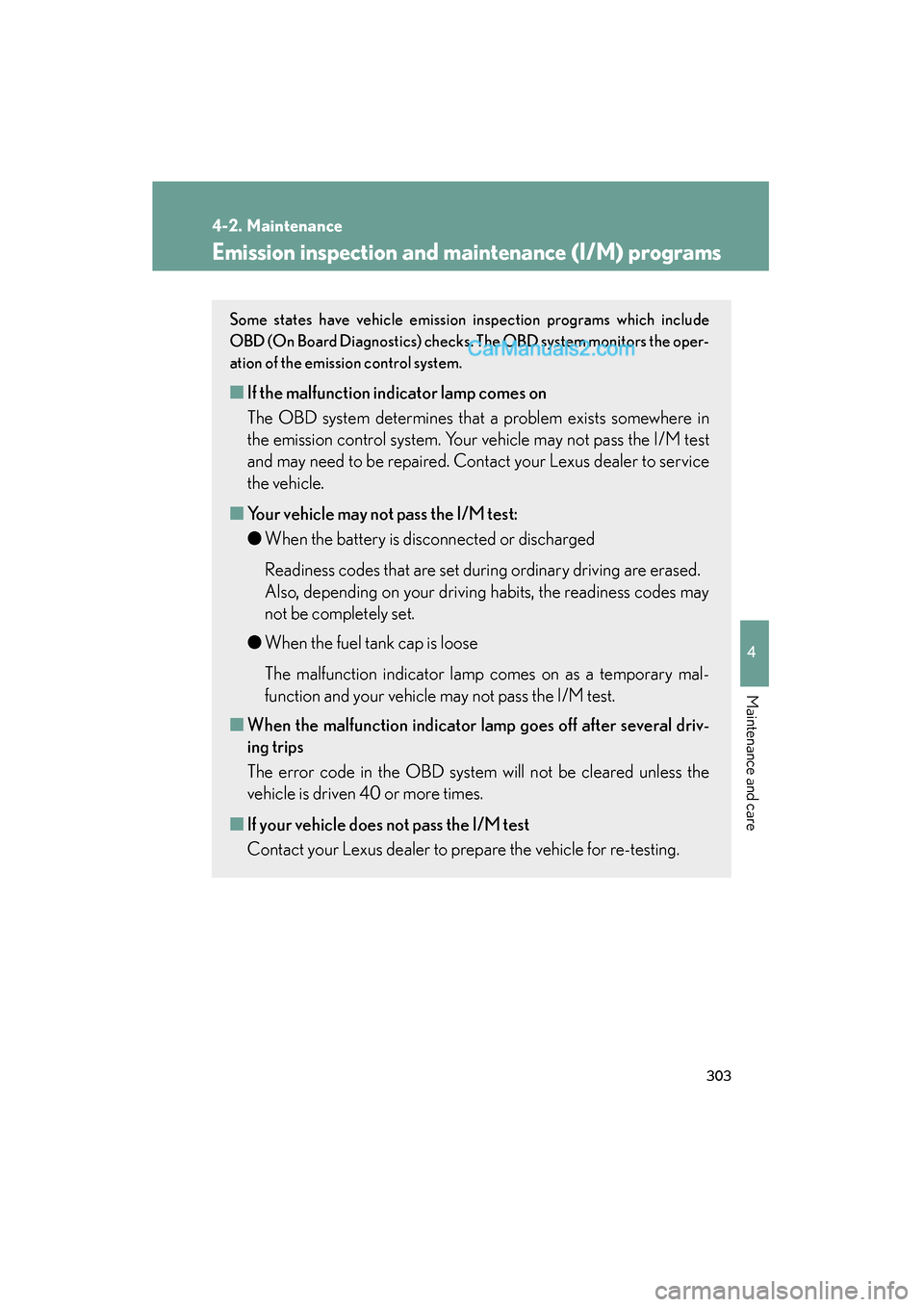

Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks. The OBD system monitors the oper-
ation of the emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere in
the emission control system. Your vehicle may not pass the I/M test
and may need to be repaired. Cont act your Lexus dealer to service
the vehicle.
■ Your vehicle may not pass the I/M test:
●When the battery is disconnected or discharged
Readiness codes that are set du ring ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■ When the malfunction indicator la mp goes off after several driv-
ing trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Lexus dealer to prepare the vehicle for re-testing.
Page 435 of 475
433
6-1. Specifications
6
Vehicle specifications
ES350_U_(L/O_0808)

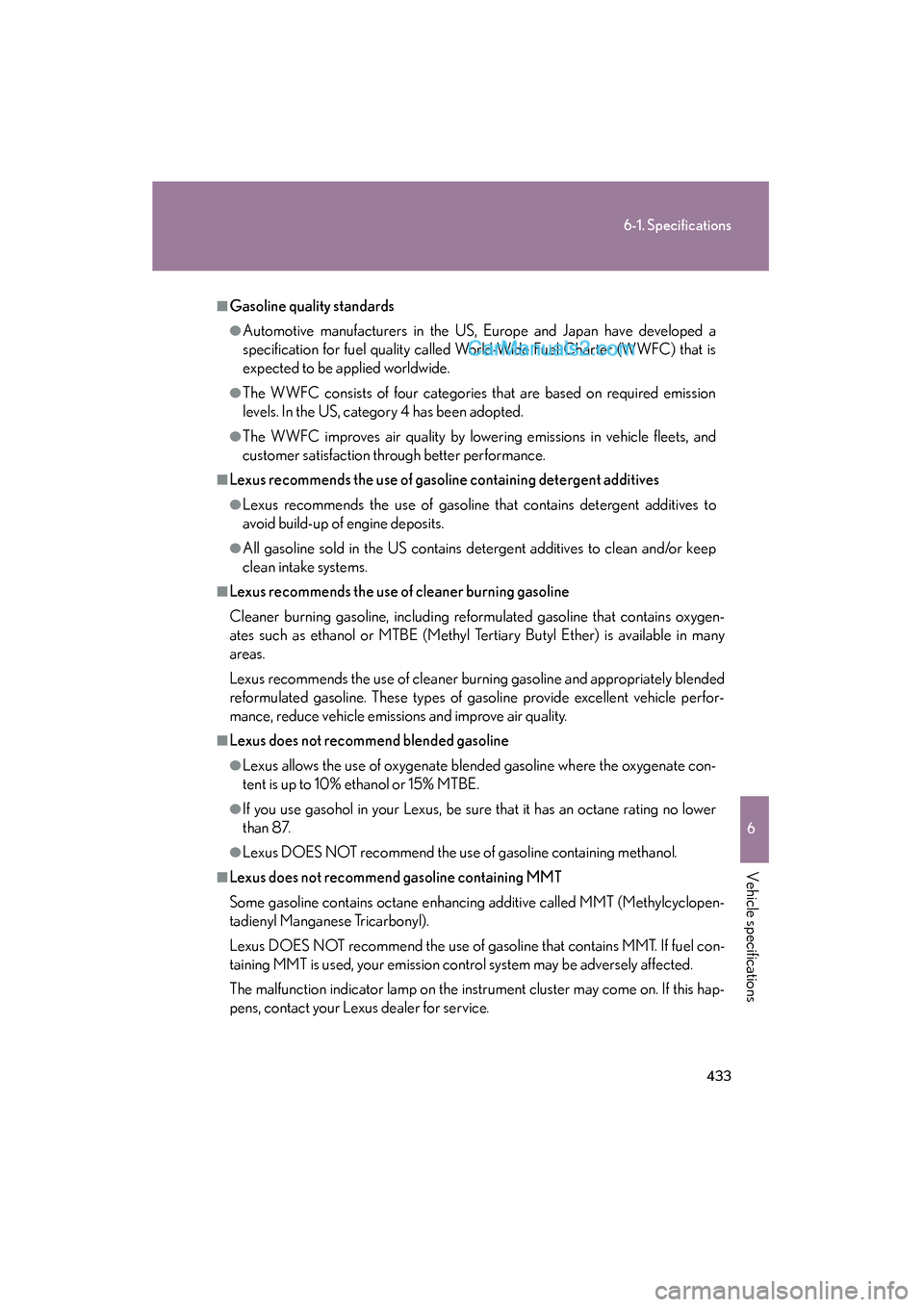

■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction through better performance.
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
●All gasoline sold in the US contains detergent additives to clean and/or keep
clean intake systems.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Lexus does not recommend blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
t h a n 8 7.
●Lexus DOES NOT recommend the use of gasoline containing methanol.
■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcyclopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
Page 468 of 475
466
Alphabetical index
ES350_U_(L/O_0808)
Parking assist sensors .......................... 155
Parking brake .......................................... 123
Parking lightsReplacing light bulbs........................ 357
Switch ........................................................135
Wattage.................................................... 431
PCS ............................................................. 164
Personal lights Switch ...................................................... 255
Power outlet............................................268
Power steering fluid .............................320
Power windows ........................................60
Pre-collision system.............................. 164
Radar cruise control ............................. 146
Radiator ..................................................... 319
Radio ................................................................ 198
Radio data system ................................. 199
RDS ............................................................. 199
Rear side marker lights
Replacing light bulbs........................ 354
Wattage.................................................... 431
Rear sunshade ....................................... 274
Rear turn signal lights Replacing light bulbs........................ 354
Wattage.................................................... 431
Rear window defogger........................ 195
Replacing Electronic key battery...................... 342
Fuses ........................................................ 344
Light bulbs............................................. 354
Reporting safety defects for
U.S. owners ..........................................454 Seat belts
Adjusting the seat belt ......................... 51
Automatic Locking Retractor .........52
Child restraint system
installation .............................................. 97
Cleaning and maintaining
the seat belts .................................... 296
Emergency Locking Retractor ......52
How to wear your seat belt ............ 50
How your child should wear
the seat belt...........................................53
Pregnant women,
proper seat belt use .........................52
Reminder light...................................... 377
Seat belt extenders...............................53
Seat belt pretensioners ....................... 51
Seat heaters ...................................269, 271
Seat position memory.............................47
Seat ventilators ........................................ 271
Seating capacity....................................... 171
Seats Adjustment ............................................... 43
Adjustment precautions ....................43
Child seats/child restraint
system installation .............................. 97
Cleaning ................................................ 295
Driver’s seat position memory ....... 44
Front passenger seat position
memory .................................................. 47
Head restraint .........................................49
Properly sitting in the seat................. 75
Seat heaters ............................................271
Ventilated seats.....................................271
Service reminder indicators ............. 127P
