4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment
Power steering fluid reservoir
(→P. 383)
Engine oil filler cap
(→P. 3 7 8 )
Engine oil level dipstick
(→P. 377)
Brake fluid reservoir
(→P. 382)
Battery (→P. 385)Fuse box (→P. 4 0 8 )
Electric cooling fans
Condenser (→P. 382)
Radiator (→P. 382)
Washer fluid tank
(→P. 388)
Engine coolant reservoir
(→P. 380)

408
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
Remove the engine compartment cover. (→P. 3 76)
Open the fuse box cover.
Engine compartment
Push the tabs in and lift the lid
off.
Driver's side instrument panel
Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
(→P. 4 1 1) for details about which fuse to check.
STEP1
STEP2
STEP3
STEP4

409
4-3. Do-it-yourself maintenance
4
Maintenance and care

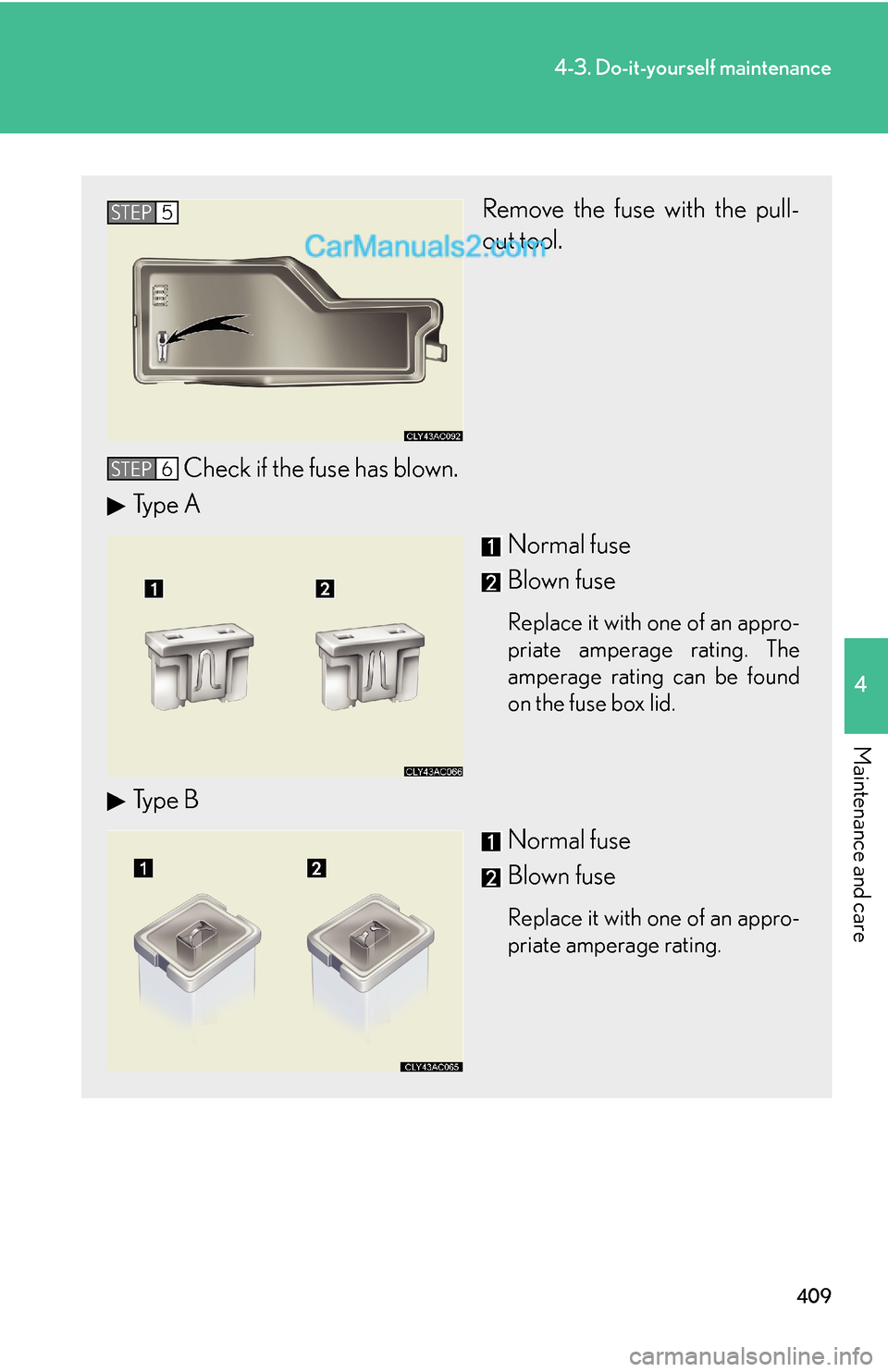

Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type B
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating.
STEP5
STEP6

416
4-3. Do-it-yourself maintenance

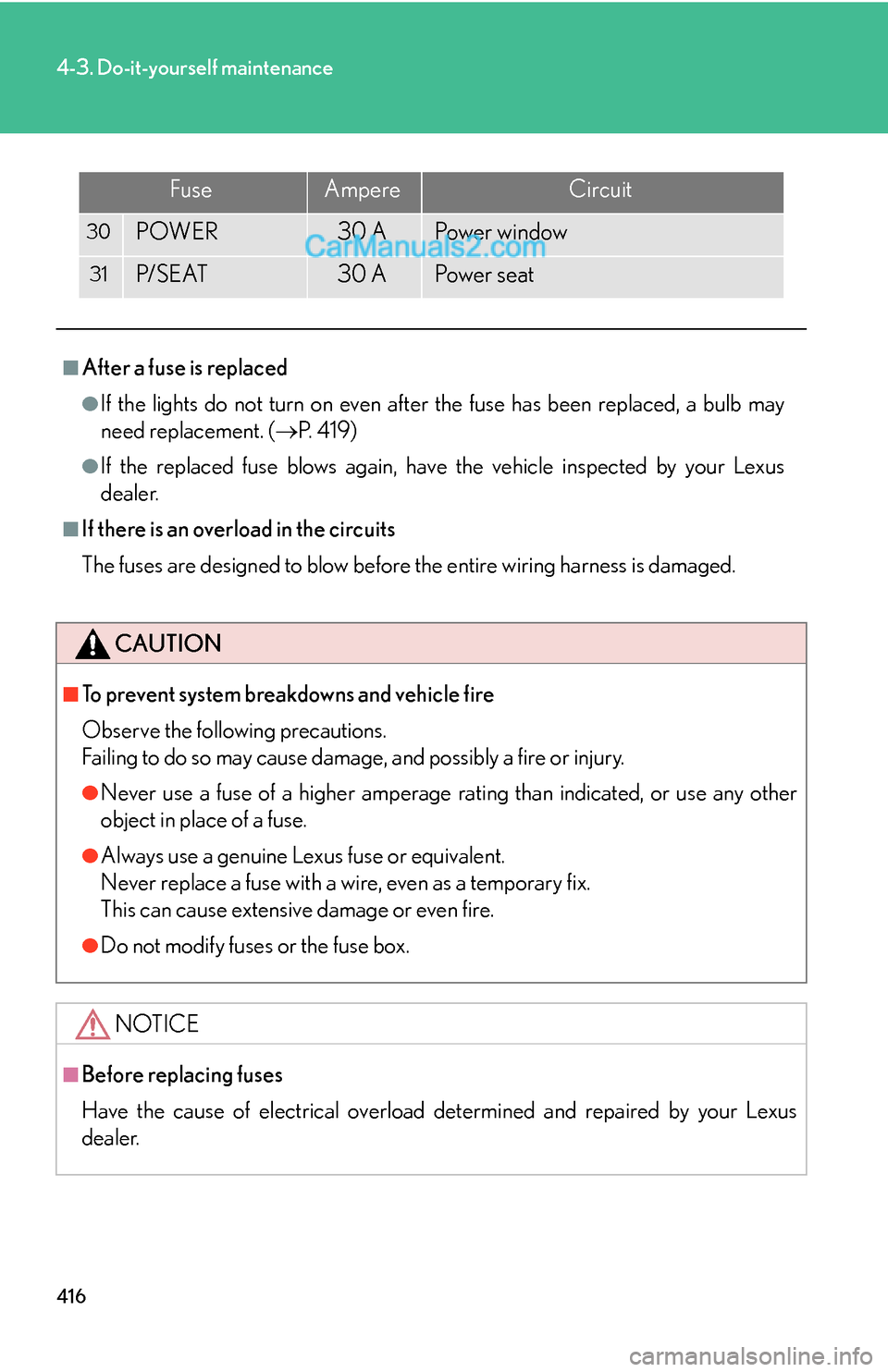

30POWER30 APo w e r w i n d o w
31P/ S E AT30 APo w e r s e a t
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→
P. 4 1 9)
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
FuseAmpereCircuit
