key Lexus ES350 2010 Scheduled Maintenance Guide

SCHEDULED MAINTENANCE LOG
MAINTENANCE
132 Months or 110,000 Miles
oReplace engine oil and oil filter; reset
reminder light
o Rotate tires
1
oMeasure thickness of brake pads and rotors
(GS, IS, IS F, LS 460 with Sport Package)
o Replace air conditioner filter (LS, SC)
o Replace Smart Key battery (all models
except SC)
o Visually inspect brake pads, calipers and rotors
o Roadtest vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
o Inspect axle shaft boots
o Inspect ball joints and dust covers
o Inspect engine air filter
o Inspect steering linkage and boots
o Tighten nuts and bolts on chassis
Driving while towing:
o Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
138 Months or 115,000 Miles
oReplace engine oil and oil filter; reset
reminder light
o Rotate tires
1
oInspect engine coolant (see page 69)
o Visually inspect brake pads, calipers and rotors
o Roadtest vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
o Inspect axle shaft boots
o Inspect ball joints and dust covers
o Inspect engine air filter
o Inspect steering linkage and boots
o Tighten nuts and bolts on chassis
Driving while towing:
o Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
Scheduled Maintenance Log
62
1Applies to models with same size front and rear tires and wheels.
2010 Lexus Sedans_4880d 7/21/09 1:53 AM Page 62

SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log63
144 Months or 120,000 Miles
oReplace engine oil and oil filter; reset reminder light
o Rotate tires
1
oMeasure thickness and runout of brake rotors
o Measure thickness of brake pads (GS, IS, IS F, LS 460
with Sport Package)
o Replace air conditioner filter
o Replace brake fluid
o Replace engine air filter
o Inspect the following:
___Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Drive belt
___Engine valve clearance (IS F, SC)
___Exhaust pipes and mountings
___Front differential oil (GS 350 AWD, IS 250 AWD,
LS 460 AWD)
___Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
Additional Maintenance Required If You Drive Primarily Under the Following Conditions
Driving on dirt roads or dusty roads:
o Tighten nuts and bolts on chassis
Driving while towing:
o Replace transmission fluid (ES only; use type ATFWS or equivalent)
o Tighten nuts and bolts on chassis (ES)
___Fuel tank cap gasket
___Manual transmission oil (IS 250)
___Rack and pinion assembly
___Rear differential oil (GS, IS, LS, SC)
___Steering linkage and boots
___Transfer case for signs of leakage
(GS 350 AWD, IS 250 AWD,
LS 460 AWD)
___Transmission for signs of leakage
Date: _____________________________ Mileage: ____________________________
Notes:
2Required under the terms of the Emission Control Warranty.
o Replace rear differential oil (IS F)
o Replace Smart Key battery (all models
except SC)
o Replace spark plugs
2(for ES 350, use
Denso FK20HR11 plugs or equivalent)
o Visually inspect brake pads, calipers
and rotors
o Roadtest vehicle
2010 Lexus Sedans_4880d 7/21/09 1:54 AM Page 63

SCHEDULED MAINTENANCE LOG
MAINTENANCE
150 Months or 125,000 Miles
oReplace engine oil and oil filter; reset
reminder light
o Rotate tires
1
oVisually inspect brake pads, calipers and rotors
o Roadtest vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
o Inspect axle shaft boots
o Inspect ball joints and dust covers
o Inspect engine air filter
o Inspect steering linkage and boots
o Tighten nuts and bolts on chassis
Driving while towing:
o Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
156 Months or 130,000 Miles
oReplace engine oil and oil filter; reset
reminder light
o Rotate tires
1
oInspect engine coolant (see page 69)
o Measure thickness of brake pads and rotors
(GS, IS, IS F, LS 460 with Sport Package)
o Replace air conditioner filter (LS, SC)
o Replace Smart Key battery (all models
except SC)
o Visually inspect brake pads, calipers and rotors
o Roadtest vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
o Inspect axle shaft boots
o Inspect ball joints and dust covers
o Inspect engine air filter
o Inspect steering linkage and boots
o Tighten nuts and bolts on chassis
Driving while towing:
o Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
Scheduled Maintenance Log
6 4
1Applies to models with same size front and rear tires and wheels.
2010 Lexus Sedans_4880d 7/21/09 1:54 AM Page 64

SCHEDULED MAINTENANCE LOG
MAINTENANCE

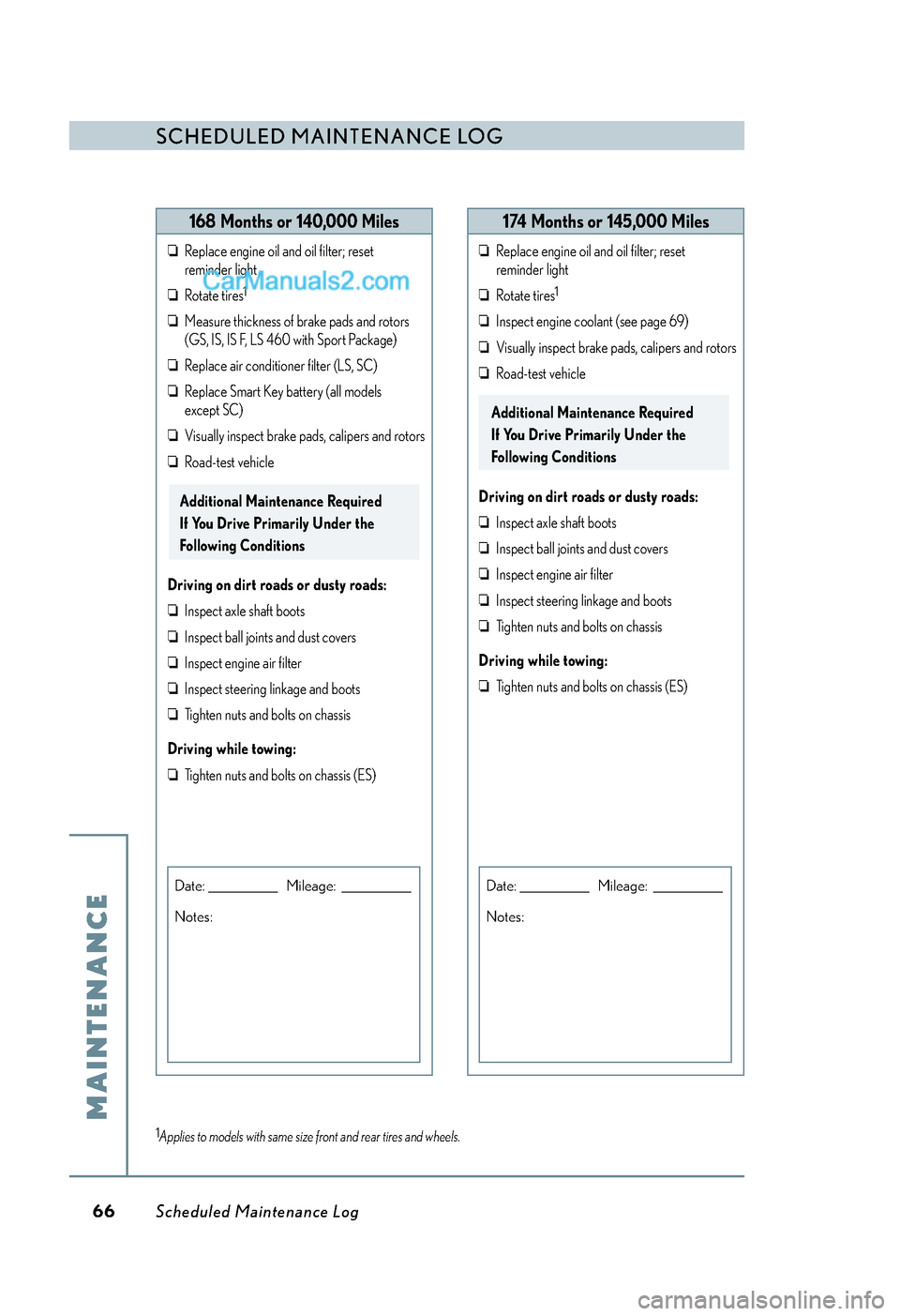

168 Months or 140,000 Miles
oReplace engine oil and oil filter; reset
reminder light
o Rotate tires
1
oMeasure thickness of brake pads and rotors
(GS, IS, IS F, LS 460 with Sport Package)
o Replace air conditioner filter (LS, SC)
o Replace Smart Key battery (all models
except SC)
o Visually inspect brake pads, calipers and rotors
o Roadtest vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
o Inspect axle shaft boots
o Inspect ball joints and dust covers
o Inspect engine air filter
o Inspect steering linkage and boots
o Tighten nuts and bolts on chassis
Driving while towing:
o Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
174 Months or 145,000 Miles
oReplace engine oil and oil filter; reset
reminder light
o Rotate tires
1
oInspect engine coolant (see page 69)
o Visually inspect brake pads, calipers and rotors
o Roadtest vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
o Inspect axle shaft boots
o Inspect ball joints and dust covers
o Inspect engine air filter
o Inspect steering linkage and boots
o Tighten nuts and bolts on chassis
Driving while towing:
o Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
Scheduled Maintenance Log
66
1Applies to models with same size front and rear tires and wheels.
2010 Lexus Sedans_4880d 7/21/09 1:55 AM Page 66

SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log67
180 Months or 150,000 Miles
oReplace engine oil and oil filter; reset reminder light
o Rotate tires
1
oMeasure thickness and runout of brake rotors
o Measure thickness of brake pads (GS, IS, IS F, LS 460
with Sport Package)
o Replace air conditioner filter
o Replace brake fluid
o Replace engine air filter
o Inspect the following:
___Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Drive belt
___Exhaust pipes and mountings
___Front differential oil (GS 350 AWD, IS 250 AWD,
LS 460 AWD)
___Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
Additional Maintenance Required If You Drive Primarily Under the Following Conditions
Driving on dirt roads or dusty roads:
o Tighten nuts and bolts on chassis
Driving while towing:
o Tighten nuts and bolts on chassis (ES)
___Fuel tank cap gasket
___Manual transmission oil (IS 250)
___Rack and pinion assembly
___Rear differential oil (GS, IS, LS, SC)
___Steering linkage and boots
___Transfer case for signs of leakage (GS 350 AWD, IS 250 AWD,
LS 460 AWD)
___Transmission for signs of leakage
Date: _____________________________ Mileage: ____________________________
Notes:
o Replace engine coolant (see page 69)
o Replace Smart Key battery (all models
except SC)
o Visually inspect brake pads, calipers
and rotors
o Roadtest vehicle
2010 Lexus Sedans_4880d 7/21/09 1:57 AM Page 67

Model
Body style
Inservice date
Mileage at delivery
Selling dealership
Selling dealership phone number
Key number
Vehicle Identification Number
VEHICLE IDENTIFICATION
MAINTENANCE
Scheduled Maintenance Log
72
2010 Lexus Sedans_4880d 7/21/09 2:01 AM Page 72
