171
2-4. Using other driving systems
2
When driving
ES350_U
Intuitive parking assist∗
The distance to obstacles measured by the sensors is communicated via
the multi-information display and a buzzer when parallel parking or
maneuvering into a garage. Always check the surrounding area when
using this system.
For vehicles equipped with a navigation system, refer to the separate
“Navigation System Owner’s Manual” for further details.
■Types of sensors
Front corner sensors
Rear corner sensors
Back sensors
■ Multi-information display ( →P. 142)
Front corner sensor opera-
tion
Rear corner sensor operation
Back sensor operation
∗: If equipped

175
2-4. Using other driving systems
2
When driving
ES350_U

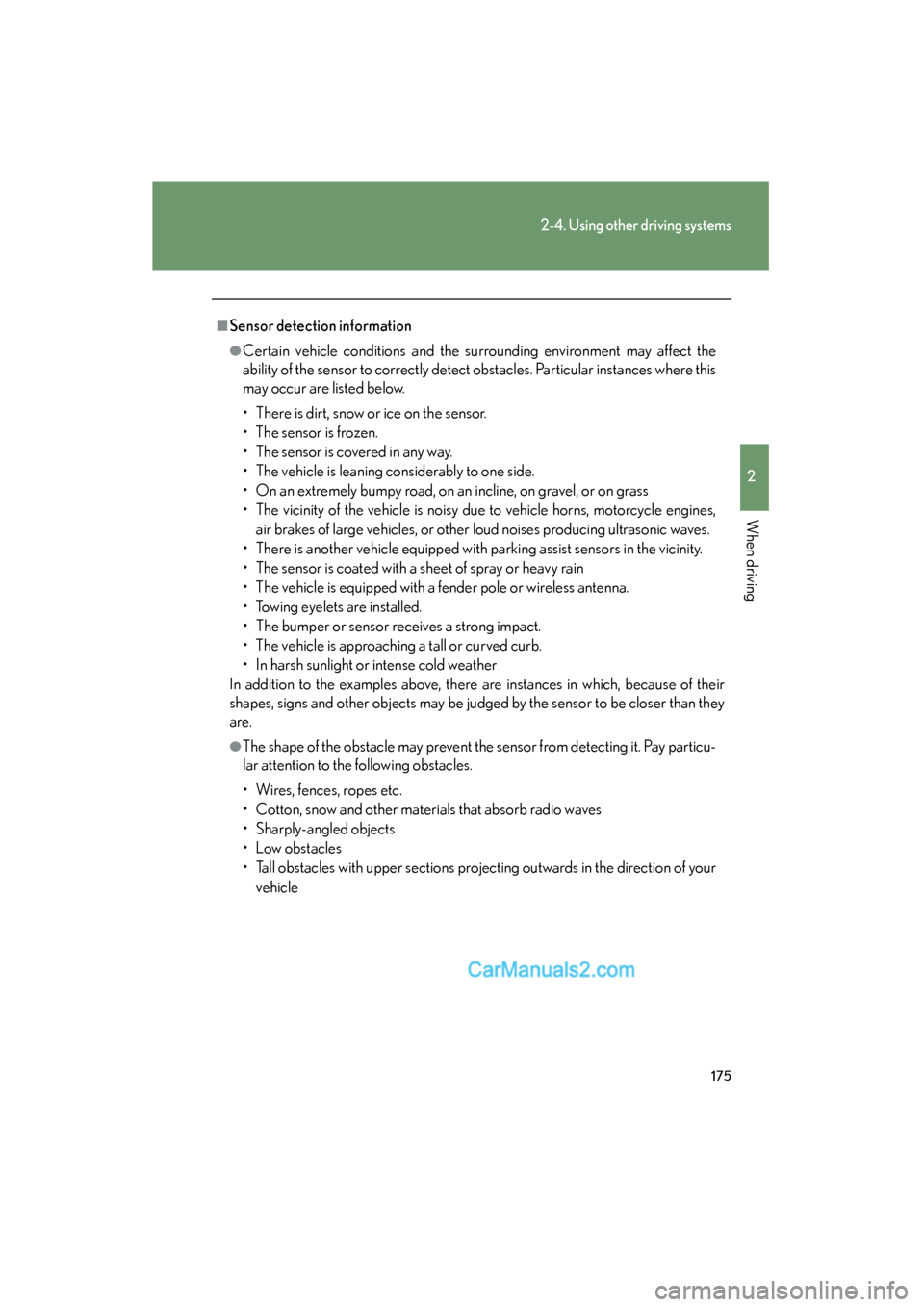

■Sensor detection information
●Certain vehicle conditions and the surrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where this
may occur are listed below.
• There is dirt, snow or ice on the sensor.
• The sensor is frozen.
• The sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines,air brakes of large vehicles, or other loud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensors in the vicinity.
• The sensor is coated with a sheet of spray or heavy rain
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelets are installed.
• The bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather
In addition to the examples above, there are instances in which, because of their
shapes, signs and other objects may be judged by the sensor to be closer than they
are.
●The shape of the obstacle may prevent the sensor from detecting it. Pay particu-
lar attention to the following obstacles.
• Wires, fences, ropes etc.
• Cotton, snow and other materials that absorb radio waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of your
vehicle

552
Alphabetical index
ES350_U
Noise from under vehicle...................... 18
Odometer................................................. 136
OilEngine oil ...............................................383
Opener
Fuel filler door......................................... 76
Hood........................................................ 378
Trunk ........................................................... 44
Outer foot lights
Outer foot lights ................................... 314
Wattage................................................... 501
Outside rear view mirrors Adjusting and folding ......................... 66
Mirror position memory ................... 49
Outside temperature display............ 144
Overhead console ...............................320
Overheating, Engine ...........................486 Parking assist sensors............................ 171
Parking brake...........................................134
Parking lights
Switch........................................................ 147
Wattage ...................................................501
PCS ............................................................. 182
Personal lights Switch........................................................ 316
Wattage ...................................................501
Power outlet ........................................... 329
Power steering fluid ............................389
Power windows ........................................ 68
Pre-collision system ............................. 182N
O
P
