sensor Lexus ES350 2012 Owner's Guide

5
When trouble arises
443
5-2. Steps to take in an emergency
ES350_U

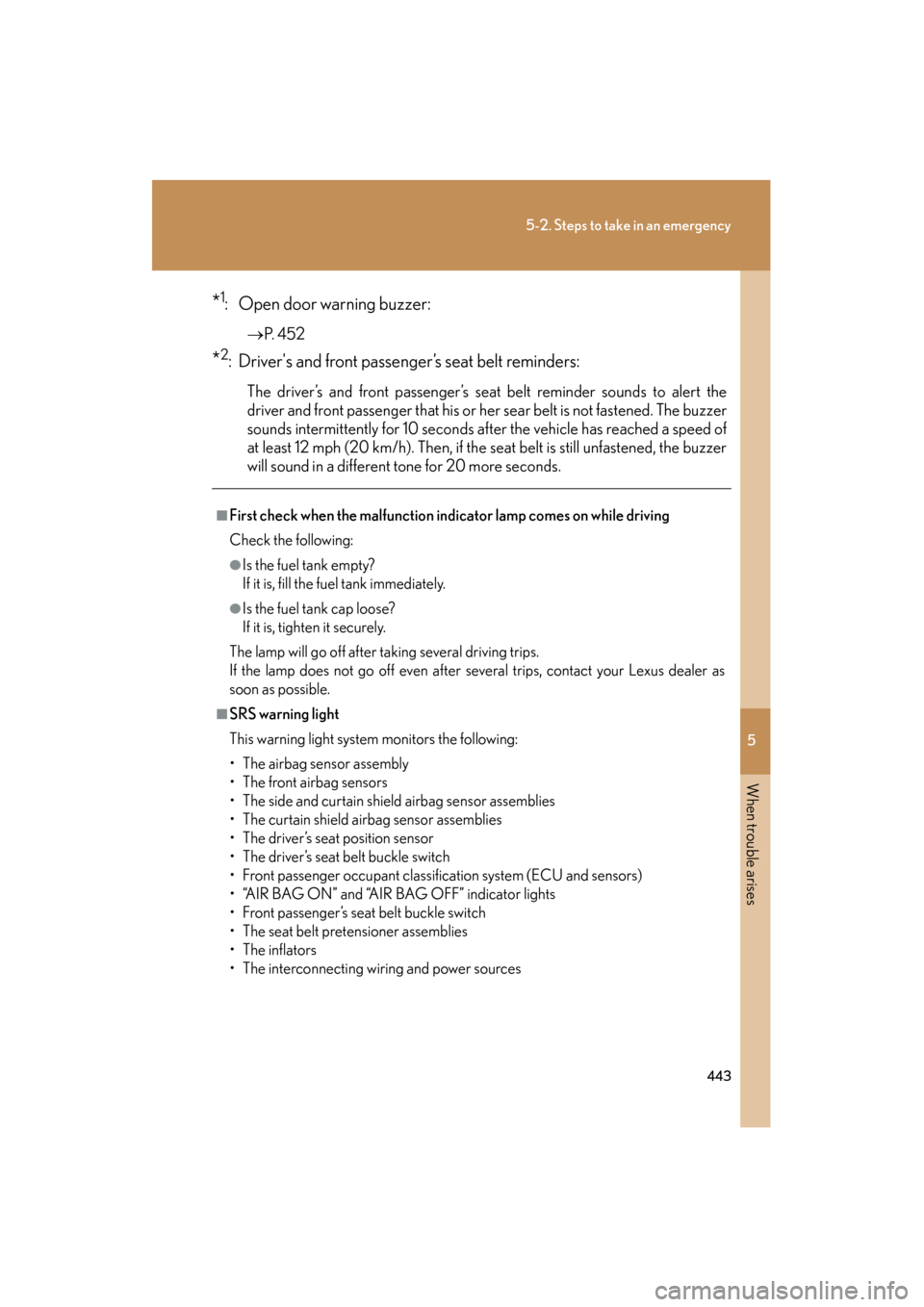

*1: Open door warning buzzer:
→P. 4 5 2
*2: Driver's and front passenger’s seat belt reminders:
The driver’s and front passenger’s seat belt reminder sounds to alert the
driver and front passenger that his or her sear belt is not fastened. The buzzer
sounds intermittently for 10 seconds after the vehicle has reached a speed of
at least 12 mph (20 km/h). Then, if the seat belt is still unfastened, the buzzer
will sound in a different tone for 20 more seconds.
■First check when the malfunction in dicator lamp comes on while driving
Check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The lamp will go off after taking several driving trips.
If the lamp does not go off even after several trips, contact your Lexus dealer as
soon as possible.
■SRS warning light
This warning light system monitors the following:
• The airbag sensor assembly
• The front airbag sensors
• The side and curtain shield airbag sensor assemblies
• The curtain shield airbag sensor assemblies
• The driver’s seat position sensor
• The driver’s seat belt buckle switch
• Front passenger occupant classification system (ECU and sensors)
• “AIR BAG ON” and “AIR BAG OFF” indicator lights
• Front passenger’s seat belt buckle switch
• The seat belt pretensioner assemblies
•The inflators
• The interconnecting wiring and power sources

444
5-2. Steps to take in an emergency
ES350_U

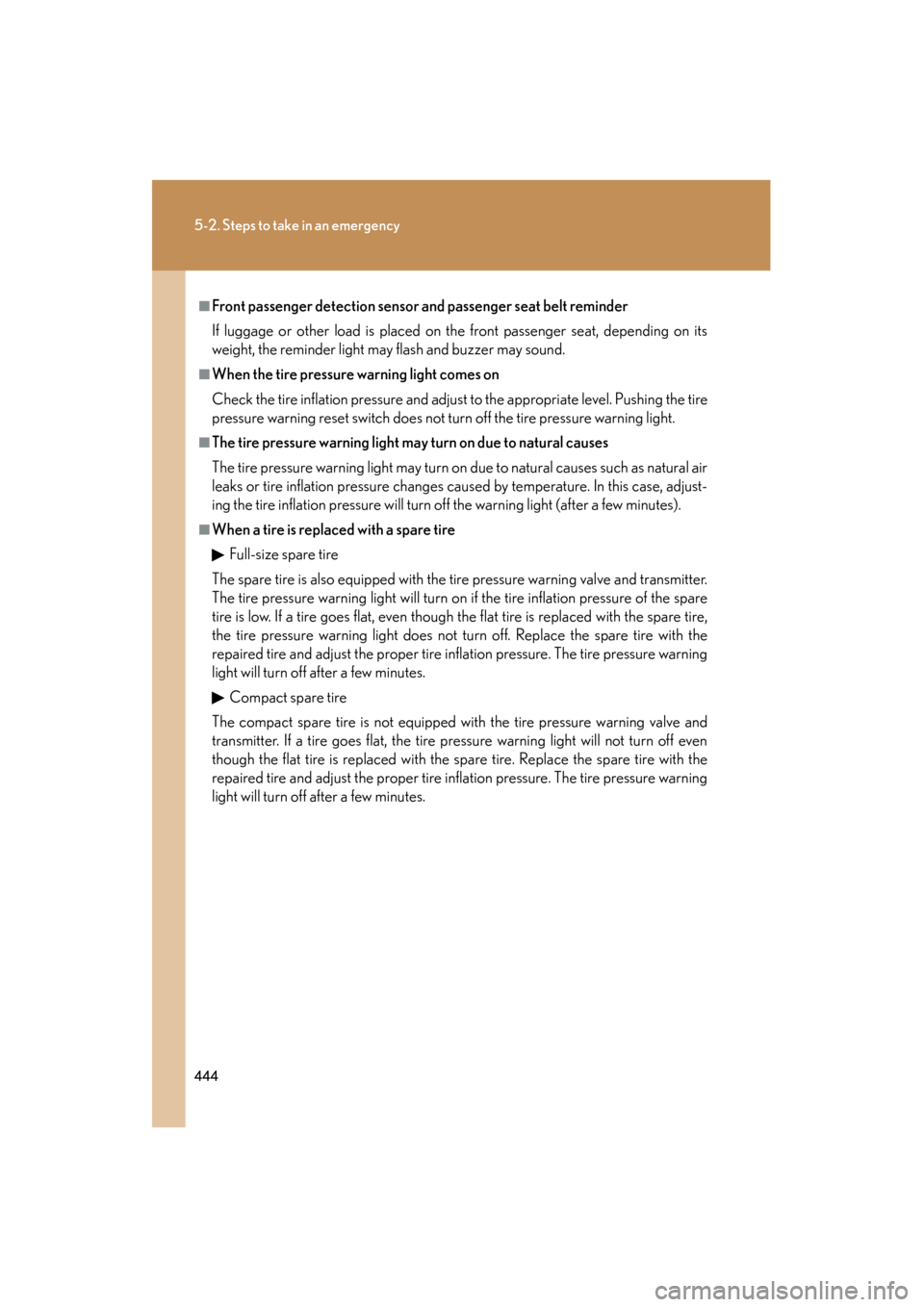

■Front passenger detection sensor and passenger seat belt reminder
If luggage or other load is placed on the front passenger seat, depending on its
weight, the reminder light may flash and buzzer may sound.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch does not turn off the tire pressure warning light.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such as natural air
leaks or tire inflation pressure changes caused by temperature. In this case, adjust-
ing the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire Full-size spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter.
The tire pressure warning light will turn on if the tire inflation pressure of the spare
tire is low. If a tire goes flat, even though the flat tire is replaced with the spare tire,
the tire pressure warning light does not turn off. Replace the spare tire with the
repaired tire and adjust the proper tire inflation pressure. The tire pressure warning
light will turn off after a few minutes. Compact spare tire
The compact spare tire is not equipped with the tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off even
though the flat tire is replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the proper tire inflation pressure. The tire pressure warning
light will turn off after a few minutes.

5
When trouble arises
451
5-2. Steps to take in an emergency
ES350_U
Wa r n i n g m e s s a g eDetails
(If equipped)
Indicates intuitive parking assist malfunction.A buzzer also sounds.
The malfunctioning assist-sensor is shown flashing on
the display.
(Flashing and then con-
tinuously on)
(Flashing)or
(Flashing)
(If equipped)Indicates a malfunction in the radar cruise control
system. A buzzer also sounds.
Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.

5
When trouble arises
455
5-2. Steps to take in an emergency
ES350_U
Wa r n i n g m e s s a g eDetailsCorrection procedure
(If equipped)
Indicates that the pre-
collision system is not
currently functional.• Clean the grille and the sensor.
• Wait until the pre-colli- sion system cools down.
(If equipped)
Indicates that the sensor
of intuitive parking assist
is dirty or covered with
ice.A buzzer also sounds.
Clean the sensor.
(Flashing and then con- tinuously on)
(Flashing)
(If equipped)Indicates that the radar
cruise control sensor is
dirty or covered with ice. A buzzer also sounds.
Clean the sensor.

514
6-2. Customization
ES350_U
Moon roof
(standard
type)
(
→P. 7 3 )
Linked mechanical key
operationOpen and close
OFF
Open only
Close only
Linked operation of com-
ponents when mechanical
key is used
Slide onlyTilt only
Wireless remote control
linked operationOFFOpen only
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only
Linked entry functionONOFF
Eco Driving
Indicator Light
(
→P. 1 4 7 )
Eco Driving Indicator
LightONOFF
Automatic
light control
system
(
→P. 1 4 9 )
Light sensor sensitivityLevel 3Level 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
→P. 1 4 9 )
Daytime running light sys-
tem (USA only)ONOFF
Intuitive park-
ing assist
(
→P. 1 76 )
Back sensor operation
display and buzzerONOFF
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.5 ft. (150 cm)1.8 ft. (60 cm)
ItemFunctionDefault settingCustomizedsetting

517
6-2. Customization
6
Vehicle specifications
ES350_U
Door lock
(
→P. 4 2 )
Unlocking using a key
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in one
step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver's door
unlocks all doorsOFFON
Shifting gears to P
unlocks all doorsONOFF
Shifting gears to position
other than P locks all
doors.
ONOFF
Automatic
light control
system
(
→P. 1 4 9 )
Light sensor sensitivityLevel 3Level 1 to 5
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
→P. 1 4 9 )
Daytime running light sys-
tem (USA only)ONOFF
ItemFunctionDefault settingCustomizedsetting

518
6-2. Customization
ES350_U

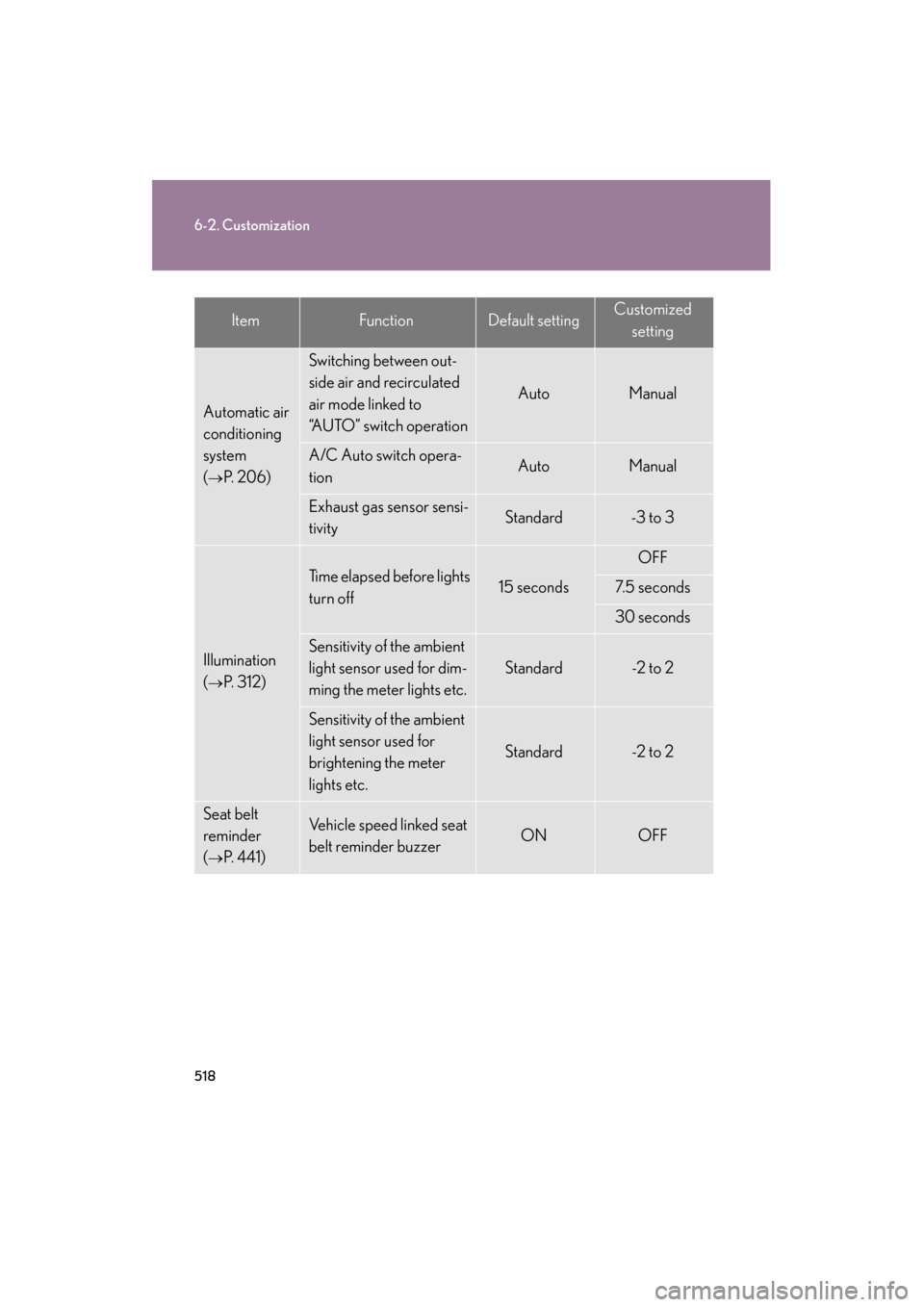

Automatic air
conditioning
system
(
→P. 2 0 6 )
Switching between out-
side air and recirculated
air mode linked to
“AUTO” switch operation
AutoManual
A/C Auto switch opera-
tionAutoManual
Exhaust gas sensor sensi-
tivityStandard-3 to 3
Illumination
(
→P. 3 1 2 )
Time elapsed before lights
turn off15 seconds
OFF
7. 5 s e c o n d s
30 seconds
Sensitivity of the ambient
light sensor used for dim-
ming the meter lights etc.
Standard-2 to 2
Sensitivity of the ambient
light sensor used for
brightening the meter
lights etc.
Standard-2 to 2
Seat belt
reminder
(
→P. 441)
Vehicle speed linked seat
belt reminder buzzerONOFF
ItemFunctionDefault settingCustomizedsetting

540
Alphabetical index
ES350_U
Child safetyAirbag precautions.............................. 94
Battery precautions ............. 388, 479
Child restraint system....................... 104
Child-protectors ................................... 43
How your child should wear
the seat belt .......................................... 62
Installing child restraints .................. 108
Moon roof precautions ...................... 77
Power window lock switch.............. 70
Power window precautions .............72
Removed electronic key
battery precautions ...................... 408
Seat belt comfort guide..................... 60
Seat belt extender precautions ..... 64
Seat belt precautions .......................... 62
Seat heater precautions ...... 328, 331
Trunk precautions ................................ 48
Child-protectors ...................................... 43
Cigarette lighter.................................... 326 Cleaning
Exterior ................................................... 358
Interior....................................................... 361
Seat belts ................................................362
Clock ......................................................... 324
Coat hooks.............................................. 336
Compass .................................................. 346
Condenser .............................................. 384
Console box ............................................. 317
Cooling system Engine overheating.......................... 480
Cornering assist sensors ..................... 176
Cruise control Cruise control.......................................160
Dynamic radar crui se control....... 164
Cup holders ..............................................319
Curtain shield airbags ...........................88
Customizable features .......................... 511

544
Alphabetical index
ES350_U
Light bulbsReplacing............................................... 420
Wattage.................................................. 495
Lights
Door courtesy lights........................... 312
Emergency flasher switch .............430
Fog light switch.....................................154
Hazard light switch ...........................430
Headlights switch ................................149
Interior light switch.............................. 314
Outer foot lights ................................... 312
Personal light switch .......................... 314
Replacing light bulbs........................ 420
Shift lever lighting ................................ 312
Turn signal lever ...................................135
Vanity lights .......................................... 323
Wattage.................................................. 495
Load capacity .......................................... 195
Maintenance
Do-it-yourself ma intenance ......... 370
General maintenance .....................366
Maintenance data..............................486
Maintenance requirements .......... 364
Meter Instrument panel light control .......139
Meters ...................................................... 138
Mirrors
Inside rear view mirror....................... 66
Side mirror heater ............................... 213
Side mirrors ............................................. 68
Vanity mirrors...................................... 323
Moon roof ................................................... 73
MP3 disc* ................................................. 231
Multi-information display ................... 144 Noise from under vehicle ......................18
Odometer ................................................ 138
Oil
Engine oil................................................379
Opener
Fuel filler door .........................................78
Hood ........................................................374
Trunk............................................................46
Outer foot lights
Outer foot lights................................... 312
Wattage ................................................. 495
Outside rear view mirrors Adjusting and folding ......................... 68
Mirror position memory ..................... 51
Outside temperature display ............146
Overhead console ................................ 318
Overheating, Engine ..........................480
Parking assist sensors........................... 176
Parking brake...........................................136
Parking lights
Switch........................................................ 149
Wattage ................................................. 495
PCS ..............................................................187
Personal lights Switch........................................................ 314
Wattage ................................................. 495
Power outlet ........................................... 327
Power steering fluid ............................385
Power windows ........................................ 70
Pre-collision system ..............................187L
M
N
O
P

547
Alphabetical index
ES350_U
Tachometer ..............................................138
Tail lightsReplacing light bulbs ....................... 420
Switch ........................................................ 149
Wattage ................................................. 495
Talk switch*............................................. 284
Telephone switch* ............................... 284
Theft deterrent system
Alarm .......................................................... 83
Engine immobilizer system ............... 81
Tire inflation pressure......................... 399
Tire information Glossary ................................................504
Size ............................................................ 501
Tire identification number .............. 501
Uniform tire quality grading......... 502
Tires Chains .......................................................198
Checking ............................................... 390
If you have a flat tire............................ 461
Inflation pressure ............................... 399
Inflation pressure sensor.................. 391
Information............................................ 499
Replacing................................................. 461
Rotating tires ........................................390
Size ........................................................... 493
Snow tires..............................................200
Spare tire ................................................. 461
Tools ............................................................ 461
Total load capacity................................. 195 Towing
Dinghy towing .....................................203
Emergency towing............................. 431
Trailer towing .......................................202
TRAC.......................................................... 182
Traction control ...................................... 182
Trip meter ................................................. 138
Trunk Extending a space ............................ 335
Opener ...................................................... 46
Trunk light Trunk light ................................................. 47
Wattage ................................................. 495
Turn signal lights
Replacing light bulbs ........................420
Switch........................................................ 135
Wattage ................................................. 495T
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
