climate control Lexus ES350 2012 Owner's Manual

TABLE OF CONTENTSIndex
2
ES350_U
1-1. Key informationKeys ...................................................... 26
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 28
Wireless remote control .............. 40
Doors.................................................... 42
Trunk..................................................... 46
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................................... 50
Driving position memory .............. 51
Seat position memory ................... 55
Head restraints................................. 57
Seat belts ............................................ 59
Steering wheel.................................. 65
Anti-glare inside rear view mirror ................................................ 66
Outside rear view mirrors ........... 68 1-4. Opening and closing the
windows and moon roof
Power windows................................ 70
Moon roof .......................................... 73
1-5. Refueling Opening the fuel tank cap........... 78
1-6. Theft deterrent system Engine immobilizer system .......... 81
Alarm.................................................... 83
1-7. Safety information Correct driving posture ............... 86
SRS airbags ...................................... 88
Front passenger occupant classification system .................... 99
Child restraint systems ............... 104
Installing child restraints ............. 108
1Before driving
For vehicles with a navigation system, refer to the “Navigation System Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Air conditioning
• Rear view monitor system • Audio/video system
•Climate control
• Intuitive parking assist

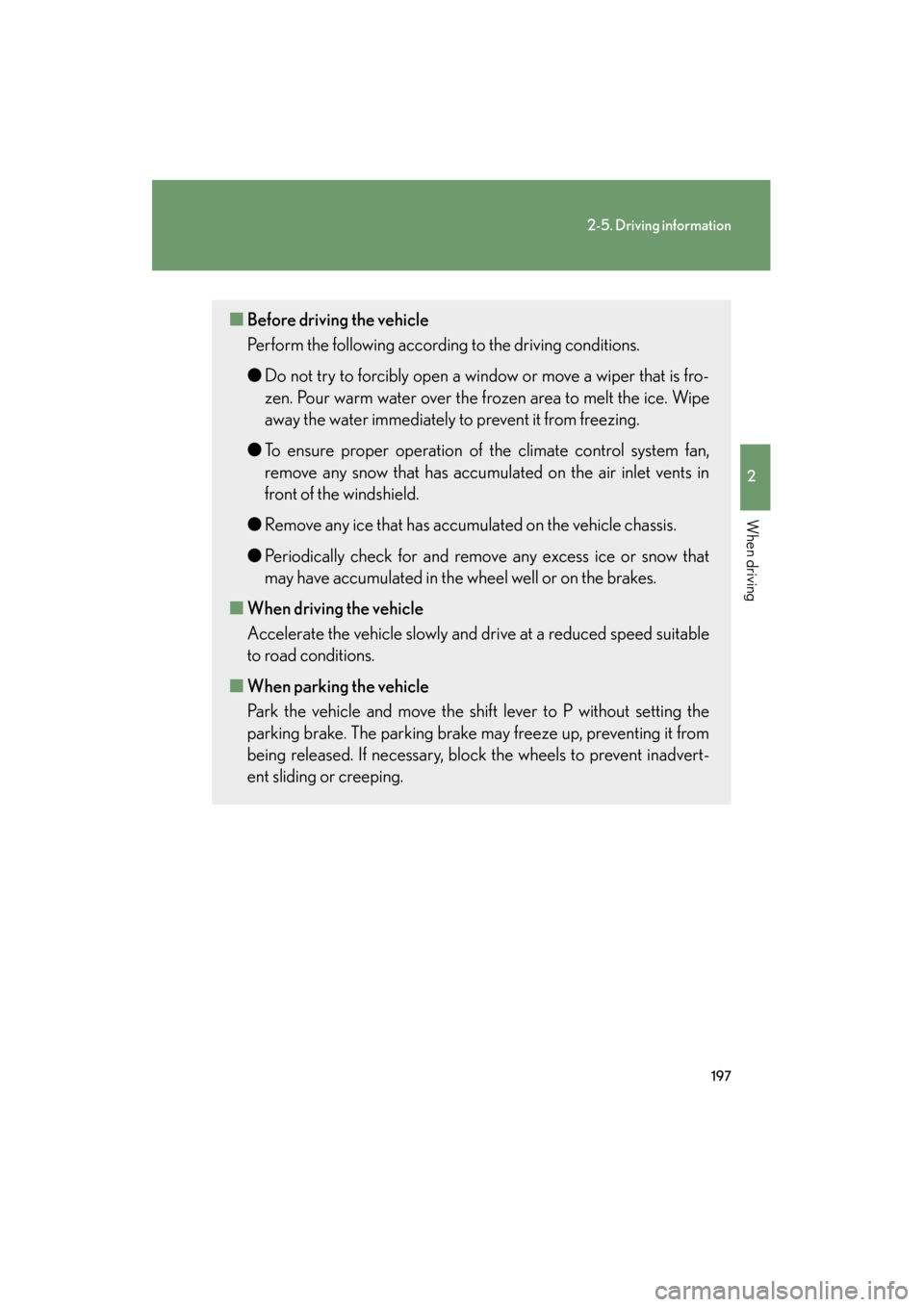

197
2-5. Driving information
2
When driving
ES350_U
■Before driving the vehicle
Perform the following according to the driving conditions.
●Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumulated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.
■ When driving the vehicle
Accelerate the vehicle slowly and drive at a reduced speed suitable
to road conditions.
■ When parking the vehicle
Park the vehicle and move the shift lever to P without setting the
parking brake. The parking brake may freeze up, preventing it from
being released. If necessary, block the wheels to prevent inadvert-
ent sliding or creeping.

503
6-1. Specifications
6
Vehicle specifications
ES350_U■
DOT quality grades
All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found where
applicable on the tire sidewall between tread shoulder and maximum
section width.
For example: Treadwear 200 Traction AA Temperature A
■Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlled conditions on a specified gov-
ernment test course.
For example, a tire graded 150 would wear one and a half (1 - 1 /2) times as
well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of
their use, however, and may depart sign ificantly from the norm due to varia-
tions in driving habits, service practices and differences in road characteris-
tics and climate.
■ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and
they represent the tire's ability to stop on wet pavement as measured
under controlled conditions on specified government test surfaces of
asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turning) trac-
tion.

Index
535
ES350_U
Abbreviation list ..................... 536
Alphabetical index .................. 538
What to do if... ........................ 550
For vehicles with a navigation system, refer to the “Naviga-
tion System Owner’s Manual” for information regarding
the equipment listed below.
• Navigation system
• Audio/video system
• Air conditioning
•Climate control
• Rear view monitor system
• Intuitive parking assist
