Lexus ES350 2015 Owner's Manual - ES 300h, ES 350

ES350_300h_OM_OM33B99U_(U)
6097-3. Do-it-yourself maintenance
7
Maintenance and care
■Back-up lightsOpen the trunk lid.
For the left side (vehicles with
power trunk opener and closer
only): Pry out each side of the
trunk closer switch in turn by
inserting a screwdriver into the
base.
To prevent damage, cover the tip of
the screwdriver with a rag.
Remove the clips on whichever
side you are replacing and
open the cover of the trunk lid.
Turn the bulb base counter-
clockwise.
When installing, pass the wire
around the connector rib and make
sure that it does not rest on top of
the connector rib.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
Connector rib
4
5
6

610
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance

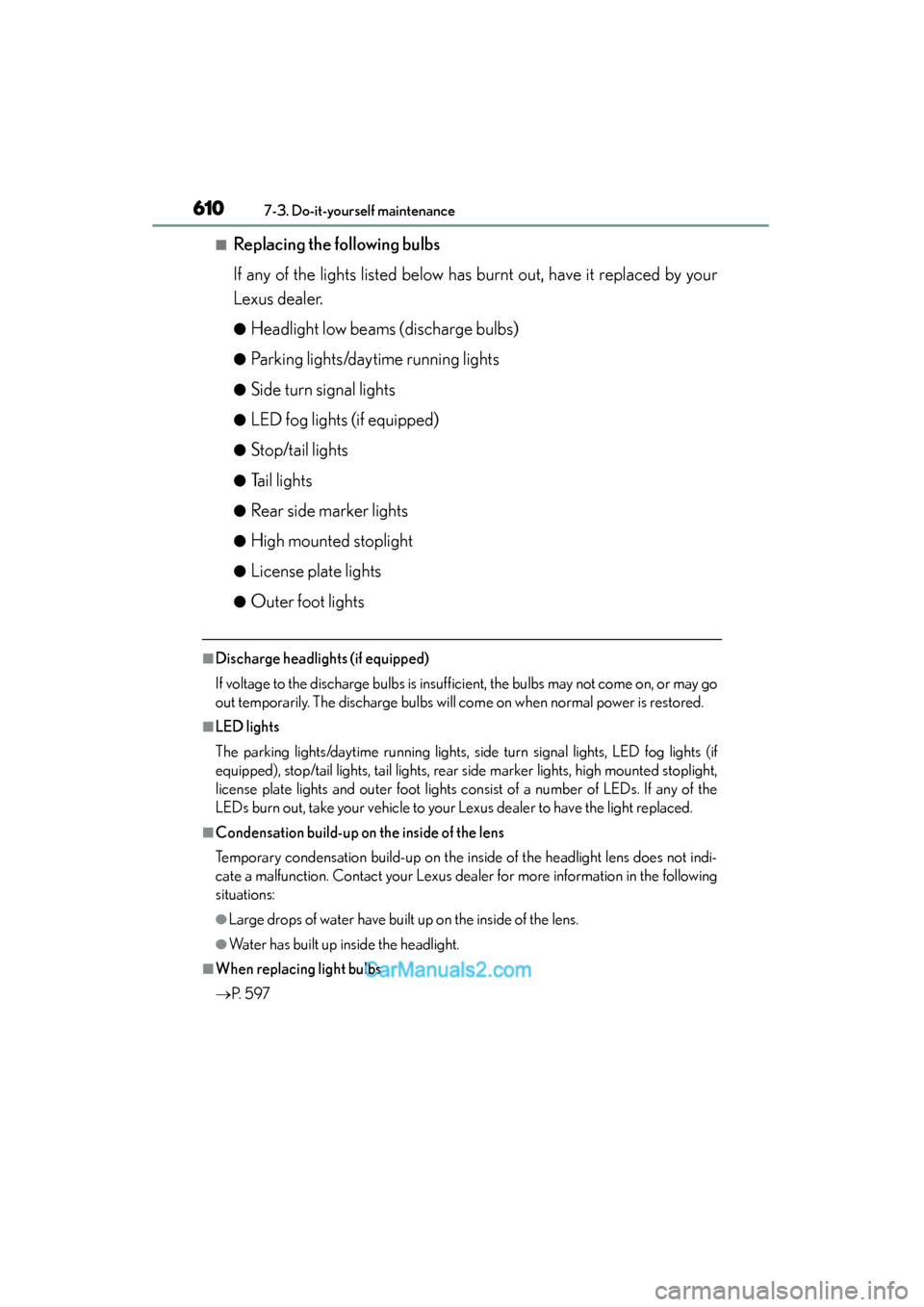

■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your
Lexus dealer.
●Headlight low beams (discharge bulbs)
●Parking lights/daytime running lights
●Side turn signal lights
●LED fog lights (if equipped)
●Stop/tail lights
●Tail lights
●Rear side marker lights
●High mounted stoplight
●License plate lights
●Outer foot lights
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may go
out temporarily. The discharge bulbs will come on when normal power is restored.
■LED lights
The parking lights/daytime running lights, side turn signal lights, LED fog lights (if
equipped), stop/tail lights, tail lights, rear side marker lights, high mounted stoplight,
license plate lights and outer foot lights consist of a number of LEDs. If any of the
LEDs burn out, take your vehicle to your Lexus dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indi-
cate a malfunction. Contact your Lexus dealer for more information in the following
situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
→P. 5 9 7

ES350_300h_OM_OM33B99U_(U)
6117-3. Do-it-yourself maintenance
7
Maintenance and care
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid
getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
■Discharge headlights (if equipped)
●Contact your Lexus dealer before replacing the discharge headlights (including
light bulbs).
●Do not touch the discharge headlight’s high voltage socket when the headlights
are turned on.
An extremely high voltage of 25000 V will be discharged and could result in
death or serious injury by electric shock.
●Do not attempt to take apart or repair the headlight bulbs, connectors, power
supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.

612
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance

613
ES350_300h_OM_OM33B99U_(U)

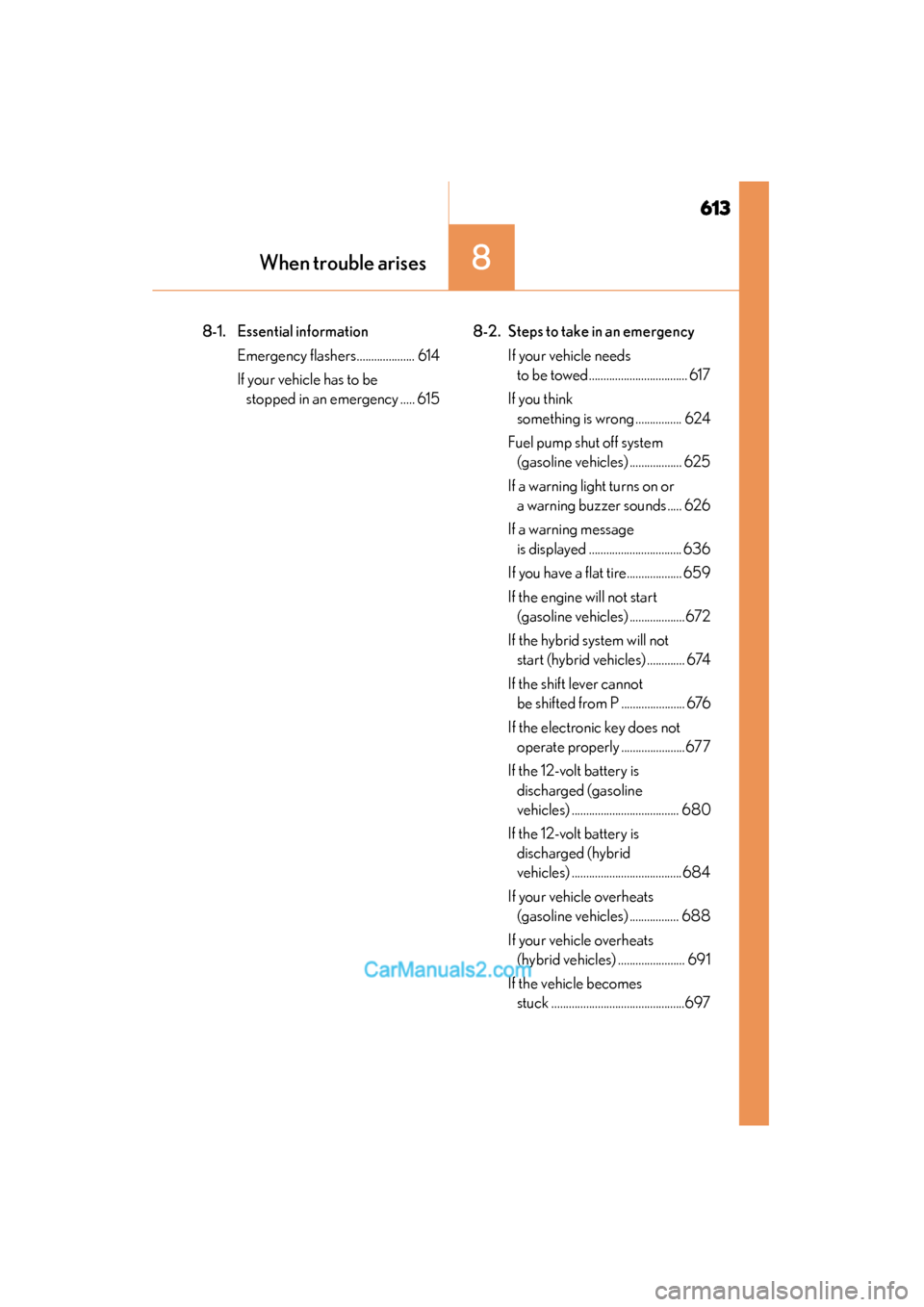

8When trouble arises
8-1. Essential informationEmergency flashers.................... 614
If your vehicle has to be stopped in an emergency ..... 615 8-2. Steps to take in an emergency
If your vehicle needs to be towed .................................. 617
If you think something is wrong ................ 624
Fuel pump shut off system (gasoline vehicles) .................. 625
If a warning light turns on or a warning buzzer sounds ..... 626
If a warning message is displayed ................................ 636
If you have a flat tire................... 659
If the engine will not start (gasoline vehicles) ...................672
If the hybrid system will not start (hybrid vehicles) ............. 674
If the shift lever cannot be shifted from P ...................... 676
If the electronic key does not operate properly ......................677
If the 12-volt battery is discharged (gasoline
vehicles) ..................................... 680
If the 12-volt battery is discharged (hybrid
vehicles) ......................................684
If your vehicle overheats (gasoline vehicles) ................. 688
If your vehicle overheats (hybrid vehicles) ....................... 691
If the vehicle becomes stuck ..............................................697

614
ES350_300h_OM_OM33B99U_(U)
8-1. Essential information
Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once again.
■Emergency flashers
Gasoline vehicles: If the emergency flashers are used for a long time while the
engine is not operating, the 12-volt battery may discharge.
Hybrid vehicles: If the emergency flashers are used for a long time while the hybrid
system is not operating (while the “READY” indicator is not illuminated), the 12-volt
battery may discharge.
The emergency flashers are used to warn other drivers when the vehi-
cle has to be stopped in the road due to a breakdown, etc.
XTy p e AXType B

615
ES350_300h_OM_OM33B99U_(U)
8-1. Essential information
8
When trouble arises

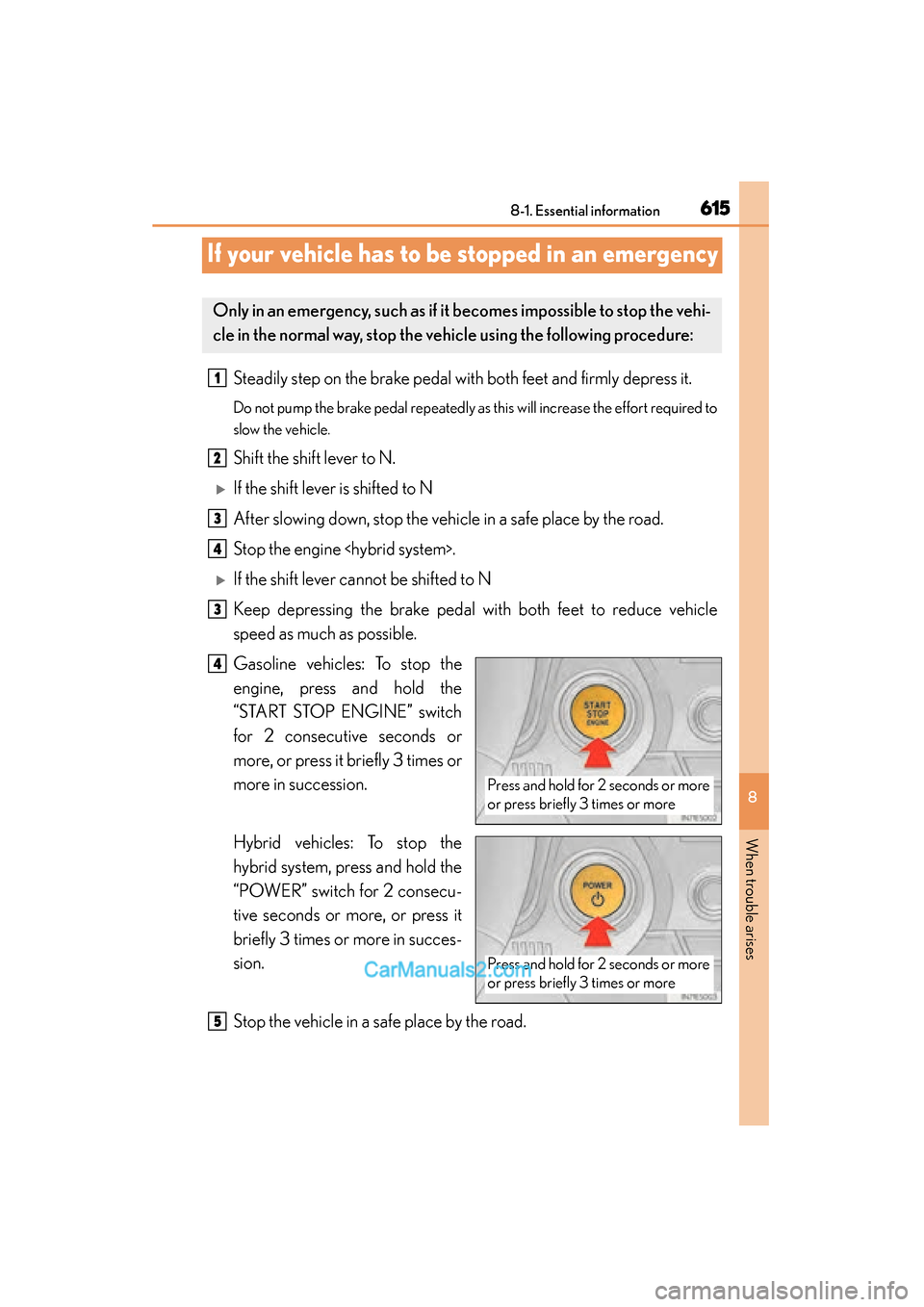

If your vehicle has to be stopped in an emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to
slow the vehicle.
Shift the shift lever to N.
XIf the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine .
XIf the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Gasoline vehicles: To stop the
engine, press and hold the
“START STOP ENGINE” switch
for 2 consecutive seconds or
more, or press it briefly 3 times or
more in succession.
Hybrid vehicles: To stop the
hybrid system, press and hold the
“POWER” switch for 2 consecu-
tive seconds or more, or press it
briefly 3 times or more in succes-
sion.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop the vehi-
cle in the normal way, stop the ve hicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more
or press briefly 3 times or more
4
Press and hold for 2 seconds or more
or press briefly 3 times or more
5

6168-1. Essential information
ES350_300h_OM_OM33B99U_(U)
CAUTION
■If the engine has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel heavier
to turn. Decelerate as much as possible before turning off the engine tem>.

617
ES350_300h_OM_OM33B99U_(U)
8-2. Steps to take in an emergency
8
When trouble arises
If your vehicle needs to be towed
The following may indicate a problem with your transmission transmission>. Contact your Lexus dealer or commercial towing service
before towing.
●Gasoline vehicles: The engine is running but the vehicle will not move.
●Hybrid vehicles: A warning message for the hybrid system is shown on
the multi-information display and the vehicle does not move.
●The vehicle makes an abnormal sound.
Do not tow with a sling-type truck to
prevent body damage.
If towing is necessary, we recommend having your vehicle towed by
your Lexus dealer or co mmercial towing service, using a lift-type truck
or flat bed truck.
Use a safety chain system for all towing, and abide by all state/provin-
cial and local laws.
Situations needs to contact dealers before towing
Towing with a sling-type truck

6188-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
If your Lexus is transported by a flat
bed truck, it should be tied down at
the locations shown in the illustra-
tion.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie downs
or the vehicle may be damaged.
Towing with a wheel-lift type truck
XFrom the frontXFrom the rear
Release the parking brake. Use a towing dolly under the front wheels.
Using a flat bed truck
