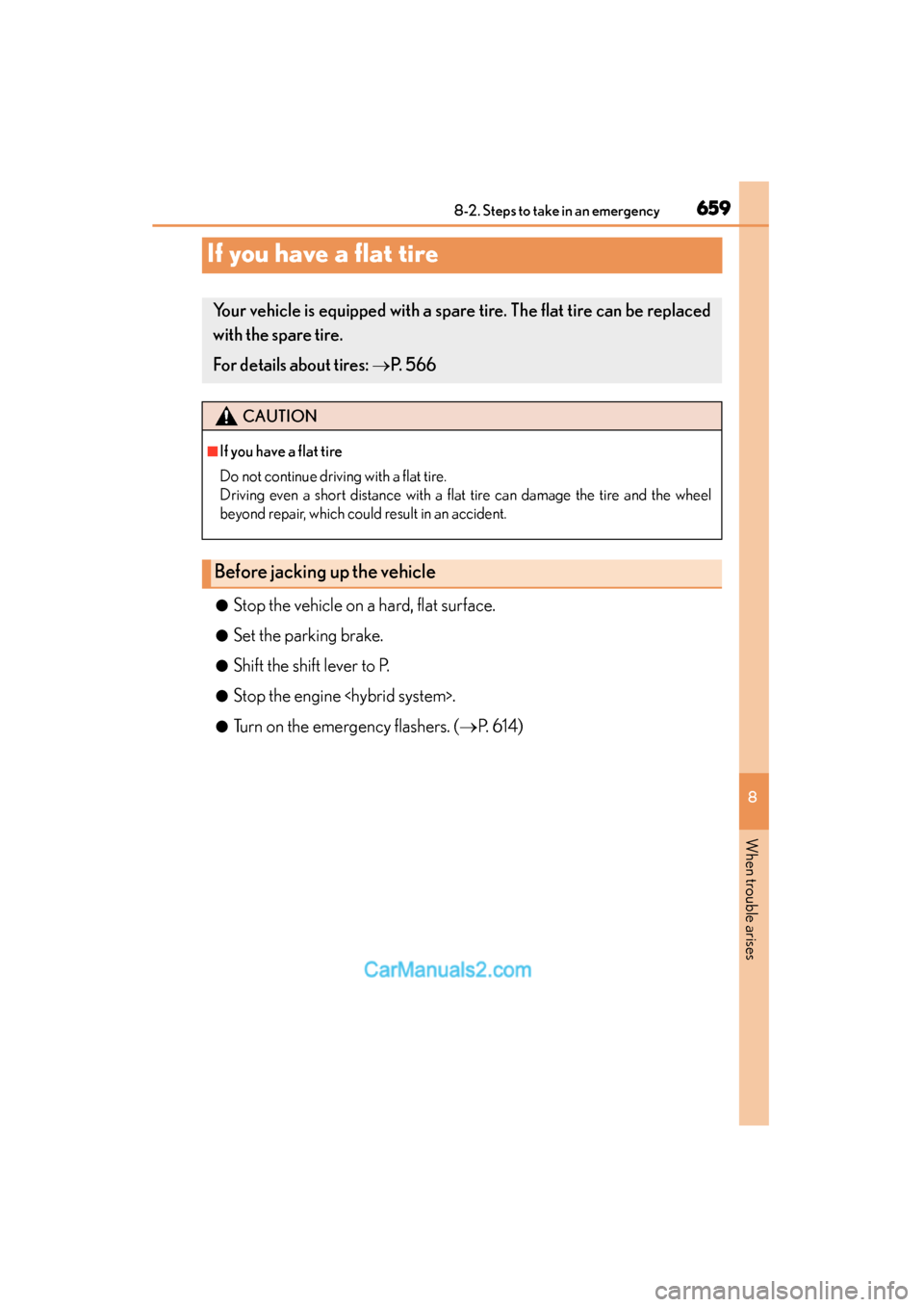

If you have a flat tire
●Stop the vehicle on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine .
●Turn on the emergency flashers. (→P. 6 1 4 )
Your vehicle is equipped with a spare tire. The flat tire can be replaced
with the spare tire.
For details about tires: →P. 5 6 6
CAUTION
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair, which could result in an accident.
Before jacking up the vehicle

6608-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
XVehicles with a compact spare tire

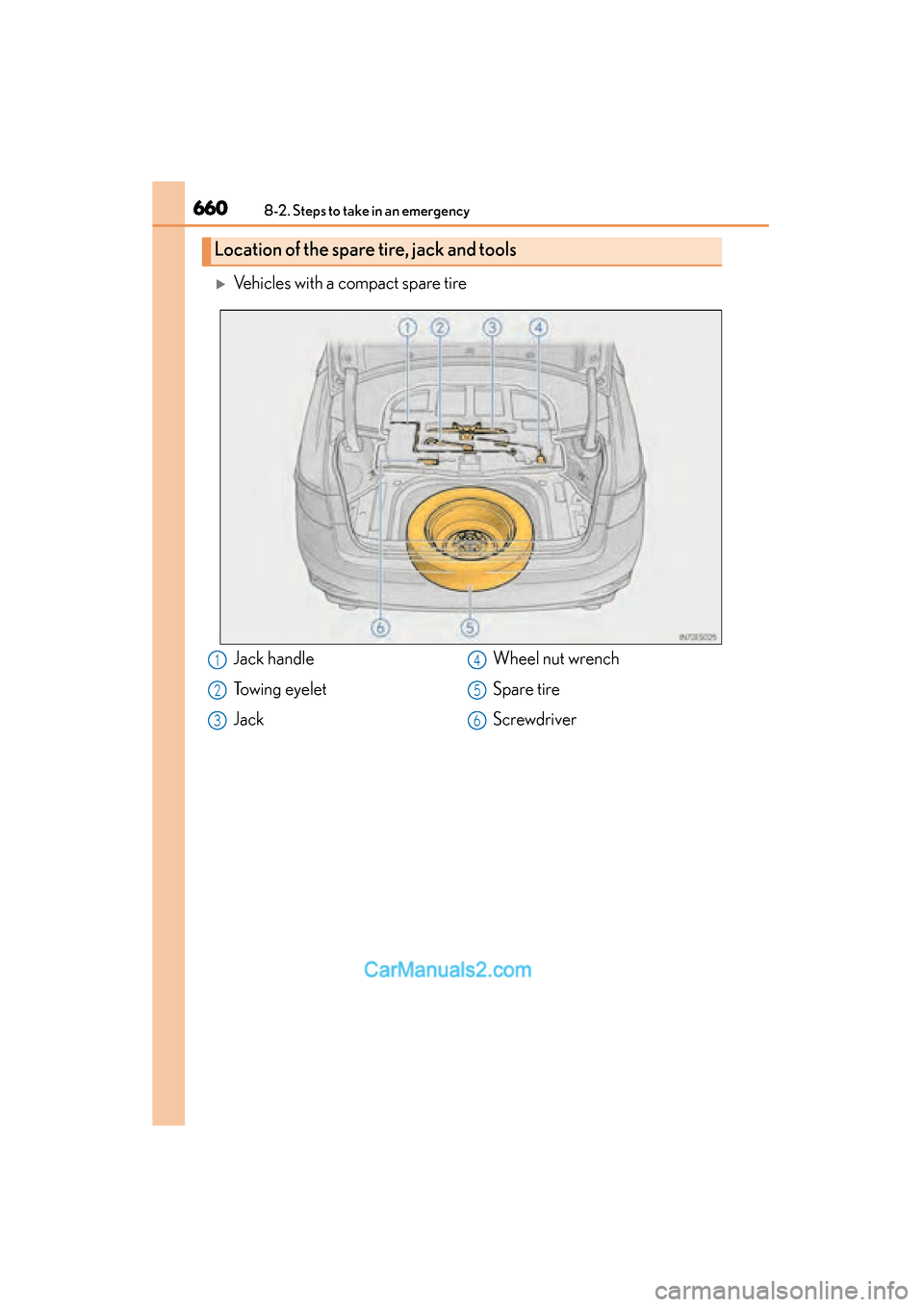

Location of the spare tire, jack and tools
Jack handle
Towing eyelet
JackWheel nut wrench
Spare tire
Screwdriver1
2
3
4
5
6

6618-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
XVehicles with a full-size spare tire
Towing eyelet
Wheel nut wrench
JackJack handle
Screwdriver
Spare tire1
2
3
4
5
6

6628-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
CAUTION

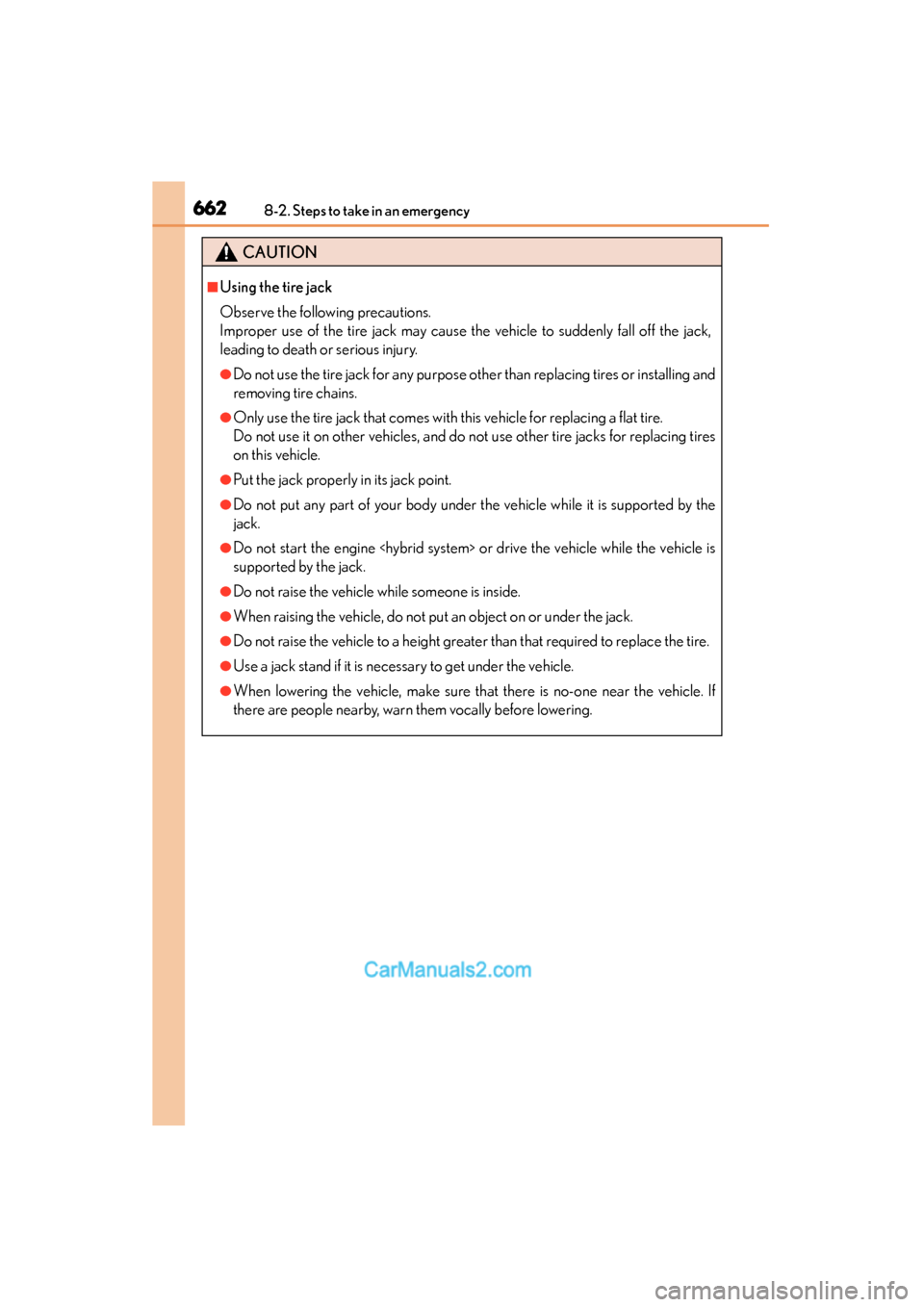

■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack,
leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the
jack.
●Do not start the engine or drive the vehicle while the vehicle is
supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If
there are people nearby, warn them vocally before lowering.

6638-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
Open the luggage mat. (→P. 488)
Remove the auxiliary boxes.
Loosen the center fastener that secures the spare tire.

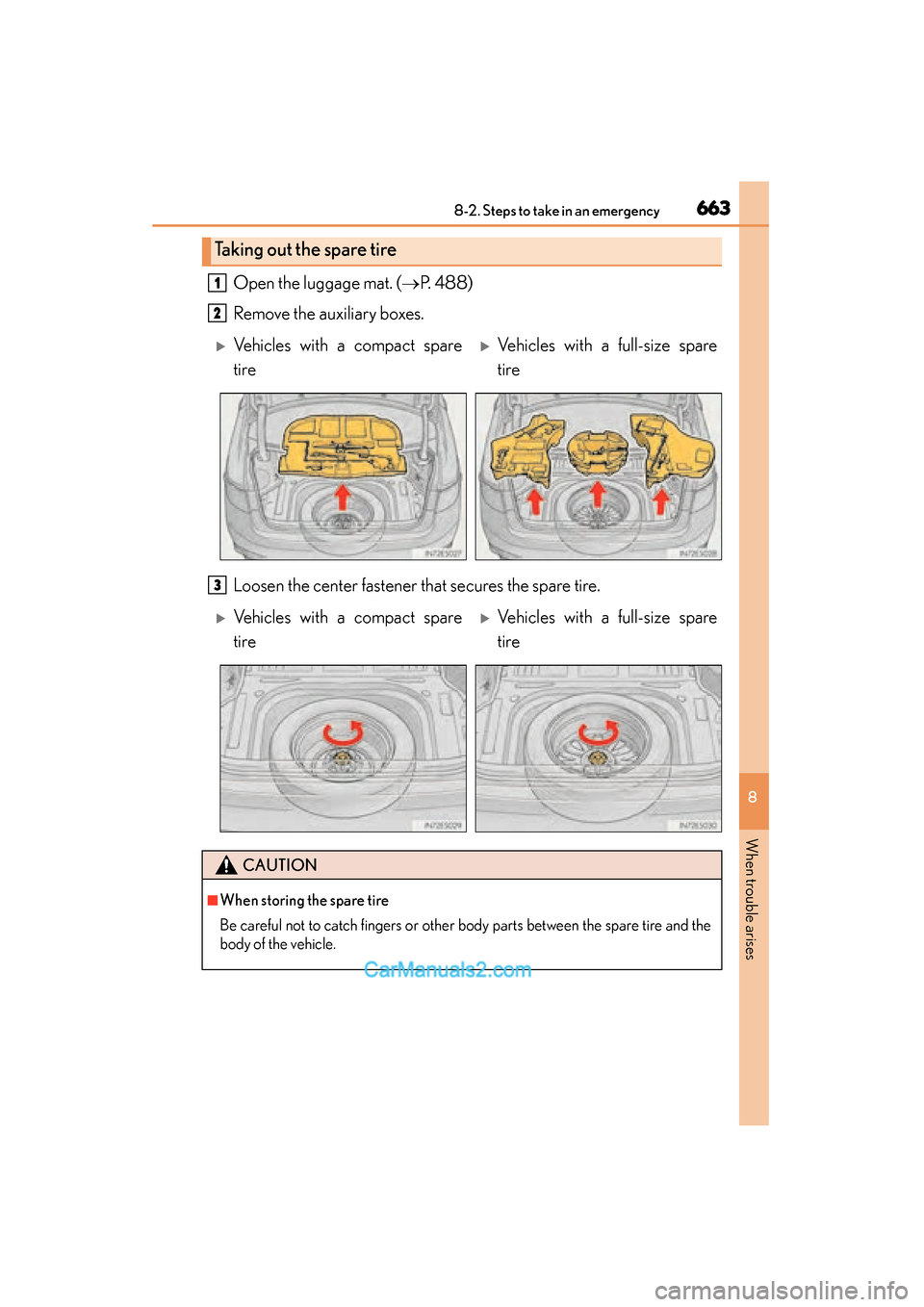

Taking out the spare tire
1
2
XVehicles with a compact spare
tireXVehicles with a full-size spare
tire
3
XVehicles with a compact spare
tireXVehicles with a full-size spare
tire
CAUTION
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the
body of the vehicle.

6648-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion by
hand until the notch of the jack is
in contact with the jack point.
The jack point guides are located
under the rocker panel. They indicate
the jack point positions.

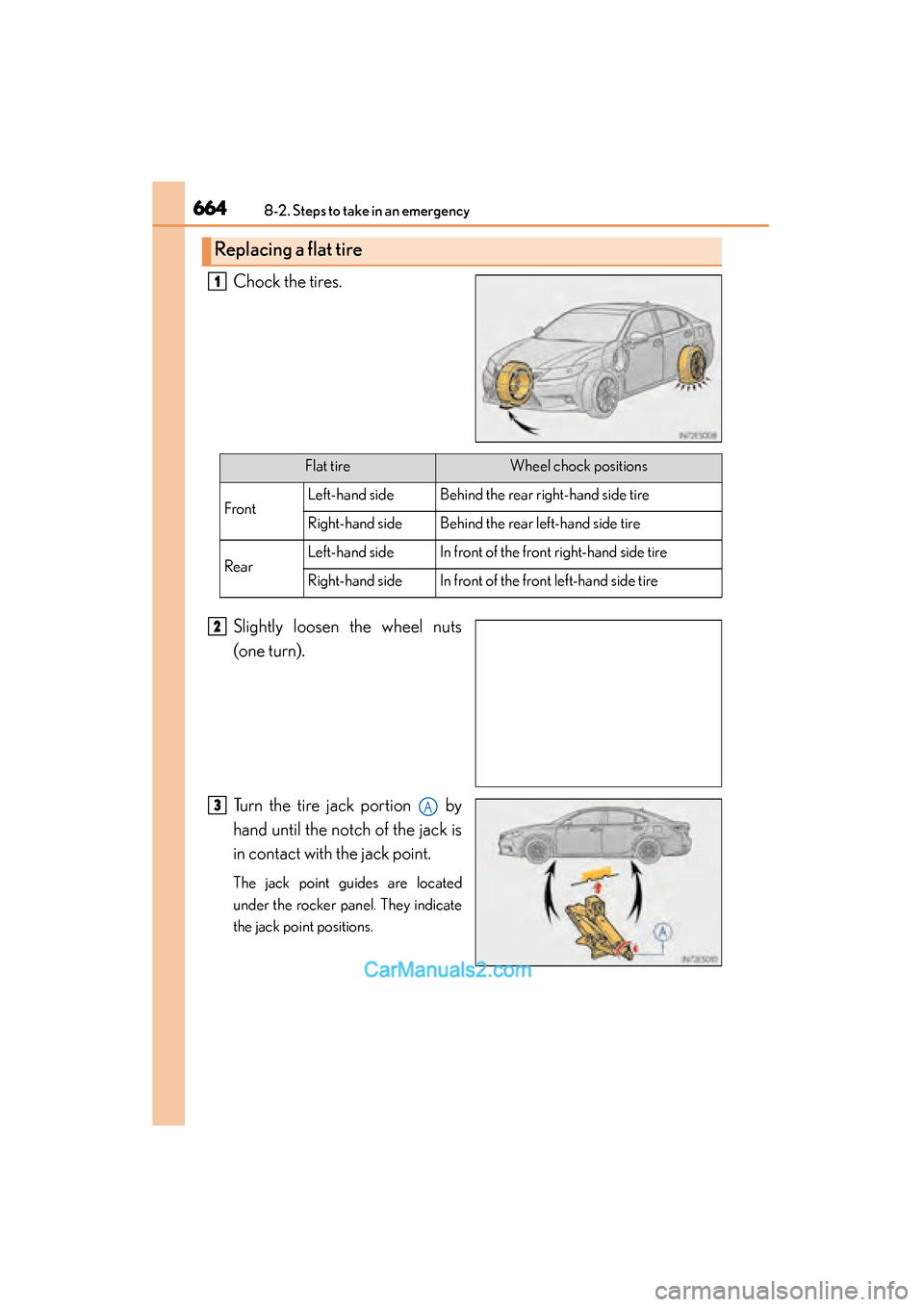

Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3A

6658-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises

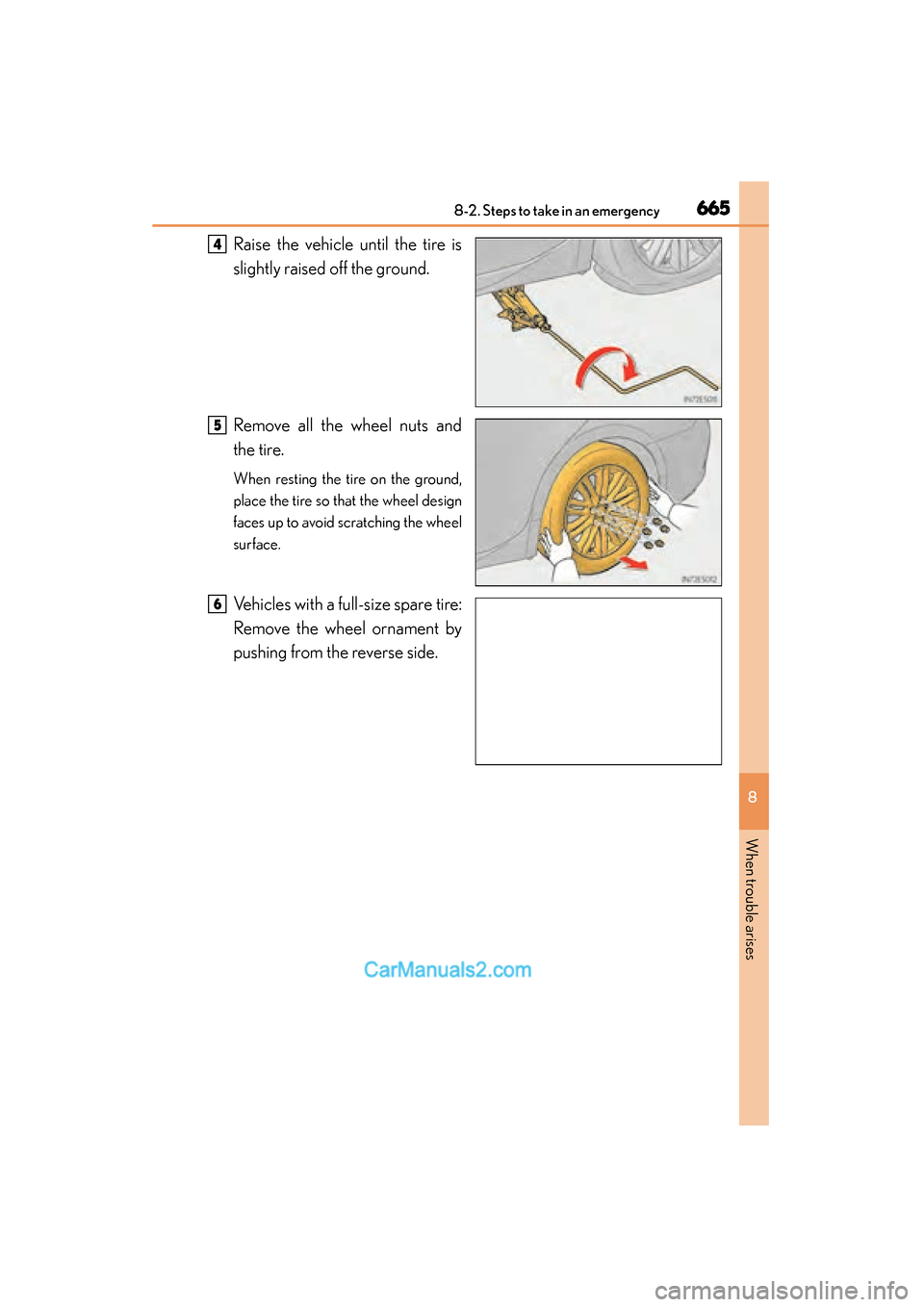

Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
Vehicles with a full-size spare tire:
Remove the wheel ornament by
pushing from the reverse side.
4
5
6

6668-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
CAUTION
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in handlingthe ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or other
body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen and the
tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.Oil and grease may cause the wheel nuts to be excessively tightened, leading
to bolt or disc wheel damage. In addition, the oil or grease can cause the
wheel nuts to loosen and the wheel may fall off, causing a serious accident.
Remove any oil or grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Lexus dealer.

6678-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel con-
tact surface, the wheel nuts may
loosen while the vehicle is in motion,
causing the tire to come off.
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing an aluminum
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.
When replacing an aluminum
wheel with a steel wheel, tighten
the wheel nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
Installing the spare tire
1
2
Disc wheel
Wa s h e r
Tapered portionDisc wheel
seat

6688-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)

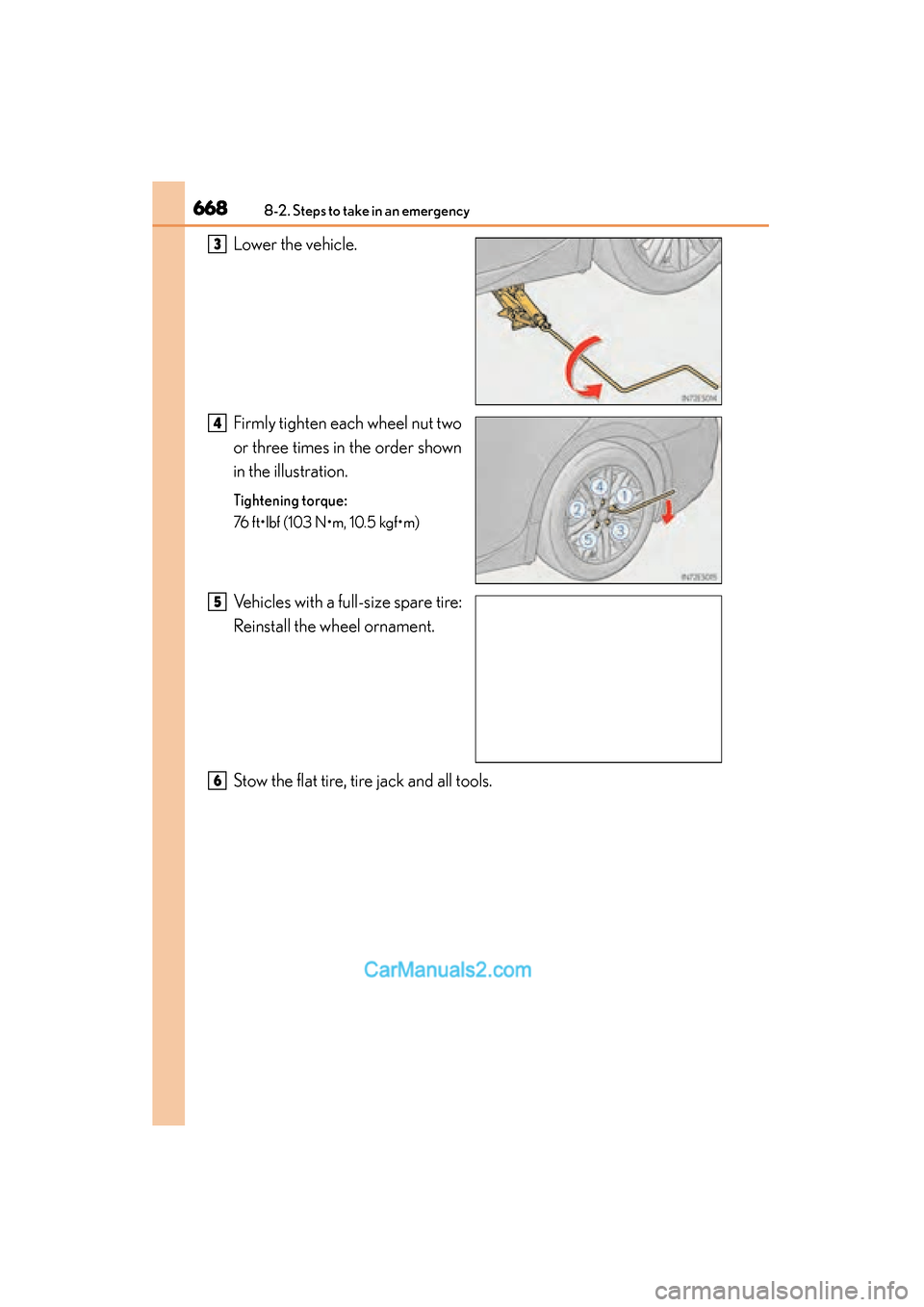

Lower the vehicle.
Firmly tighten each wheel nut two
or three times in the order shown
in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Vehicles with a full-size spare tire:
Reinstall the wheel ornament.
Stow the flat tire, tire jack and all tools.
3
4
5
6
