Lexus ES350 2015 Owner's Manual

491
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features
6
Interior features

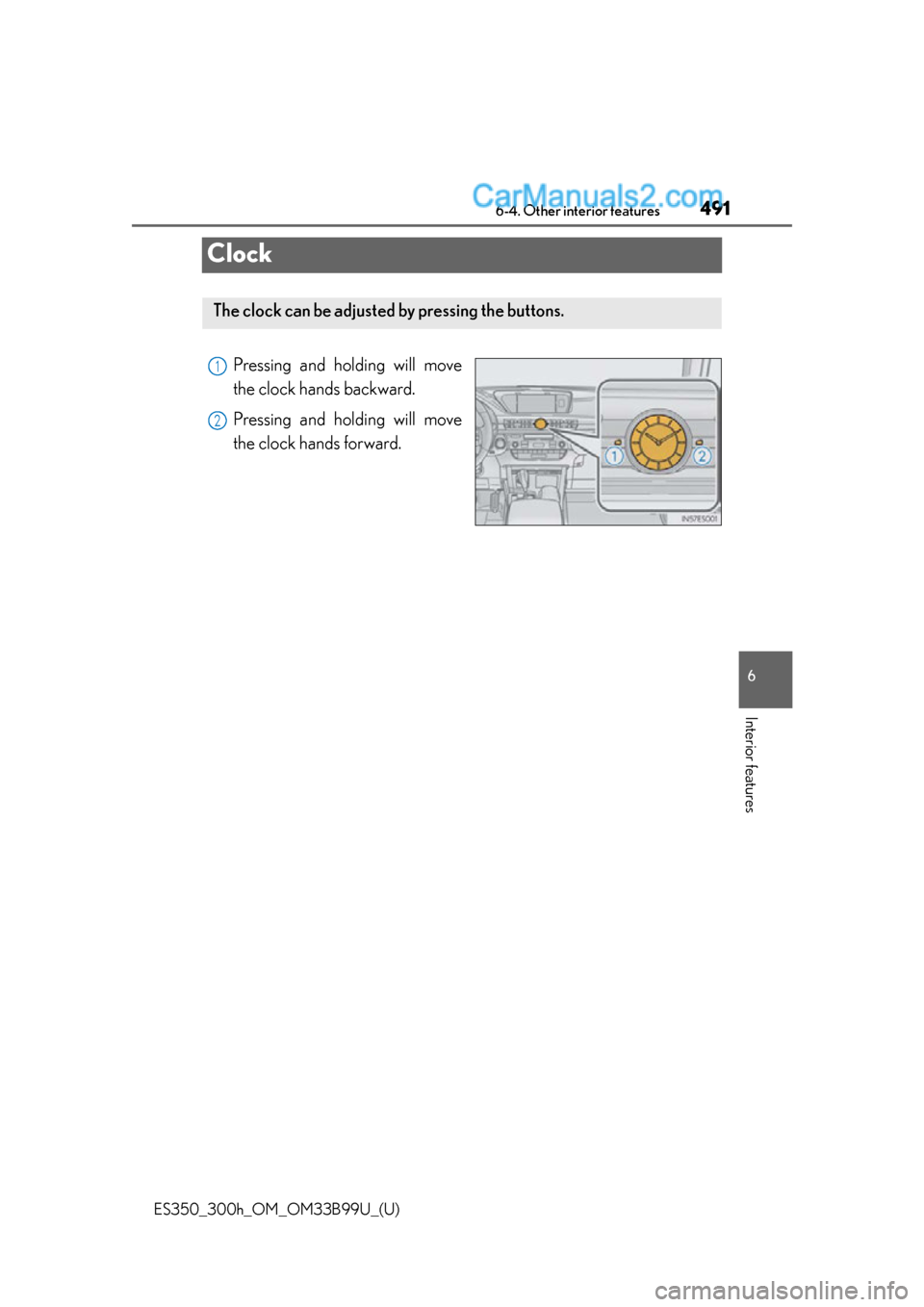

Clock
Pressing and holding will move
the clock hands backward.
Pressing and holding will move
the clock hands forward.
The clock can be adjusted by pressing the buttons.
1
2

492
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features

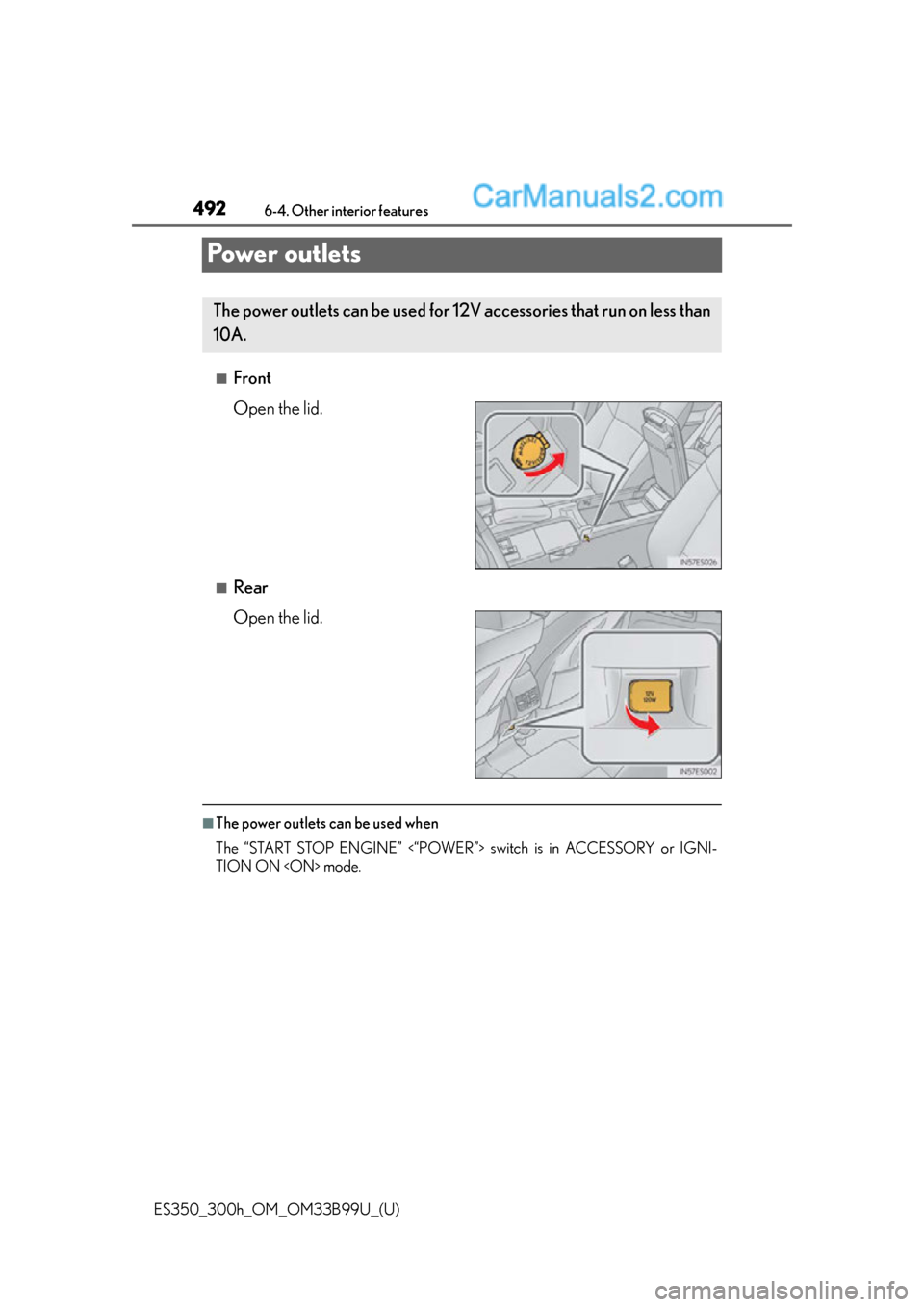

Power outlets
■Front
Open the lid.
■Rear
Open the lid.
■The power outlets can be used when
The “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or IGNI-
TION ON mode.
The power outlets can be used for 12V accessories that run on less than
10A.

ES350_300h_OM_OM33B99U_(U)
4936-4. Other interior features
6
Interior features

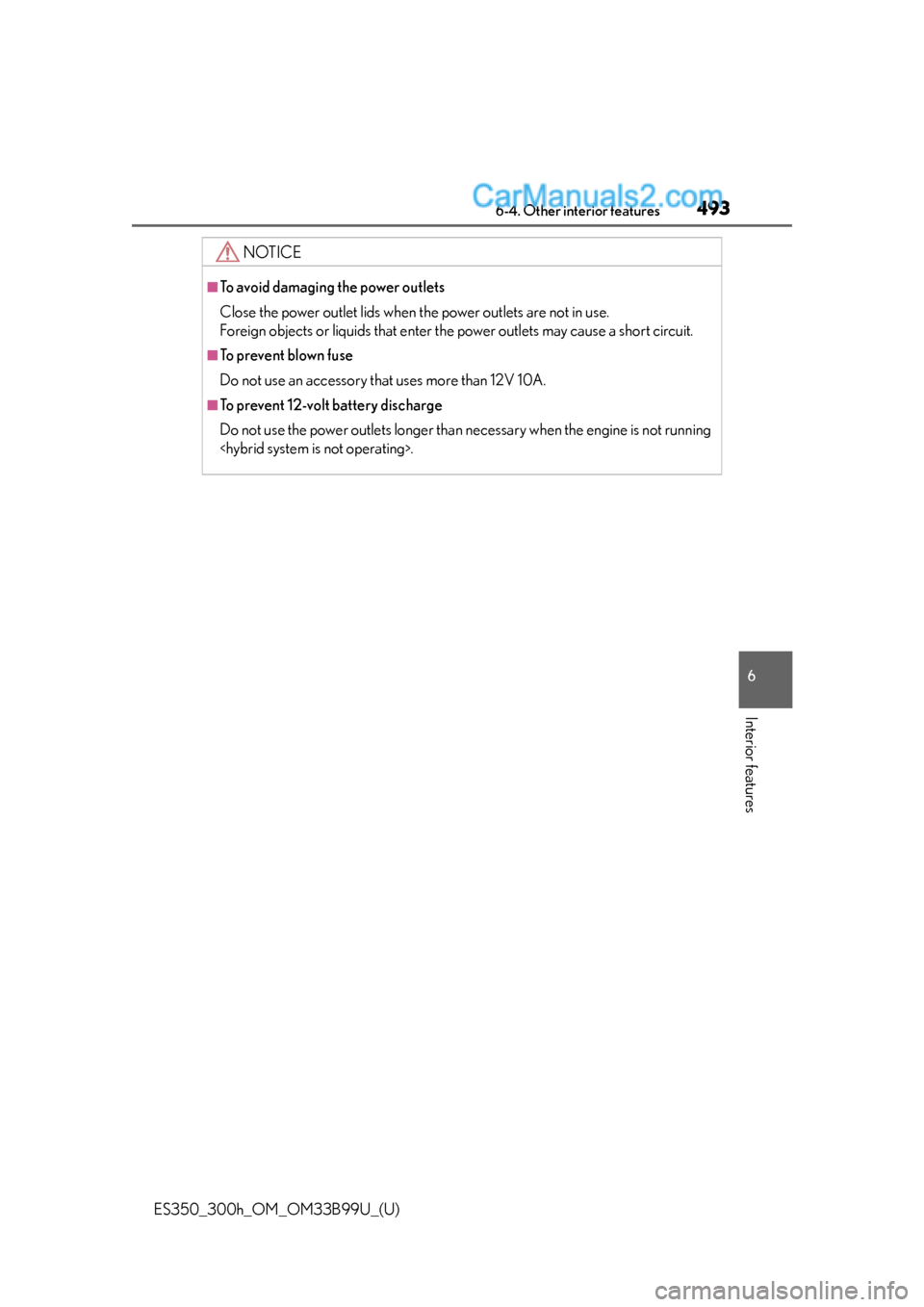

NOTICE
■To avoid damaging the power outlets
Close the power outlet lids when the power outlets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short circuit.
■To prevent blown fuse
Do not use an accessory that uses more than 12V 10A.
■To prevent 12-volt battery discharge
Do not use the power outlets longer than necessary when the engine is not running
.

494
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features

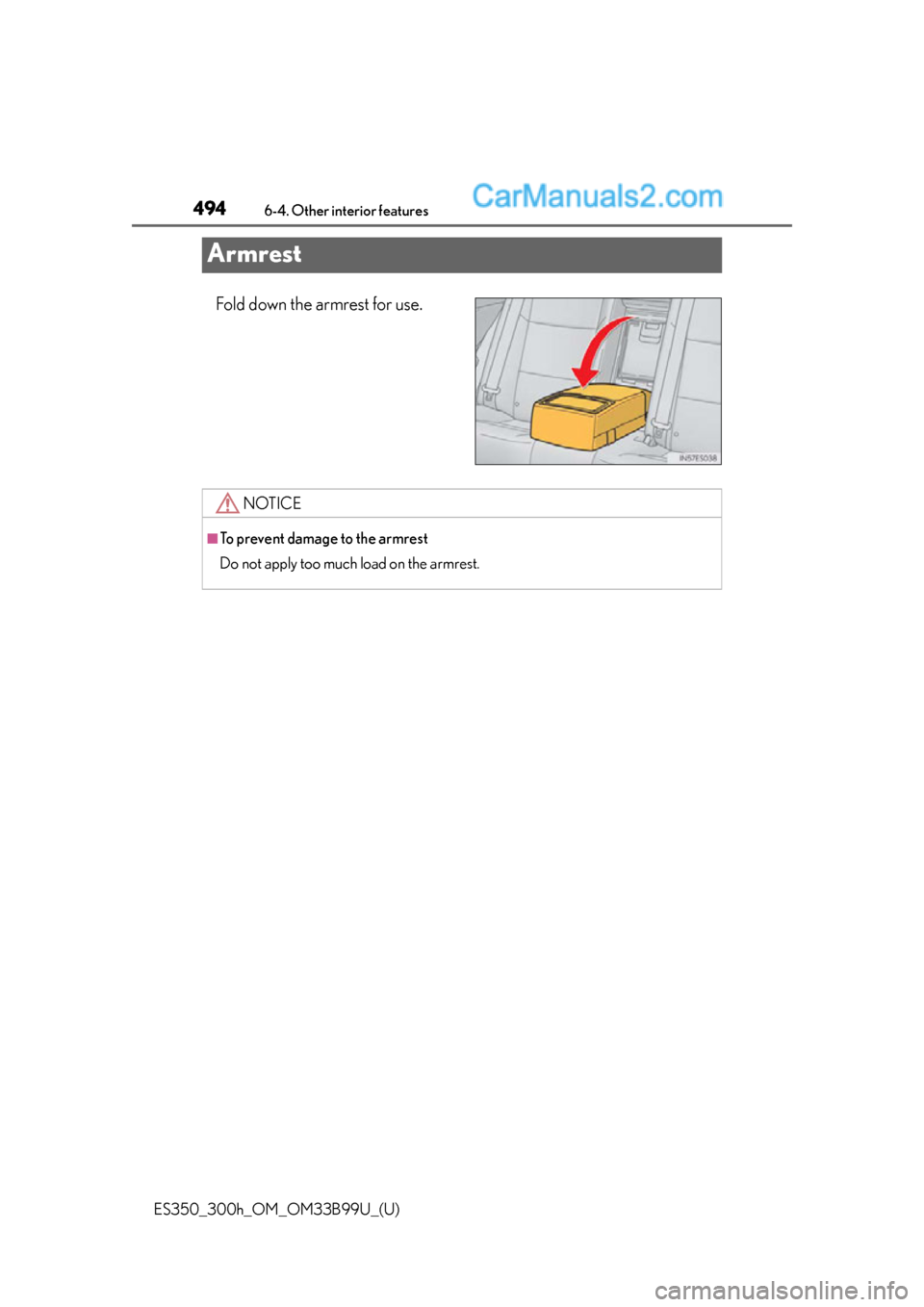

Armrest
Fold down the armrest for use.
NOTICE
■To prevent damage to the armrest
Do not apply too much load on the armrest.

495
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features
6
Interior features

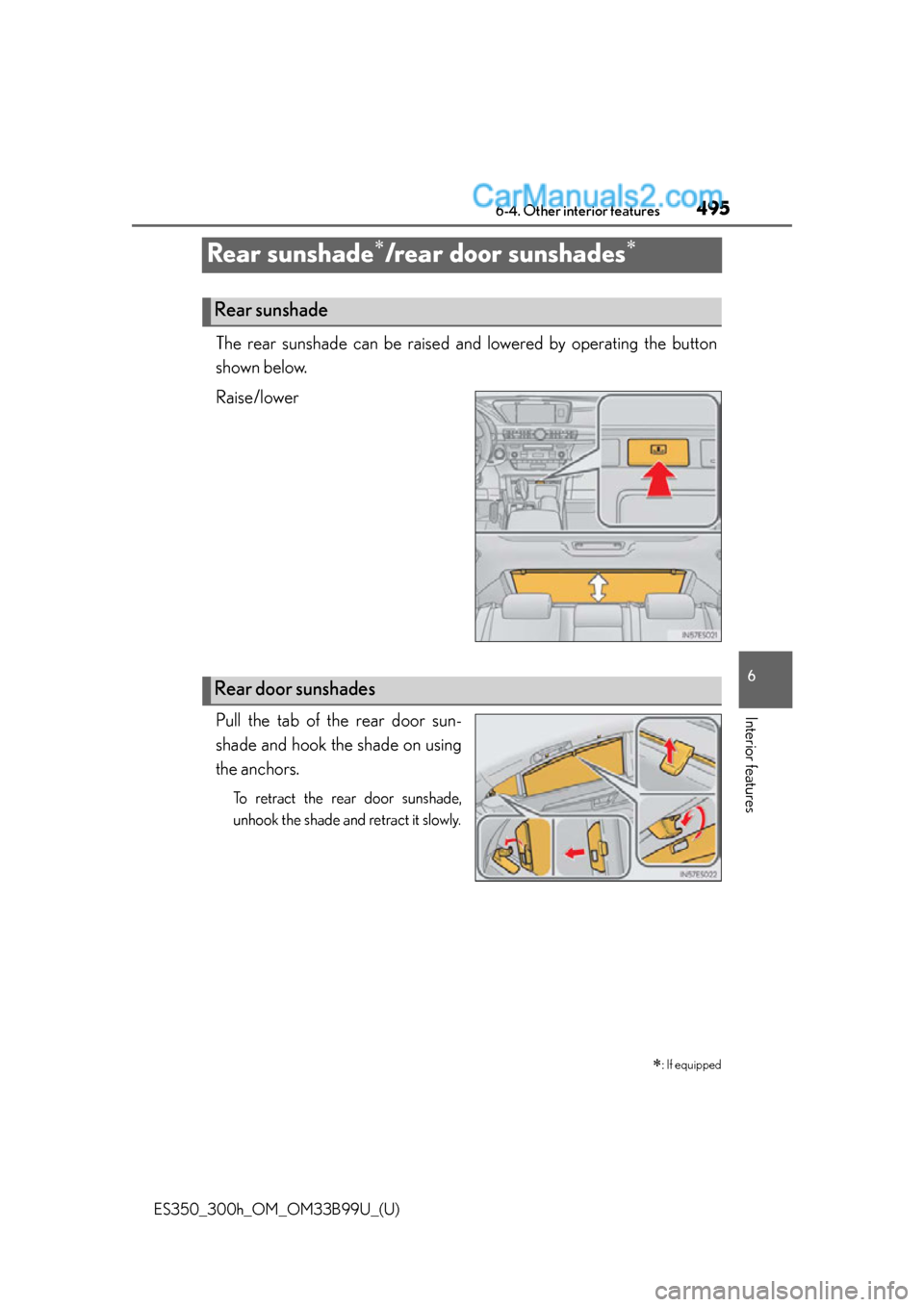

Rear sunshade/rear door sunshades
The rear sunshade can be raised and lowered by operating the button
shown below.
Raise/lower
Pull the tab of the rear door sun-
shade and hook the shade on using
the anchors.
To retract the rear door sunshade,
unhook the shade and retract it slowly.
: If equipped
Rear sunshade
Rear door sunshades

496
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features

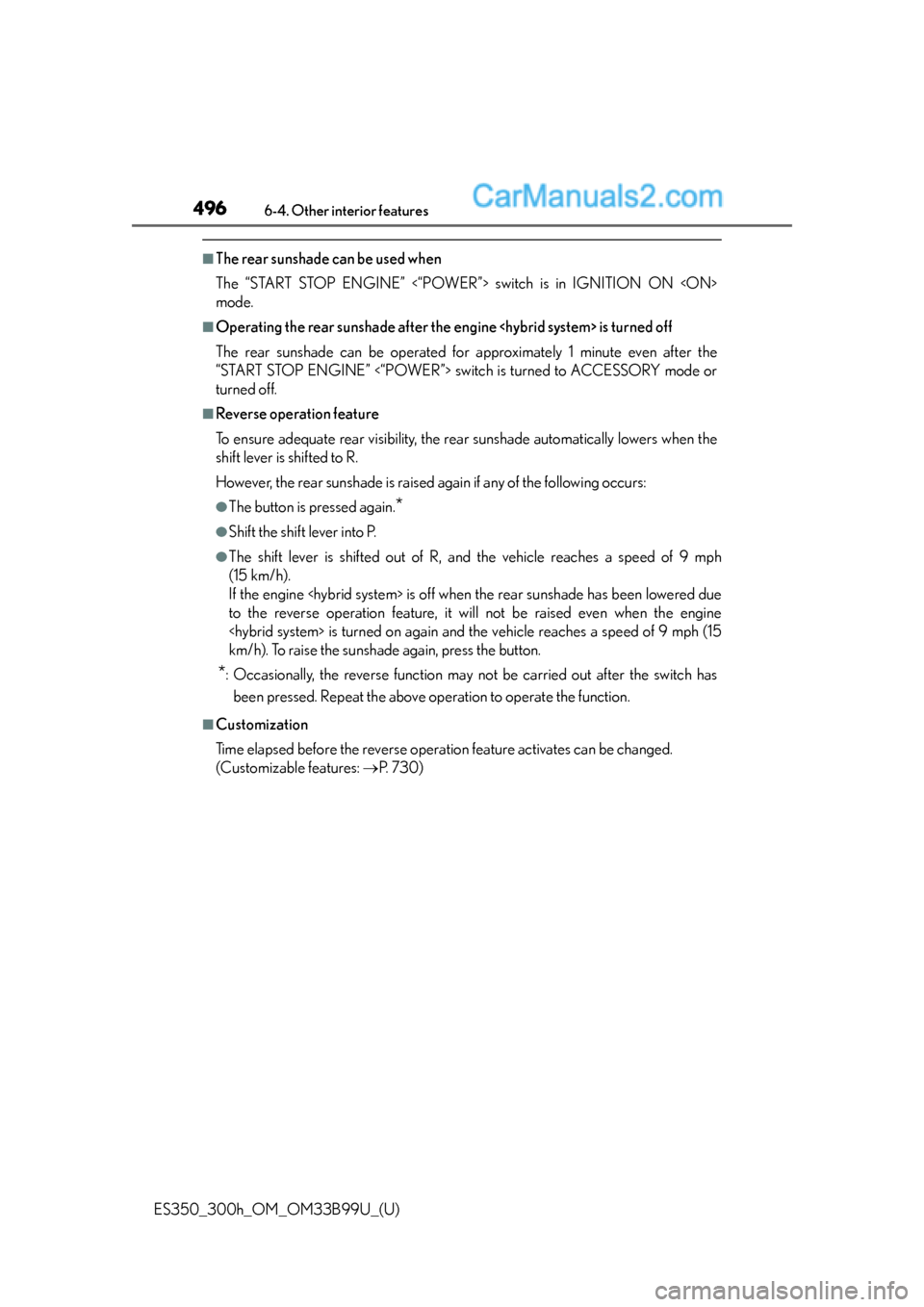

■The rear sunshade can be used when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■Operating the rear sunshade after the engine is turned off
The rear sunshade can be operated for approximately 1 minute even after the
“START STOP ENGINE” <“POWER”> switch is turned to ACCESSORY mode or
turned off.
■Reverse operation feature
To ensure adequate rear visibility, the rear sunshade automatically lowers when the
shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
●The button is pressed again.*
●Shift the shift lever into P.
●The shift lever is shifted out of R, and the vehicle reaches a speed of 9 mph
(15 km/h).
If the engine is off when the rear sunshade has been lowered due
to the reverse operation feature, it will not be raised even when the engine
is turned on again and the vehicle reaches a speed of 9 mph (15
km/h). To raise the sunshade again, press the button.
*: Occasionally, the reverse function may not be carried out after the switch has
been pressed. Repeat the above operation to operate the function.
■Customization
Time elapsed before the reverse operation feature activates can be changed.
(Customizable features: P. 7 3 0 )

ES350_300h_OM_OM33B99U_(U)
4976-4. Other interior features
6
Interior features

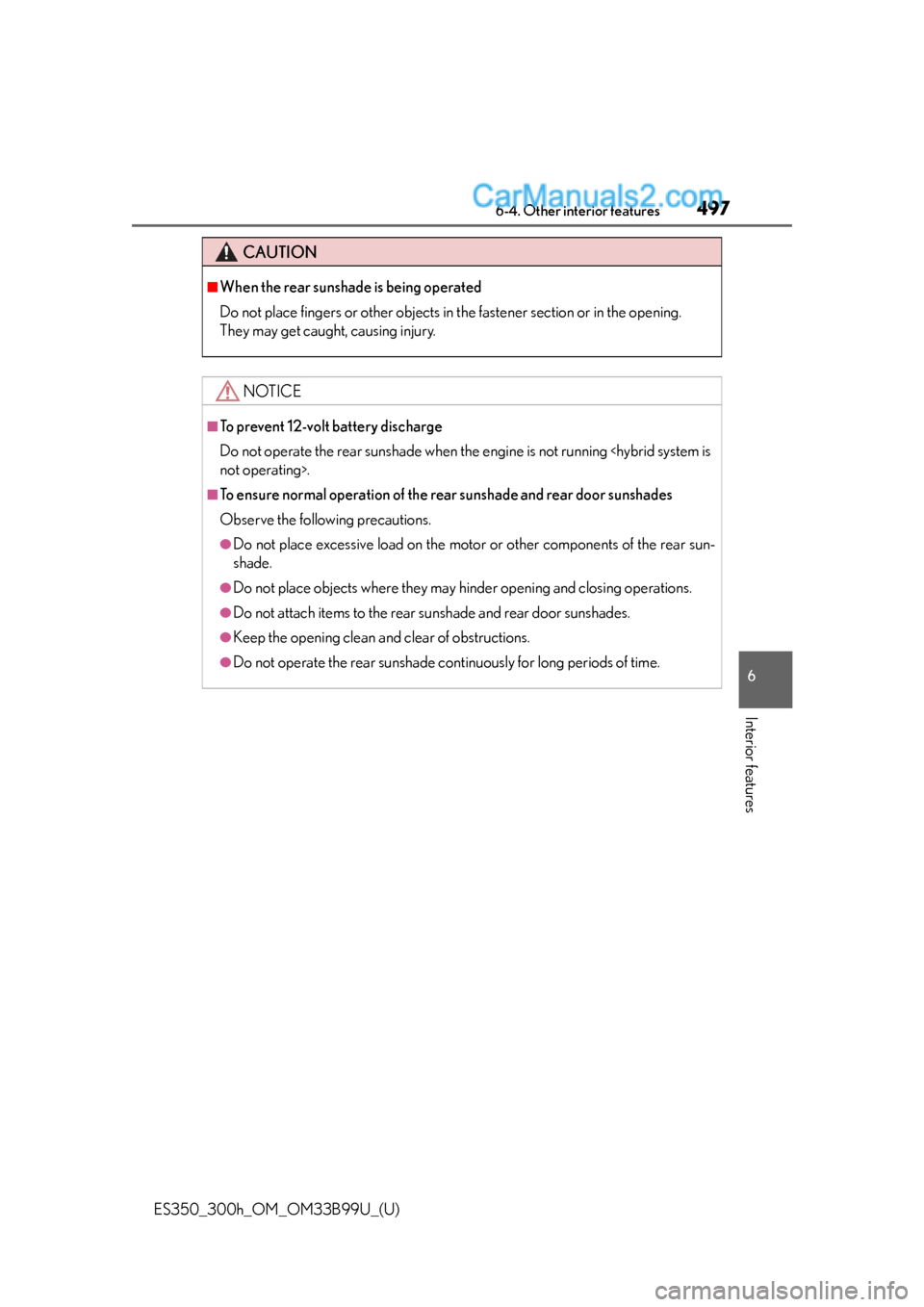

CAUTION
■When the rear sunshade is being operated
Do not place fingers or other objects in the fastener section or in the opening.
They may get caught, causing injury.
NOTICE
■To prevent 12-volt battery discharge
Do not operate the rear sunshade when the engine is not running not operating>.
■To ensure normal operation of the rear sunshade and rear door sunshades
Observe the following precautions.
●Do not place excessive load on the moto r or other components of the rear sun-
shade.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear sunshade and rear door sunshades.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear sunshade cont inuously for long periods of time.

498
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features

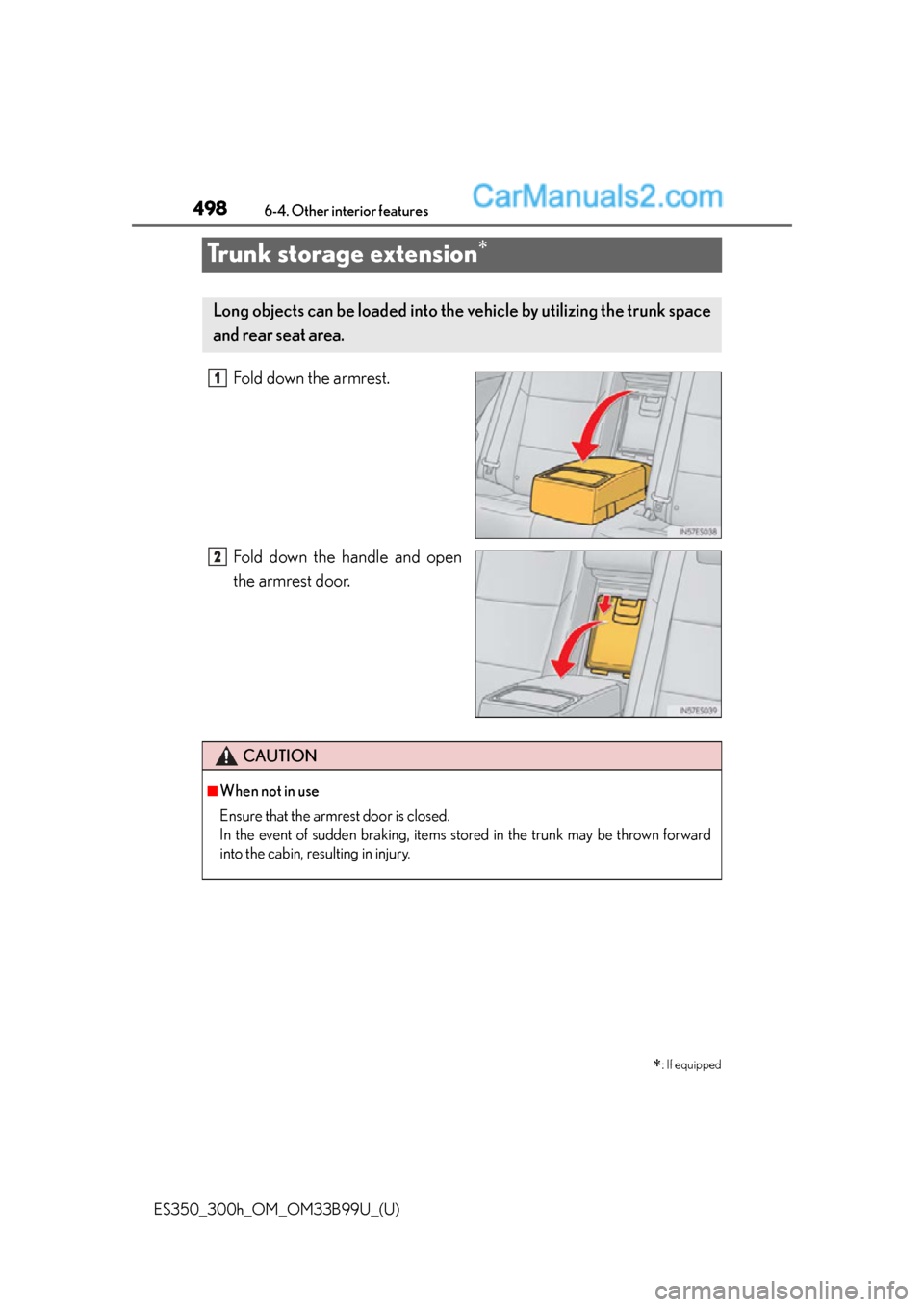

Trunk storage extension
Fold down the armrest.
Fold down the handle and open
the armrest door.
: If equipped
Long objects can be loaded into the vehicle by utilizing the trunk space
and rear seat area.
1
2
CAUTION
■When not in use
Ensure that the armrest door is closed.
In the event of sudden braking, items stored in the trunk may be thrown forward
into the cabin, resulting in injury.

499
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features
6
Interior features

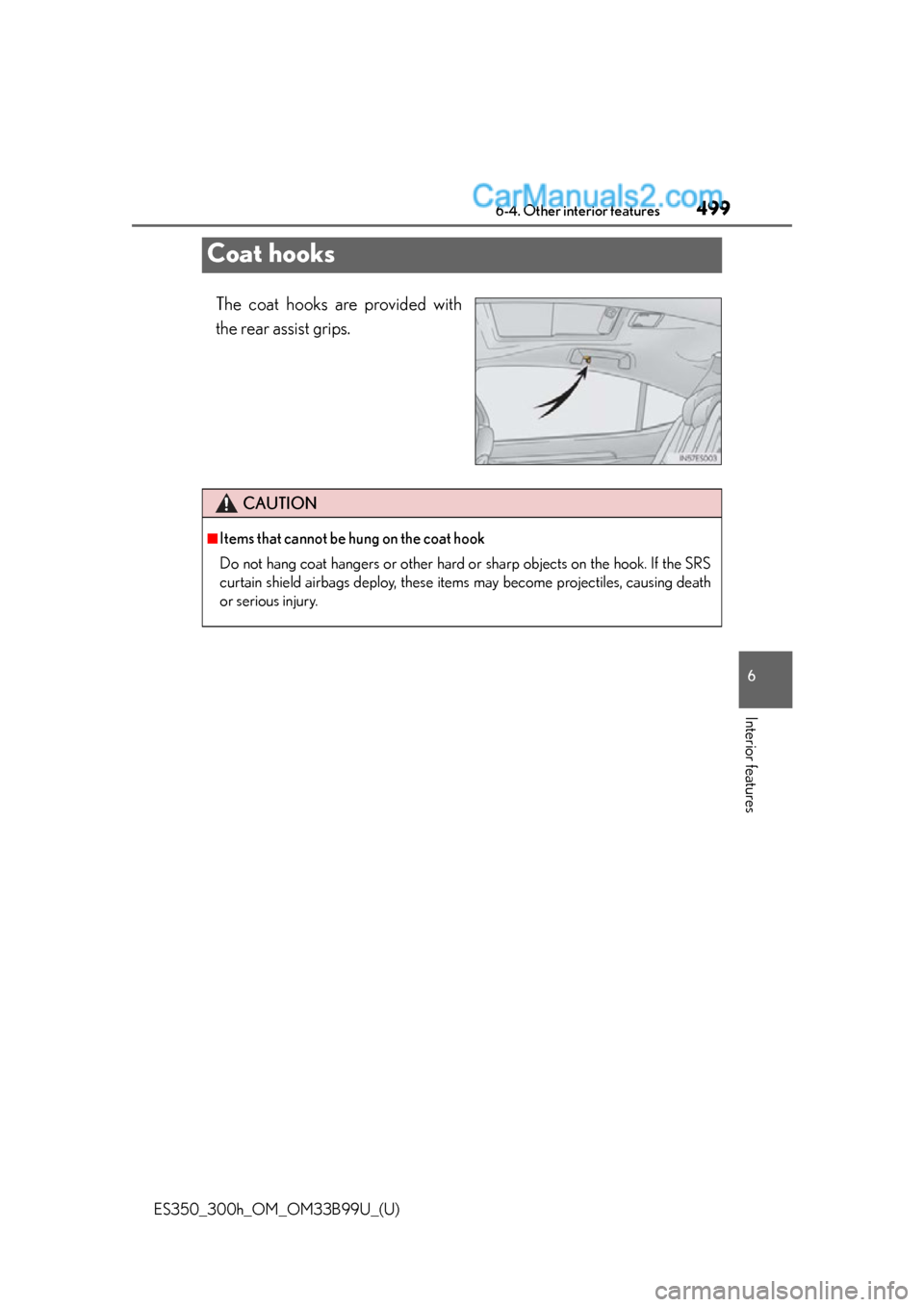

Coat hooks
The coat hooks are provided with
the rear assist grips.
CAUTION
■Items that cannot be hung on the coat hook
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS
curtain shield airbags deploy, these items may become projectiles, causing death
or serious injury.

500
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features

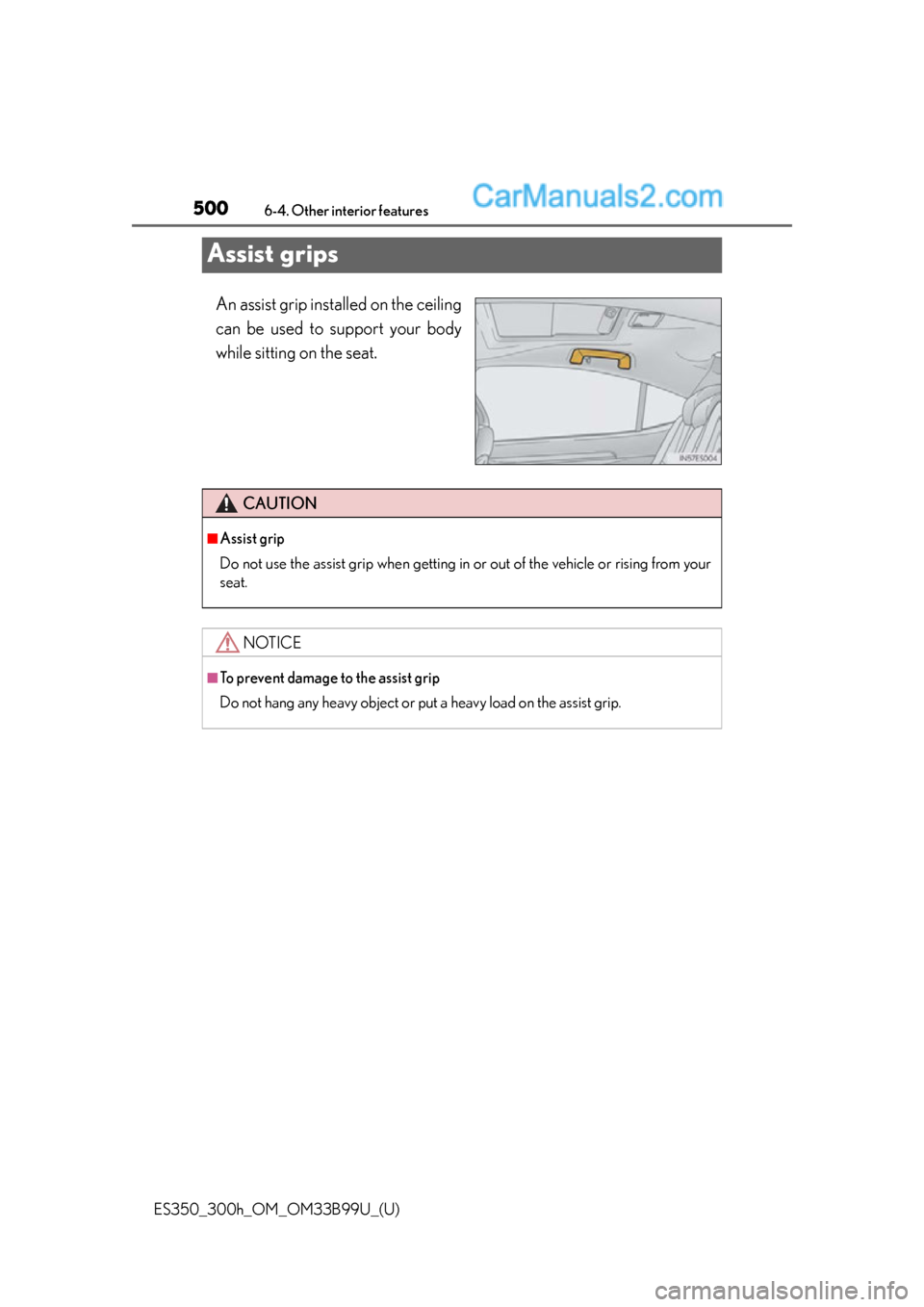

Assist grips
An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from your
seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
