Lexus ES350 2018 Owner's Manuals / LEXUS 2018 ES350 OWNER'S MANUAL (OM06134U)

ES350_OM_OM06134U_(U)
3615-12. Other function
5
Lexus Display Audio system
■Expression examples for each function
*: Say the desired artist name or album name in the place of the “<>”.
Some recognizable voice commands an d their actions are shown below as
examples.
Basic
CommandExpression examples
“Call ”Get me .
I need to call at right away.
“Dial ”Please dial the number <3334445555>.
Ring <3334445555>.
“Play Artist ”Play the artist .
I’d like to hear the band .*
“Play Album ”Play album .
Music from album .
*
Command list
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
“Go to ”Displays the command lis t of the selected tab

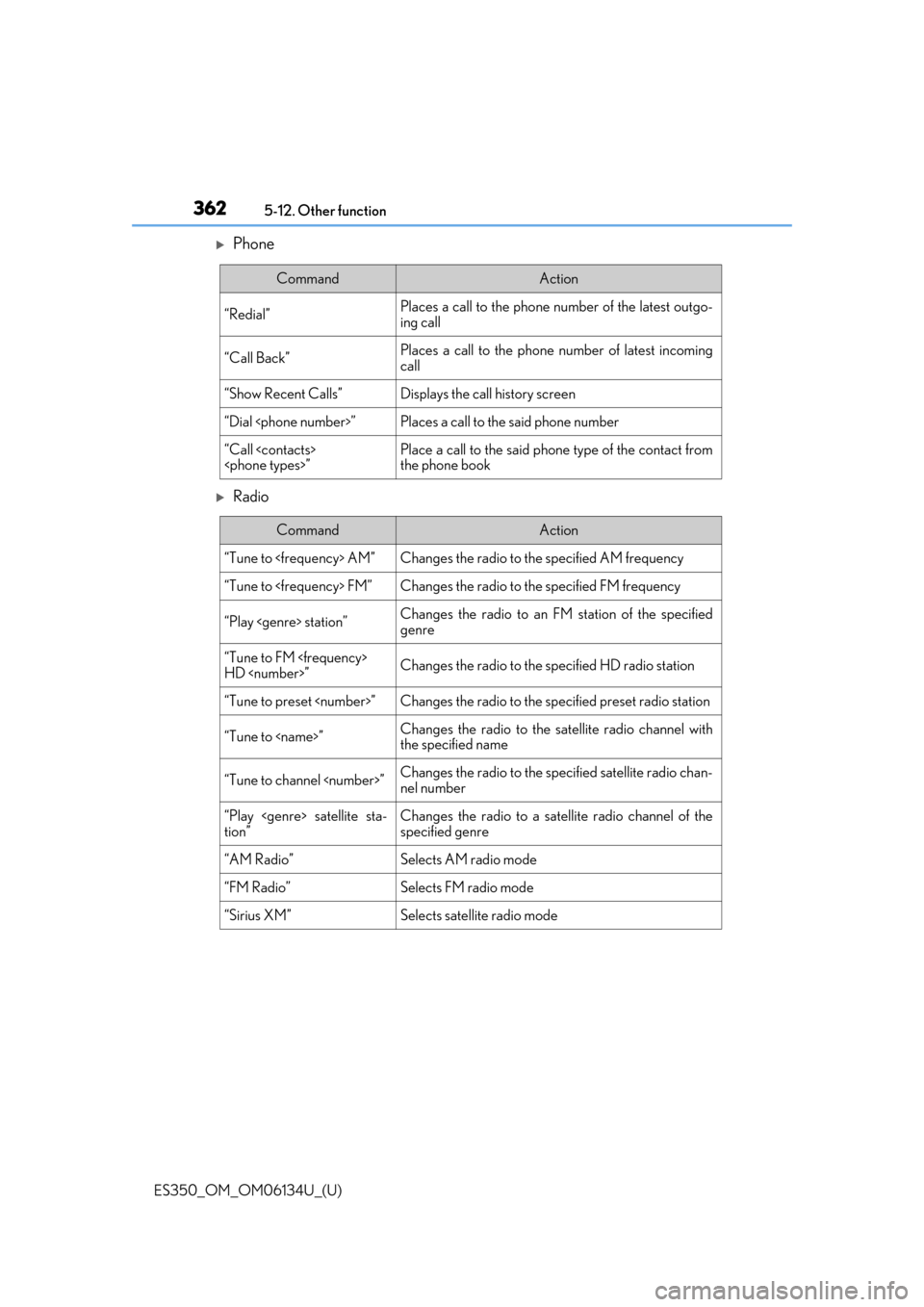

3625-12. Other function
ES350_OM_OM06134U_(U)
Phone
Radio
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent Calls”Displays the call history screen
“Dial ”Places a call to the said phone number
“Call
”Place a call to the said phone type of the contact from
the phone book
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play station”Changes the radio to an FM station of the specified
genre
“Tune to FM
HD ”Changes the radio to the specified HD radio station
“Tune to preset ”Changes the radio to the specified preset radio station
“Tune to ”Changes the radio to the satellite radio channel with
the specified name
“Tune to channel ”Changes the radio to the specified satellite radio chan-
nel number
“Play satellite sta-
tion”Changes the radio to a satellite radio channel of the
specified genre
“AM Radio”Selects AM radio mode
“FM Radio”Selects FM radio mode
“Sirius XM”Selects satellit e radio mode

ES350_OM_OM06134U_(U)
3635-12. Other function
5
Lexus Display Audio system

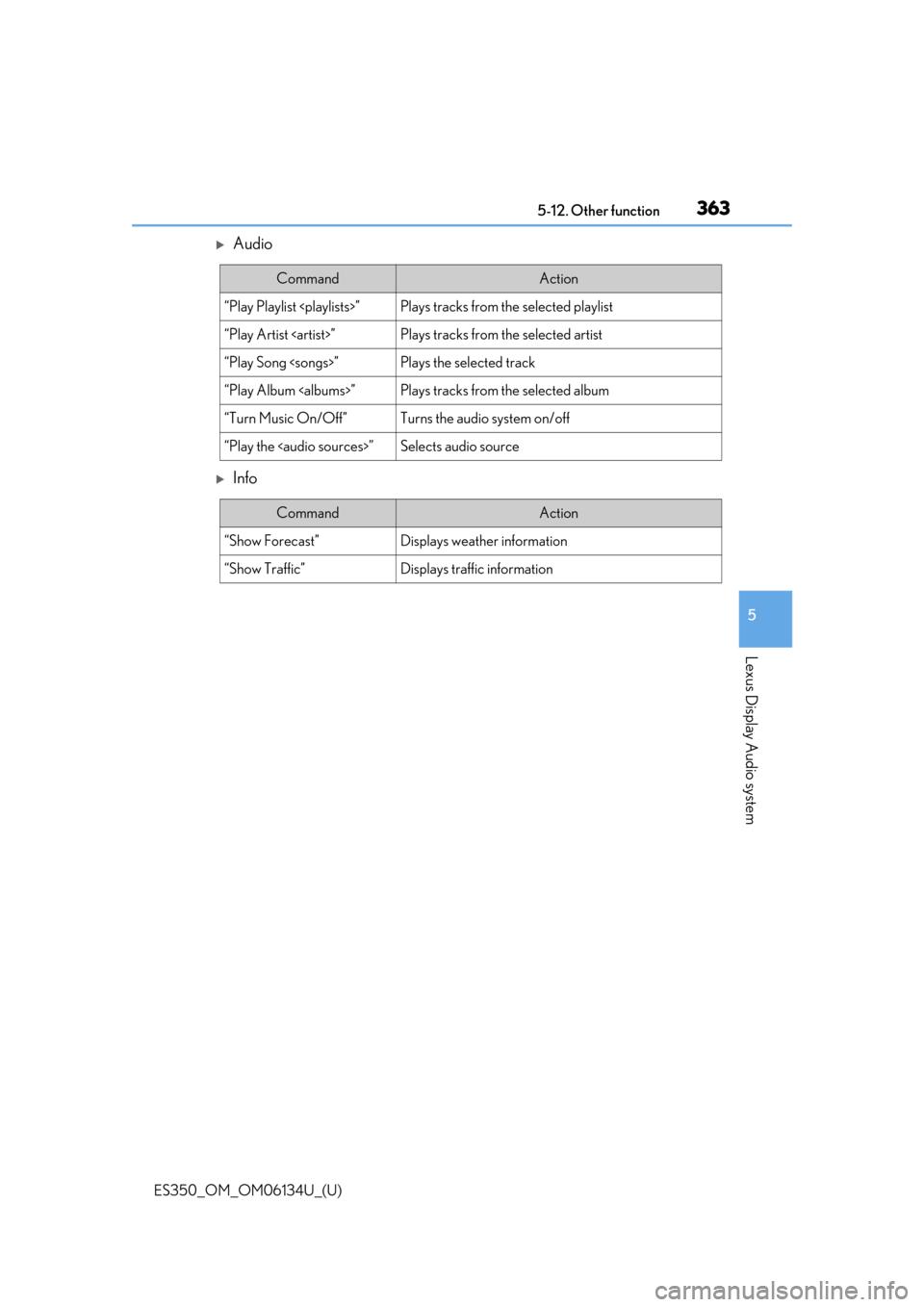

Audio
Info
CommandAction
“Play Playlist ”Plays tracks from the selected playlist
“Play Artist ”Plays tracks from the selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
“Turn Music On/Off”Turns the audio system on/off
“Play the

3645-12. Other function
ES350_OM_OM06134U_(U)

365
ES350_OM_OM06134U_(U)
6Interior features
6-1. Using the air conditioning system and defogger
Automatic air conditioning system ..........................................366
Heated steering wheel/ seat heaters/seat
ventilators ...................................375
6-2. Using the interior lights Interior lights list.......................... 377• Interior lights ..........................378
• Personal lights .......................378 6-3. Using the storage features
List of storage features ........... 380
• Glove box ................................ 381
• Console box............................ 381
• Cup holders ...........................382
• Auxiliary box ..........................383
Trunk features .............................384
6-4. Using the other interior features
Other interior features ............386 • Sun visors ................................386
• Vanity mirrors .......................386
• Clock ........................................ 387
• Power outlets......................... 387
• Armrest ................................... 388
• Rear sunshade/rear door sunshades................................389
•Trunk storage extension .................................. 391
• Coat hooks ............................. 392
• Assist grips.............................. 392
Garage door opener ............... 393
Compass ...................................... 400
LEXUS Enform Safety Connect ...................................... 404
LEXUS Enform Remote .........409
LEXUS Enform Service Connect ....................................... 410

366
ES350_OM_OM06134U_(U)6-1. Using the air conditioning system and defogger

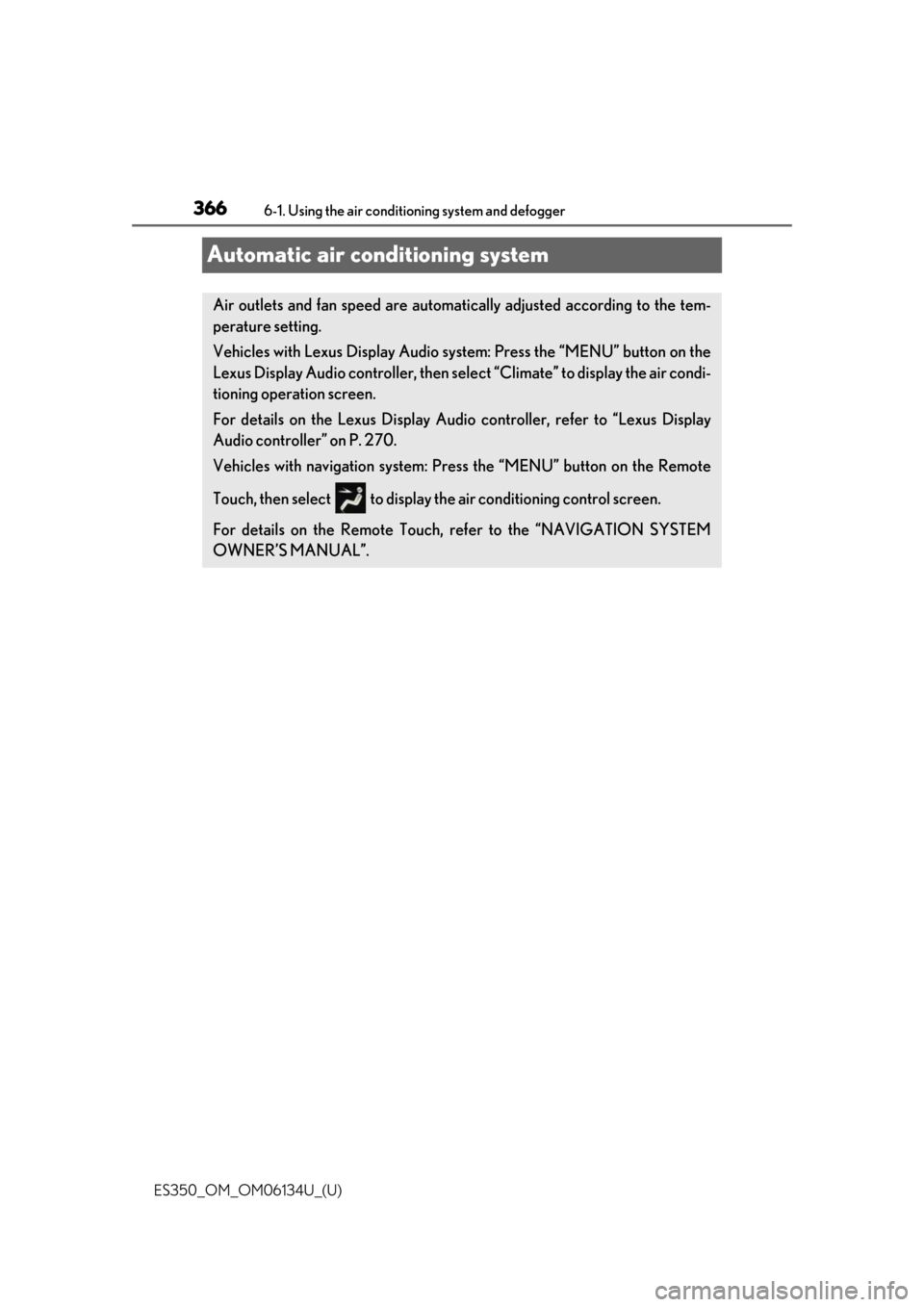

Automatic air conditioning system
Air outlets and fan speed are automati
cally adjusted according to the tem-
perature setting.
Vehicles with Lexus Display Audio system: Press the “MENU” button on the
Lexus Display Audio controller, then sele ct “Climate” to display the air condi-
tioning operation screen.
For details on the Lexus Display Audio controller, refer to “Lexus Display
Audio controller” on P. 270.
Vehicles with navigation system: Press the “MENU” button on the Remote
Touch, then select to display th e air conditioning control screen.
For details on the Remote Touch, refer to the “NAVIGATION SYSTEM
OWNER’S MANUAL”.

ES350_OM_OM06134U_(U)
3676-1. Using the air conditioning system and defogger
6
Interior features
■Adjusting the temperature setting
Press to increase the temperature and to decrease the temperature.
■Adjusting the fan speed setting
Press to increase the fan speed and to decrease the fan speed.
Press the “OFF” button to turn the fan off.
■Change the airflow mode
To change the air outlets, press .
The air outlets used are switched each time the button is pressed. Air flows to the upper body.
Air flows to the upper body and feet.
Air flows to the feet.
Air flows to the feet and the windshield defogger operates.
Control panel
Lexus Display Audio screenNavigation system screen
1
2
3
4

3686-1. Using the air conditioning system and defogger
ES350_OM_OM06134U_(U)
Lexus Display Audio screen
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select to set auto mode on/off
Select to set cooling and dehumidifi-
cation function on/off
Adjust the temperature for driver
and passenger seats separately
(“DUAL” mode) ( →P. 370)
Display the option control screen ( →P. 369)
Select the air flow mode
Adjust the right-hand side temperature setting
Navigation system screen
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select the air flow mode
Adjust the right-hand side tempera-
ture setting
Display the option control screen
(→ P. 369)
Select to set automatic mode on/off
Select to set cooling and dehumidification function on/off
Adjust the temperature for driver an d passenger seats separately (“DUAL”
mode) (→ P. 370)
Control screen
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8

ES350_OM_OM06134U_(U)
3696-1. Using the air conditioning system and defogger
6
Interior features
■Option control screen
Select on the air conditioning control screen to display the option
control screen. The functions can be switched on and off.
Prevent ice from building up on the windshield and wiper blades (if
equipped) ( →P. 371)
Remove pollen from the air (micro dust and pollen filter) ( →P. 371)
■Using the automatic mode
Press the “AUTO” button.
Adjust the temperature setting.
To stop the operation, press the “OFF” button.
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the automatic mode
indicator goes off. However, automati c mode for functions other than that
operated is maintained.
Lexus Display Audio screenNavigation system screen
Air conditioning controls
1
2
1
2
3

3706-1. Using the air conditioning system and defogger
ES350_OM_OM06134U_(U)
■Adjusting the temperature for driv er and passenger seats separately
(“DUAL” mode)
To turn on the “DUAL” mode, perfor m any of the following procedures:
●Press the “DUAL” button.
●Select “DUAL” on the option control screen.
●Adjust the passenger’s side temperature setting.
The indicator comes on when the “DUAL” mode is on.
■Switching between outside air and recirculated air modes
Press .
The mode switches among (recirculated air mode), automatic and
(outside air mode) modes each time the button is pressed.
When the system is switched to automatic mode, the air conditioning system oper-
ates automatically.
■Defogging the windshield
Defoggers are used to defog the wi ndshield and front side windows.
Press .
Set to outside air mode if the reci rculated air mode is used. (It may
switch automatically.)
To defog the windshield and the side wind ows early, turn the air flow and tempera-
ture up.
To return to the previous mode, press again when the windshield is
defogged.
■Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window and to remove raindrops, dew
and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
Other functions
