ES350_OM_OM06134U_(U)2. Instrument cluster
Warning lights and indicators
The units used on the speedometer and some indicators may differ depending on the
target region or grade/type.
The warning lights and indicators on th
e instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all warning
lights and indicators illuminated.

ES350_OM_OM06134U_(U)
732. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehicle’s sys-
tems.
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to indicate that a system check is being performed. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if a light does not
come on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes or illuminate s to indicate a malfunction.
*3: The light flashes to indicate a malfunction.
Warning lights
*1
(U.S.A.)
Brake system warning light
(→ P. 482)*1Electric power steering
system warning light
(→ P. 483)
*1
(Canada)
Brake system warning light
(→ P. 482)*1Slip indicator light
(→ P. 483)
*1
(U.S.A.)
Malfunction indicator lamp
(→ P. 482)Low fuel level warning light
(→ P. 483)
*1
(Canada)
Malfunction indicator lamp
(→ P. 482)Seat belt reminder light
(→ P. 483)
*1SRS warning light
(→ P. 482)*1Master warning light
(→ P. 483)
*1
(U.S.A.)
ABS warning light
(→ P. 482)*1Tire pressure warning light
(→ P. 484)
*1
(Canada)
ABS warning light
(→ P. 482)
*1, 3
(if equipped)
“AFS OFF” indicator
(→ P. 484)
*1, 2
(if equipped)
PCS warning light
(→ P. 483)

74
ES350_OM_OM06134U_(U)2. Instrument cluster
The indicators inform the driver of the op
erating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator
( → P. 163)
(if equipped)
Intuitive parking assist
indicator ( →P. 222)
(U.S.A.)
Headlight indicator
(→ P. 165)*1, 2Slip indicator light
(→ P. 258)
(Canada)
Tail light indicator
(→ P. 165) *1VSC OFF indicator
(→ P. 259)
Headlight high beam
indicator ( →P. 166)
*1, 3
(if equipped)
PCS warning light
(→ P. 190)
(if equipped)
Automatic High Beam
indicator ( →P. 168) *4, 5
(if equipped)
BSM outside rear view
mirror indicators
(→ P. 249)
Fog light indicator
( → P. 172)
*1, 6
“AIR BAG ON/OFF”
indicator ( →P. 44)
*1Eco Driving Indicator
Light ( →P. 84)
Cruise control indicator
( → P. 215, 219)
(U.S.A.)
Parking brake indicator
(→ P. 164)
(if equipped)
Radar cruise control
indicator ( →P. 207)
(Canada)
Parking brake indicator
(→ P. 164)
Cruise control “SET”
indicator ( →P. 219)
*7Low outside temperature
indicator ( →P. 76)
(if equipped)
LDA indicator ( →P. 198)

ES350_OM_OM06134U_(U)
752. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being performed. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if a light does not
come on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illuminate
in the following situations:
• When the engine switch is turned to IGNITION ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the engine switch is in IGNITION
ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system. If this occurs, have the vehicle inspected
by your Lexus dealer.
*5: This light illuminates on the outside rear view mirrors.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 37 °F (3 °C) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
WARNING
■If a safety system warnin g light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when
you start the engine, this could mean that these systems are not available to help pro-
tect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by your Lexus dealer immediately if this occurs.

76
ES350_OM_OM06134U_(U)2. Instrument cluster

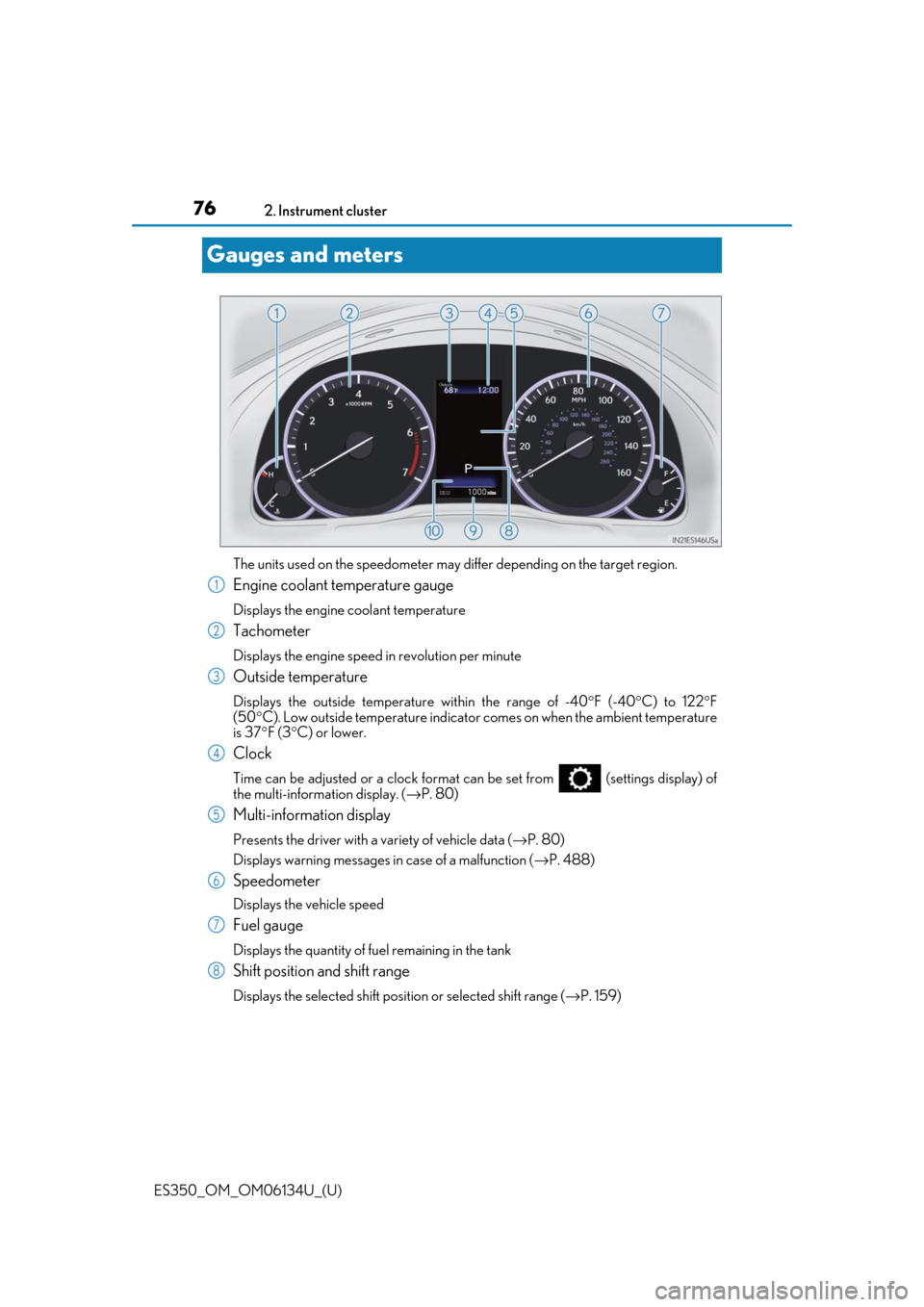

Gauges and meters
The units used on the speedometer may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolution per minute
Outside temperature
Displays the outside temperature within the range of -40
°F (-40 °C) to 122 °F
(50 °C). Low outside temperature indicator comes on when the ambient temperature
is 37 °F (3 °C) or lower.
Clock
Time can be adjusted or a clock format can be set from (settings display) of
the multi-information display. ( →P. 80)
Multi-information display
Presents the driver with a variety of vehicle data ( →P. 80)
Displays warning me ssages in case of a malfunction ( →P. 488)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift posi tion or selected shift range (→P. 159)
1
2
3
4
5
6
7
8

ES350_OM_OM06134U_(U)
772. Instrument cluster
2
Instrument cluster
Odometer, trip meter and maintenance required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information: • Displays the maintenance required information when the engine switch is in IGNITION ON mode.
• It can be reset from (settings display) of the multi-information display. (→ P. 80)
Background color of drive mode
Background color changes according to the drive mode. ( →P. 247)
•Sport mode: Red
• Eco drive mode: Blue
When in Normal mode, the background color is Black.
Switches between odometer, trip meter
and maintenance required information
displays. When the trip meter is dis-
played, pressing and holding the button
will reset the trip meter.
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter

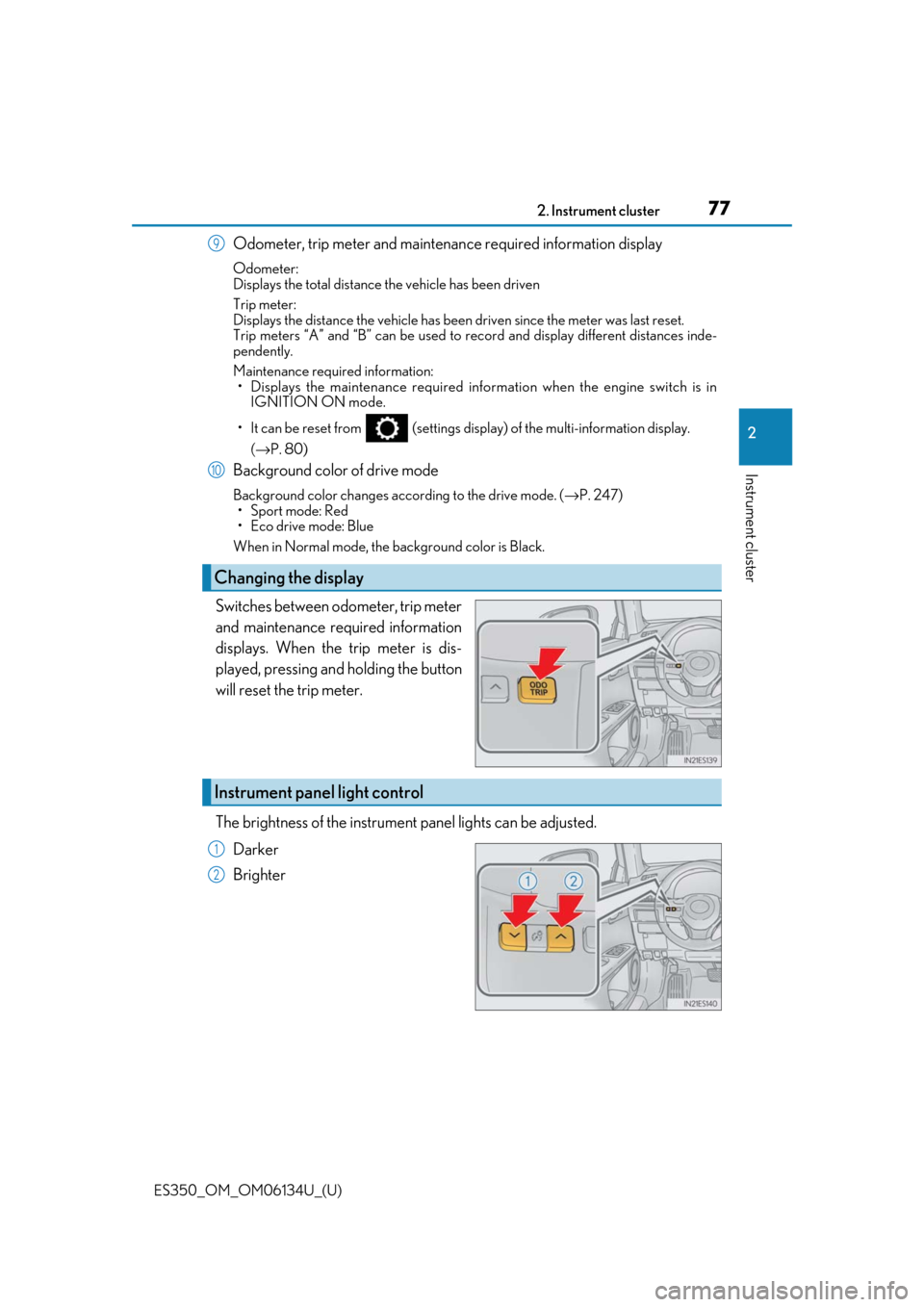

Changing the display
9
10
Instrument panel light control
1
2

78
ES350_OM_OM06134U_(U)2. Instrument cluster
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually. However, when the
surroundings are bright (daytime, etc.), turning on the tail
lights will not change the inst rument panel brightness. At th is time, any adjustments made
to the instrument panel brightness levels will be applied to both settings at once.
■Limitation of brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based on the light
sensor detecting how bright the surroundings are. However, if the instrument panel
brightness has been manually set to either the brightest or darkest setting, the automatic
adjustment will not be performed.
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
• When the vehicle is parked in direct sunlight
●When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.
■Pop-up display
In some situations, a pop-up display will be temporarily displayed on the multi-informa-
tion display or the odometer/trip meter/maintenance required information screen.
The pop-up display function can be set on/off. ( →P. 539)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
The meter display can be customized on the multi-information display.
(Customizable features →P. 538)
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in personal
death or injury.

ES350_OM_OM06134U_(U)
792. Instrument cluster
2
Instrument cluster
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H); or “Engine Coolant Temp High” is shown on the multi-information display.
In this case, immediately stop the vehicle in a safe place, and check the engine after it
has cooled completely. ( →P. 510)

80
ES350_OM_OM06134U_(U)2. Instrument cluster

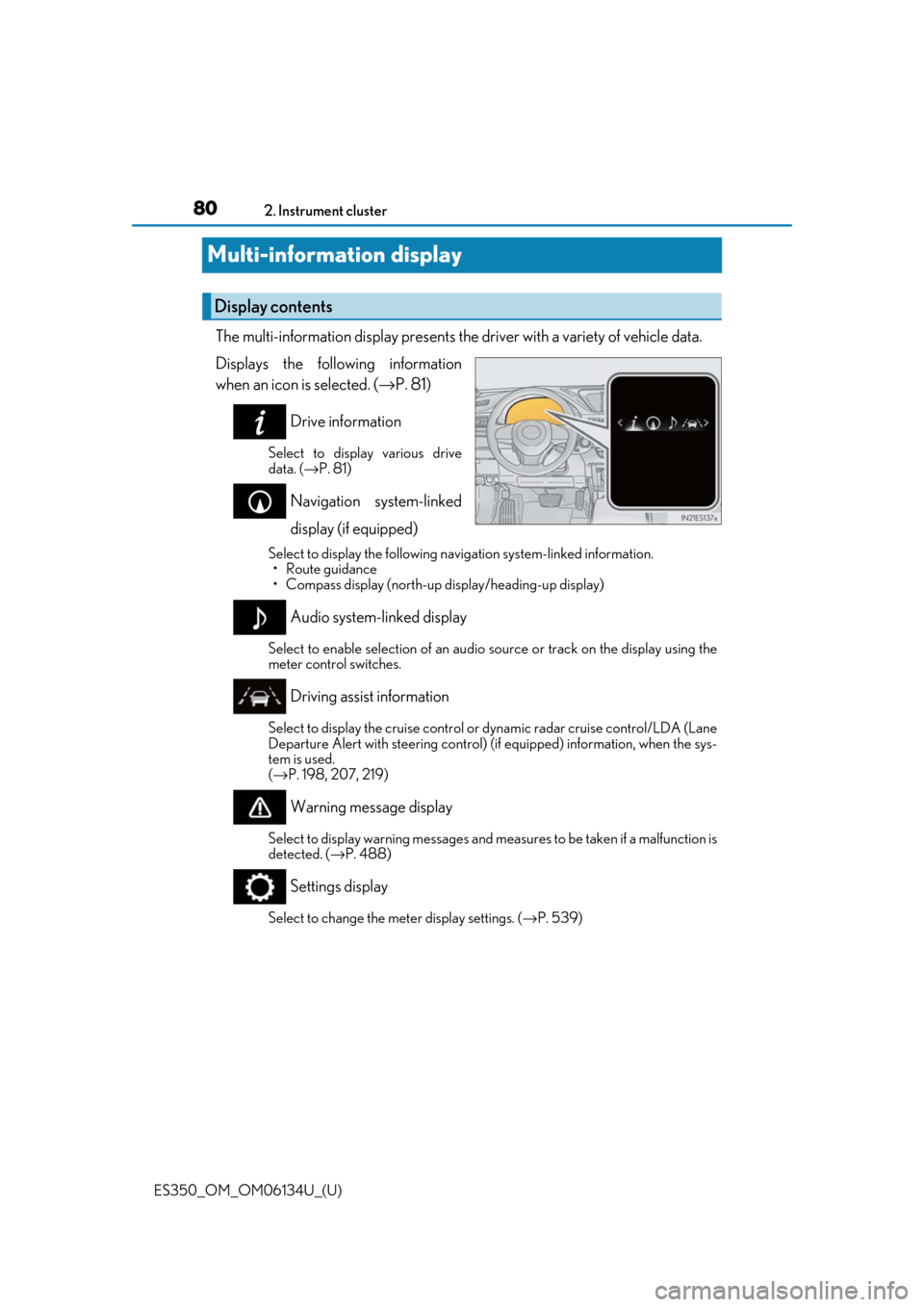

Multi-information display
The multi-information display presents the
driver with a variety of vehicle data.
Displays the following information
when an icon is selected. ( →P. 81)
Drive information
Select to display various drive
data. ( →P. 81)
Navigation system-linked
display (if equipped)
Select to display the following na vigation system-linked information.
•Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the display using the
meter control switches.
Driving assist information
Select to display the cruise control or dynamic radar cruise control/LDA (Lane
Departure Alert with steering control) (if equipped) information, when the sys-
tem is used.
( → P. 198, 207, 219)
Warning message display
Select to display warning messages and measures to be taken if a malfunction is
detected. ( →P. 488)
Settings display
Select to change the meter display settings. ( →P. 539)
Display contents
