high beam Lexus ES350 2019 Owner's Mannual / LEXUS 2019 ES350 OWNER'S MANUAL QUICK GUIDE (OM06132U)

1
ES350_QG_OM06132U_(U)
Air Conditioning System*
Control panel .................................................................................................................................. 62
Main control screen............................................................................................................ ..........63
Option control screen .......................................................................................................... ....... 64
Side display................................................................................................................... ....................65
Using automatic mode ........................................................................................................... .....65
Audio System
*
Audio control screen ........................................................................................................... ........54
Selecting an audio source ...................................................................................................... ....54
Steering switch operation ...................................................................................................... ....55
Radio ................................................................................................................................................... 57
CD....................................................................................................................................................... 58
DVD ....................................................................................................................................................59
iPod/iPhone .................................................................................................................... .................60
Automatic High Beam........................................................................................................... 3 3
Automatic Transmission ......................................................................................................... 19
Brake Hold ..................................................................................................................... ............25
Door Locks ..................................................................................................................... .......... 84
Engine (Ignition) Switch ....................................................................................................... ... 16
Floor Mat Installation ......................................................................................................... ...... 11
Front Seats .................................................................................................................... ..............15
Fuel Consumption Screen ...................................................................................................44
Garage Door Opener............................................................................................................ 7 5
Hands-free System For Cellular Phone
*
Registering/connecting Bluetooth® device ..................................................................... 50
Contacts transfer .............................................................................................................. .............. 51
Registering the contacts in the favorites list .... ...................................................................52
Calling by favorites list ...................................................................................................... ...........52
Calling the message sender..................................................................................................... .52
Receiving a call ............................................................................................................... ................53
Steering switches .............................................................................................................. .............53

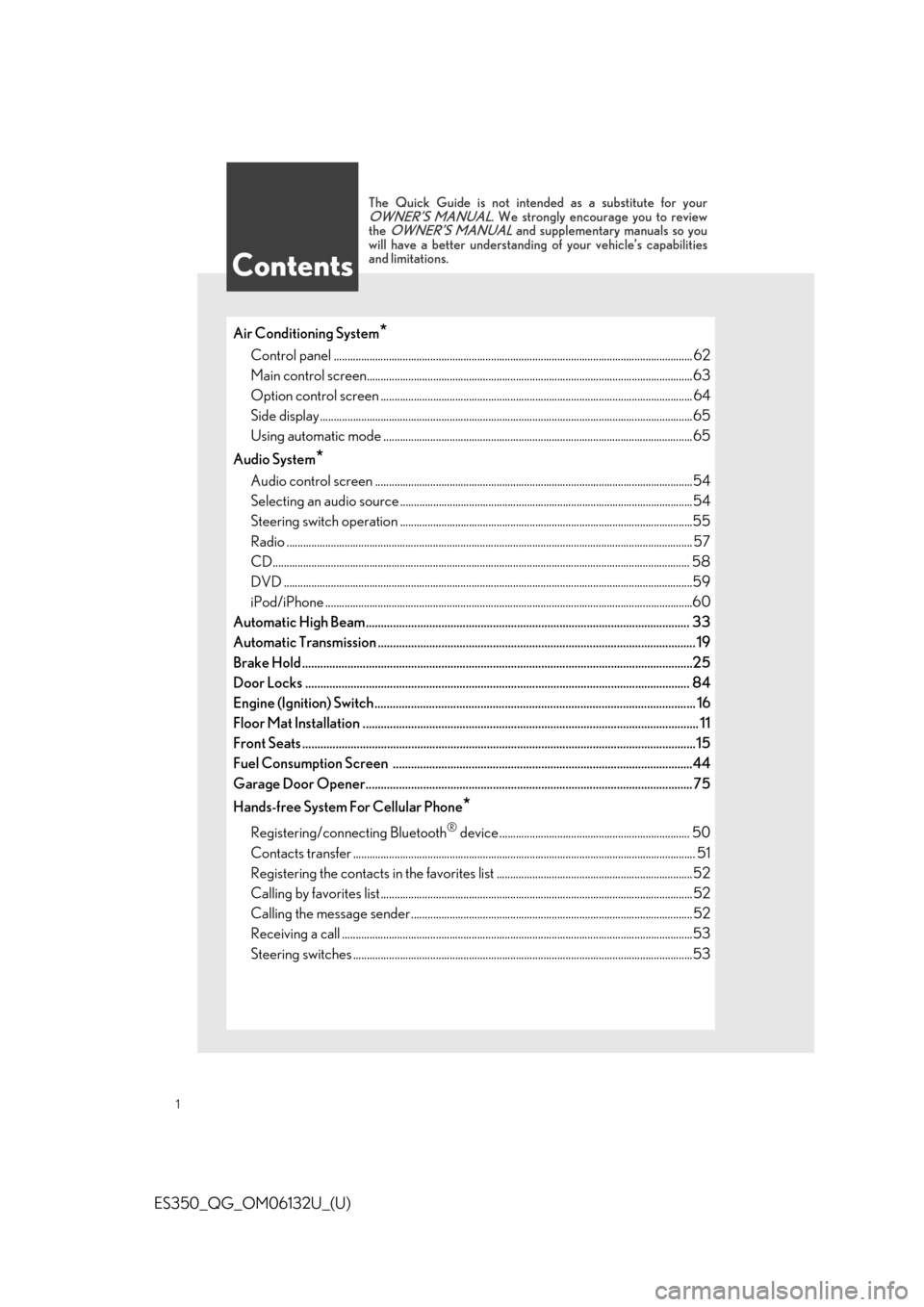

Contents
The Quick Guide is not intended as a substitute for yourOWNER’S MANUAL. We strongly encourage you to review
the OWNER’S MANUAL and supplementary manuals so you
will have a better understandin g of your vehicle’s capabilities
and limitations.

4
ES350_QG_OM06132U_(U)
Parking brake switch ............................................................................................... P.23
Applying/releasing..............................................................................................................P.23
Precautions against winter season
*1
Warning buzzer/message*1
Turn signal lever ........................................................................................................ P.22
Headlight switch ....................................................................................................... P.32
Headlights/parking lights/tai l lights/daytime running lights .............................P.32
Automatic High Beam .......................................................................................................P.33
Windshield wiper and washer switch ................................................................. P.35
Usage .......................................................................................................................... ..............P.35
Adding washer fluid
*1
Warning messages*1
Emergency flasher switch*1
Hood lock release lever*1
Tilt and telescopic steering control switch/tilt and telescopic steering lock
release lever
*1
Adjustment*1
Driving position memory*1, 2
Air conditioning system .......................................................................................... P.62
Usage .......................................................................................................................... ..............P.63
Rear window defogger ...................................................................................................... P.62
Audio system.............................................................................................................. P.54
Trunk opener main switch
*1
*1: Refer to the “OWNER’S MANUAL”.
*2: If equipped
E
F
G
H
I
J
K
L
M

32
ES350_QG_OM06132U_(U)
U.S.A.
Canada
1 The side marker, parking, tail,
license plate and instrument panel
lights, and daytime running lights turn
on.
2 The headlights an d all the lights
listed above (except daytime running
lights) turn on.
3 The headlights, daytime running
lights and all the lig hts listed above turn
on and off automatically.
4 (U.S.A.) Off
(Canada) The daytime running
lights turn on.
1With the headlights on, push the lever
away from you to turn on the high
beams.
Pull the lever toward you to the center
position to turn the high beams off.
2Pull the lever toward you and release it
to flash the high beams once.
You can flash the high beams with the
headlights on or off.
Headlights
A
B
Turning on the high beam headlights

33
ES350_QG_OM06132U_(U)
1Press the Automatic High Beam
switch.
2Push the lever away from you with the
headlight switch in the or
position.
The Automatic High Beam indicator
will come on when the headlights are
turned on automatically to indicate that
the system is active.
Automatic High Beam
The Automatic High Beam uses an in-vehicle camera sensor to assess the brightness of
streetlights, the lights of vehicle ahead, etc., and automatically turns the high beam on or
off as necessary.
Activating the Automatic High Beam system

34
ES350_QG_OM06132U_(U)
■Switching to low beam
Pull the lever to the original position.
The Automatic High Beam indicator will
turn off.
Push the lever away from you to activate the
Automatic High Beam system again.
■Switching to high beam
Press the Automatic High Beam switch.
The Automatic High Beam indicator will
turn off and the high beam indicator will
turn on.
Press the switch to activate the Automatic
High Beam system again.
Turning the high beam on/off manually

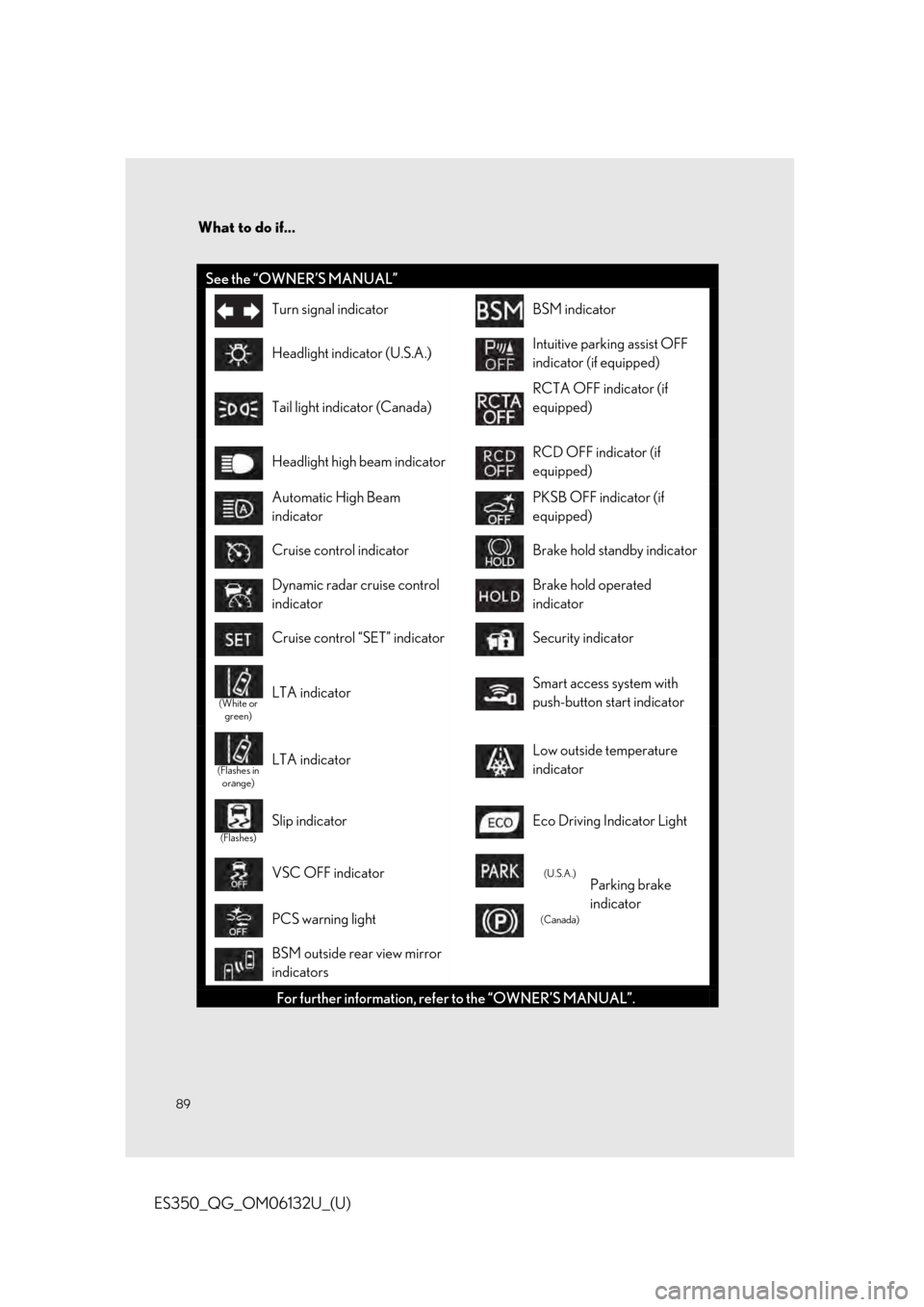

What to do if...
89
ES350_QG_OM06132U_(U)
See the “OWNER’S MANUAL”
Turn signal indicatorBSM indicator
Headlight indicator (U.S.A.)Intuitive parking assist OFF
indicator (if equipped)
Tail light indicator (Canada)
RCTA OFF indicator (if
equipped)
Headlight high beam indicatorRCD OFF indicator (if
equipped)
Automatic High Beam
indicatorPKSB OFF indicator (if
equipped)
Cruise control indicatorBrake hold standby indicator
Dynamic radar cruise control
indicatorBrake hold operated
indicator
Cruise control “SET” indicatorSecurity indicator
(White or green)LTA indicatorSmart access system with
push-button start indicator
(Flashes in orange)LTA indicatorLow outside temperature
indicator
(Flashes)
Slip indicatorEco Driving Indicator Light
VSC OFF indicator(U.S.A.)Parking brake
indicator
PCS warning light(Canada)
BSM outside rear view mirror
indicators
For further information, refe r to the “OWNER’S MANUAL”.
