initialize Lexus ES350 2020 / LEXUS 2020 ES350 FROM OCT. 2019 PROD. (OM06194U) User Guide

385
8
8
Vehicle specifications
Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .............................................. 386
Fuel information ......................... 393
Tire information.......................... 395
8-2. Customization Customizable features............ 404
8-3. Items to initialize Items to initialize ......................... 415

4158-3. Items to initialize
8
Vehicle specifications
8-3.Items to initialize

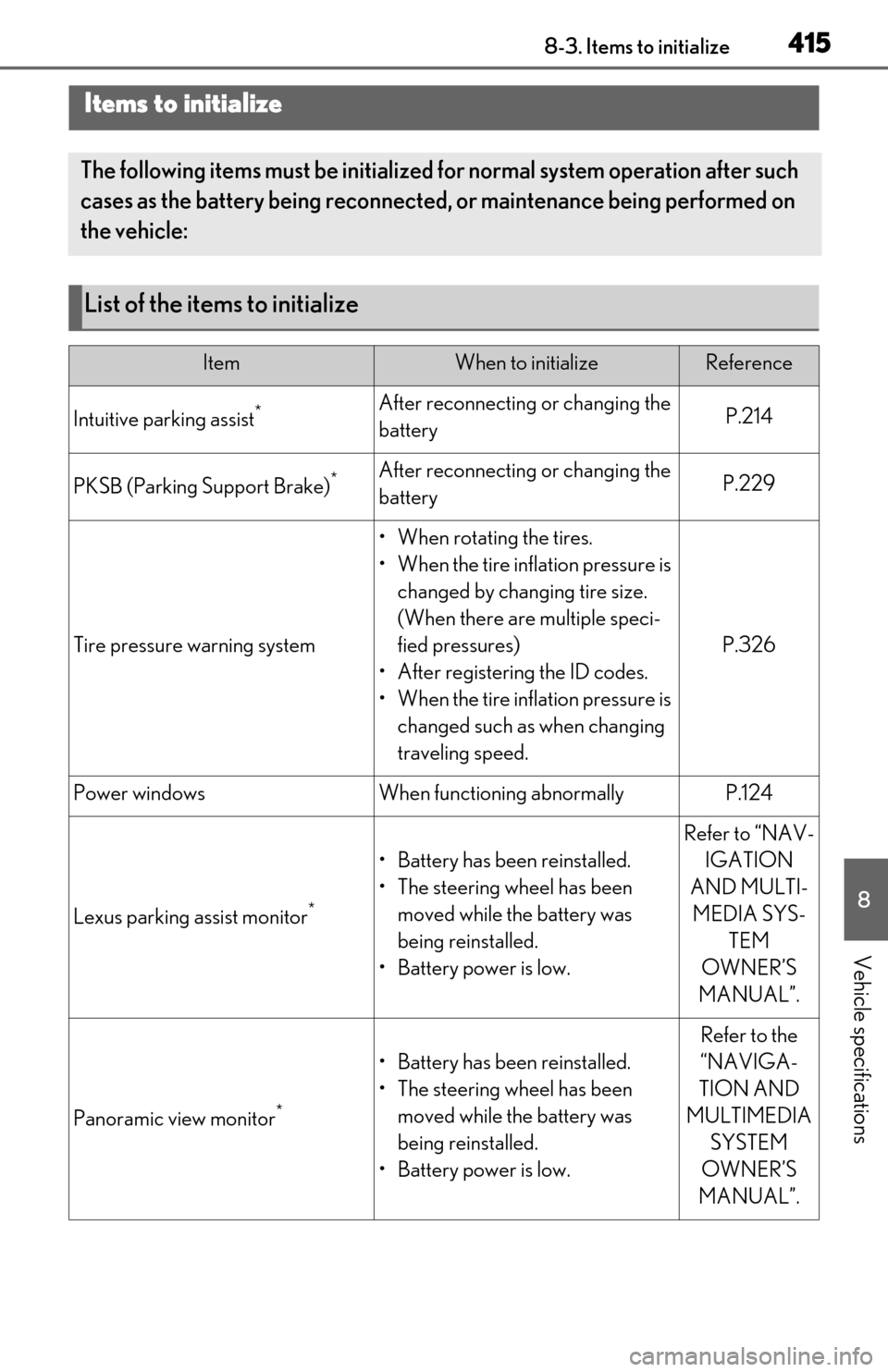

Items to initialize
The following items must be initialized for normal system operation after such
cases as the battery being reconnected, or maintenance being performed on
the vehicle:
List of the items to initialize
ItemWhen to initializeReference
Intuitive parking assist*After reconnecting or changing the
batteryP.214
PKSB (Parking Support Brake)*After reconnecting or changing the
batteryP.229
Tire pressure warning system
• When rotating the tires.
• When the tire inflation pressure is changed by changing tire size.
(When there are multiple speci-
fied pressures)
• After registering the ID codes.
• When the tire inflation pressure is changed such as when changing
traveling speed.
P.326
Power windowsWhen functioning abnormallyP.124
Lexus parking assist monitor*
•Battery has be en reinstalled.
• The steering wheel has been moved while the battery was
being reinstalled.
• Battery power is low.
Refer to “NAV- IGATION
AND MULTI- MEDIA SYS- TEM
OWNER’S
MANUAL”.
Panoramic view monitor*
•Battery has be en reinstalled.
• The steering wheel has been moved while the battery was
being reinstalled.
• Battery power is low.
Refer to the
“NAVIGA-
TION AND
MULTIMEDIA SYSTEM
OWNER’S
MANUAL”.

4168-3. Items to initialize
*:If equipped

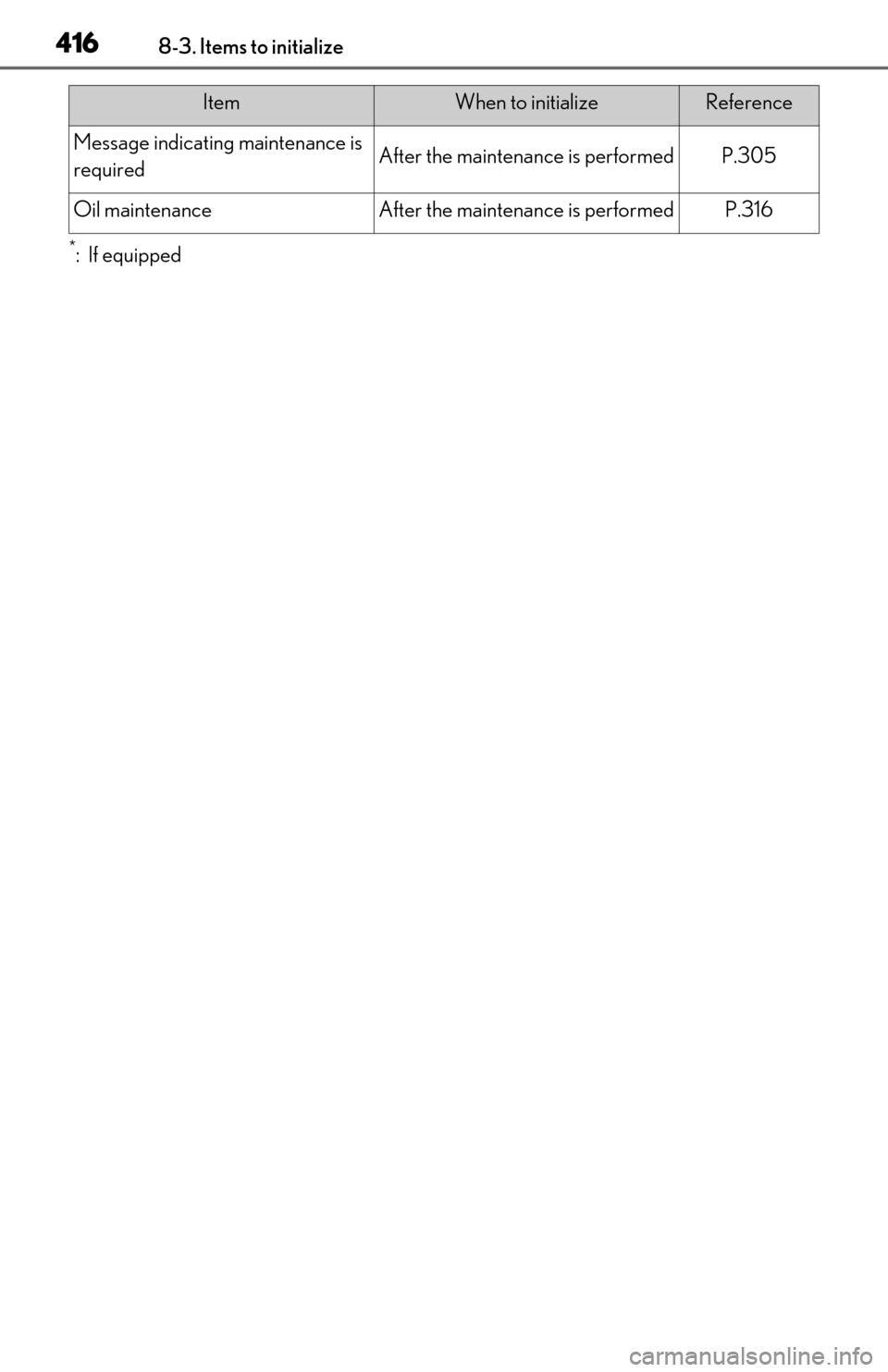

Message indicating maintenance is
requiredAfter the maintenance is performedP.305
Oil maintenanceAfter the maintenance is performedP.316
ItemWhen to initializeReference

437Alphabetical index
G
Garage door opener ................................. 289
Gauges ....................................................... 70, 73
Gear Position.....................................................81
G-force.................................................................81
Glove box ........................................................274
Glove box light ..............................................274
Grocery bag hooks .....................................276
H
Hands Free Power Trunk Lid ...................102
Headlights ........................................................156Adaptive Front-lighting System (AFS).......................................................................... 158
Automatic High Beam system............. 159
Light switch .................................................... 156
Replacing light bulbs................................ 339
Headlights aim .............................................. 338
Head restraints ................................................ 117
Head-up display.............................................. 84 Driving information display area........... 84
Driving support system display area .. 86
Eco Driving Indicator ................................. 87
HUD (Head-up display) switch............85
Navigation system-linked display ........ 84
Pop-up display............................................... 86
Settings .............................................................. 85
Heated steering wheel .............................. 266
Heaters Air conditioning system.......................... 259
Heated steering wheel............................ 266
Outside rear view mirrors ....................260
Seat heaters .................................................. 266
High mounted stoplight Replacing light bulbs................................ 339
Hill-start assist control ............................... 244
Hood ...................................................................312 Open ................................................................. 312
Hooks Cargo hooks................................................ 276
Coat hooks ...................................................288 Grocery bag hooks.................................. 276
Retaining hooks (floor mat) ..................... 22
Horn ....................................................................120
HUD (Head-up display) switch ................ 85
I
I/M test ............................................................ 309
Identification Engine..............................................................387
Vehicle ........................................................... 386
Ignition switch (engine switch).................143 Auto power off function........................... 146
Changing the engine switch modes . 146
If your vehicle has to be stopped in an emergency ................................................. 344
Starting the engine ......................................143
Immobilizer system.......................................... 61
Indicators ........................................................... 68
Initialization Items to initialize .......................................... 415
Maintenance......................................305, 316
Power windows ............................................124
Tire pressure warning system .............326
Inside rear view mirror ................................120
Instrument panel light control ............72, 76
Interior lights.................................................. 270
Intuitive parking assist......................... 210, 211 Function ............................................................. 211
Warning message .......................................214
J
JackPositioning a floor jack ..............................312
Vehicle-equipped jack ........................... 367
Jack handle .................................................... 367
Jam protection function Electronic roof sunshade ........................ 130
Moon roof ....................................................... 127
Panoramic moon roof .............................. 130
Power trunk opener and closer .......... 103
Power windows ............................................124
