Lexus GS F 2015 Owner's Manuals

141
2
2. Instrument cluster
Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)

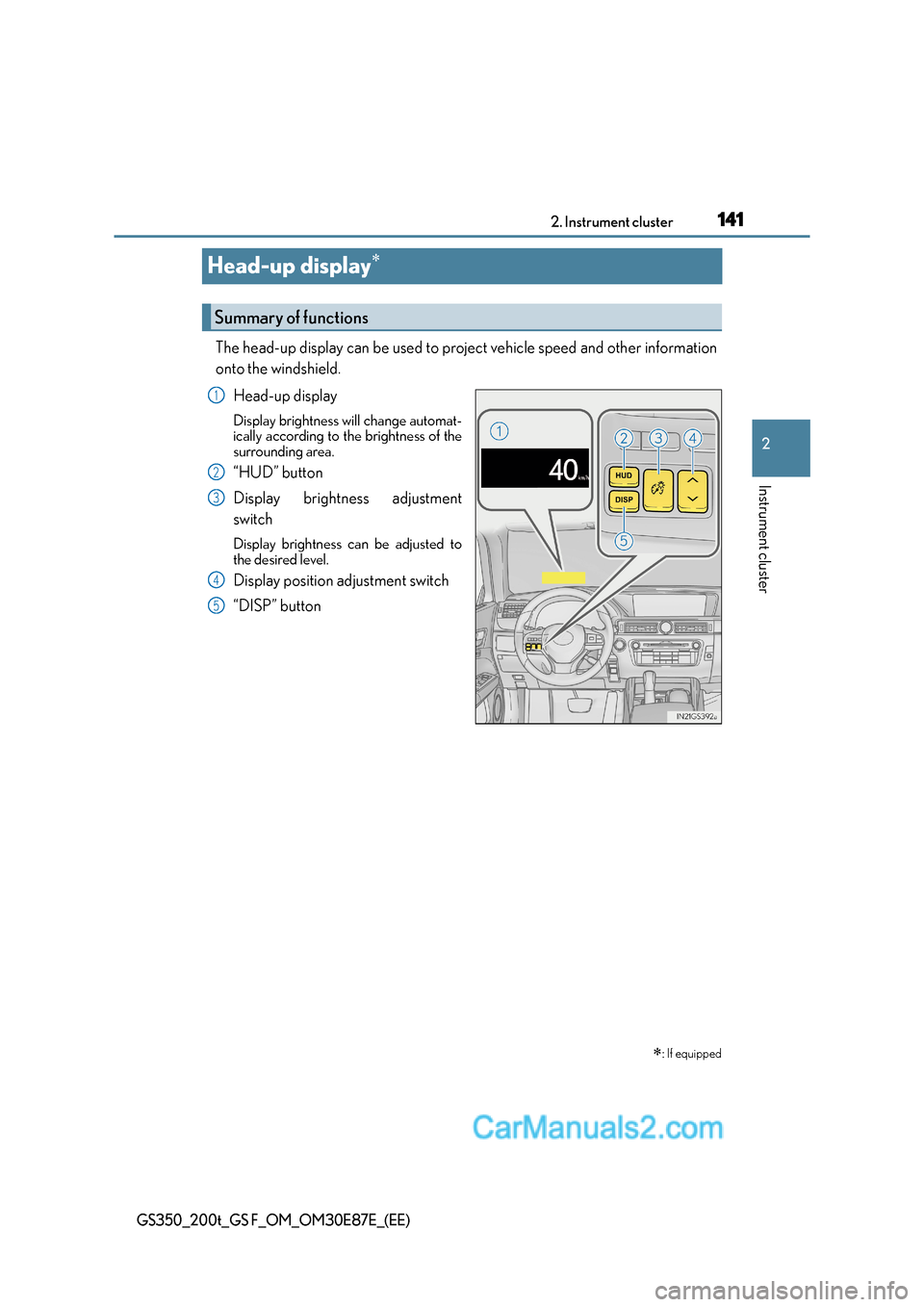

Head-up display∗
The head-up display can be used to project vehicle speed and other information
onto the windshield.
Head-up display
Display brightness will change automat-
ically according to the brightness of the
surrounding area.
“HUD” button
Display brightness adjustment
switch
Display brightness can be adjusted to
the desired level.
Display position adjustment switch
“DISP” button
∗: If equipped
Summary of functions
1
2
3
4
5

1422. Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)
●Vehicle speed
●Tachometer
●Shift position and shift range
Displays the selected shift position or selected shift range ( →P. 2 4 5 )
●Eco Driving Indicator (GS350/GS200t) ( →P. 1 4 5 )
●Road signs recognized by the RSA (Road Sign Assist)
(if equipped) ( →P. 3 2 4 )
●Head-up rev indicator (GS F) ( →P. 1 4 5 )
●Audio display*
Displays audio information for approximately 3 seconds when the audio system is
operated
●Route guidance display (vehicles with navigation system) ( →P. 1 4 6 )
When approaching an intersection while the navigation system is giving route guid-
ance, an arrow will automatically be displayed to indicate the direction of travel.
●Lane departure warning display (L DA [Lane Departure Alert with
steering control], LKA [Lane-Keeping Assist]) (if equipped) ( →P. 5 1 9 )
●Approach warning display (dynamic radar cruise control, dynamic
radar cruise control with full-speed range) (if equipped) ( →P. 5 1 9 )
●Pre-crash warning message (PCS [Pre-Crash Safety system])
(if equipped) ( →P. 5 1 9 )
*: The default setting is off

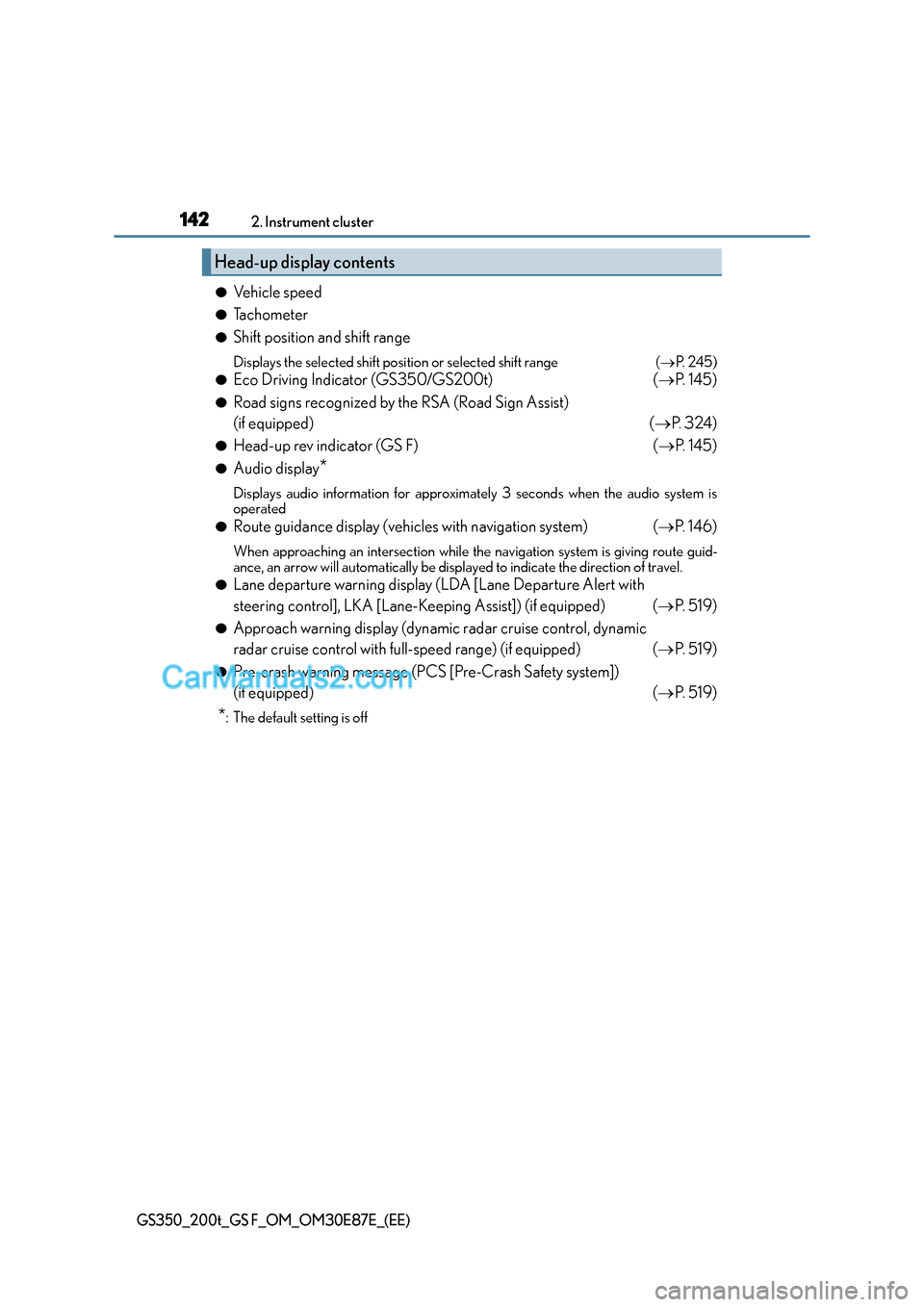

Head-up display contents

1432. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)
■“HUD” button
Pressing the switch turns the head-
up display on/off and changes the
vehicle speed display units as fol-
lows:
XTy p e A
OFF → ON (km/h) → OFF
XTy p e B
OFF → ON (mph) →
ON (km/h) → OFF
■“DISP” button
Pressing the button changes the display items (except vehicle speed).

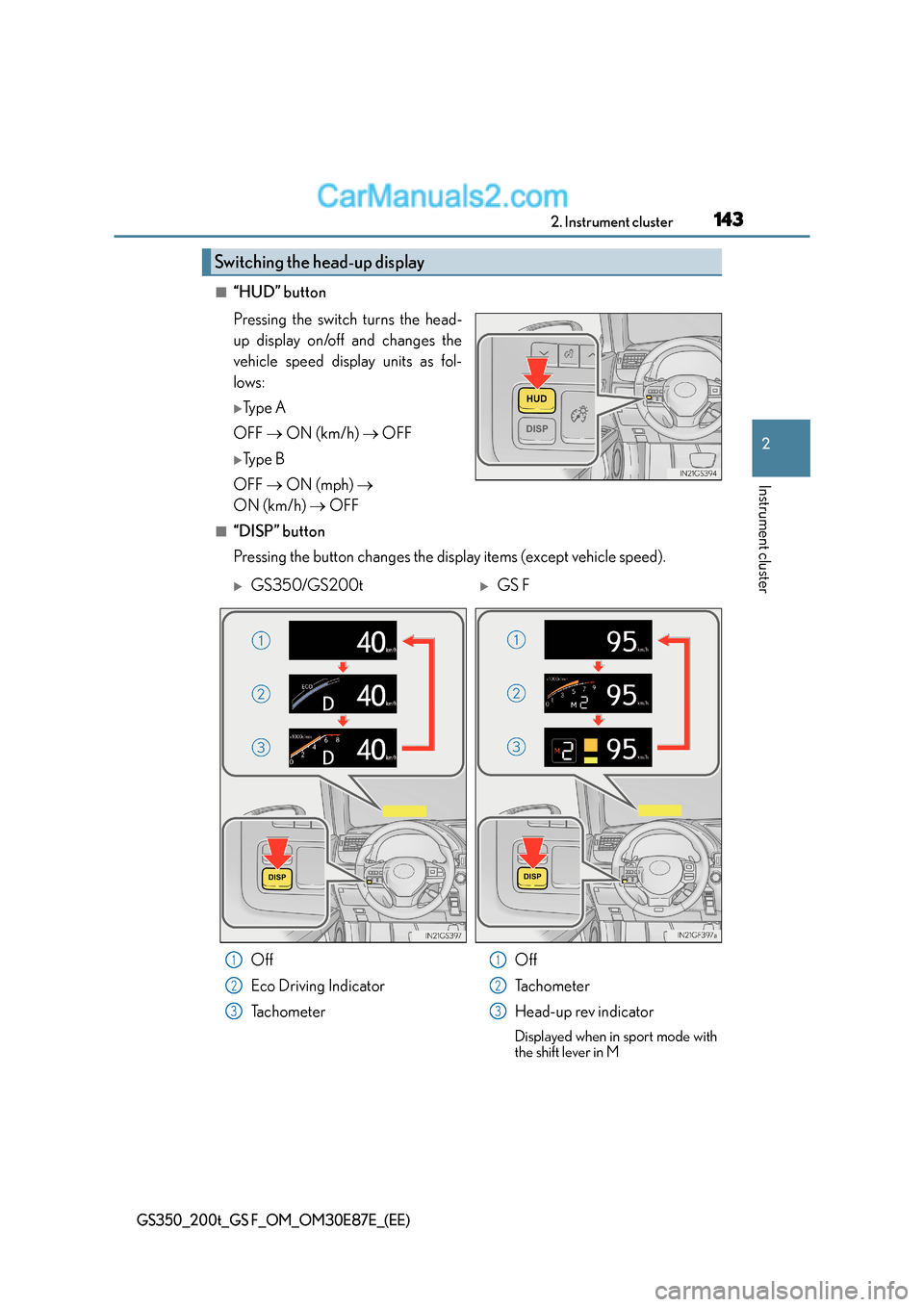

Switching the head-up display
XGS350/GS200tXGS F
Off
Eco Driving Indicator
Tachometer Off
Tachometer
Head-up rev indicator
Displayed when in sport mode with
the shift lever in M
1
2
3
1
2
3

1442. Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)

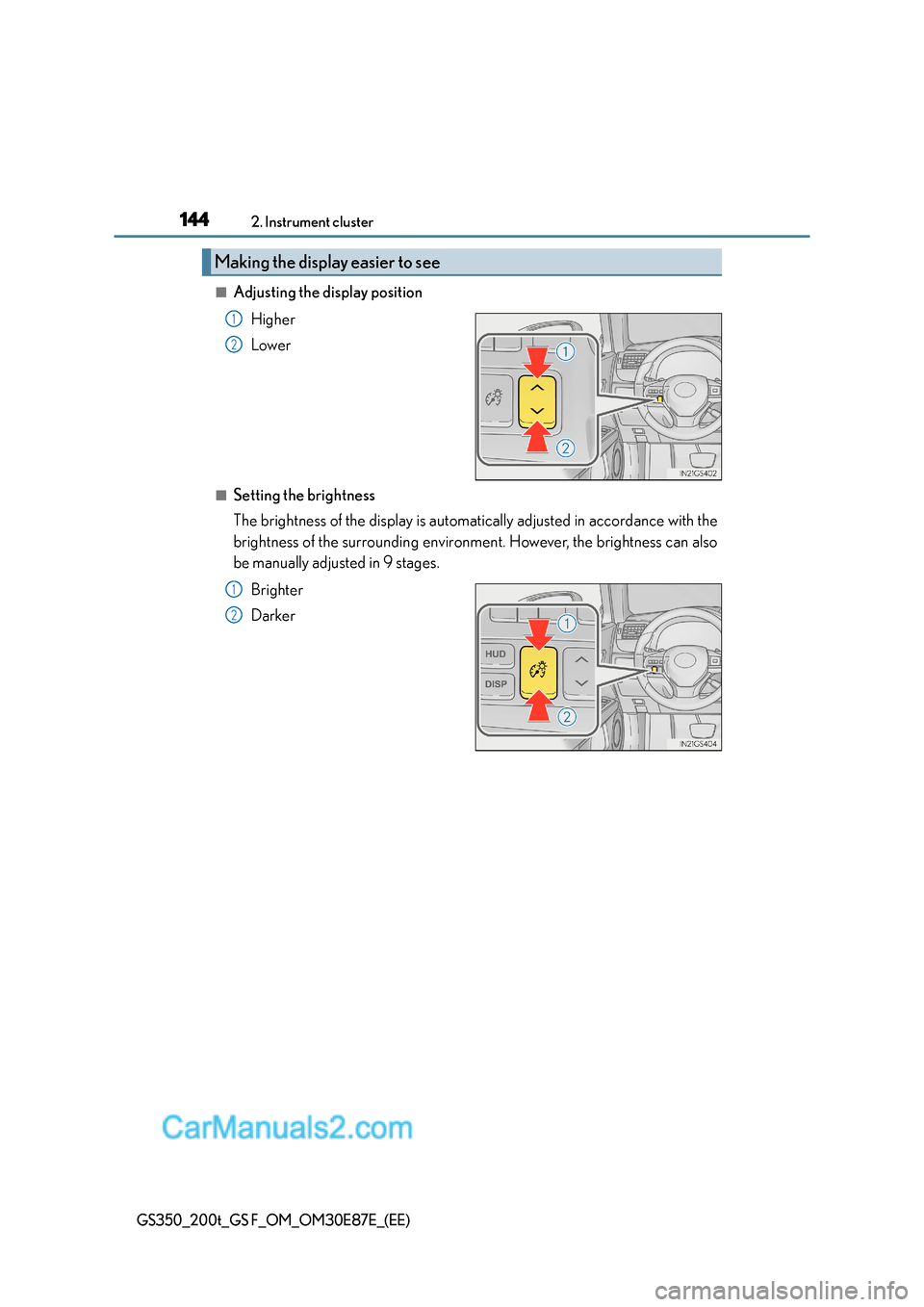

■Adjusting the display positionHigher
Lower
■Setting the brightness
The brightness of the display is automatically adjusted in accordance with the
brightness of the surrounding environmen t. However, the brightness can also
be manually adjusted in 9 stages.
Brighter
Darker
Making the display easier to see
1
2
1
2

1452. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)

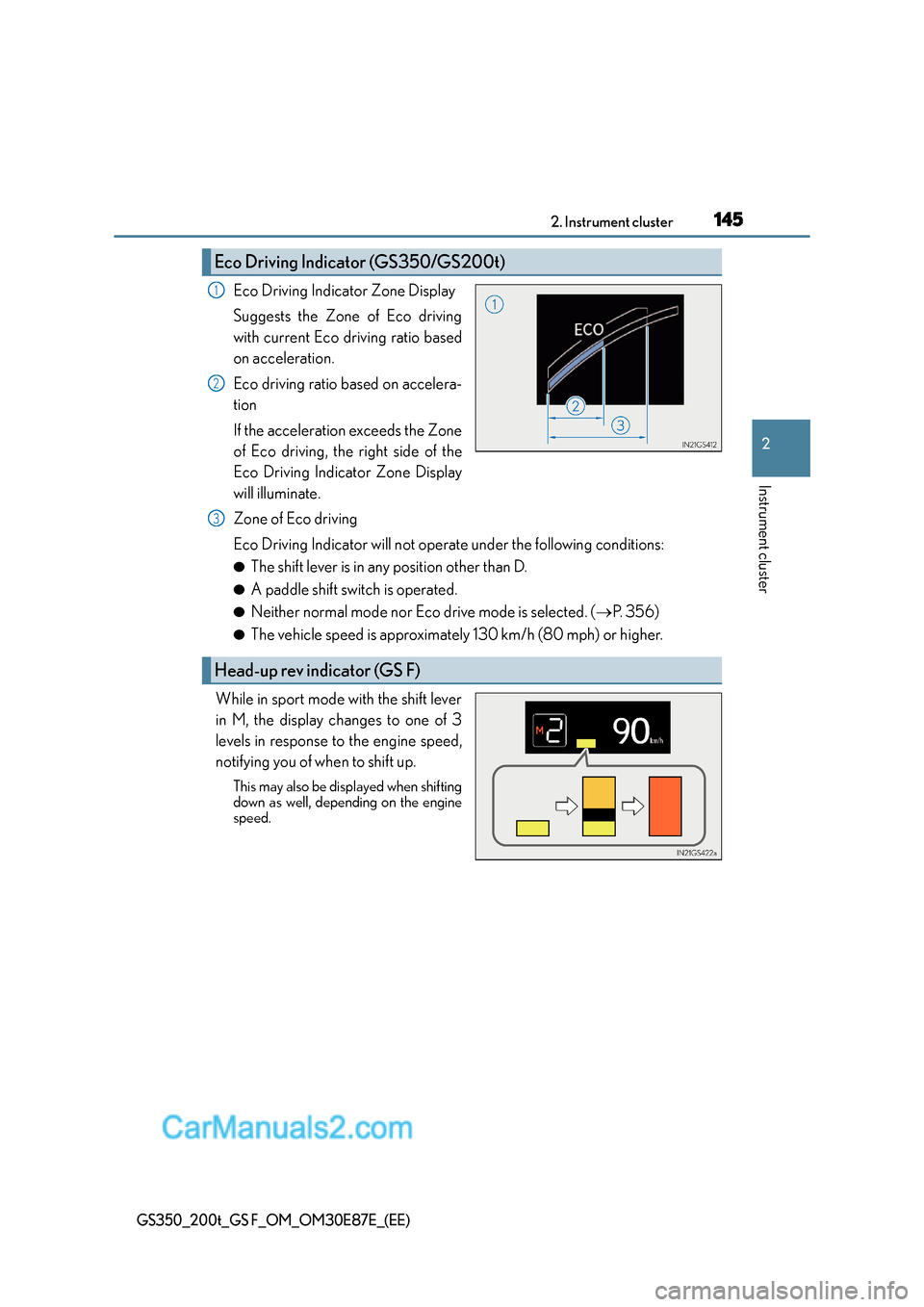

Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.
Eco driving ratio based on accelera-
tion
If the acceleration exceeds the Zone
of Eco driving, the right side of the
Eco Driving Indicator Zone Display
will illuminate.
Zone of Eco driving
Eco Driving Indicator will not operate under the following conditions:
●The shift lever is in any position other than D.
●A paddle shift switch is operated.
●Neither normal mode nor Eco drive mode is selected. (→P. 3 5 6 )
●The vehicle speed is approximately 130 km/h (80 mph) or higher.
While in sport mode with the shift lever
in M, the display changes to one of 3
levels in response to the engine speed,
notifying you of when to shift up.
This may also be displayed when shifting
down as well, depending on the engine
speed.
Eco Driving Indicator (GS350/GS200t)
1
2
Head-up rev indicator (GS F)
3

1462. Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)

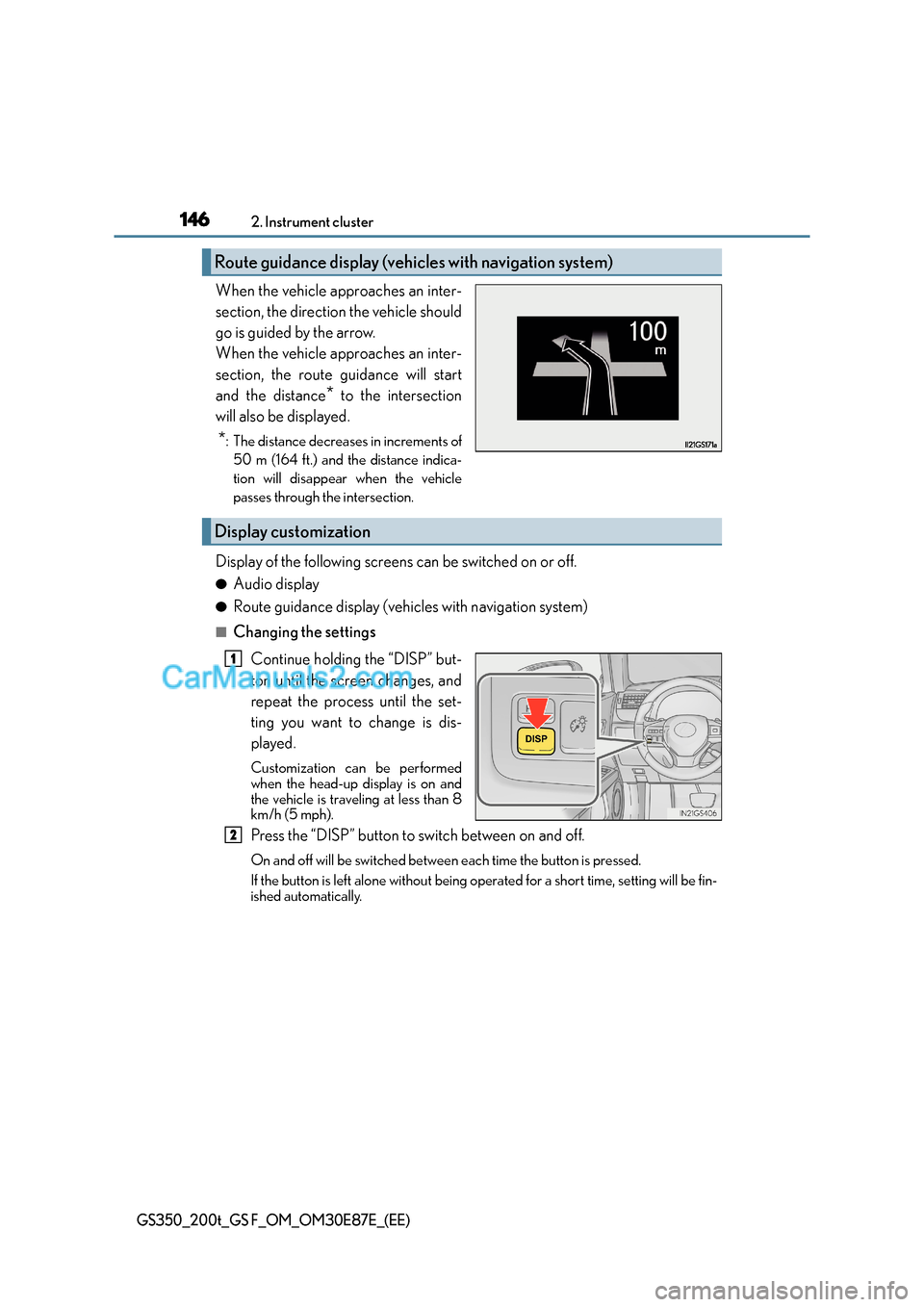

When the vehicle approaches an inter-
section, the direction the vehicle should
go is guided by the arrow.
When the vehicle approaches an inter-
section, the route guidance will start
and the distance
* to the intersection
will also be displayed.
*: The distance decreases in increments of 50 m (164 ft.) and the distance indica-
tion will disappear when the vehicle
passes through the intersection.
Display of the following screens can be switched on or off.
●Audio display
●Route guidance display (vehicles with navigation system)
■Changing the settings
Continue holding the “DISP” but-
ton until the screen changes, and
repeat the process until the set-
ting you want to change is dis-
played.
Customization can be performed
when the head-up display is on and
the vehicle is traveling at less than 8
km/h (5 mph).
Press the “DISP” button to switch between on and off.
On and off will be switched between each time the button is pressed.
If the button is left alone without being op erated for a short time, setting will be fin-
ished automatically.
Route guidance display (vehicles with navigation system)
Display customization
1
2

1472. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)
■Head-up display
●The head-up display may seem dark and hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
●When the head-up display is turned off, it will remain off even if the engine switch is
turned to IGNITION ON mode after the engine switch has been turned off.
●The startup image will be displayed on the he ad-up display after the engine switch has
been turned to IGNITION ON mode while the head-up display switch is set to on.
■Head-up rev indicator
●The head-up display is linked to the rev indicator in the meter.
●Whether or not to display the rev indicator in the head-up display, as well as display tim-
ing, can be changed through the settings for the rev indicator in the meter. ( →P. 1 3 8 )
■When the battery is disconnected
The customize settings of the head-up display will be reset.
■Head-up display automatic position adjustment
If the display position is recorded into me mory, the head-up display will be automatically
adjusted to the desired position. ( →P. 1 9 8 )
WA R N I N G
■Before using the head-up display
Check that the position and brightness of the head-up display image does not interfere
with safe driving. Incorrect adjustment of the image’s position or brightness may
obstruct the driver’s view and lead to an ac cident, resulting in death or serious injury.
NOTICE
■To prevent damage to components
●Do not touch the inside of the head-up display projector or thrust sharp edges or the
like into the projector.
Doing so could cause mechanical malfunctions.
●Do not place any drinks near the head-up dis-
play projector. If the projector gets wet, elec-
trical malfunctions may result.
●Do not place anything on or put stickers onto
the head-up display projector.
Doing so could interrupt head-up display
indications.

1482. Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)
Fuel consumption information
Remote Touch screen
“MENU” button
Remote Touch knob
“ENTER” buttons
Fuel consumption information can be displayed on the Remote Touch screen.
Vehicles with 12.3-inch display: The fu el consumption information can be dis-
played and operated on the side display.
1
2
3
4

1492. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)
Press the “MENU” button on the Remote Touch, then select on the “Menu”
screen.
■Trip information
If the “Past record” screen is displayed, select “Trip information”.Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Cruising range ( →P. 1 5 0 )
Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the engine switch was last turned to IGNI-
TION ON mode. Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.
Fuel consumption
1
2
3
4
5
6

1502. Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)

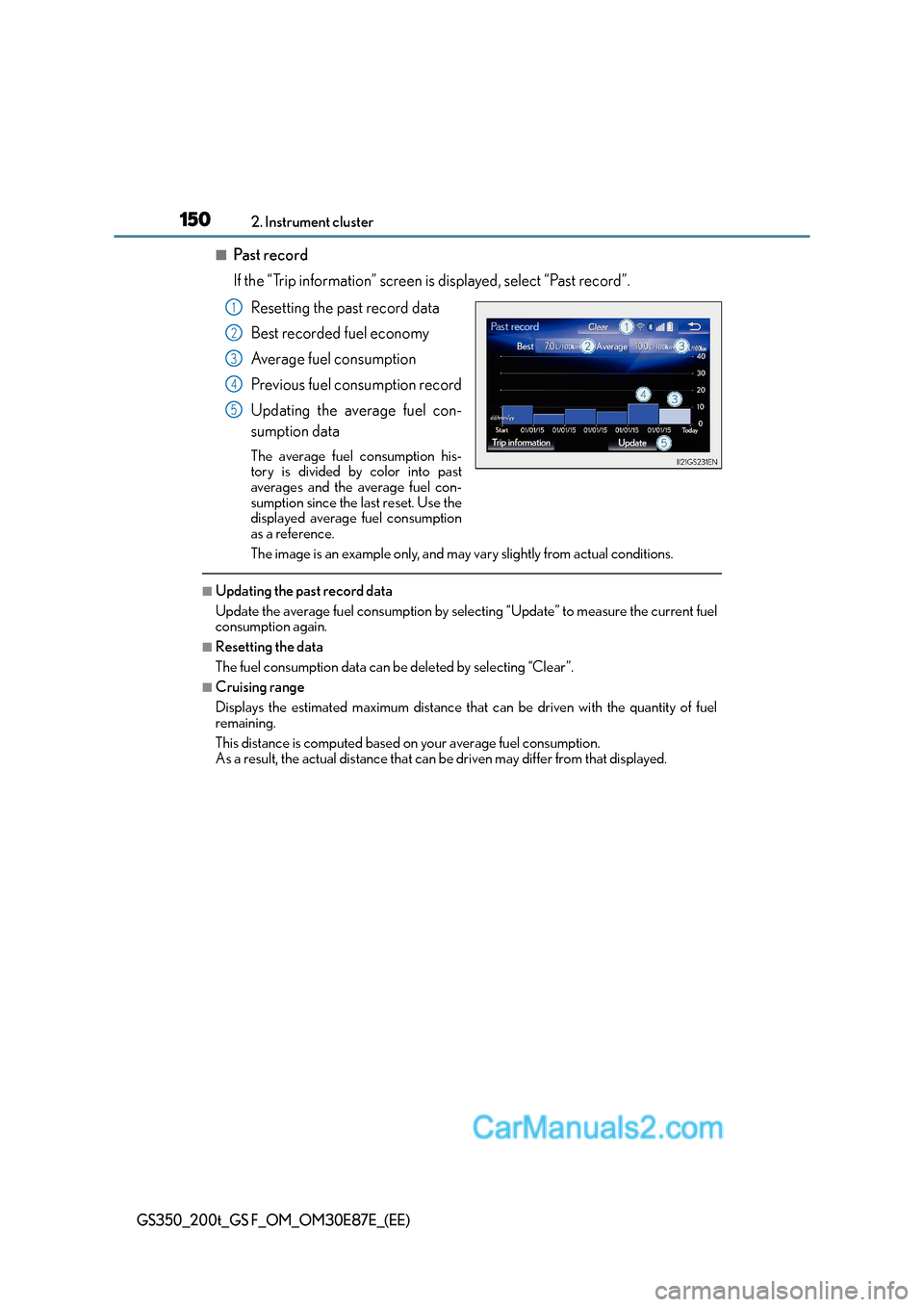

■Pa s t re c o r d
If the “Trip information” screen is displayed, select “Past record”.Resetting the past record data
Best recorded fuel economy
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data
The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-
sumption since the last reset. Use the
displayed average fuel consumption
as a reference.
The image is an example only, and may vary slightly from actual conditions.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the current fuel
consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5
