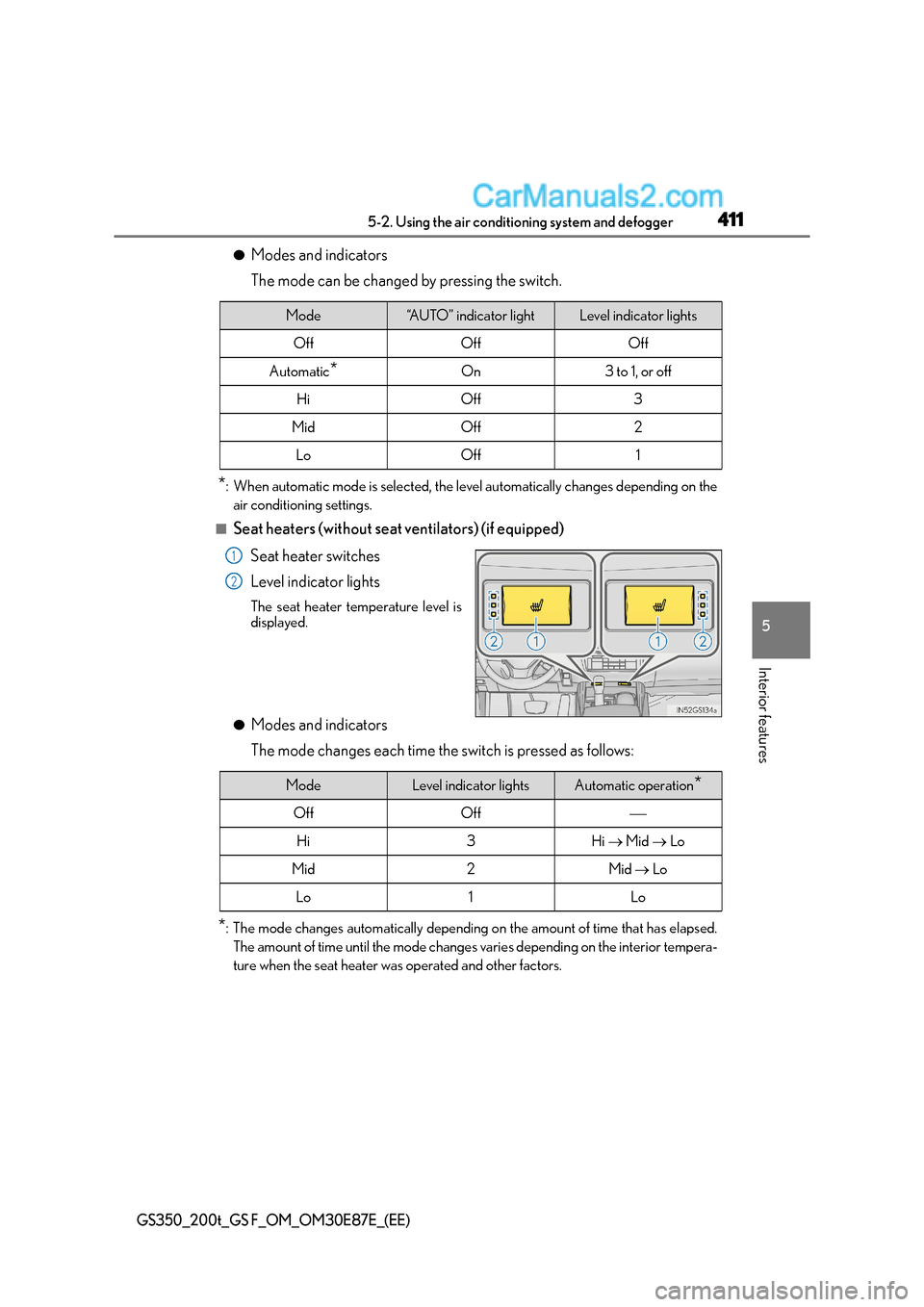

Page 411 of 668

4115-2. Using the air conditioning system and defogger
5
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
●Modes and indicators
The mode can be changed by pressing the switch.
*: When automatic mode is selected, the level automatically changes depending on the
air conditioning settings.
■Seat heaters (without seat ventilators) (if equipped)
Seat heater switches
Level indicator lights
The seat heater temperature level is
displayed.
●Modes and indicators
The mode changes each time the switch is pressed as follows:
*: The mode changes automatically depending on the amount of time that has elapsed. The amount of time until the mode changes varies depending on the interior tempera-
ture when the seat heater was operated and other factors.
Mode“AUTO” indicator lightLevel indicator lights
OffOffOff
Automatic*On3 to 1, or off
HiOff3
MidOff2
LoOff1
1
2
ModeLevel indicator lightsAutomatic operation*
OffOff
Hi3Hi → Mid → Lo
Mid2Mid → Lo
Lo1Lo

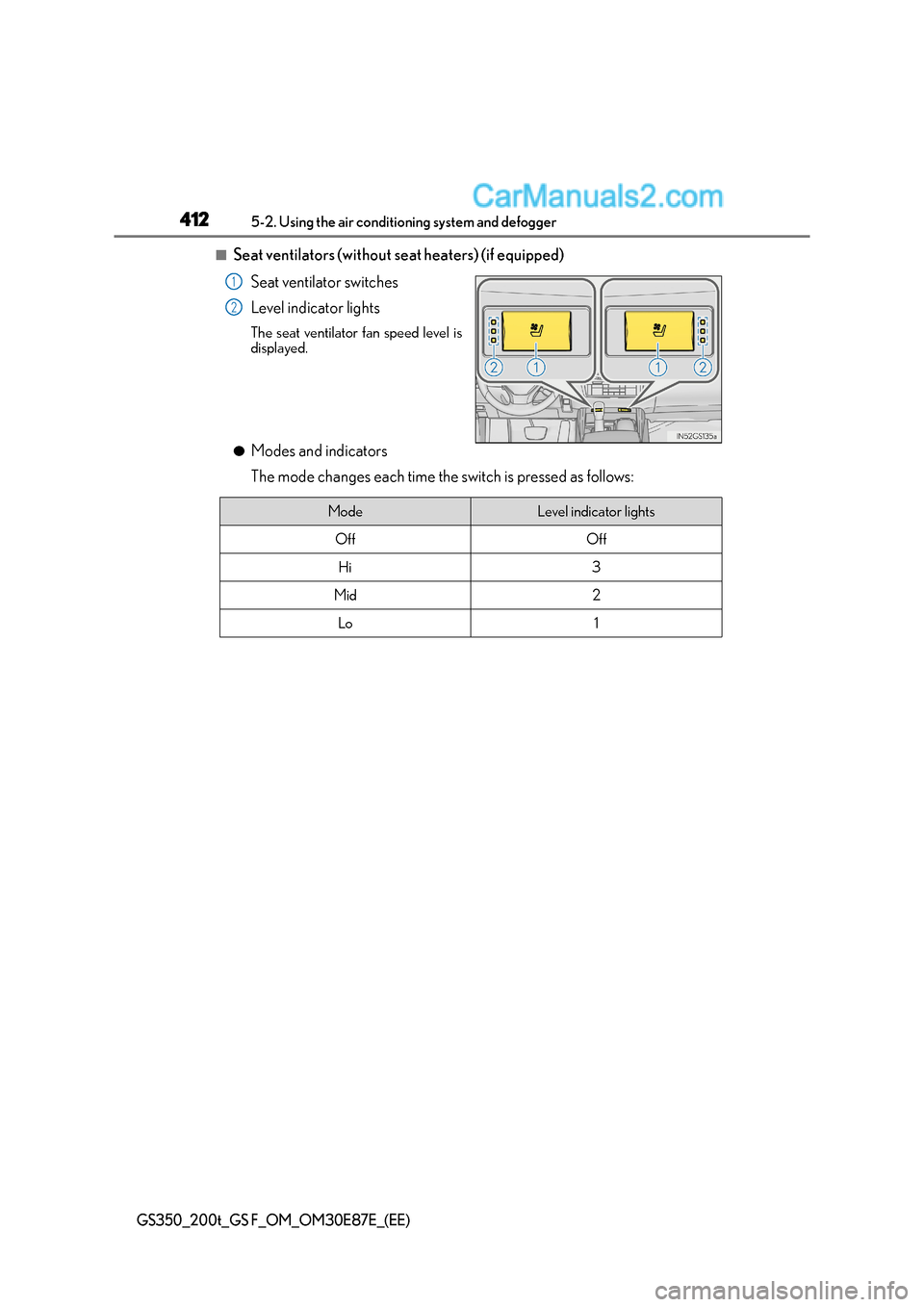

Page 412 of 668

4125-2. Using the air conditioning system and defogger
GS350_200t_GS F_OM_OM30E87E_(EE)
■Seat ventilators (without seat heaters) (if equipped)
Seat ventilator switches
Level indicator lights
The seat ventilator fan speed level is
displayed.
●Modes and indicators
The mode changes each time the switch is pressed as follows:
1
2
ModeLevel indicator lights
OffOff
Hi3
Mid2
Lo1

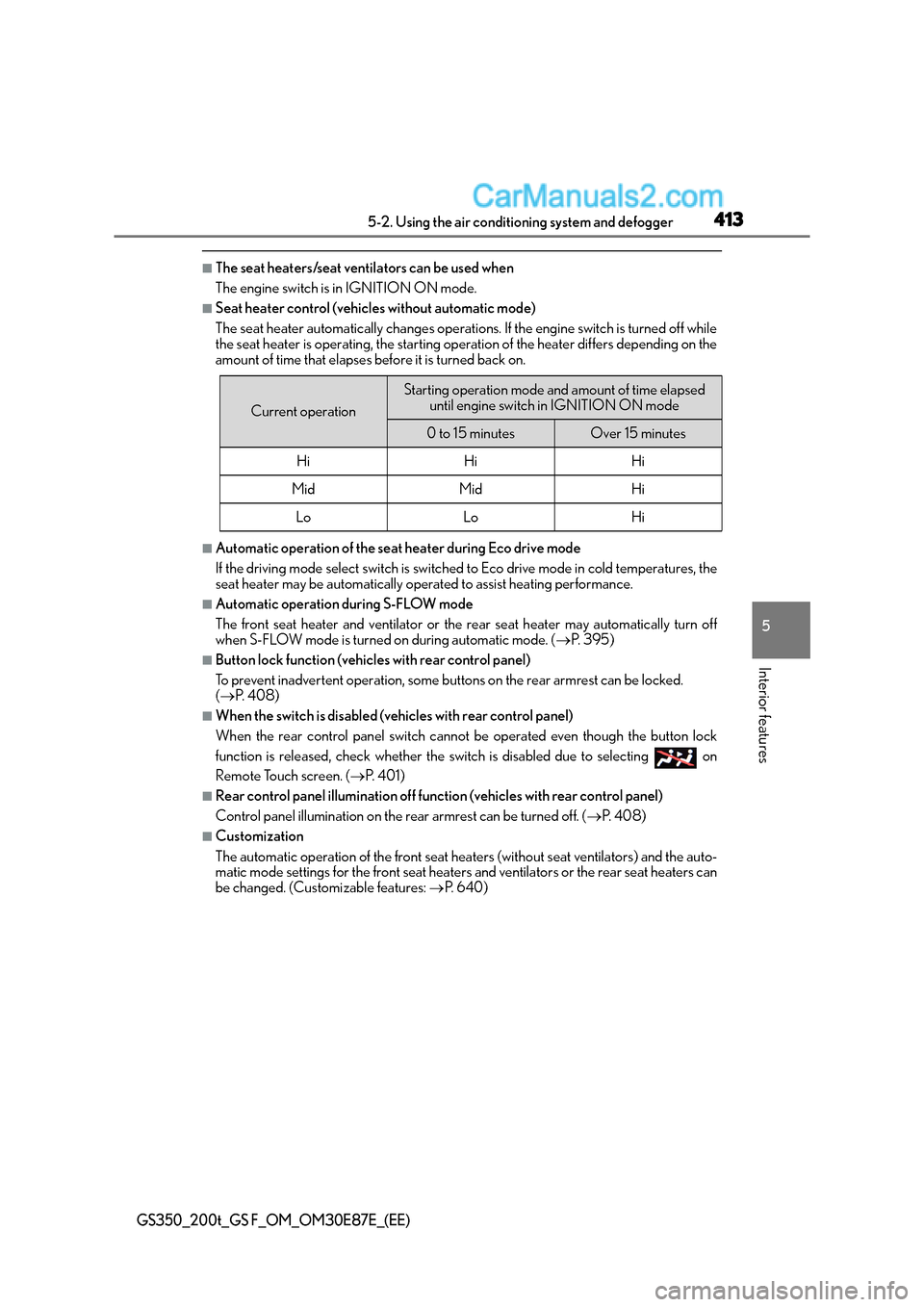

Page 413 of 668

4135-2. Using the air conditioning system and defogger
5
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
■The seat heaters/seat ventilators can be used when
The engine switch is in IGNITION ON mode.
■Seat heater control (vehicles without automatic mode)
The seat heater automatically changes operations. If the engine switch is turned off while
the seat heater is operating, the starting operation of the heater differs depending on the
amount of time that elapses before it is turned back on.
■Automatic operation of the seat heater during Eco drive mode
If the driving mode select swit ch is switched to Eco drive mo de in cold temperatures, the
seat heater may be automatically operated to assist heating performance.
■Automatic operation during S-FLOW mode
The front seat heater and ventilator or the rear seat heater may automatically turn off
when S-FLOW mode is turned on during automatic mode. ( →P. 3 9 5 )
■Button lock function (vehicles with rear control panel)
To prevent inadvertent operation, some buttons on the rear armrest can be locked.
(→ P. 4 0 8 )
■When the switch is disabled (v ehicles with rear control panel)
When the rear control panel switch cannot be operated even though the button lock
function is released, check whether the switch is disabled due to selecting on
Remote Touch screen. ( →P. 4 0 1 )
■Rear control panel illumination off function (vehicles with rear control panel)
Control panel illumination on the re ar armrest can be turned off. (→P. 4 0 8 )
■Customization
The automatic operation of the front seat heaters (without seat ventilators) and the auto-
matic mode settings for the front seat heaters and ventilators or the rear seat heaters can
be changed. (Customizable features: →P. 6 4 0 )
Current operation
Starting operation mode and amount of time elapsed
until engine switch in IGNITION ON mode
0 to 15 minutesOver 15 minutes
HiHiHi
MidMidHi
LoLoHi

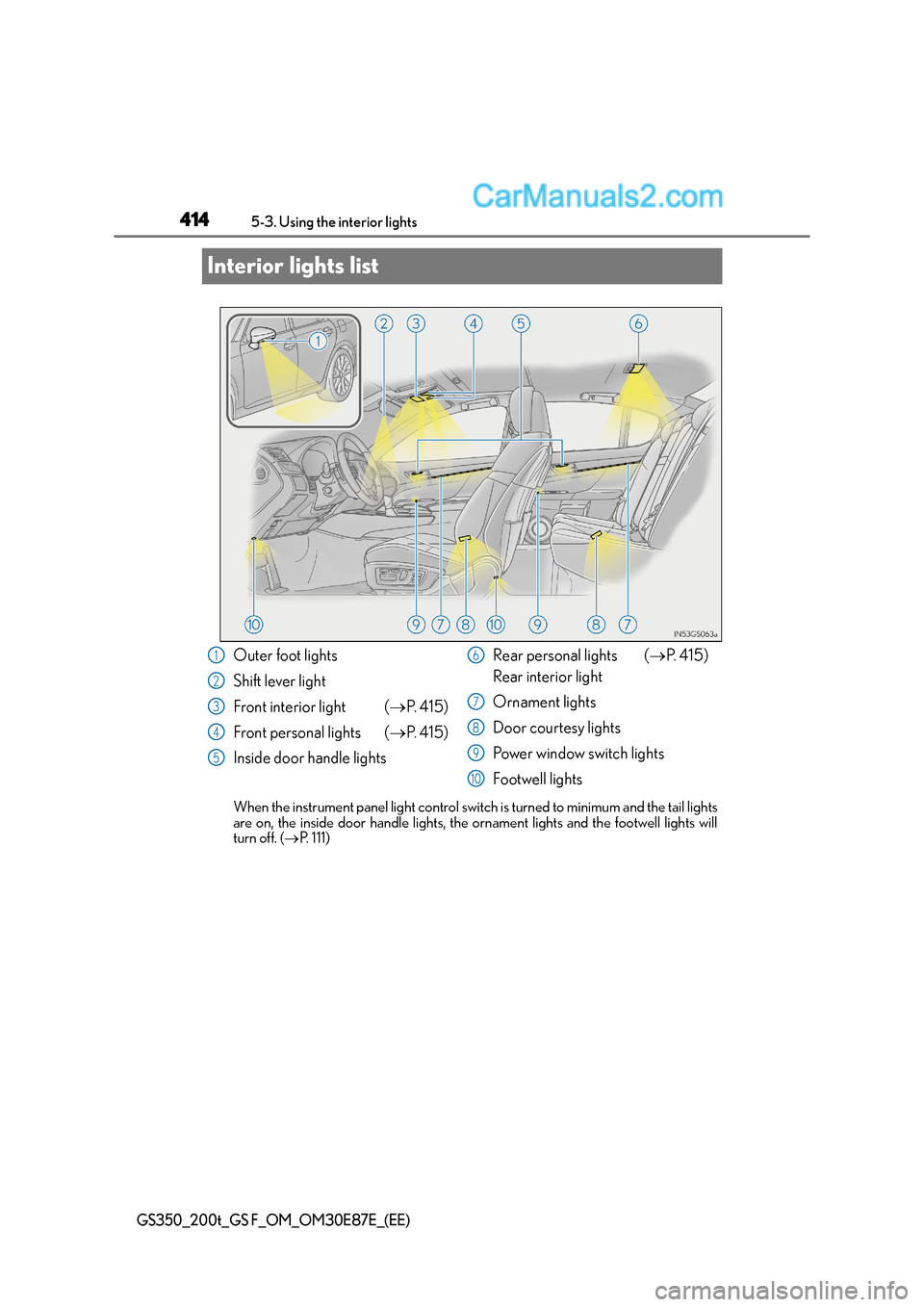

Page 414 of 668

4145-3. Using the interior lights
GS350_200t_GS F_OM_OM30E87E_(EE)
Interior lights list
When the instrument panel light control switch is turned to minimum and the tail lights
are on, the inside door handle lights, th e ornament lights and the footwell lights will
turn off. ( →P. 111)
Outer foot lights
Shift lever light
Front interior light ( →P. 4 1 5 )
Front personal lights ( →P. 4 1 5 )
Inside door handle lights Rear personal lights (
→P. 4 1 5 )
Rear interior light
Ornament lights
Door courtesy lights
Power window switch lights
Footwell lights1
2
3
4
5
6
7
8
9
10

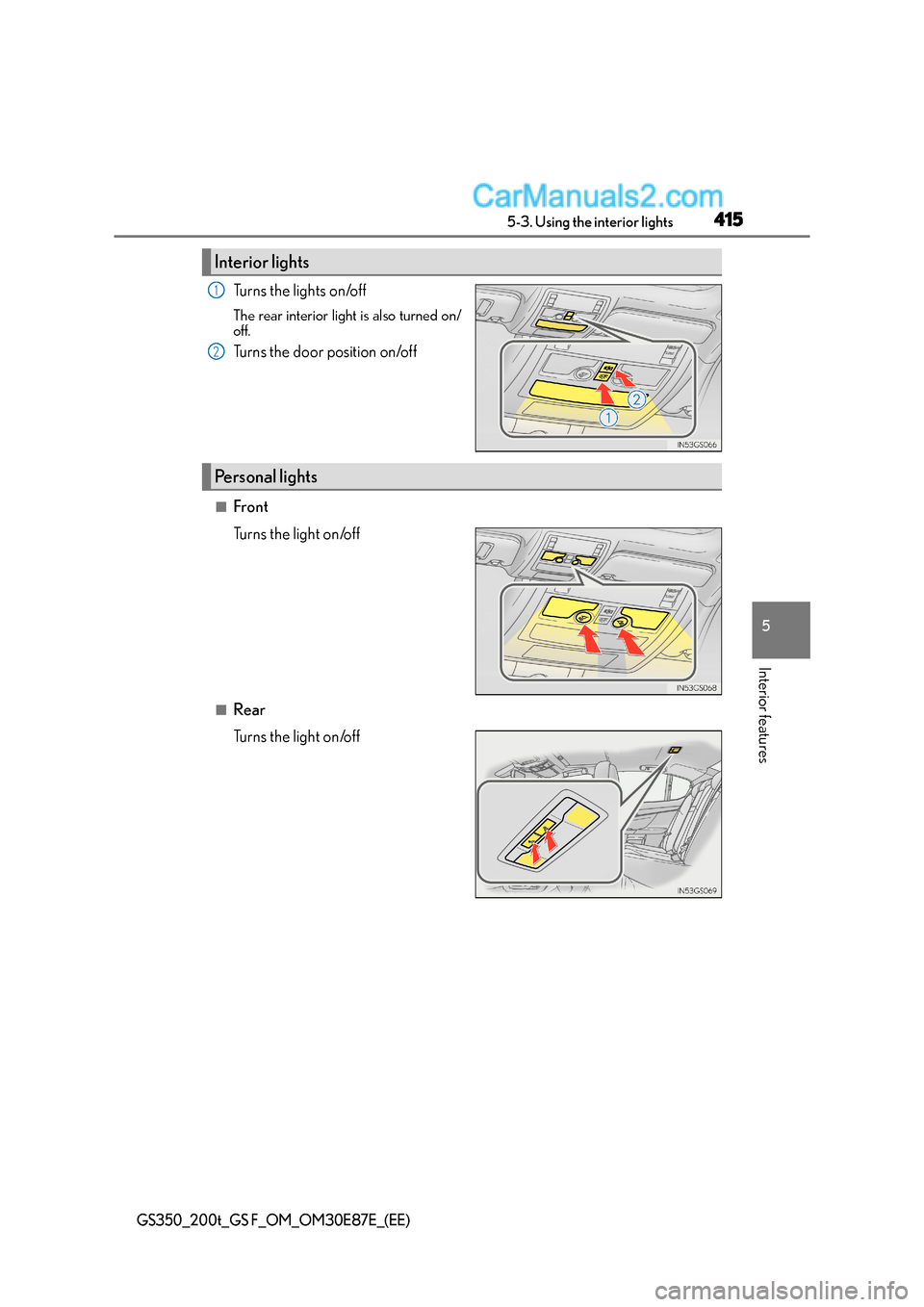

Page 415 of 668

4155-3. Using the interior lights
5
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
Turns the lights on/off
The rear interior light is also turned on/
off.
Turns the door position on/off
■Front
Turns the light on/off
■Rear
Turns the light on/off
Interior lights
1
2
Personal lights

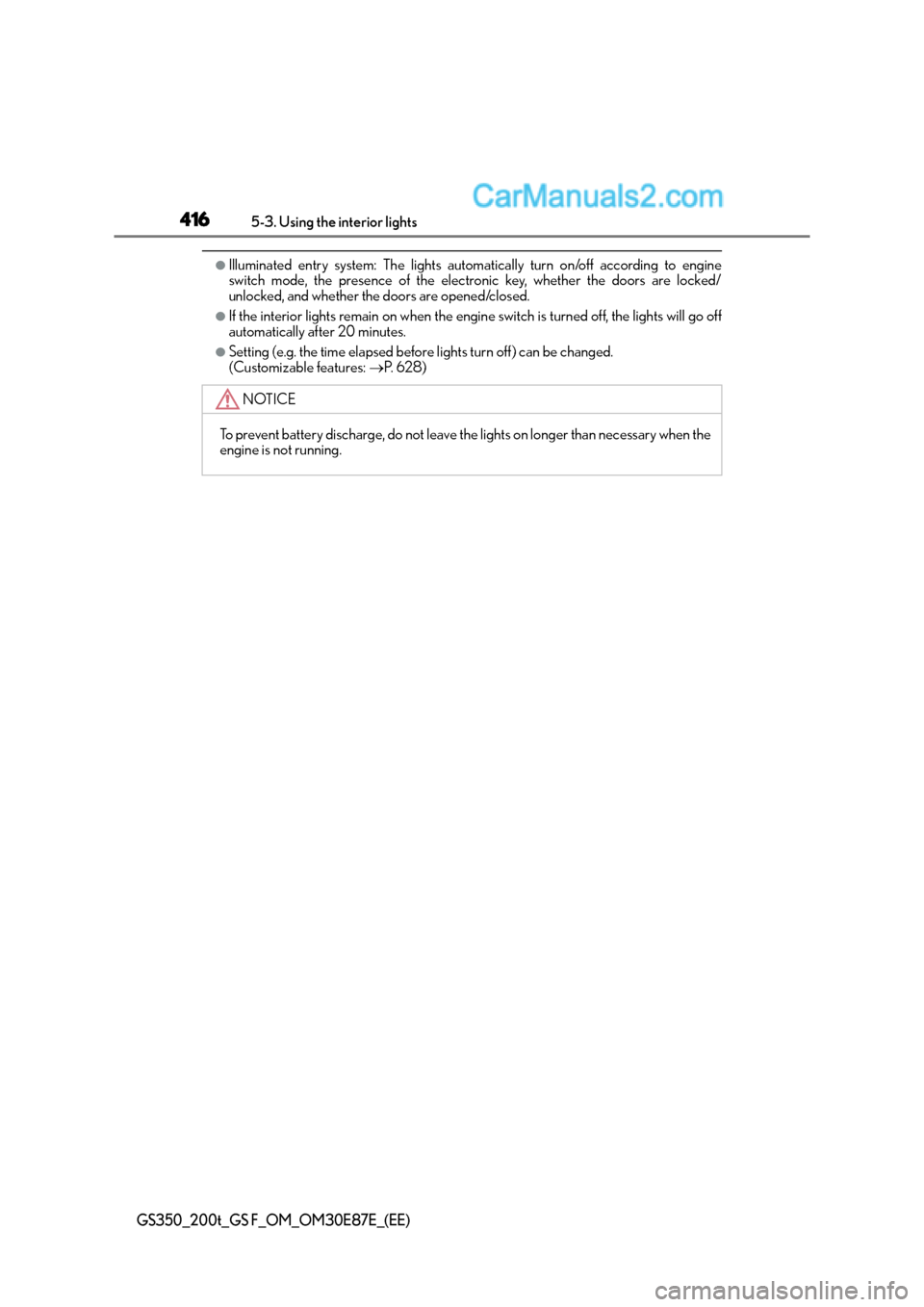

Page 416 of 668

4165-3. Using the interior lights
GS350_200t_GS F_OM_OM30E87E_(EE)
●Illuminated entry system: The lights automatically turn on/off according to engine
switch mode, the presence of the electronic key, whether the doors are locked/
unlocked, and whether the doors are opened/closed.
●If the interior lights remain on when the engine switch is turned off, the lights will go off
automatically after 20 minutes.
●Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: →P. 6 2 8 )
NOTICE
To prevent battery discharge, do not leave the lights on longer than necessary when the
engine is not running.

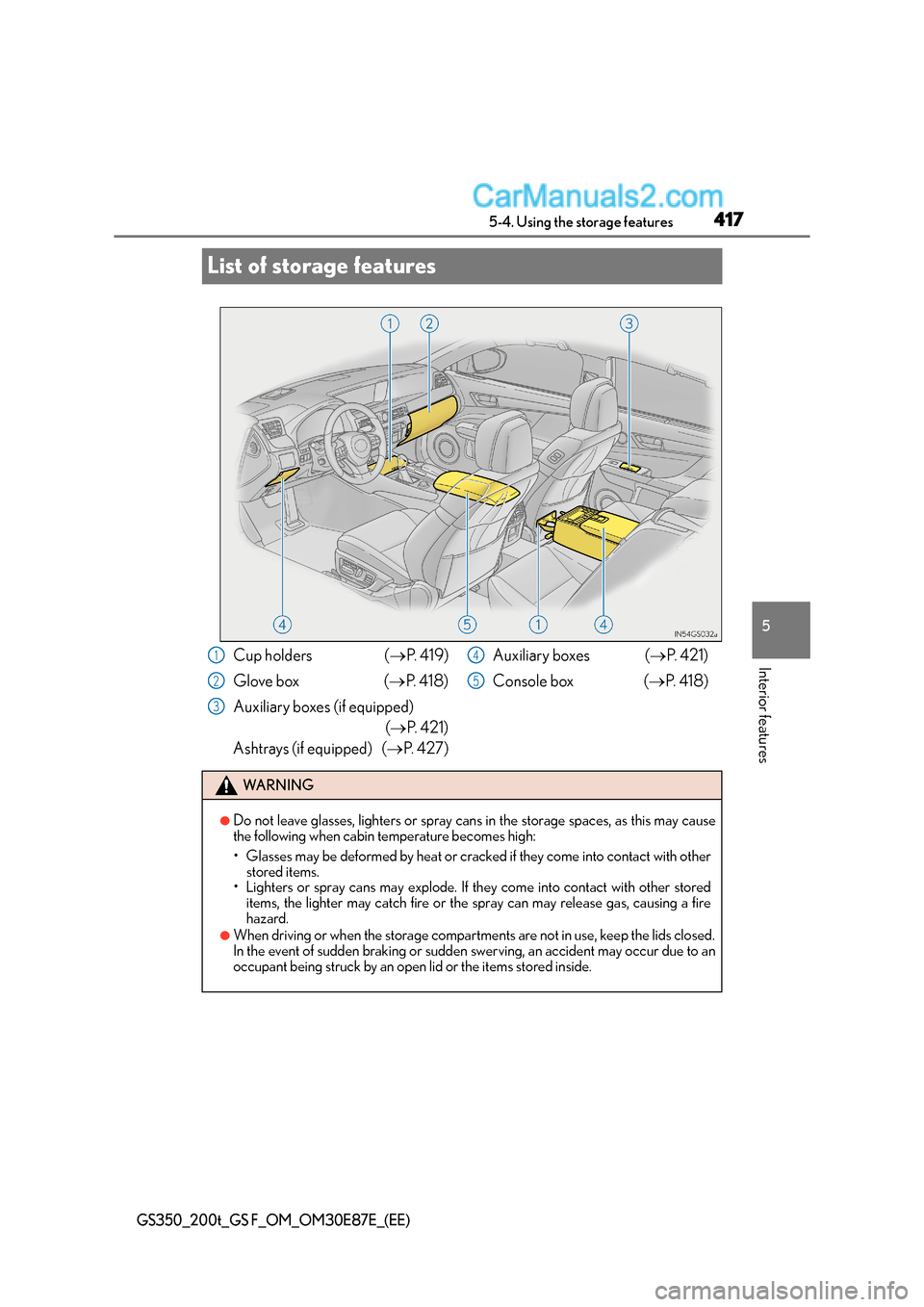

Page 417 of 668

417
5
5-4. Using the storage features
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
List of storage features
Cup holders (
→P. 4 1 9 )
Glove box ( →P. 4 1 8 )
Auxiliary boxes (if equipped) (→ P. 4 2 1 )
Ashtrays (if equipped) ( →P. 4 2 7 ) Auxiliary boxes (
→P. 4 2 1 )
Console box ( →P. 4 1 8 )
WA R N I N G
●Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact with other
stored items.
• Lighters or spray cans may explode. If th ey come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
●When driving or when the storage compartments are not in use, keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur due to an
occupant being struck by an open lid or the items stored inside.
1
2
3
4
5
Page 418 of 668

4185-4. Using the storage features
GS350_200t_GS F_OM_OM30E87E_(EE)
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
●The glove box light turns on when the tail lights are on.
●The trunk opener main switch is located in the glove box. (→P. 1 6 8 )
●The insert inside the glove box can be removed.
●An SRS knee airbag for the front passenger’s seat is built into the glove box door.
(→ P. 5 1 )
Using with half-open
Grip the knob to release the lock,
and slide the armrest as far back.
Using with fully open
Grip the knob to release the lock,
and lift the armrest to open.
Glove box
1
2
3
Console box
1
2

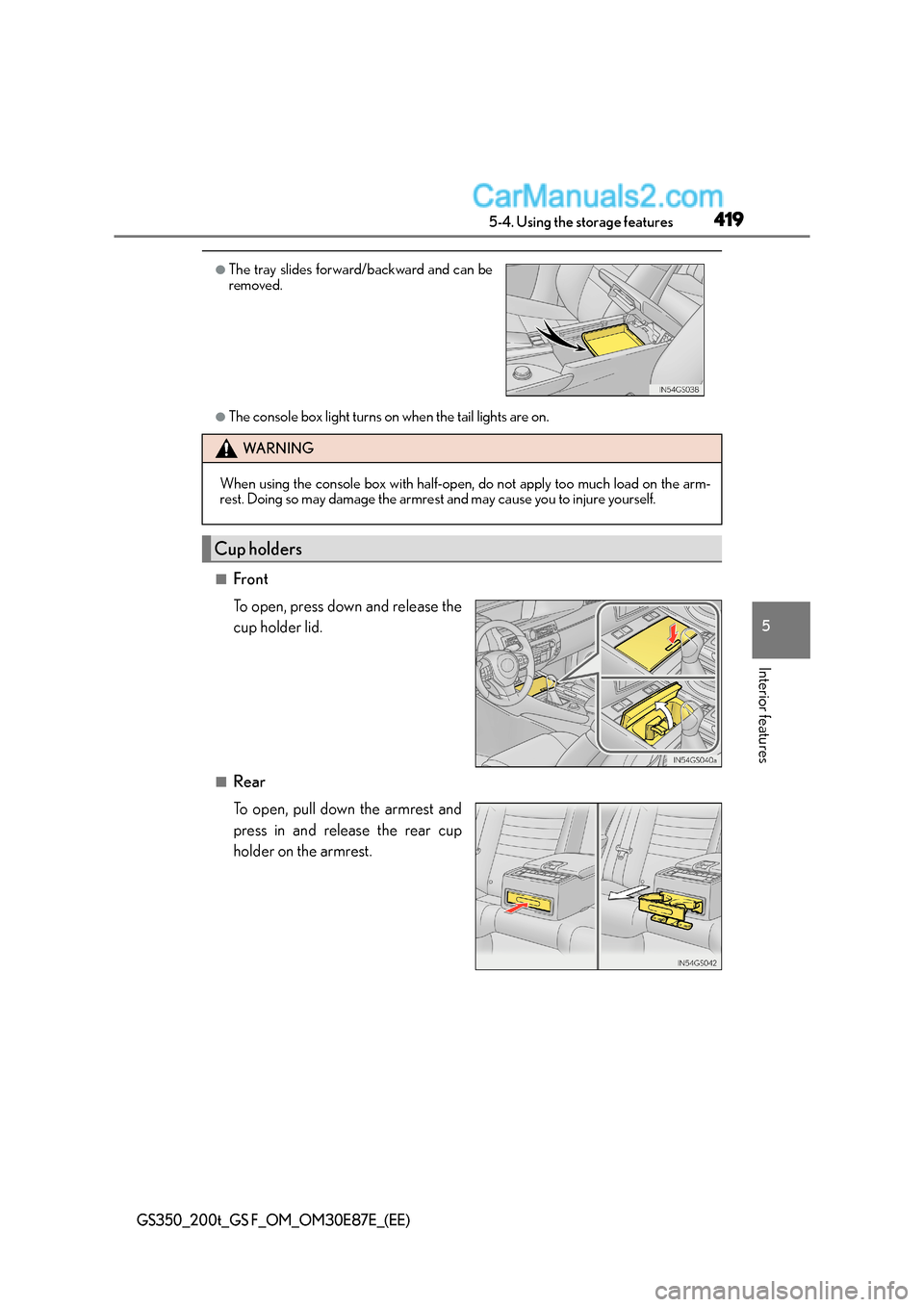

Page 419 of 668

4195-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30E87E_(EE)
●The console box light turns on when the tail lights are on.
■Front
To open, press down and release the
cup holder lid.
■Rear
To open, pull down the armrest and
press in and release the rear cup
holder on the armrest.
●The tray slides forward/backward and can be
removed.
WA R N I N G
When using the console box with half-open, do not apply too much load on the arm-
rest. Doing so may damage the armrest and may cause you to injure yourself.
Cup holders

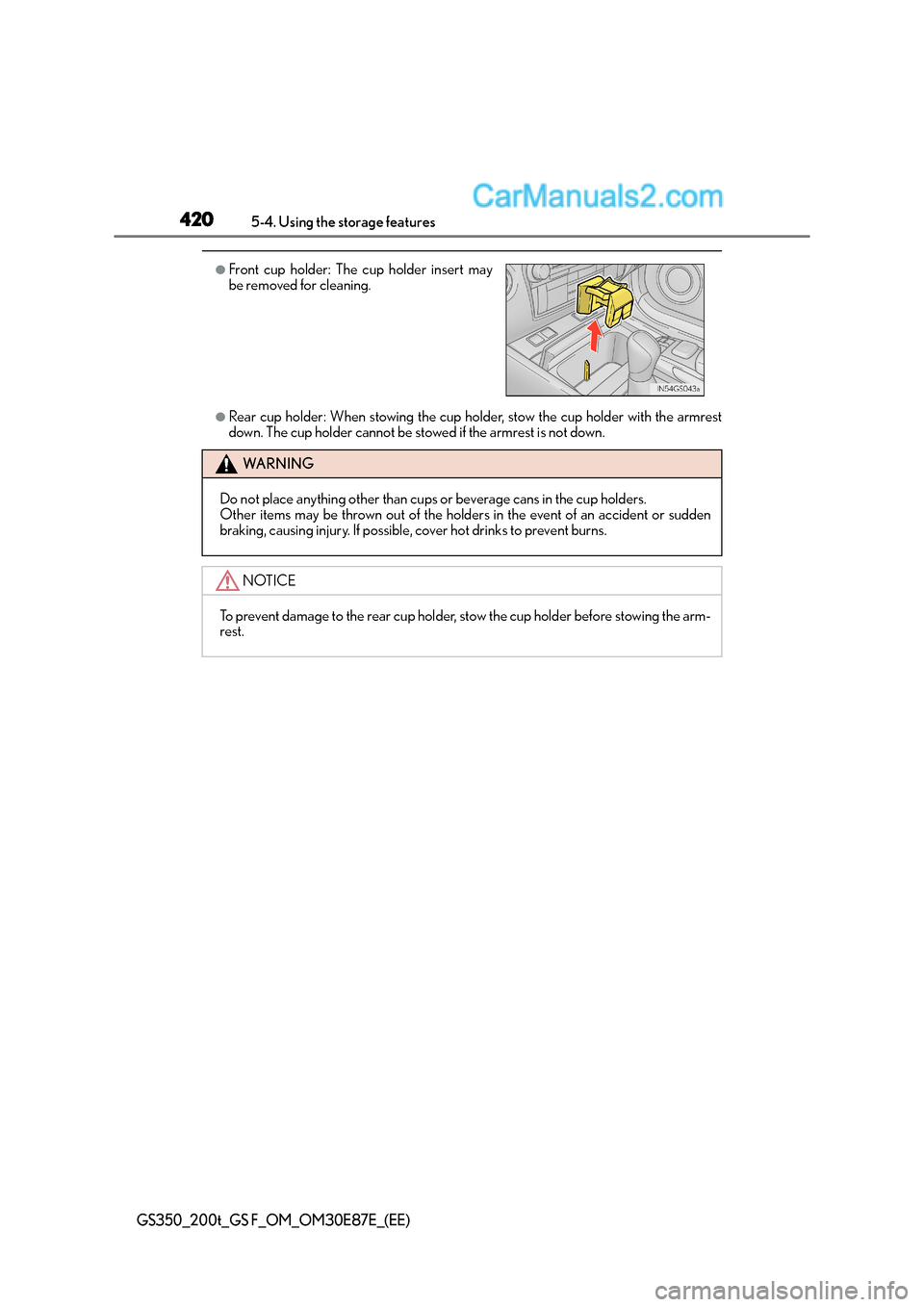

Page 420 of 668

4205-4. Using the storage features
GS350_200t_GS F_OM_OM30E87E_(EE)
●Rear cup holder: When stowing the cup holder, stow the cup holder with the armrest
down. The cup holder cannot be stowed if the armrest is not down.
●Front cup holder: The cup holder insert may
be removed for cleaning.
WA R N I N G
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking, causing injury. If possible , cover hot drinks to prevent burns.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-
rest.
