611-1. For safe use
1
GS350_200t_GS F_OM_OM30E87E_(EE)
For safety and security
Airbag manual on-off system
“PASSENGER AIR BAG” indicator
This indicator light turns on when the
airbag system is on (only when the
engine switch is in IGNITION ON
mode).
Airbag manual on-off switch
This system deactivates the front passenger airbag, front passenger knee air-
bag and front passen ger side airbag.
Only deactivate the airbags when using a child restraint system on the front
passenger seat.
1
2

621-1. For safe use
GS350_200t_GS F_OM_OM30E87E_(EE)
Insert the mechanical key into the cylin-
der and rotate to the “OFF” position.
The “OFF” indicator light turns on (only
when the engine switch is in IGNITION
ON mode).
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction in the sys-
tem. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
●Neither “ON” nor “OFF” comes on.
●The indicator light does not change when th e airbag manual on-off switch is switched
to “ON” or “OFF”.
Deactivating the front seat passeng er airbag, front passenger knee air-
bag and front passenger side airbag
WA R N I N G
■When installing a child restraint system
For safety reasons, always install a child rest raint system in a rear seat. In the event that
the rear seat cannot be used, the front seat can be used as long as the airbag manual
on-off system is set to off.
If the airbag manual on-off system is left on, the strong impact of the airbag deployment
(inflation) may cause serious injury or even death.
■When a child restraint system is not installed on the front passenger seat
Ensure that the airbag manual on-off system is set to on.
If it is left off, the airbag may not deploy in the event of an accident, which may result in
serious injury or even death.

631-1. For safe use
1
GS350_200t_GS F_OM_OM30E87E_(EE)
For safety and security
Safety information for children
●It is recommended that children sit in the rear seats to avoid accidental con-
tact with the shift lever, wiper switch etc.
●Use the rear door child-protector lock or the window lock switch to avoid
children opening the door while driving or operating the power window acci-
dentally. ( →P. 163, 213)
●Do not let small children operate equipment which may catch or pinch body
parts, such as the power window, hood, trunk, seats etc.
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt.
WA R N I N G
Never leave children unattended in the vehicle, and never allow children to have or use
the key.
Children may be able to start the vehicle or sh ift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon roof
(if equipped) or other features of the vehicl e. In addition, heat build-up or extremely
cold temperatures inside the vehicle can be fatal to children.

641-1. For safe use
GS350_200t_GS F_OM_OM30E87E_(EE)

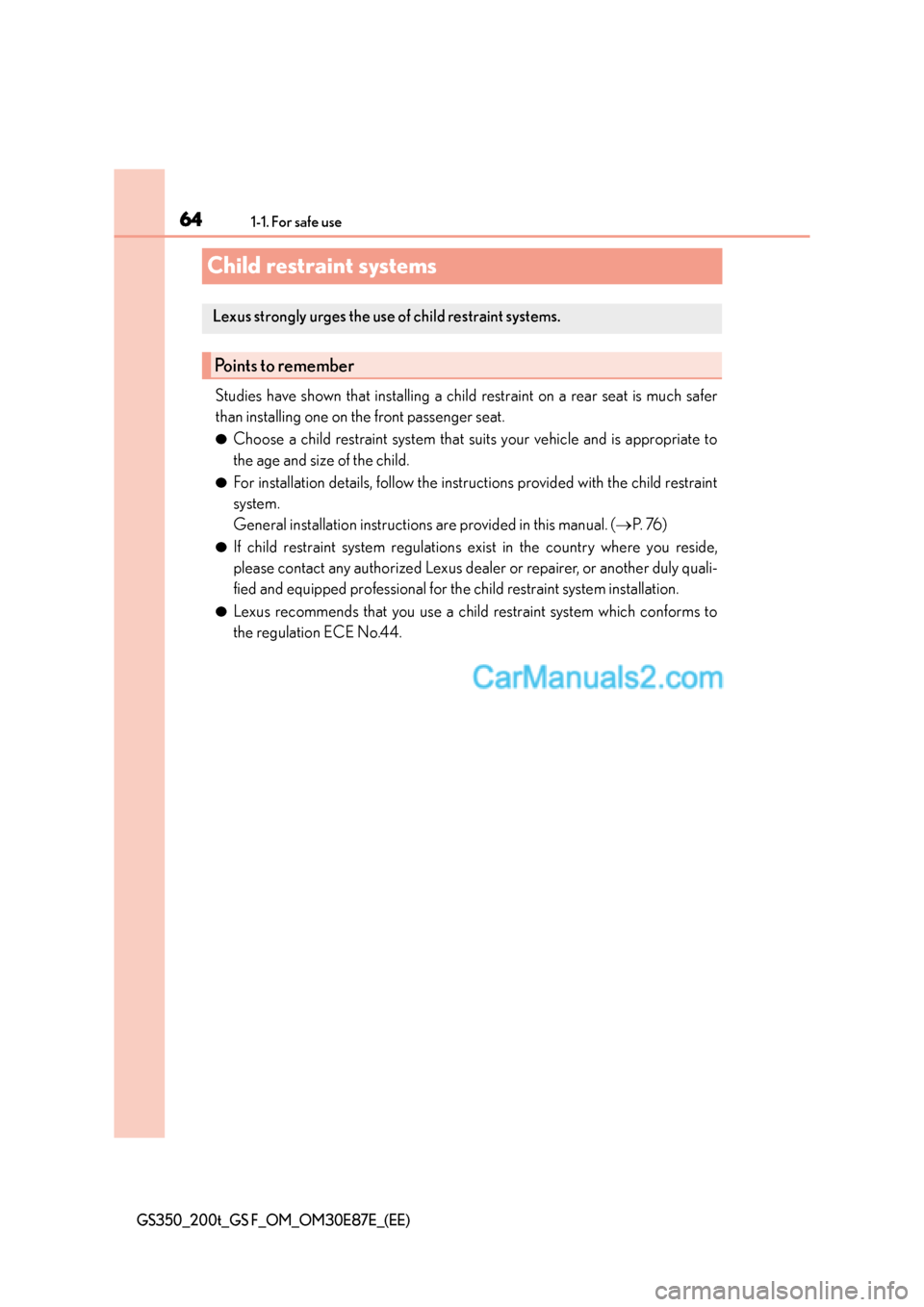

Child restraint systems
Studies have shown that installing a child restraint on a rear seat is much safer
than installing one on the front passenger seat.
●Choose a child restraint system that suits your vehicle and is appropriate to
the age and size of the child.
●For installation details, follow the instructions provided with the child restraint
system.
General installation instructions are provided in this manual. ( →P. 76 )
●If child restraint system regulations exist in the country where you reside,
please contact any authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional for the child restraint system installation.
●Lexus recommends that you use a child restraint system which conforms to
the regulation ECE No.44.
Lexus strongly urges the use of child restraint systems.
Points to remember

651-1. For safe use
1
For safety and security
GS350_200t_GS F_OM_OM30E87E_(EE)

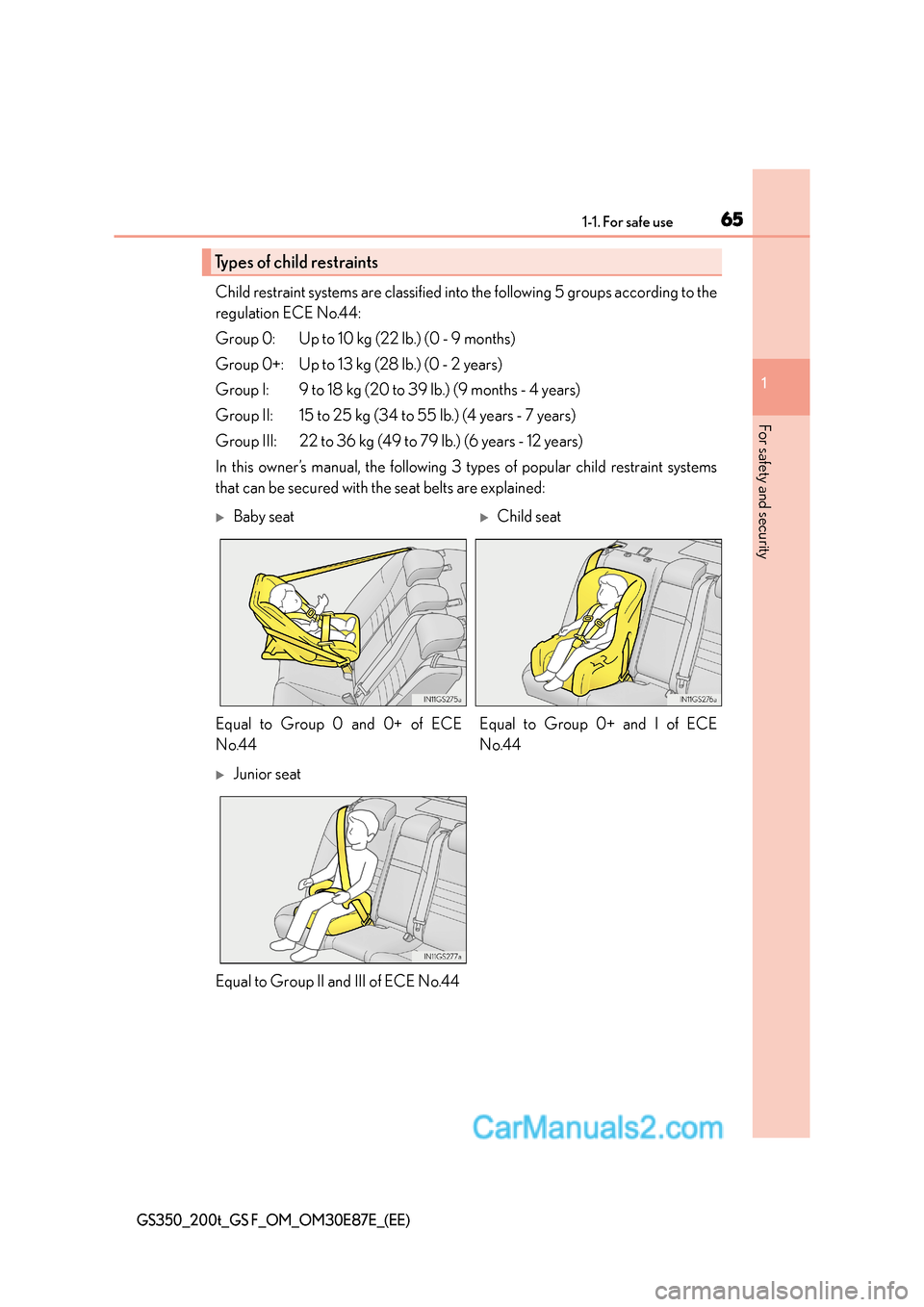

Child restraint systems are classified into the following 5 groups according to the
regulation ECE No.44:
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II: 15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III: 22 to 36 kg (49 to 79 lb.) (6 years - 12 years)
In this owner’s manual, the following 3 types of popular child restraint systems
that can be secured with the seat belts are explained:
Types of child restraints
XBaby seat XChild seat
Equal to Group 0 and 0+ of ECE
No.44 Equal to Group 0+ and I of ECE
No.44
XJunior seat
Equal to Group II and III of ECE No.44

661-1. For safe use
GS350_200t_GS F_OM_OM30E87E_(EE)
Information provided in the table shows your child restraint system suitability for
various seating positions.
XGS350/GS200t
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint systems approved for use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint systems approved for use in this mass group.
L: Suitable for child restraint systems shown in the child restraint system list.
X: Not suitable seat position for children in this mass group.
Child restraint system suitability for various seating positions
Front passenger seat
Rear seatAirbag manual on-off switch
ONOFFOutboardCenter
0
Up to 10 kg (22 lb.)
(0 - 9 months) XU
*1U, L X
0+
Up to 13 kg (28 lb.)
(0 - 2 years) XU
*1U, L X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years) Rear-
facing — X U
*1U*2X
For ward-
facing — UF
*1
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years) UF
*1U*1U*2X
Mass groupsSeating
position

671-1. For safe use
1
For safety and security
GS350_200t_GS F_OM_OM30E87E_(EE)
*1: Adjust the front seatback to the most upright position. Move the front seat to the rear-most position.
If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
If the passenger seat is equipped with a vertical height adjuster, it must be placed in
the upper most position.
Follow these procedures:
• For installing a baby seat with support base If the baby seat interferes with the seatback when latching the baby seat into the
support base, adjust the seatback rearward until there is no interference.
• For installing a forw ard-facing child seat
If there is gap between the child seat and the seatback, tilt the seatback rearward
until good contact is achieved.
If the seat belt shoulder anchor is ahead of the child seat belt guide, move the seat
cushion forward.
• For installing a junior seat
If the child in your child rest raint system is in a very upright position, adjust the seat-
back to the most comfortable position.
If the seat belt shoulder anchor is ahead of the child seat belt guide, move the seat
cushion forward.
*2: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
The child restraint systems mentioned in the table may not be available outside of
the EU area.
Other child restraint systems which are different from the systems mentioned in
the table can be used, but the suitability of the systems must be carefully checked
with the child restraint system manufacturer concerned and the seller of those
seats.

681-1. For safe use
GS350_200t_GS F_OM_OM30E87E_(EE)
XGS F
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint systems approved for use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint systems approved for use in this mass group.
L: Suitable for child restraint systems shown in the child restraint system list.
X: Not suitable seat position for children in this mass group.
Front passenger seat
Rear seatAirbag manual on-off switch
ONOFFOutboardCenter
0
Up to 10 kg (22 lb.)
(0 - 9 months) XU
*1, L*1U, L X
0
+
Up to 13 kg (28 lb.)
(0 - 2 years) XU*1, L*1U, L X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years) Rear-
facing — X
U
*1U*2X
For ward-
facing — UF
*1
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years) UF
*1U*1U*2X
Mass groupsSeating
position

691-1. For safe use
1
For safety and security
GS350_200t_GS F_OM_OM30E87E_(EE)
*1: Adjust the front seatback to the most upright position. Move the front seat to the rear-most position.
If the passenger seat is equipped with a vertical height adjuster, it must be placed in
the upper most position.
Follow these procedures:
• For installing a baby seat with support base If the baby seat interferes with the seatback when latching the baby seat into the
support base, adjust the seatback rearward until there is no interference.
• For installing a forwar d-facing child seat
If there is gap between the child seat and the seatback, tilt the seatback rearward
until good contact is achieved. If the seat belt shoulder anchor is ahead of the child
seat belt guide, move the seat cushion forward.
• For installing a junior seat If the child in your child rest raint system is in a very upright position, adjust the seat-
back to the most comfortable position.
If the seat belt shoulder anchor is ahead of the child seat belt guide, move the seat
cushion forward.
*2: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
The child restraint systems mentioned in the table may not be available outside of
the EU area.
Other child restraint systems which are different from the systems mentioned in
the table can be used, but the suitability of the systems must be carefully checked
with the child restraint system manufacturer concerned and the seller of those
seats.
Child restraint system list
Mass groupsChild restraint systemsCategory
0
Up to 10 kg (22 lb.)
(0 - 9 months)LEXUS G 0+, BABYSAFE PLUS with
S E AT B E LT F I X AT I O N , B A S E P L AT -
FORMSemi-universal
0+
Up to 13 kg (28 lb.)
(0 - 2 years)LEXUS G 0+, BABYSAFE PLUS with
S E AT B E LT F I X AT I O N , B A S E P L AT -
FORMSemi-universal

701-1. For safe use
GS350_200t_GS F_OM_OM30E87E_(EE)
Information provided in the table shows your child restraint system suitability for
various seating positions.
XGS350/GS200t
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchors)
Mass groupsSize classFixture
Ve h i c l e I S O F I X positions
Outboard rear seat
Carrycot FISO/L1 X
GISO/L2 X
0
Up to 10 kg (22 lb.)
(0 - 9 months) EISO/R1 IL
0+
Up to 13 kg (28 lb.)
(0 - 2 years) EISO/R1 IL
DISO/R2 IL
CISO/R3 X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years) DISO/R2 X
CISO/R3 X BISO/F2IUF
*, IL*
B1 ISO/F2X IUF*, IL*
AISO/F3IUF*, IL*
