dimensions Lexus GS F 2015 Owner's Manuals

6068-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
Maintenance data (fuel, oil level, etc.)
XGS350/GS200t
*1:Unladen vehicle
*2: Vehicles with 265/35R19 tires
*3: Vehicles with towing package
*4:2WD models
*5:AWD models
Dimensions and weights
Overall length 4850 mm (190.9 in.)
Overall width 1840 mm (72.4 in.)
Overall height*12WD 1455 mm (57.3 in.)
AWD 1470 mm (57.9 in.)
Wheelbase 2850 mm (112.2 in.)
Tr e a d*1Front 1575 mm (62.0 in.)
Rear1590 mm (62.6 in.)
1560 mm (61.4 in.)*2
Gross vehicle mass2WD
2170 kg (4784 lb.)
AW D2250 kg (4960 lb.)
Maximum
permissible axle
capacityFront 1120 kg (2469 lb.)
Rear 1205 kg (2657 lb.)
Drawbar load*380 kg (176 lb.)
Towing capacity*3With brake1600 kg (3527 lb.)*4
1000 kg (2205 lb.)*5
Witho ut brake
750 kg (1653 lb.)

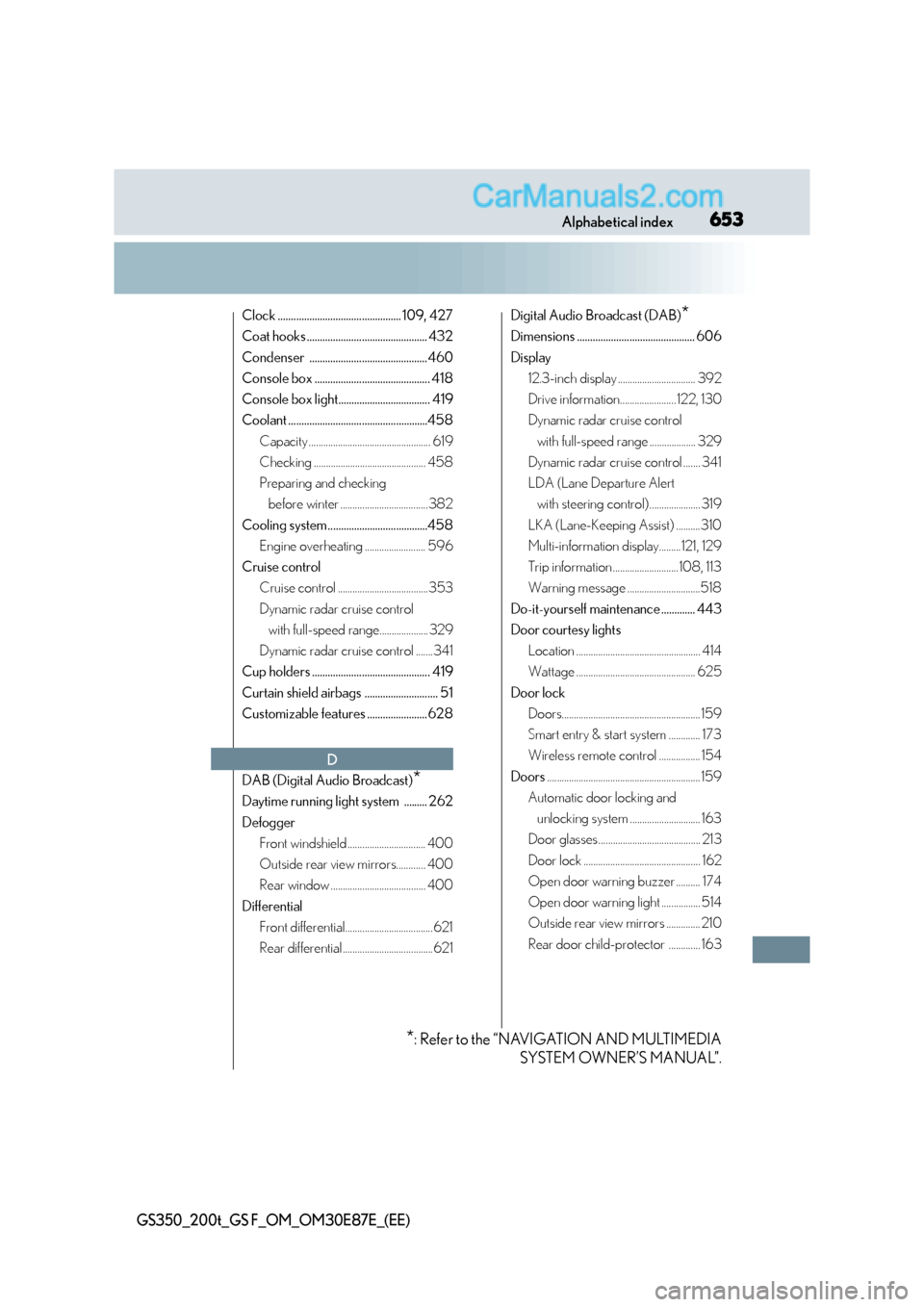

653Alphabetical index
GS350_200t_GS F_OM_OM30E87E_(EE)
Clock ............................................... 109, 427
Coat hooks .............................................. 432
Condenser .............................................460
Console box ............................................ 418
Console box light................................... 419
Coolant .....................................................458Capacity .................................................. 619
Checking .............................................. 458
Preparing and checking before winter ....................................382
Cooling system......................................458 Engine overheating ......................... 596
Cruise control Cruise control .....................................353
Dynamic radar cruise control with full-speed range.................... 329
Dynamic radar cruise control .......341
Cup holders ............................................. 419
Curtain shield airbags ............................ 51
Customizable features .......................628
DAB (Digital Audio Broadcast)
*
Daytime running light system ......... 262
Defogger Front windshield ................................ 400
Outside rear view mirrors............ 400
Rear window ....................................... 400
Differential Front differential....................................621
Rear differential .....................................621 Digital Audio Broadcast (DAB)
*
Dimensions ............................................. 606
Display
12.3-inch display ................................ 392
Drive information.......................122, 130
Dynamic radar cruise control
with full-speed range ................... 329
Dynamic radar cruise control ....... 341
LDA (Lane Departure Alert with steering control)..................... 319
LKA (Lane-Keeping Assist) ..........310
Multi-information display.........121, 129
Trip information ...........................108, 113
Warning message ..............................518
Do-it-yourself maintenance ............. 443
Door courtesy lights Location ................................................... 414
Wattage ................................................. 625
Door lock Doors......................................................... 159
Smart entry & start system ............. 173
Wireless remote control ................. 154
Doors ............................................................... 159
Automatic door locking and
unlocking system ............................. 163
Door glasses.......................................... 213
Door lock ................................................ 162
Open door warning buzzer .......... 174
Open door warning light ................ 514
Outside rear view mirrors .............. 210
Rear door child-protector ............. 163
D
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
