Page 3 of 668
3
1
8 7
6
5
4
3
2
GS350_200t_GS F_OM_OM30E87E_(EE)
3-1. Key informationKeys................................................... 154
3-2. Opening, closing and locking the doors and trunk
Doors ............................................... 159
Trunk ................................................. 166
Smart entry & start system .......173
3-3. Adjusting the seats Front seats ...................................... 195
Driving position memory ......... 198
Head restraints............................203
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................206
Inside rear view mirror ............ 208
Outside rear view mirrors ....... 210
3-5. Opening, closing the windows and moon roof
Power windows ............................ 213
Moon roof ...................................... 216 4-1. Before driving
Driving the vehicle ..................... 222
Cargo and luggage ...................230
Trailer towing (vehicles without towing package) ...... 231
Trailer towing (vehicles with towing package) ...................... 232
4-2. Driving procedures Engine (ignition) switch ...........239
Automatic transmission........... 245
Turn signal lever ..........................253
Parking brake............................... 254
Brake Hold (GS350/GS200t) ................ 257
ASC (Active Sound Control) (GS F) ....................... 259
4-3. Operating the lights and wipers
Headlight switch .........................260
AHS (Adaptive High-beam System) ........................................ 263
Automatic High Beam .............268
Fog light switch............................ 273
Windshield wipers and washer.................................. 274
4-4. Refueling Opening the fuel tank cap..... 280
3Operation of
each component4Driving
Page 5 of 668
5
1
8 7
6
5
4
3
2
GS350_200t_GS F_OM_OM30E87E_(EE)
5-5. Using the other interior features
Other interior features ............ 426 • Sun visors................................. 426
• Vanity mirrors ........................ 426
• Clock......................................... 427
• Ashtrays ................................... 427
• Power outlets .........................428
• Armrest ....................................428
•Rear sunshade/
rear door sunshades ........... 429
• Trunk storage extension ..... 431
• Coat hooks .............................432
• Assist grips ..............................432
6-1. Maintenance and care Cleaning and protecting the vehicle exterior .................434
Cleaning and protecting the vehicle interior ................. 438
6-2. Maintenance Maintenance requirements .............................. 441 6-3. Do-it-yourself maintenance
Do-it-yourself service precautions ................................ 443
Hood ............................................... 445
Positioning a floor jack ............. 446
Engine compartment ...............448
Tires ..................................................465
Tire inflation pressure................ 479
Wheels ............................................ 481
Air conditioning filter............... 483
Electronic key battery ............. 485
Checking and replacing fuses .............................................. 487
Light bulbs ..................................... 492
7-1. Essential information Emergency flashers.................. 502
If your vehicle has to be stopped
in an emergency ..................... 503
6Maintenance and care
7When trouble arises
Page 6 of 668
TABLE OF CONTENTS6
GS350_200t_GS F_OM_OM30E87E_(EE)
7-2. Steps to take in an emergency
If your vehicle needs to be towed ............................... 504
If you think something is wrong ........................................ 510
Fuel pump shut off system .........511
If a warning light turns on or a warning buzzer
sounds........................................... 512
If a warning message is displayed.................................. 518
If you have a flat tire (vehicles with spare tire)........................... 551
If you have a flat tire (vehicles without spare tire) ................... 567
If the engine will not start ....... 583
If the shift lever cannot be shifted from P ........................... 585
If the parking brake cannot be released ................ 586
If the electronic key does not operate properly .................... 588
If the vehicle battery is discharged .............................. 591
If your vehicle overheats .........596
If the vehicle becomes stuck .........................602 8-1. Specifications
Maintenance data (fuel, oil level, etc.)...................606
Fuel information .......................... 626
8-2. Customization Customizable features............. 628
8-3. Initialization Item to initialize ........................... 644
What to do if... (Troubleshooting) ................................ 646
Alphabetical index ................................ 6508Vehicle specifications
Index
For information regarding the equipment listed below, refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
• Audio system
• Lexus parking assist-sensor• Navigation system
• Lexus parking assist monitor

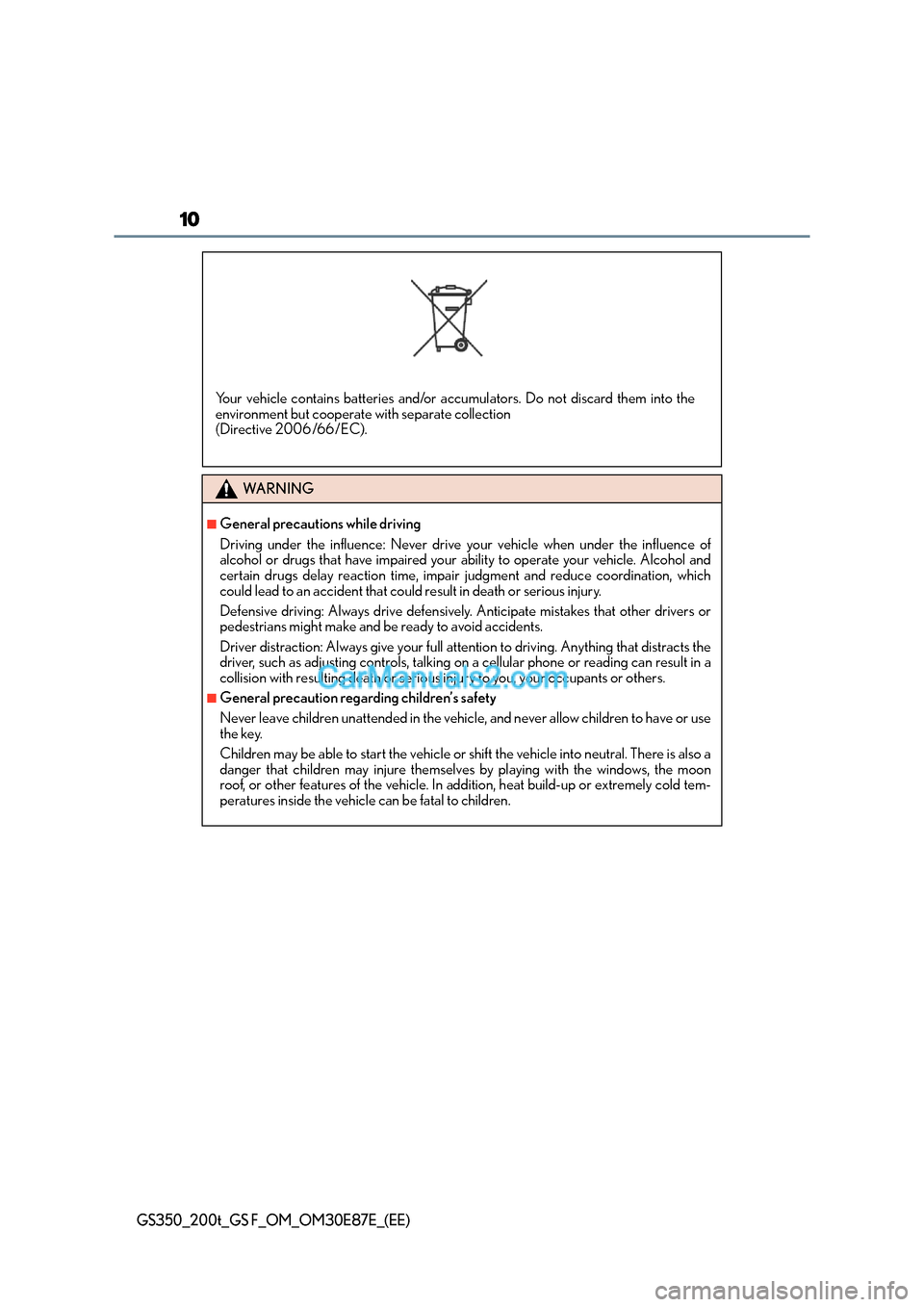

Page 10 of 668
10
GS350_200t_GS F_OM_OM30E87E_(EE)
WA R N I N G
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and
certain drugs delay reaction time, impair judgment and reduce coordination, which
could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or
pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts the
driver, such as adjusting controls, talking on a cellular phone or reading can result in a
collision with resulting death or serious injury to you, your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or use
the key.
Children may be able to start the vehicle or sh ift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon
roof, or other features of the vehicle. In addition, heat build-up or extremely cold tem-
peratures inside the vehicle can be fatal to children.
Your vehicle contains batteries and/or accumulators. Do not discard them into the
environment but cooperate with separate collection
(Directive 2006 /66/EC).
Page 15 of 668
15Pictorial index
GS350_200t_GS F_OM_OM30E87E_(EE)
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 159
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 159
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Locking/unlocking by using the mechanical key . . . . . . . . . . . . . . . . . . . . . . . P. 588
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 514, 520
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 274
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 382
To prevent freezing (windshield wiper de-icer)* . . . . . . . . . . . . . . . . . . . . . . . P. 400
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 436
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 280
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 280
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 611
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 465
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 623
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 3 82
Checking/rotation/tire pressure warning system
* . . . . . . . . . . . . . . . . . . . . . . P. 465
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 551, 567
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 445
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 445
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 451
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 612
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 596
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 52 0
Headlights/front position lights/daytime running lights . . . . . . . . . . . . P. 260
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253
Front fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 273
1
2
3
4
5
Light bulbs of the exterior lights for driving
(Replacing method: P. 492, Watts: P. 625)
*: If equipped
6
7
8

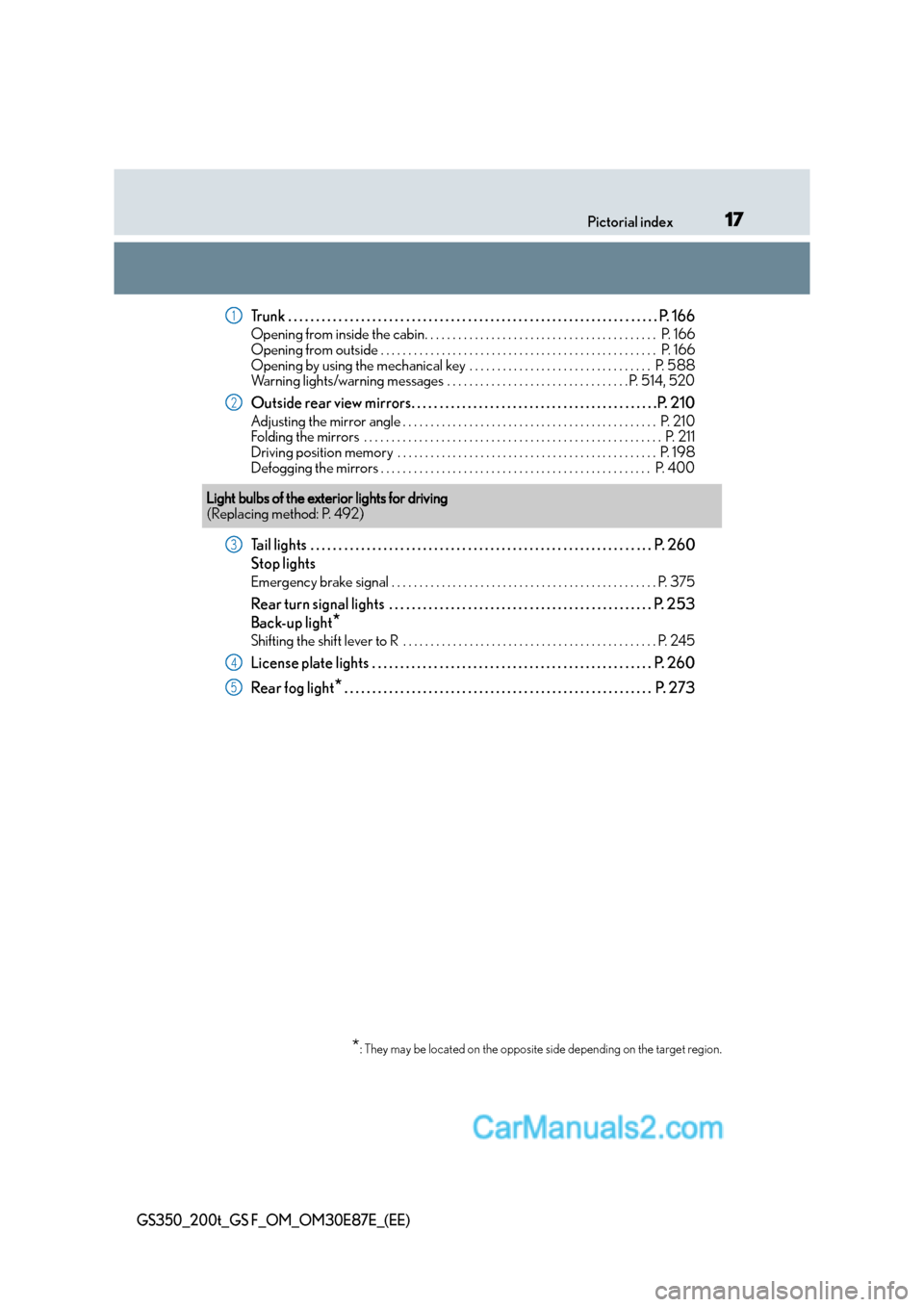

Page 17 of 668
17Pictorial index
GS350_200t_GS F_OM_OM30E87E_(EE)
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Opening from inside the cabin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Opening by using the mechanical key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 588
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 514, 520
Outside rear view mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 210
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 1 1
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 198
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Stop lights
Emergency brake signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 375
Rear turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253
Back-up light
*
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Rear fog light
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
1
2
Light bulbs of the exterior lights for driving
(Replacing method: P. 492)
*: They may be located on the opposite side depending on the target region.
3
4
5

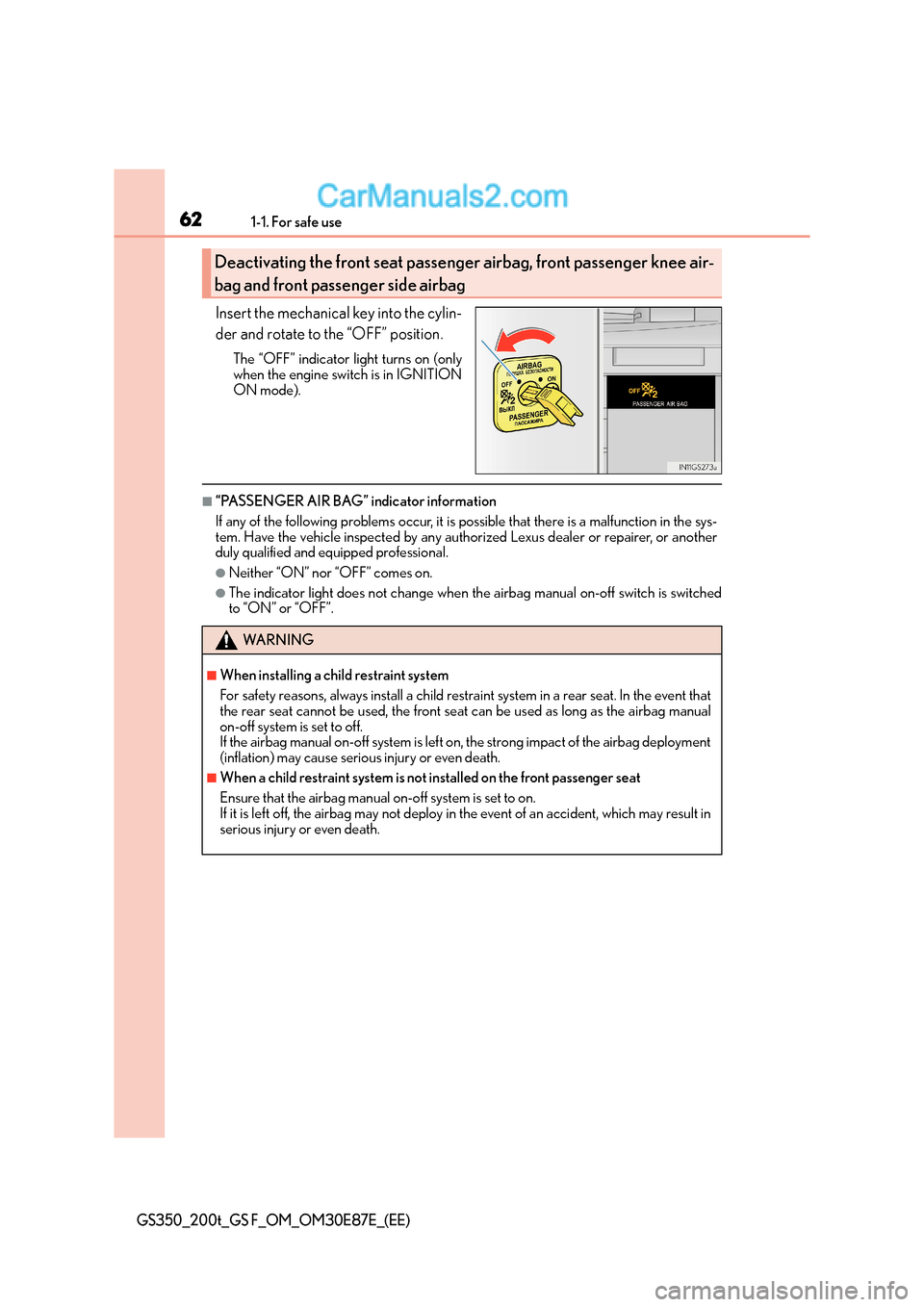

Page 62 of 668
621-1. For safe use
GS350_200t_GS F_OM_OM30E87E_(EE)
Insert the mechanical key into the cylin-
der and rotate to the “OFF” position.
The “OFF” indicator light turns on (only
when the engine switch is in IGNITION
ON mode).
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction in the sys-
tem. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
●Neither “ON” nor “OFF” comes on.
●The indicator light does not change when th e airbag manual on-off switch is switched
to “ON” or “OFF”.
Deactivating the front seat passeng er airbag, front passenger knee air-
bag and front passenger side airbag
WA R N I N G
■When installing a child restraint system
For safety reasons, always install a child rest raint system in a rear seat. In the event that
the rear seat cannot be used, the front seat can be used as long as the airbag manual
on-off system is set to off.
If the airbag manual on-off system is left on, the strong impact of the airbag deployment
(inflation) may cause serious injury or even death.
■When a child restraint system is not installed on the front passenger seat
Ensure that the airbag manual on-off system is set to on.
If it is left off, the airbag may not deploy in the event of an accident, which may result in
serious injury or even death.

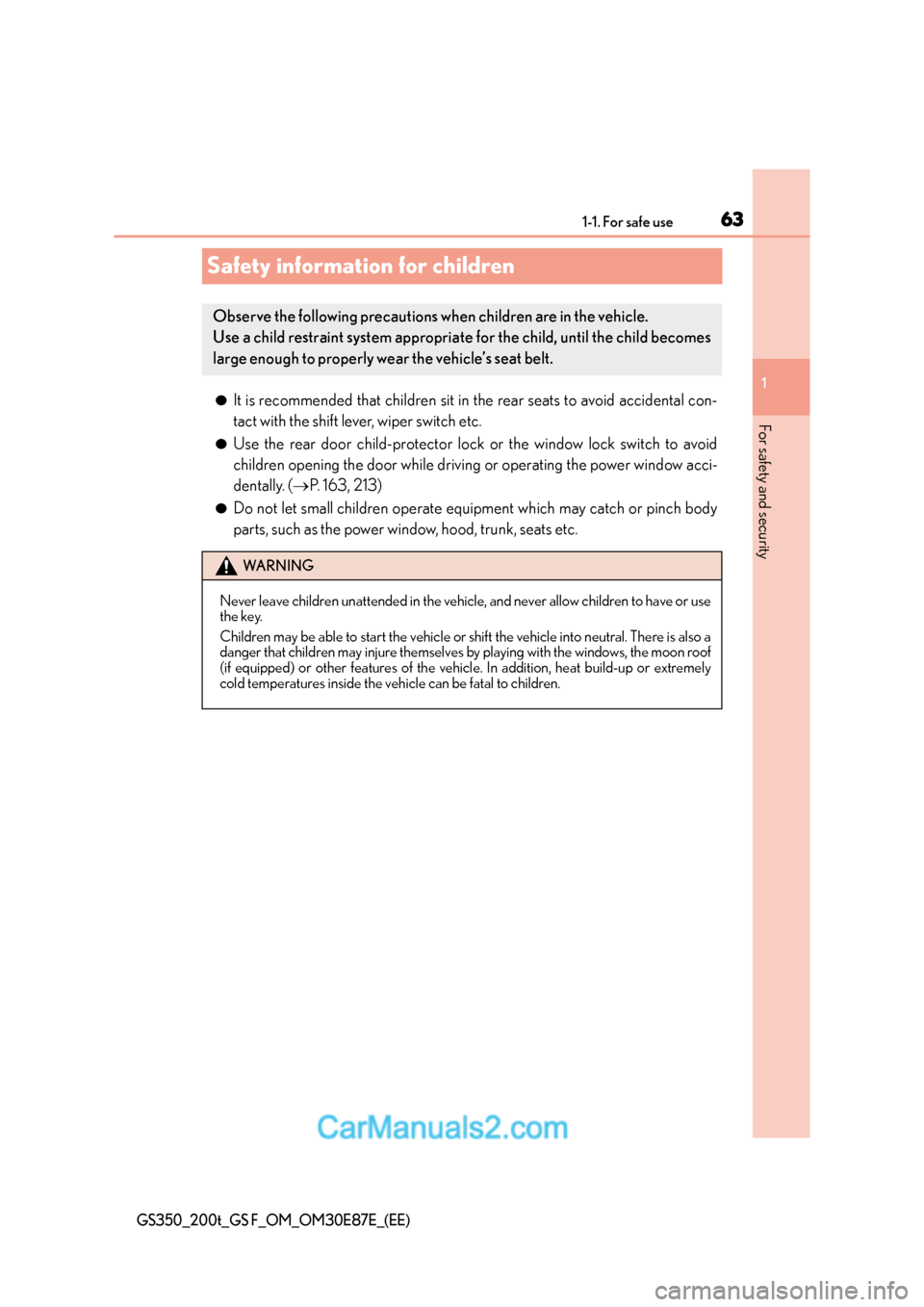

Page 63 of 668
631-1. For safe use
1
GS350_200t_GS F_OM_OM30E87E_(EE)
For safety and security
Safety information for children
●It is recommended that children sit in the rear seats to avoid accidental con-
tact with the shift lever, wiper switch etc.
●Use the rear door child-protector lock or the window lock switch to avoid
children opening the door while driving or operating the power window acci-
dentally. ( →P. 163, 213)
●Do not let small children operate equipment which may catch or pinch body
parts, such as the power window, hood, trunk, seats etc.
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt.
WA R N I N G
Never leave children unattended in the vehicle, and never allow children to have or use
the key.
Children may be able to start the vehicle or sh ift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon roof
(if equipped) or other features of the vehicl e. In addition, heat build-up or extremely
cold temperatures inside the vehicle can be fatal to children.
