Lexus GS F 2016 Navigation Manual

109
2. DESTINATION SEARCH
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
NAVIGATION SYSTEM
31Select “Edit Route” .
2Select the desired item.
EDITING ROUTE
Destinations can be added, reordered
or deleted, and conditions for the route
to the destination can be changed.
No.FunctionPage
Select to add destinations.118
Select to delete destina-
tions. 119
Select to reorder destina-
tions. 118
Select to set route prefer-
ences. 119
Select to change route
type.119
INFORMATION
● Even if the “Freew ays” indicator is
dimmed, the route cannot avoid including
a freeway in some cases. ( →P.119)
● If the calculated route includes a trip by
ferry, the route guidance shows a sea
route. After traveling by ferry, the current
position may be incorrect. Upon recep-
tion of GPS signals, it is automatically
corrected.

110
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
3. ROUTE GUIDANCE
1. ROUTE GUIDANCE SCREEN
During the route guidance, various
types of guidance screens can be dis-
played depending on conditions.
SCREEN FOR ROUTE
GUIDANCE
No.Information
Distance to the next turn and an ar-
row indicating the turning direction
Guidance route
Current position
Current street name or route infor-
mation
INFORMATION
●If the vehicle goes off the guidance route,
the route is searched again.
● For some areas, the roads have not been
completely digitized in our database. For
this reason, the route guidance may
select a road that should not be traveled
on.
● When arriving at the set destination the
destination name will be displayed on the
upper part of the screen.
● When the head-up display is set to on,
turn-by-turn guidance arrows will be dis-
played on the windshield.

111
3. ROUTE GUIDANCE
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
NAVIGATION SYSTEM
3
1Select the route information bar ( ) or
the route information button ( ) to
change the display of the route informa-
tion bar.
CHANGING ROUTE
INFORMATION BAR
When the vehicle is on the guidance
route, the route information bar displays
the current street name or the distance
with the estimated travel/arrival time to
the destination.
No.Information
Select to change the display be-
tween the estimated travel time and
the estimated arrival time.
“Arrival Time” : Select to display the
estimated arrival time.
“Time to Dest.” : Select to display the
estimated travel time.
Select to change the display be-
tween the current street name and
the distance with the estimated trav-
el/arrival time.
INFORMATION
● When the vehicle is on the guidance
route, the distance measured along the
route is displayed. Travel time and arrival
time are calculated based on the average
speed for the specified speed limit.
● When the vehicle gets off the guidance
route, the arrow facing the destination is
displayed instead of the estimated travel/
arrival time.
● The route information bar fills from left to
right as the vehicle progresses on the
route.

112
3. ROUTE GUIDANCE
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Select the route information bar.
2Check that the list of the distance and
time is displayed.
zBy selecting one of the number buttons, the
desired route information is displayed.
1Select on the map screen.
( → P.78)
2Select “Route Overview” .
3Check that the entire route map is dis-
played.
zFor details about this screen: →P.1 0 5
DISTANCE AND TRAVEL/
ARRIVAL TIME
When driving on the guidance route
with more than 1 destination set, a list of
the distance with estimated travel/arriv-
al time from the current position to each
destination is displayed.ROUTE OVERVIEW
The entire route from the current posi-
tion to the destination can be displayed
during the route guidance.

113
3. ROUTE GUIDANCE
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
NAVIGATION SYSTEM
3

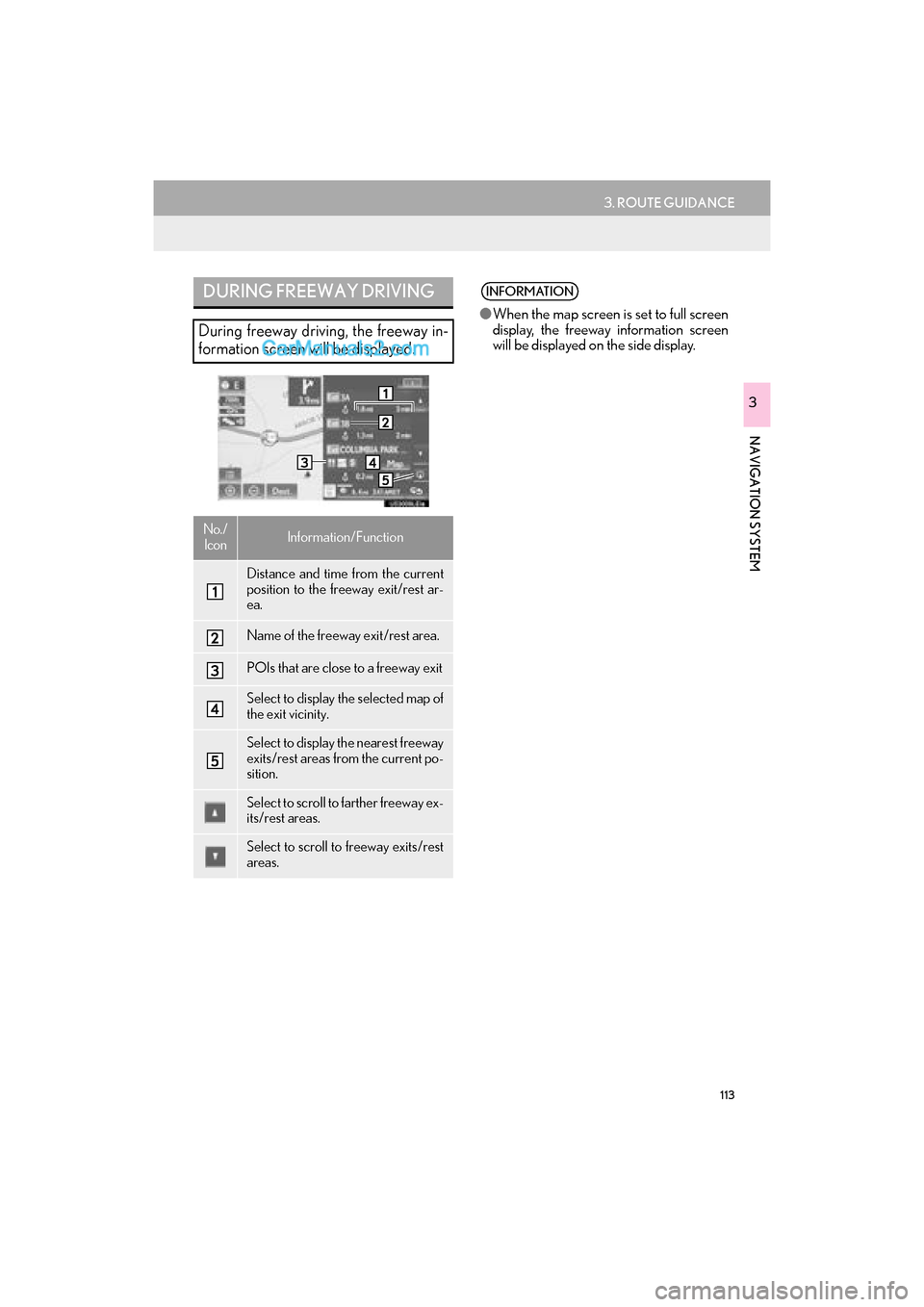

DURING FREEWAY DRIVING
During freeway driving, the freeway in-
formation screen will be displayed.
No./IconInformation/Function
Distance and time from the current
position to the freeway exit/rest ar-
ea.
Name of the freeway exit/rest area.
POIs that are close to a freeway exit
Select to display the selected map of
the exit vicinity.
Select to display the nearest freeway
exits/rest areas from the current po-
sition.
Select to scroll to farther freeway ex-
its/rest areas.
Select to scroll to freeway exits/rest
areas.
INFORMATION
● When the map screen is set to full screen
display, the freeway information screen
will be displayed on the side display.

114
3. ROUTE GUIDANCE
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
WHEN APPROACHING
FREEWAY EXIT OR
JUNCTION
When the vehicle approaches an exit or
junction, the freeway guidance screen
will be displayed.
No.Information/Function
Next exit or junction name
Distance from the current position to
the exit or junction
Select to hide the freeway guidance
screen.
To return to the freeway guidance
screen, press the “MAP” button on
the Remote Touch.
Remaining distance bar to the guid-
ance point
TOLLGATE GUIDANCE
When the vehicle approaches a tollgate,
the tollgate view will be displayed.
No.Information/Function
Distance from the current position to
the tollgate
Select to hide the tollgate guidance
screen.
To return to the tollgate guidance
screen, press the “MAP” button on
the Remote Touch.
Remaining distance bar to the guid-
ance point

115
3. ROUTE GUIDANCE
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
NAVIGATION SYSTEM
3
REAL FREEWAY JUNCTION
VIEW
When the vehicle approaches a junc-
tion, the junction view with signage will
be displayed.
No.Information/Function
Next junction or street name
Select to hide the real freeway junc-
tion view.
To return to the real freeway junction
view, press the “MAP” button on the
Remote Touch.
Distance from the current position to
the next junction
Remaining distance bar to the guid-
ance point
WHEN APPROACHING
INTERSECTION
When the vehicle approaches an inter-
section, the intersection guidance
screen will be displayed.
No.Information/Function
Next street name
Select to hide the intersection guid-
ance screen.
To return to the intersection guid-
ance screen, press the “MAP” but-
ton on the Remote Touch.
Distance to the intersection
Remaining distance bar to the guid-
ance point
INFORMATION
● When the map screen is set to full screen
display, the intersection guidance screen
will be displayed on the side display.

116
3. ROUTE GUIDANCE
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Select “Turn List” on the “Map Mode”
screen. ( →P.82)
2Check that the turn list screen is dis-
played.
1Select “Turn-by-Turn Arrow” on the
“Map Mode” screen. ( →P.82)
2Check that the turn-by-turn arrow
screen is displayed.
TURN LIST SCREEN
No.Information
Turn direction
Distance between turns
Next street or destination name
INFORMATION
●When the map screen is set to full screen
display, the turn list screen will be dis-
played on the side display.
TURN-BY-TURN ARROW
SCREEN
On this screen, information about the
next turn on the guidance route can be
displayed.
No.Information
Exit number or street name
Turn direction
Distance to the next turn
INFORMATION
●When the map screen is set to full screen
display, the turn-by-turn arrow screen will
be displayed on the side display.

117
3. ROUTE GUIDANCE
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
NAVIGATION SYSTEM
3
2. TYPICAL VOICE GUIDANCE PROMPTS
As the vehicle approaches an intersec-
tion, or point, where maneuvering the
vehicle is necessary, the system’s voice
guidance will provide various messages.
WA R N I N G
●Be sure to obey the traffic regulations and
keep the road condition in mind espe-
cially when you are driving on IPD roads
(roads that are not completely digitized in
our database). The route guidance may
not have the updated information such as
the direction of a one way street.
INFORMATION
●If a voice guidance command cannot be
heard, press the “MAP” on the Remote
To u c h .
● To adjust the voice guidance volume:
→ P. 6 7
● Voice guidance may be made early or
late.
● If the system cannot determine the cur-
rent position correctly, you may not hear
voice guidance or may not see the mag-
nified intersection on the screen.

118
3. ROUTE GUIDANCE
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
3. EDITING ROUTE
1Select on the map screen.
(→ P.78)
2Select “Edit Route” .
3Select the item to be set.
4Check that the entire route map is dis-
played. (→P.106)
1Display the “Route” screen. ( →P.118)
2Select “A d d ”.
3Search for an additional destination in
the same way as a destination search.
(→ P.93)
4Select “Add Destination Here” to insert
the new destination into the route.
1Display the “Route” screen. ( →P.118)
2Select “Reorder” .
3Select the desired destination and se-
lect “Move Up” or “Move Down” to
change the arrival order. Then select
“OK” .
No.FunctionPage
Select to add destinations.118
Select to delete destina-
tions.119
Select to reorder destina-
tions.118
Select to set route prefer-
ences.119
Select to change route
type.119
Select to set detours.120
Select to start from adja-
cent road.121
ADDING DESTINATIONS
REORDERING
DESTINATIONS
When more than 1 destination has been
set, the arrival order of the destinations
can be changed.
