display Lexus GS F 2016 Navigation Manual

285
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
3. CALLING ON THE Bluetooth® PHONE
1Press the “MENU” button on the
Remote Touch.
2Select “Phone”.
3Select the desired tab to call from.
zThe phone top screen can be displayed by
pressing the
switch on the steering
wheel.
After a Bluetooth® phone has been reg-
istered, a call can be made using the
hands-free system. There are several
methods by which a call can be made, as
described below.
How to make a call listPage
By favorites list286
By call history286
By contacts list*1287
By dial pad*1289
By e-mail/SMS/MMS299
By POI call*287
By off hook switch290
By LEXUS App Suite338
By voice command system234
By quick dial*2352
*
1: The operation cannot be performed while driving.
*
2: With 12.3-inch display

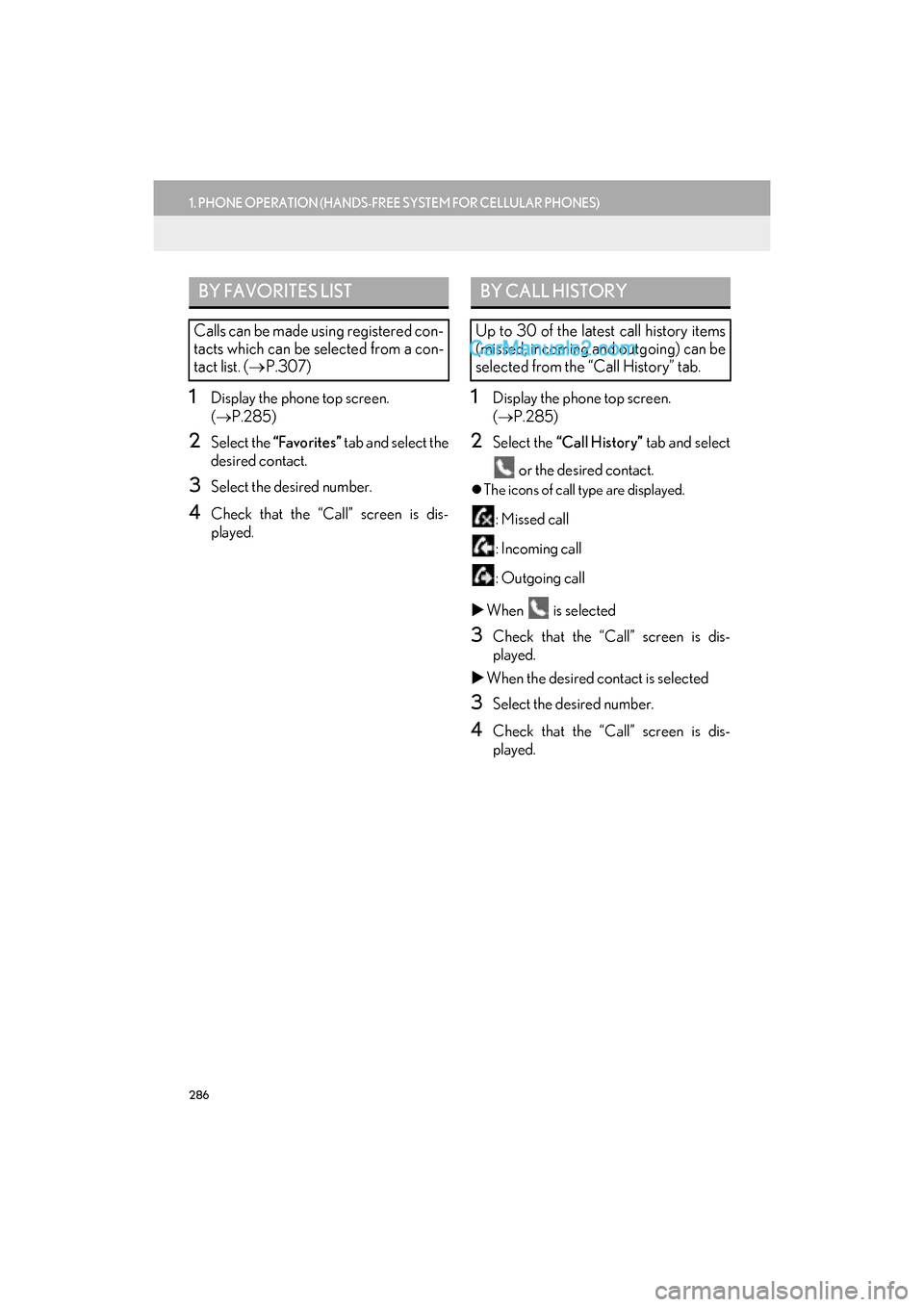

286
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Display the phone top screen.
(→ P.285)
2Select the “Favorites” tab and select the
desired contact.
3Select the desired number.
4Check that the “Call” screen is dis-
played.
1Display the phone top screen.
( → P.285)
2Select the “Call History” tab and select
or the desired contact.
z The icons of call type are displayed.
: Missed call
: Incoming call
: Outgoing call
X When is selected
3Check that the “Call” screen is dis-
played.
X When the desired contact is selected
3Select the desired number.
4Check that the “Call” screen is dis-
played.
BY FAVORITES LIST
Calls can be made using registered con-
tacts which can be selected from a con-
tact list. ( →P.307)
BY CALL HISTORY
Up to 30 of the latest call history items
(missed, incoming and outgoing) can be
selected from the “Call History” tab.

287
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
1Display the phone top screen.
(→ P.285)
2Select the “Contacts” tab and select the
desired contact.
3Select the desired number.
z The order of the phone numbers that are
displayed may differ from the order shown
on the cellular phone.
4Check that the “Call” screen is dis-
played.
INFORMATION
●When making a call to the same number
continuously, only the most recent call is
listed in call history.
● When a phone number registered in the
contact list is received, the name is dis-
played.
● Number-withheld calls are also memo-
rized in the system.
● International phone calls may not be
made depending on the type of cellular
phone you have.
● The list should group together consecu-
tive entries with the same phone number
and same call type. For example, two calls
from John’s mobile would be displayed as
follows: John (2)
● By pressing the switch on the steer-
ing wheel, a call to the latest history item
can be made.
BY CONTACTS LIST
Calls can be made by using contact data
which is transferred from a registered
cellular phone. ( →P.288)
Up to 2500 contacts (maximum of 4
phone numbers and e-mail addresses
per contact) can be registered in the
contact list.

289
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
XWhen “Transfer” is selected
2Follow the steps in “ XWhen the contact
is not registered” from “STEP 2”.
( → P.304)
X When “Add” is selected
2Follow the steps in “REGISTERING A
NEW CONTACT TO THE CON-
TACTS LIST” from “STEP 2”.
(→ P.306)
1Display the phone top screen.
(→ P.285)
2Select the “Dial Pad” tab and enter the
phone number.
3Select or press the switch on
the steering wheel.
4Check that the “Call” screen is dis-
played.INFORMATION
● If your cellular phone is neither PBAP nor
OPP compatible, the contacts cannot be
transferred.
● Depending on the type of Bluetooth
®
phone:
• It may be necessary to perform addi-
tional steps on the phone when transfer-
ring contact data.
• The registered image in the contact list may not transfer depending on the type
of Bluetooth
® phone connected.
BY DIAL PAD
INFORMATION
● Depending on the type of Bluetooth®
phone being connected, it may be neces-
sary to perform additional steps on the
phone.

290
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Press the switch on the steering
wheel to display the phone top screen.
2Press the switch on the steering
wheel to display the “Call History”
screen.
3Press the switch on the steering
wheel to call the latest history item.
4Check that the “Call” screen is dis-
played.
BY OFF HOOK SWITCH
Calls can be made using the latest call
history item.

291
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
4. RECEIVING ON THE Bluetooth® PHONE
1Select or press the switch on
the steering wheel to talk on the phone.
To refuse to receive the call : Select
or press the switch on the steering
wheel.
To adjust the volume of a received call :
Turn the “PWR·VOL” knob, or use the vol-
ume control switch on the steering wheel.
INCOMING CALLS
When a call is received, this screen is
displayed with a sound.
With 12.3-inch display: This screen can
also be displayed on the side display.
( →
P. 3 4 9)
INFORMATION
● During international phone calls, the
other party’s name or number may not be
displayed correctly depending on the
type of cellular phone you have.
● The ringtone that has been set in the
“Sounds” screen sounds when there is an
incoming call. Depending on the type of
Bluetooth
® phone, both the system and
Bluetooth® phone may sound
simultaneously when there is an incoming
call. ( →P. 3 0 1 )
● The incoming call display mode can be
set. ( →P. 3 1 0 )

292
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
5. TALKING ON THE Bluetooth® PHONE
While talking on the phone, this screen is
displayed. The operations outlined be-
low can be performed on this screen.
With 12.3-inch display: This screen can
also be displayed on the side display.
(→
P. 3 4 9)
No.FunctionPage
Select to display the dial
pad to send tones.293
Select to mute your voice to
the other party.
Select to change handset
modes between hands-free
and cellular phone.

Select to adjust your voice
volume that the other party
hears from their speaker.294
Select to send tones. This
button only appears when a
number that contains a (w)
is dialed in hands-free
mode.
293
Select to hang up the
phone.
Select “+” or “-” to adjust
the volume of the other par-
ty’s voice.
Select to start talking with
the other party.294
INFORMATION
● When cellular phone call is changed to
hands-free call, the hands-free screen will
be displayed and its functions can be
operated on the screen.
● Changing between cellular phone call
and hands-free call can be performed by
operating the cellular phone directly.
● Transferring methods and operations will
be different depending on the type of cel-
lular phone you have.
● For the operation of the cellular phone,
see the manual that comes with it.
● This screen can be displayed on the main
display or side display. ( →P. 3 1 0 )

294
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Select “Transmit Volume” .
2Select the desired level for the transmit
volume.
“Default” : Select to reset the transmit vol-
ume.
3Select “OK”.
1Select or press the switch on
the steering wheel to start talking with
the other party.
To refuse to receive the call : Select
or press the switch on the steering
wheel.
z Each time is selected or the
switch on the steering wheel is pressed
during an interrupted call, the party who is
on hold will be switched.
TRANSMIT VOLUME SETTING
INFORMATION
●The sound quality of the voice heard from
the other party’s speaker may be nega-
tively impacted.
● “Transmit Volume” is dimmed when mute
is on.
INCOMING CALL WAITING
When a call is interrupted by a third par-
ty while talking, the incoming screen is
displayed.

With 12.3-inch display: The incoming
screen can also be displayed on the side
display.
( → P. 3 4 9 )
INFORMATION
●This function may not be available
depending on the type of cellular phone.
● This screen can be displayed on the main
display or side display. ( →P. 3 1 0 )

295
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
6. Bluetooth® PHONE MESSAGE FUNCTION
1Press the “MENU” button on the
Remote Touch.
2Select “Phone”.
3Select .
zThe phone top screen can be displayed by
pressing the
switch on the steering
wheel.
4Check that the message inbox screen is
displayed.
: Select to change to phone mode.
Received messages can be forwarded
from the connected Bluetooth® phone,
enabling checking and replying using
the system.
Depending on the type of Bluetooth
®
phone connected, received messages
may not be transferred to the message
inbox.
If the phone does not support the mes-
sage function, this function cannot be
used.
FunctionPage
Receiving a message296
Checking messages297
Replying to a message (quick reply)298
Calling the message sender299
Message settings309

296
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
RECEIVING A MESSAGE
When an e-mail/SMS/MMS is re-
ceived, the incoming message screen
pops up with sound and is ready to be
operated on the screen.
No.Function
Select to check the message.
Select to not open the message.
Select to call the message sender.
INFORMATION
●Depending on the cellular phone used for
receiving messages, or its registration
status with the system, some information
may not be displayed.
● The pop up screen is separately available
for incoming e-mail and SMS/MMS mes-
sages under the following conditions:
E-mail:
• “E-mail Notification Popup” is set to on.
(→ P. 3 1 0 )
SMS/MMS:
• “SMS/MMS Notification Popup” is set to on. ( →P. 3 1 0 )
