79
1. BASIC OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
NAVIGATION SYSTEM
3
2. MAP SCREEN OPERATION
1Press the “MAP” button on the Remote
Touch.
2Check that the current position map is
displayed.
z Selecting will change the map
screen to full screen display.
CURRENT POSITION DISPLAY
zTo correct the current position manu-
ally:
→P.1 3 5
INFORMATION
●While driving, the cu rrent position mark
is fixed on the screen and the map moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the 12-volt battery disconnection,
or on a new vehicle, the current position
may not be correct. As soon as the sys-
tem receives signals from the GPS, the
correct current position is displayed.

80
1. BASIC OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Select or to change the
scale of the map screen.
zThe scale indicator bar appears at the bot-
tom of the screen.
z Select and hold or to continue
changing the scale of the map screen.
z The scale of the map screen can also be
changed by selecting the scale bar directly.
This function is not available while driving.
1Select on the map screen.
2Check that the footprint map is dis-
played.
zTo return to the normal map display, select
.
MAP SCALE
INFORMATION
●Press the “” button on the Remote
Touch to zoom in on the map screen and
the “” button to zoom out.
● In areas where the footprint map is avail-
able the map scale changes from
to when at the minimum range.
FOOTPRINT MAP
For areas covered by the footprint map
(some major cities), a footprint map on a
scale of 75 ft. (25 m) can be selected.
When the map is scaled down to 150 ft.
(50 m), changes to and can
be selected to display the footprint map.
INFORMATION
● If the map or the current position is
moved to the area which is not covered
by the footprint map, the screen scale
automatically changes to 150 ft. (50 m).
● On the footprint map, a one way street is
displayed by .
● Scrolling on the footpr int map is not avail-
able while driving.
Building footprints in the database were
created and provided by HERE.

81
1. BASIC OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
NAVIGATION SYSTEM

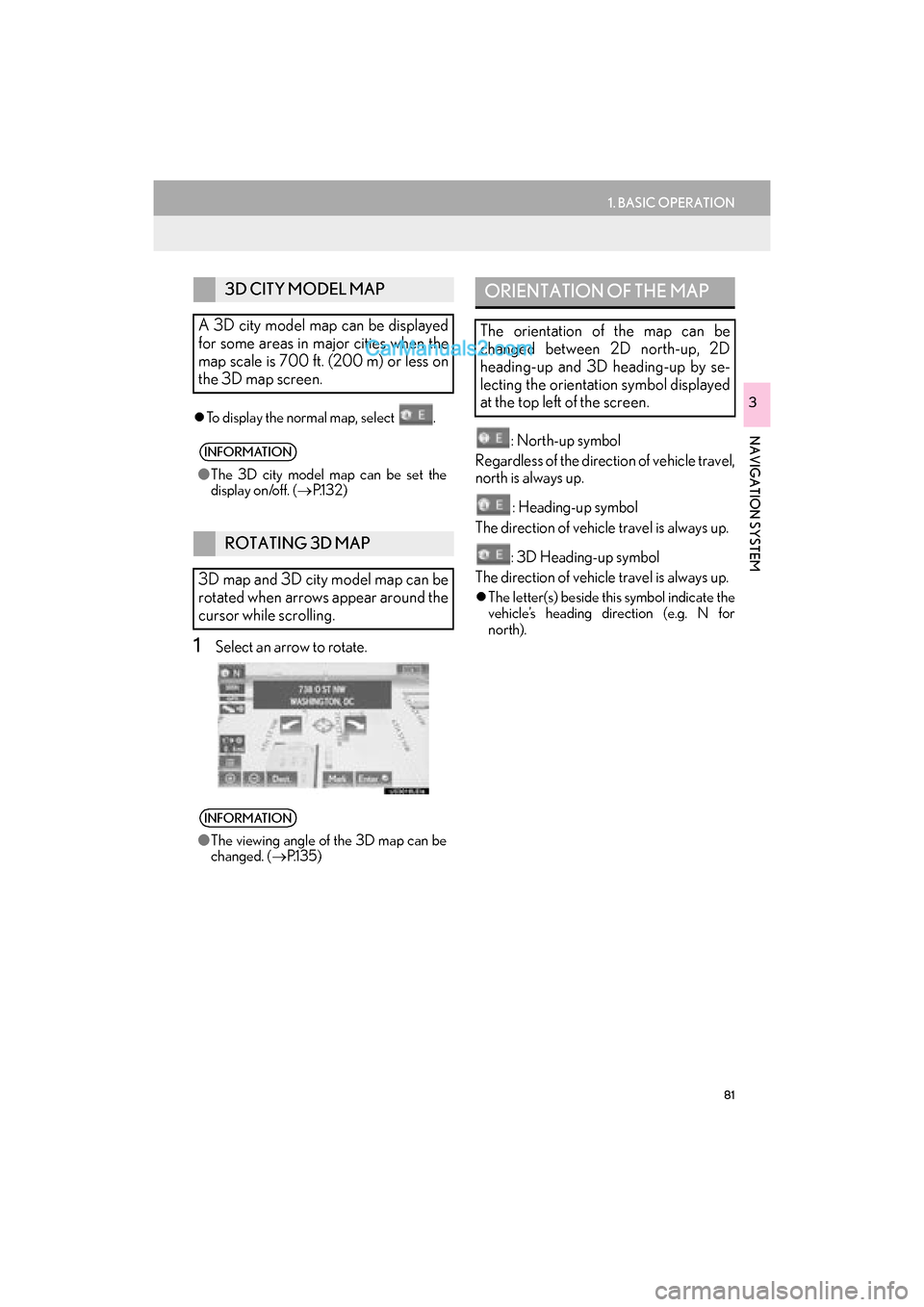

3zTo display the normal map, select .
1Select an arrow to rotate. : North-up symbol
Regardless of the direction of vehicle travel,
north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up.
z The letter(s) beside this symbol indicate the
vehicle’s heading direction (e.g. N for
north).
3D CITY MODEL MAP
A 3D city model map can be displayed
for some areas in major cities when the
map scale is 700 ft. (200 m) or less on
the 3D map screen.
INFORMATION
● The 3D city model map can be set the
display on/off. ( →P.1 3 2 )
ROTATING 3D MAP
3D map and 3D city model map can be
rotated when arrows appear around the
cursor while scrolling.
INFORMATION
● The viewing angle of the 3D map can be
changed. ( →P.1 3 5 )
ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol displayed
at the top left of the screen.

82
1. BASIC OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Select on the map screen.
( → P.78)
2Select “Map Mode” .
3Select the desired configuration button.
zDepending on the conditions, certain
screen configuration buttons cannot be
selected.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 
Select to display the turn list
screen.116
Select to display the free-
way exit list screen.113
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
115
Select to display the turn-
by-turn arrow screen.116
SCREEN SCROLL
OPERATION
Use the scroll feature to move the de-
sired point to the center of the screen for
looking at a point on the map that is dif-
ferent from the current position.
No.Information/Function
Cursor mark
Distance from the current position to
the cursor mark
Select to register as a memory point.
To change the icon, name, etc.: →P.126
Select to set as a destination.
When selecting “Go to ” on the
following map screen, the navigation
system performs a search for the
route. ( →P.105)
If a destination has already been set,
“Go to ” and “Add to Route” will
be displayed.
“Go to ” : Select to delete the exist-
ing destination(s) and set a new one.
“Add to Route” : Select to add a des-
tination.

84
1. BASIC OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
3. MAP SCREEN INFORMATION
1Select on the map screen.
(→ P.78)
2Select “Map Information” .
3Select the desired items to be displayed.
zWhen set to on, the indicator will illuminate.
1Display the “Map Information” screen.
(→ P.84)
2Select “Select POI” .
zWhen the POI icons to be displayed on the
map screen have already been set,
“Change POI” is displayed.
DISPLAYING MAP
INFORMATION
Information such as POI icons, route
trace, speed limit, etc. can be displayed
on the map screen.
No.FunctionPage
Select to display the select-
ed POI icons.
Select to select or change
POI icons.84
*Select to display
eDestination icons.340
Select to display route
trace.86
Select to display traffic in-
formation.90
*Select to display speed limit
icon.
*: This function is not made available on some models.
SELECTING THE POI ICONS
No.FunctionPage

85
1. BASIC OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
NAVIGATION SYSTEM
3
3Select the desired POI category and se-
lect “OK” .■SELECTING OTHER POI ICONS
TO BE DISPLAYED
1Select “Other POIs” .
2Select the desired POI categories and
select “OK”.
“List All Categories” : Select to display all
POI categories. To add more POI catego-
ries, select “More”.
No.Information/FunctionPage
Displays up to 5 selected
POI icons on the map
screen.−
Select to cancel the select-
ed POI icons.−
Displays up to 6 POI icons
as favorite POI categories134
Select to display other POI
categories if the desired
POIs cannot be found on
the screen.
85
Select to search for the
nearest POIs.86

86
1. BASIC OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
■DISPLAYING THE LOCAL POI
LIST
1Select “Find Local POI” .
2Select the desired POI.
“Near...” : Select to search for POIs near the
current position or along the route.
3Check that the selected POI is dis-
played on the map screen.
X When “Near...” is selected
1Select the desired item.
■START RECORDING THE ROUTE
TRACE
1Display the “Map Information” screen.
(→ P.84)
2Select “Route Trace”.
zThe “Route Trace” indicator illuminates and
the route trace starts.
3Check that the traveled line is displayed.
POIs that are within 20 miles (32 km) of
the current position will be listed from
among the selected categories.
No.Function
Select to search for POIs near the
current position.
Select to search for POIs along the
route.
ROUTE TRACE
The traveled route can be stored and re-
traced on the map screen. This feature is
available when the map scale is 30 miles
(50 km) or less.

87
1. BASIC OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
NAVIGATION SYSTEM
3
■STOP RECORDING THE ROUTE
TRACE
1Display the “Map Information” screen.
(→ P.84)
2Select “Route Trace” again.
3A confirmation screen will be displayed.
“Yes”: Select to keep the recorded
route trace.
“No”: Select to erase the recorded
route trace.
1Place the cursor over an icon.
2Select “Info”.
INFORMATION
●The traveled route can be stored up to
124 miles (200 km).
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET
When the cursor is placed over an icon
on the map screen, the name bar is dis-
played on the upper part of the screen. If
“Info” appears on the right side of the
name bar, detailed information can be
displayed.

88
1. BASIC OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
“Mark”: Select to register as a memory
point. To change the icon, name, etc.:
→ P.126
“Enter ” : Select to set as a destination.
: Select to call the registered
number.
“Delete” : Select to delete destination or
memory point.
“Edit” : Select to display the edit memory
point screen.
“Detail” : Select to display detailed informa-
tion.*INFORMATION
● Even when traffic information is not cur-
rently being received, traffic information
and “Info” will be displayed for a while
after traffic information has been
received.
● In some situations, calls to a POI may
automatically change to an international
call or may not be possible as a domestic
call.
*: This function is not made available on some models.

90
1. BASIC OPERATION
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22

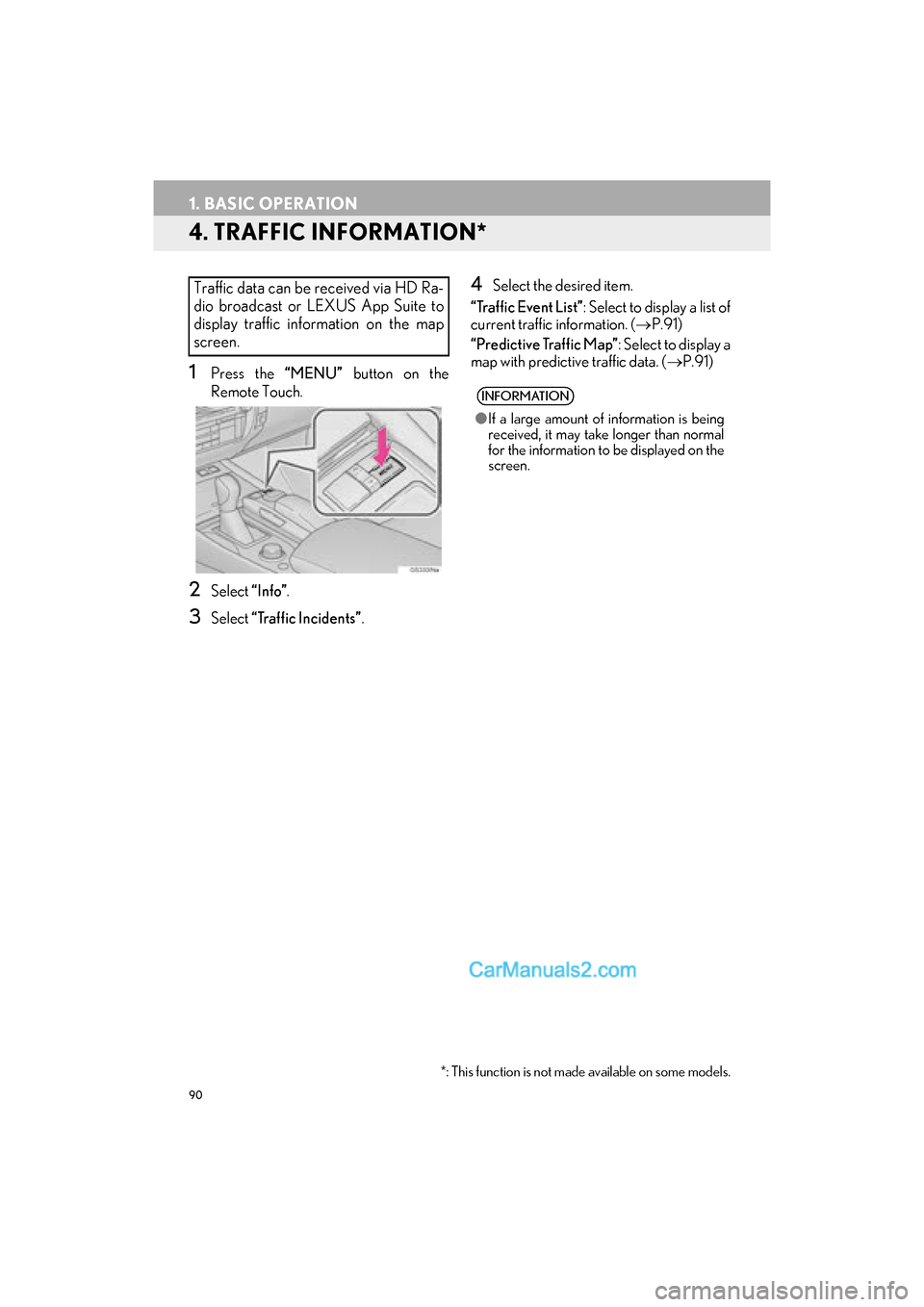

4. TRAFFIC INFORMATION*
1Press the “MENU” button on the
Remote Touch.
2Select “Info”.
3Select “Traffic Incidents” .
4Select the desired item.
“Traffic Event List” : Select to display a list of
current traffic information. ( →P.91)
“Predictive Traffic Map” : Select to display a
map with predictive traffic data. ( →P.91)Traffic data can be received via HD Ra-
dio broadcast or LEXUS App Suite to
display traffic information on the map
screen.
INFORMATION
●If a large amount of information is being
received, it may take longer than normal
for the information to be displayed on the
screen.
*: This function is not made available on some models.
