Lexus GS F 2016 Owner's Manual

4697-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
Indicates a malfunction in the cruise control system or
dynamic radar cruise control system (if equipped) Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the dynamic radar cruise con-
trol with full-speed range
Depress the brake pedal.
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert with steering control) system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions

4707-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
(If equipped)
Indicates a malfunction in the LKA (Lane-Keeping
Assist) systemA buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
The operation conditions of the camera sensor (temper-
ature, etc.) are not met.
→When the operation conditions of the camera sen-
sor (temperature, etc.) are met, the following sys-
tems will become available.
• PCS (Pre-Collision System)
• LKA (Lane-Keeping Assist) system
• LDA (Lane Departure Alert with steering control) system
• Automatic High Beam
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor A buzzer also sounds.
→ Turn the LDA (Lane Departure Alert with steering
control) system off, wait for a little while, and then
turn the LDA (Lane Departure Alert with steering
control) system back on.
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor
A buzzer also sounds.
→ Turn the LKA (Lane-Keeping Assist) system off, wait
for a little while, and then turn the LKA (Lane-Keep-
ing Assist) system back on.
Warning messageDetails/Actions
(Flashes)

4717-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
(If equipped)
Dirt, rain, condensation, ice, snow, etc., are present on
the windshield in front of the camera sensor. The following systems will be temporarily unusable.
• PCS (Pre-Collision System)
• LKA (Lane-Keeping Assist) system
• LDA (Lane Departure Alert with steering control)system
• Automatic High Beam
→ Turn the system off, remove any dirt, rain, condensa-
tion, ice, snow, etc., from the windshield, and then
turn the system back on.
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision Sys-
tem)
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions
(Flashes)
(Flashes)

4727-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
Indicates abnormal engine oil pressureA buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
Indicates that the automatic transmission fluid tempera-
ture is too high
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
(AWD models only)
Indicates a malfunction in the AWD system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the VGRS (Variable Gear
Ratio Steering)
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions

4737-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
(If equipped)
Indicates a malfunction in the DRS (Dynamic Rear
Steering) A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(GS350/GS200t only)
Indicates a malfunction in the electronically controlled
brake system
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact your Lexus dealer. Continuing to drive in
this condition is dangerous.
Indicates an attempt was made to engage the parking
brake while driving
A buzzer also sounds.
→ Press the parking brake switch. If the warning mes-
sage is still displayed, have the vehicle inspected by
your Lexus dealer.
Indicates a malfunction in the parking brake system
A buzzer also sounds.
→ Press the parking brake switch. If the warning mes-
sage is still displayed, have the vehicle inspected by
your Lexus dealer.
Warning messageDetails/Actions
(U.S.A.) (Canada)

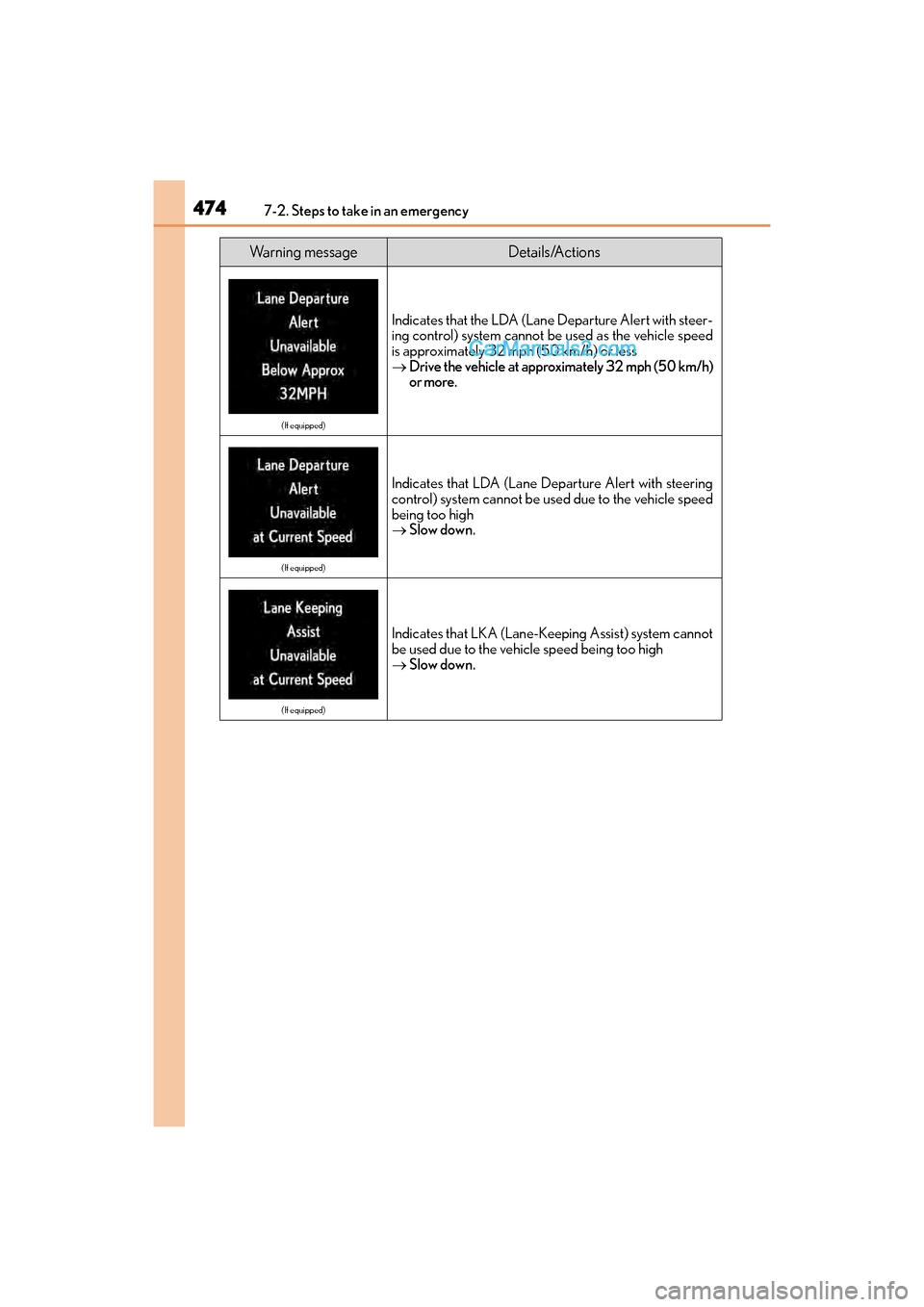

4747-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
(If equipped)
Indicates that the LDA (Lane Departure Alert with steer-
ing control) system cannot be used as the vehicle speed
is approximately 32 mph (50 km/h) or less
→Drive the vehicle at approximately 32 mph (50 km/h)
or more.
(If equipped)
Indicates that LDA (Lane Departure Alert with steering
control) system cannot be used due to the vehicle speed
being too high
→Slow down.
(If equipped)
Indicates that LKA (Lane-Keeping Assist) system cannot
be used due to the vehicle speed being too high
→Slow down.
Warning messageDetails/Actions

4757-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
Indicates that the engine switch is turned off or turned to
ACCESSORY mode and the driver’s door is opened
while the lights are turned on A buzzer also sounds.
→ Turn the lights off.
(If equipped)
Indicates that the moon roof is not fully closed (with the
engine switch off, and the driver’s door open) A buzzer also sounds.
→ Close the moon roof.
Indicates that the windows are not fully closed (with the
engine switch off, and the driver’s door open)
A buzzer also sounds.
→ Close all the windows.
(If equipped)
Indicates that the windows and the moon roof are not
fully closed (with the engine switch off, and the driver’s
door open) A buzzer also sounds.
→ Close all the windows and the moon roof.
(GS350/GS200t only)
Indicates a malfunction in the brake hold system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer
immediately.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)
(Flashes)

4767-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
(GS350/GS200t only)
Indicates that the brake hold system cannot be turned offA buzzer also sounds.
→ Depress the brake pedal.
(GS350/GS200t only)
Indicates that the brake hold system is not available
The reason the brake hold system is not available may
be displayed.
A buzzer also sounds.
→ Close the driver’s door.
→ Fasten the driver’s seat belt.
(GS350/GS200t only)
Indicates that the brake hold system is unable to con-
tinue brake hold function
The reason the brake hold system is not continue may
be displayed.
A buzzer also sounds.
→ Depress the brake pedal.
→ Close the driver’s door.
→ Fasten the driver’s seat belt.
Warning messageDetails/Actions

4777-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
(GS350/GS200t only)
Indicates that the parking brake is set automatically while
the brake hold system is holding the brakes A buzzer also sounds.
→ Release the parking brake.
(AWD models only)
Indicates the AWD system has overheated
A buzzer also sounds.
→ Reduce the vehicle speed or stop the vehicle in a
safe place.
(AWD models only)
Indicates the AWD system has overheated
A buzzer also sounds.
→ Reduce the vehicle speed or stop the vehicle in a
safe place.
(GS F only)
Indicates a malfunction in the TVD (Torque Vectoring
Differential) system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions
(Flashes)
(Flashes)

4787-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
(GS F only)
Indicates that the TVD (Torque Vectoring Differential)
system has overheatedThis message may be displayed when driving under
extremely high load conditions such as the following:
• Continuously driving at high speeds or throughsharp turns
• If either right or left rear tire loses traction and spins
continuously
A buzzer also sounds.
→ Drive the vehicle for a while, while avoiding
extremely high load conditions.
Indicates a malfunction in the drive start control system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer
immediately.
Indicates a malfunction in the brake override system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions
