4617-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
Indicates that hood or one or more of the doors or trunk
are not fully closed The system also indicates which hood or doors or
trunk are not fully closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate that
the hood or door(s) or trunk are not yet fully closed.
→ Make sure that hood or all doors or trunk are
closed.
(If equipped)
Indicates a malfunction in the intuitive parking assist
All assist-sensors flash.
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that intuitive parkin g assist sensor is dirty or
covered with ice A buzzer also sounds.
→ Clean the sensor.
Warning messageDetails/Actions
(GS350/GS200t) (GS F)
(GS350/GS200t) (GS F)

4677-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
Indicates that the engine coolant temperature is too high A buzzer also sounds.
→ P. 5 2 8
(GS350/GS200t only)
Indicates a malfunction in the vehicle’s charging system.
→Immediately stop the vehicle in a safe place and
contact your Lexus dealer. Continuing to drive the
vehicle may be dangerous.
(If equipped)
Indicates that the radar sensor is dirty or covered with
ice
A buzzer also sounds.
→ Clean the sensor.
Warning messageDetails/Actions

4687-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
(If equipped)
Indicates that the dynamic radar cruise control system
cannot be used temporarily due to bad weatherA buzzer also sounds.
→ Use the radar cruise control system when it
becomes available again.
(If equipped)
Indicates that the radar cruise control system brake con-
trol function is temporarily unavailable
→Depress the brake.
Indicates a malfunction in the smart access system with
push-button start
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
→ Clean the sensor and its surrounding area on the
bumper.
Warning messageDetails/Actions
(Flashes)

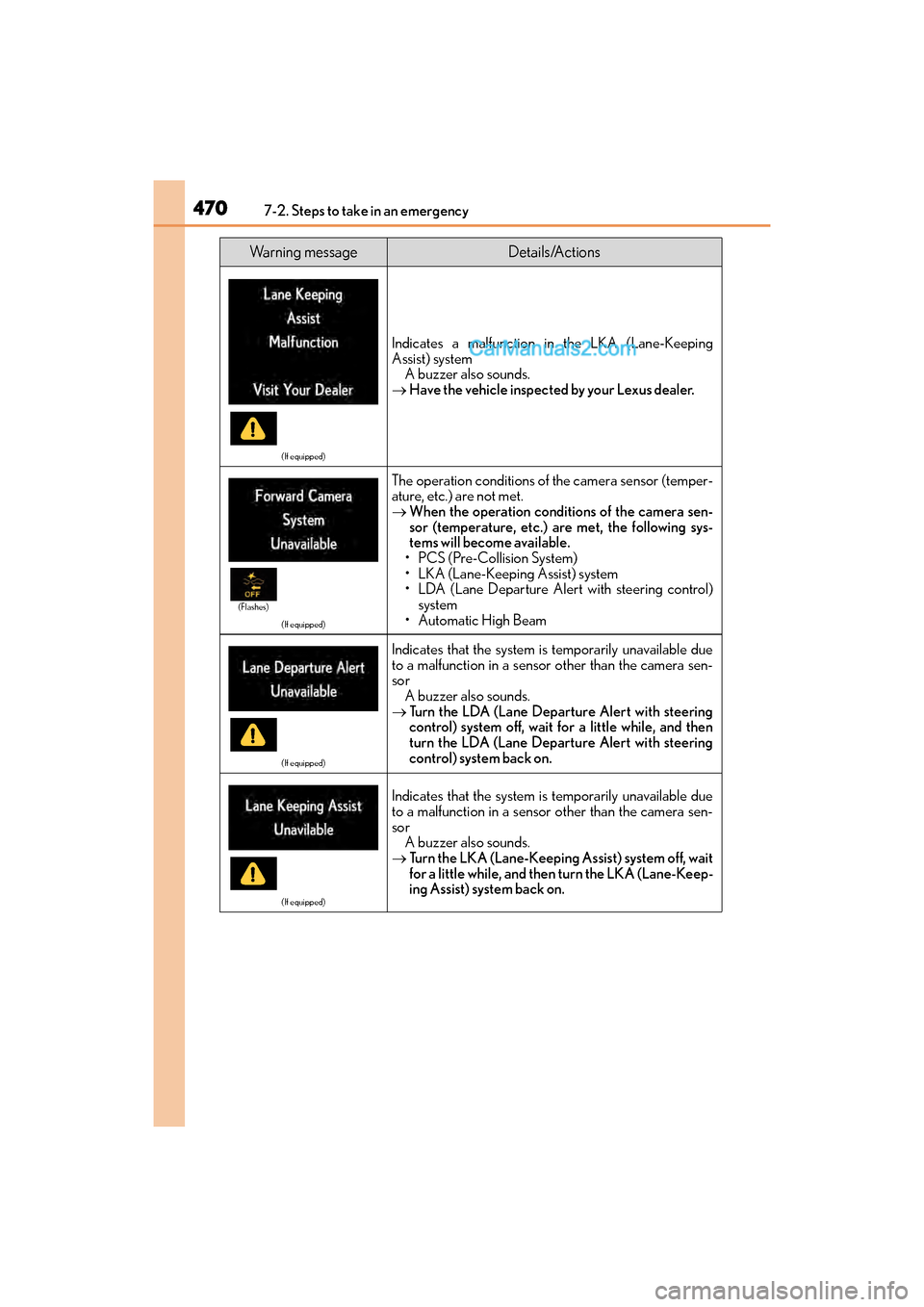

4707-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
(If equipped)
Indicates a malfunction in the LKA (Lane-Keeping
Assist) systemA buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
The operation conditions of the camera sensor (temper-
ature, etc.) are not met.
→When the operation conditions of the camera sen-
sor (temperature, etc.) are met, the following sys-
tems will become available.
• PCS (Pre-Collision System)
• LKA (Lane-Keeping Assist) system
• LDA (Lane Departure Alert with steering control) system
• Automatic High Beam
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor A buzzer also sounds.
→ Turn the LDA (Lane Departure Alert with steering
control) system off, wait for a little while, and then
turn the LDA (Lane Departure Alert with steering
control) system back on.
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor
A buzzer also sounds.
→ Turn the LKA (Lane-Keeping Assist) system off, wait
for a little while, and then turn the LKA (Lane-Keep-
ing Assist) system back on.
Warning messageDetails/Actions
(Flashes)

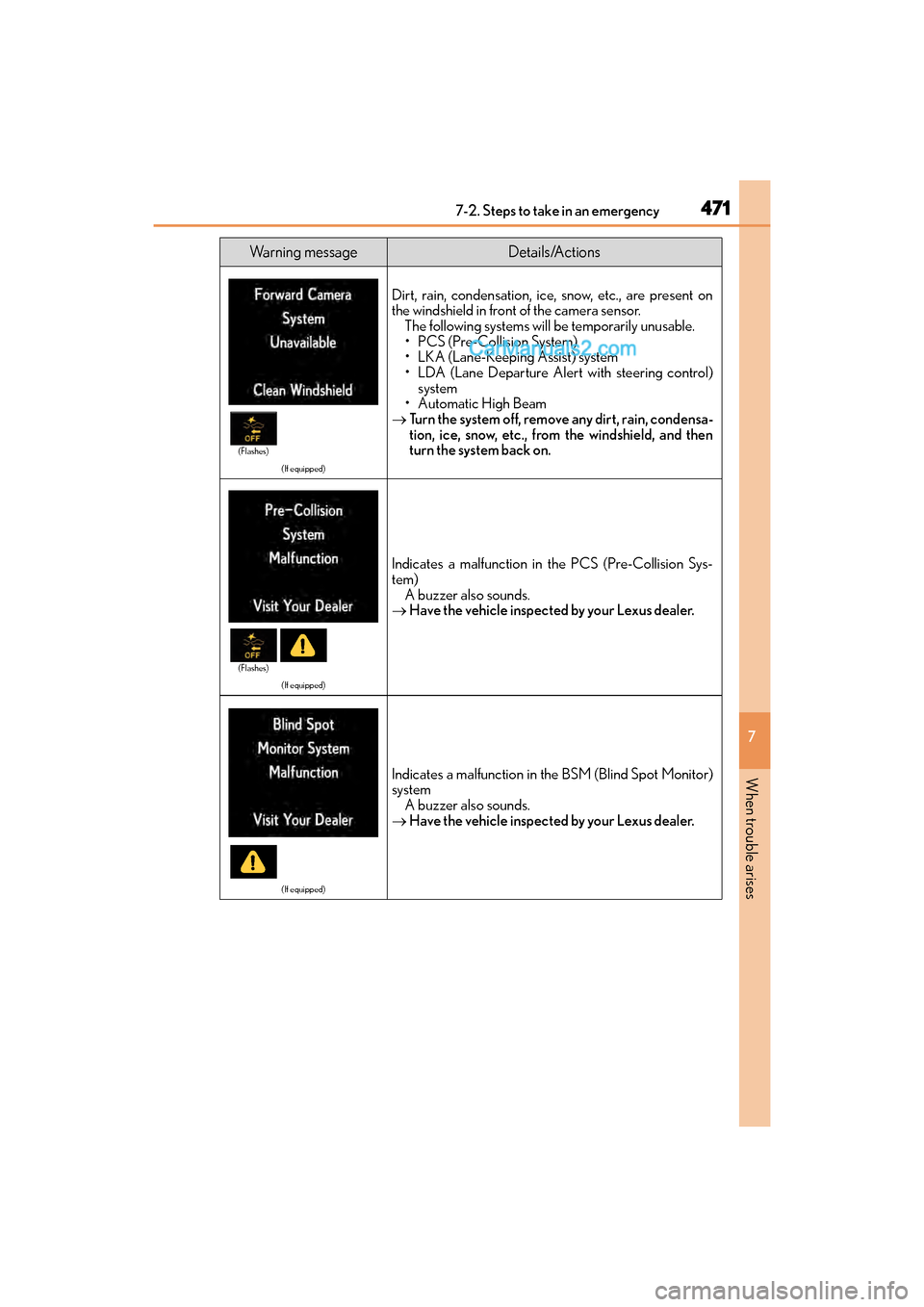

4717-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
(If equipped)
Dirt, rain, condensation, ice, snow, etc., are present on
the windshield in front of the camera sensor. The following systems will be temporarily unusable.
• PCS (Pre-Collision System)
• LKA (Lane-Keeping Assist) system
• LDA (Lane Departure Alert with steering control)system
• Automatic High Beam
→ Turn the system off, remove any dirt, rain, condensa-
tion, ice, snow, etc., from the windshield, and then
turn the system back on.
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision Sys-
tem)
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions
(Flashes)
(Flashes)

4847-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
Warning messageDetails/Actions
(If equipped)
Indicates that the PCS (Pre-Collision System) is tempo-
rarily unavailable
→When conditions improve, the system resumes
operation. If this item is displayed continuously, have
the vehicle inspected by your Lexus dealer.
Air conditioning, heater and other operations are tem-
porarily limited due to high power consumption
→Turn off unnecessary electronic equipment to
reduce power consumption.
Please wait until the power supply returns to nor-
mal.
If this item is frequently displayed, have the vehicle
inspected at your Lexus dealer immediately.
(If equipped)
Indicates that part of the PCS (Pre-Collision System)
sensor is dirty, covered with ice, etc. A buzzer also sounds.
→ Remove any dirt, ice, etc.
(Flashes)
(Flashes)
(Flashes)

GS350_200t_GS F_OM_OM30E86U_(U)
5778-2. Customization
8
Vehicle specifications
■Power windows and moon roof (→P. 175, 178)
■Automatic light control system ( →P. 215)
■Lights ( →P. 215)
*: U.S.A. only
FunctionDefault
settingCustomized setting
Mechanical key linked operationOffOn——O
Wireless remote control linked opera-
tionOffOn
(Open only)——O
Buzzer sounds if operated using wire-
less remote controlOnOff——O
123
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before the headlights
automatically turn off30
seconds
Off
O—O60
seconds
90
seconds
Welcome light illumination controlOnOff——O
123
FunctionDefault settingCustomized setting
Daytime running lights*OnOffO—O
123

578
GS350_200t_GS F_OM_OM30E86U_(U)8-2. Customization
■Intuitive parking assist*1, 2
*1: If equipped
*2: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*3: GS350/GS200t
■Driving mode select switch (vehicles with Adaptive Variable Suspension
system) (→
P. 2 9 4 )
FunctionDefault
settingCustomized setting
Detection distance of the front center
sensor
*3Fa rNearO—O
Detection distance of the rear center
sensorFa rNearO—O
Buzzer volume31 to 5O—O
Display setting
(when intuitive parking assist is operat-
ing)All sensors displayedDisplay offO—O
123
FunctionDefault
settingCustomized setting
Power train controlNormalPo w e rO——Eco
Chassis controlNormalSportO——
Air conditioning operationNormalEcoO——
123

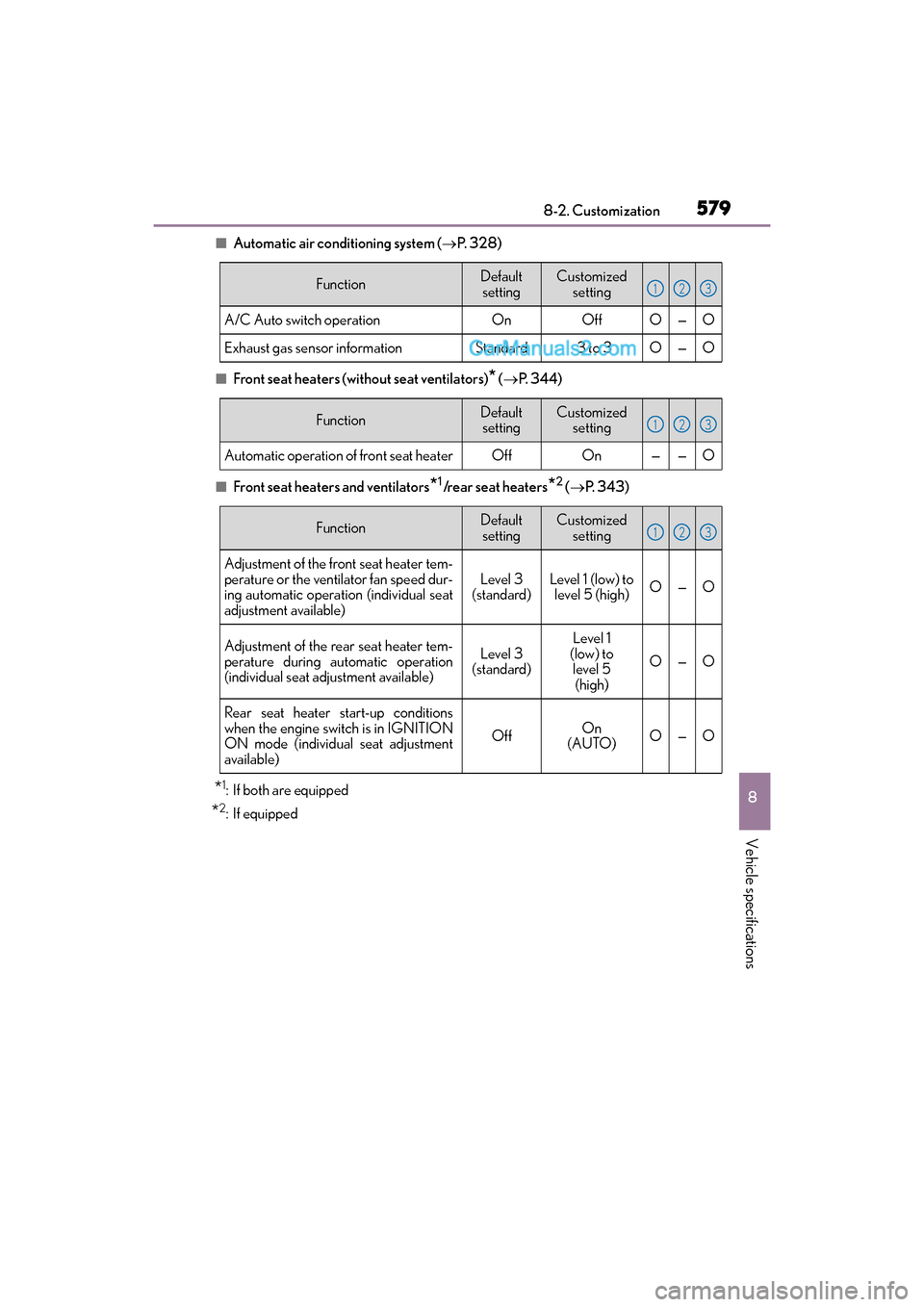

GS350_200t_GS F_OM_OM30E86U_(U)
5798-2. Customization
8
Vehicle specifications
■Automatic air conditioning system (→P. 3 2 8 )
■Front seat heaters (without seat ventilators)* (→ P. 344)
■Front seat heaters and ventilators*1/rear seat heaters*2 (→ P. 343)
*1: If both are equipped
*2: If equipped
FunctionDefault
settingCustomized setting
A/C Auto switch operationOnOffO—O
Exhaust gas sensor informationStandard-3 to 3O—O
123
FunctionDefaultsettingCustomized setting
Automatic operation of front seat heaterOffOn——O
123
FunctionDefault
settingCustomized setting
Adjustment of the front seat heater tem-
perature or the ventilator fan speed dur-
ing automatic operation (individual seat
adjustment available) Level 3
(standard)Level 1 (low) to level 5 (high)O—O
Adjustment of the rear seat heater tem-
perature during automatic operation
(individual seat adjustment available)Level 3
(standard)Level 1
(low) to level 5
(high)
O—O
Rear seat heater start-up conditions
when the engine switch is in IGNITION
ON mode (individual seat adjustment
available)
OffOn
(AUTO)O—O
123

602What to do if... (Troubleshooting)
GS350_200t_GS F_OM_OM30E86U_(U)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 4 5 4 )
●The parking brake indicator is on
Is the parking brake released? ( →P. 2 1 0 )
Depending on the situation, other type s of warning buzzer may also sound.
( → P. 452, 459)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 74 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside th e vehicle or the moon roof opened?
Check the message on the multi-information display. ( →P. 4 5 9 )
●When a warning light turns on or a warning message is displayed, refer to
P. 452, 459. A warning buzzer sounds during driving
An alarm is activate
d and the horn sounds
A warning buzzer sounds wh en leaving the vehicle
A warning light turns on or a warning message is displayed
