4697-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)
7
When trouble arises
⎯Con-
tinuous
• An attempt was made to lock the doors using the sm art access sys-
tem with push-button start while
the electronic key was still inside
the vehicle.
• An attempt was made to lock either front door by opening a
door and putting the inside lock
button into the lock position, then
closing the door with the elec-
tronic key still inside the vehicle.
→ Retrieve the electronic key
from the vehicle and lock the
doors again.
Once⎯
• When the doors were unlocked
with the mechanical key and then
the engine swit ch was pressed,
the electronic key could not be
detected in the vehicle.
• The electronic key could not be
detected in the vehicle even after
the engine switch was pressed
two consecutive times.
→ Touch the electronic key to the
engine switch while depressing
the brake pedal.
Once⎯
An attempt was made to start the
engine with the shift lever in an
incorrect position.
→Shift the shift lever to P and start
the engine.
⎯⎯
Power was turned off due to the
automatic power off function.
→Next time when starting the
engine, increase the engine
speed slightly and maintain that
level for approximately 5 min-
utes to recharge the battery.
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)

4707-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)
Once⎯
The electronic key has a low battery.
→Replace the electronic key bat-
tery. ( →P. 410)
Once⎯
The driver’s door was opened and
closed with the engine switch turned
off and then the engine switch was
put in ACCESSORY mode twice
without the engine being started.
→ Press the engine switch while
depressing the brake pedal.
During an engine starting proce-
dure in the event that the electronic
key was not functioning properly
(→ P. 502), the engine switch was
touched with the electronic key.
→ Press the engine switch within
10 seconds of the buzzer sound-
ing.
Once⎯
The steering lock could not be
released within 3 seconds of the
engine switch being pressed.
→Press the engine switch while
depressing the brake pedal and
moving the steering wheel left
and right.
Once⎯
The engine switch has been turned
off with the shift lever in a position
other than P or N.
→Shift the shift lever to P.
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(GS350/GS300)
(GS F)
(Flashes)
(Flashes)

4717-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)
7
When trouble arises
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio sound.
Once⎯
After the engine switch has been
turned off with the shift lever in a
position other than P, the shift lever
has been shifted to P.
→ Turn the engine switch off.
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)

472
GS350_300_GS F_OM_OM30G34U_(U)7-2. Steps to take in an emergency
If you have a flat tire (vehicles with spare tire)
●Stop the vehicle in a safe pl
ace on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. ( →P. 424)
Your vehicle is equipped with a spare tire. The flat tire can be replaced with
the spare tire.
For details about tires: → P. 393
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat ti re can damage the tire and the wheel beyond
repair, which could re sult in an accident.
Before jacking up the vehicle

4737-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)
7
When trouble arises
Type A (GS350/GS300)
Location of the spare tire, jack and tools
Jack handle
Parking brake release tool
Screwdriver
Towing eyelet Wheel nut wrench
Spare tire
Jack1
2
3
4
5
6
7

4747-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)

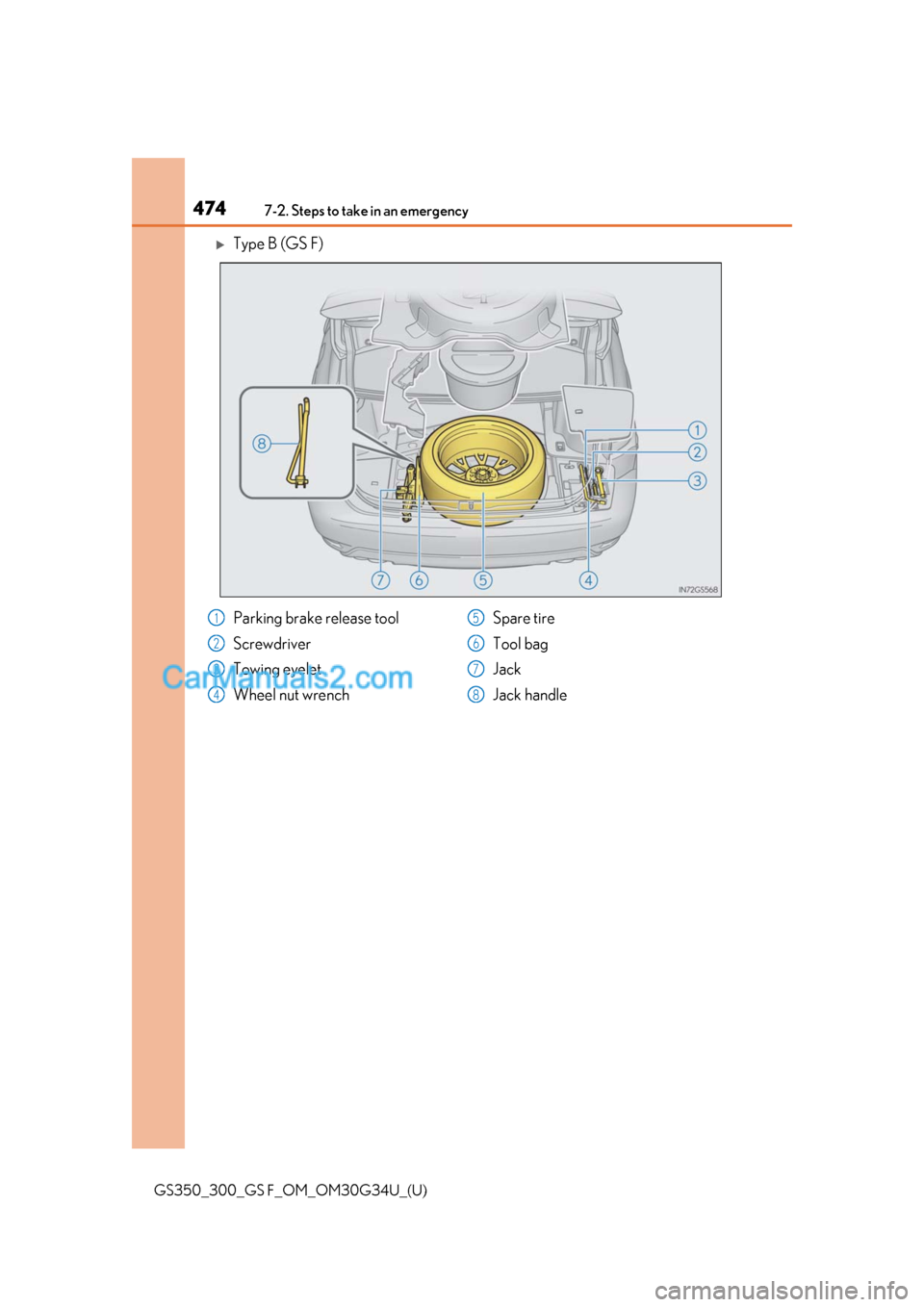

Type B (GS F)
Parking brake release tool
Screwdriver
Towing eyelet
Wheel nut wrenchSpare tire
Tool bag
Jack
Jack handle1
2
3
4
5
6
7
8

4757-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)
7
When trouble arises
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the ve hicle to suddenly fall off the jack, leading
to death or serious injury.
●Do not use the tire jack for any purpose ot her than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do no t use other tire jacks for replacing tires on
this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the jack.
●Do not start the engine or drive the vehicle while the vehicle is supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If there
are people nearby, warn them vocally before lowering.

4767-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)
Remove the center luggage mat. (→P. 335)
Remove the spacer and take out the jack handle.
Take out the jack. For tightening
For loosening
Type A
Remove the center luggage mat. (→ P. 335)
Loosen the center fastener that
secures the spare tire.
Taking out the jack and jack handle
1
2
Type AType B
3
1
2
Taking out the spare tire
1
2

4777-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)
7
When trouble arises

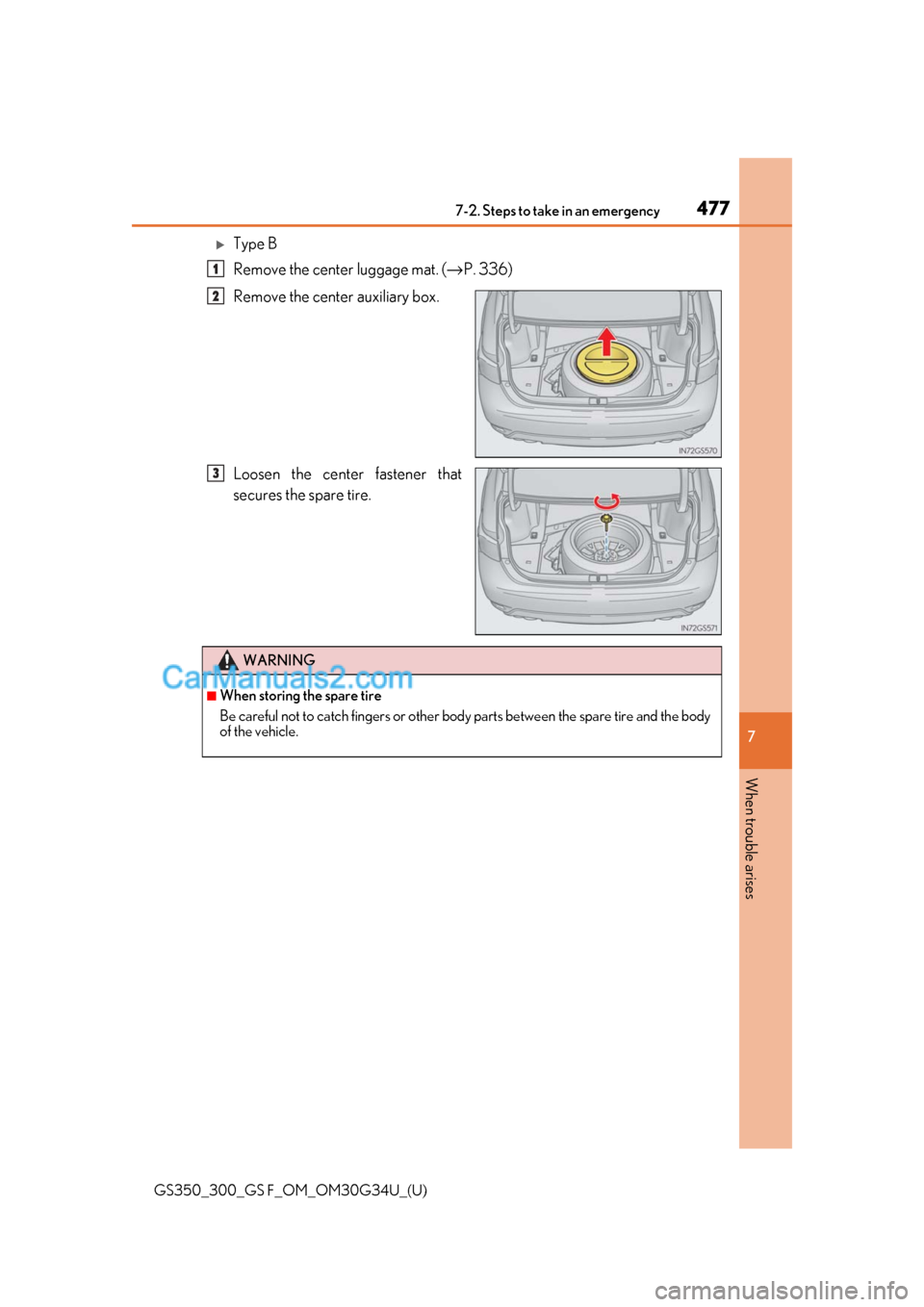

Type B
Remove the center luggage mat. (→ P. 336)
Remove the center auxiliary box.
Loosen the center fastener that
secures the spare tire.
1
2
3
WARNING
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the body
of the vehicle.

4787-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)

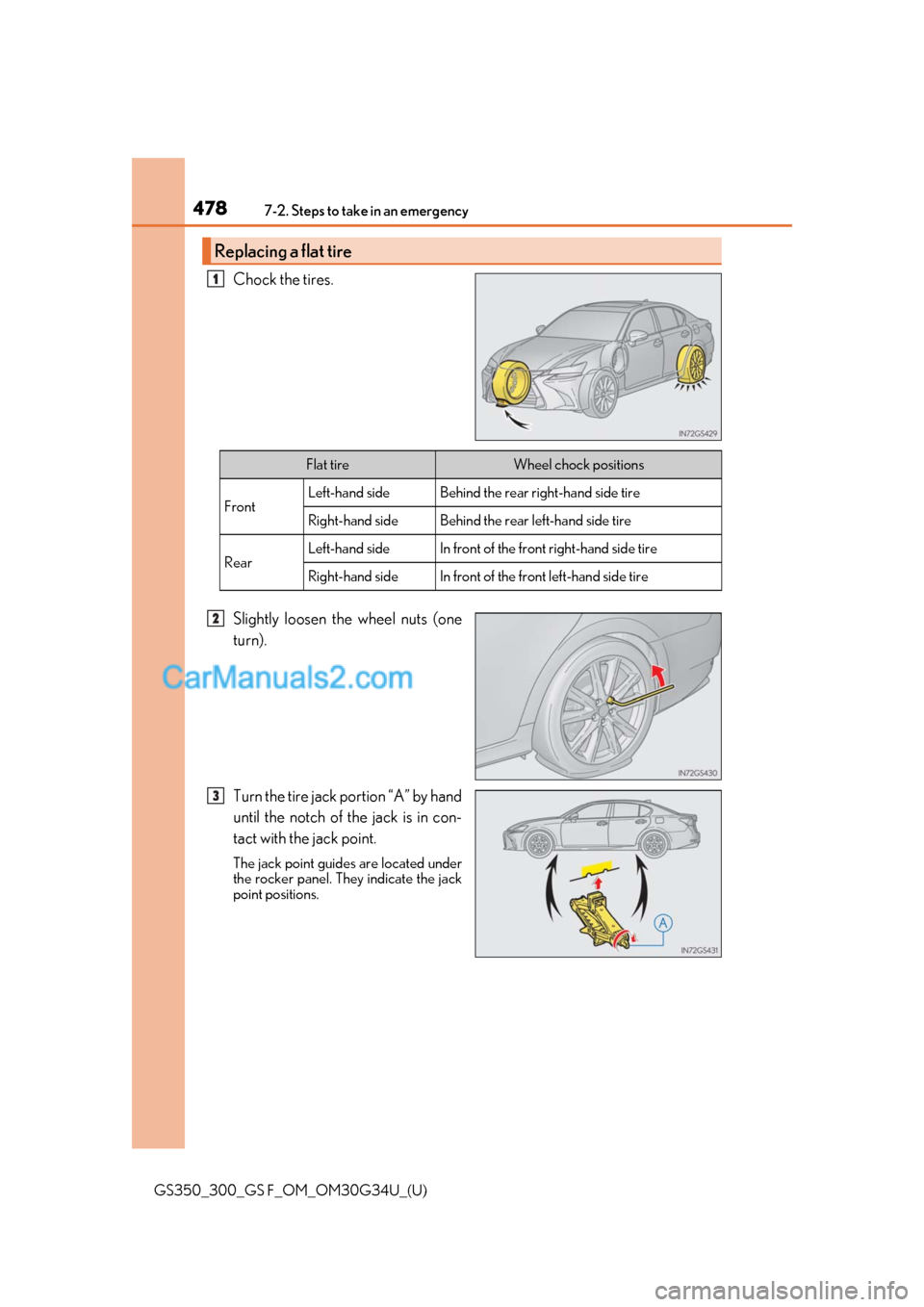

Chock the tires.
Slightly loosen the wheel nuts (one
turn).
Turn the tire jack portion “A” by hand
until the notch of the jack is in con-
tact with the jack point.
The jack point guides are located under
the rocker panel. They indicate the jack
point positions.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3
