GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster

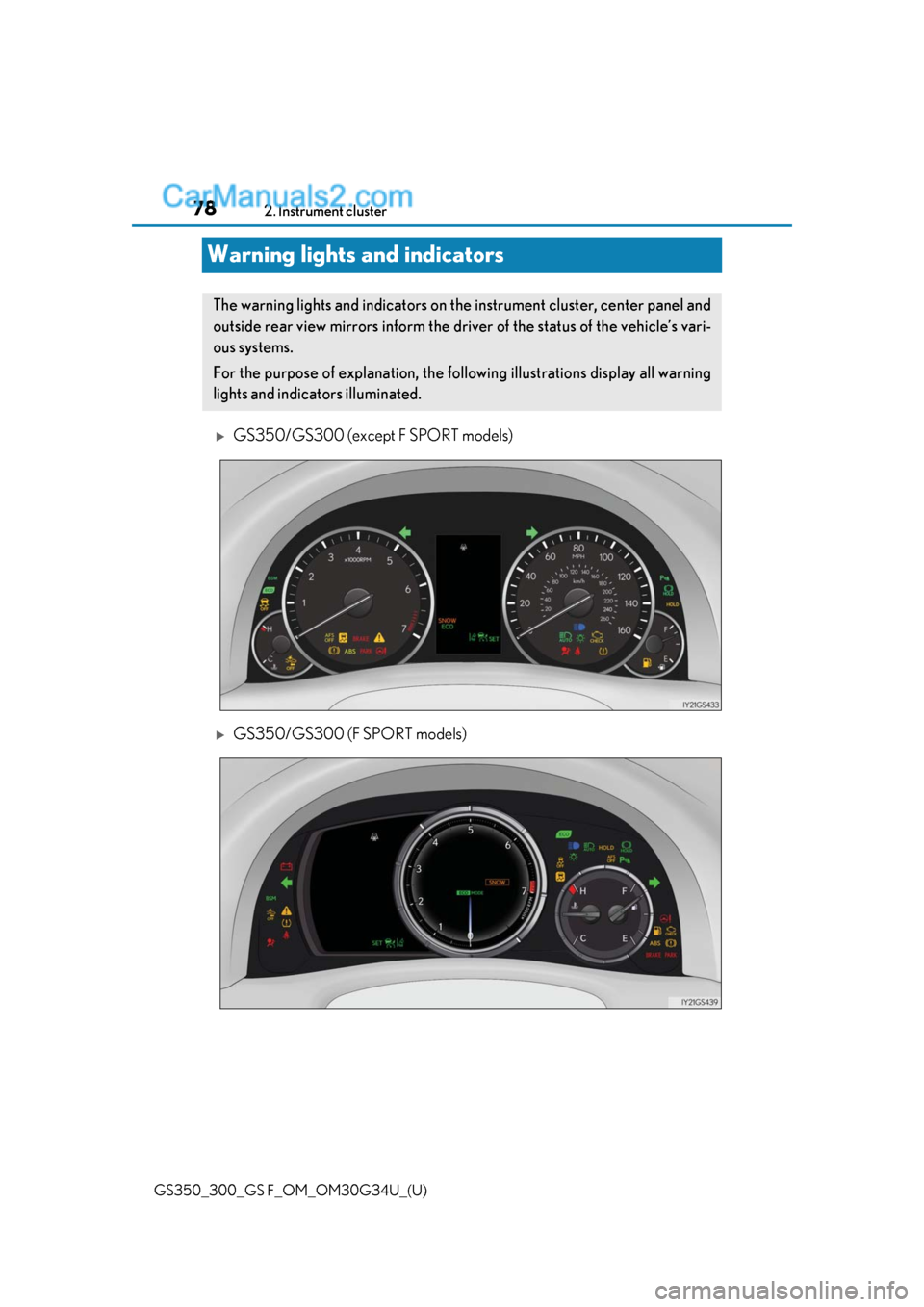

Warning lights and indicators
GS350/GS300 (except F SPORT models)
GS350/GS300 (F SPORT models)
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

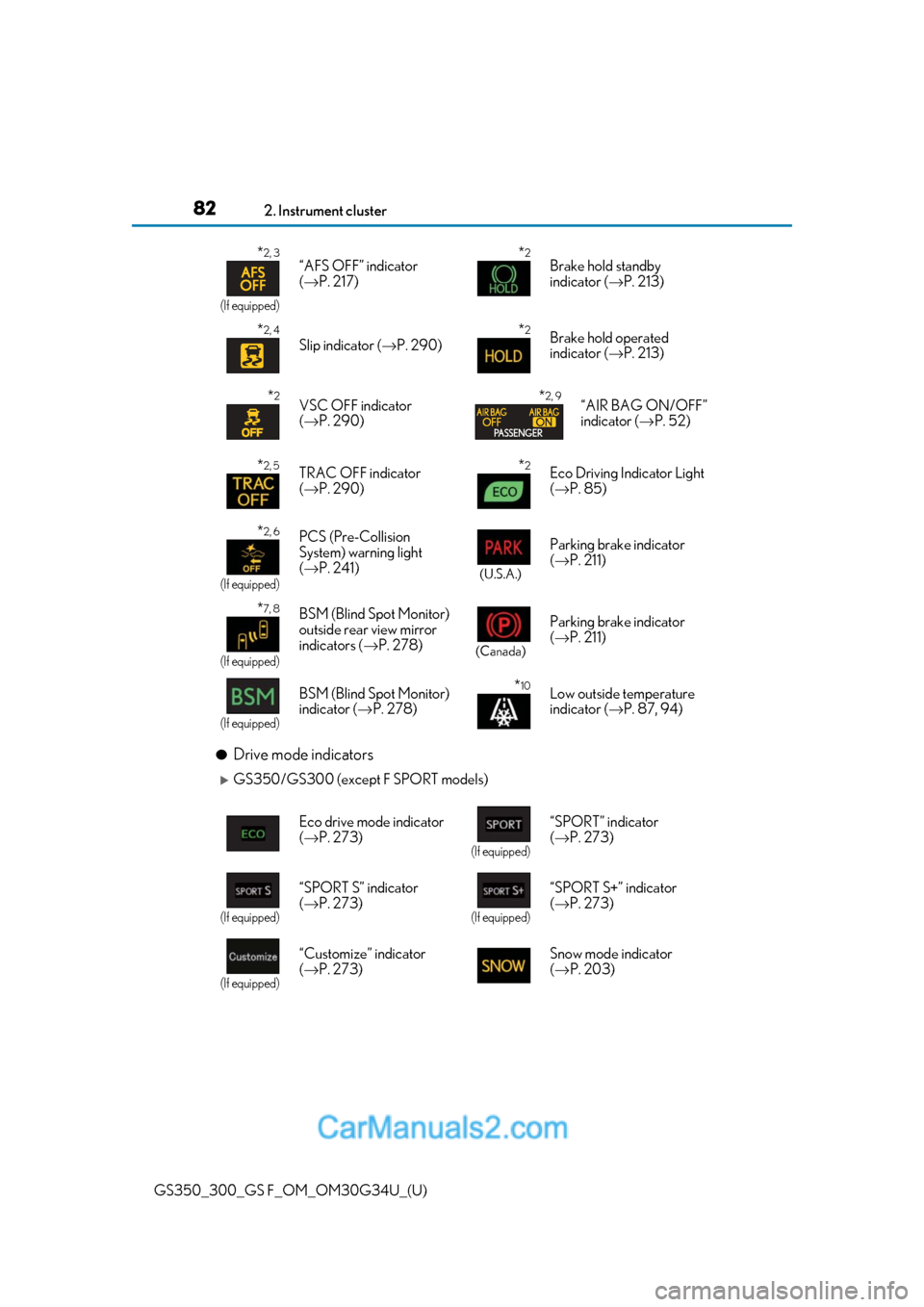

82
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster
●Drive mode indicators
GS350/GS300 (except F SPORT models)
*2, 3
(If equipped)
“AFS OFF” indicator
(
→ P. 217)*2Brake hold standby
indicator ( →P. 213)
*2, 4
Slip indicator ( →P. 290)*2Brake hold operated
indicator ( →P. 213)
*2VSC OFF indicator
(→ P. 290)*2, 9“AIR BAG ON/OFF”
indicator ( →P. 52)
*2, 5TRAC OFF indicator
(→ P. 290)*2Eco Driving Indicator Light
(→ P. 85)
*2, 6
(If equipped)
PCS (Pre-Collision
System) warning light
(→ P. 241)
(U.S.A.)
Parking brake indicator
(→ P. 211)
*7, 8
(If equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( →P. 278)
(Canada)
Parking brake indicator
(→ P. 211)
(If equipped)
BSM (Blind Spot Monitor)
indicator ( →P. 278)*10Low outside temperature
indicator ( →P. 87, 94)
Eco drive mode indicator
(→ P. 273)
(If equipped)
“SPORT” indicator
(→ P. 273)
(If equipped)
“SPORT S” indicator
(→ P. 273)
(If equipped)
“SPORT S+” indicator
(→ P. 273)
(If equipped)
“Customize” indicator
(→ P. 273) Snow mode indicator
(
→ P. 203)

GS350_300_GS F_OM_OM30G34U_(U)
832. Instrument cluster
2
Instrument cluster

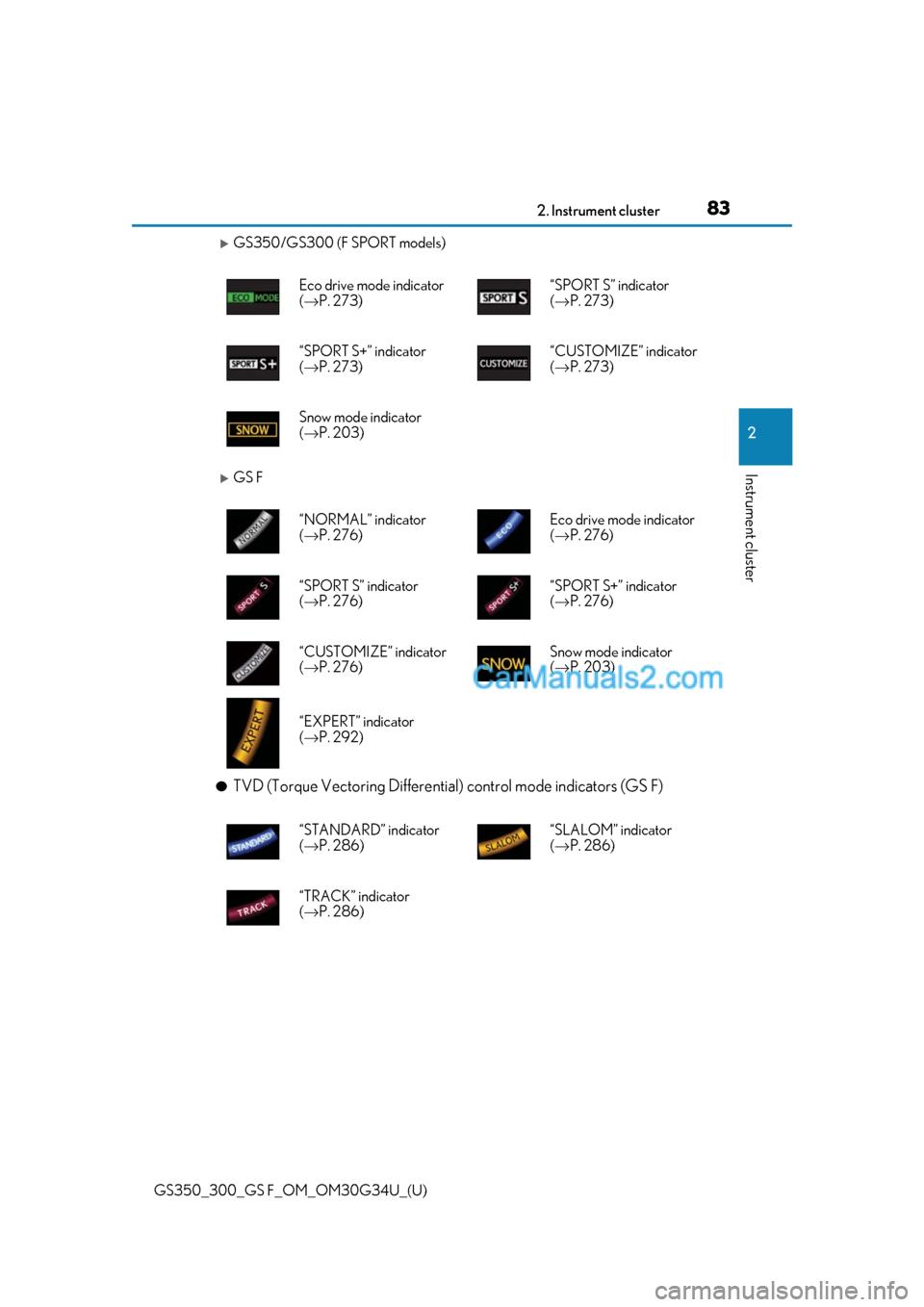

GS350/GS300 (F SPORT models)
GS F
●TVD (Torque Vectoring Differential) control mode indicators (GS F)
Eco drive mode indicator
(→ P. 273) “SPORT S” indicator
(
→ P. 273)
“SPORT S+” indicator
( → P. 273) “CUSTOMIZE” indicator
(
→ P. 273)
Snow mode indicator
( → P. 203)
“NORMAL” indicator
(→ P. 276) Eco drive mode indicator
(
→ P. 276)
“SPORT S” indicator
( → P. 276) “SPORT S+” indicator
(
→ P. 276)
“CUSTOMIZE” indicator
( → P. 276) Snow mode indicator
(
→ P. 203)
“EXPERT” indicator
(→ P. 292)
“STANDARD” indicator
(→ P. 286) “SLALOM” indicator
(
→ P. 286)
“TRACK” indicator
( → P. 286)

86
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster

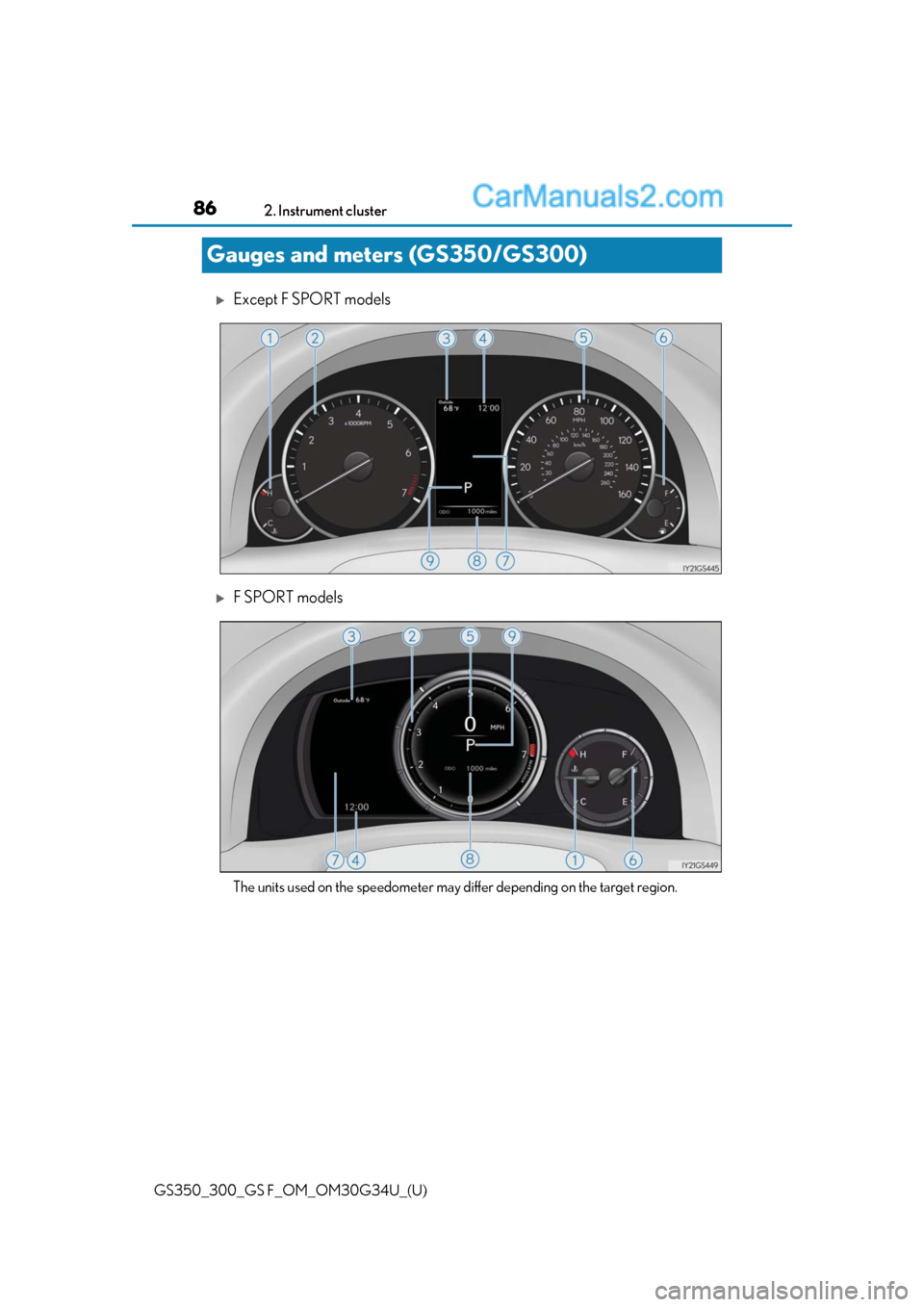

Gauges and meters (GS350/GS300)
Except F SPORT models
F SPORT models
The units used on the speedometer may differ depending on the target region.

88
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster

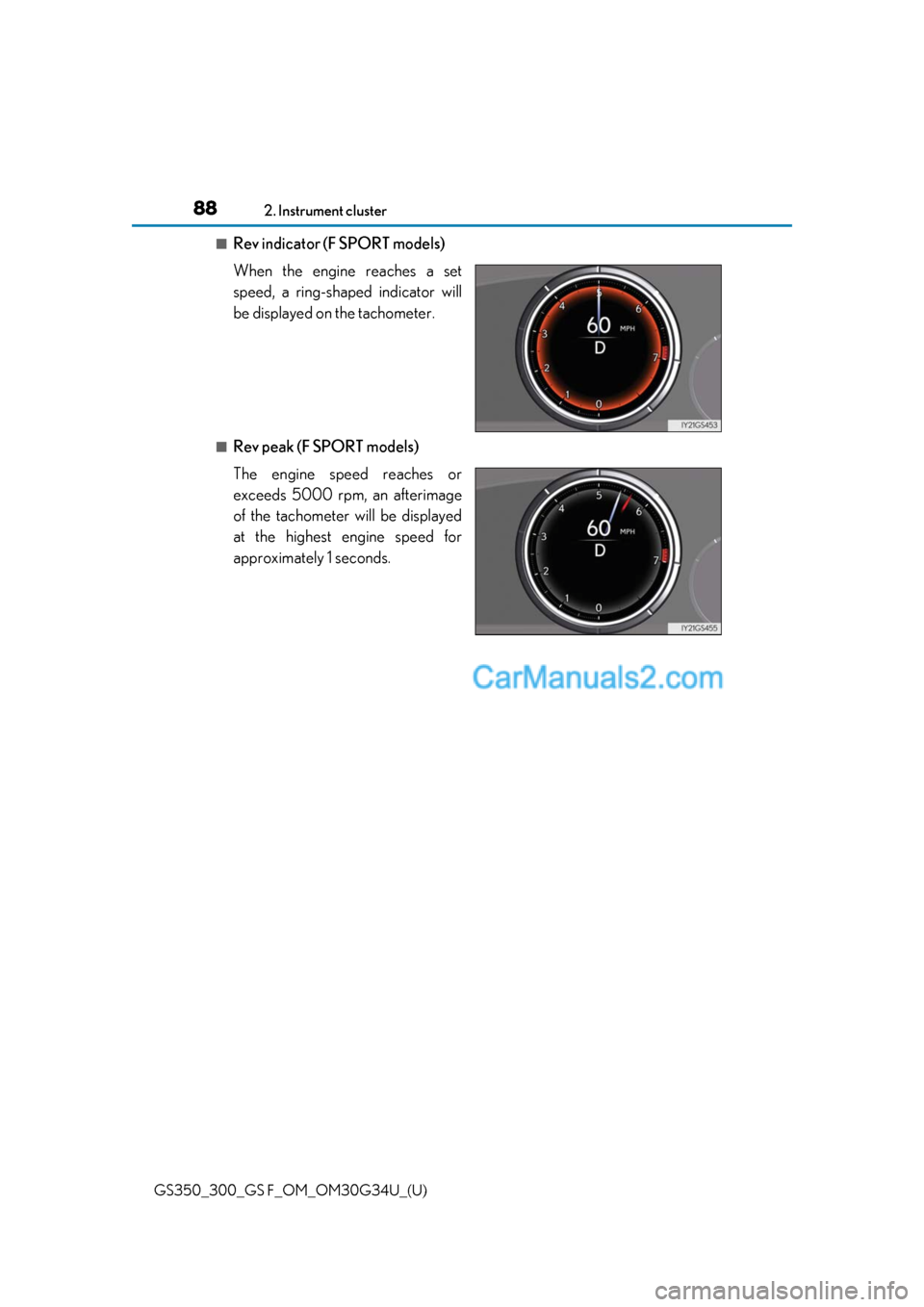

■Rev indicator (F SPORT models)
When the engine reaches a set
speed, a ring-shaped indicator will
be displayed on the tachometer.
■Rev peak (F SPORT models)
The engine speed reaches or
exceeds 5000 rpm, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 1 seconds.

GS350_300_GS F_OM_OM30G34U_(U)
932. Instrument cluster
2
Instrument cluster

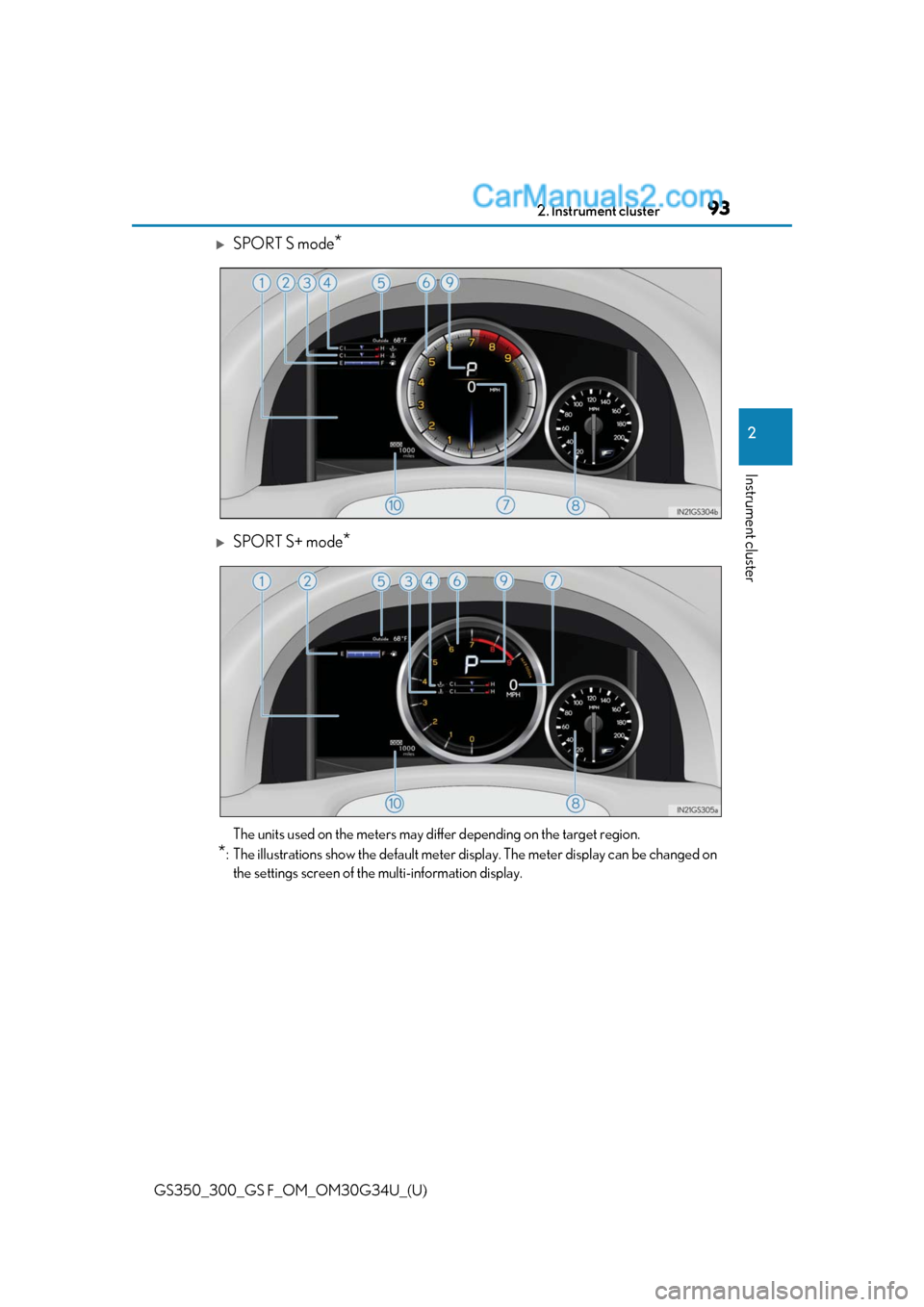

SPORT S mode*
SPORT S+ mode*
The units used on the meters may differ depending on the target region.
*: The illustrations show the default meter display. The meter display can be changed on
the settings screen of th e multi-information display.

GS350_300_GS F_OM_OM30G34U_(U)
952. Instrument cluster
2
Instrument cluster

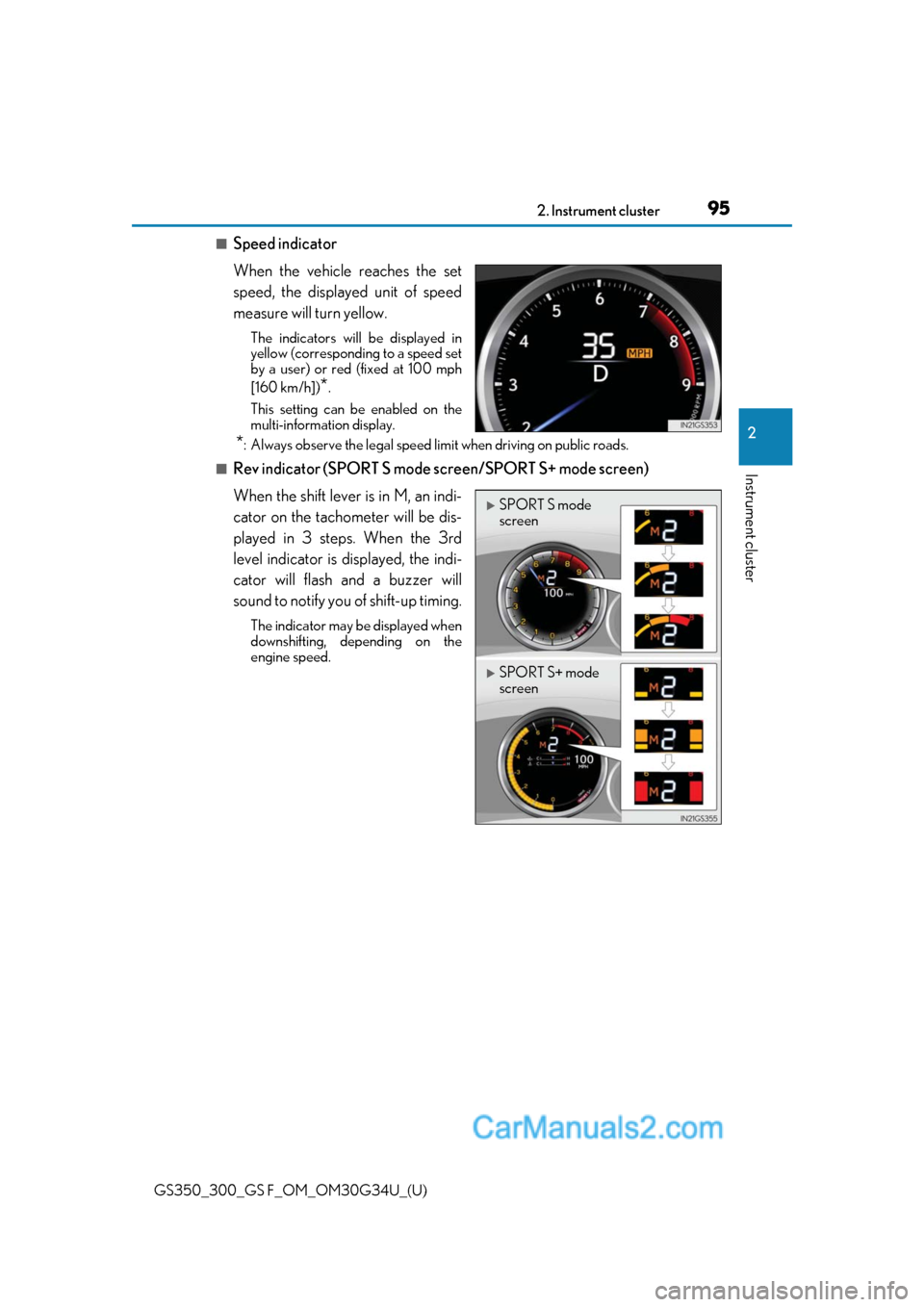

■Speed indicator
When the vehicle reaches the set
speed, the displayed unit of speed
measure will turn yellow.
The indicators will be displayed in
yellow (corresponding to a speed set
by a user) or red (fixed at 100 mph
[160 km/h])
*.
This setting can be enabled on the
multi-information display.
*: Always observe the legal speed limi t when driving on public roads.
■Rev indicator (SPORT S mode screen/SPORT S+ mode screen)
When the shift lever is in M, an indi-
cator on the tachometer will be dis-
played in 3 steps. When the 3rd
level indicator is displayed, the indi-
cator will flash and a buzzer will
sound to notify you of shift-up timing.
The indicator may be displayed when
downshifting, depending on the
engine speed.
SPORT S mode
screen
SPORT S+ mode
screen

96
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster

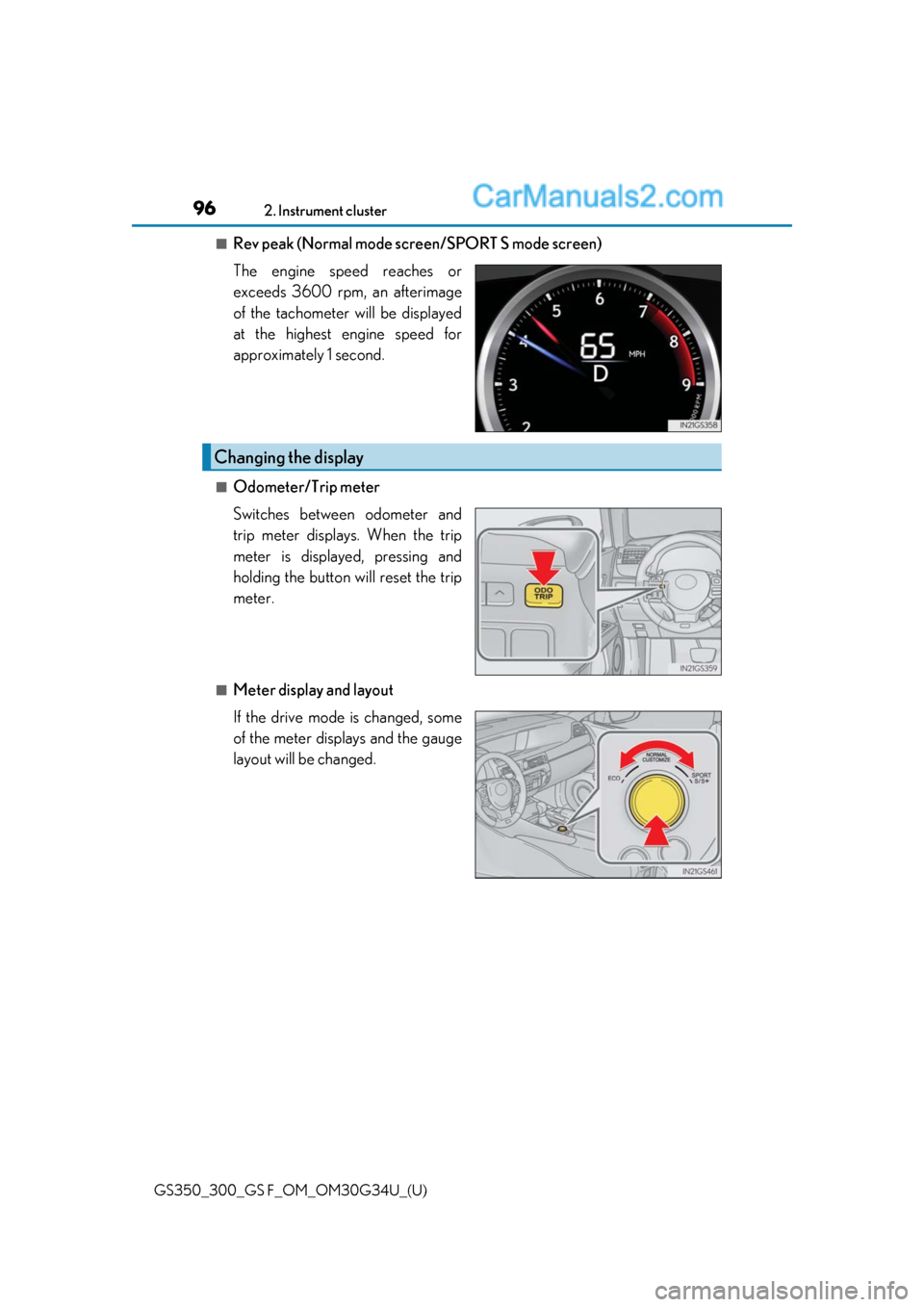

■Rev peak (Normal mode scr
een/SPORT S mode screen)
The engine speed reaches or
exceeds 3600 rpm, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 1 second.
■Odometer/Trip meter
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
■Meter display and layout
If the drive mode is changed, some
of the meter displays and the gauge
layout will be changed.
Changing the display

98
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster

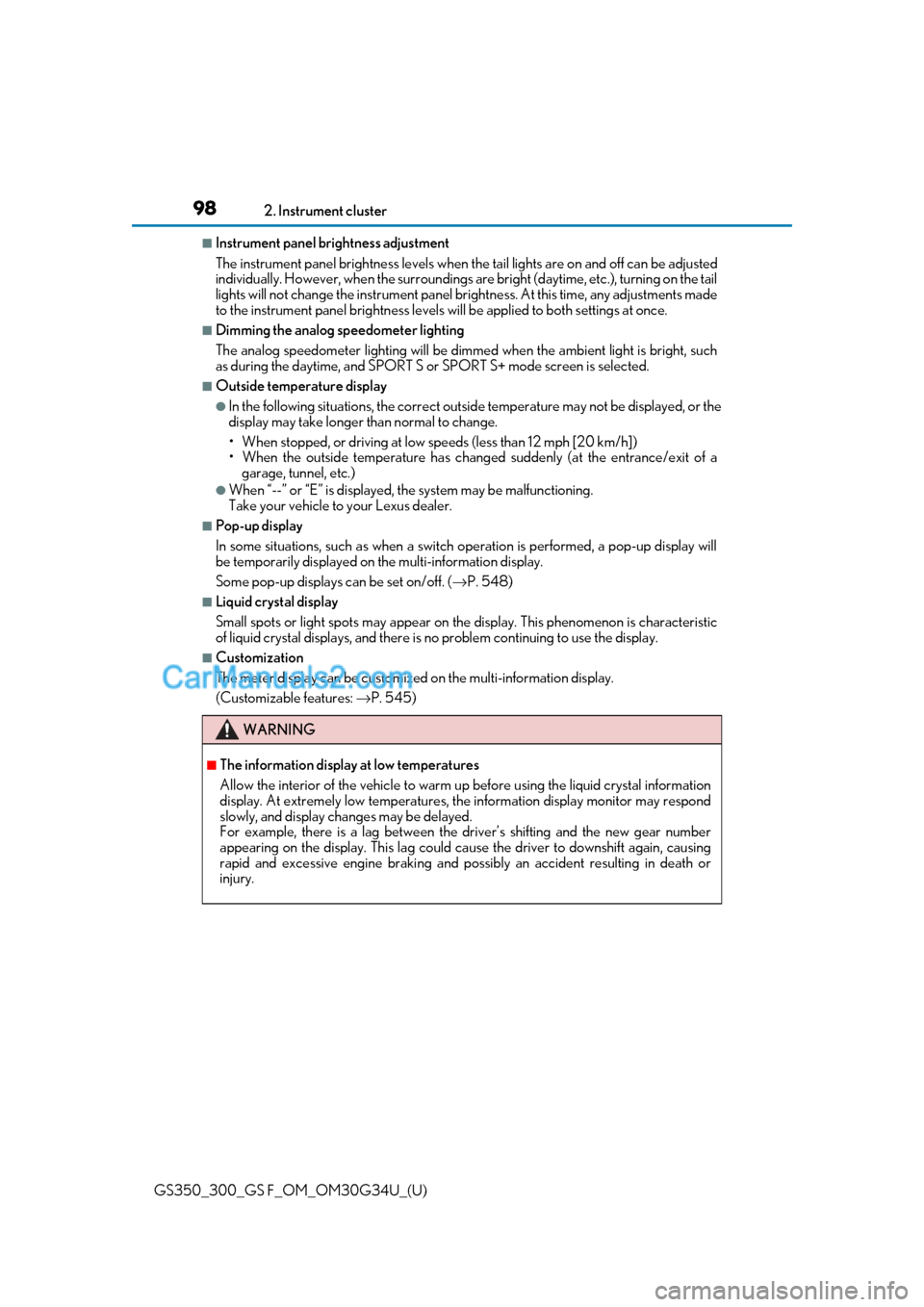

■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually. However, when the
surroundings are bright (daytime, etc.), turning on the tail
lights will not change the inst rument panel brightness. At th is time, any adjustments made
to the instrument panel brightness levels will be applied to both settings at once.
■Dimming the analog speedometer lighting
The analog speedometer lighting will be dimm ed when the ambient light is bright, such
as during the daytime, and SPORT S or SPORT S+ mode screen is selected.
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
●When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.
■Pop-up display
In some situations, such as when a switch operation is performed, a pop-up display will
be temporarily displayed on the multi-information display.
Some pop-up displays can be set on/off. ( →P. 548)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
The meter display can be customized on the multi-information display.
(Customizable features: →P. 545)
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.

100
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster

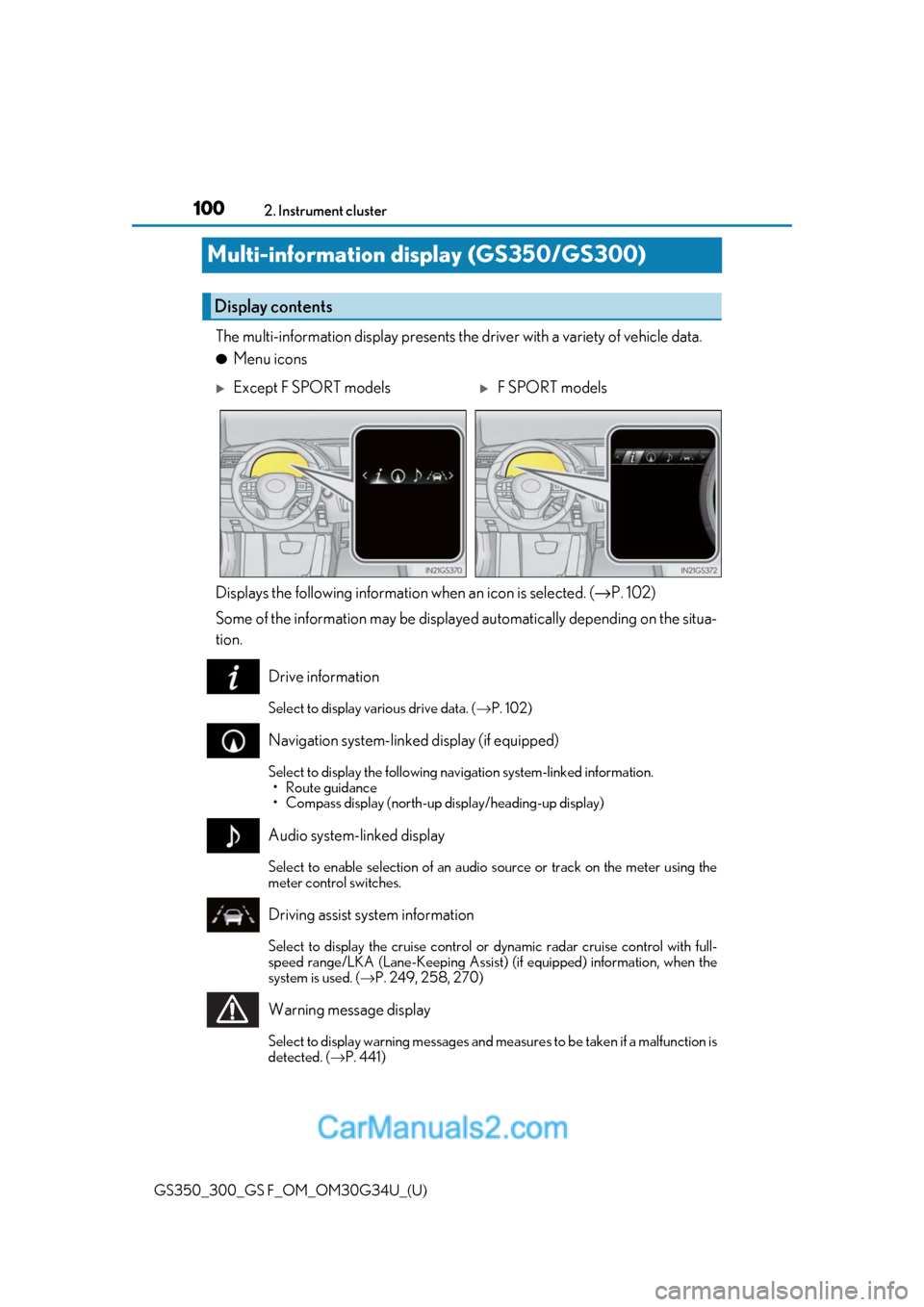

Multi-information display (GS350/GS300)
The multi-information display presents the
driver with a variety of vehicle data.
●Menu icons
Displays the following informatio n when an icon is selected. (→P. 102)
Some of the information may be displayed automatically depending on the situa-
tion.
Drive information
Select to display various drive data. ( →P. 102)
Navigation system-linked display (if equipped)
Select to display the following na vigation system-linked information.
•Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the meter using the
meter control switches.
Driving assist system information
Select to display the cruise control or dynamic radar cruise control with full-
speed range/LKA (Lane-Keeping Assist) (if equipped) information, when the
system is used. ( →P. 249, 258, 270)
Warning message display
Select to display warning messages and measures to be taken if a malfunction is
detected. ( →P. 441)
Display contents
Except F SPORT modelsF SPORT models
