357
GS F_OM_OM30G90U_(U)

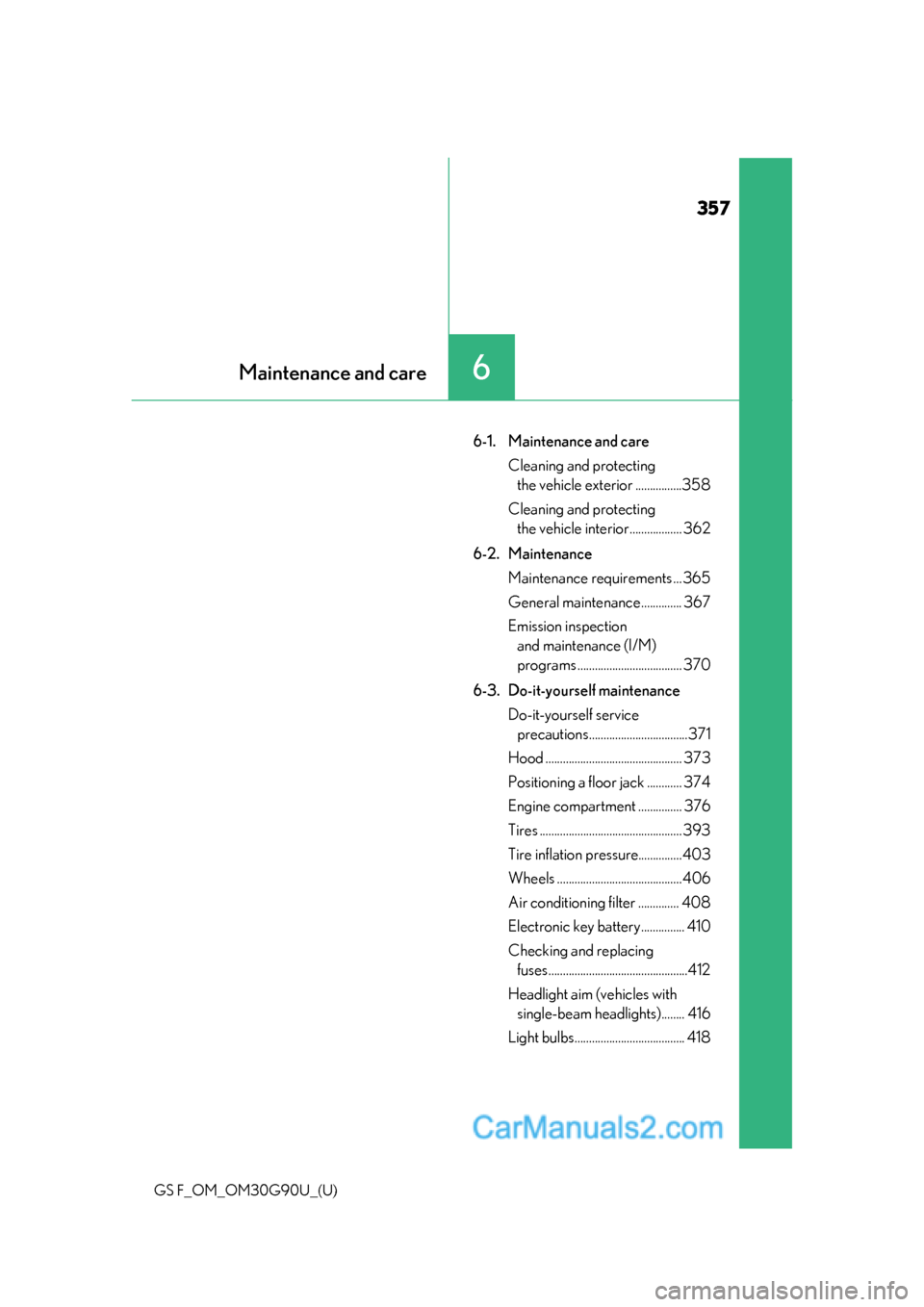

6Maintenance and care
6-1. Maintenance and careCleaning and protecting the vehicle exterior ................358
Cleaning and protecting the vehicle interior.................. 362
6-2. Maintenance Maintenance requirements ... 365
General maintenance.............. 367
Emission inspection and maintenance (I/M)
programs .................................... 370
6-3. Do-it-yourself maintenance Do-it-yourself service precautions..................................371
Hood ............................................... 373
Positioning a floor jack ............ 374
Engine compartment ............... 376
Tires ................................................. 393
Tire inflation pressure...............403
Wheels ...........................................406
Air conditioning filter .............. 408
Electronic key battery ............... 410
Checking and replacing fuses ................................................412
Headlight aim (vehicles with single-beam headlights)........ 416
Light bulbs...................................... 418

367
GS F_OM_OM30G90U_(U)6-2. Maintenance
6
Maintenance and care

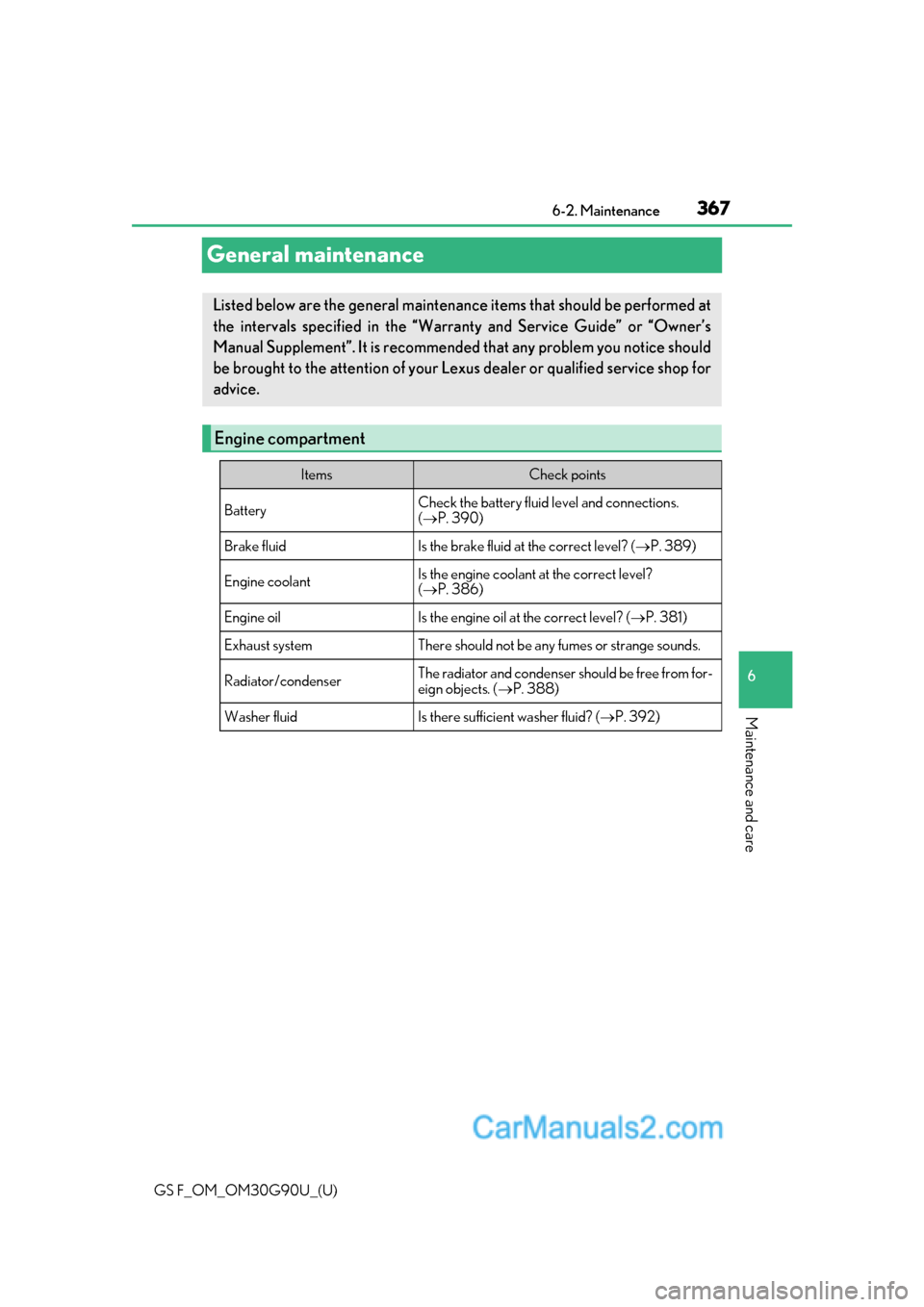

General maintenance
Listed below are the general maintenanc
e items that should be performed at
the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recommende d that any problem you notice should
be brought to the attention of your Lexu s dealer or qualified service shop for
advice.
Engine compartment
ItemsCheck points
BatteryCheck the battery fluid level and connections.
(  P. 390)
Brake fluidIs the brake fluid at the correct level? ( P. 389)
Engine coolantIs the engine coolant at the correct level?
( P. 386)
Engine oilIs the engine oil at the correct level? ( P. 381)
Exhaust systemThere should not be any fumes or strange sounds.
Radiator/condenserThe radiator and condenser should be free from for-
eign objects. ( P. 388)
Washer fluidIs there sufficient washer fluid? ( P. 392)

GS F_OM_OM30G90U_(U)
3696-2. Maintenance
6
Maintenance and care

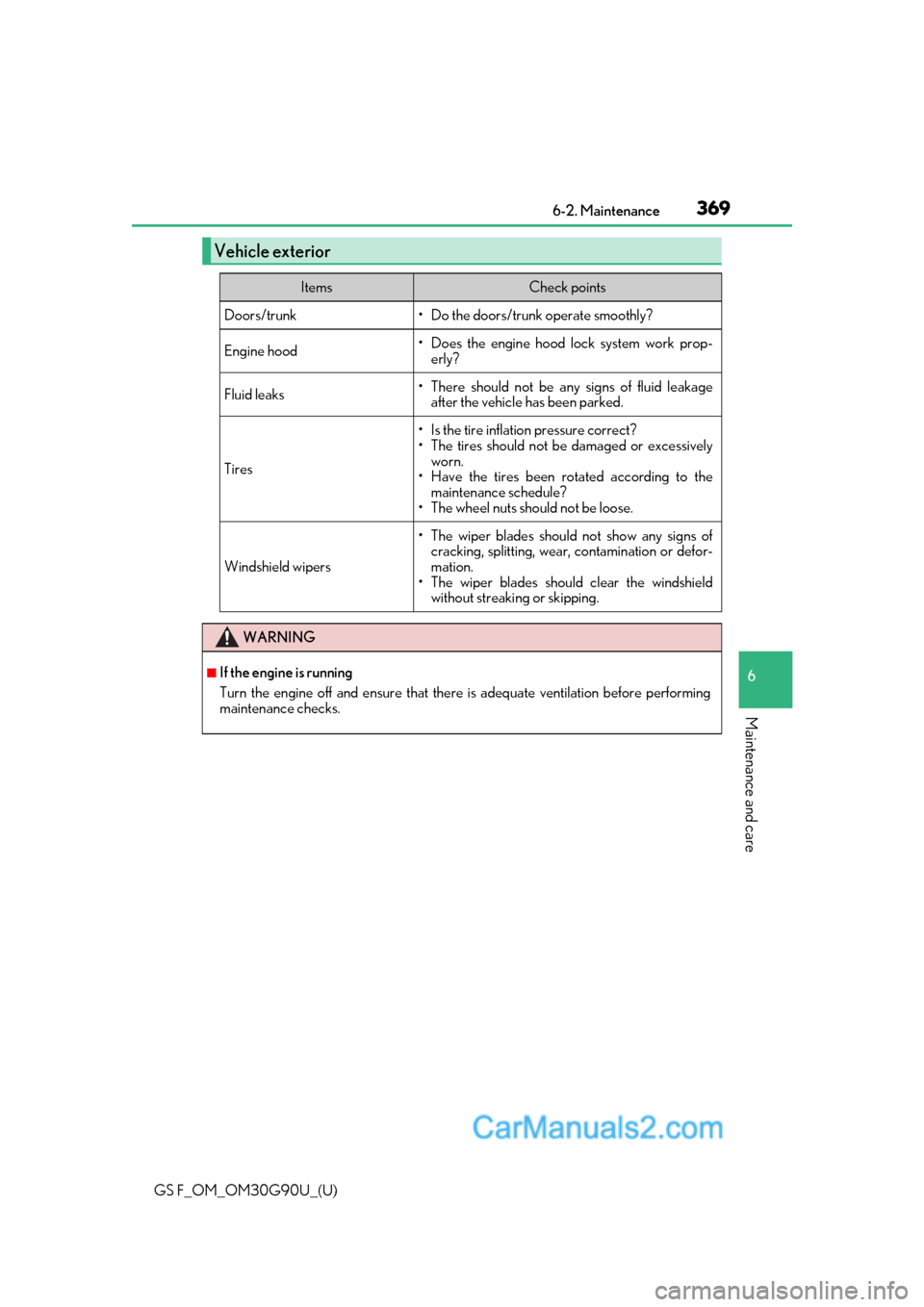

Vehicle exterior
ItemsCheck points
Doors/trunk• Do the doors/trunk operate smoothly?
Engine hood• Does the engine hood lock system work prop-erly?
Fluid leaks•There should not be an y signs of fluid leakage
after the vehicle has been parked.
Tires
• Is the tire inflation pressure correct?
• The tires should not be damaged or excessively
worn.
• Have the tires been rotated according to the
maintenance schedule?
• The wheel nuts should not be loose.
Windshield wipers
•The wiper blades should not show any signs of
cracking, splitting, wear , contamination or defor-
mation.
• The wiper blades should clear the windshield without streaking or skipping.
WARNING
■If the engine is running
Turn the engine off and ensure that there is adequate ventilation before performing
maintenance checks.

380
GS F_OM_OM30G90U_(U)6-3. Do-it-yourself maintenance

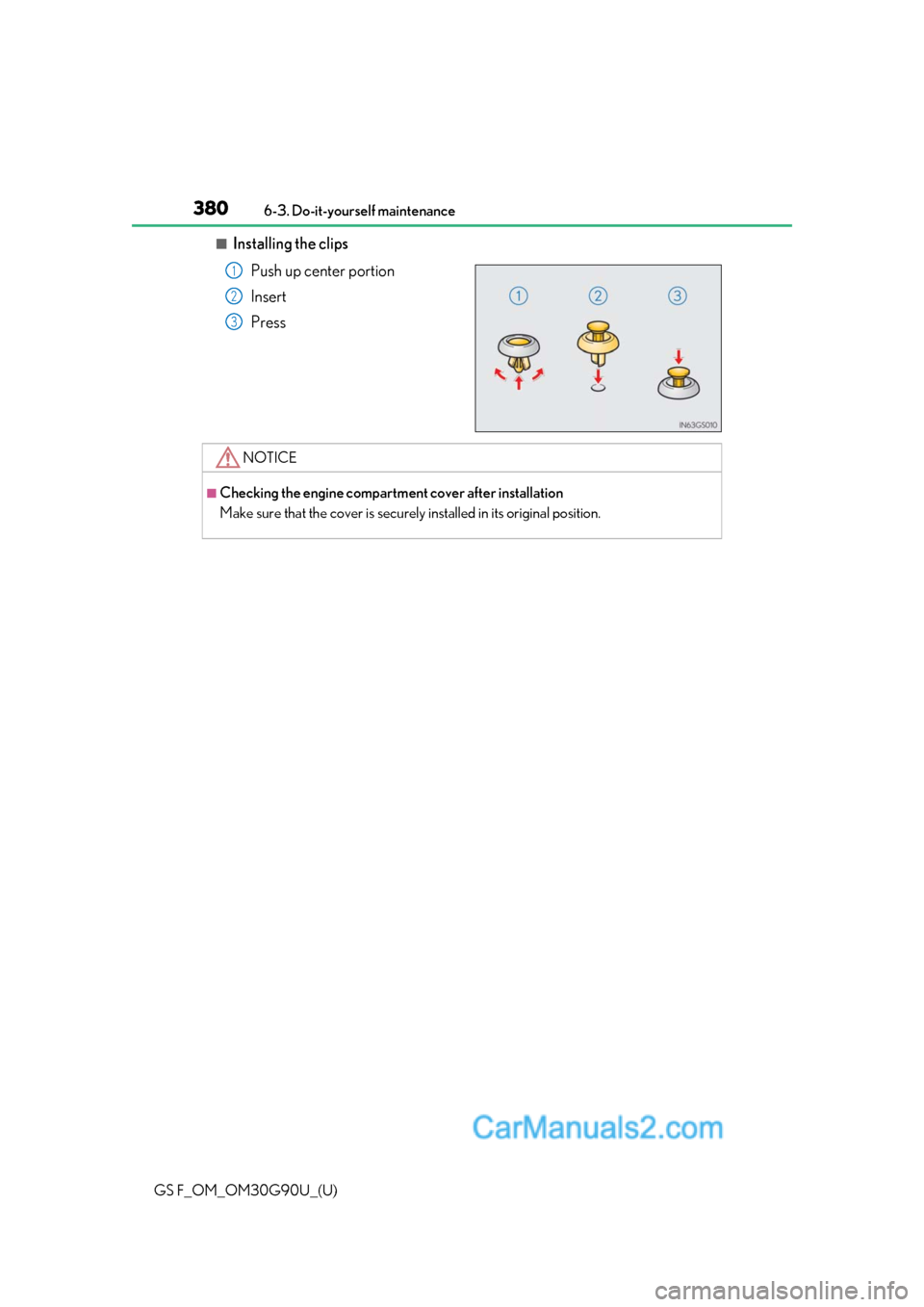

■Installing the clips
Push up center portion
Insert
Press
1
2
3
NOTICE
■Checking the engine compartm ent cover after installation
Make sure that the cover is securely installed in its original position.

GS F_OM_OM30G90U_(U)
3816-3. Do-it-yourself maintenance
6
Maintenance and care

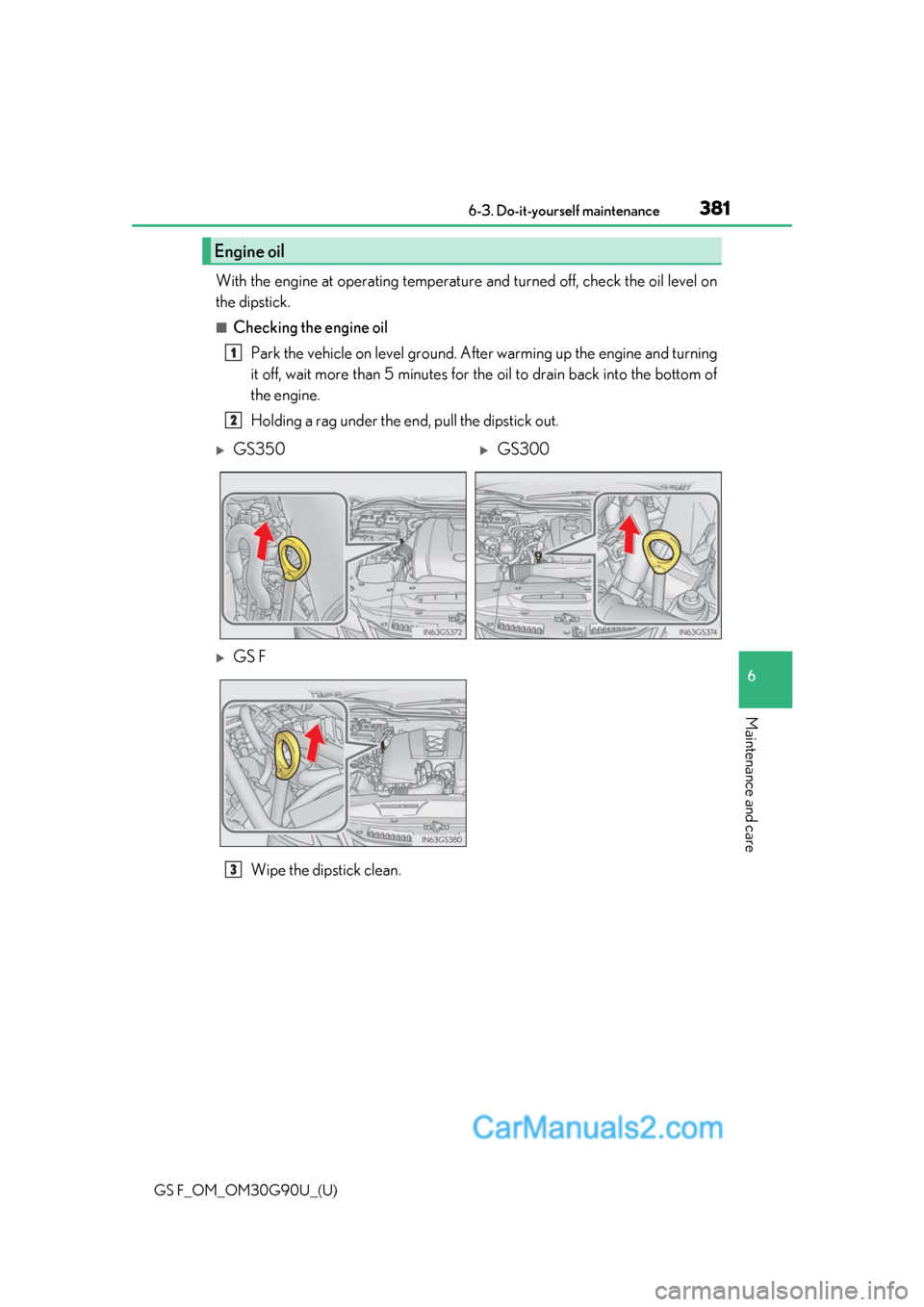

With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oil
Park the vehicle on level ground. Afte r warming up the engine and turning
it off, wait more than 5 minutes for the oil to drain back into the bottom of
the engine.
Holding a rag under the end, pull the dipstick out.
Wipe the dipstick clean.
Engine oil
1
2
GS350GS300
GS F
3

382
GS F_OM_OM30G90U_(U)6-3. Do-it-yourself maintenance

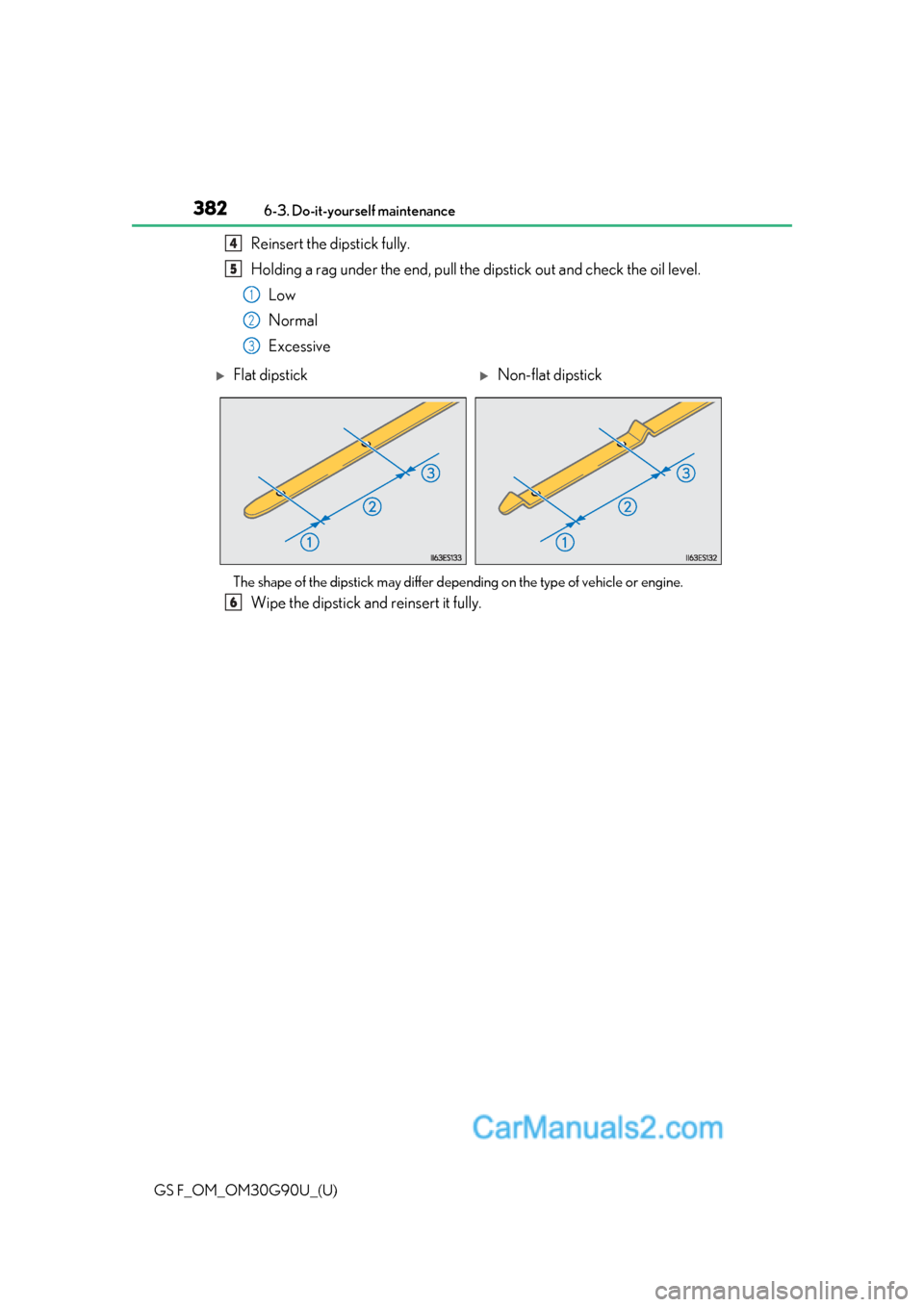

Reinsert the dipstick fully.
Holding a rag under the end, pull the
dipstick out and check the oil level.
Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of vehicle or engine.
Wipe the dipstick and reinsert it fully.
4
5
1
2
3
Flat dipstickNon-flat dipstick
6

GS F_OM_OM30G90U_(U)
3836-3. Do-it-yourself maintenance
6
Maintenance and care
■Adding engine oil
If the oil level is below or near the low level mark, add engine oil of the same
type as that already in the engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
GS350GS300
GS F
Engine oil selection P. 522, 524
Oil quantity (Low  Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel
1
2
3

GS F_OM_OM30G90U_(U)
3856-3. Do-it-yourself maintenance
6
Maintenance and care

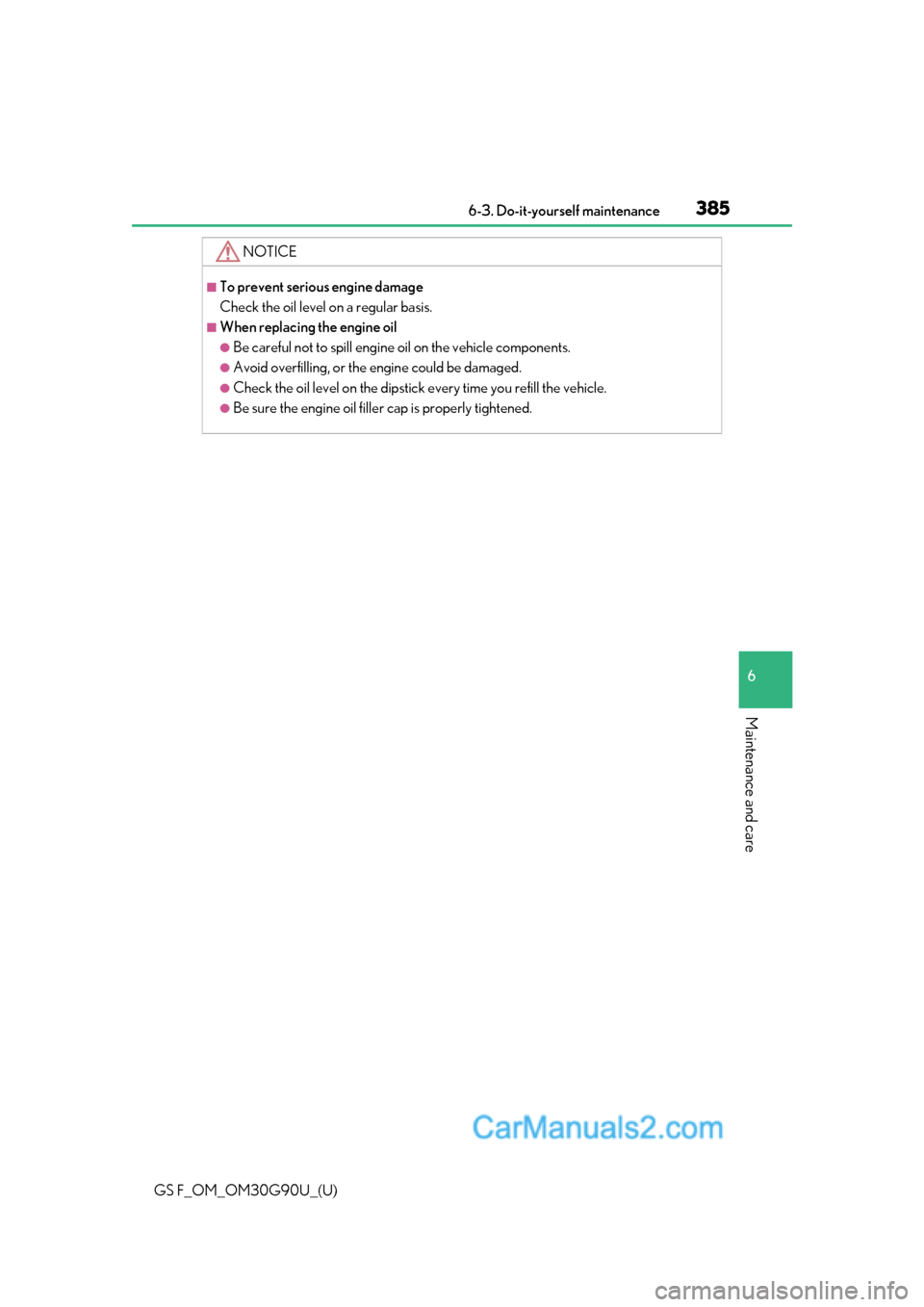

NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.

GS F_OM_OM30G90U_(U)
3876-3. Do-it-yourself maintenance
6
Maintenance and care

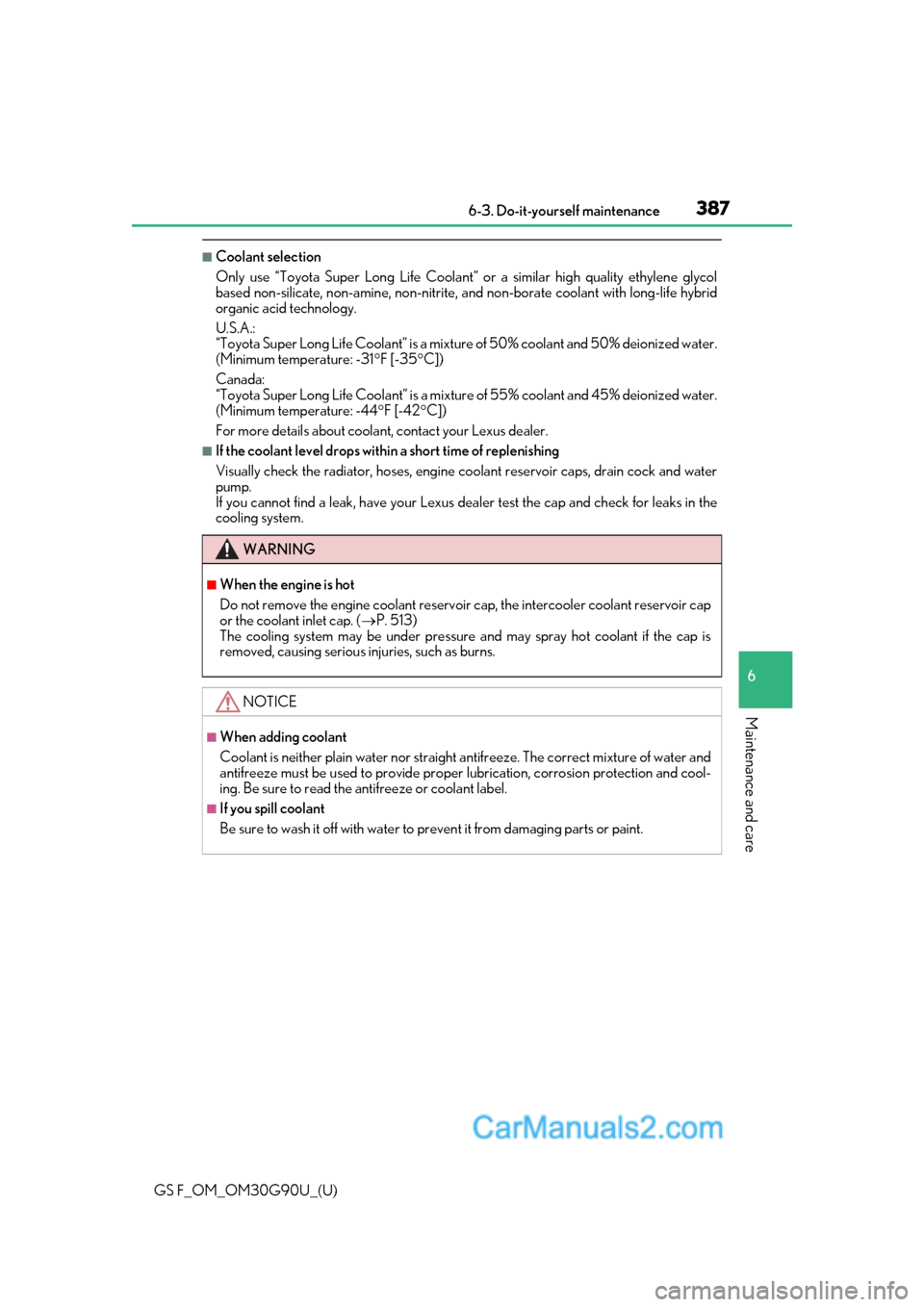

■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixt ure of 50% coolant and 50% deionized water.
(Minimum temperature: -31 F [-35 C])
Canada:
“Toyota Super Long Life Cool ant” is a mixture of 55% coolant and 45% deionized water.
(Minimum temperature: -44 F [-42C])
For more details about coolant, contact your Lexus dealer.
■If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock and water
pump.
If you cannot find a leak, have your Lexus de aler test the cap and check for leaks in the
cooling system.
WARNING
■When the engine is hot
Do not remove the engine coolant reservoir cap, the intercooler coolant reservoir cap
or the coolant inlet cap. ( P. 513)
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool-
ing. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

388
GS F_OM_OM30G90U_(U)6-3. Do-it-yourself maintenance

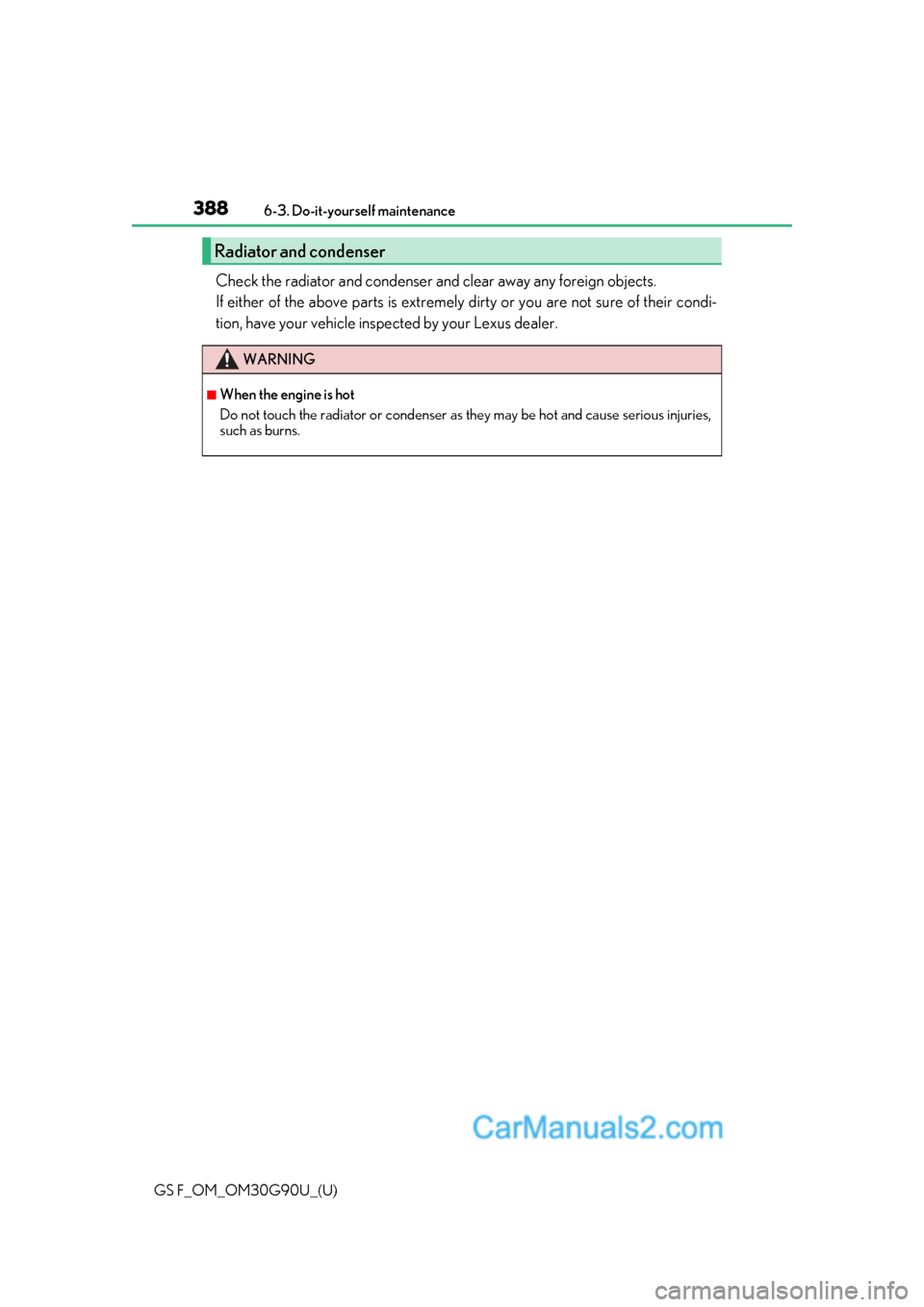

Check the radiator and condenser an
d clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of their condi-
tion, have your vehicle inspected by your Lexus dealer.
Radiator and condenser
WARNING
■When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause serious injuries,
such as burns.
