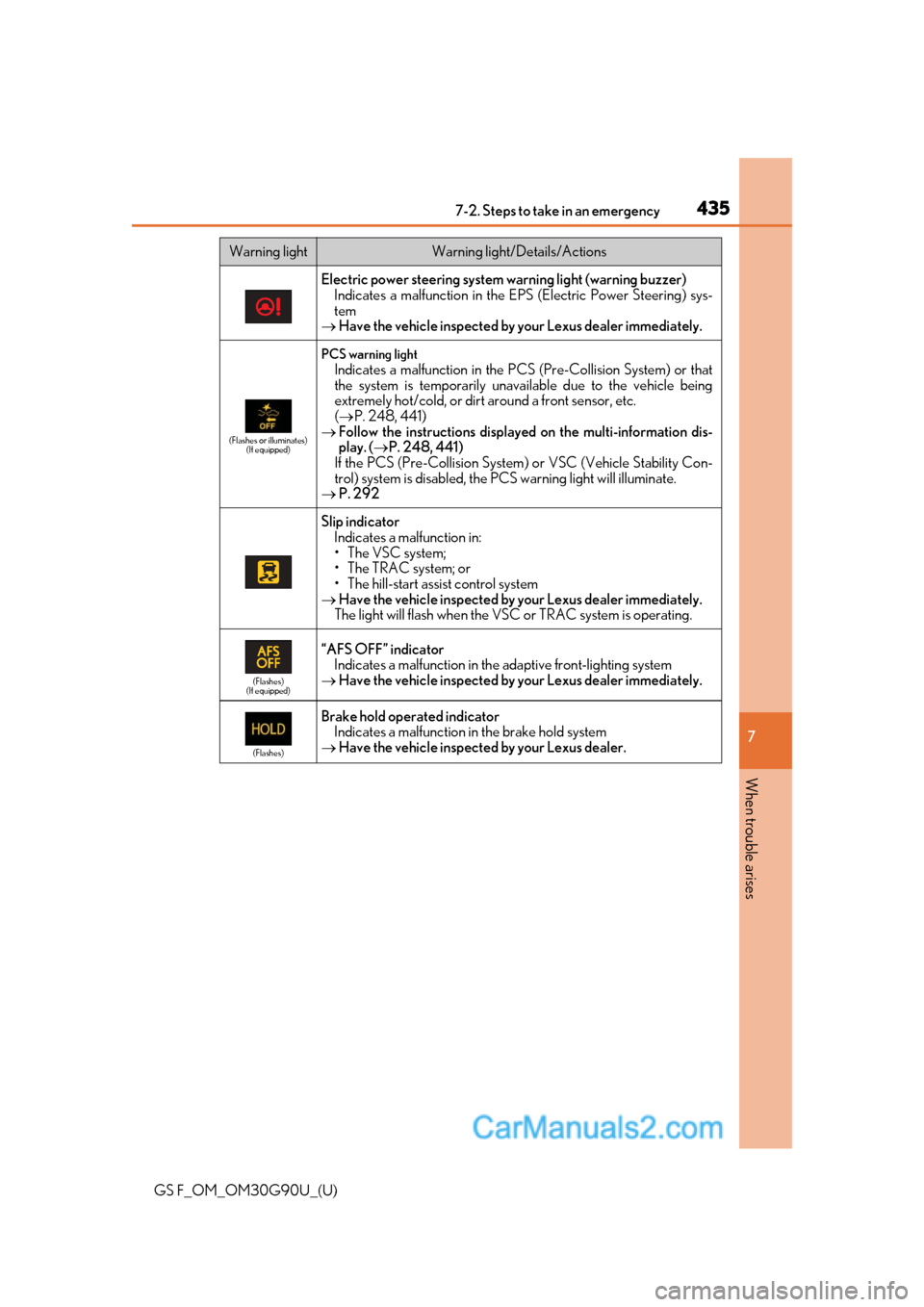

4357-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
7
When trouble arises
Electric power steering system warning light (warning buzzer)
Indicates a malfunction in the EPS (Electric Power Steering) sys-
tem
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes or illuminates)
(If equipped)
PCS warning lightIndicates a malfunction in the PCS (Pre-Collision System) or that
the system is temporarily unavailable due to the vehicle being
extremely hot/cold, or dirt around a front sensor, etc.
( P. 248, 441)
 Follow the instructions displayed on the multi-information dis-
play. ( P. 248, 441)
If the PCS (Pre-Collision System ) or VSC (Vehicle Stability Con-
trol) system is disabled, the PC S warning light will illuminate.
 P. 292
Slip indicator
Indicates a malfunction in:
• The VSC system;
• The TRAC system; or
• The hill-start assist control system
 Have the vehicle inspected by your Lexus dealer immediately.
The light will flash when the VSC or TRAC system is operating.
(Flashes)
(If equipped)
“AFS OFF” indicator Indicates a malfunction in the adaptive front-lighting system
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
Brake hold operated indicator
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by your Lexus dealer.
Warning lightWarning light/Details/Actions

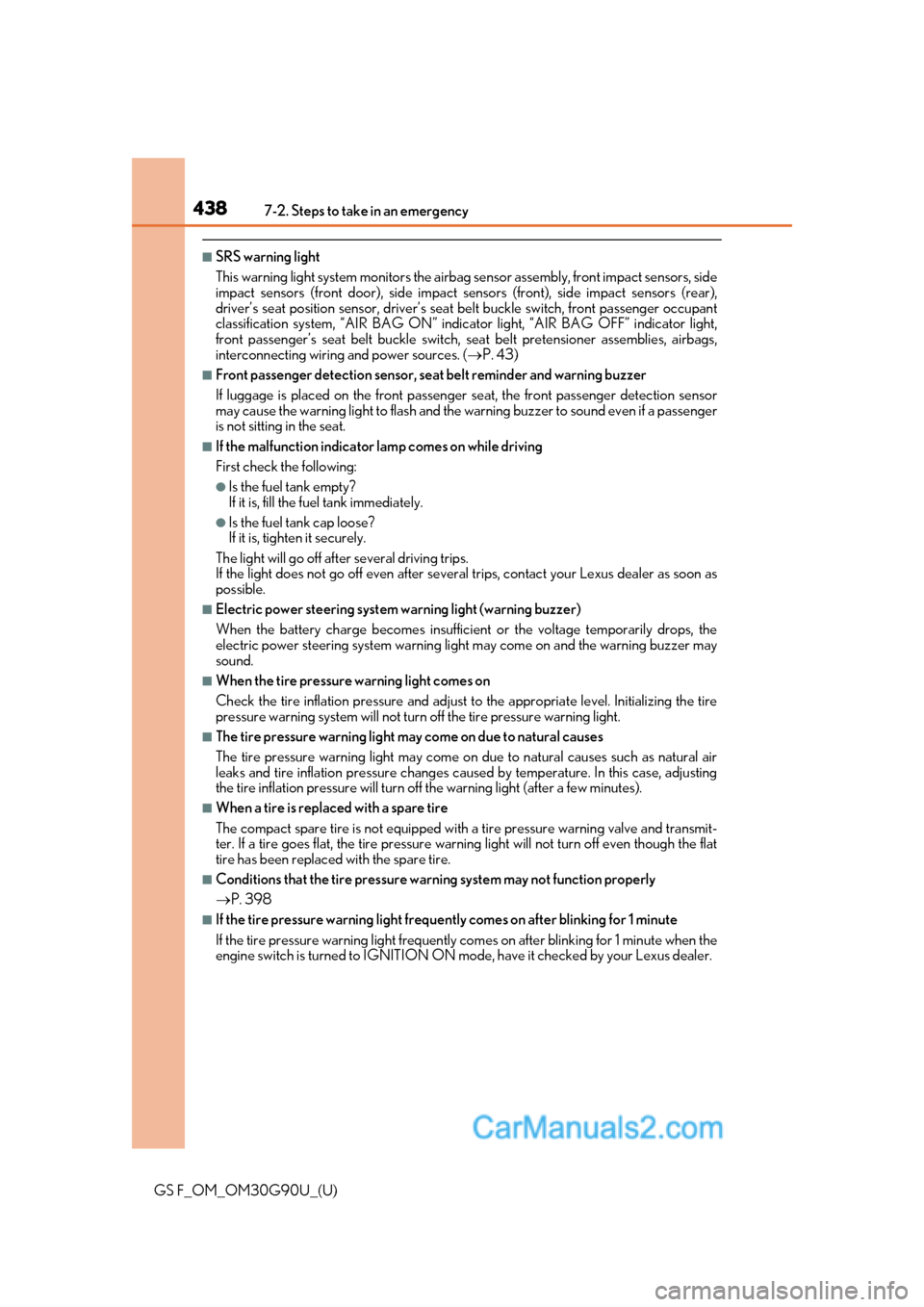

4387-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors, side
impact sensors (front door), side impact se nsors (front), side impact sensors (rear),
driver’s seat position sensor, driver’s seat belt buckle switch, front passenger occupant
classification system, “AIR BAG ON” indicat or light, “AIR BAG OFF” indicator light,
front passenger’s seat belt buckle switch, seat belt pretensioner assemblies, airbags,
interconnecting wiring and power sources. (P. 43)
■Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passenger
is not sitting in the seat.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fu el tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after severa l trips, contact your Lexus dealer as soon as
possible.
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficien t or the voltage temporarily drops, the
electric power steering system warning li ght may come on and the warning buzzer may
sound.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Initializing the tire
pressure warning system will not turn off the tire pressure warning light.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air
leaks and tire inflation pressure changes caus ed by temperature. In this case, adjusting
the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve and transmit-
ter. If a tire goes flat, the tire pressure warning light will not turn off even though the flat
tire has been replaced with the spare tire.
■Conditions that the tire pressure wa rning system may not function properly
 P. 398
■If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the
engine switch is turned to IGNITION ON mo de, have it checked by your Lexus dealer.

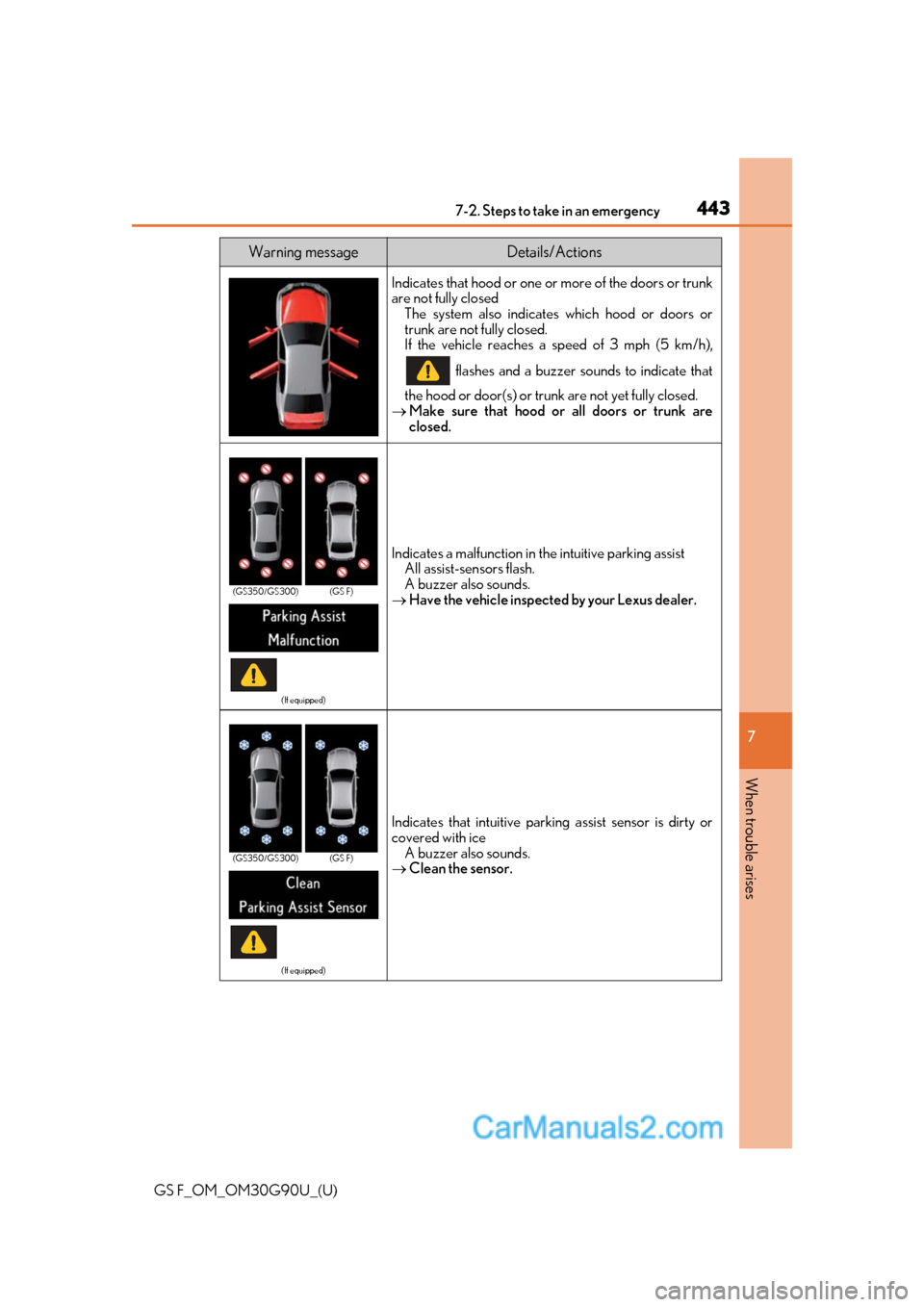

4437-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
7
When trouble arises
Indicates that hood or one or more of the doors or trunk
are not fully closed
The system also indicates which hood or doors or
trunk are not fully closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate that
the hood or door(s) or trunk are not yet fully closed.
 Make sure that hood or all doors or trunk are
closed.
(If equipped)
Indicates a malfunction in the intuitive parking assist
All assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that intuitive parkin g assist sensor is dirty or
covered with ice A buzzer also sounds.
 Clean the sensor.
Warning messageDetails/Actions
(GS350/GS300) (GS F)
(GS350/GS300) (GS F)

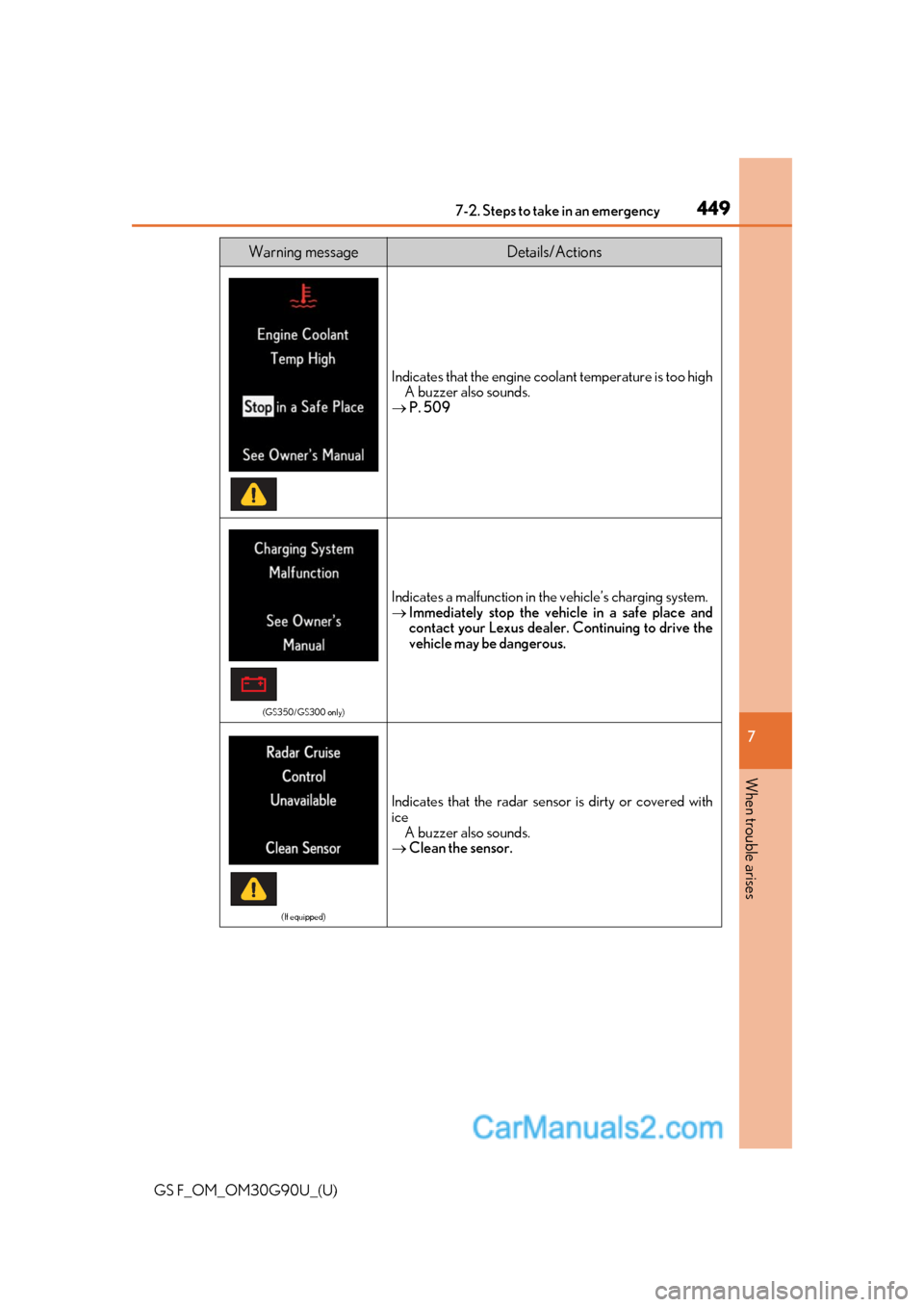

4497-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
7
When trouble arises
Indicates that the engine coolant temperature is too high A buzzer also sounds.
 P. 509
(GS350/GS300 only)
Indicates a malfunction in the vehicle’s charging system.
Immediately stop the vehicle in a safe place and
contact your Lexus dealer. Continuing to drive the
vehicle may be dangerous.
(If equipped)
Indicates that the radar sensor is dirty or covered with
ice A buzzer also sounds.
 Clean the sensor.
Warning messageDetails/Actions

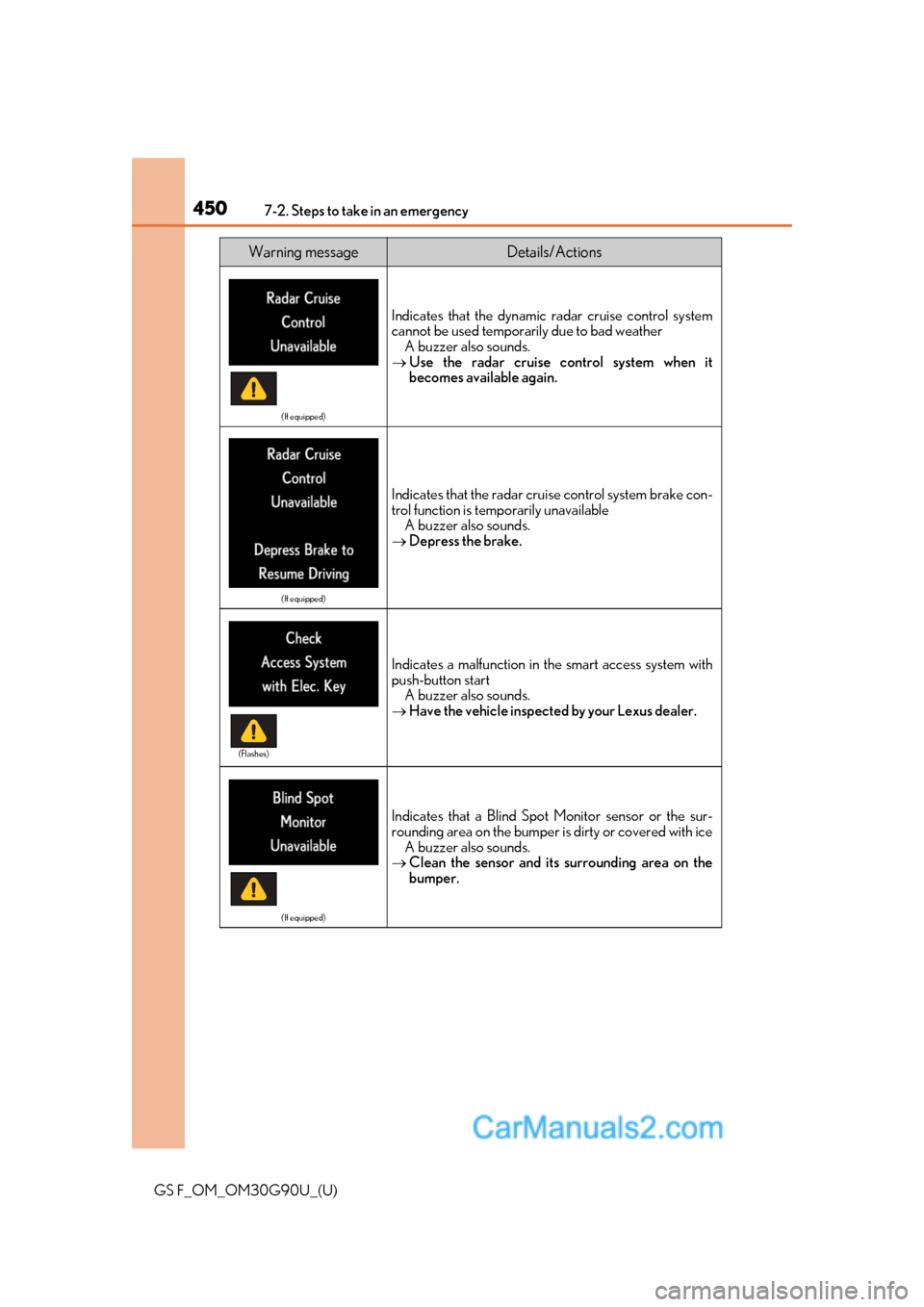

4507-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
(If equipped)
Indicates that the dynamic radar cruise control system
cannot be used temporarily due to bad weatherA buzzer also sounds.
 Use the radar cruise control system when it
becomes available again.
(If equipped)
Indicates that the radar cruise control system brake con-
trol function is temporarily unavailable
A buzzer also sounds.
 Depress the brake.
Indicates a malfunction in the smart access system with
push-button start
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area on the
bumper.
Warning messageDetails/Actions
(Flashes)

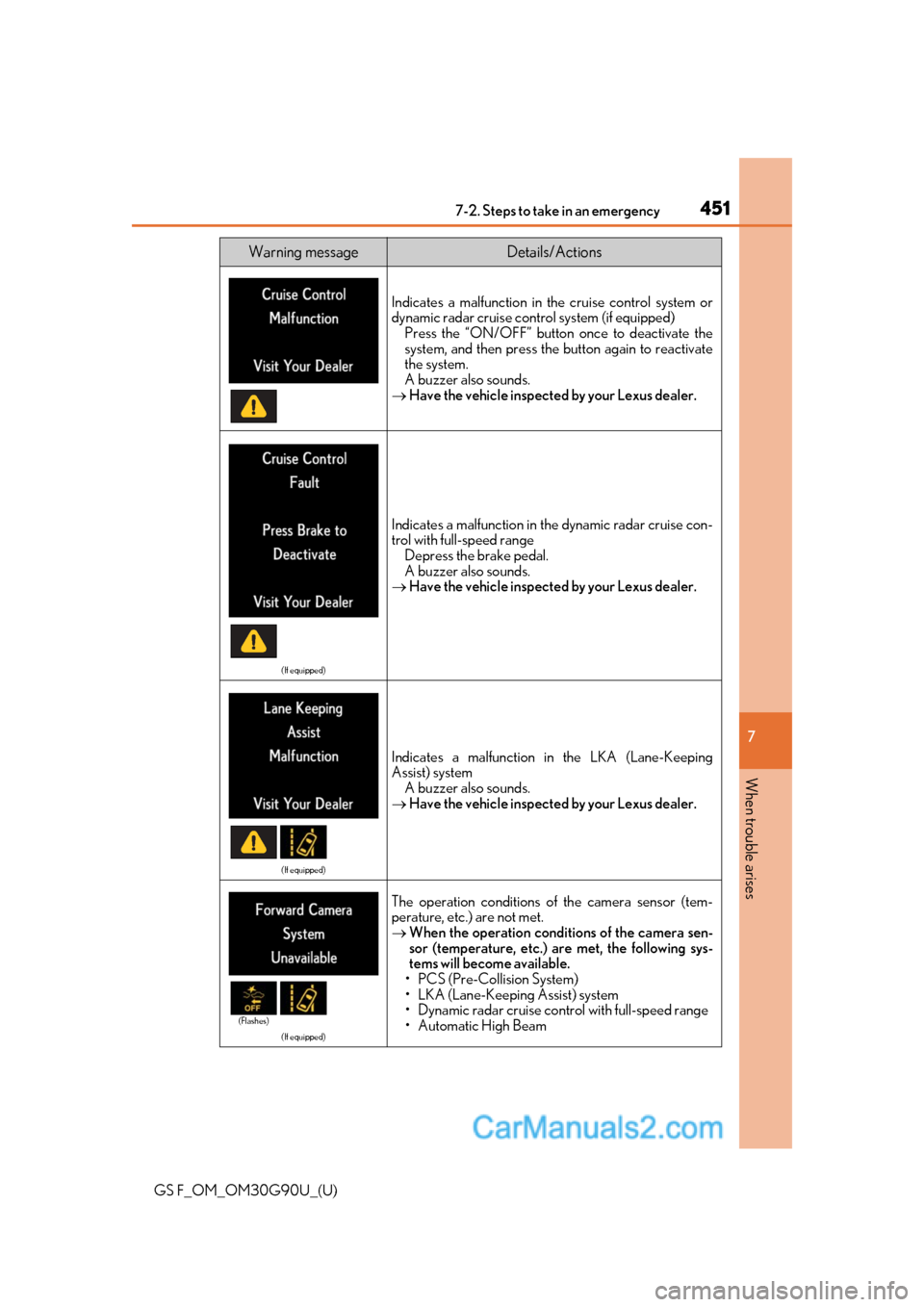

4517-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
7
When trouble arises
Indicates a malfunction in th e cruise control system or
dynamic radar cruise control system (if equipped)
Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the dynamic radar cruise con-
trol with full-speed range
Depress the brake pedal.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the LKA (Lane-Keeping
Assist) system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
The operation conditions of the camera sensor (tem-
perature, etc.) are not met.
When the operation conditions of the camera sen-
sor (temperature, etc.) are met, the following sys-
tems will become available.
• PCS (Pre-Collision System)
• LKA (Lane-Keeping Assist) system
• Dynamic radar cruise control with full-speed range
•Automatic High Beam
Warning messageDetails/Actions
(Flashes)

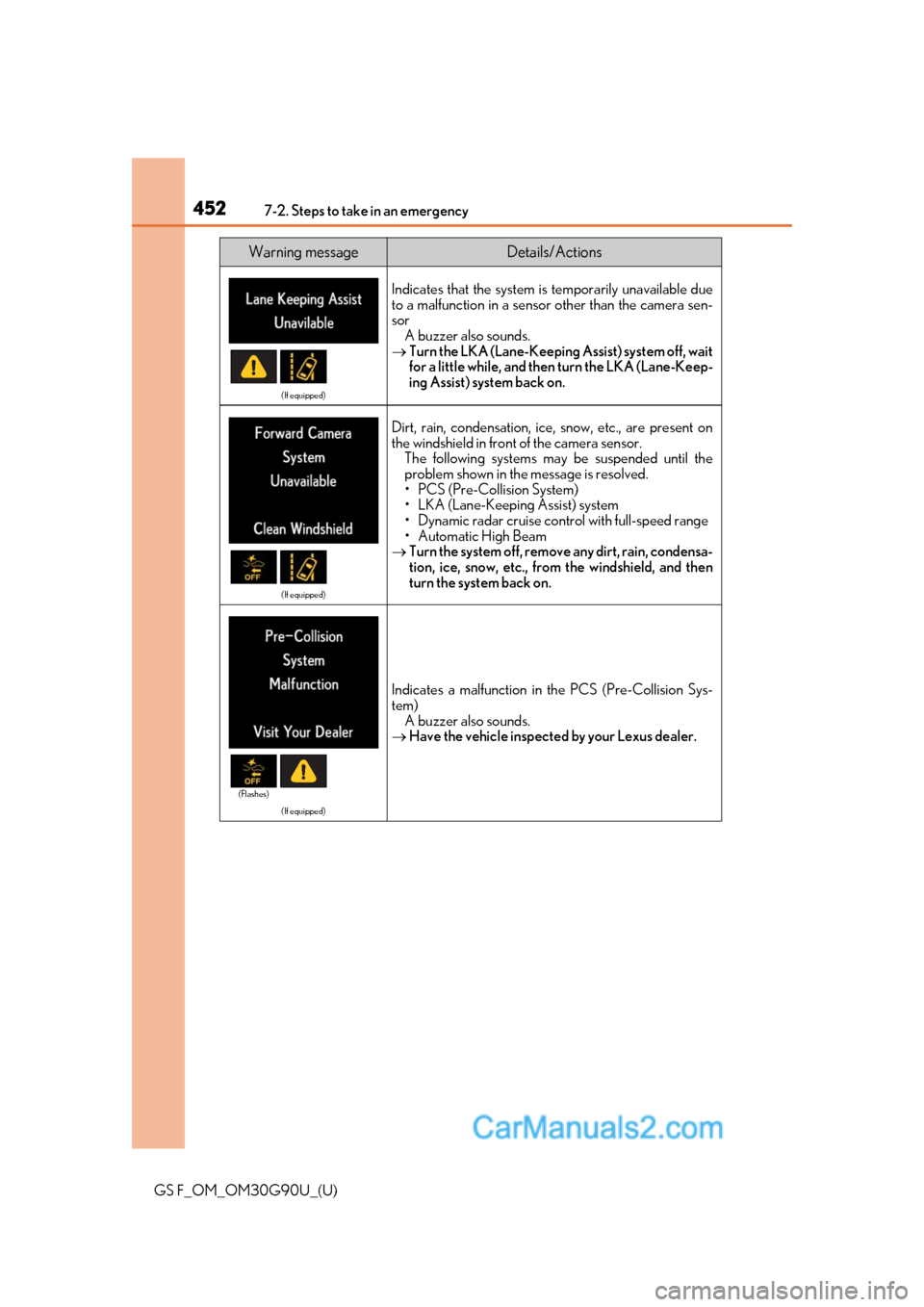

4527-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor A buzzer also sounds.
 Turn the LKA (Lane-Keeping Assist) system off, wait
for a little while, and then turn the LKA (Lane-Keep-
ing Assist) system back on.
(If equipped)
Dirt, rain, condensation, ice, snow, etc., are present on
the windshield in front of the camera sensor. The following systems may be suspended until the
problem shown in the message is resolved.
• PCS (Pre-Collision System)
• LKA (Lane-Keeping Assist) system
• Dynamic radar cruise control with full-speed range
•Automatic High Beam
 Turn the system off, remove any dirt, rain, condensa-
tion, ice, snow, etc., from the windshield, and then
turn the system back on.
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision Sys-
tem)
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions
(Flashes)

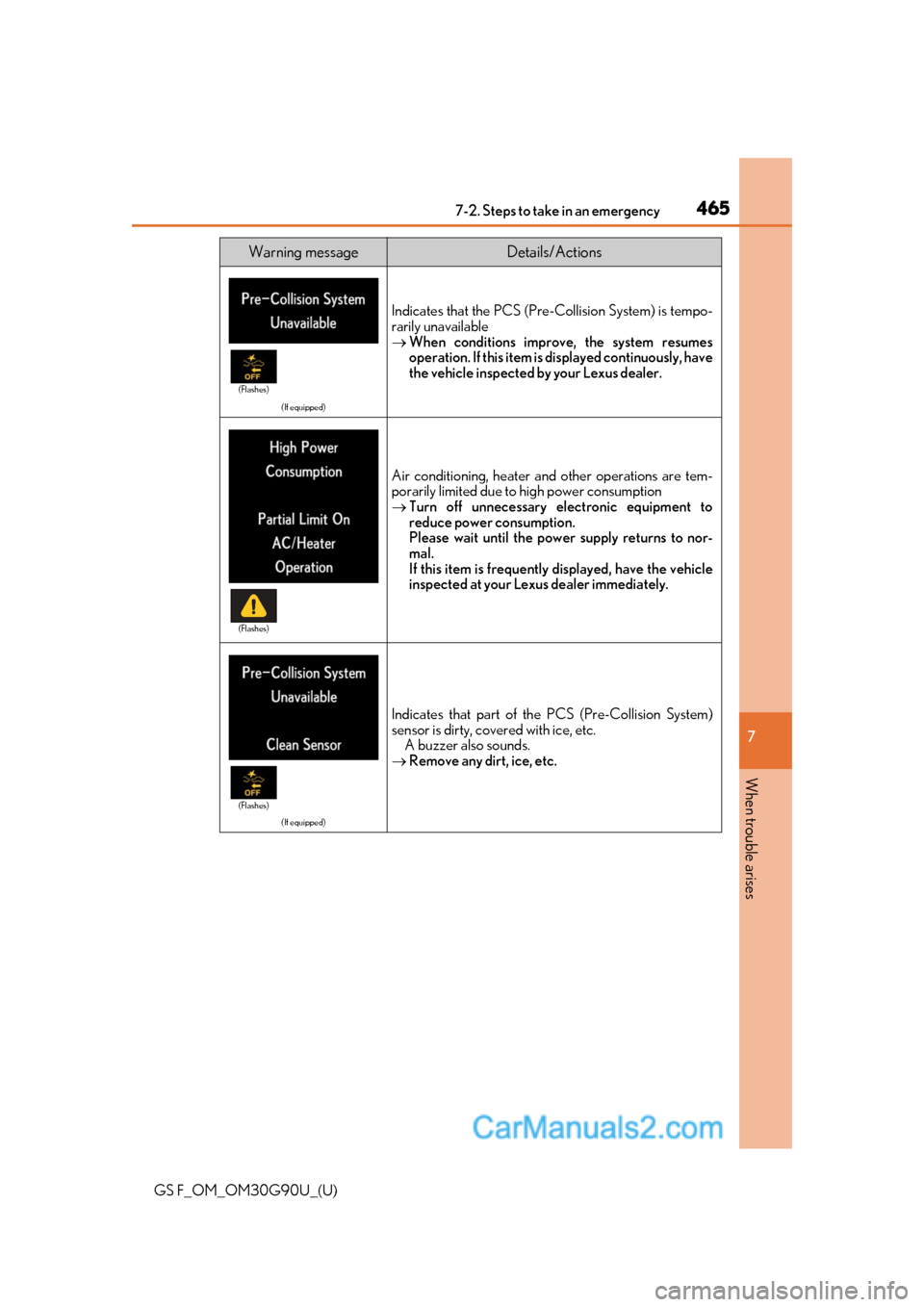

4657-2. Steps to take in an emergency
GS F_OM_OM30G90U_(U)
7
When trouble arises
Warning messageDetails/Actions
(If equipped)
Indicates that the PCS (Pre -Collision System) is tempo-
rarily unavailable
 When conditions improve, the system resumes
operation. If this item is displayed continuously, have
the vehicle inspected by your Lexus dealer.
Air conditioning, heater and other operations are tem-
porarily limited due to high power consumption
 Turn off unnecessary electronic equipment to
reduce power consumption.
Please wait until the power supply returns to nor-
mal.
If this item is frequently displayed, have the vehicle
inspected at your Lexus dealer immediately.
(If equipped)
Indicates that part of th e PCS (Pre-Collision System)
sensor is dirty, covered with ice, etc. A buzzer also sounds.
 Remove any dirt, ice, etc.
(Flashes)
(Flashes)
(Flashes)

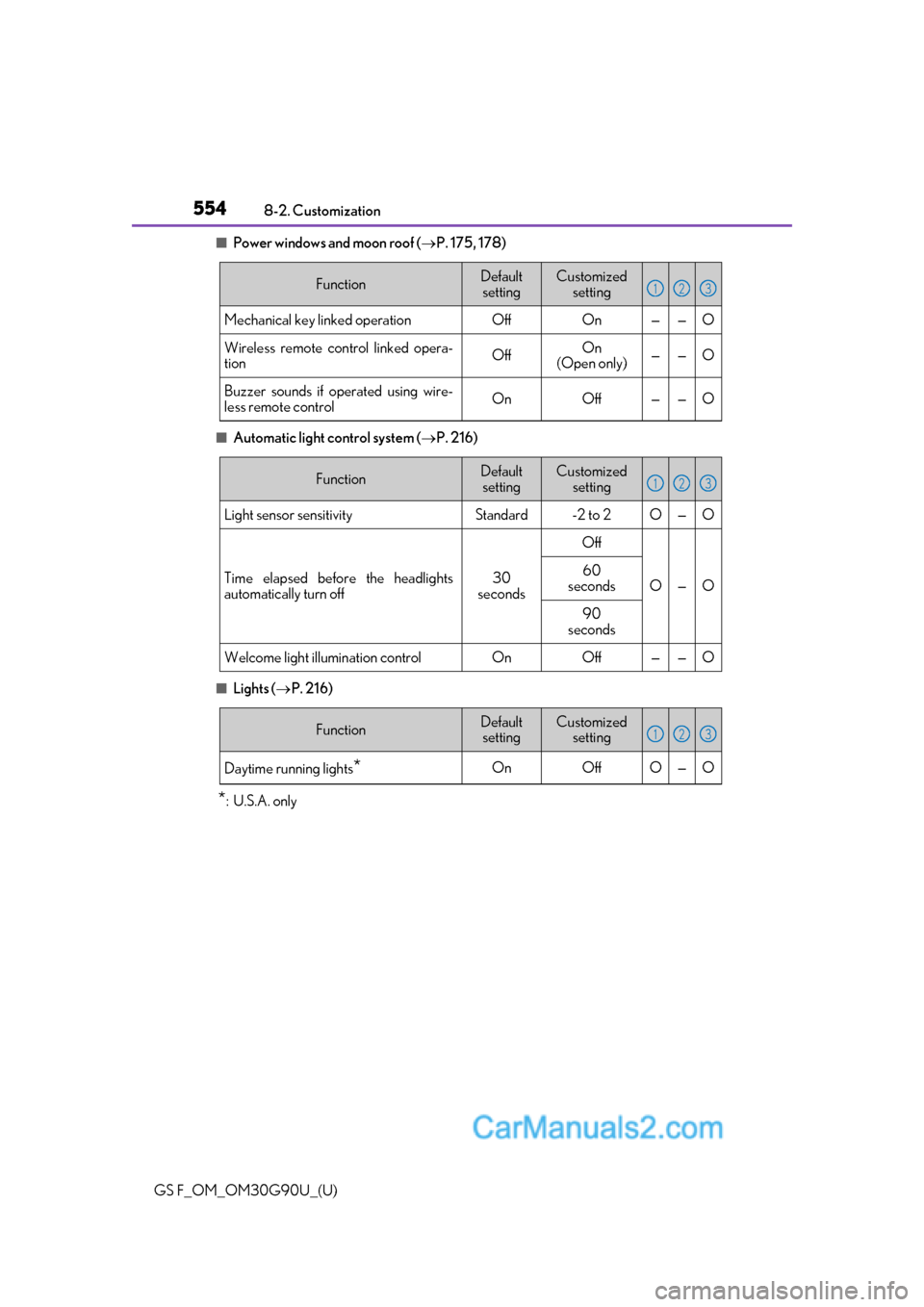

554
GS F_OM_OM30G90U_(U)8-2. Customization
■Power windows and moon roof (
P. 175, 178)
■Automatic light control system ( P. 216)
■Lights ( P. 216)
*: U.S.A. only
FunctionDefault
settingCustomized setting
Mechanical key linked operationOffOn——O
Wireless remote co ntrol linked opera-
tionOffOn
(Open only)——O
Buzzer sounds if operated using wire-
less remote controlOnOff——O
123
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before the headlights
automatically turn off30
seconds
Off
O—O60
seconds
90
seconds
Welcome light illumination controlOnOff——O
123
FunctionDefault settingCustomized setting
Daytime running lights*OnOffO—O
123

GS F_OM_OM30G90U_(U)

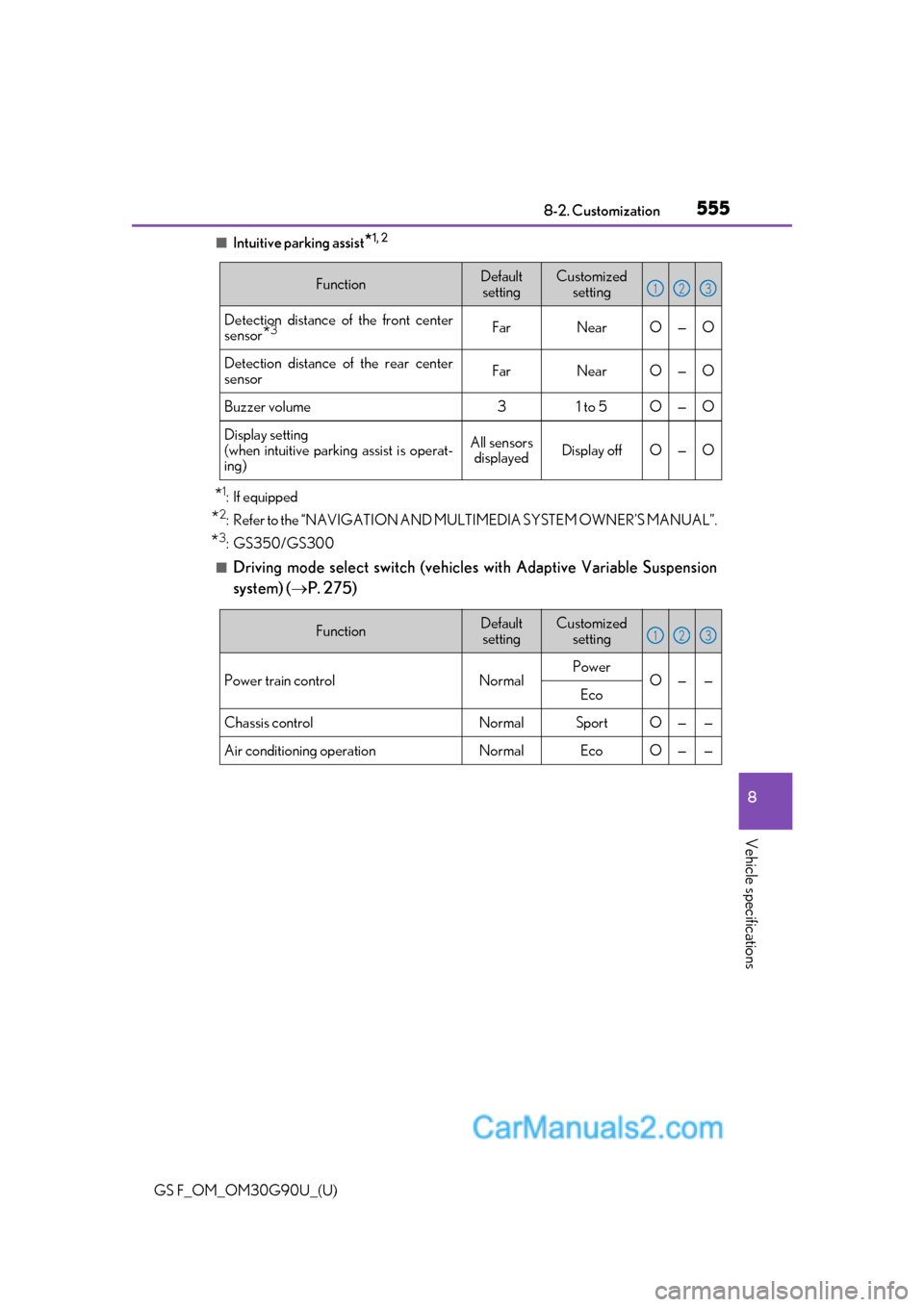

5558-2. Customization
8
Vehicle specifications
■Intuitive parking assist*1, 2
*1: If equipped
*2: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*3: GS350/GS300
■Driving mode select switch (vehicles with Adaptive Variable Suspension
system) (P. 275)
FunctionDefault
settingCustomized setting
Detection distance of the front center
sensor
*3FarNearO—O
Detection distance of the rear center
sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when intuitive parkin g assist is operat-
ing)All sensors displayedDisplay offO—O
123
FunctionDefault
settingCustomized setting
Power train controlNormalPowerO——Eco
Chassis controlNormalSportO——
Air conditioning operationNormalEcoO——
123
