TABLE OF CONTENTS2
GS F_OM_OM30G90U_(U)
For your information................................... 8
Reading this manual................................... 12
How to search ..............................................13
Pictorial index............................................... 14
1-1. For safe useBefore driving ................................ 32
For safe driving .............................. 34
Seat belts .......................................... 36
SRS airbags ....................................... 41
Front passenger occupant classification system ................. 52
Safety information for children ................................... 58
Child restraint systems ............... 59
Installing child restraints............. 63
Exhaust gas precautions.............. 71
1-2. Theft deterrent system Engine immobilizer system........72
Alarm ..................................................74 2. Instrument cluster
Warning lights and indicators .............................. 78
Gauges and meters (GS350/GS300) ................... 86
Gauges and meters (GS F)...... 92
Multi-information display (GS350/GS300) ................. 100
Multi-information display (GS F) ........................................... 108
Head-up display ...........................120
Fuel consumption information .................................. 127
3-1. Key information Keys ...................................................132
3-2. Opening, closing and locking the doors and trunk
Doors ................................................ 137
Trunk .................................................143
Smart access system with push-butto n start ............ 150
3-3. Adjusting the seats Front seats ..................................... 158
Driving position memory......... 160
Head restraints .............................165
1For safety and security
2Instrument cluster
3Operation of
each component

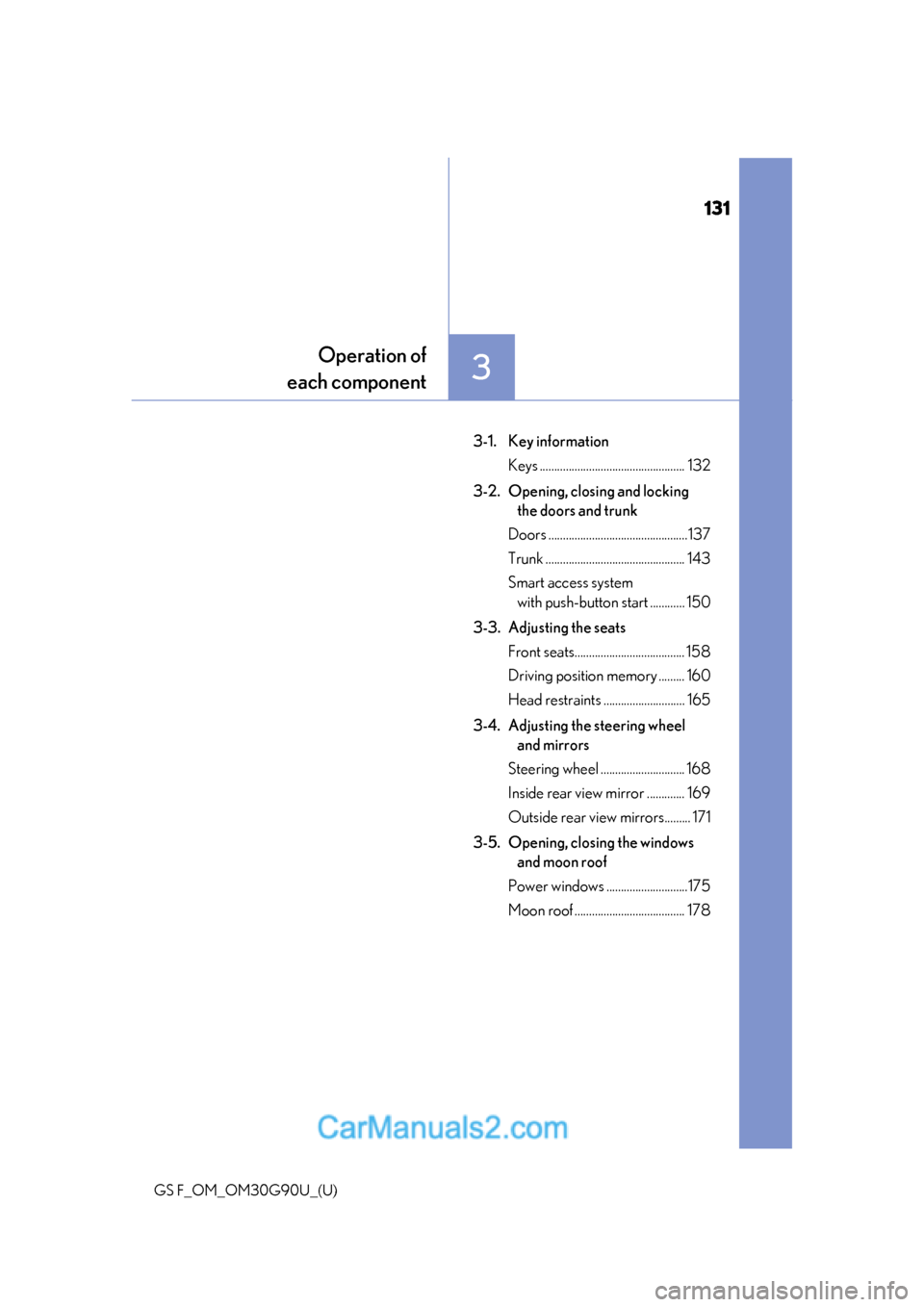

131
GS F_OM_OM30G90U_(U)
3
Operation of
each component
3-1. Key information
Keys .................................................. 132
3-2. Opening, closing and locking the doors and trunk
Doors ................................................137
Trunk ................................................ 143
Smart access system with push-button start ............ 150
3-3. Adjusting the seats Front seats...................................... 158
Driving position memory ......... 160
Head restraints ............................ 165
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................. 168
Inside rear view mirror ............. 169
Outside rear view mirrors......... 171
3-5. Opening, closing the windows and moon roof
Power windows ............................175
Moon roof ...................................... 178

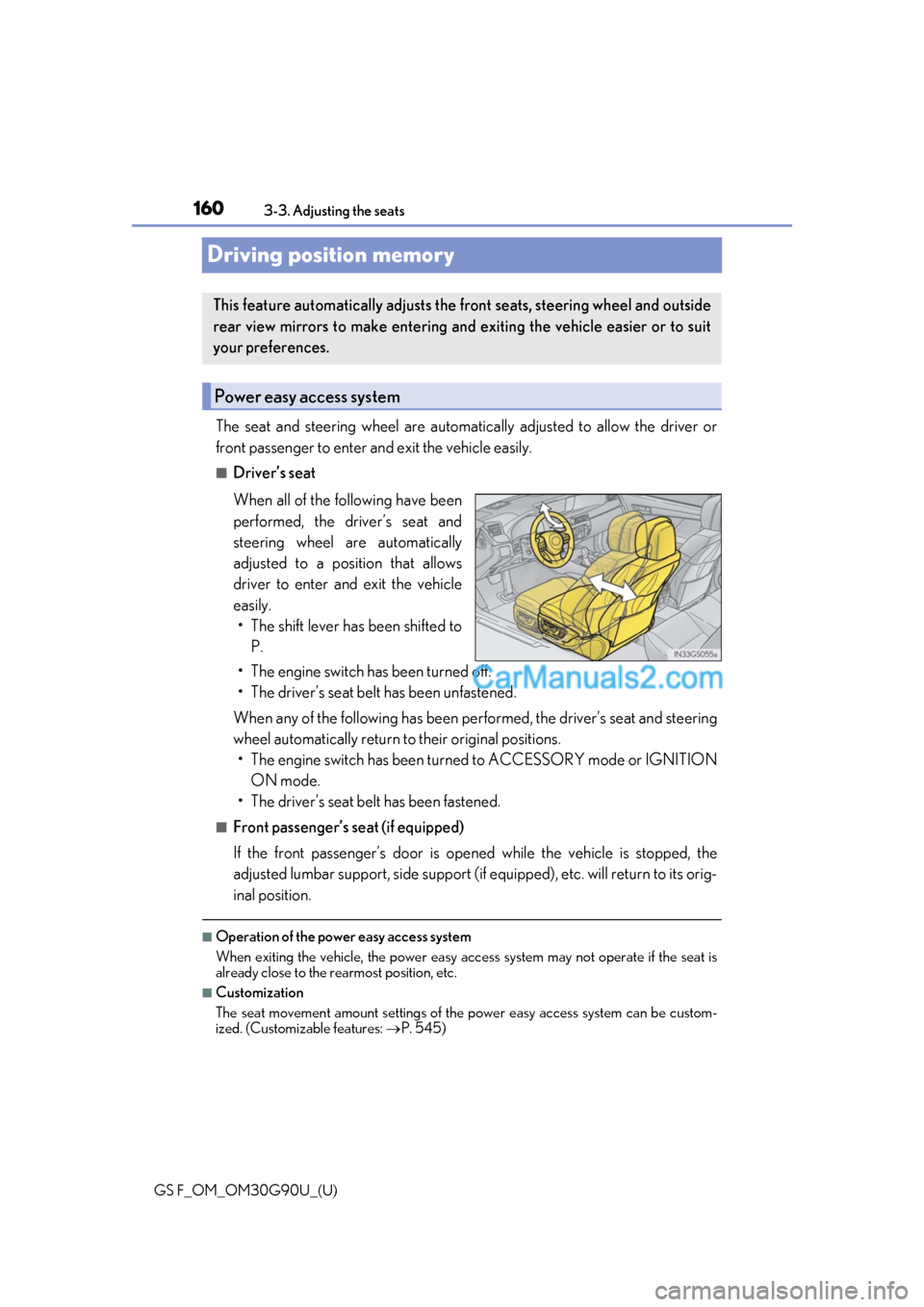

160
GS F_OM_OM30G90U_(U)3-3. Adjusting the seats
Driving position memory
The seat and steering wheel are automati
cally adjusted to allow the driver or
front passenger to enter an d exit the vehicle easily.
■Driver’s seat
When all of the following have been
performed, the driver’s seat and
steering wheel are automatically
adjusted to a position that allows
driver to enter and exit the vehicle
easily. • The shift lever has been shifted to P.
• The engine switch has been turned off.
• The driver’s seat belt has been unfastened.
When any of the following has been perf ormed, the driver’s seat and steering
wheel automatically return to their original positions. • The engine switch has been turned to ACCESSORY mode or IGNITION ON mode.
• The driver’s seat belt has been fastened.
■Front passenger’s seat (if equipped)
If the front passenger’s door is open ed while the vehicle is stopped, the
adjusted lumbar support, side support (if equipped), etc. will return to its orig-
inal position.
■Operation of the power easy access system
When exiting the vehicle, the power easy ac cess system may not operate if the seat is
already close to the rearmost position, etc.
■Customization
The seat movement amount settings of th e power easy access system can be custom-
ized. (Customizable features: P. 545)
This feature automatically adjusts the front seats, steering wheel and outside
rear view mirrors to make entering and exiting the vehicle easier or to suit
your preferences.
Power easy access system

GS F_OM_OM30G90U_(U)
1613-3. Adjusting the seats
3
Operation of each component
Your preferred driving position (the position of the driver’s seat, steering wheel,
outside rear view mirrors and HUD [head-up display] [if equipped]) can be
recorded and recalled by pressing a button.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat, steering wh eel, outside rear view mirrors and HUD
(head-up display) (if equipped) to the desired positions.
While pressing the “SET” button,
or within 3 seconds after the
“SET” button is pressed, press
button “1”, “2” or “3” until the
buzzer sounds.
If the selected button has already
been preset, the previously recorded
position will be overwritten.
Vehicles with the driving position me mory for the front passenger’s seat: To
record the position of the front passenger’s seat, adjust the front passenger’s
seat to the desired position and perfor m step using the buttons on the front
passenger’s side.
■Recall procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.
Driving position memory
1
2
3
4
4
1
2
3

162
GS F_OM_OM30G90U_(U)3-3. Adjusting the seats
■To stop the position recall operation part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Operate any of the seat adjustment switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch
(only cancels steering wheel
position recall).
●Operate the head-up display position adjustment switch (if equipped) (only cancels
head-up display position recall).
■Seat positions that can be memorized ( P. 158)
Vehicles without seatback si de support adjustment switch
The adjusted positions other than the position adjusted by lumbar support switch can be
recorded.
Vehicles with seatback side support adjustment switch
All adjusted positions can be recorded.
■Operating the driving position memory after turning the engine switch off
Driver’s seat:
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
Front passenger’s seat:
Recorded seat positions can be activated up to 180 seconds after the front passenger’s
door is opened.
■In order to correctly use the dr iving position memory function
If a seat position is already in the furthest po ssible position and the seat is operated in the
same direction, the recorded position may be slightly different when it is recalled.
Each electronic key (including a card key) can be registered to recall your pre-
ferred driving position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing the
following:
Carry only the key you want to regist er, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be recorded
properly.
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Recall the driving position that you want to record.
Memory recall function (driver’s side only)
1
2
3

GS F_OM_OM30G90U_(U)

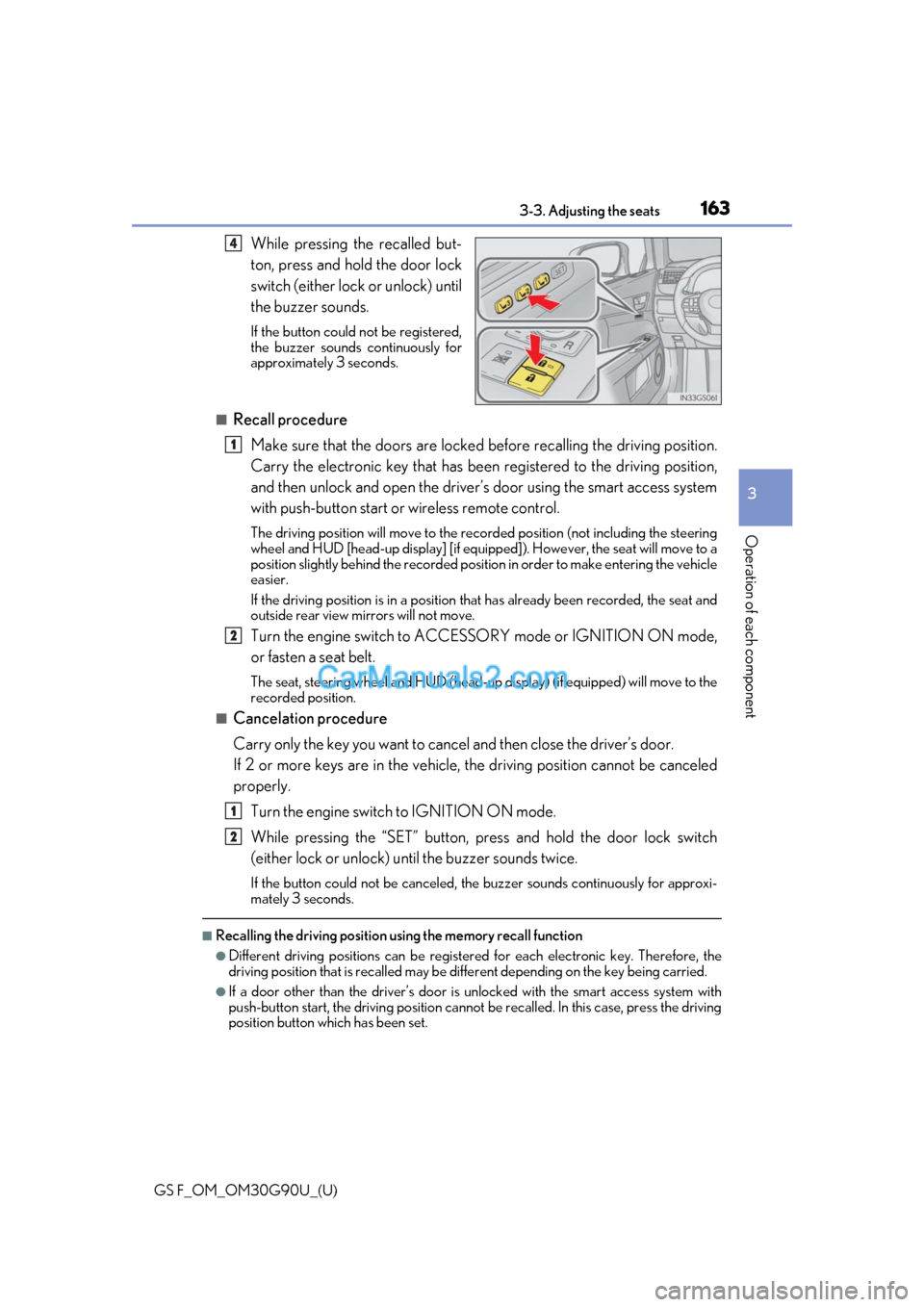

1633-3. Adjusting the seats
3
Operation of each component
While pressing the recalled but-
ton, press and hold the door lock
switch (either lock or unlock) until
the buzzer sounds.
If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.
■Recall procedureMake sure that the doors are locked before recalling the driving position.
Carry the electronic key that has been registered to the driving position,
and then unlock and open the driver’s door using the smart access system
with push-button start or wireless remote control.
The driving position will move to the recorded position (not including the steering
wheel and HUD [head-up display] [if equipp ed]). However, the seat will move to a
position slightly behind the recorded positi on in order to make entering the vehicle
easier.
If the driving position is in a position th at has already been recorded, the seat and
outside rear view mirrors will not move.
Turn the engine switch to ACCESS ORY mode or IGNITION ON mode,
or fasten a seat belt.
The seat, steering wheel and HUD (head-up display) (if equipped) will move to the
recorded position.
■Cancelation procedure
Carry only the key you want to cance l and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled
properly.
Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, pr ess and hold the door lock switch
(either lock or unlock) un til the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be di fferent depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the driving
position button which has been set.
4
1
2
1
2

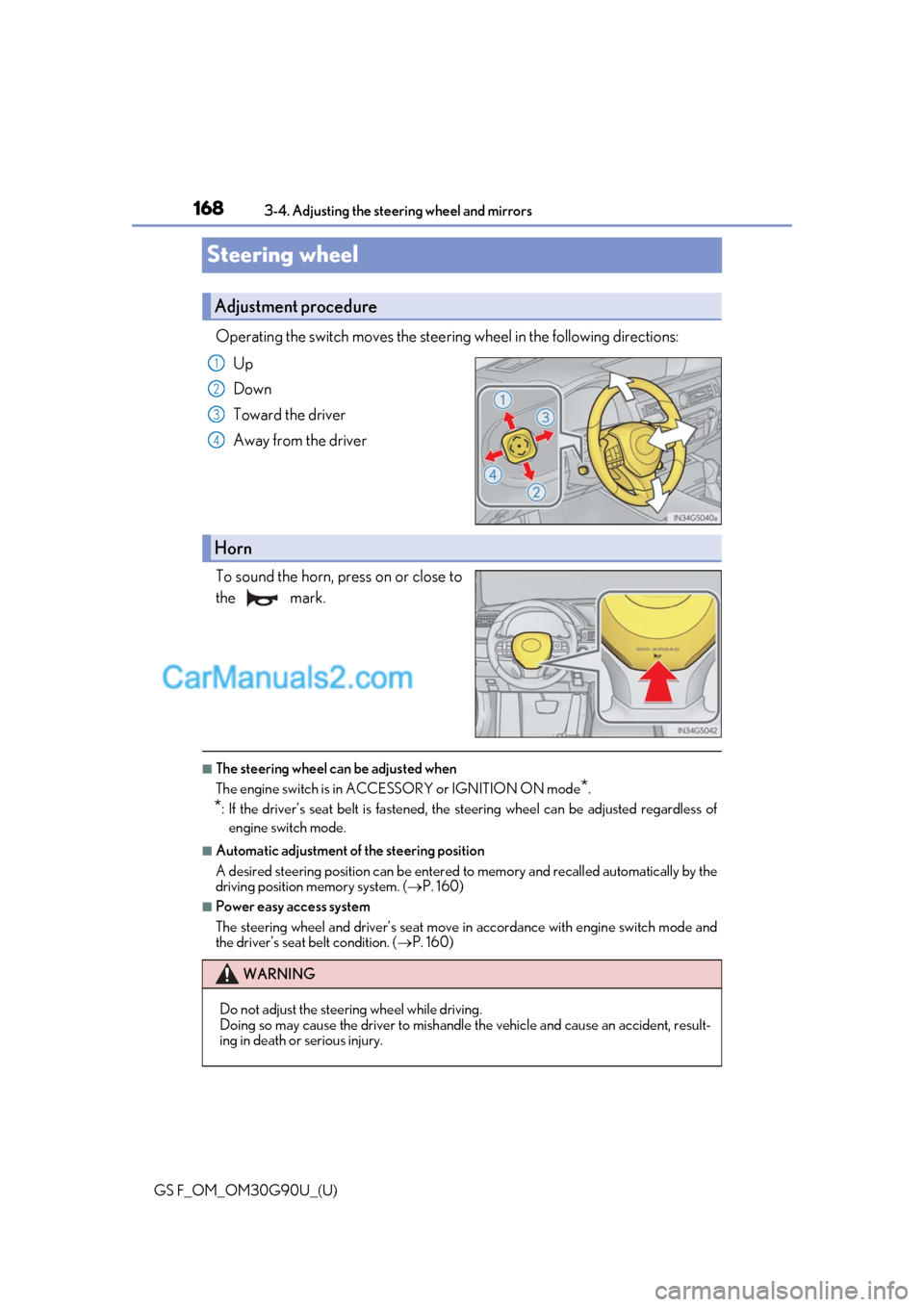

1683-4. Adjusting the steering wheel and mirrors
GS F_OM_OM30G90U_(U)
Steering wheel
Operating the switch moves the steering wheel in the following directions: Up
Down
Toward the driver
Away from the driver
To sound the horn, press on or close to
the mark.
■The steering wheel can be adjusted when
The engine switch is in ACCESSORY or IGNITION ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of engine switch mode.
■Automatic adjustment of the steering position
A desired steering position ca n be entered to memory and recalled automatically by the
driving position memory system. ( P. 160)
■Power easy access system
The steering wheel and driver’s seat move in accordance with engine switch mode and
the driver’s seat belt condition. ( P. 160)
Adjustment procedure
1
2
3
4
Horn
WARNING
Do not adjust the steeri ng wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident, result-
ing in death or serious injury.

GS F_OM_OM30G90U_(U)

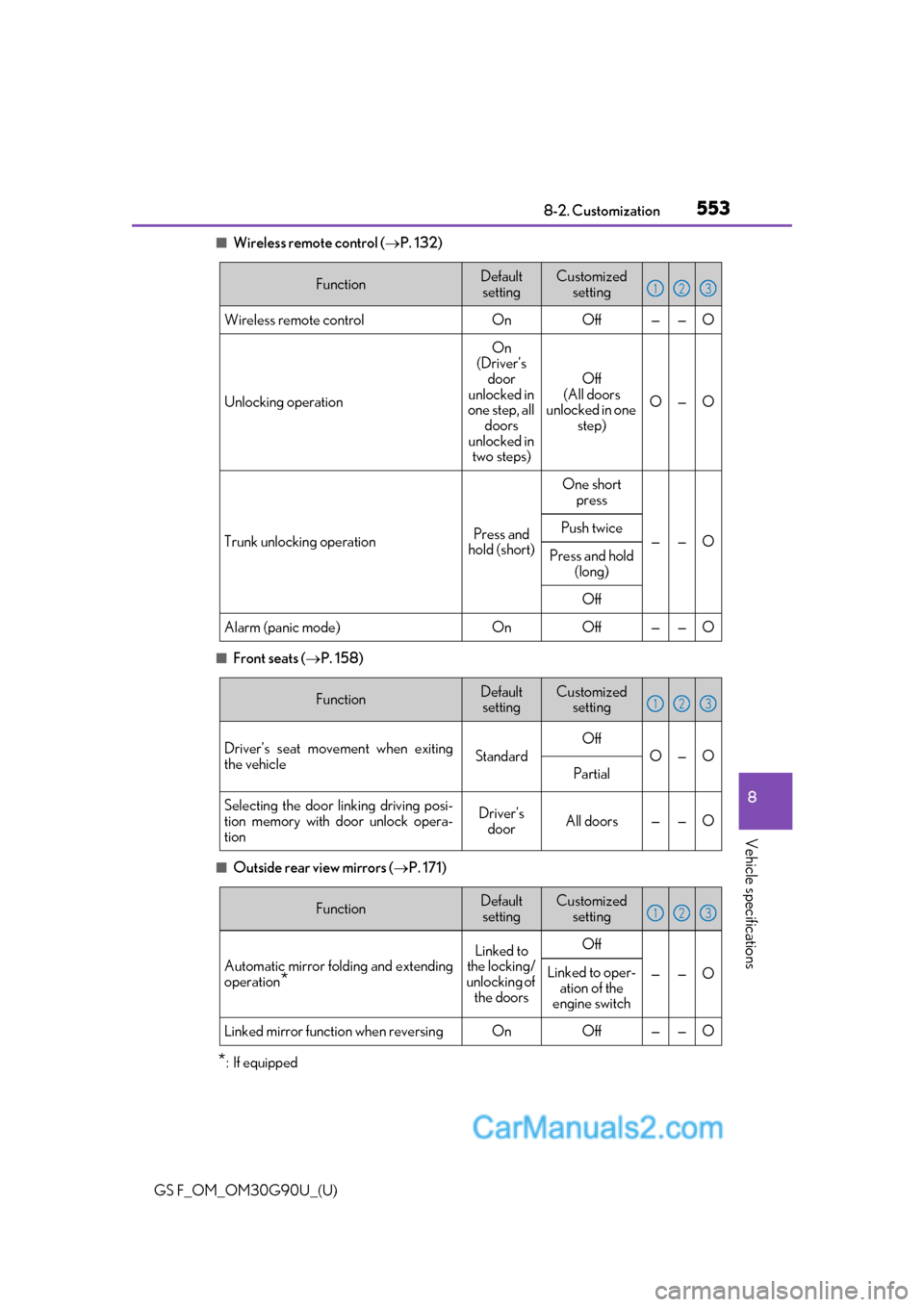

5538-2. Customization
8
Vehicle specifications
■Wireless remote control (P. 132)
■Front seats ( P. 158)
■Outside rear view mirrors ( P. 171)
*: If equipped
FunctionDefault
settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
On
(Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
Off
(All doors
unlocked in one step)
O—O
Trunk unlocking operationPress and
hold (short)
One short press
——OPush twice
Press and hold
(long)
Off
Alarm (panic mode)OnOff——O
123
FunctionDefaultsettingCustomized setting
Driver’s seat movement when exiting
the vehicleStandard
Off
O—O
Partial
Selecting the door linking driving posi-
tion memory with door unlock opera-
tionDriver’s doorAll doors——O
123
FunctionDefault
settingCustomized setting
Automatic mirror fold ing and extending
operation
*
Linked to
the locking/
unlocking of the doorsOff
——OLinked to oper- ation of the
engine switch
Linked mirror function when reversingOnOff——O
123

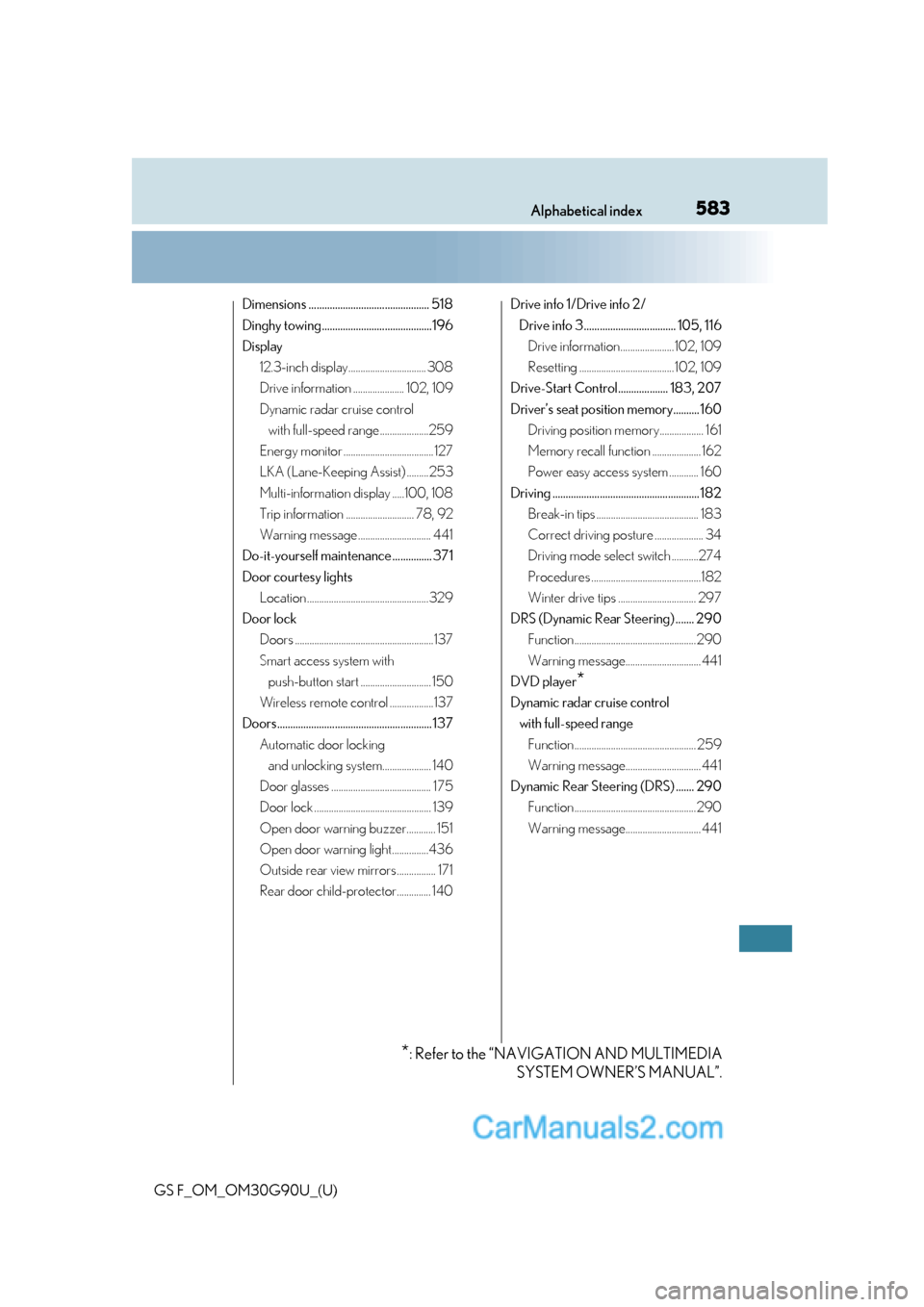

583Alphabetical index
GS F_OM_OM30G90U_(U)
Dimensions .............................................. 518
Dinghy towing..........................................196
Display12.3-inch display................................ 308
Drive information ..................... 102, 109
Dynamic radar cruise control with full-speed range ....................259
Energy monitor ..................................... 127
LKA (Lane-Keeping Assist) .........253
Multi-information display .....100, 108
Trip information ............................ 78, 92
Warning message .............................. 441
Do-it-yourself maintenance ............... 371
Door courtesy lights Location ..................................................329
Door lock Doors .........................................................137
Smart access system with push-button start ............................. 150
Wireless remote control ..................137
Doors........................................................... 137 Automatic door locking and unlocking system.................... 140
Door glasses ......................................... 175
Door lock ................................................ 139
Open door warning buzzer............ 151
Open door warning light...............436
Outside rear view mirrors ................ 171
Rear door child-protector.............. 140 Drive info 1/Drive info 2/
Drive info 3................................... 105, 116 Drive information...................... 102, 109
Resetting ....................................... 102, 109
Drive-Start Control................... 183, 207
Driver’s seat position memory.......... 160 Driving position memory.................. 161
Memory recall function .................... 162
Power easy access system ............ 160
Driving ........................................................ 182 Break-in tips .......................................... 183
Correct driving posture .................... 34
Driving mode select switch ...........274
Procedures .............................................182
Winter drive tips ................................ 297
DRS (Dynamic Rear Steering) ....... 290 Function .................................................. 290
Warning message............................... 441
DVD player
*
Dynamic radar cruise control with full-speed range Function .................................................. 259
Warning message............................... 441
Dynamic Rear Steering (DRS) ....... 290 Function .................................................. 290
Warning message............................... 441
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

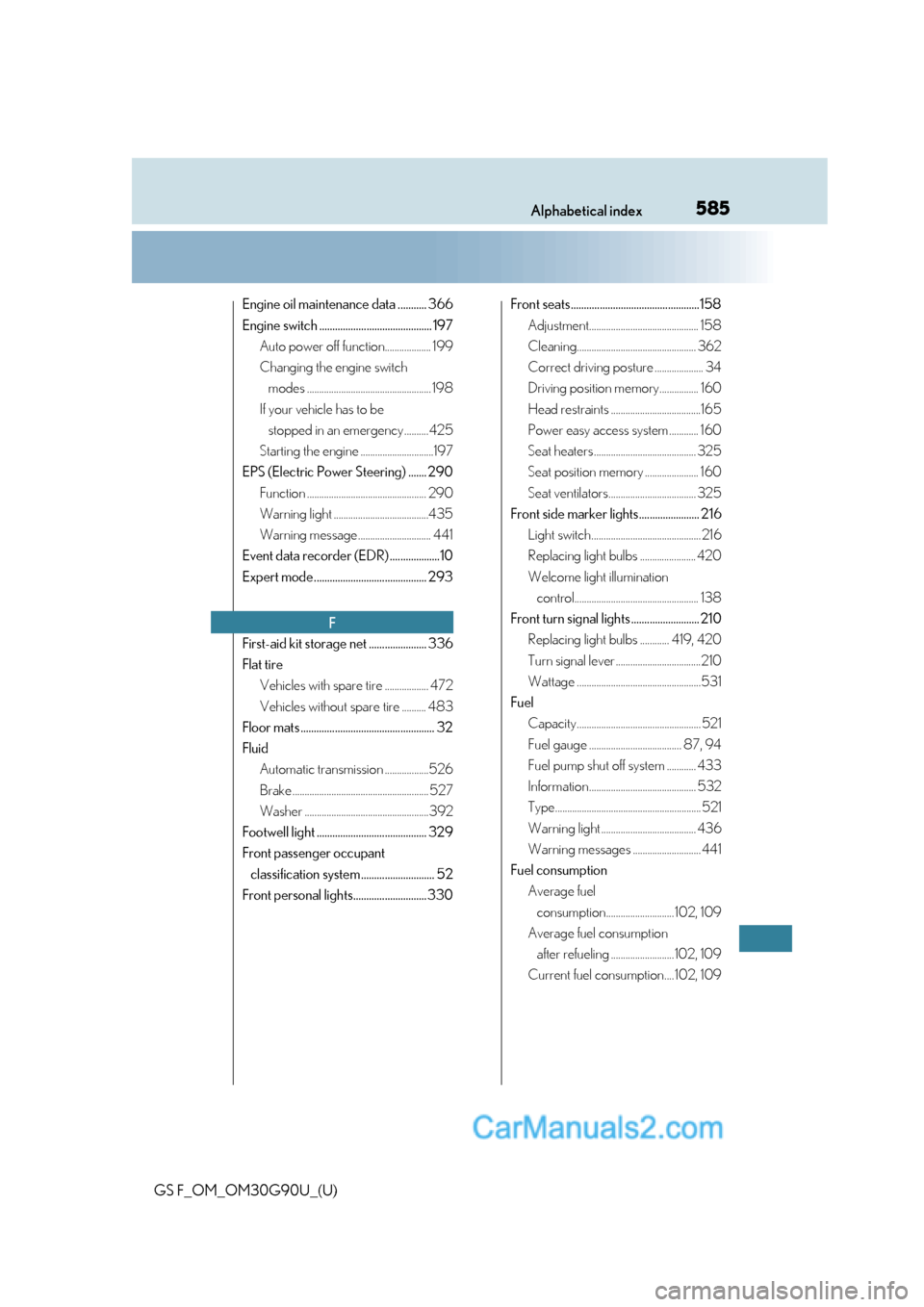

585Alphabetical index
GS F_OM_OM30G90U_(U)
Engine oil maintenance data ........... 366
Engine switch ........................................... 197Auto power off function................... 199
Changing the engine switch modes ................................................... 198
If your vehicle has to be stopped in an emergency ..........425
Starting the engine ..............................197
EPS (Electric Power Steering) ....... 290 Function ................................................. 290
Warning light .......................................435
Warning message .............................. 441
Event data recorder (EDR) ...................10
Expert mode ........................................... 293
First-aid kit storage net ...................... 336
Flat tire Vehicles with spare tire .................. 472
Vehicles without spare tire .......... 483
Floor mats ................................................... 32
Fluid Automatic transmission ..................526
Brake ........................................................ 527
Washer ...................................................392
Footwell light .......................................... 329
Front passenger occupant classification system ............................ 52
Front personal lights............................ 330 Front seats .................................................158
Adjustment............................................. 158
Cleaning................................................. 362
Correct driving posture .................... 34
Driving position memory................ 160
Head restraints .....................................165
Power easy access system ............ 160
Seat heaters .......................................... 325
Seat position memory ...................... 160
Seat ventilators.................................... 325
Front side marker lights....................... 216 Light switch............................................. 216
Replacing light bulbs ....................... 420
Welcome light illumination control................................................... 138
Front turn signal lights .......................... 210 Replacing light bulbs ............ 419, 420
Turn signal lever ...................................210
Wattage ...................................................531
Fuel Capacity................................................... 521
Fuel gauge ...................................... 87, 94
Fuel pump shut off system ............ 433
Information............................................ 532
Type............................................................ 521
Warning light ....................................... 436
Warning messages ............................ 441
Fuel consumption Average fuel consumption............................ 102, 109
Average fuel consumption after refueling .......................... 102, 109
Current fuel consumption.... 102, 109
F
